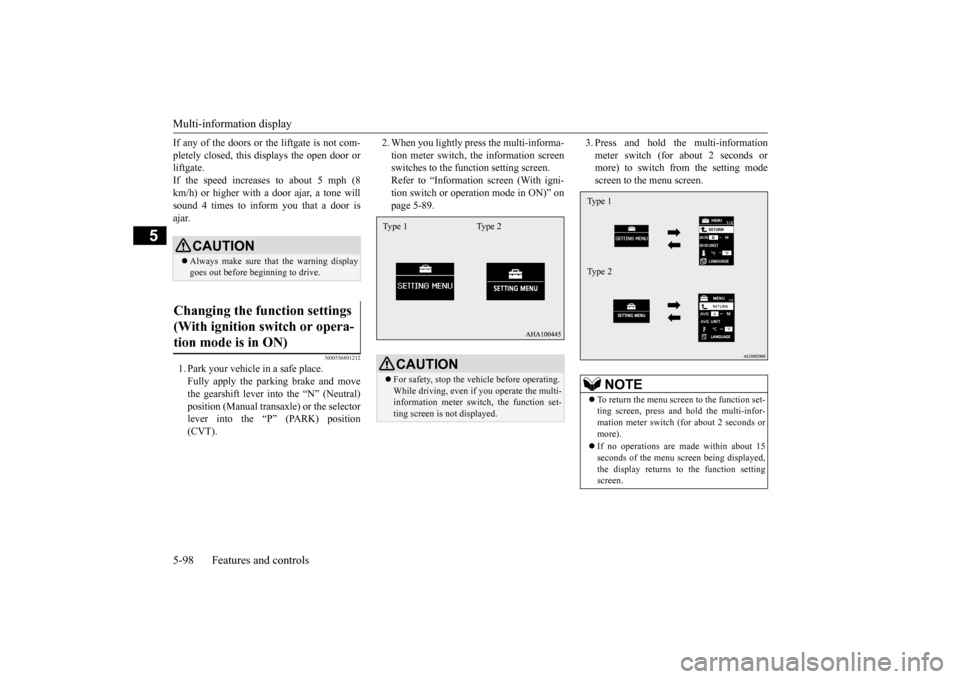

Multi-information display 5-98 Features and controls
5
If any of the doors or the liftgate is not com- pletely closed, this displays the open door or liftgate. If the speed increases to about 5 mph (8km/h) or higher with
a door ajar, a tone will
sound 4 times to inform you that a door is ajar.
N00556801212
1. Park your vehicle in a safe place.Fully apply the parking brake and movethe gearshift lever into the “N” (Neutral) position (Manual transaxle) or the selector lever into the “P” (PARK) position(CVT).
2. When you lightly press the multi-informa- tion meter switch, the information screen switches to the function setting screen. Refer to “Information screen (With igni-tion switch or operation mode in ON)” on page 5-89.
3. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.
CAUTION Always make sure that the warning display goes out before beginning to drive.
Changing the function settings (With ignition switch or opera- tion mode is in ON)
CAUTION For safety, stop the vehicle before operating. While driving, even if you operate the multi- information meter switch, the function set-ting screen is not displayed.Type 1 Type 2
NOTE
 To return the menu screen to the function set- ting screen, press and hold the multi-infor- mation meter switch (for about 2 seconds or more).  If no operations are made within about 15 seconds of the menu screen being displayed,the display returns to the function setting screen.Type 1 Type 2
BK0206700US.bo
ok 98 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Multi-information display

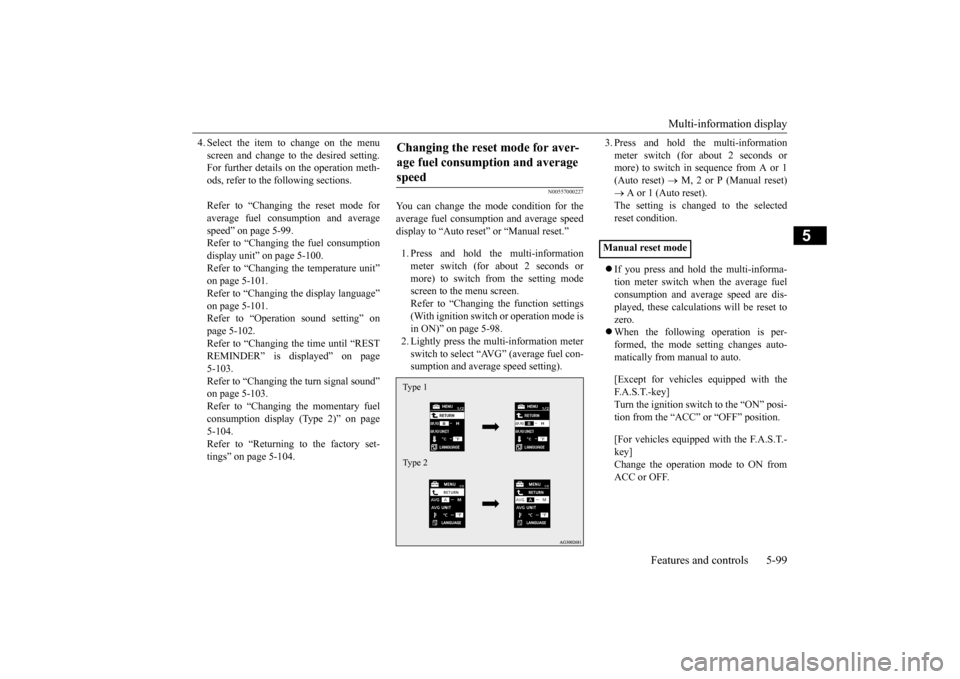

Features and controls 5-99
5
4. Select the item to change on the menu screen and change to the desired setting. For further details on the operation meth- ods, refer to the following sections. Refer to “Changing the reset mode for average fuel consumption and averagespeed” on page 5-99. Refer to “Changing the fuel consumption display unit” on page 5-100.Refer to “Changing the temperature unit”on page 5-101. Refer to “Changing the display language” on page 5-101.Refer to “Operation sound setting” on page 5-102. Refer to “Changing the time until “RESTREMINDER” is displayed” on page 5-103. Refer to “Changing the turn signal sound”on page 5-103. Refer to “Changing the momentary fuel consumption display (Type 2)” on page5-104. Refer to “Returning to the factory set- tings” on page 5-104.
N00557000227
You can change the mode condition for theaverage fuel consumption and average speed display to “Auto reset” or “Manual reset.” 1. Press and hold the multi-information meter switch (for about 2 seconds ormore) to switch from the setting modescreen to the menu screen. Refer to “Changing the function settings (With ignition switch or operation mode isin ON)” on page 5-98. 2. Lightly press the multi-information meter switch to select “AVG” (average fuel con-sumption and average speed setting).
3. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch in sequence from A or 1 (Auto reset)
 M, 2 or P (Manual reset)
 A or 1 (Auto reset). The setting is changed to the selected reset condition.  If you press and hold the multi-informa- tion meter switch when the average fuelconsumption and average speed are dis- played, these calculations will be reset to zero. When the following operation is per- formed, the mode setting changes auto- matically from manual to auto. [Except for vehicles equipped with the F. A . S . T. - k e y ] Turn the ignition switch to the “ON” posi- tion from the “ACC” or “OFF” position. [For vehicles equipped with the F.A.S.T.- key] Change the operation mode to ON from ACC or OFF.
Changing the reset mode for aver- age fuel consumption and average speed Type 1 Type 2
Manual reset mode
BK0206700US.bo
ok 99 ページ ２０１４年３月２５日　火曜日　午後４時４２分

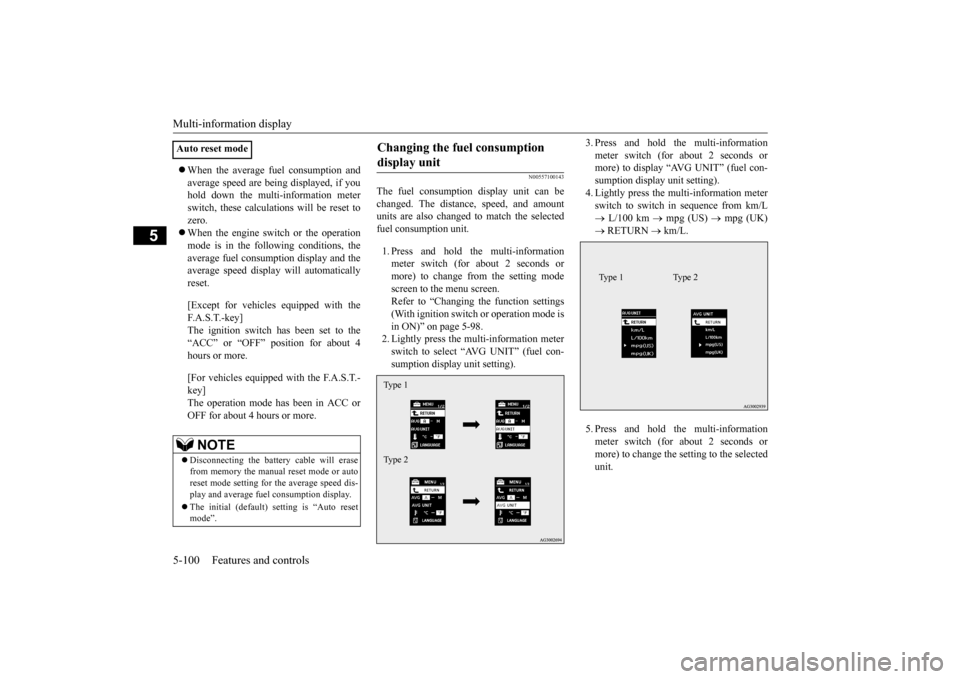

Multi-information display 5-100 Features and controls
5
 When the average fuel consumption and average speed are being displayed, if you hold down the multi-information meter switch, these calculations will be reset tozero.  When the engine switch or the operation mode is in the following conditions, theaverage fuel consumption display and the average speed display will automatically reset. [Except for vehicles equipped with the F. A . S . T. - k e y ]The ignition switch has been set to the “ACC” or “OFF” position for about 4 hours or more. [For vehicles equipped with the F.A.S.T.- key] The operation mode has been in ACC or OFF for about 4 hours or more.
N00557100143
The fuel consumption display unit can be changed. The distance, speed, and amount units are also changed to match the selectedfuel consumption unit. 1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting modescreen to the menu screen.Refer to “Changing the function settings (With ignition switch or operation mode is in ON)” on page 5-98.2. Lightly press the multi-information meter switch to select “AVG UNIT” (fuel con- sumption display unit setting).
3. Press and hold the multi-information meter switch (for about 2 seconds or more) to display “AVG UNIT” (fuel con- sumption display unit setting).4. Lightly press the multi-information meter switch to switch in sequence from km/L  L/100 km
 mpg (US)
 mpg (UK)
 RETURN
 km/L.
5. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the selected unit.
Auto reset mode
NOTE
 Disconnecting the battery cable will erase from memory the manual reset mode or autoreset mode setting for the average speed dis- play and average fuel consumption display.  The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit Type 1 Type 2
Type 1 Type 2
BK0206700US.book
100 ページ ２０１４年３月２５日　火曜日　午後４時４２分

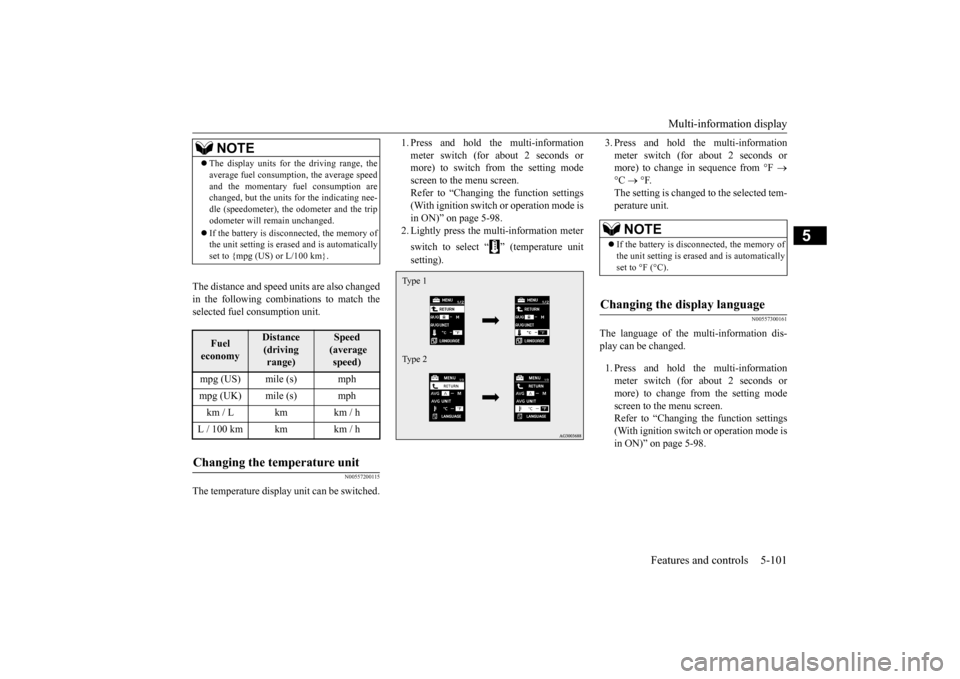

Multi-information display
Features and controls 5-101
5
The distance and speed units are also changed in the following combinations to match theselected fuel consumption unit.
N00557200115
The temperature display unit can be switched.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.Refer to “Changing the function settings (With ignition switch or operation mode is in ON)” on page 5-98.2. Lightly press the multi-information meter switch to select “ ” (temperature unit setting).
3. Press and hold the multi-information meter switch (for about 2 seconds or more) to change in sequence from °F

°C
 °F.
The setting is changed to the selected tem- perature unit.
N00557300161
The language of the multi-information dis- play can be changed. 1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting modescreen to the menu screen. Refer to “Changing the function settings (With ignition switch or operation mode isin ON)” on page 5-98.
NOTE
 The display units for the driving range, the average fuel consumption, the average speed and the momentary fuel consumption are changed, but the units for the indicating nee- dle (speedometer), the odometer and the tripodometer will remain unchanged.  If the battery is disconnected, the memory of the unit setting is erased and is automatically set to {mpg (US) or L/100 km}.Fuel economy
Distance (driving range)
Speed (average speed)
mpg (US) mile (s) mphmpg (UK) mile (s) mphkm / L km km / hL / 100 km km km / hChanging the temperature unit
Type 1 Type 2
NOTE
 If the battery is disconnected, the memory of the unit setting is erased and is automatically set to °F (°C).
Changing the display language
BK0206700US.book
101 ページ ２０１４年３月２５日　火曜日　午後４時４２分

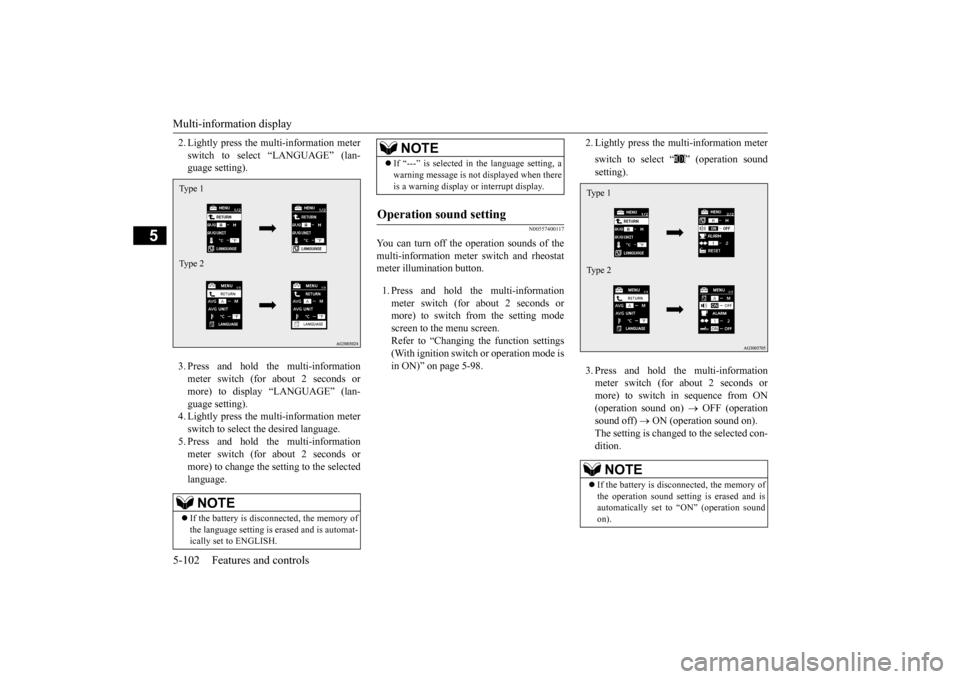

Multi-information display 5-102 Features and controls
5
2. Lightly press the multi-information meter switch to select “LANGUAGE” (lan- guage setting). 3. Press and hold the multi-information meter switch (for about 2 seconds or more) to display “LANGUAGE” (lan-guage setting). 4. Lightly press the multi-information meter switch to select the desired language.5. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the selectedlanguage.
N00557400117
You can turn off the operation sounds of themulti-information meter switch and rheostatmeter illumination button. 1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.Refer to “Changing the function settings (With ignition switch or operation mode is in ON)” on page 5-98.
2. Lightly press the multi-information meter switch to select “ ” (operation sound setting). 3. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch in sequence from ON(operation sound on)
 OFF (operation
sound off)
 ON (operation sound on).
The setting is changed to the selected con- dition.
NOTE
 If the battery is disconnected, the memory of the language setting is erased and is automat-ically set to ENGLISH.Type 1 Type 2
 If “---” is selected in the language setting, a warning message is not displayed when there is a warning display or interrupt display.
Operation sound setting
NOTE
NOTE
 If the battery is disconnected, the memory of the operation sound setting is erased and isautomatically set to “ON” (operation sound on).Type 1 Type 2
BK0206700US.book
102 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Multi-information display

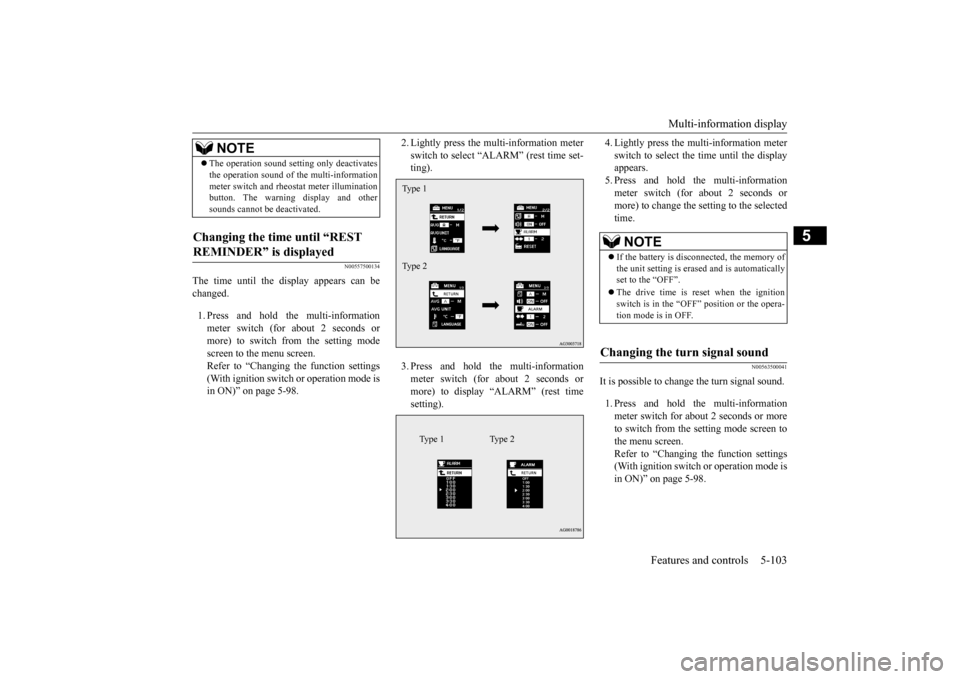

Features and controls 5-103
5
N00557500134
The time until the display appears can be changed. 1. Press and hold the multi-information meter switch (for about 2 seconds ormore) to switch from the setting mode screen to the menu screen. Refer to “Changing the function settings(With ignition switch or operation mode is in ON)” on page 5-98.
2. Lightly press the multi-information meter switch to select “ALARM” (rest time set- ting). 3. Press and hold the multi-information meter switch (for about 2 seconds or more) to display “ALARM” (rest timesetting).
4. Lightly press the multi-information meter switch to select the time until the display appears. 5. Press and hold the multi-informationmeter switch (for about 2 seconds or more) to change the setting to the selected time.
N00563500041
It is possible to change the turn signal sound. 1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.Refer to “Changing the function settings (With ignition switch or operation mode is in ON)” on page 5-98.
 The operation sound setting only deactivates the operation sound of the multi-information meter switch and rheostat meter illumination button. The warning display and other sounds cannot be deactivated.
Changing the time until “REST REMINDER” is displayed
NOTE
Type 1 Type 2
Type 1 Type 2
NOTE
 If the battery is disconnected, the memory of the unit setting is erased and is automatically set to the “OFF”.  The drive time is reset when the ignition switch is in the “OFF” position or the opera- tion mode is in OFF.
Changing the turn signal sound
BK0206700US.book
103 ページ ２０１４年３月２５日　火曜日　午後４時４２分

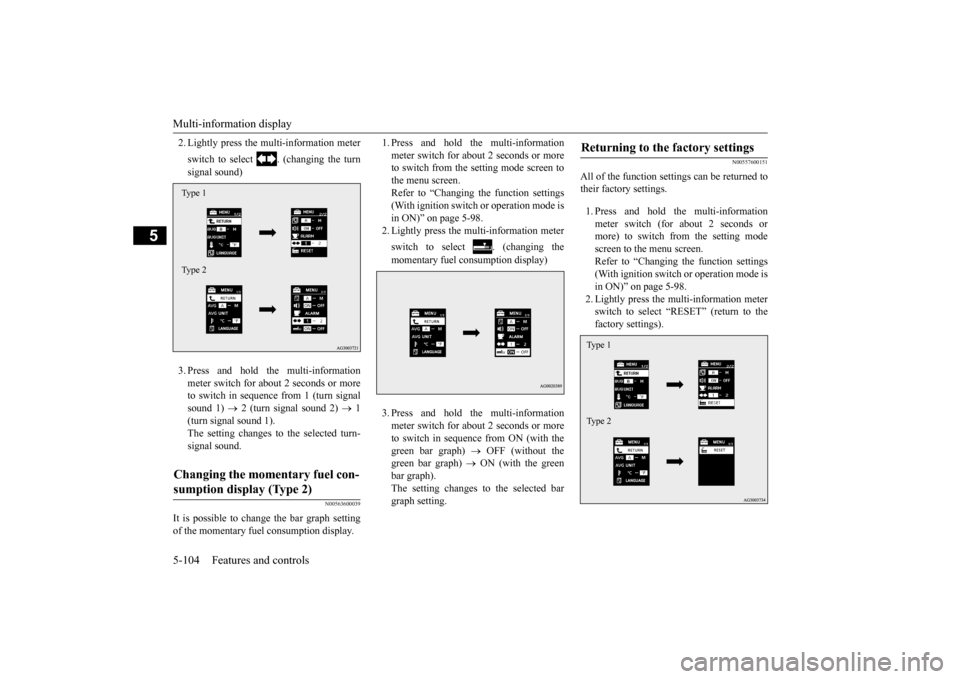

Multi-information display 5-104 Features and controls
5
2. Lightly press the multi-information meter switch to select . (changing the turn signal sound) 3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from 1 (turn signal sound 1)
 2 (turn signal sound 2)
 1
(turn signal sound 1). The setting changes to the selected turn- signal sound.
N00563600039
It is possible to change the bar graph setting of the momentary fuel consumption display.
1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.Refer to “Changing the function settings (With ignition switch or operation mode is in ON)” on page 5-98.2. Lightly press the multi-information meter switch to select . (changing the momentary fuel consumption display) 3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from ON (with thegreen bar graph)
 OFF (without the
green bar graph)
 ON (with the green
bar graph).The setting changes to the selected bargraph setting.
N00557600151
All of the function settings can be returned totheir factory settings. 1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.Refer to “Changing the function settings (With ignition switch or operation mode is in ON)” on page 5-98.2. Lightly press the multi-information meterswitch to select “RESET” (return to the factory settings).
Changing the momentary fuel con- sumption display (Type 2) Type 1 Type 2
Returning to the factory settings Type 1 Type 2
BK0206700US.book
104 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an

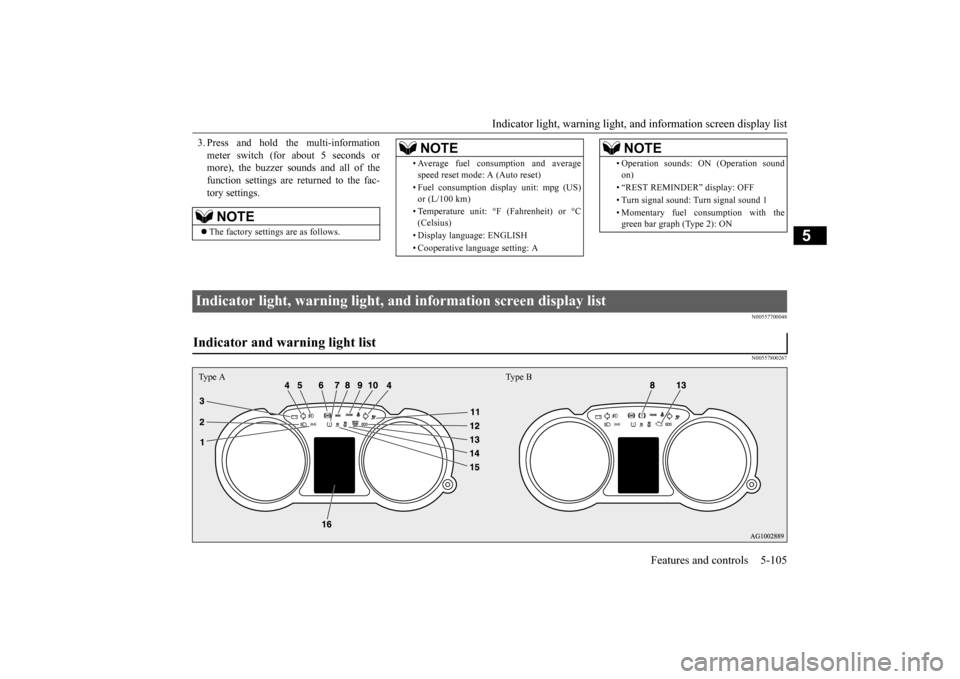

d information screen display list Features and controls 5-105
5
3. Press and hold the multi-information meter switch (for about 5 seconds or more), the buzzer sounds and all of the function settings are returned to the fac-tory settings.
N00557700048 N00557800267
NOTE
 The factory settings are as follows.
• Average fuel consumption and average speed reset mode: A (Auto reset) • Fuel consumption display unit: mpg (US) or (L/100 km) • Temperature unit: °F (Fahrenheit) or °C (Celsius) • Display language: ENGLISH • Cooperative language setting: ANOTE
• Operation sounds: ON (Operation sound on) • “REST REMINDER” display: OFF • Turn signal sound: Turn signal sound 1 • Momentary fuel consumption with the green bar graph (Type 2): ONNOTE
Indicator light, warning light, and information screen display list Indicator and warning light list Type A Type B
BK0206700US.book
105 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list

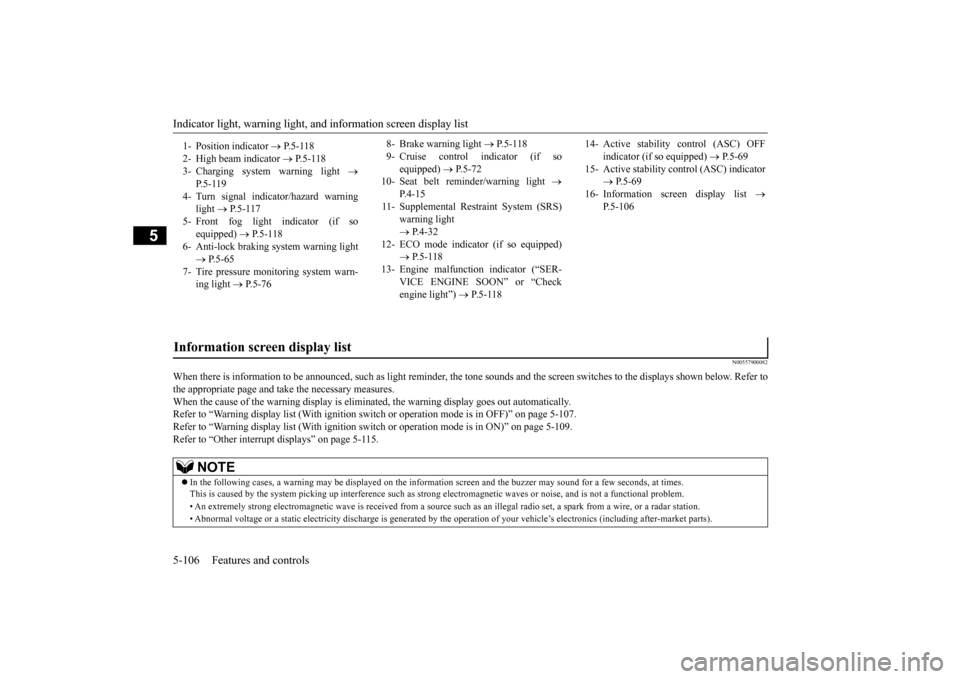

5-106 Features and controls
5
N00557900082
When there is information to be announced,
such as light reminder, the tone sounds an
d the screen switches to the displays show
n below. Refer to
the appropriate page and take the necessary measures. When the cause of the warning display is eliminated, the warning display goes out automatically.Refer to “Warning display list (With ignition switch or operation mode is in OFF)” on page 5-107. Refer to “Warning display list (With ignition switch or operation mode is in ON)” on page 5-109. Refer to “Other interrupt displays” on page 5-115. 1- Position indicator
 P.5-118
2- High beam indicator
 P.5-118
3- Charging system warning light

P. 5 - 1 1 9
4- Turn signal indicator/hazard warning
light
 P.5-117
5- Front fog light indicator (if so
equipped)
 P.5-118
6- Anti-lock braking system warning light
 P.5-65
7- Tire pressure monitoring system warn-
ing light
 P.5-76
8- Brake warning light
 P. 5 - 1 1 8
9- Cruise control indicator (if so
equipped)
 P.5-72
10- Seat belt reminder/warning light

P. 4 - 1 5
11- Supplemental Restraint System (SRS)
warning light  P.4-32
12- ECO mode indicator (if so equipped)
 P.5-118
13- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Checkengine light”)
 P.5-118
14- Active stability control (ASC) OFF
indicator (if so equipped)
 P.5-69
15- Active stability control (ASC) indicator
 P.5-69
16- Information screen display list

P.5-106
Information screen display list
NOTE
 In the following cases, a warning may be displayed on the inform
ation screen and the buzzer may
sound for a few seconds, at tim
es.
This is caused by the system picking up interference such as stro
ng electromagnetic waves or nois
e, and is not a functional pro
blem.
• An extremely strong electromagnetic wave is received from a source
such as an illegal radio set,
a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static electricity discharge is genera
ted by the operation of your vehicle’s electronics (including afte
r-market parts).
BK0206700US.book
106 ページ ２０１４年３月２５日　火曜日　午後４時４２分

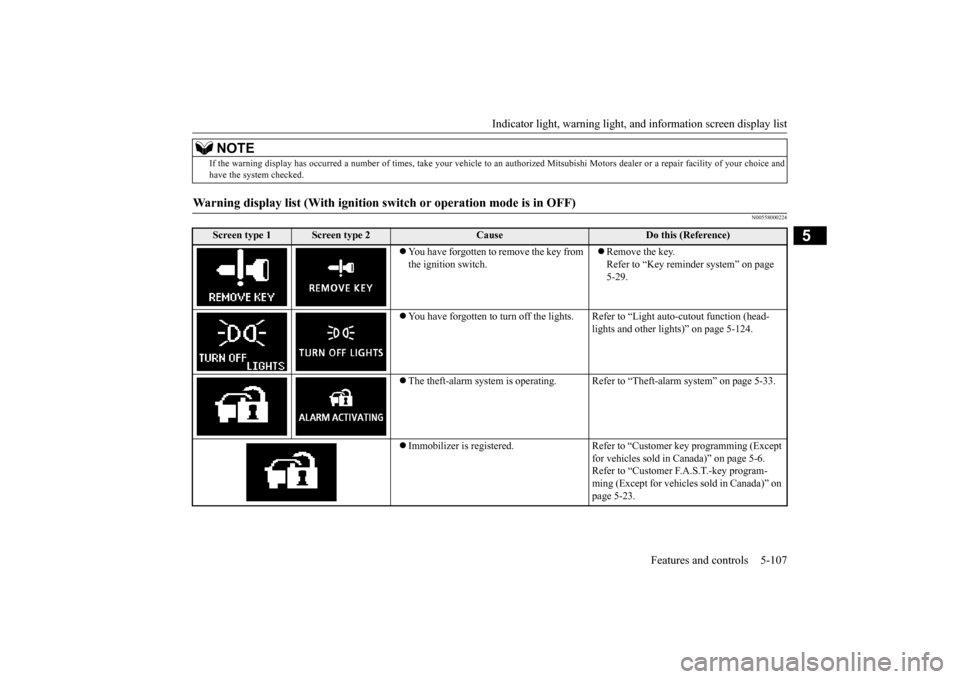

Indicator light, warning light, an
d information screen display list Features and controls 5-107
5
N00558000224
If the warning display has occurred a number of times, take your ve
hicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and
have the system checked.
Warning display list (With ignition swit
ch or operation mode is in OFF)
Screen type 1
Screen type 2
Cause
Do this (Reference)
 You have forgotten to remove the key from the ignition switch.
 Remove the key. Refer to “Key reminder system” on page 5-29.
 You have forgotten to turn off the lights.
Refer to “Light auto-cutout function (head- lights and other lights)” on page 5-124.
 The theft-alarm system is operating. Refer to “Theft-alarm system” on page 5-33.  Immobilizer is registered. Refer to “Customer key programming (Except
for vehicles sold in Canada)” on page 5-6. Refer to “Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)” on page 5-23.
NOTE
