3-30 Features and controls
3
F.A.S.T.-key take-out monitoring system
N00559800102
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, and a door is opened and the F.A.S.T.-key is
removed from the passenger compartment so that the ID codes
of the F.A.S.T.-key and the vehicle can no longer be verified,
the warning display is displayed and the buzzer sounds 4 times
as a warning.NOTE

The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.


The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900073
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors and the tailgate are closed, and someone tries to lock
the vehicle by pressing the LOCK switch of the doors and the
tailgate, the warning display is displayed and the buzzer sounds
for about 3 seconds as a warning, and the doors and the tailgate
cannot be locked.
BK0115300US.book 30 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-31
3
Door ajar prevention system
N00560000074
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, and someone tries to lock the vehicle by pressing the
LOCK switch of the doors and the tailgate while one of the
doors or the tailgate is not fully closed, the warning display is
displayed and the buzzer sounds for about 3 seconds as a warn-
ing, and the doors and the tailgate cannot be locked.
Ignition switch turn-off reminder system
N00560100075
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, all the doors and the tailgate are closed, and
someone tries to lock the vehicle by pressing the LOCK switch
of the doors and the tailgate, the warning display is displayed
and the buzzer sounds for about 3 seconds as a warning, and
the doors and the tailgate cannot be locked.
BK0115300US.book 31 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-32 Features and controls
3

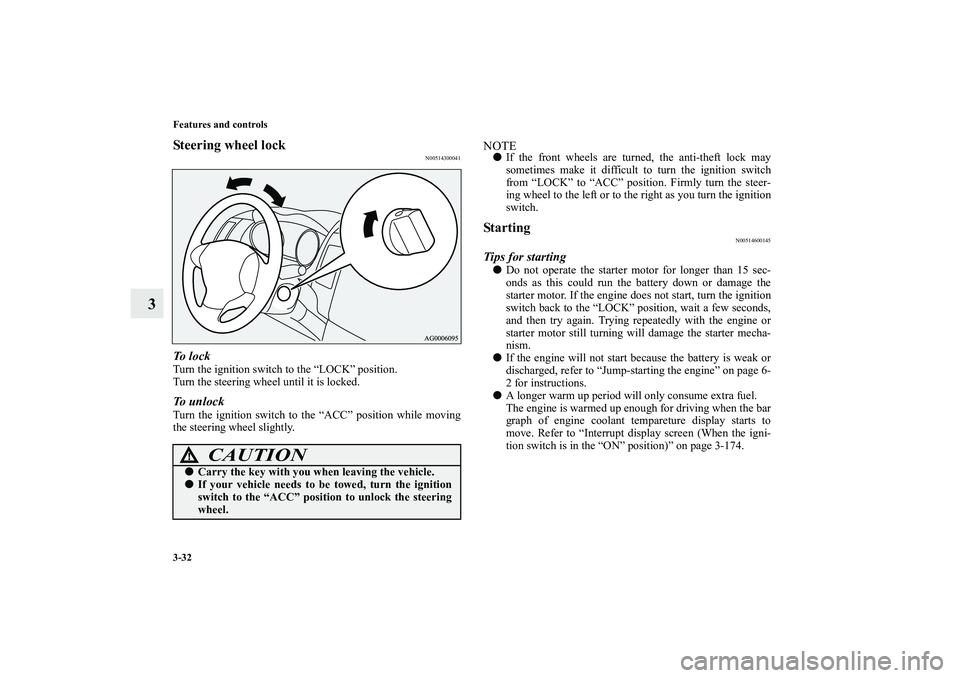

Steering wheel lock
N00514300041
To l o c kTurn the ignition switch to the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the ignition switch to the “ACC” position while moving
the steering wheel slightly.
NOTE

If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the ignition switch
from “LOCK” to “ACC” position. Firmly turn the steer-
ing wheel to the left or to the right as you turn the ignition
switch.
Starting
N00514600145
Tips for starting

Do not operate the starter motor for longer than 15 sec-
onds as this could run the battery down or damage the
starter motor. If the engine does not start, turn the ignition
switch back to the “LOCK” position, wait a few seconds,
and then try again. Trying repeatedly with the engine or
starter motor still turning will damage the starter mecha-
nism.


If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.


A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of engine coolant tempareture display starts to
move. Refer to “Interrupt display screen (When the igni-
tion switch is in the “ON” position)” on page 3-174.
CAUTION
!

Carry the key with you when leaving the vehicle.


If your vehicle needs to be towed, turn the ignition
switch to the “ACC” position to unlock the steering
wheel.
BK0115300US.book 32 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-33
3

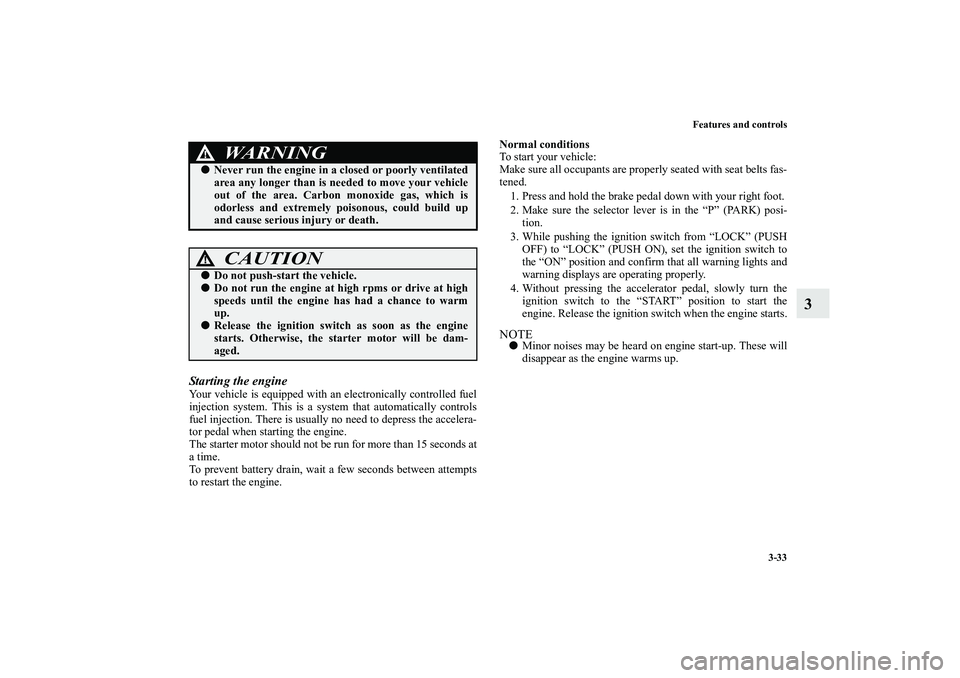

Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.Normal conditions
To start your vehicle:
Make sure all occupants are properly seated with seat belts fas-
tened.
1. Press and hold the brake pedal down with your right foot.
2. Make sure the selector lever is in the “P” (PARK) posi-
tion.
3. While pushing the ignition switch from “LOCK” (PUSH
OFF) to “LOCK” (PUSH ON), set the ignition switch to
the “ON” position and confirm that all warning lights and
warning displays are operating properly.
4. Without pressing the accelerator pedal, slowly turn the
ignition switch to the “START” position to start the
engine. Release the ignition switch when the engine starts.
NOTE

Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
WA R N I N G
!

Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.CAUTION
!

Do not push-start the vehicle.


Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.


Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0115300US.book 33 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-34 Features and controls
3

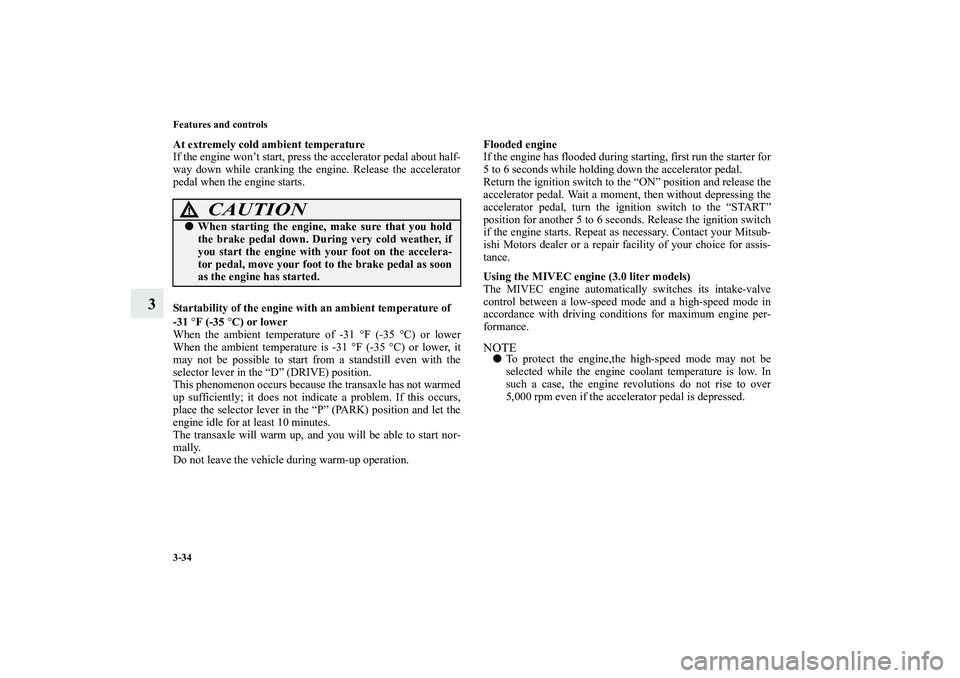

At extremely cold ambient temperature
If the engine won’t start, press the accelerator pedal about half-
way down while cranking the engine. Release the accelerator
pedal when the engine starts.
Startability of the engine with an ambient temperature of
-31 °F (-35 °C) or lower
When the ambient temperature of -31 °F (-35 °C) or lower
When the ambient temperature is -31 °F (-35 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.Flooded engine
If the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Return the ignition switch to the “ON” position and release the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition switch
if the engine starts. Repeat as necessary. Contact your Mitsub-
ishi Motors dealer or a repair facility of your choice for assis-
tance.
Using the MIVEC engine (3.0 liter models)
The MIVEC engine automatically switches its intake-valve
control between a low-speed mode and a high-speed mode in
accordance with driving conditions for maximum engine per-
formance.
NOTE

To protect the engine,the high-speed mode may not be
selected while the engine coolant temperature is low. In
such a case, the engine revolutions do not rise to over
5,000 rpm even if the accelerator pedal is depressed.
CAUTION
!

When starting the engine, make sure that you hold
the brake pedal down. During very cold weather, if
you start the engine with your foot on the accelera-
tor pedal, move your foot to the brake pedal as soon
as the engine has started.
BK0115300US.book 34 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-35
3

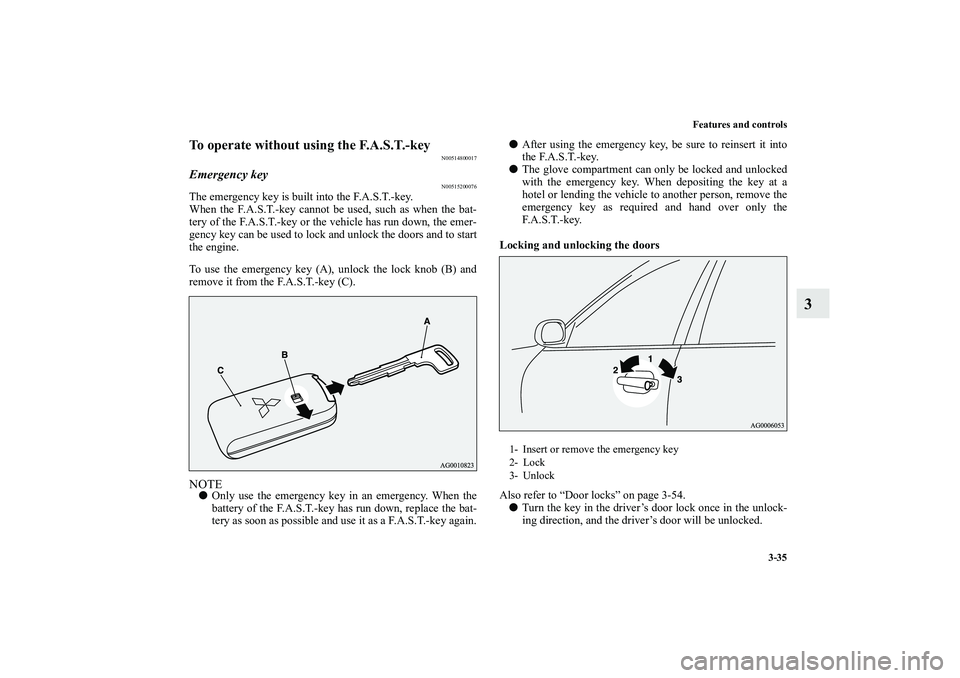

To operate without using the F.A.S.T.-key
N00514800017
Emergency key
N00515200076
The emergency key is built into the F.A.S.T.-key.
When the F.A.S.T.-key cannot be used, such as when the bat-
tery of the F.A.S.T.-key or the vehicle has run down, the emer-
gency key can be used to lock and unlock the doors and to start
the engine.
To use the emergency key (A), unlock the lock knob (B) and
remove it from the F.A.S.T.-key (C).NOTE

Only use the emergency key in an emergency. When the
battery of the F.A.S.T.-key has run down, replace the bat-
tery as soon as possible and use it as a F.A.S.T.-key again.


After using the emergency key, be sure to reinsert it into
the F.A.S.T.-key.


The glove compartment can only be locked and unlocked
with the emergency key. When depositing the key at a
hotel or lending the vehicle to another person, remove the
emergency key as required and hand over only the
F. A . S . T. - k e y.
Locking and unlocking the doors

Also refer to “Door locks” on page 3-54.


Turn the key in the driver’s door lock once in the unlock-
ing direction, and the driver’s door will be unlocked.
1- Insert or remove the emergency key
2- Lock
3- Unlock
BK0115300US.book 35 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-36 Features and controls
3

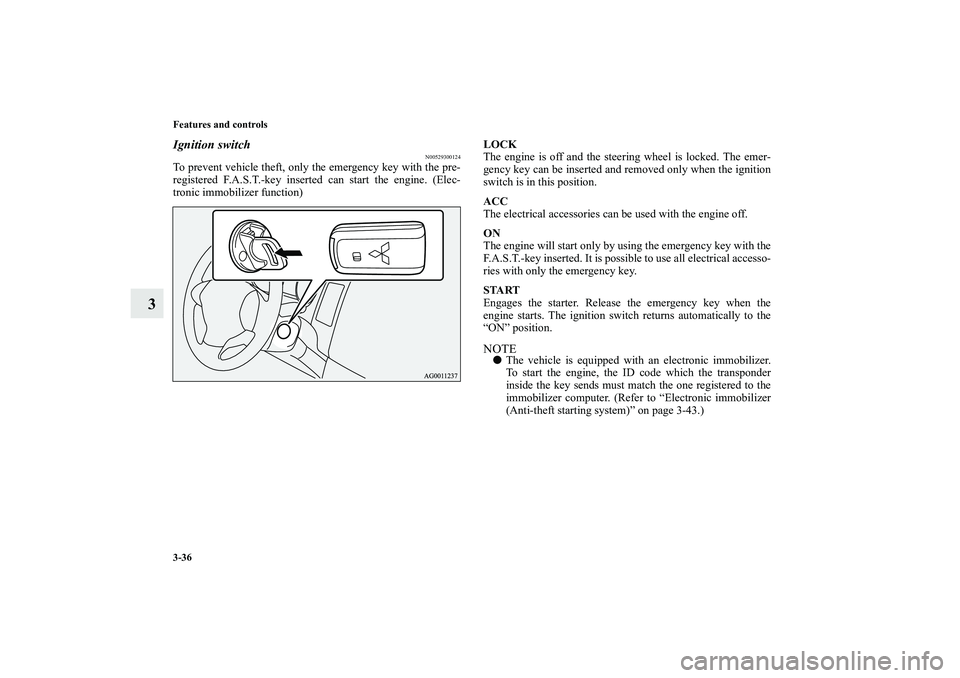

Ignition switch
N00529300124
To prevent vehicle theft, only the emergency key with the pre-
registered F.A.S.T.-key inserted can start the engine. (Elec-
tronic immobilizer function)LOCK
The engine is off and the steering wheel is locked. The emer-
gency key can be inserted and removed only when the ignition
switch is in this position.
ACC
The electrical accessories can be used with the engine off.
ON
The engine will start only by using the emergency key with the
F.A.S.T.-key inserted. It is possible to use all electrical accesso-
ries with only the emergency key.
START
Engages the starter. Release the emergency key when the
engine starts. The ignition switch returns automatically to the
“ON” position.
NOTE

The vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer. (Refer to “Electronic immobilizer
(Anti-theft starting system)” on page 3-43.)
BK0115300US.book 36 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-37
3

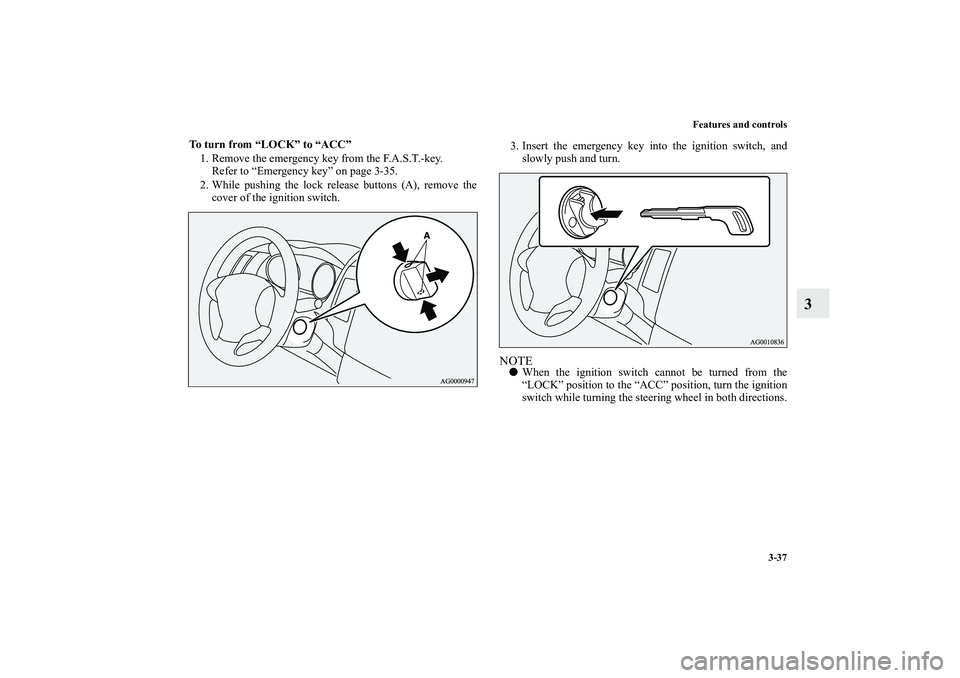

To turn from “LOCK” to “ACC”
1. Remove the emergency key from the F.A.S.T.-key.
Refer to “Emergency key” on page 3-35.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.3. Insert the emergency key into the ignition switch, and
slowly push and turn.
NOTE

When the ignition switch cannot be turned from the
“LOCK” position to the “ACC” position, turn the ignition
switch while turning the steering wheel in both directions.
BK0115300US.book 37 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-38 Features and controls
3

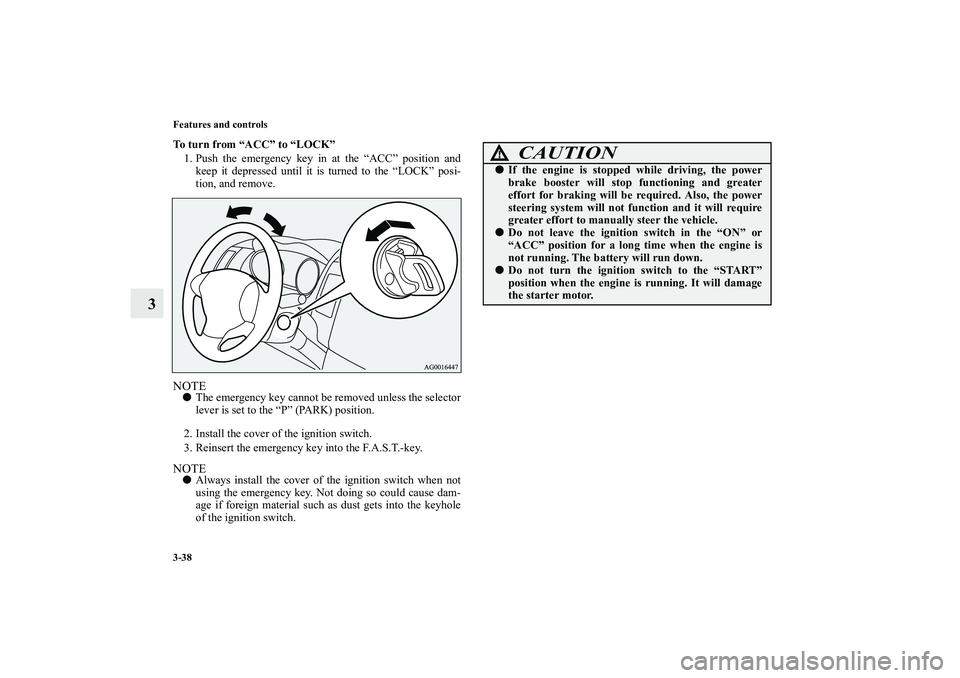

To turn from “ACC” to “LOCK”
1. Push the emergency key in at the “ACC” position and
keep it depressed until it is turned to the “LOCK” posi-
tion, and remove.NOTE

The emergency key cannot be removed unless the selector
lever is set to the “P” (PARK) position.
2. Install the cover of the ignition switch.
3. Reinsert the emergency key into the F.A.S.T.-key.
NOTE

Always install the cover of the ignition switch when not
using the emergency key. Not doing so could cause dam-
age if foreign material such as dust gets into the keyhole
of the ignition switch.
CAUTION
!

If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.


Do not leave the ignition switch in the “ON” or
“ACC” position for a long time when the engine is
not running. The battery will run down.


Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
BK0115300US.book 38 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-39
3

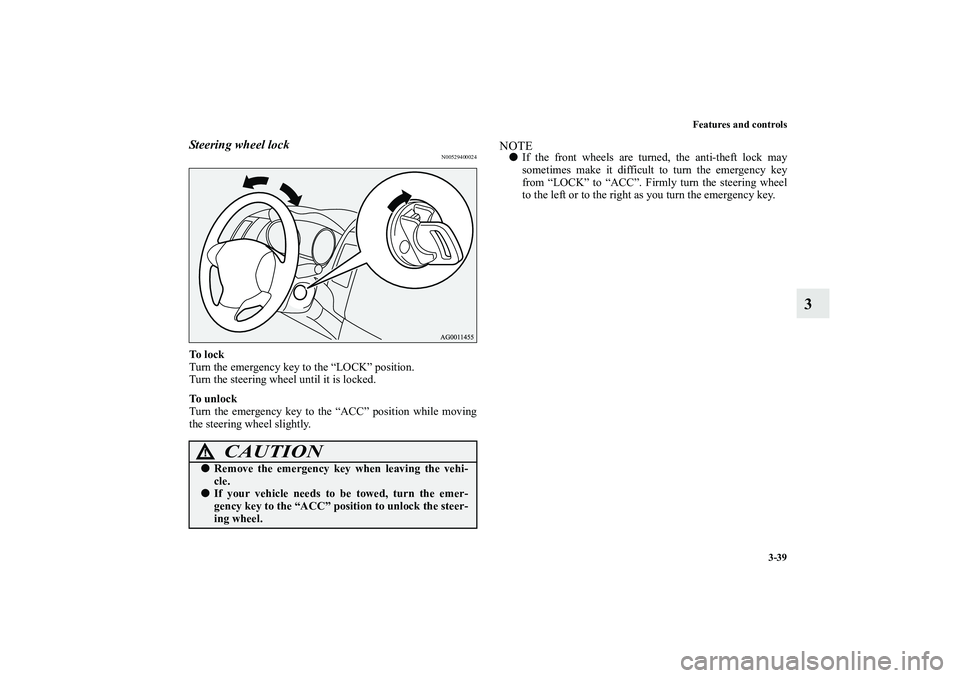

Steering wheel lock
N00529400024
To l o c k
Turn the emergency key to the “LOCK” position.
Turn the steering wheel until it is locked.
To u n l o c k
Turn the emergency key to the “ACC” position while moving
the steering wheel slightly.
NOTE

If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the emergency key
from “LOCK” to “ACC”. Firmly turn the steering wheel
to the left or to the right as you turn the emergency key.
CAUTION
!

Remove the emergency key when leaving the vehi-
cle.


If your vehicle needs to be towed, turn the emer-
gency key to the “ACC” position to unlock the steer-
ing wheel.
BK0115300US.book 39 ページ ２００９年７月１６日　木曜日　午前９時１３分
