MITSUBISHI OUTLANDER XL 2010 Owners Manual
Manufacturer: MITSUBISHI, Model Year: 2010, Model line: OUTLANDER XL, Model: MITSUBISHI OUTLANDER XL 2010Pages: 714, PDF Size: 22.5 MB

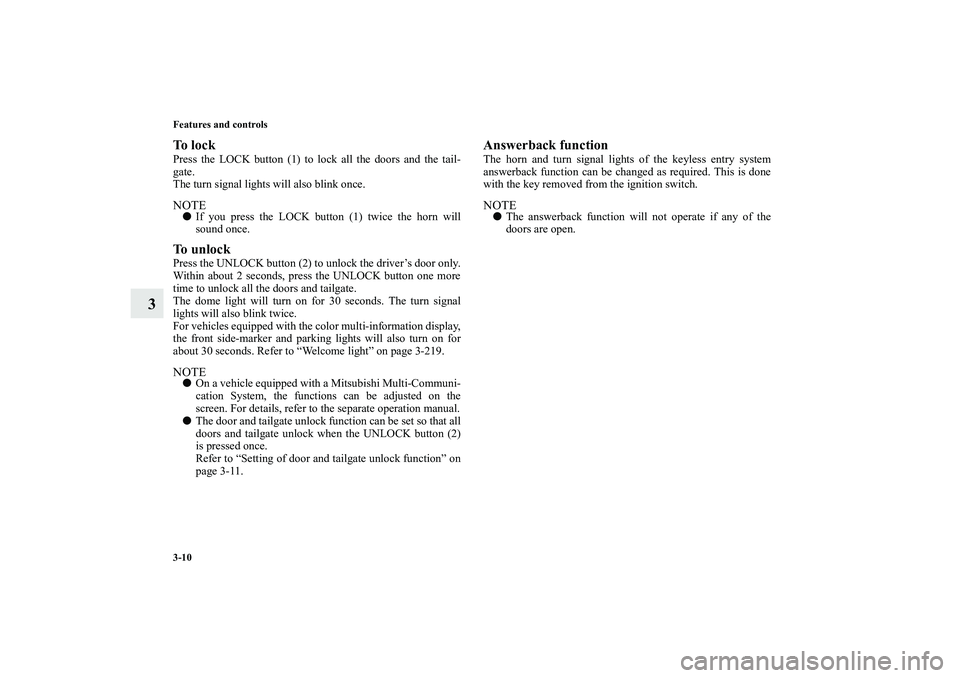

Page 121 of 714
3-10 Features and controls
3
To l o c kPress the LOCK button (1) to lock all the doors and the tail-
gate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice the horn will
sound once.
To unlockPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and tailgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
For vehicles equipped with the color multi-information display,
the front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-219.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
The door and tailgate unlock function can be set so that all
doors and tailgate unlock when the UNLOCK button (2)
is pressed once.
Refer to “Setting of door and tailgate unlock function” on
page 3-11.
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTE
The answerback function will not operate if any of the
doors are open.
BK0115300US.book 10 ページ ２００９年７月１６日 木曜日 午前９時１３分

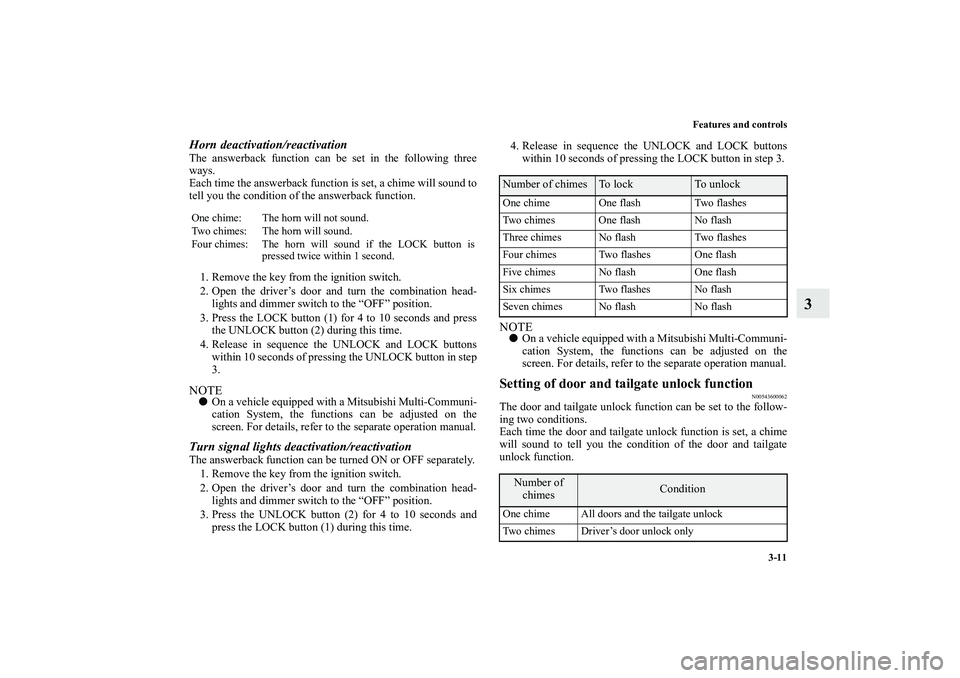

Page 122 of 714
Features and controls
3-11
3
Horn deactivation/reactivationThe answerback function can be set in the following three
ways.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Turn signal lights deactivation/reactivationThe answerback function can be turned ON or OFF separately.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Setting of door and tailgate unlock function
N00543600062
The door and tailgate unlock function can be set to the follow-
ing two conditions.
Each time the door and tailgate unlock function is set, a chime
will sound to tell you the condition of the door and tailgate
unlock function.
One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flashNumber of
chimes
Condition
One chime All doors and the tailgate unlock
Two chimes Driver’s door unlock only
BK0115300US.book 11 ページ ２００９年７月１６日 木曜日 午前９時１３分

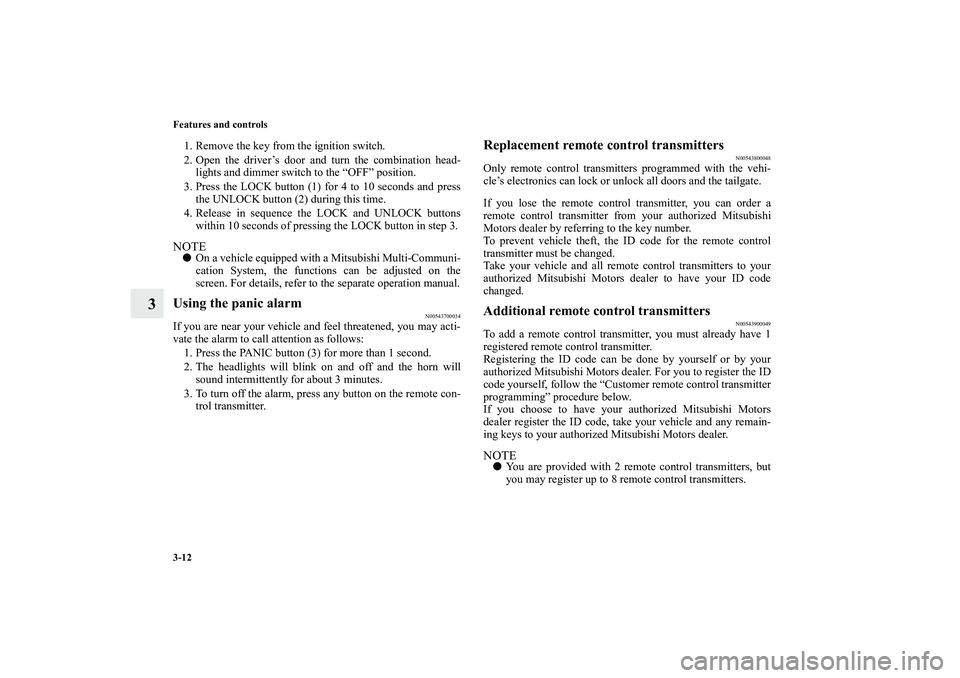

Page 123 of 714
3-12 Features and controls
3
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800048
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the tailgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.Additional remote control transmitters
N00543900049
To add a remote control transmitter, you must already have 1
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 remote control transmitters, but
you may register up to 8 remote control transmitters.
BK0115300US.book 12 ページ ２００９年７月１６日 木曜日 午前９時１３分

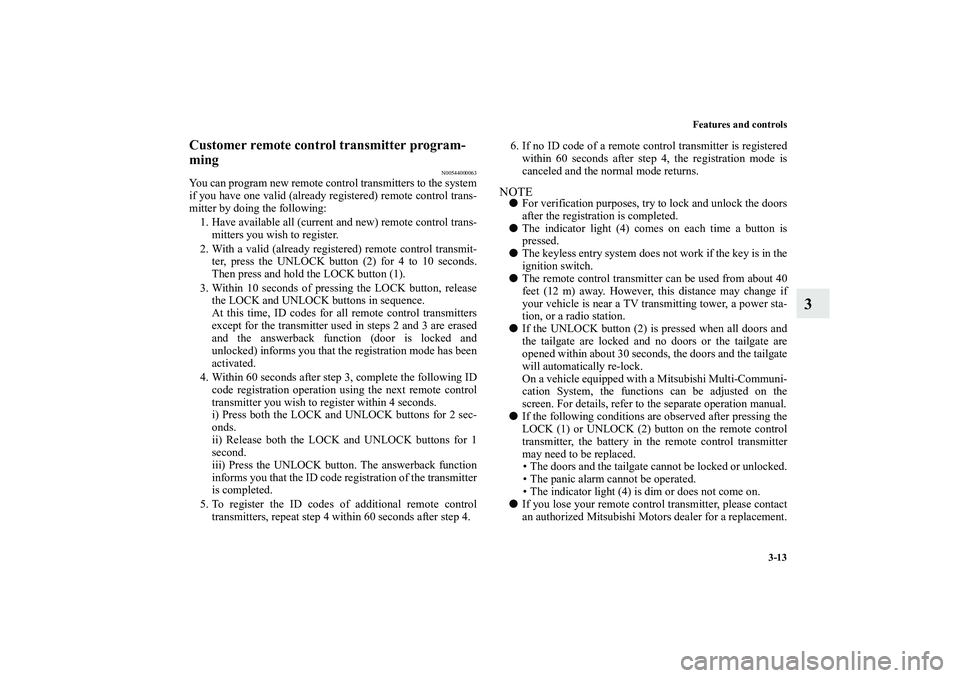

Page 124 of 714
Features and controls
3-13
3
Customer remote control transmitter program-
ming
N00544000063
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.
The indicator light (4) comes on each time a button is
pressed.
The keyless entry system does not work if the key is in the
ignition switch.
The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.
If the UNLOCK button (2) is pressed when all doors and
the tailgate are locked and no doors or the tailgate are
opened within about 30 seconds, the doors and the tailgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
The doors and the tailgate cannot be locked or unlocked.
The panic alarm cannot be operated.
The indicator light (4) is dim or does not come on.
If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0115300US.book 13 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 125 of 714
3-14 Features and controls
3
If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 8 remote control transmitters can
be programmed for your vehicle.
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-7.
General information
N00546100039
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Procedure for replacing the remote control trans-
mitter battery
N00544100051
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0115300US.book 14 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 126 of 714
Features and controls
3-15
3
2. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
3. Remove the old battery.4. Install a new battery with the + side (A) down.
5. Close the remote control transmitter firmly.
6. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
7. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.
An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
BK0115300US.book 15 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 127 of 714

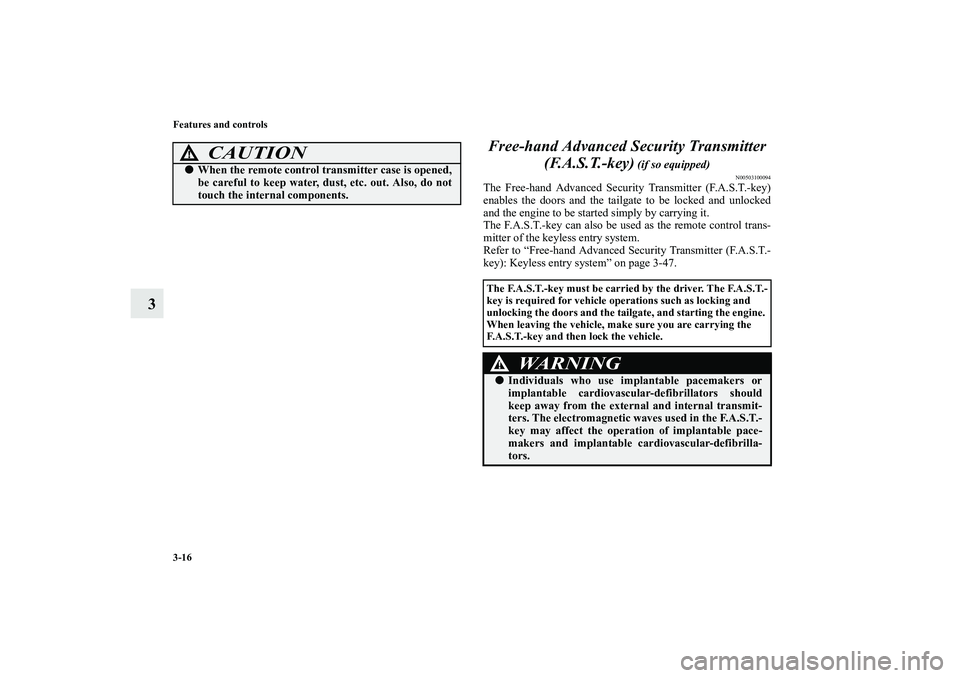

3-16 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100094
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the tailgate to be locked and unlocked
and the engine to be started simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-47.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the tailgate, and starting the engine.
When leaving the vehicle, make sure you are carrying the
F.A.S.T.-key and then lock the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0115300US.book 16 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 128 of 714
Features and controls
3-17
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
Enabling only the locking and unlocking of the doors
and the tailgate
Enabling only the starting of the engine
Deactivating the F.A.S.T.-key

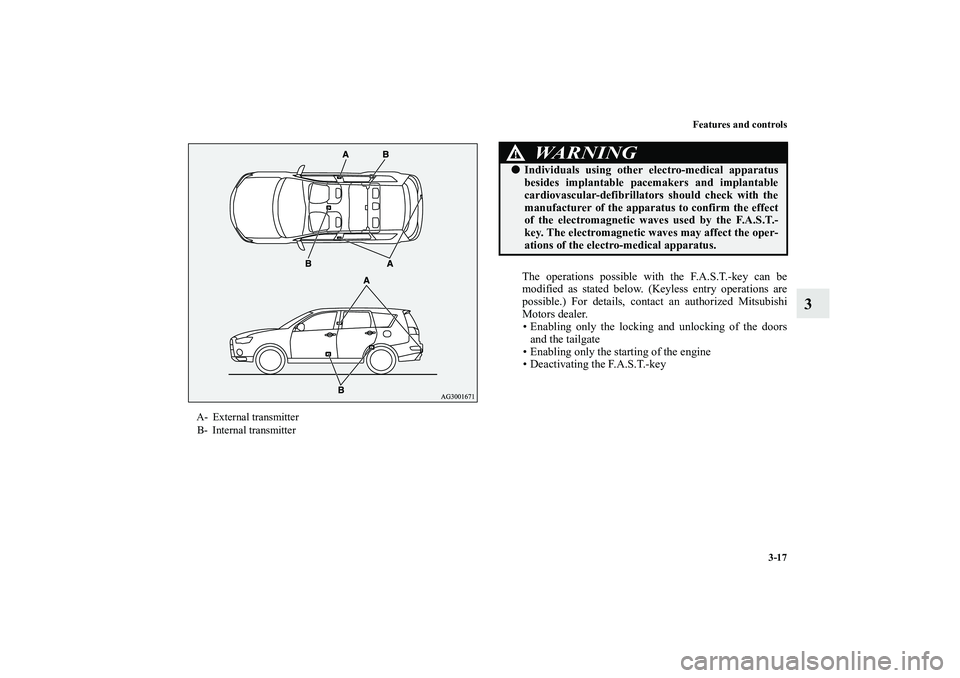

A- External transmitter
B- Internal transmitter
WA R N I N G
!
Individuals using other electro-medical apparatus
besides implantable pacemakers and implantable
cardiovascular-defibrillators should check with the
manufacturer of the apparatus to confirm the effect
of the electromagnetic waves used by the F.A.S.T.-
key. The electromagnetic waves may affect the oper-
ations of the electro-medical apparatus.
BK0115300US.book 17 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 129 of 714

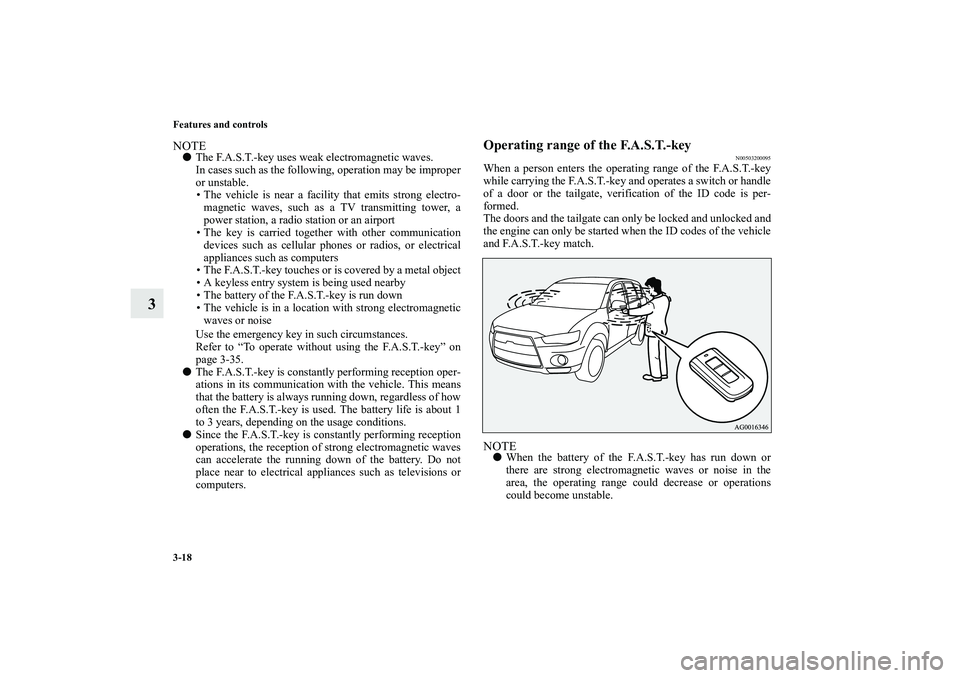

3-18 Features and controls
3
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
The F.A.S.T.-key touches or is covered by a metal object
A keyless entry system is being used nearby
The battery of the F.A.S.T.-key is run down
The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate without using the F.A.S.T.-key” on
page 3-35.
The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.
Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near to electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200095
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and operates a switch or handle
of a door or the tailgate, verification of the ID code is per-
formed.
The doors and the tailgate can only be locked and unlocked and
the engine can only be started when the ID codes of the vehicle
and F.A.S.T.-key match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0115300US.book 18 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 130 of 714
Features and controls
3-19
3

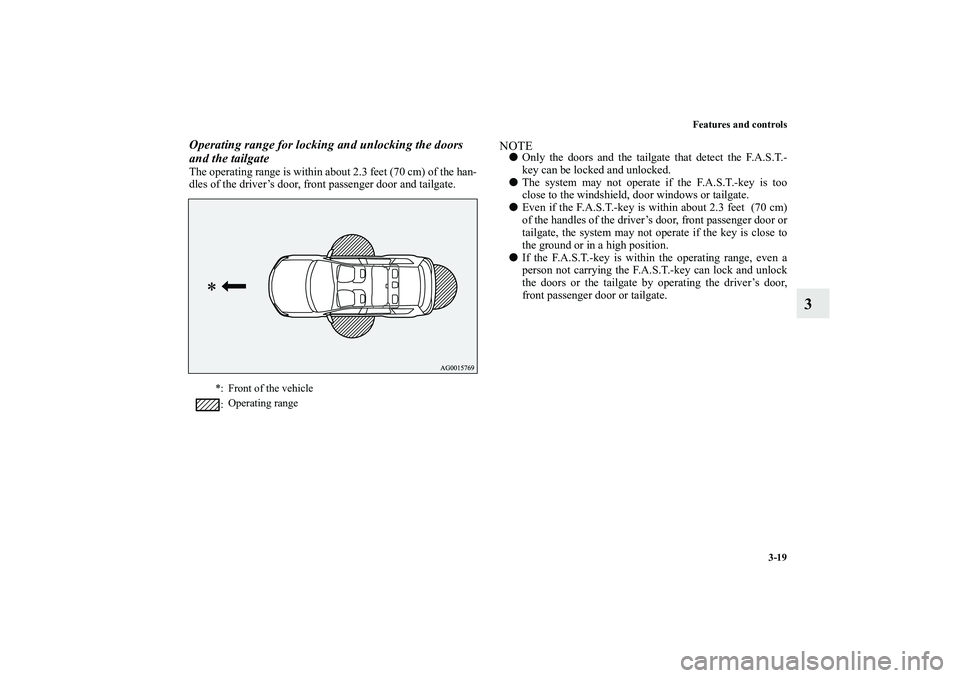

Operating range for locking and unlocking the doors
and the tailgateThe operating range is within about 2.3 feet (70 cm) of the han-
dles of the driver’s door, front passenger door and tailgate.
NOTE
Only the doors and the tailgate that detect the F.A.S.T.-
key can be locked and unlocked.
The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or tailgate.
Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the handles of the driver’s door, front passenger door or
tailgate, the system may not operate if the key is close to
the ground or in a high position.
If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or the tailgate by operating the driver’s door,
front passenger door or tailgate.
*: Front of the vehicle
:Operating range
BK0115300US.book 19 ページ ２００９年７月１６日 木曜日 午前９時１３分
