MITSUBISHI OUTLANDER XL 2010 Owners Manual

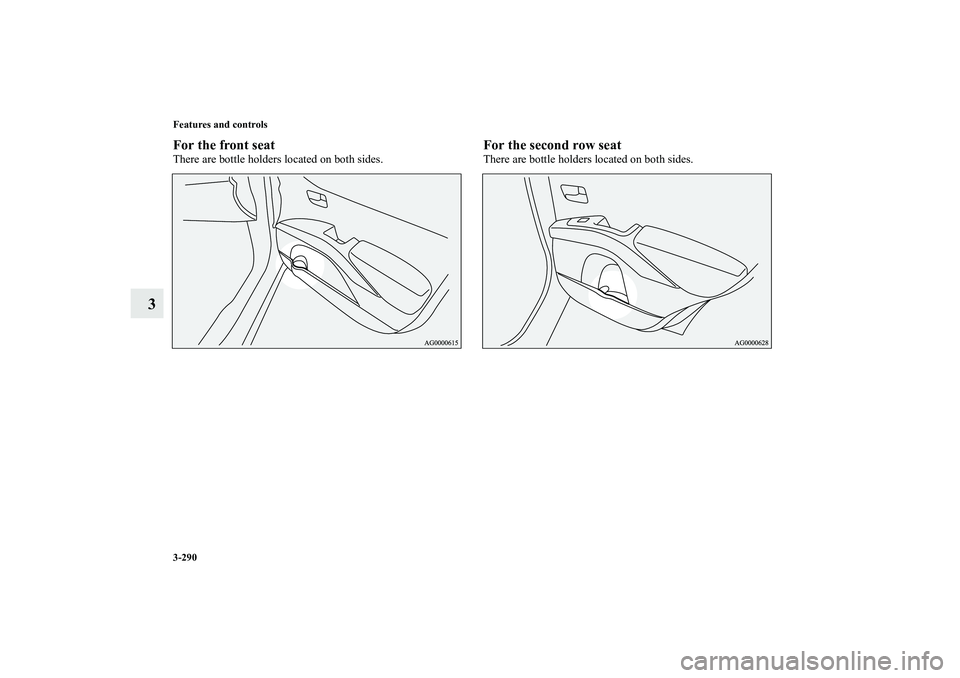

3-290 Features and controls
3
For the front seatThere are bottle holders located on both sides.
For the second row seatThere are bottle holders located on both sides.
BK0115300US.book 290 ページ ２００９年７月１６日　木曜日　午前９時１３分

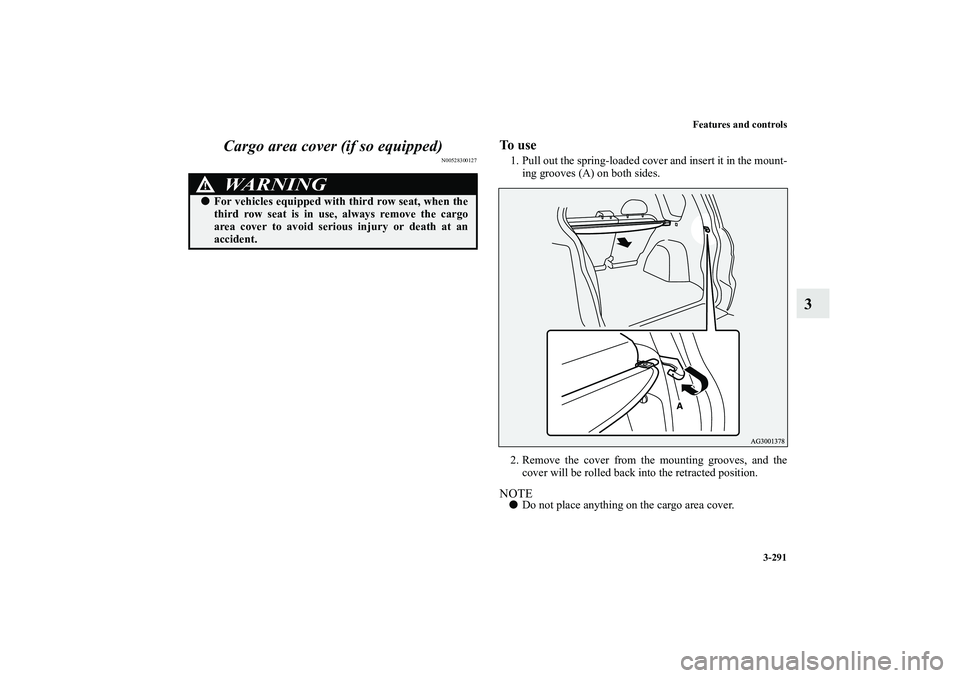

Features and controls
3-291
3 Cargo area cover (if so equipped)
N00528300127
To u s e1. Pull out the spring-loaded cover and insert it in the mount-
ing grooves (A) on both sides.
2. Remove the cover from the mounting grooves, and the
cover will be rolled back into the retracted position.NOTE

Do not place anything on the cargo area cover.
WA R N I N G
!

For vehicles equipped with third row seat, when the
third row seat is in use, always remove the cargo
area cover to avoid serious injury or death at an
accident.
BK0115300US.book 291 ページ ２００９年７月１６日　木曜日　午前９時１３分

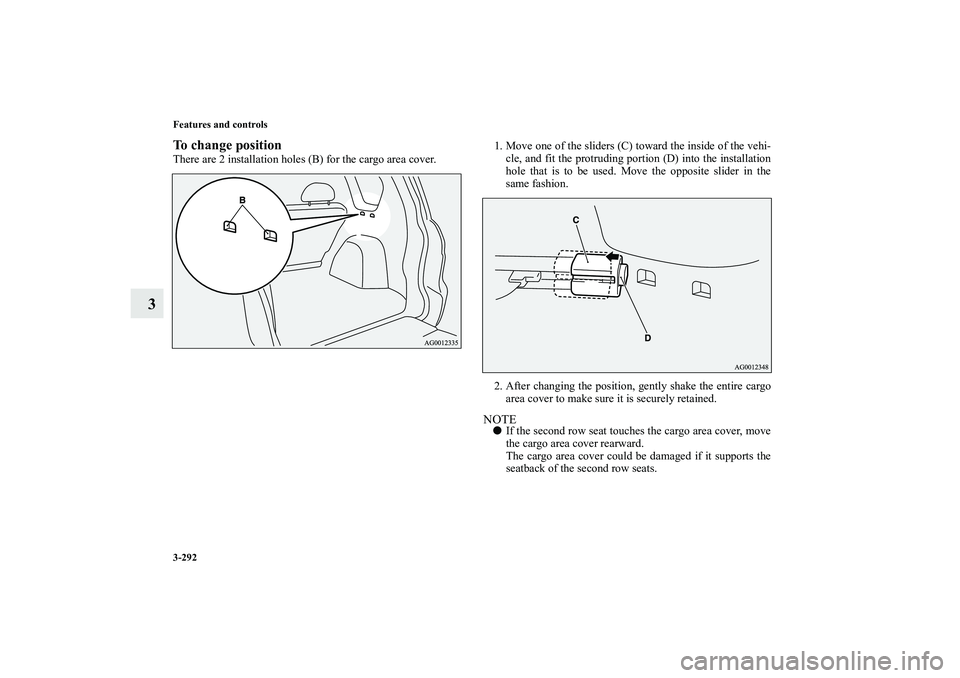

3-292 Features and controls
3
To change positionThere are 2 installation holes (B) for the cargo area cover.1. Move one of the sliders (C) toward the inside of the vehi-
cle, and fit the protruding portion (D) into the installation
hole that is to be used. Move the opposite slider in the
same fashion.
2. After changing the position, gently shake the entire cargo
area cover to make sure it is securely retained.
NOTE

If the second row seat touches the cargo area cover, move
the cargo area cover rearward.
The cargo area cover could be damaged if it supports the
seatback of the second row seats.
BK0115300US.book 292 ページ ２００９年７月１６日　木曜日　午前９時１３分

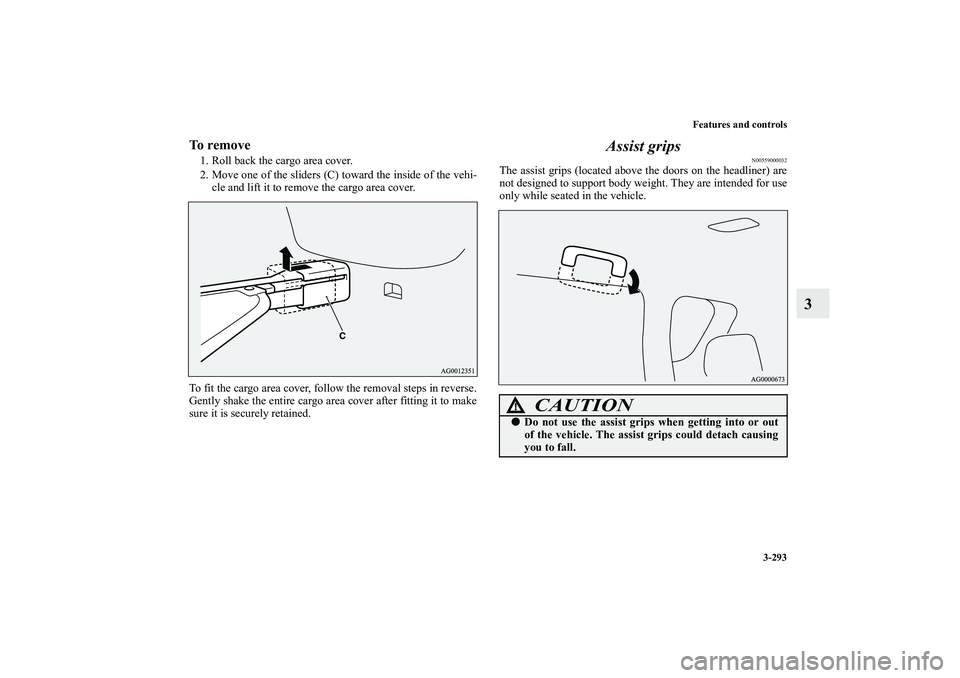

Features and controls
3-293
3
To remove1. Roll back the cargo area cover.
2. Move one of the sliders (C) toward the inside of the vehi-
cle and lift it to remove the cargo area cover.
To fit the cargo area cover, follow the removal steps in reverse.
Gently shake the entire cargo area cover after fitting it to make
sure it is securely retained.
Assist grips
N00559000032
The assist grips (located above the doors on the headliner) are
not designed to support body weight. They are intended for use
only while seated in the vehicle.
CAUTION
!

Do not use the assist grips when getting into or out
of the vehicle. The assist grips could detach causing
you to fall.
BK0115300US.book 293 ページ ２００９年７月１６日　木曜日　午前９時１３分

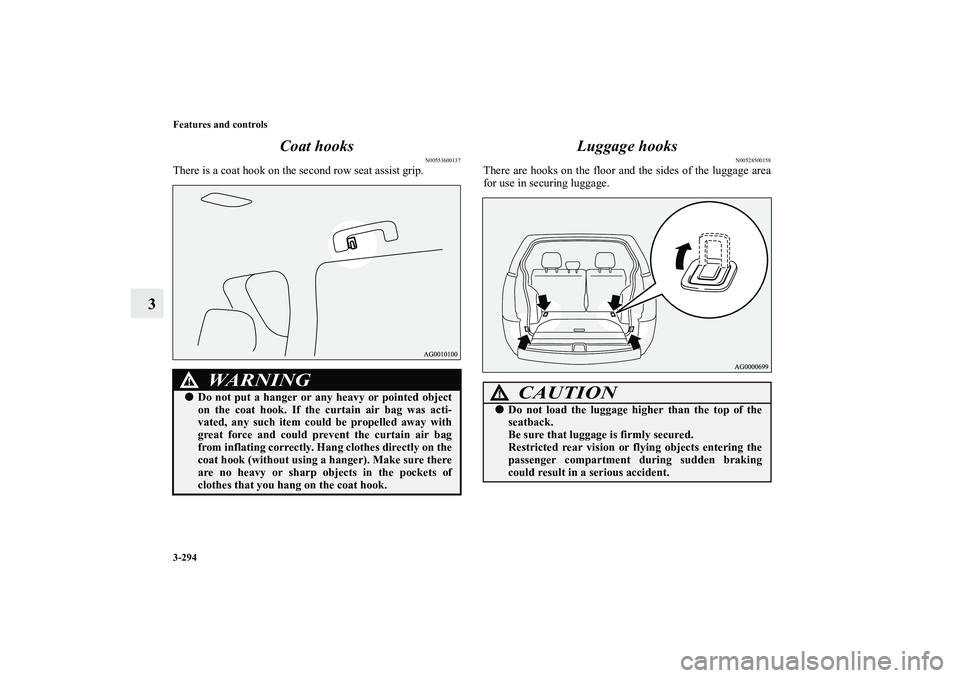

3-294 Features and controls
3Coat hooks
N00553600137
There is a coat hook on the second row seat assist grip.
Luggage hooks
N00528500158
There are hooks on the floor and the sides of the luggage area
for use in securing luggage.
WA R N I N G
!

Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain air bag was acti-
vated, any such item could be propelled away with
great force and could prevent the curtain air bag
from inflating correctly. Hang clothes directly on the
coat hook (without using a hanger). Make sure there
are no heavy or sharp objects in the pockets of
clothes that you hang on the coat hook.
CAUTION
!

Do not load the luggage higher than the top of the
seatback.
Be sure that luggage is firmly secured.
Restricted rear vision or flying objects entering the
passenger compartment during sudden braking
could result in a serious accident.
BK0115300US.book 294 ページ ２００９年７月１６日　木曜日　午前９時１３分

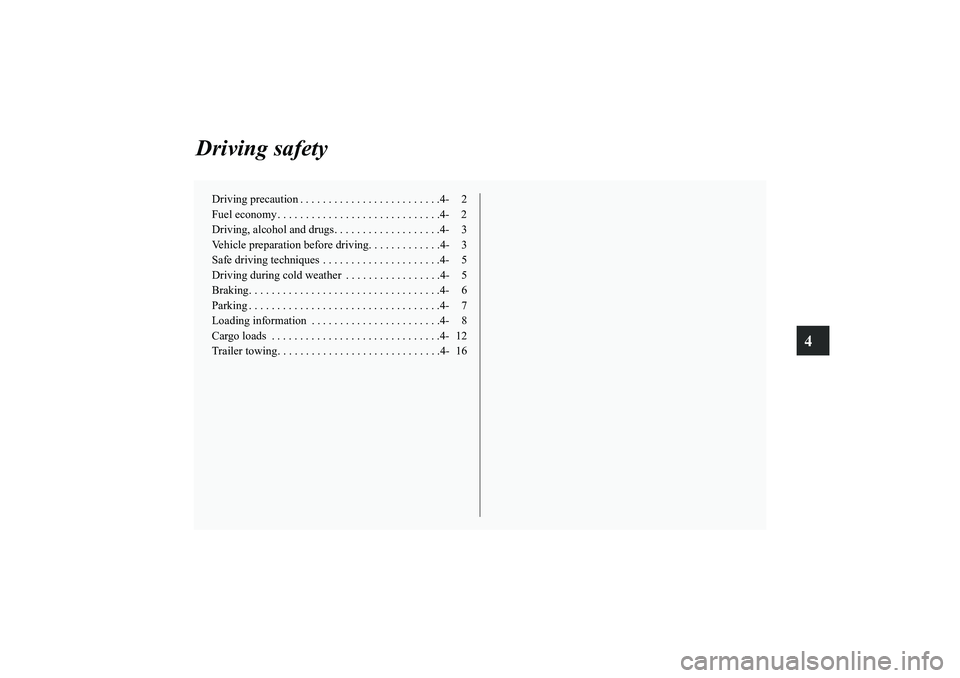

4
Driving safety
Driving precaution . . . . . . . . . . . . . . . . . . . . . . . . .4- 2
Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 2
Driving, alcohol and drugs. . . . . . . . . . . . . . . . . . .4- 3
Vehicle preparation before driving. . . . . . . . . . . . .4- 3
Safe driving techniques . . . . . . . . . . . . . . . . . . . . .4- 5
Driving during cold weather . . . . . . . . . . . . . . . . .4- 5
Braking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 6
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 7
Loading information . . . . . . . . . . . . . . . . . . . . . . .4- 8
Cargo loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 12
Trailer towing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 16
SC00000600-4.fm 1 ページ ２０１０年２月１７日　水曜日　午前１１時４０分

4-2 Driving safety
4Driving precaution
N00629300053
Utility vehicles have higher ground clearance and a narrower
track, which enables them to perform in a wide variety of off-
road situations. Because of the higher ground clearance, these
vehicles have a higher center of gravity, which makes them
handle differently than ordinary vehicles when driving on
pavement. They are not designed to maneuver or corner at the
same speed on pavement as conventional 2-wheel drive pas-
senger cars any more than low-slung sports cars are designed
to perform satisfactorily in off-road conditions.
Always drive safely and steer the vehicle carefully. Avoid oper-
ating the vehicle in a manner that might require sharp turns or
abrupt maneuvers. As with other vehicles of this type, failure
to operate this vehicle correctly can result in loss of control or
vehicle rollover.
In a rollover crash, an unbelted person is significantly more
likely to die than a person wearing a seat belt. Before starting
the vehicle, always make certain that you and all your passen-
gers are properly wearing their seat belts (with children in the
rear seat, in appropriate restraints).
Fuel economy
N00628800149
Fuel economy is dependent on many factors. Your personal
driving habits can have a significant effect on your fuel use.
Several recommendations for achieving the greatest fuel econ-
omy are listed below.

Whenever accelerating from a stop, always accelerate
slowly and smoothly.


When parked for even a short period, do not idle the
engine. Shut it off.


Plan your trips to avoid unnecessary stops.


Keep your tires inflated to the recommended pressures.


When you drive on highways or dry improved roads, set
the drive mode-selector “2WD”, “4WD AUTO” or “TAR-
MAC” position (if so equipped).


For freeway driving, maintain a speed of approximately
50 mph (80 km/h) when traffic, roadway and weather con-
ditions safely permit.


Keep your air filter clean and your vehicle lubricated
according to the recommendations in this manual.


Always keep your vehicle well maintained. A poorly
maintained engine wastes fuel and costs money.


Never overload your vehicle.
WA R N I N G
!

Utility vehicles have a significantly higher rollover
rate than other types of vehicles. Avoid abrupt
maneuvers and excessive speed. Always buckle up.
BK0115300US.book 2 ページ ２００９年７月１６日　木曜日　午前９時１３分

Driving safety
4-3
4 Driving, alcohol and drugs
N00628900049
Drunk driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired even with blood
alcohol levels far below the legal minimum. If you have been
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab or a friend, or use public transportation.
Drinking coffee or taking a cold shower will not make you
sober.
Similarly, prescription and nonprescription drugs affect your
alertness, perception and reaction time. Consult with your doc-
tor or pharmacist before driving while under the influence of
any of these medications.
Vehicle preparation before driving
N00629000470
For a safer and more enjoyable trip, always check for the fol-
lowing:Seat belts and seats

Before starting the vehicle, make certain that you and all
passengers are seated and wearing their seat belts properly
(with children in the rear seat, in appropriate restraints),
and that all the doors and flap-fold tailgate are locked.


Move the driver’s seat as far backward as possible, while
still keeping good visibility, and good control of the steer-
ing wheel, brakes, accelerator, and controls. Check the
instrument panel indicators and multi-information display
for any possible problem.


In the same way, the front passenger seat should also be
moved as far back as possible.


Make sure that infants and small children are properly
restrained in accordance with all laws and regulations.
WA R N I N G
!

NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are
slower and your judgment is impaired.
BK0115300US.book 3 ページ ２００９年７月１６日　木曜日　午前９時１３分

4-4 Driving safety
4
Floor mats Defrosters
Check these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
Refer to “Defrosting or defogging (windshield, door win-
dows)” on page 5-14, 5-23, 5-33, 5-43.TiresCheck all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressure. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized Mitsub-
ishi Motors dealer.LightsHave someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel.Fluid leaksCheck the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
WA R N I N G
!

Keep floor mats clear of the pedals by correctly lay-
ing floor mats that are suitable for the vehicle.
To prevent the floor mats from slipping out of posi-
tion, securely retain them using the hooks etc.
Placing a floor mat over a pedal or laying one floor
mat on top of another can obstruct pedal operation
and lead to a serious accident.
BK0115300US.book 4 ページ ２００９年７月１６日　木曜日　午前９時１３分

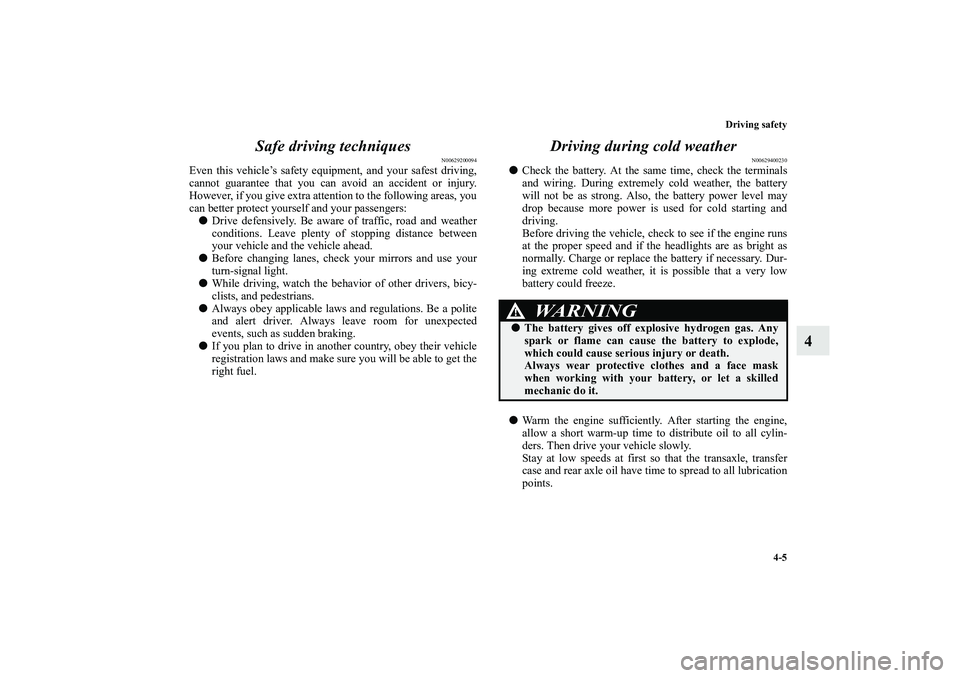

Driving safety
4-5
4 Safe driving techniques
N00629200094
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.


Before changing lanes, check your mirrors and use your
turn-signal light.


While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.


Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.


If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
Driving during cold weather
N00629400230


Check the battery. At the same time, check the terminals
and wiring. During extremely cold weather, the battery
will not be as strong. Also, the battery power level may
drop because more power is used for cold starting and
driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.


Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders. Then drive your vehicle slowly.
Stay at low speeds at first so that the transaxle, transfer
case and rear axle oil have time to spread to all lubrication
points.
WA R N I N G
!

The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
BK0115300US.book 5 ページ ２００９年７月１６日　木曜日　午前９時１３分
