5-4 Comfort controls
5

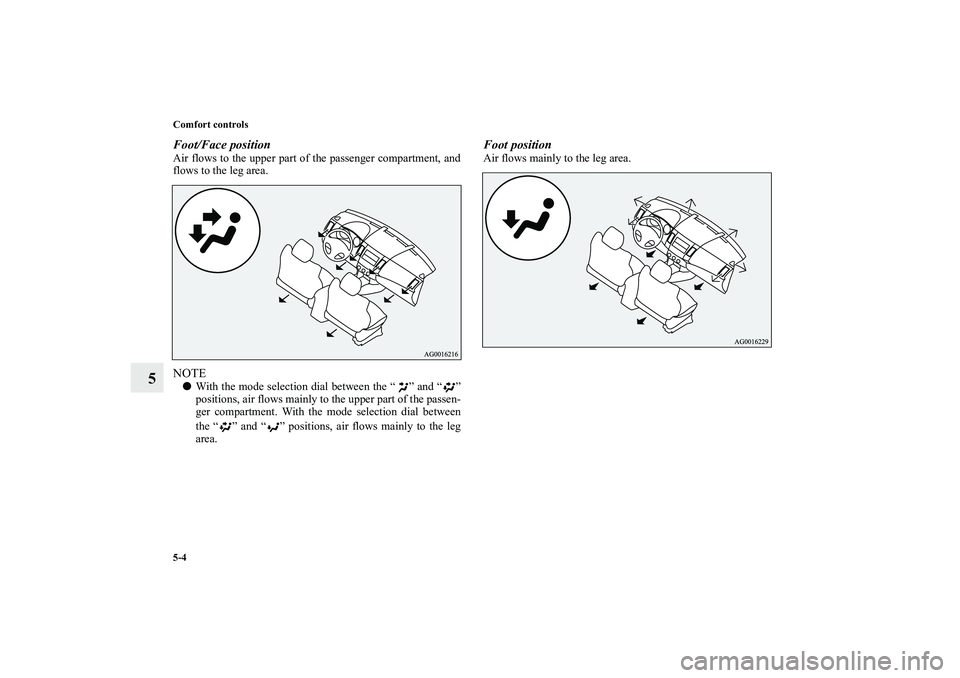

Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE

With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot positionAir flows mainly to the leg area.
BK0115300US.book 4 ページ ２００９年７月１６日　木曜日　午前９時１３分

Comfort controls
5-5
5

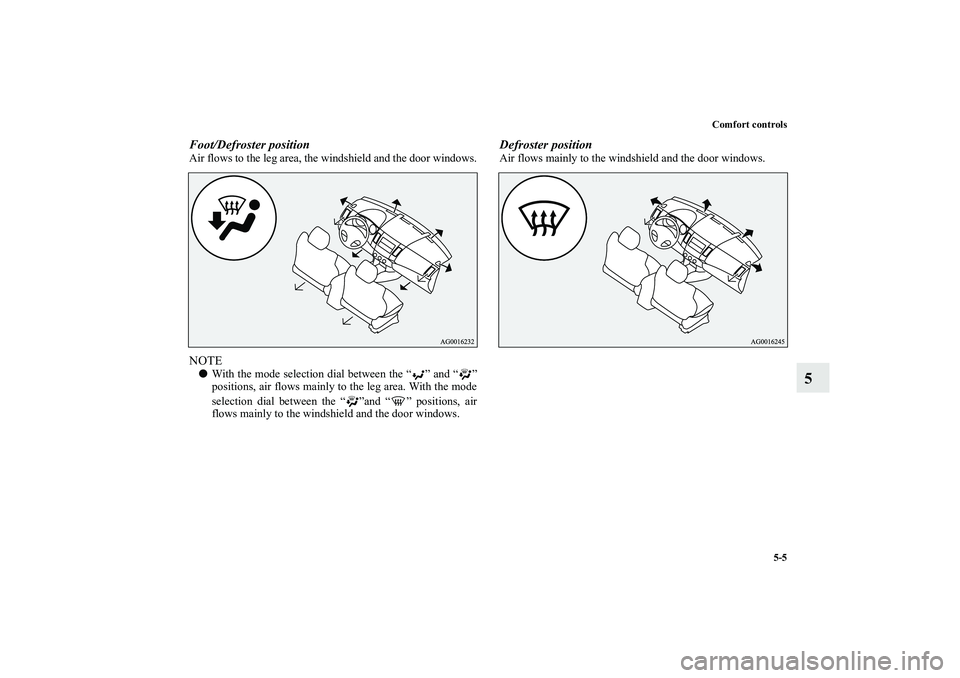

Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE

With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
BK0115300US.book 5 ページ ２００９年７月１６日　木曜日　午前９時１３分

5-6 Comfort controls

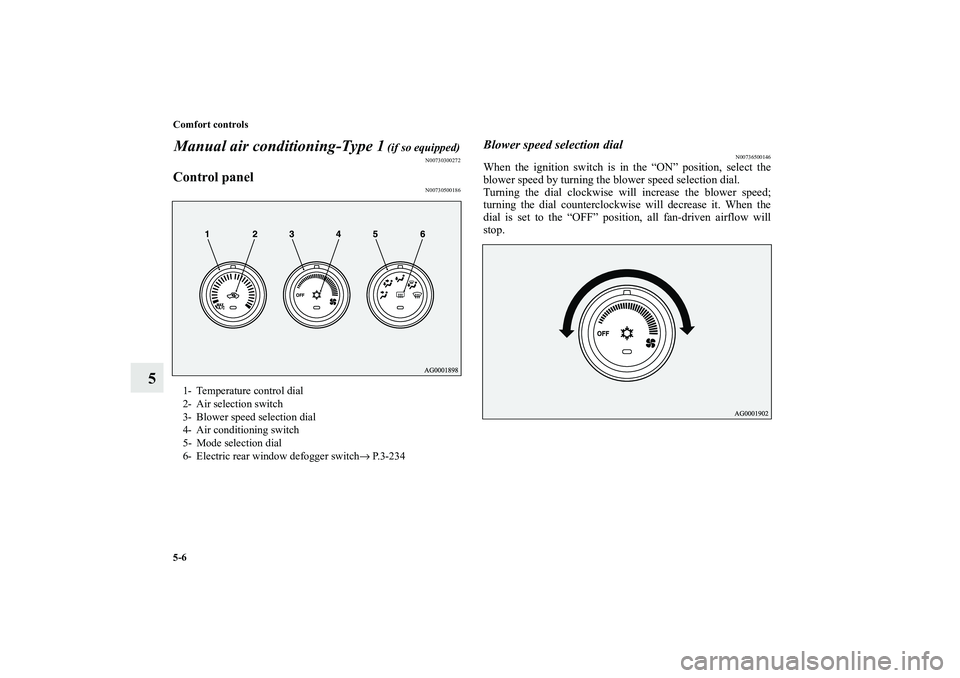

5Manual air conditioning-Type 1
(if so equipped)
N00730300272
Control panel
N00730500186
Blower speed selection dial
N00736500146
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Mode selection dial
6- Electric rear window defogger switch→ P. 3 - 2 3 4
BK0115300US.book 6 ページ ２００９年７月１６日　木曜日　午前９時１３分

Comfort controls
5-7
5

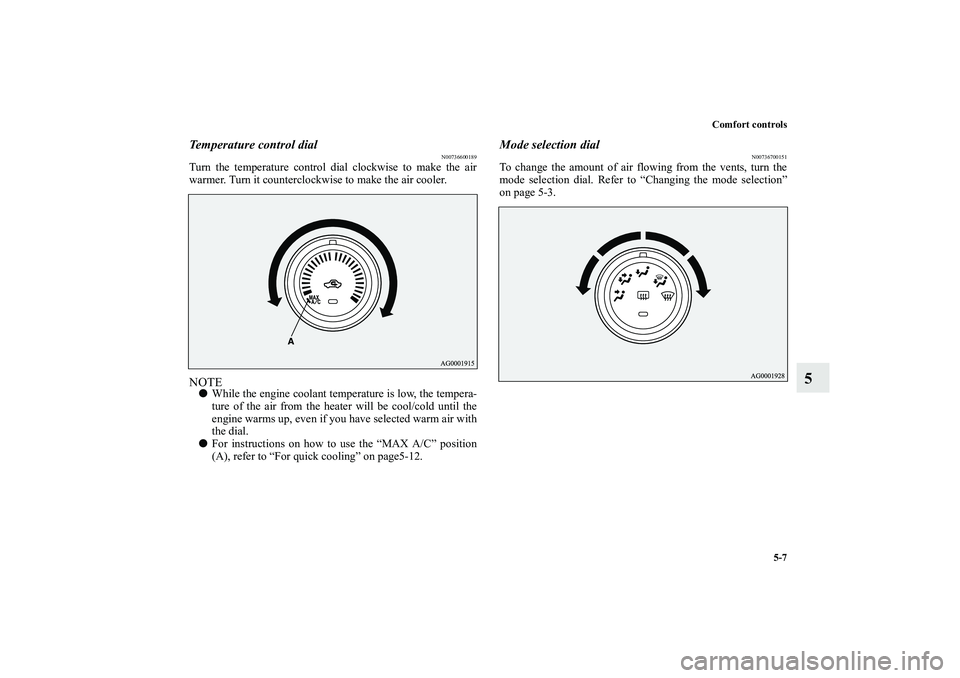

Temperature control dial
N00736600189
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE

While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.


For instructions on how to use the “MAX A/C” position
(A), refer to “For quick cooling” on page5-12.
Mode selection dial
N00736700151
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
BK0115300US.book 7 ページ ２００９年７月１６日　木曜日　午前９時１３分

5-8 Comfort controls
5
Air selection switch
N00736800370
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To change the air selection, simply press the air selection
switch. A sound will be made every time you push the switch.

Outside air {Indicator light (A) OFF}


Recirculated air {Indicator light (A) ON}
When the air conditioning turns on, the air selection is con-
trolled automatically.
When the air conditioning turns off, the air selection automati-
cally goes back to the outside position.
The air selection indicator light (A) shows the selected posi-
tion.
NOTE

When the air conditioning operates with the air selection
switch in the outside position, the system automatically
determines whether to continue using outside air or to per-
form recirculation.
If the outside temperature is high, the system selects recir-
culation to achieve rapid cooling and causes the air selec-
tion indicator in the switch to illuminate. When the air
conditioning turns off or the blower speed selection dial is
set to the “OFF” position, the air selection automatically
goes back to the outside position.
If the outside air is dusty or contaminated in some way, use the
recirculation position. Switch to the outside air position every
now and then to keep the windows from fogging up.
CAUTION
!

Using recirculated air for a long time may cause the
windows to fog up.
BK0115300US.book 8 ページ ２００９年７月１６日　木曜日　午前９時１３分

Comfort controls
5-9
5
NOTE

While the mode selection dial is set between “ ” and
“ ” position, the air conditioning compressor will run
automatically. The outside air position will also be
selected automatically. (In this case, the air conditioning
indicator will not change.)


When the temperature control dial is set to the “MAX
A/C” position, the air selection will be automatically set
to the recirculation position.


When the temperature control dial is in the “MAX A/C”
position, if it is set to a position other than “MAX A/C”,
the setting for the air selection switch is selected as
described below. The selection of recirculated air or out-
side air depends on the setting before “MAX A/C” was
used.
 If automatic control was set:
Automatic control is continued
 If recirculated air was selected:
Recirculated air is selected
 If outside air was selected:
Outside air is continued

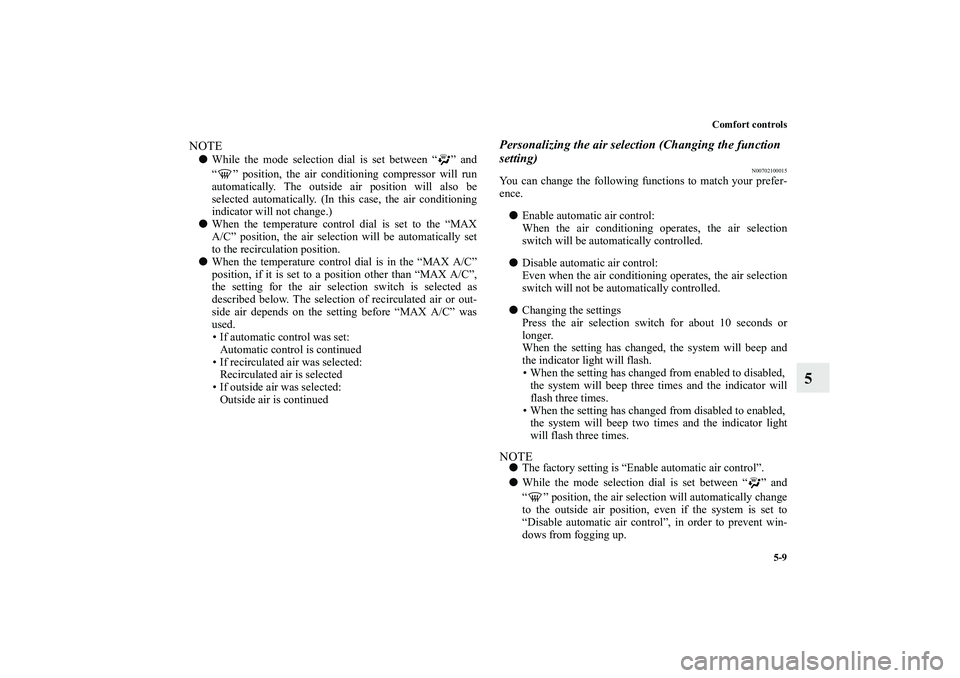

Personalizing the air selection (Changing the function
setting)
N00702100015
You can change the following functions to match your prefer-
ence.

Enable automatic air control:
When the air conditioning operates, the air selection
switch will be automatically controlled.


Disable automatic air control:
Even when the air conditioning operates, the air selection
switch will not be automatically controlled.


Changing the settings
Press the air selection switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
 When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
 When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE

The factory setting is “Enable automatic air control”.


While the mode selection dial is set between “ ” and
“ ” position, the air selection will automatically change
to the outside air position, even if the system is set to
“Disable automatic air control”, in order to prevent win-
dows from fogging up.
BK0115300US.book 9 ページ ２００９年７月１６日　木曜日　午前９時１３分

5-10 Comfort controls
5

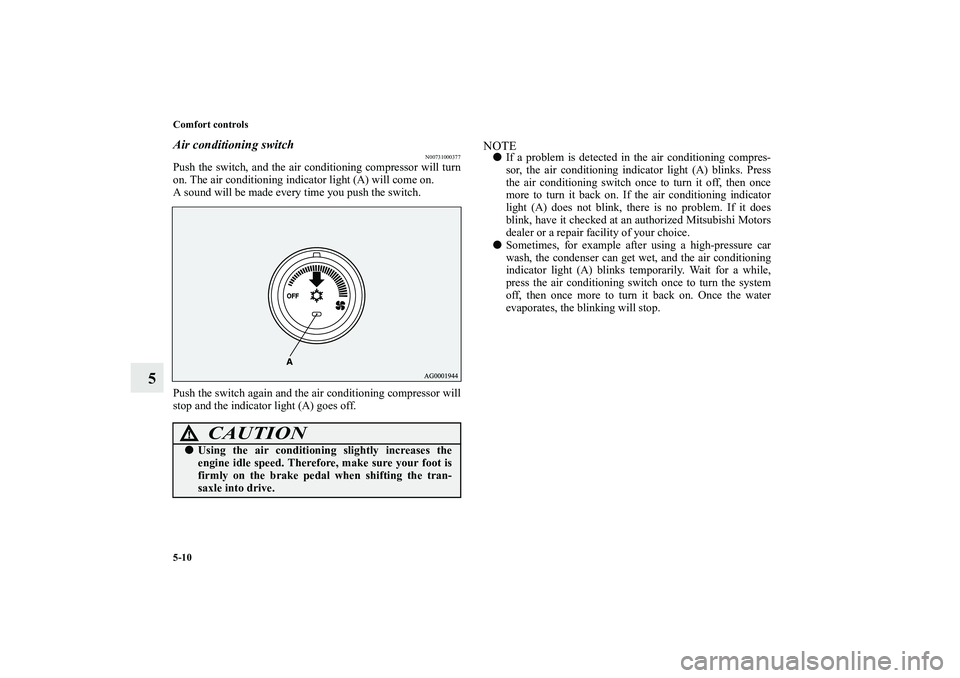

Air conditioning switch
N00731000377
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
A sound will be made every time you push the switch.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
NOTE

If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light (A) does not blink, there is no problem. If it does
blink, have it checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.


Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. Wait for a while,
press the air conditioning switch once to turn the system
off, then once more to turn it back on. Once the water
evaporates, the blinking will stop.
CAUTION
!

Using the air conditioning slightly increases the
engine idle speed. Therefore, make sure your foot is
firmly on the brake pedal when shifting the tran-
saxle into drive.
BK0115300US.book 10 ページ ２００９年７月１６日　木曜日　午前９時１３分

Comfort controls
5-11
5
Operating the air conditioning system
N00731100222

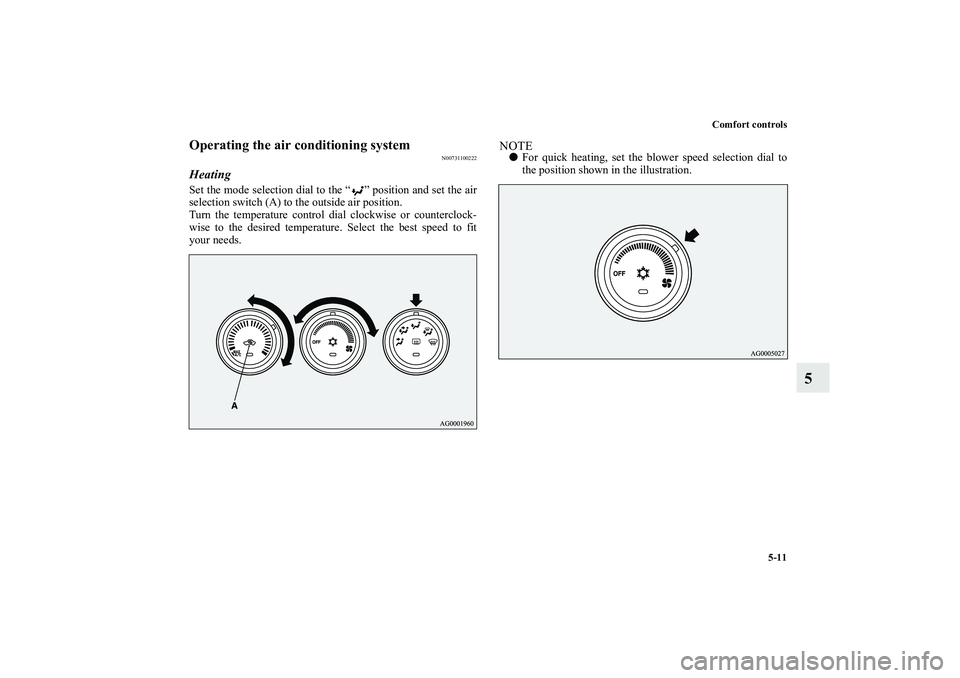

HeatingSet the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside air position.
Turn the temperature control dial clockwise or counterclock-
wise to the desired temperature. Select the best speed to fit
your needs.
NOTE

For quick heating, set the blower speed selection dial to
the position shown in the illustration.
BK0115300US.book 11 ページ ２００９年７月１６日　木曜日　午前９時１３分

5-12 Comfort controls
5

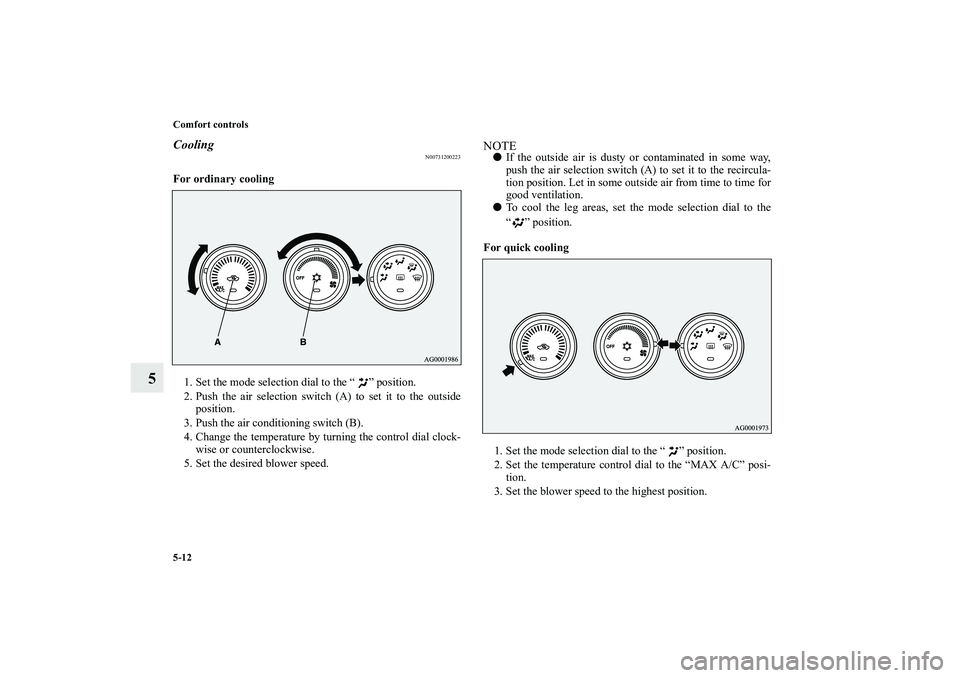

Cooling
N00731200223
For ordinary cooling

1. Set the mode selection dial to the “ ” position.
2. Push the air selection switch (A) to set it to the outside
position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clock-
wise or counterclockwise.
5. Set the desired blower speed.
NOTE

If the outside air is dusty or contaminated in some way,
push the air selection switch (A) to set it to the recircula-
tion position. Let in some outside air from time to time for
good ventilation.


To cool the leg areas, set the mode selection dial to the
“ ” position.
For quick cooling

1. Set the mode selection dial to the “ ” position.
2. Set the temperature control dial to the “MAX A/C” posi-
tion.
3. Set the blower speed to the highest position.
BK0115300US.book 12 ページ ２００９年７月１６日　木曜日　午前９時１３分

Comfort controls
5-13
5
NOTE

When the temperature control dial is set to the “MAX
A/C” position, the air conditioning compressor will run
automatically and the light will come on. The recircula-
tion position will be selected automatically. In this case,
you cannot turn the air conditioning off or select the out-
side position.


When the temperature control dial is set to a position other
than “MAX A/C”, the air selection will automatically
change to outside air. The air conditioning will revert to
the previous condition in which the “MAX A/C” position
was not selected.

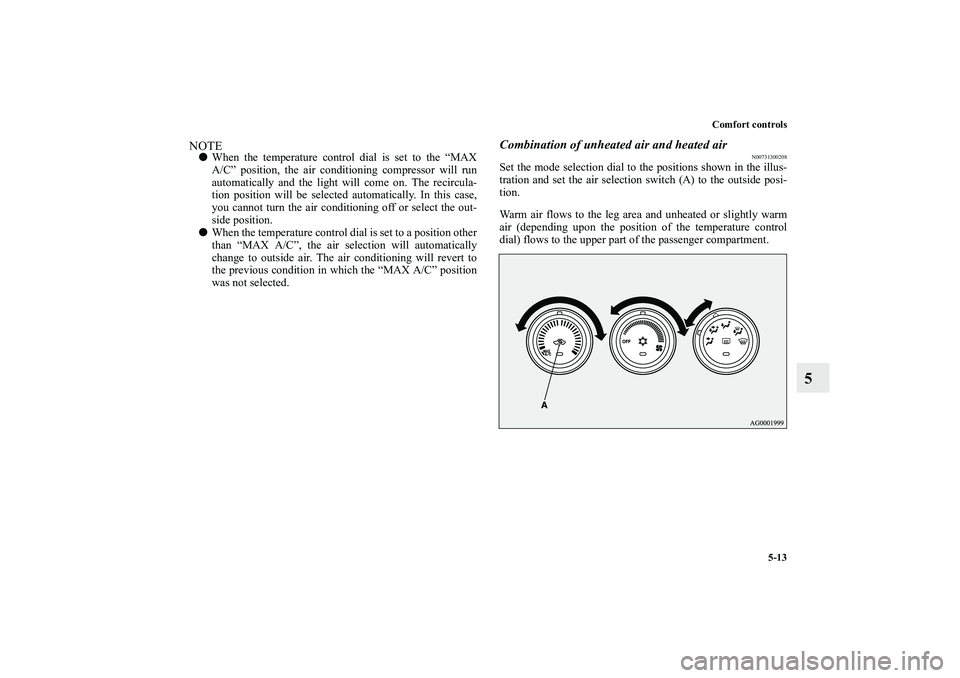

Combination of unheated air and heated air
N00731300208
Set the mode selection dial to the positions shown in the illus-
tration and set the air selection switch (A) to the outside posi-
tion.
Warm air flows to the leg area and unheated or slightly warm
air (depending upon the position of the temperature control
dial) flows to the upper part of the passenger compartment.
