MITSUBISHI OUTLANDER XL 2010 Owners Manual

7-74 Vehicle care and maintenance
7

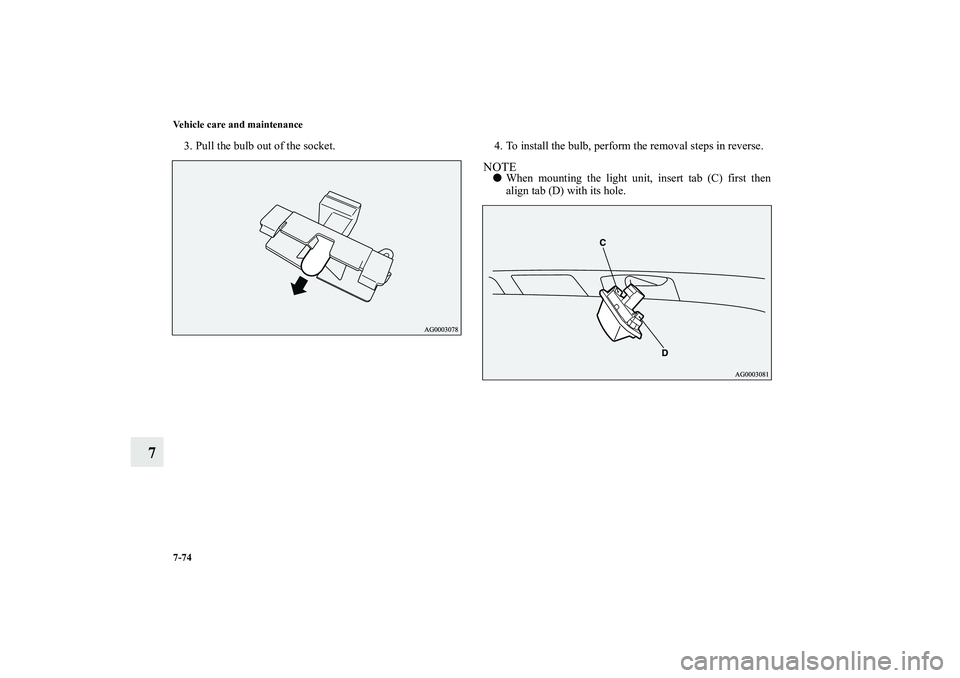

3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
NOTE

When mounting the light unit, insert tab (C) first then
align tab (D) with its hole.
BK0115300US.book 74 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-75
7

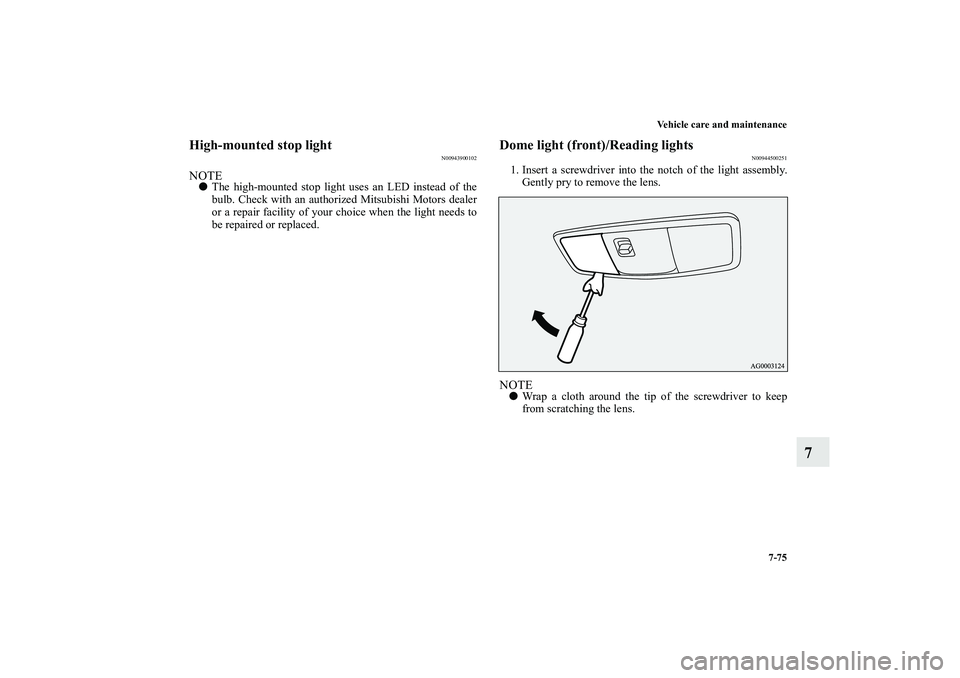

High-mounted stop light
N00943900102
NOTE

The high-mounted stop light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
Dome light (front)/Reading lights
N00944500251
1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0115300US.book 75 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-76 Vehicle care and maintenance
7

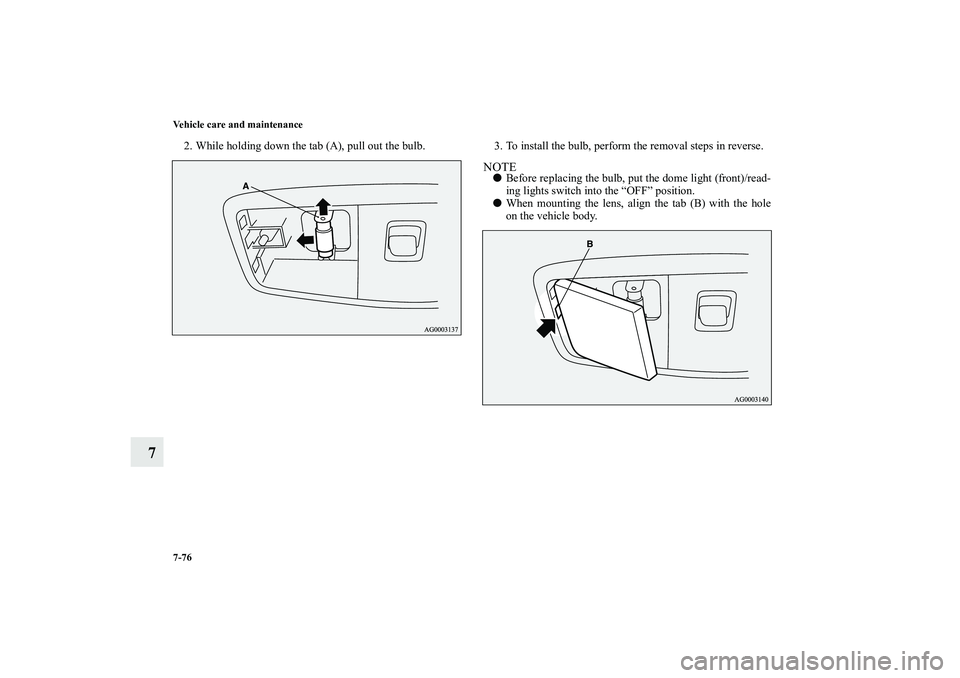

2. While holding down the tab (A), pull out the bulb. 3. To install the bulb, perform the removal steps in reverse.
NOTE

Before replacing the bulb, put the dome light (front)/read-
ing lights switch into the “OFF” position.


When mounting the lens, align the tab (B) with the hole
on the vehicle body.
BK0115300US.book 76 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-77
7

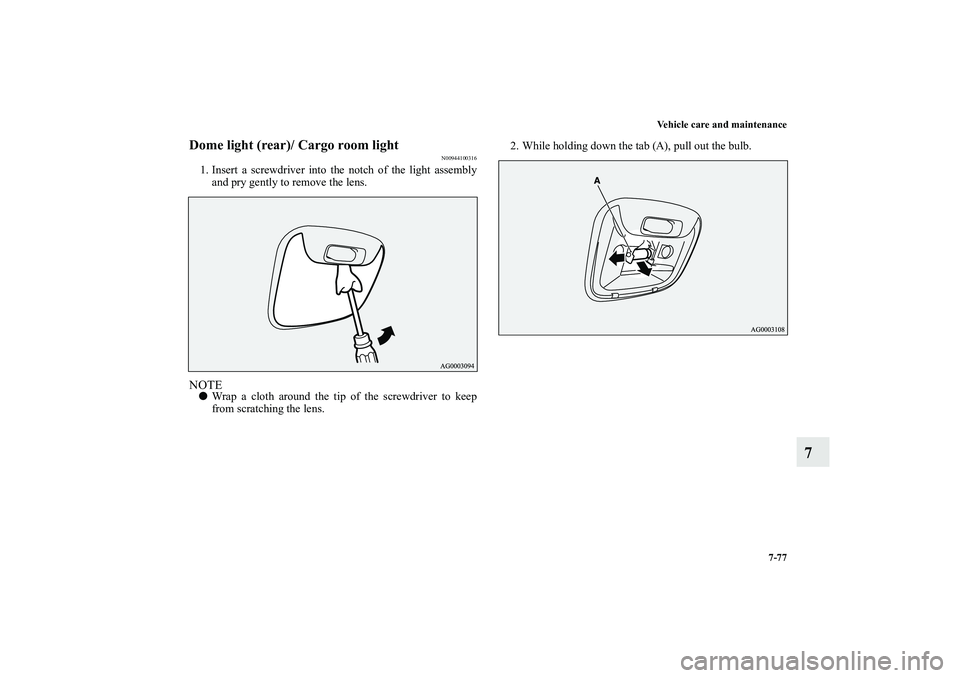

Dome light (rear)/ Cargo room light
N00944100316
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
BK0115300US.book 77 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-78 Vehicle care and maintenance
7

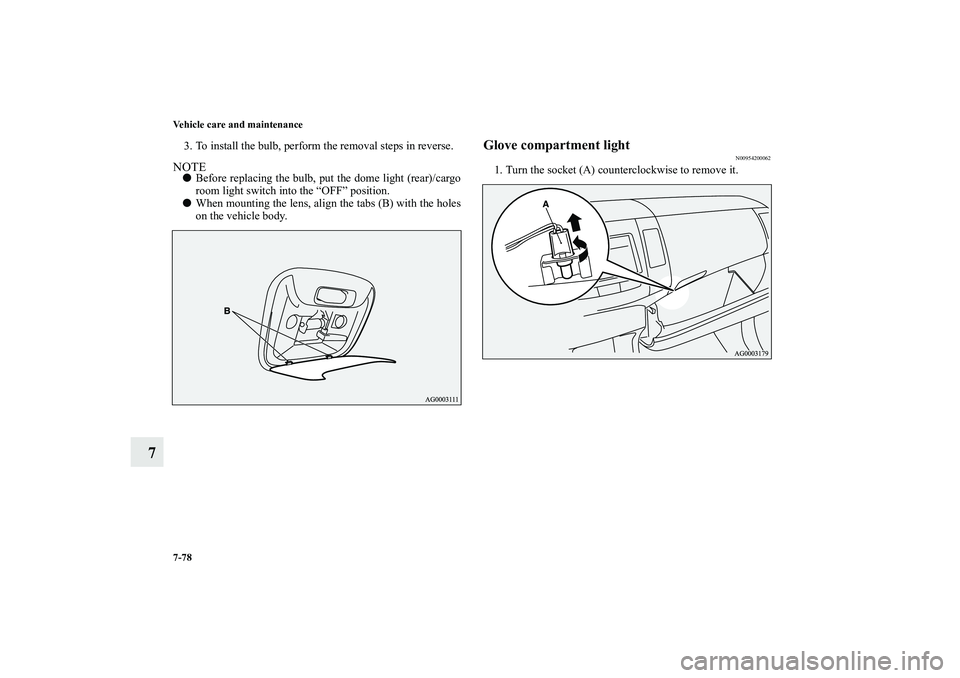

3. To install the bulb, perform the removal steps in reverse.NOTE

Before replacing the bulb, put the dome light (rear)/cargo
room light switch into the “OFF” position.


When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
Glove compartment light
N00954200062
1. Turn the socket (A) counterclockwise to remove it.
BK0115300US.book 78 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-79
7

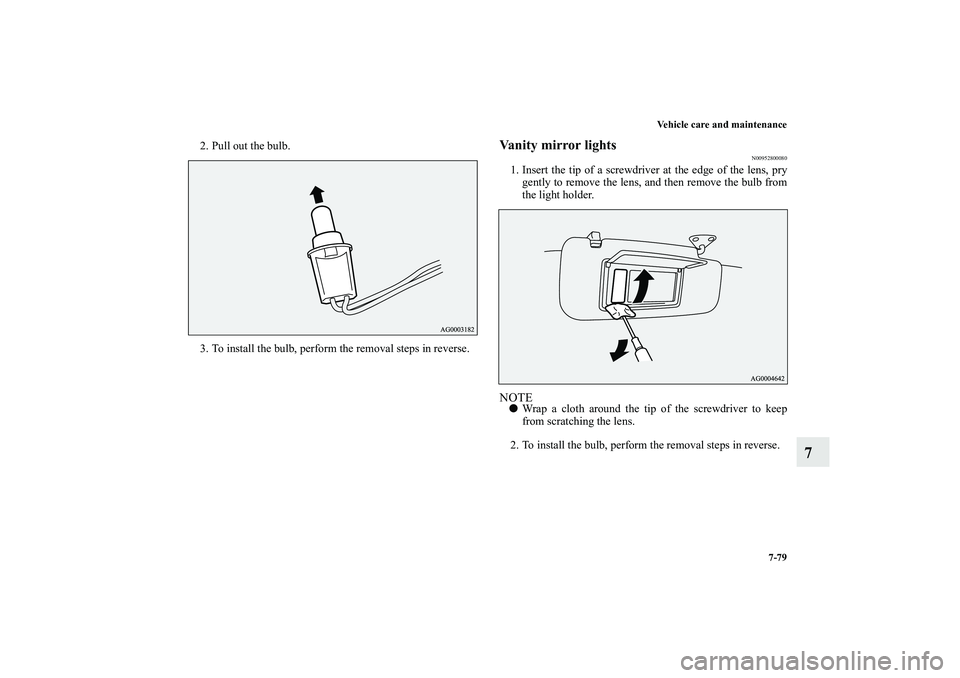

2. Pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
Vanity mirror lights
N00952800080
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
BK0115300US.book 79 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-80 Vehicle care and maintenance
7
Center console down light
N00954700025
NOTE

The center console down light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
Vehicle care precautions
N00945100166
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized Mit-
subishi Motors dealer for help in choosing these materials.
CAUTION
!

Cleaning products can be dangerous. Some are poi-
sonous and others are highly flammable. Some are
dangerous if you breathe their fumes in a closed
space. When you use anything in a container to
clean your vehicle, be sure to follow the instructions.
Always open your vehicle doors or windows when
you’re cleaning the inside. Never use the following
chemicals to clean your vehicle: Gasoline
 Carbon Tetrachloride
 Benzine
 Kerosene
 Naphtha
 Acetone
 Turpentine
 Paint Thinner
 Lacquer Thinner
 Nail Polish Remover
BK0115300US.book 80 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-81
7

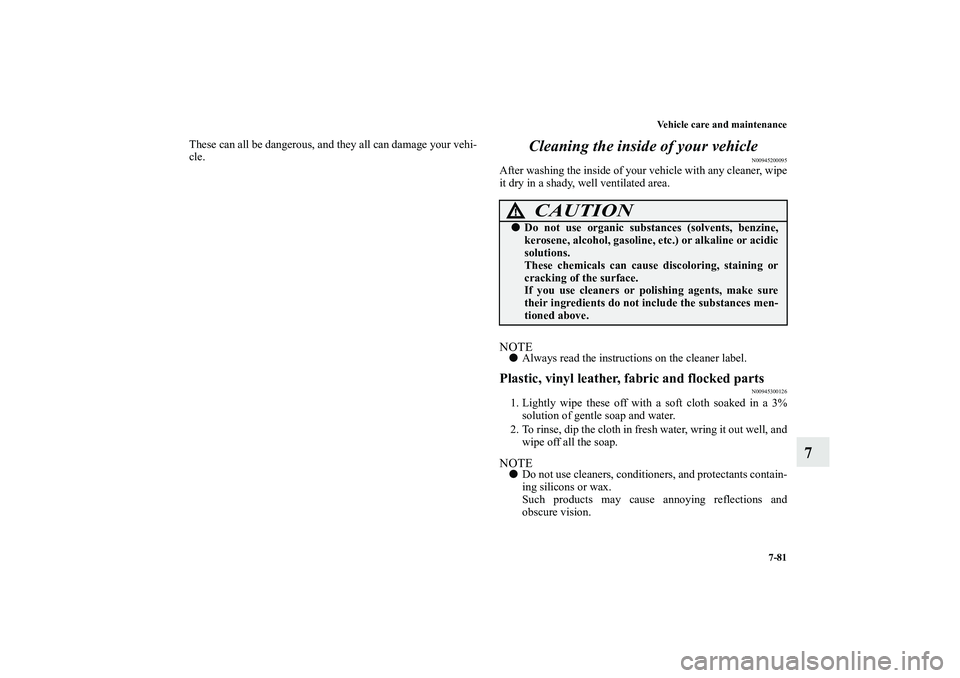

These can all be dangerous, and they all can damage your vehi-
cle.
Cleaning the inside of your vehicle
N00945200095
After washing the inside of your vehicle with any cleaner, wipe
it dry in a shady, well ventilated area.NOTE

Always read the instructions on the cleaner label.
Plastic, vinyl leather, fabric and flocked parts
N00945300126
1. Lightly wipe these off with a soft cloth soaked in a 3%
solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.NOTE

Do not use cleaners, conditioners, and protectants contain-
ing silicons or wax.
Such products may cause annoying reflections and
obscure vision.
CAUTION
!

Do not use organic substances (solvents, benzine,
kerosene, alcohol, gasoline, etc.) or alkaline or acidic
solutions.
These chemicals can cause discoloring, staining or
cracking of the surface.
If you use cleaners or polishing agents, make sure
their ingredients do not include the substances men-
tioned above.
BK0115300US.book 81 ページ ２００９年７月１６日　木曜日　午前９時１３分

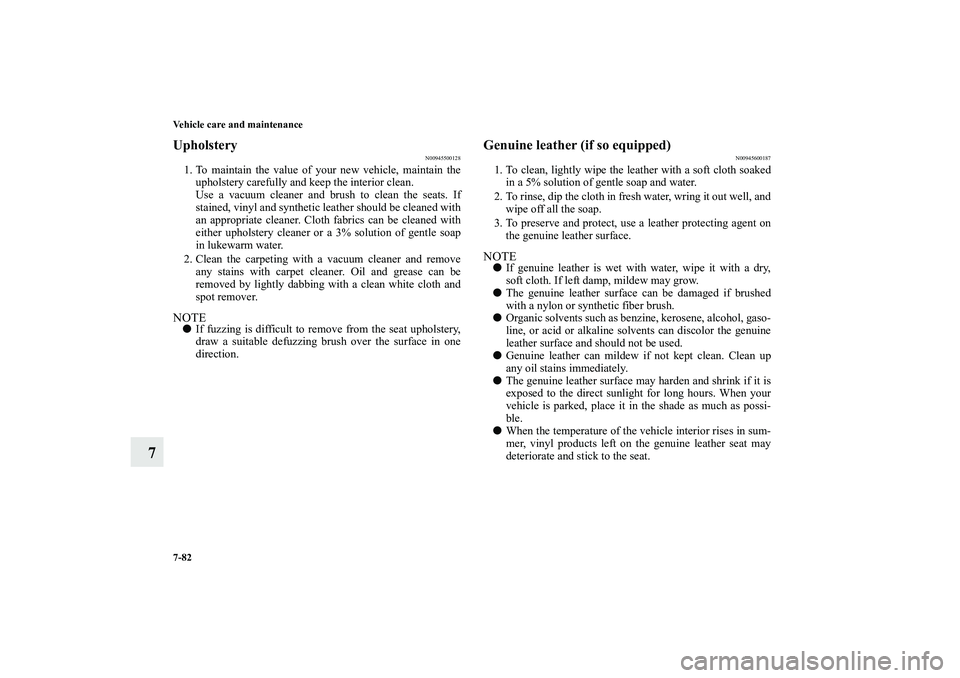

7-82 Vehicle care and maintenance
7
Upholstery
N00945500128
1. To maintain the value of your new vehicle, maintain the
upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean the seats. If
stained, vinyl and synthetic leather should be cleaned with
an appropriate cleaner. Cloth fabrics can be cleaned with
either upholstery cleaner or a 3% solution of gentle soap
in lukewarm water.
2. Clean the carpeting with a vacuum cleaner and remove
any stains with carpet cleaner. Oil and grease can be
removed by lightly dabbing with a clean white cloth and
spot remover.NOTE

If fuzzing is difficult to remove from the seat upholstery,
draw a suitable defuzzing brush over the surface in one
direction.
Genuine leather (if so equipped)
N00945600187
1. To clean, lightly wipe the leather with a soft cloth soaked
in a 5% solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
3. To preserve and protect, use a leather protecting agent on
the genuine leather surface.NOTE

If genuine leather is wet with water, wipe it with a dry,
soft cloth. If left damp, mildew may grow.


The genuine leather surface can be damaged if brushed
with a nylon or synthetic fiber brush.


Organic solvents such as benzine, kerosene, alcohol, gaso-
line, or acid or alkaline solvents can discolor the genuine
leather surface and should not be used.


Genuine leather can mildew if not kept clean. Clean up
any oil stains immediately.


The genuine leather surface may harden and shrink if it is
exposed to the direct sunlight for long hours. When your
vehicle is parked, place it in the shade as much as possi-
ble.


When the temperature of the vehicle interior rises in sum-
mer, vinyl products left on the genuine leather seat may
deteriorate and stick to the seat.
BK0115300US.book 82 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-83

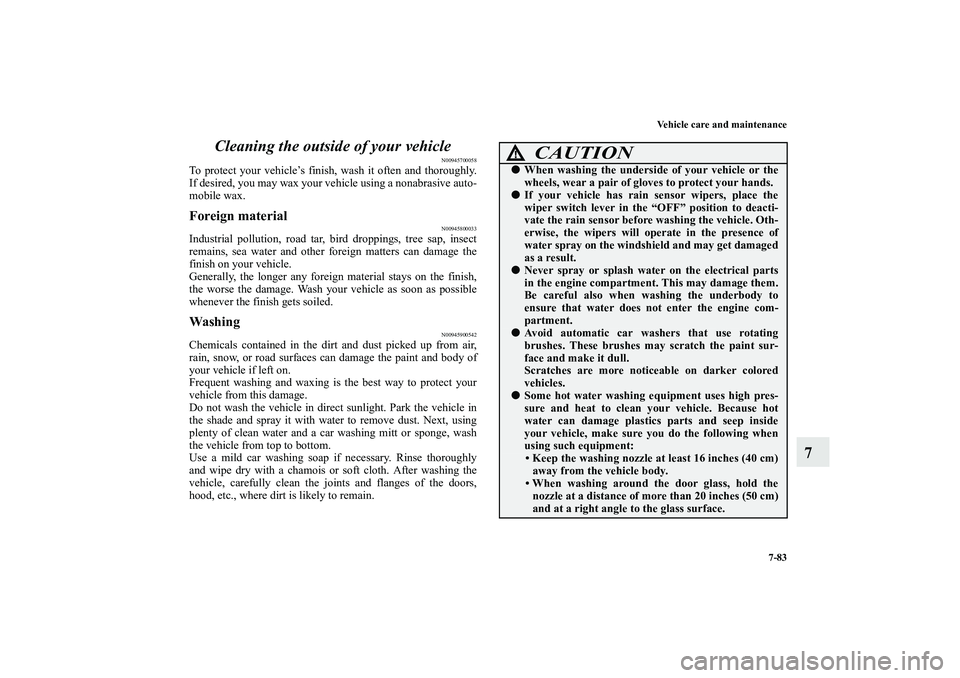

7 Cleaning the outside of your vehicle
N00945700058
To protect your vehicle’s finish, wash it often and thoroughly.
If desired, you may wax your vehicle using a nonabrasive auto-
mobile wax.Foreign material
N00945800033
Industrial pollution, road tar, bird droppings, tree sap, insect
remains, sea water and other foreign matters can damage the
finish on your vehicle.
Generally, the longer any foreign material stays on the finish,
the worse the damage. Wash your vehicle as soon as possible
whenever the finish gets soiled.Wash i ng
N00945900542
Chemicals contained in the dirt and dust picked up from air,
rain, snow, or road surfaces can damage the paint and body of
your vehicle if left on.
Frequent washing and waxing is the best way to protect your
vehicle from this damage.
Do not wash the vehicle in direct sunlight. Park the vehicle in
the shade and spray it with water to remove dust. Next, using
plenty of clean water and a car washing mitt or sponge, wash
the vehicle from top to bottom.
Use a mild car washing soap if necessary. Rinse thoroughly
and wipe dry with a chamois or soft cloth. After washing the
vehicle, carefully clean the joints and flanges of the doors,
hood, etc., where dirt is likely to remain.
CAUTION
!

When washing the underside of your vehicle or the
wheels, wear a pair of gloves to protect your hands.


If your vehicle has rain sensor wipers, place the
wiper switch lever in the “OFF” position to deacti-
vate the rain sensor before washing the vehicle. Oth-
erwise, the wipers will operate in the presence of
water spray on the windshield and may get damaged
as a result.


Never spray or splash water on the electrical parts
in the engine compartment. This may damage them.
Be careful also when washing the underbody to
ensure that water does not enter the engine com-
partment.


Avoid automatic car washers that use rotating
brushes. These brushes may scratch the paint sur-
face and make it dull.
Scratches are more noticeable on darker colored
vehicles.


Some hot water washing equipment uses high pres-
sure and heat to clean your vehicle. Because hot
water can damage plastics parts and seep inside
your vehicle, make sure you do the following when
using such equipment: Keep the washing nozzle at least 16 inches (40 cm)
away from the vehicle body.
 When washing around the door glass, hold the
nozzle at a distance of more than 20 inches (50 cm)
and at a right angle to the glass surface.
