NOTE

The center console down light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.

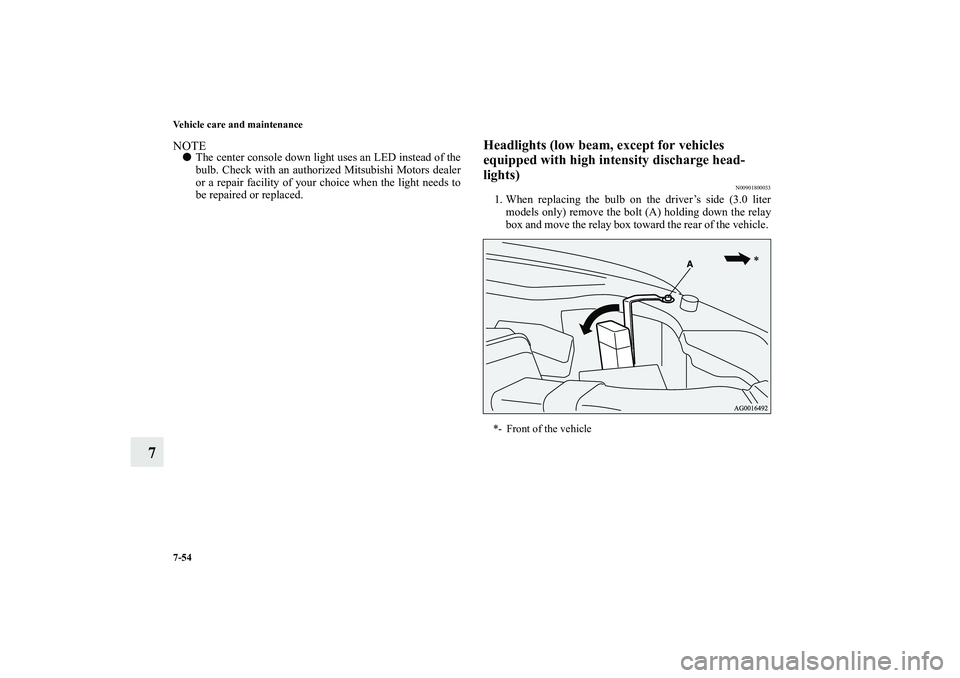

Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800033
1. When replacing the bulb on the driver’s side (3.0 liter
models only) remove the bolt (A) holding down the relay
box and move the relay box toward the rear of the vehicle. *- Front of the vehicle
BK0115300US.book 54 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-55
7

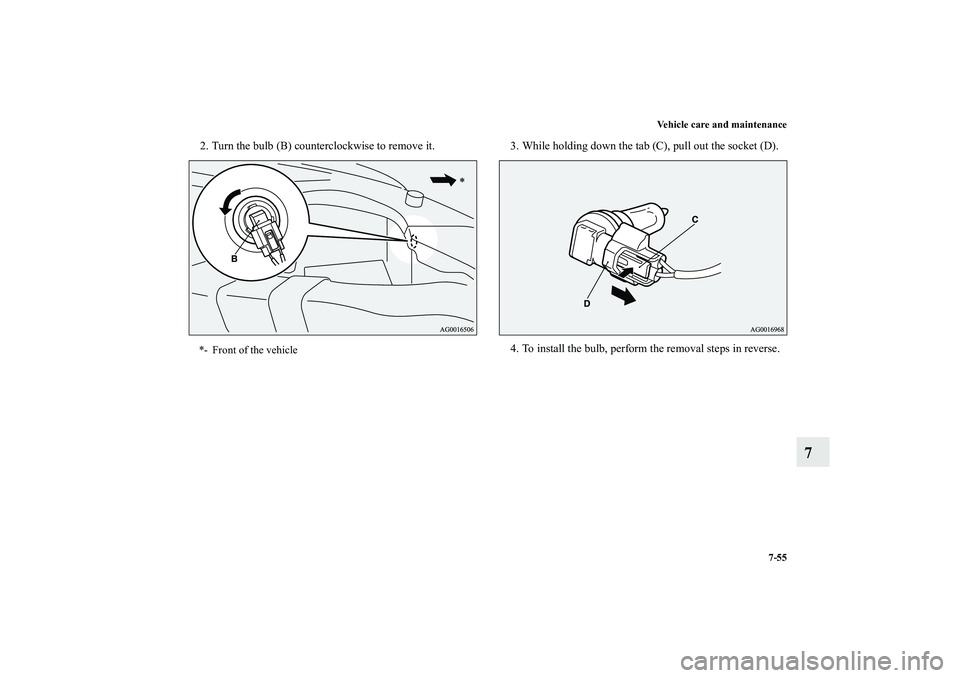

2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0115300US.book 55 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-56 Vehicle care and maintenance
7

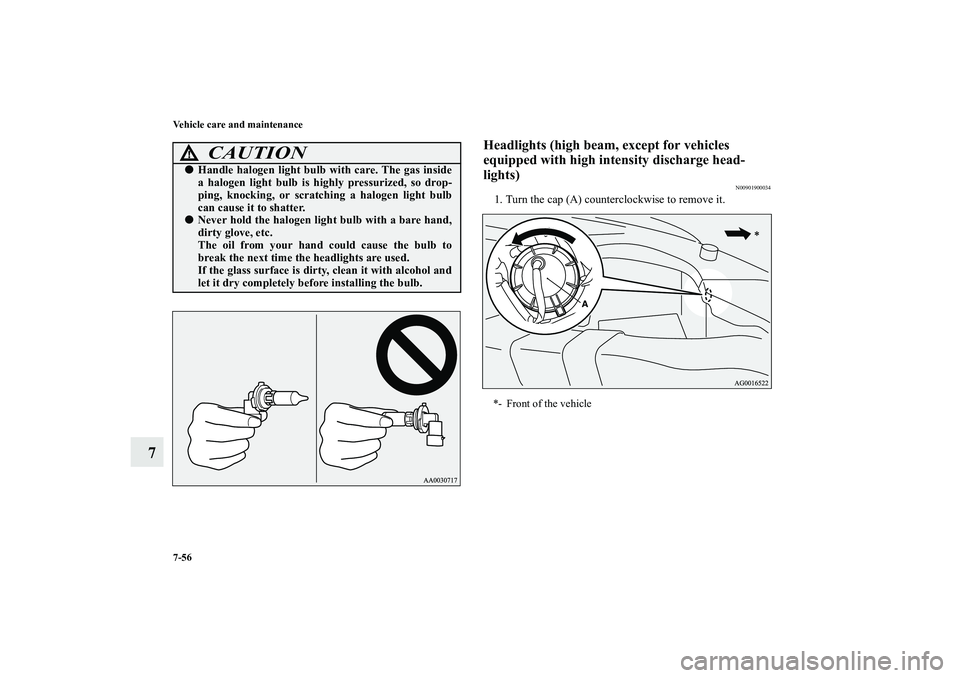

Headlights (high beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901900034
1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!

Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.


Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0115300US.book 56 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-57
7

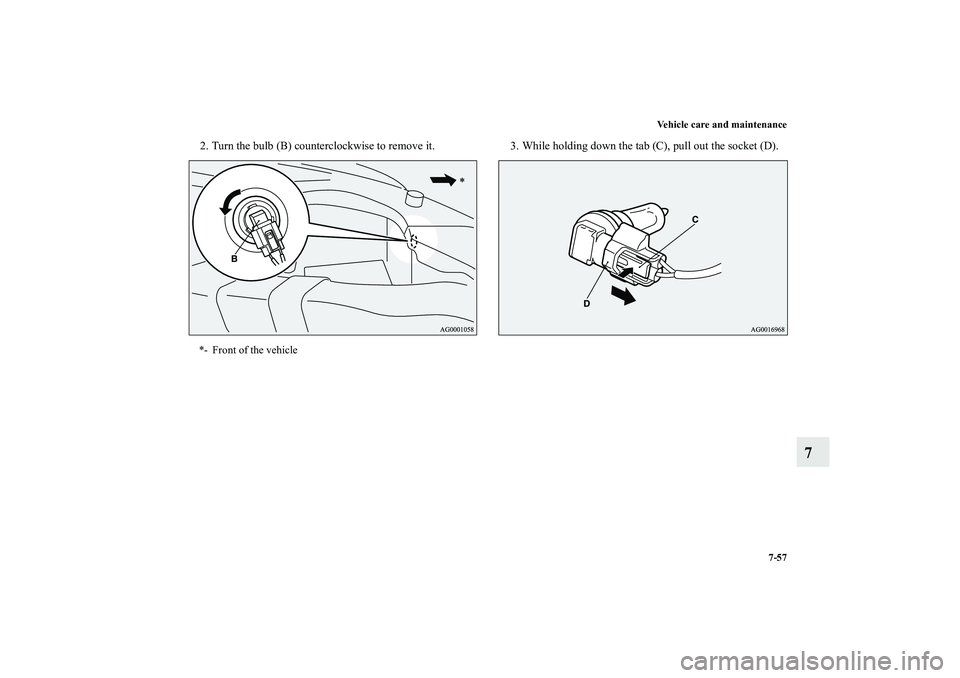

2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D).*- Front of the vehicle
BK0115300US.book 57 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-58 Vehicle care and maintenance
7

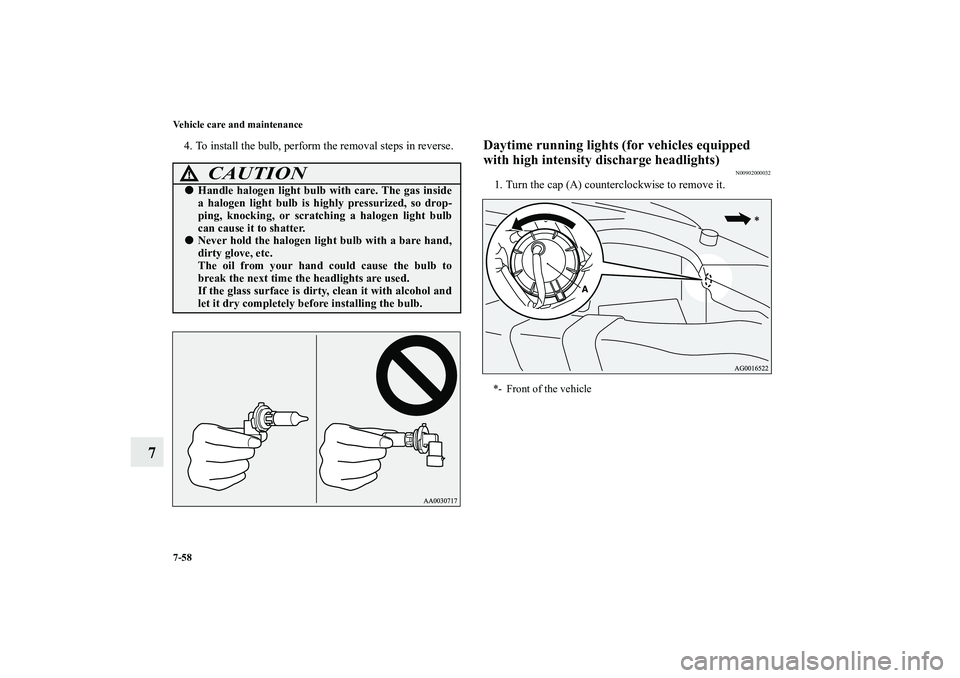

4. To install the bulb, perform the removal steps in reverse.
Daytime running lights (for vehicles equipped
with high intensity discharge headlights)
N00902000032
1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!

Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.


Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0115300US.book 58 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-59
7
2. Turn the socket (B) counterclockwise to remove it. 3. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0115300US.book 59 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-60 Vehicle care and maintenance
7

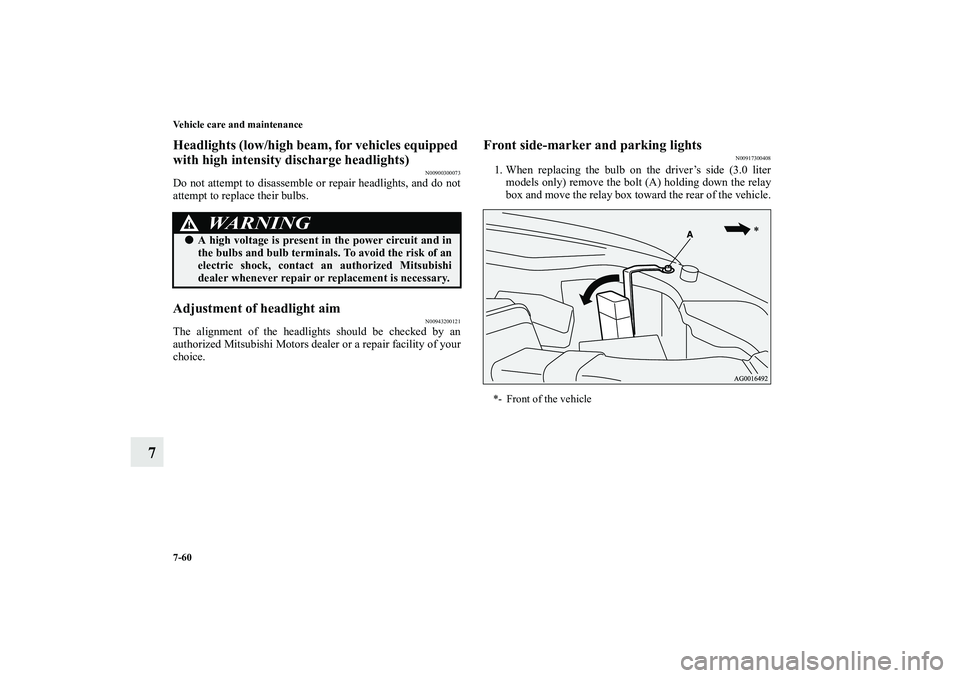

Headlights (low/high beam, for vehicles equipped
with high intensity discharge headlights)
N00900300073
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
Front side-marker and parking lights
N00917300408
1. When replacing the bulb on the driver’s side (3.0 liter
models only) remove the bolt (A) holding down the relay
box and move the relay box toward the rear of the vehicle.
WA R N I N G
!

A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
*- Front of the vehicle
BK0115300US.book 60 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-61
7

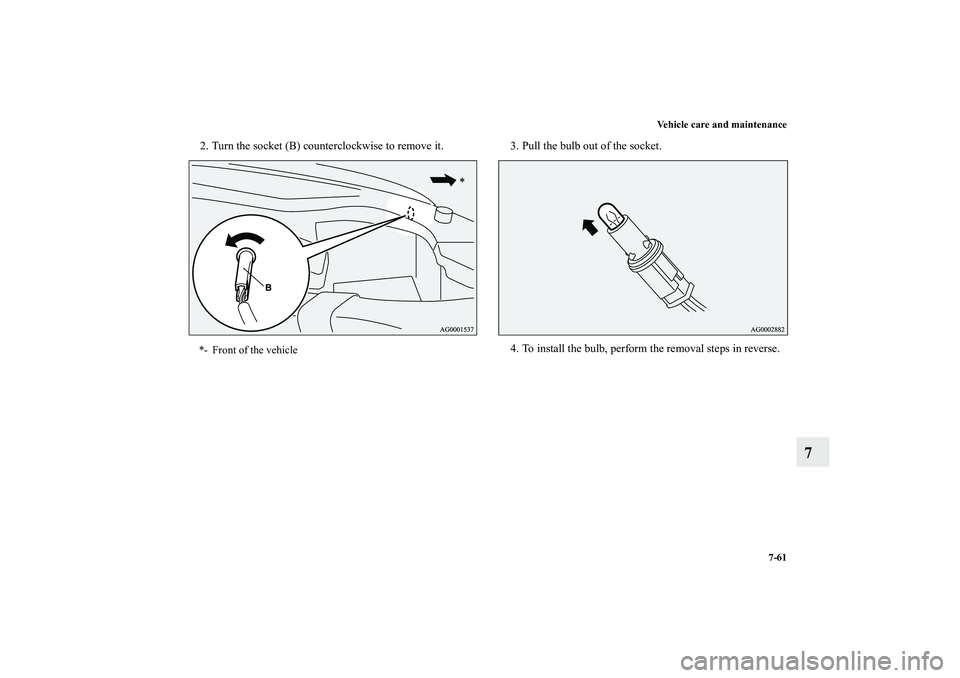

2. Turn the socket (B) counterclockwise to remove it. 3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0115300US.book 61 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-62 Vehicle care and maintenance
7

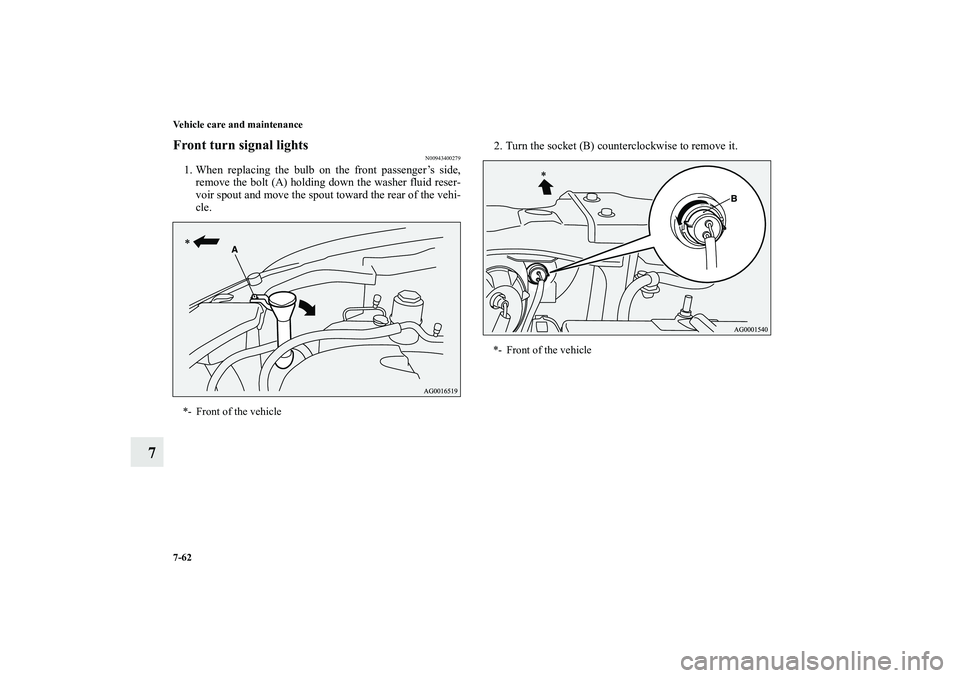

Front turn signal lights
N00943400279
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer fluid reser-
voir spout and move the spout toward the rear of the vehi-
cle.2. Turn the socket (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0115300US.book 62 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-63
7

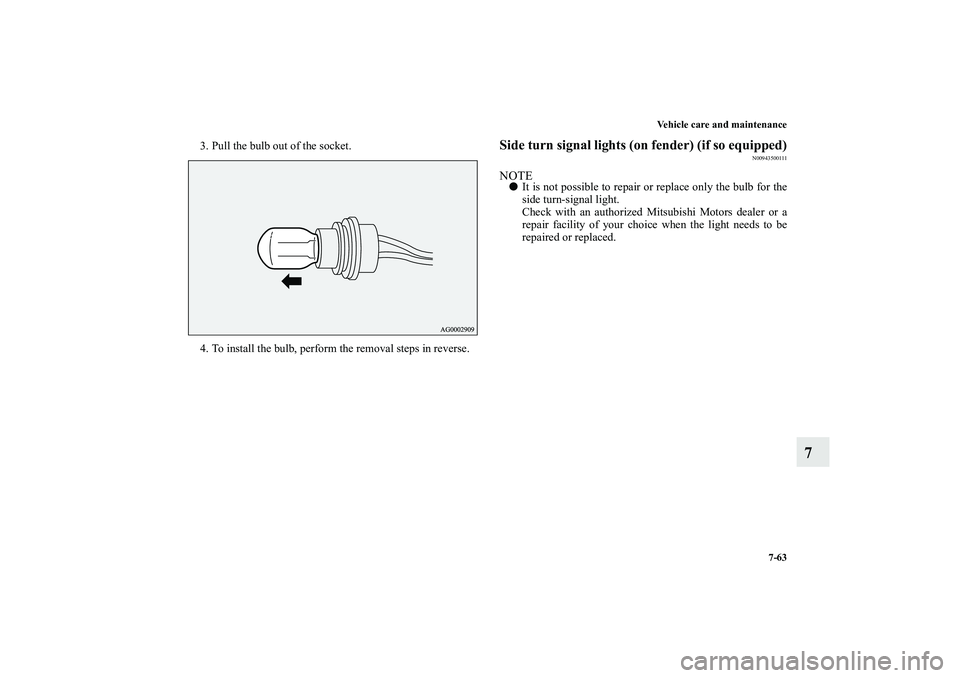

3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.
Side turn signal lights (on fender) (if so equipped)
N00943500111
NOTE

It is not possible to repair or replace only the bulb for the
side turn-signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
