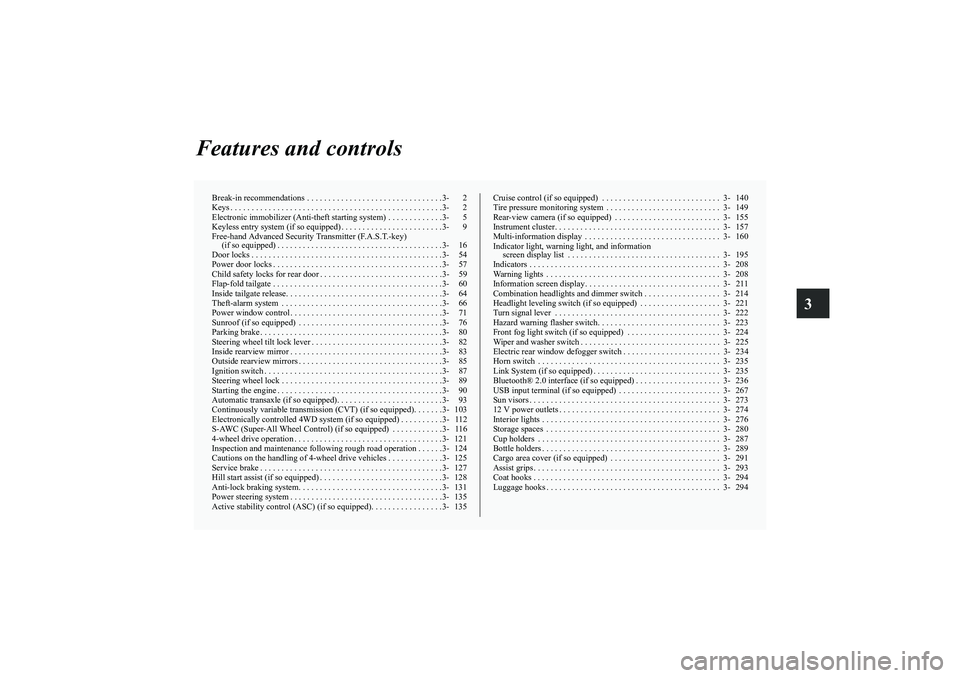

Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 9
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 57
Child safety locks for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Flap-fold tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 60
Inside tailgate release. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 66
Power window control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 82
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 83
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 87
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 89
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90
Automatic transaxle (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . .3- 93
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 103
Electronically controlled 4WD system (if so equipped) . . . . . . . . . . 3- 112
S-AWC (Super-All Wheel Control) (if so equipped) . . . . . . . . . . . . 3- 116
4-wheel drive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 121
Inspection and maintenance following rough road operation . . . . . . 3- 124
Cautions on the handling of 4-wheel drive vehicles . . . . . . . . . . . . . 3- 125
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 127
Hill start assist (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 128
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 131
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 135
Active stability control (ASC) (if so equipped). . . . . . . . . . . . . . . . .3- 135Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 140
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 155
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 157
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
Indicator light, warning light, and information
screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 195
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 208
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 208
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 214
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 221
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 222
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 223
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 224
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 225
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 234
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 235
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 235
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 236
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 267
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 273
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 274
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 280
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 287
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Cargo area cover (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 291
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 293
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 294
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 294
BK0115300US.book 1 ページ 2009年11月27日 金曜日 午後1時52分
Page 113 of 714
3-2 Features and controls

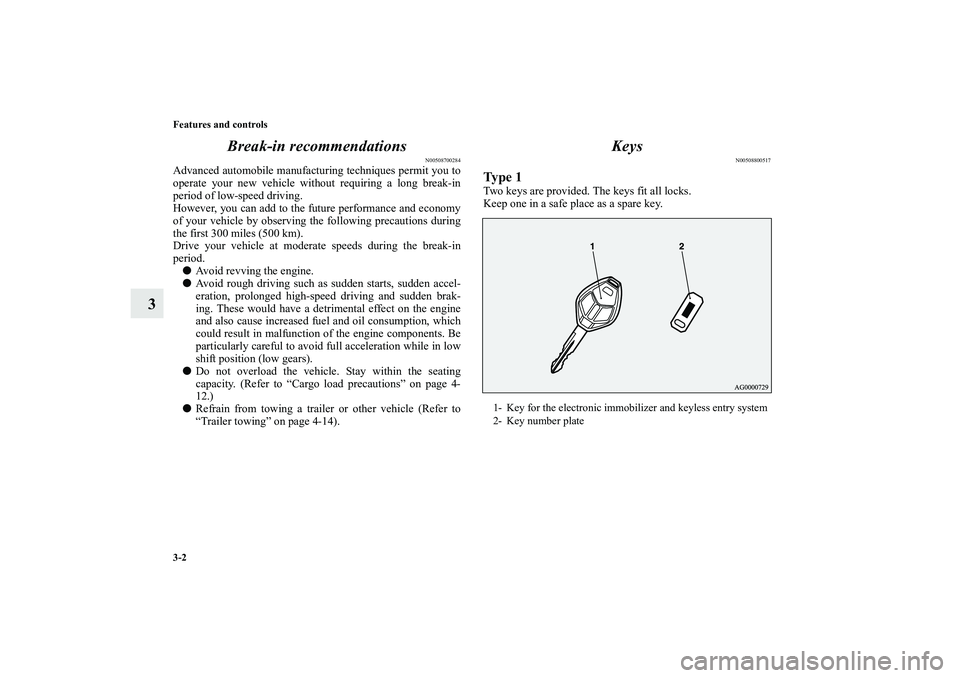

3Break-in recommendations
N00508700284
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.
Avoid revving the engine.
Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).
Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
12.)
Refrain from towing a trailer or other vehicle (Refer to
“Trailer towing” on page 4-14).
Keys
N00508800517
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0115300US.book 2 ページ 2009年7月16日 木曜日 午前9時13分
Page 114 of 714
Features and controls
3-3
3

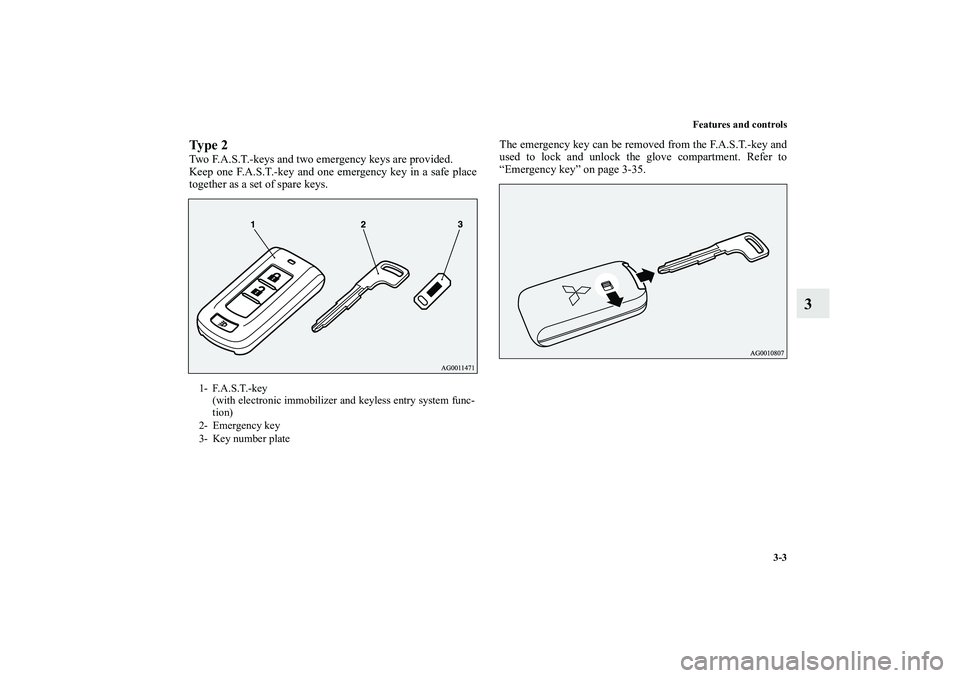

Ty p e 2Two F.A.S.T.-keys and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.The emergency key can be removed from the F.A.S.T.-key and
used to lock and unlock the glove compartment. Refer to
“Emergency key” on page 3-35.1- F.A.S.T.-key
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0115300US.book 3 ページ 2009年7月16日 木曜日 午前9時13分
Page 115 of 714
3-4 Features and controls
3

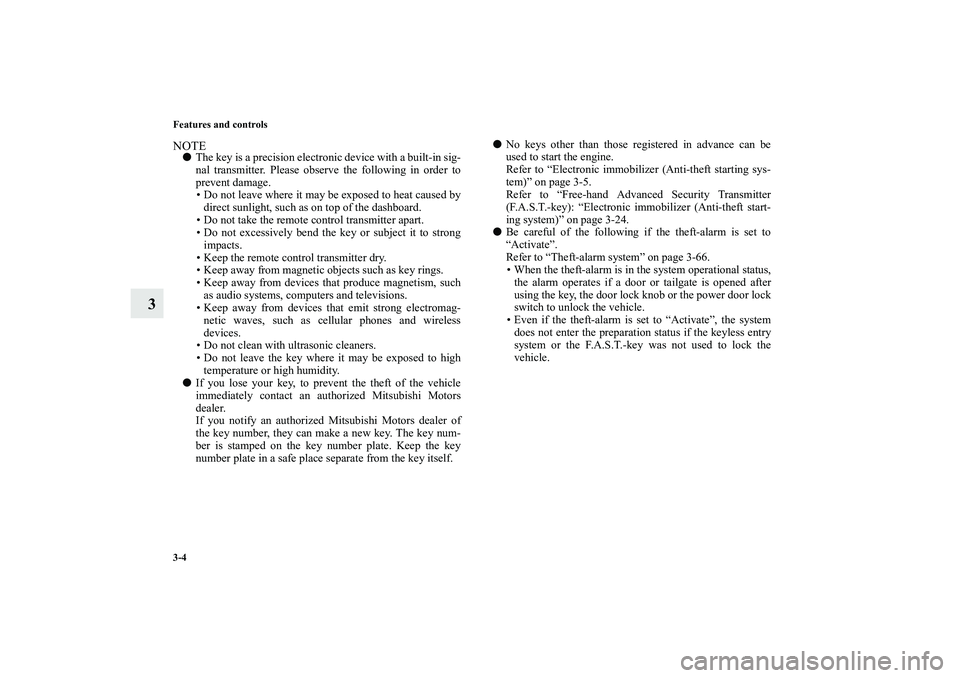

NOTE
The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
Do not take the remote control transmitter apart.
Do not excessively bend the key or subject it to strong
impacts.
Keep the remote control transmitter dry.
Keep away from magnetic objects such as key rings.
Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
Keep away from devices that emit strong electromag-
netic waves, such as cellular phones and wireless
devices.
Do not clean with ultrasonic cleaners.
Do not leave the key where it may be exposed to high
temperature or high humidity.
If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-5.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-24.
Be careful of the following if the theft-alarm is set to
“Activate”.
Refer to “Theft-alarm system” on page 3-66.
When the theft-alarm is in the system operational status,
the alarm operates if a door or tailgate is opened after
using the key, the door lock knob or the power door lock
switch to unlock the vehicle.
Even if the theft-alarm is set to “Activate”, the system
does not enter the preparation status if the keyless entry
system or the F.A.S.T.-key was not used to lock the
vehicle.
BK0115300US.book 4 ページ 2009年7月16日 木曜日 午前9時13分
Page 116 of 714
Features and controls
3-5

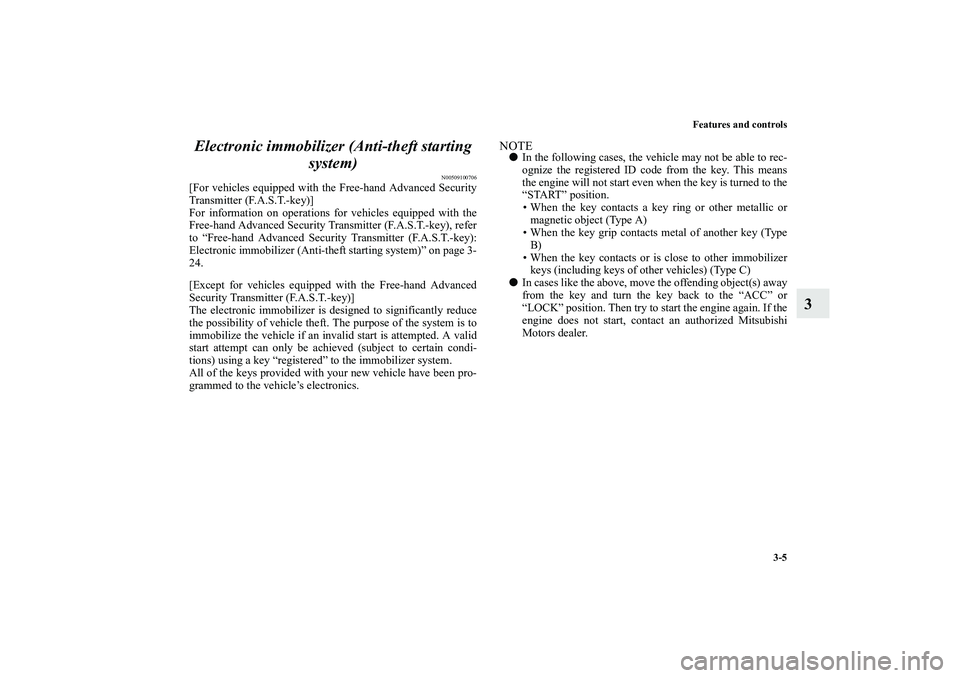

3 Electronic immobilizer (Anti-theft starting
system)
N00509100706
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Electronic immobilizer (Anti-theft starting system)” on page 3-
24.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
NOTE
In the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the key is turned to the
“START” position.
When the key contacts a key ring or other metallic or
magnetic object (Type A)
When the key grip contacts metal of another key (Type
B)
When the key contacts or is close to other immobilizer
keys (including keys of other vehicles) (Type C)

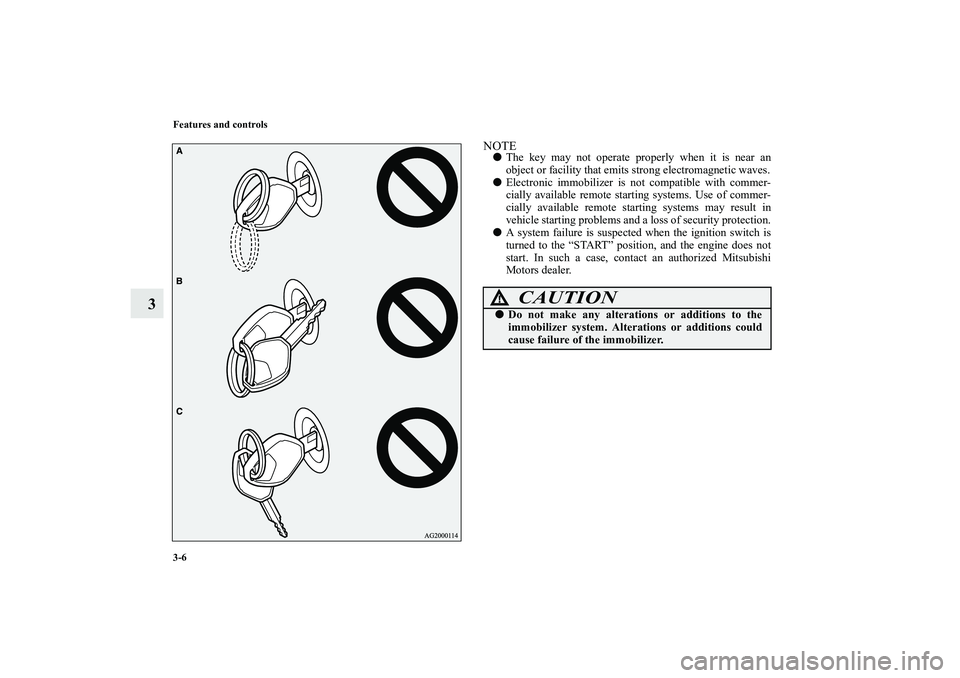

In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“LOCK” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
BK0115300US.book 5 ページ 2009年7月16日 木曜日 午前9時13分
Page 117 of 714
3-6 Features and controls
3
NOTE
The key may not operate properly when it is near an
object or facility that emits strong electromagnetic waves.
Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.
A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.
CAUTION
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0115300US.book 6 ページ 2009年7月16日 木曜日 午前9時13分
Page 118 of 714
Features and controls
3-7
3

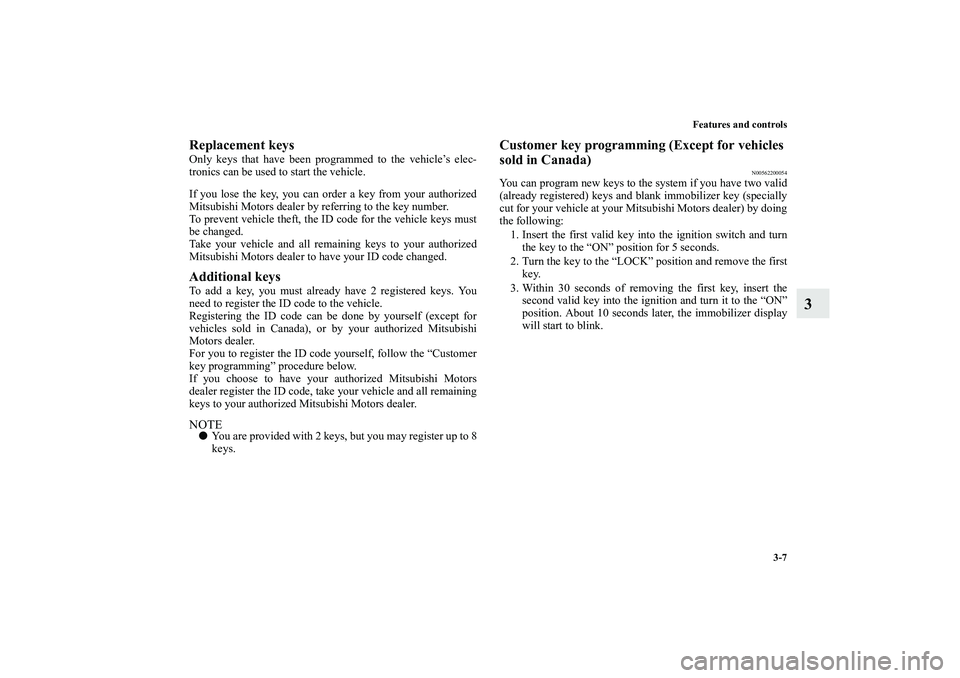

Replacement keysOnly keys that have been programmed to the vehicle’s elec-
tronics can be used to start the vehicle.
If you lose the key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.Additional keysTo add a key, you must already have 2 registered keys. You
need to register the ID code to the vehicle.
Registering the ID code can be done by yourself (except for
vehicles sold in Canada), or by your authorized Mitsubishi
Motors dealer.
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 keys, but you may register up to 8
keys.
Customer key programming (Except for vehicles
sold in Canada)
N00562200054
You can program new keys to the system if you have two valid
(already registered) keys and blank immobilizer key (specially
cut for your vehicle at your Mitsubishi Motors dealer) by doing
the following:
1. Insert the first valid key into the ignition switch and turn
the key to the “ON” position for 5 seconds.
2. Turn the key to the “LOCK” position and remove the first
key.
3. Within 30 seconds of removing the first key, insert the
second valid key into the ignition and turn it to the “ON”
position. About 10 seconds later, the immobilizer display
will start to blink.
BK0115300US.book 7 ページ 2009年7月16日 木曜日 午前9時13分
Page 119 of 714
3-8 Features and controls
3

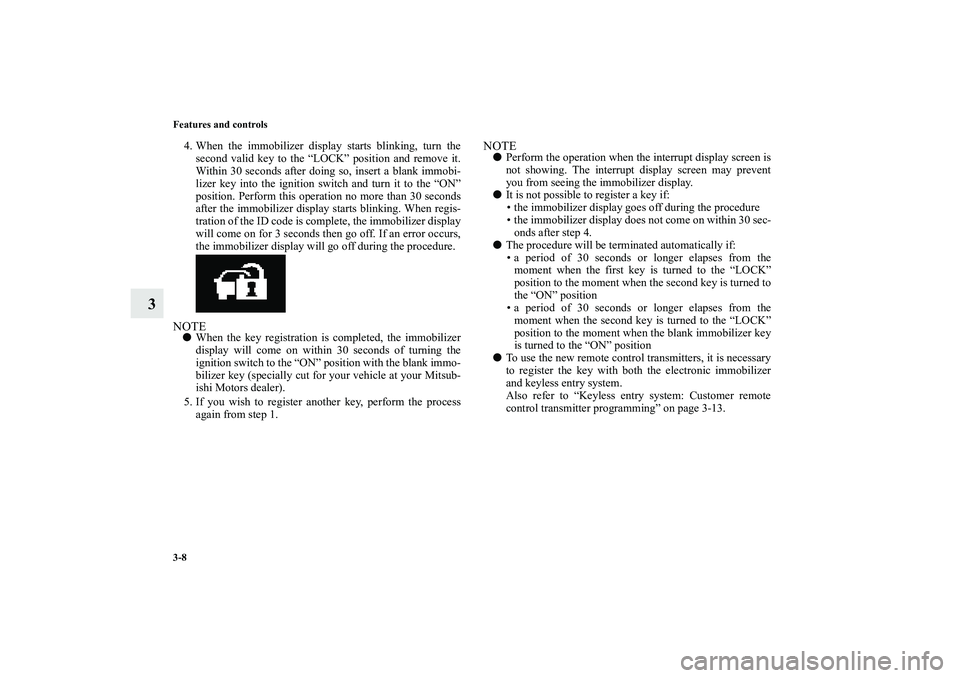

4. When the immobilizer display starts blinking, turn the
second valid key to the “LOCK” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition switch and turn it to the “ON”
position. Perform this operation no more than 30 seconds
after the immobilizer display starts blinking. When regis-
tration of the ID code is complete, the immobilizer display
will come on for 3 seconds then go off. If an error occurs,
the immobilizer display will go off during the procedure.NOTE
When the key registration is completed, the immobilizer
display will come on within 30 seconds of turning the
ignition switch to the “ON” position with the blank immo-
bilizer key (specially cut for your vehicle at your Mitsub-
ishi Motors dealer).
5. If you wish to register another key, perform the process
again from step 1.
NOTE
Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.
It is not possible to register a key if:
the immobilizer display goes off during the procedure
the immobilizer display does not come on within 30 sec-
onds after step 4.
The procedure will be terminated automatically if:
a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “LOCK”
position to the moment when the second key is turned to
the “ON” position
a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “LOCK”
position to the moment when the blank immobilizer key
is turned to the “ON” position
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer remote
control transmitter programming” on page 3-13.
BK0115300US.book 8 ページ 2009年7月16日 木曜日 午前9時13分
Page 120 of 714
Features and controls
3-9
3
General information
N00562300039
Your electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.

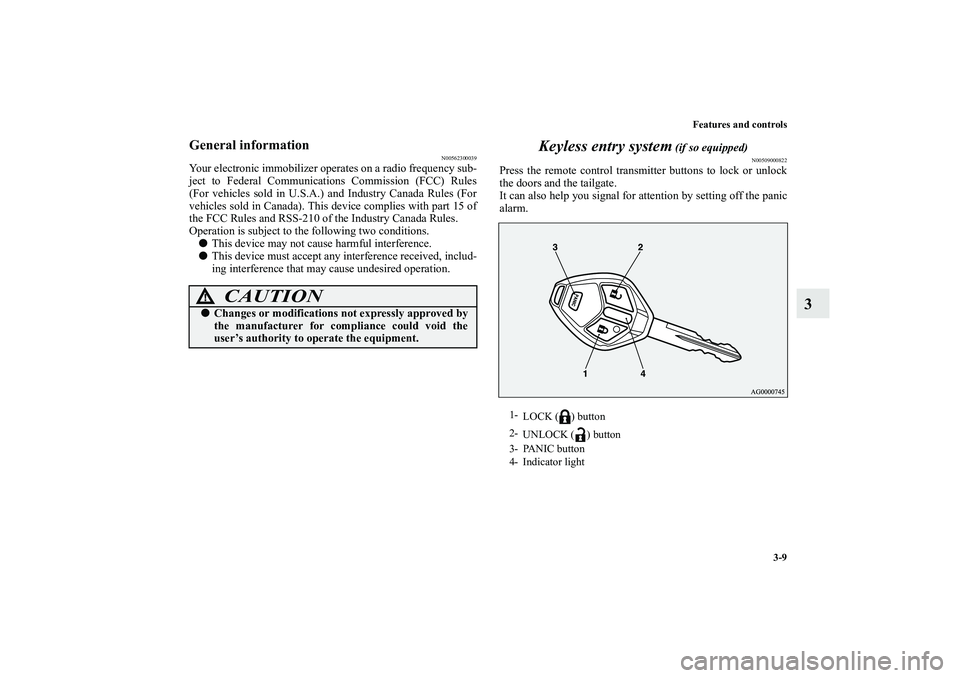

Keyless entry system
(if so equipped)
N00509000822
Press the remote control transmitter buttons to lock or unlock
the doors and the tailgate.
It can also help you signal for attention by setting off the panic
alarm.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0115300US.book 9 ページ 2009年7月16日 木曜日 午前9時13分
Page 125 of 714
3-14 Features and controls
3
If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 8 remote control transmitters can
be programmed for your vehicle.
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-7.
General information
N00546100039
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.

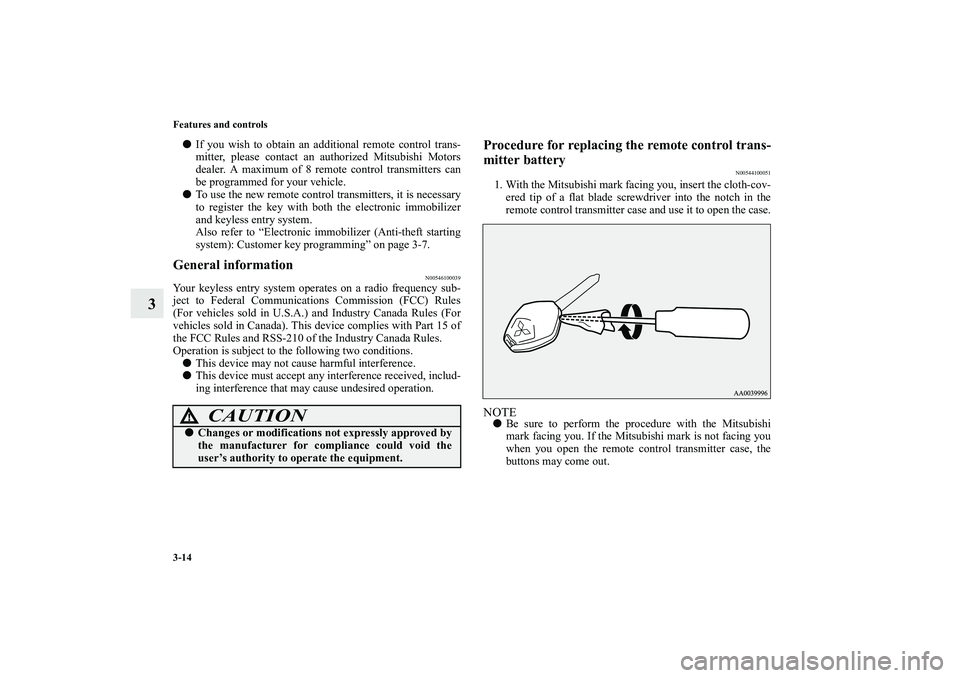

Procedure for replacing the remote control trans-
mitter battery
N00544100051
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0115300US.book 14 ページ 2009年7月16日 木曜日 午前9時13分
