MITSUBISHI OUTLANDER XL 2011 Owners Manual

7-74 Vehicle care and maintenance
7

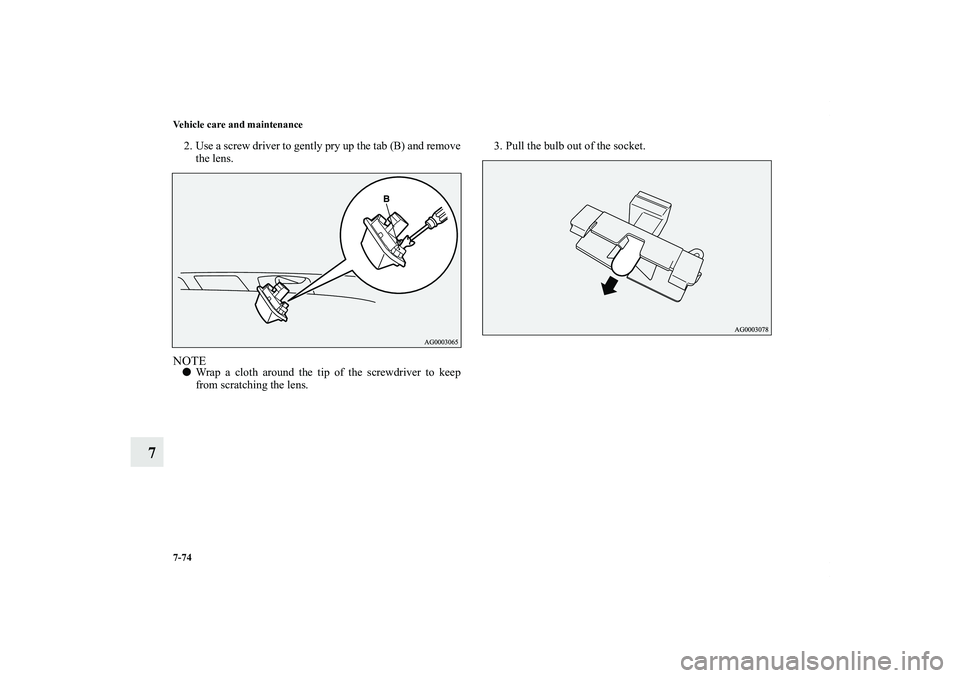

2. Use a screw driver to gently pry up the tab (B) and remove
the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.3. Pull the bulb out of the socket.
BK0122500US.book 74 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-75
7

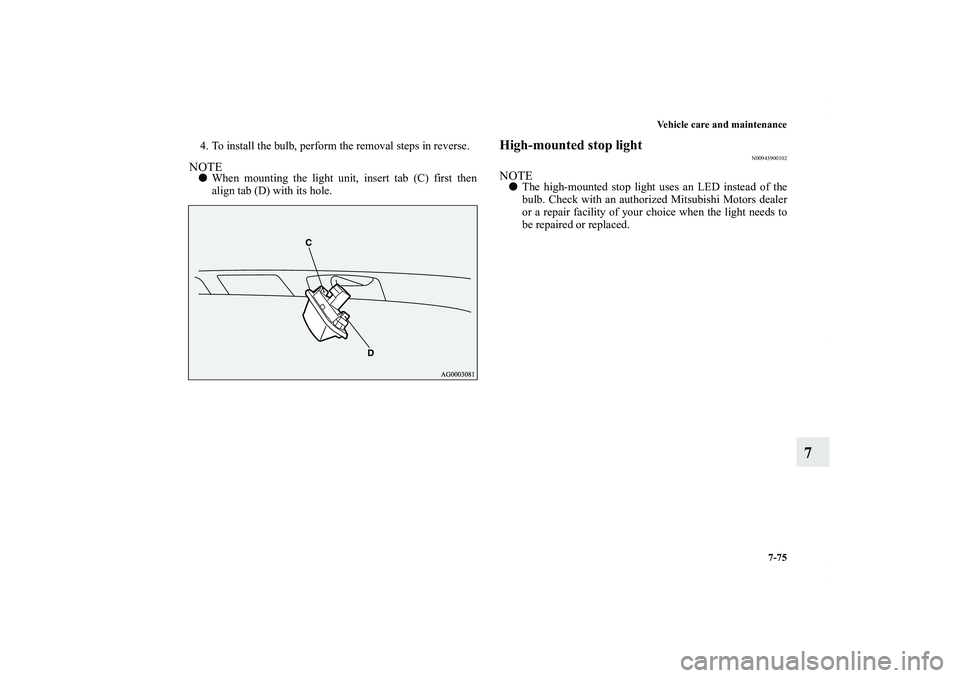

4. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, insert tab (C) first then
align tab (D) with its hole.
High-mounted stop light
N00943900102
NOTE
The high-mounted stop light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
BK0122500US.book 75 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-76 Vehicle care and maintenance
7

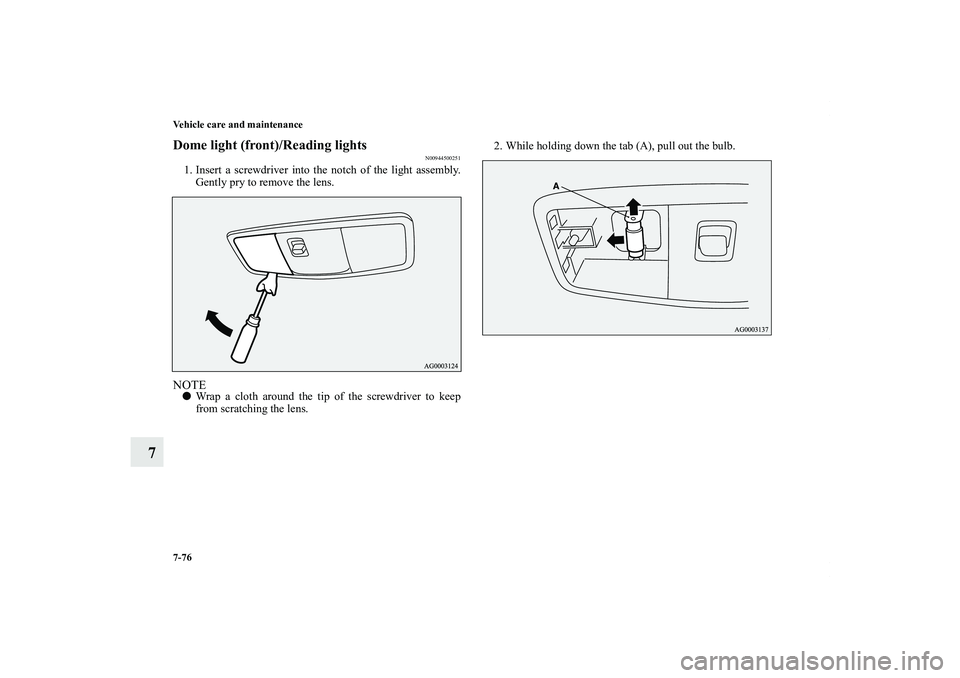

Dome light (front)/Reading lights
N00944500251
1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
BK0122500US.book 76 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

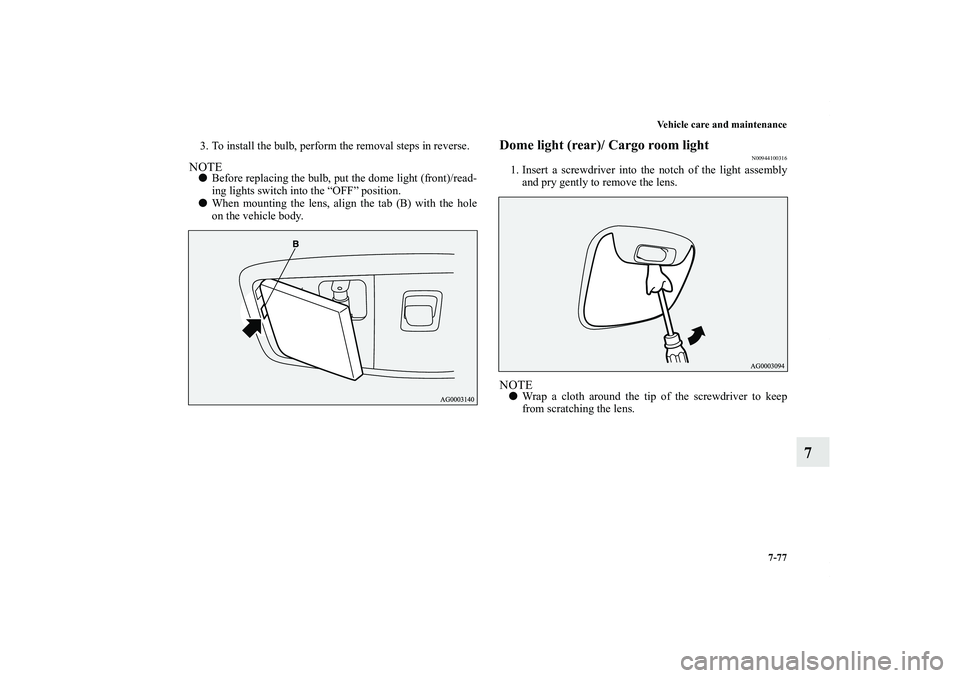

Vehicle care and maintenance
7-77
7
3. To install the bulb, perform the removal steps in reverse.NOTE
Before replacing the bulb, put the dome light (front)/read-
ing lights switch into the “OFF” position.

When mounting the lens, align the tab (B) with the hole
on the vehicle body.
Dome light (rear)/ Cargo room light
N00944100316
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0122500US.book 77 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-78 Vehicle care and maintenance
7

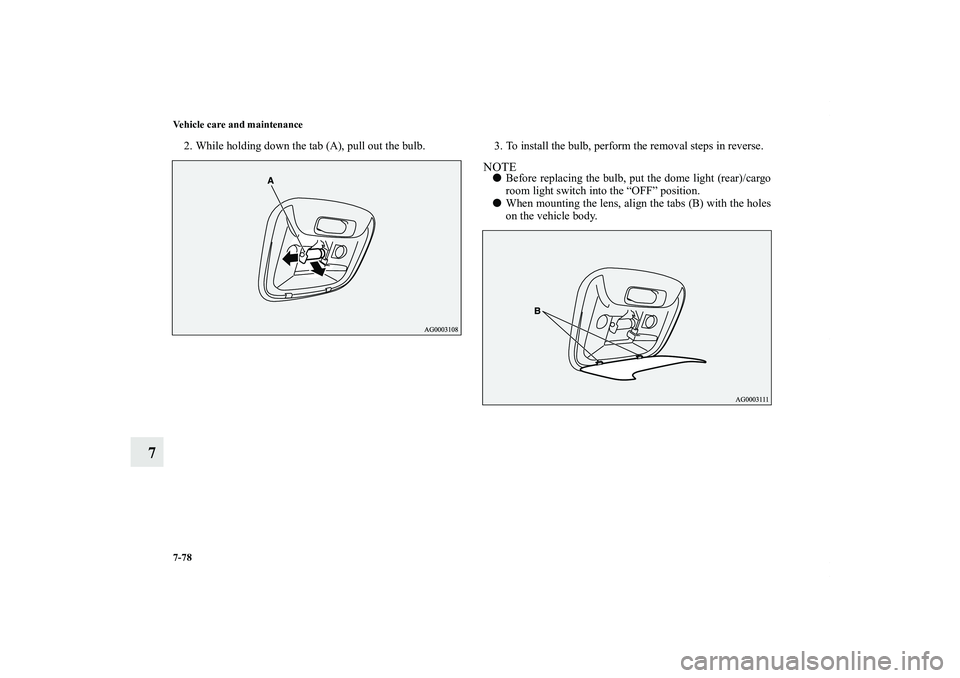

2. While holding down the tab (A), pull out the bulb. 3. To install the bulb, perform the removal steps in reverse.
NOTE
Before replacing the bulb, put the dome light (rear)/cargo
room light switch into the “OFF” position.

When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
BK0122500US.book 78 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-79
7

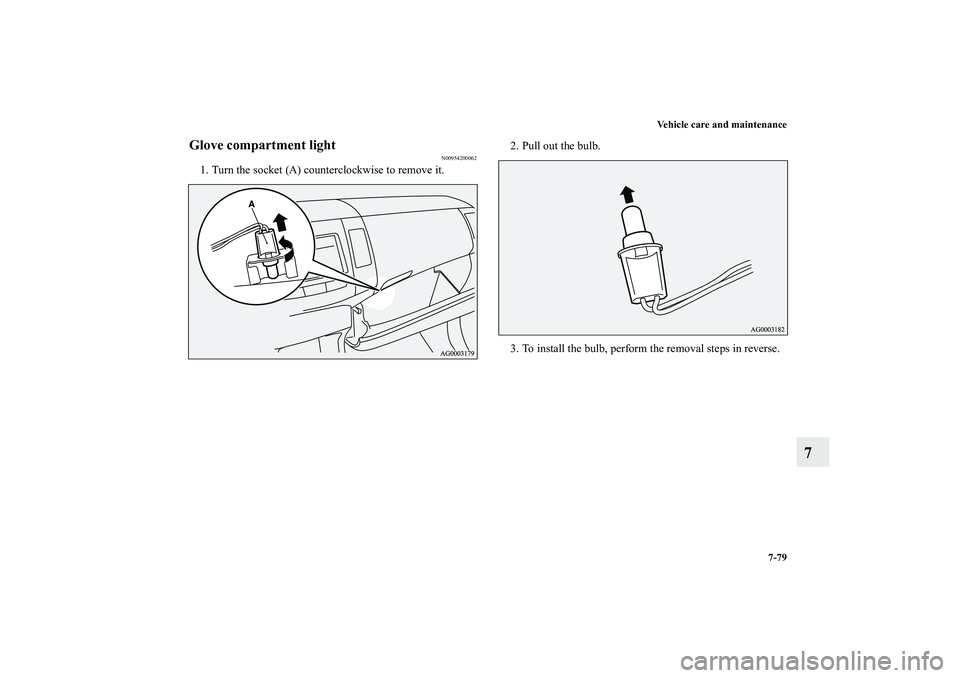

Glove compartment light
N00954200062
1. Turn the socket (A) counterclockwise to remove it.2. Pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
BK0122500US.book 79 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-80 Vehicle care and maintenance
7

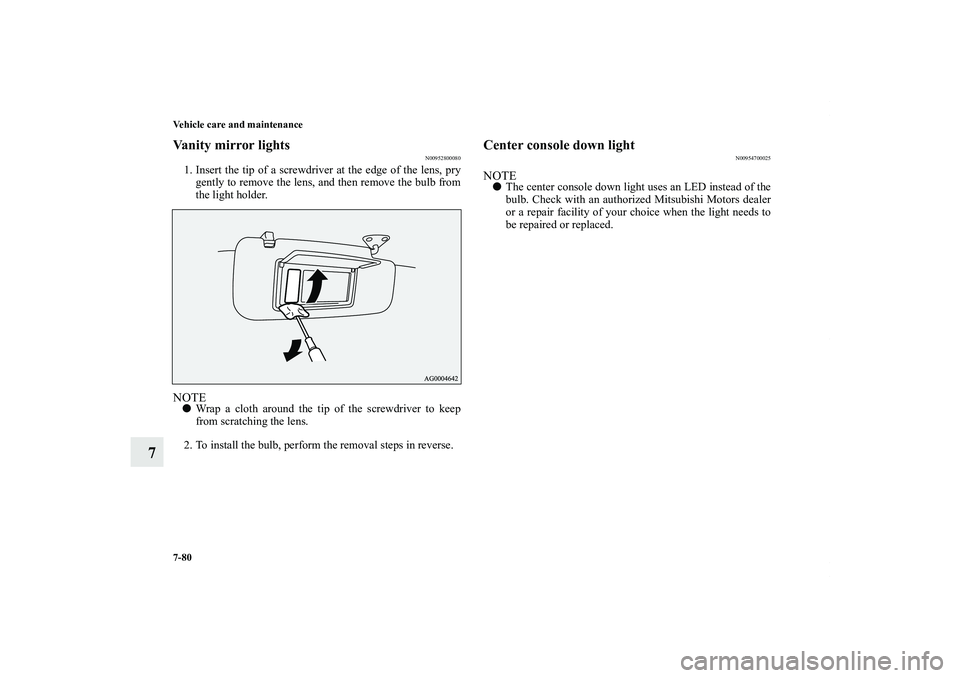

Vanity mirror lights
N00952800080
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
Center console down light
N00954700025
NOTE
The center console down light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
BK0122500US.book 80 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-81

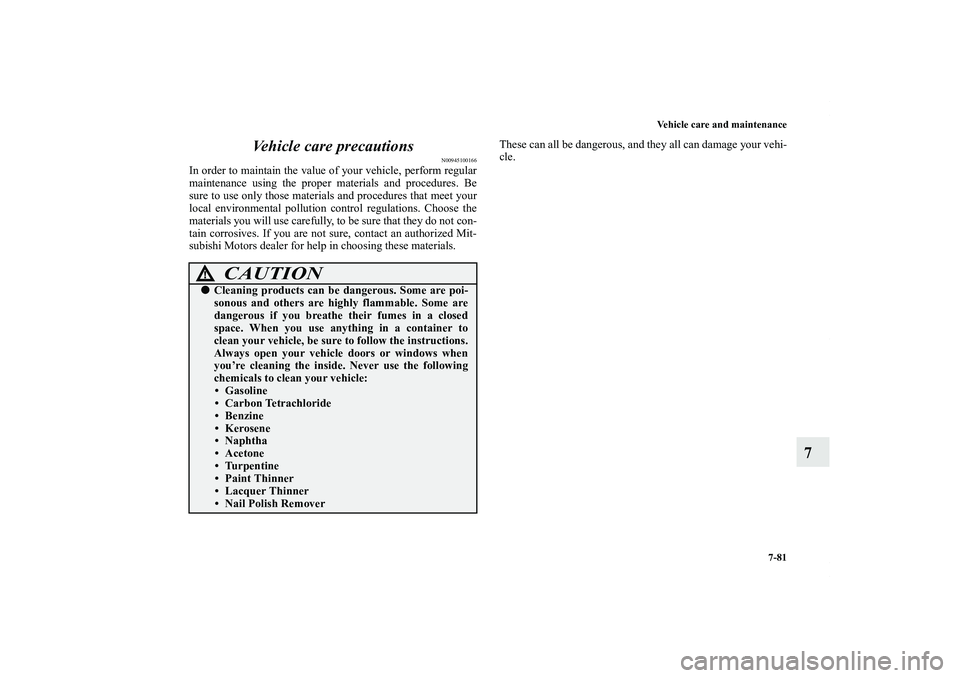

7 Vehicle care precautions
N00945100166
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized Mit-
subishi Motors dealer for help in choosing these materials.These can all be dangerous, and they all can damage your vehi-
cle.
CAUTION
!
Cleaning products can be dangerous. Some are poi-
sonous and others are highly flammable. Some are
dangerous if you breathe their fumes in a closed
space. When you use anything in a container to
clean your vehicle, be sure to follow the instructions.
Always open your vehicle doors or windows when
you’re cleaning the inside. Never use the following
chemicals to clean your vehicle:
• Gasoline
• Carbon Tetrachloride
• Benzine
• Kerosene
• Naphtha
• Acetone
• Turpentine
• Paint Thinner
• Lacquer Thinner
• Nail Polish Remover
BK0122500US.book 81 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-82 Vehicle care and maintenance

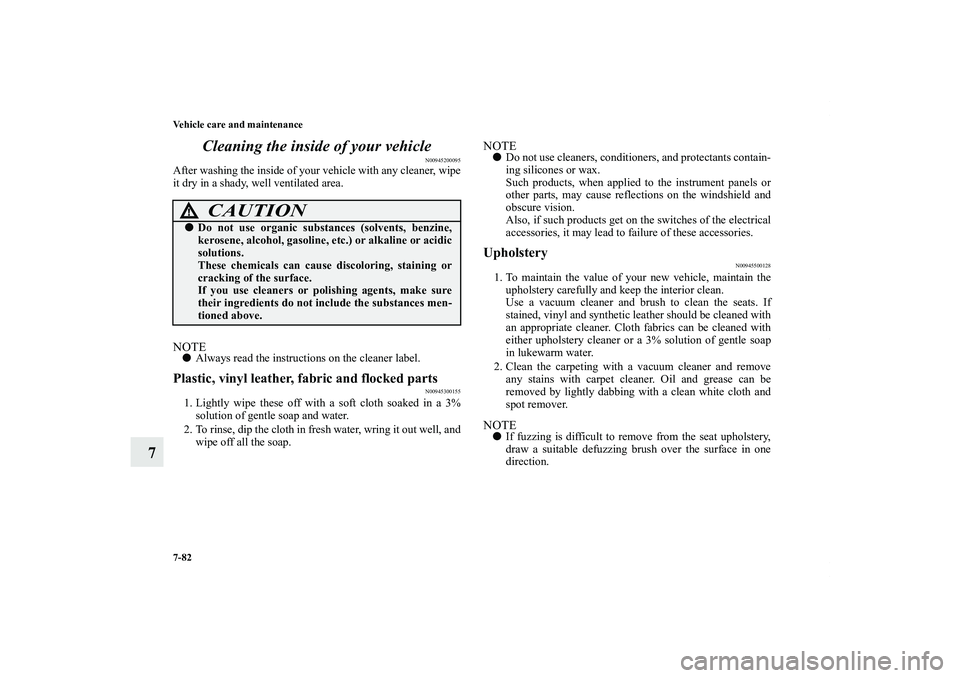

7Cleaning the inside of your vehicle
N00945200095
After washing the inside of your vehicle with any cleaner, wipe
it dry in a shady, well ventilated area.NOTE
Always read the instructions on the cleaner label.Plastic, vinyl leather, fabric and flocked parts
N00945300155
1. Lightly wipe these off with a soft cloth soaked in a 3%
solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
NOTE
Do not use cleaners, conditioners, and protectants contain-
ing silicones or wax.
Such products, when applied to the instrument panels or
other parts, may cause reflections on the windshield and
obscure vision.
Also, if such products get on the switches of the electrical
accessories, it may lead to failure of these accessories.Upholstery
N00945500128
1. To maintain the value of your new vehicle, maintain the
upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean the seats. If
stained, vinyl and synthetic leather should be cleaned with
an appropriate cleaner. Cloth fabrics can be cleaned with
either upholstery cleaner or a 3% solution of gentle soap
in lukewarm water.
2. Clean the carpeting with a vacuum cleaner and remove
any stains with carpet cleaner. Oil and grease can be
removed by lightly dabbing with a clean white cloth and
spot remover.NOTE
If fuzzing is difficult to remove from the seat upholstery,
draw a suitable defuzzing brush over the surface in one
direction.
CAUTION
!
Do not use organic substances (solvents, benzine,
kerosene, alcohol, gasoline, etc.) or alkaline or acidic
solutions.
These chemicals can cause discoloring, staining or
cracking of the surface.
If you use cleaners or polishing agents, make sure
their ingredients do not include the substances men-
tioned above.
BK0122500US.book 82 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

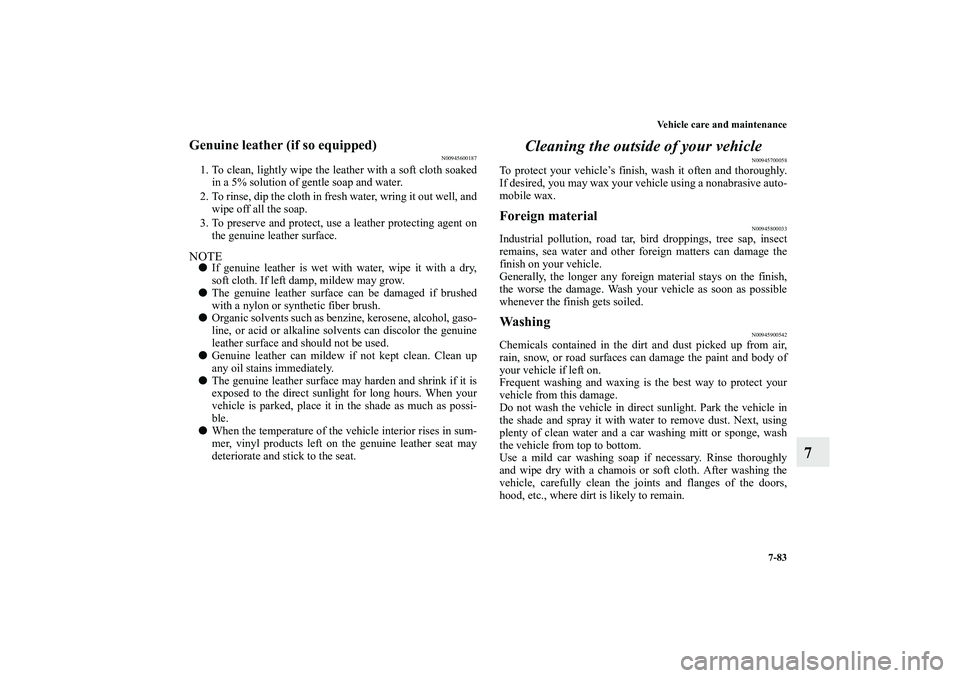

Vehicle care and maintenance
7-83
7
Genuine leather (if so equipped)
N00945600187
1. To clean, lightly wipe the leather with a soft cloth soaked
in a 5% solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
3. To preserve and protect, use a leather protecting agent on
the genuine leather surface.NOTE
If genuine leather is wet with water, wipe it with a dry,
soft cloth. If left damp, mildew may grow.

The genuine leather surface can be damaged if brushed
with a nylon or synthetic fiber brush.

Organic solvents such as benzine, kerosene, alcohol, gaso-
line, or acid or alkaline solvents can discolor the genuine
leather surface and should not be used.

Genuine leather can mildew if not kept clean. Clean up
any oil stains immediately.

The genuine leather surface may harden and shrink if it is
exposed to the direct sunlight for long hours. When your
vehicle is parked, place it in the shade as much as possi-
ble.

When the temperature of the vehicle interior rises in sum-
mer, vinyl products left on the genuine leather seat may
deteriorate and stick to the seat.
Cleaning the outside of your vehicle
N00945700058
To protect your vehicle’s finish, wash it often and thoroughly.
If desired, you may wax your vehicle using a nonabrasive auto-
mobile wax.Foreign material
N00945800033
Industrial pollution, road tar, bird droppings, tree sap, insect
remains, sea water and other foreign matters can damage the
finish on your vehicle.
Generally, the longer any foreign material stays on the finish,
the worse the damage. Wash your vehicle as soon as possible
whenever the finish gets soiled.Wa s h i n g
N00945900542
Chemicals contained in the dirt and dust picked up from air,
rain, snow, or road surfaces can damage the paint and body of
your vehicle if left on.
Frequent washing and waxing is the best way to protect your
vehicle from this damage.
Do not wash the vehicle in direct sunlight. Park the vehicle in
the shade and spray it with water to remove dust. Next, using
plenty of clean water and a car washing mitt or sponge, wash
the vehicle from top to bottom.
Use a mild car washing soap if necessary. Rinse thoroughly
and wipe dry with a chamois or soft cloth. After washing the
vehicle, carefully clean the joints and flanges of the doors,
hood, etc., where dirt is likely to remain.
BK0122500US.book 83 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
