MITSUBISHI OUTLANDER XL 2011 Owners Manual

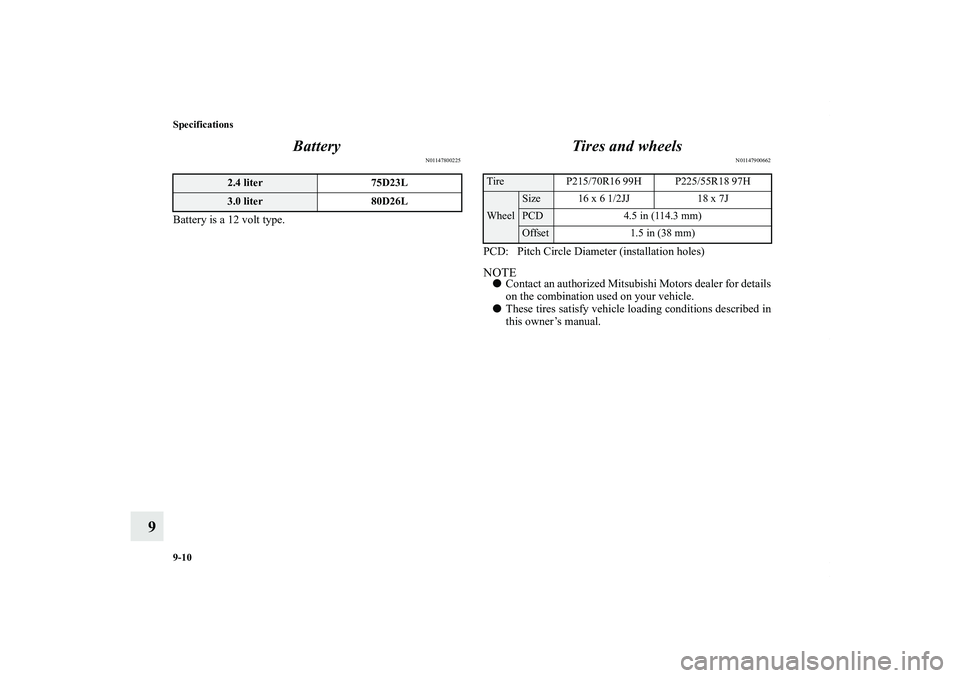

9-10 Specifications
9Battery
N01147800225
Battery is a 12 volt type.
Tires and wheels
N01147900662
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
2.4 liter 75D23L3.0 liter 80D26L
Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2JJ 18 x 7JPCD 4.5 in (114.3 mm)Offset 1.5 in (38 mm)
BK0122500US.book 10 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Specifications
9-11
9 Capacity
N01148000918
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
2.4 liter
Oil pan 4.5 qt (4.3 L)
Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SM
can be used.Oil filter .32 qt (0.3 L)
3.0 liter
Oil pan 4.2 qt (4.0 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering FluidAutomatic transaxle 8.7 qt (8.2 L) Dia queen ATF - J3Continuously variable transmission (CVT) 7.5 qt (7.1 L) Dia queen CVTF - J1Transfer oil .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Differential
Rear axle .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt
(0.65 L) in
reserve tank}
Automatic transaxle 10.0 qt (9.5 L)
Dia Queen Super Long Life Coolant
Premium or equivalent*CVT 7.9 qt (7.5 L)
Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
BK0122500US.book 11 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

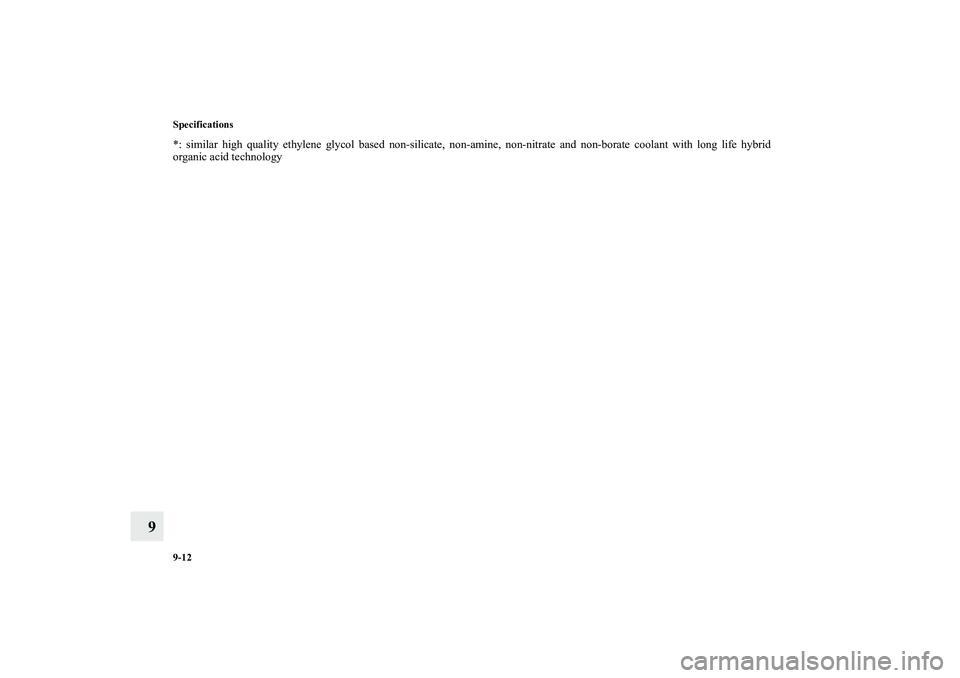

9-12 Specifications
9
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technologyBK0122500US.book 12 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

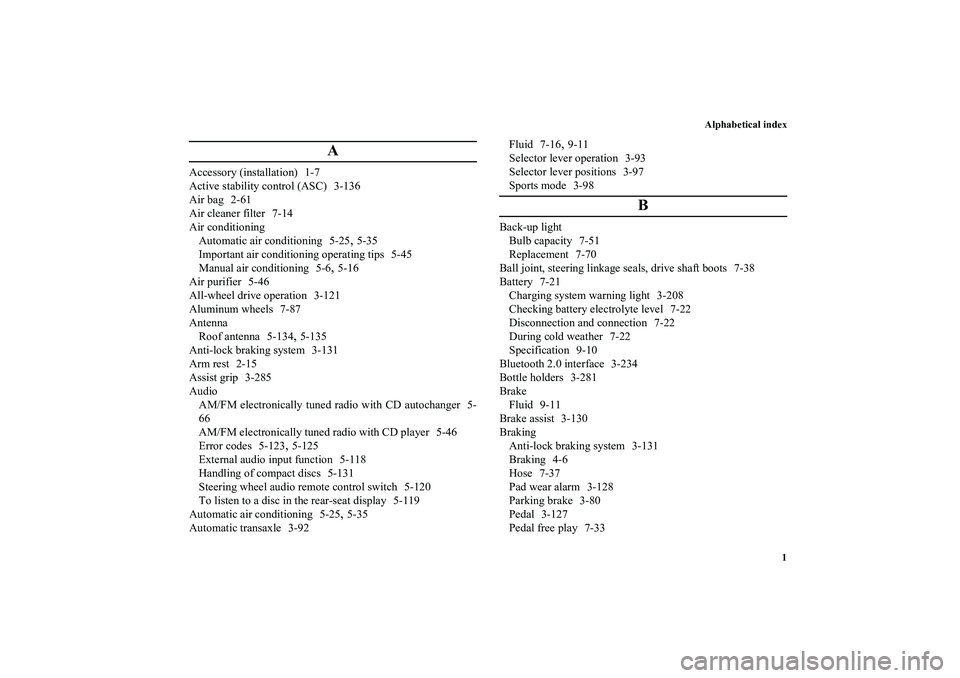

Alphabetical index
1
A
Accessory (installation) 1-7
Active stability control (ASC) 3-136
Air bag 2-61
Air cleaner filter 7-14
Air conditioning
Automatic air conditioning 5-25
,5-35
Important air conditioning operating tips 5-45
Manual air conditioning 5-6
,5-16
Air purifier 5-46
All-wheel drive operation 3-121
Aluminum wheels 7-87
Antenna
Roof antenna 5-134
,5-135
Anti-lock braking system 3-131
Arm rest 2-15
Assist grip 3-285
Audio
AM/FM electronically tuned radio with CD autochanger 5-
66
AM/FM electronically tuned radio with CD player 5-46
Error codes 5-123
,5-125
External audio input function 5-118
Handling of compact discs 5-131
Steering wheel audio remote control switch 5-120
To listen to a disc in the rear-seat display 5-119
Automatic air conditioning 5-25
,5-35
Automatic transaxle 3-92Fluid 7-16
,9-11
Selector lever operation 3-93
Selector lever positions 3-97
Sports mode 3-98
B
Back-up light
Bulb capacity 7-51
Replacement 7-70
Ball joint, steering linkage seals, drive shaft boots 7-38
Battery 7-21
Charging system warning light 3-208
Checking battery electrolyte level 7-22
Disconnection and connection 7-22
During cold weather 7-22
Specification 9-10
Bluetooth 2.0 interface 3-234
Bottle holders 3-281
Brake
Fluid 9-11
Brake assist 3-130
Braking
Anti-lock braking system 3-131
Braking 4-6
Hose 7-37
Pad wear alarm 3-128
Parking brake 3-80
Pedal 3-127
Pedal free play 7-33
BK0122500US.book 1 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

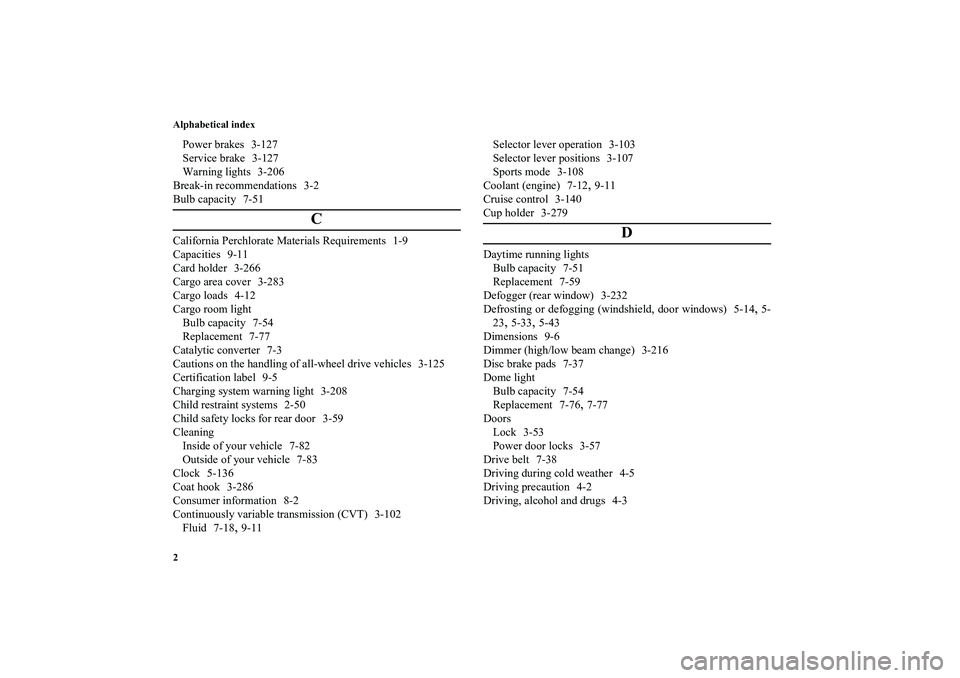

Alphabetical index
2Power brakes 3-127
Service brake 3-127
Warning lights 3-206
Break-in recommendations 3-2
Bulb capacity 7-51
C
California Perchlorate Materials Requirements 1-9
Capacities 9-11
Card holder 3-266
Cargo area cover 3-283
Cargo loads 4-12
Cargo room light
Bulb capacity 7-54
Replacement 7-77
Catalytic converter 7-3
Cautions on the handling of all-wheel drive vehicles 3-125
Certification label 9-5
Charging system warning light 3-208
Child restraint systems 2-50
Child safety locks for rear door 3-59
Cleaning
Inside of your vehicle 7-82
Outside of your vehicle 7-83
Clock 5-136
Coat hook 3-286
Consumer information 8-2
Continuously variable transmission (CVT) 3-102
Fluid 7-18
,9-11Selector lever operation 3-103
Selector lever positions 3-107
Sports mode 3-108
Coolant (engine) 7-12
,9-11
Cruise control 3-140
Cup holder 3-279
D
Daytime running lights
Bulb capacity 7-51
Replacement 7-59
Defogger (rear window) 3-232
Defrosting or defogging (windshield, door windows) 5-14
,5-
23
,5-33
,5-43
Dimensions 9-6
Dimmer (high/low beam change) 3-216
Disc brake pads 7-37
Dome light
Bulb capacity 7-54
Replacement 7-76
,7-77
Doors
Lock 3-53
Power door locks 3-57
Drive belt 7-38
Driving during cold weather 4-5
Driving precaution 4-2
Driving, alcohol and drugs 4-3
BK0122500US.book 2 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Alphabetical index
3
E
Electric rear window defogger switch 3-232
Electronic immobilizer (Anti-theft starting system) 3-5
,3-42
Electronically controlled 4WD system 3-112
Emission-control system maintenance 7-35
Engine
Compartment 7-7
Coolant 7-12
,9-11
Hood 7-4
MIVEC 3-33,3-41
,3-91
Oil and oil filter 7-8,9-11
Overheating 6-5
Serial number 9-2
Specification 9-9
Engine coolant temperature display 3-169
Engine hood 7-4
Exhaust system 7-40
F
Floor console box 3-276
Fluid
Automatic transaxle fluid 7-16
,9-11
Brake fluid 9-11
Continuously variable transmission (CVT) fluid 7-18
,9-11
Engine coolant 7-12
,9-11
Engine oil 7-8
Power steering fluid 7-21
,9-11
Rear axle oil 7-19Transfer oil 7-18
Washer fluid 7-19
,9-11
Fluid capacities and lubricants 9-11
Free-hand advanced security transmitter (F.A.S.T.-key) 3-16
Front fog lights
Bulb capacity 7-51
Indicators 3-206
Replacement 7-65
Switch 3-222
Front seat adjustment 2-5
Front side-marker lights
Bulb capacity 7-51
Replacement 7-61
Front turn-signal light
Bulb capacity 7-51
Replacement 7-62
Fuel
Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-36
Fuel selection 1-2
Tank capacity 9-11
Fuses 7-42
Fusible links 7-42
G
General maintenance
Maintenance 7-37
General vehicle data 9-6
BK0122500US.book 3 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

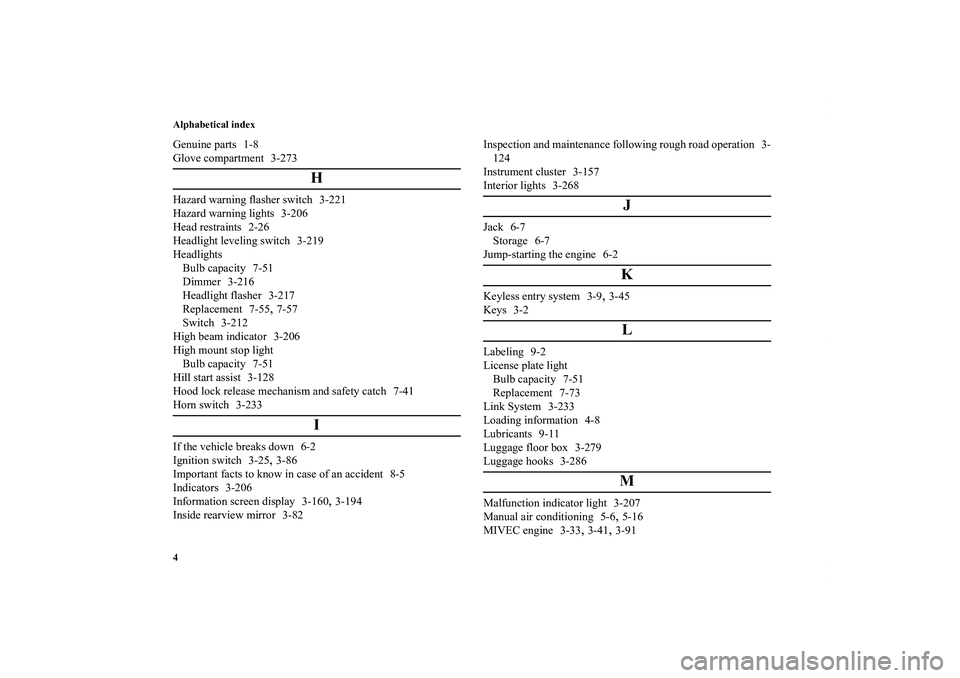

Alphabetical index
4Genuine parts 1-8
Glove compartment 3-273
H
Hazard warning flasher switch 3-221
Hazard warning lights 3-206
Head restraints 2-26
Headlight leveling switch 3-219
Headlights
Bulb capacity 7-51
Dimmer 3-216
Headlight flasher 3-217
Replacement 7-55
,7-57
Switch 3-212
High beam indicator 3-206
High mount stop light
Bulb capacity 7-51
Hill start assist 3-128
Hood lock release mechanism and safety catch 7-41
Horn switch 3-233
I
If the vehicle breaks down 6-2
Ignition switch 3-25
,3-86
Important facts to know in case of an accident 8-5
Indicators 3-206
Information screen display 3-160
,3-194
Inside rearview mirror 3-82Inspection and maintenance following rough road operation 3-
124
Instrument cluster 3-157
Interior lights 3-268
J
Jack 6-7
Storage 6-7
Jump-starting the engine 6-2
K
Keyless entry system 3-9
,3-45
Keys 3-2
L
Labeling 9-2
License plate light
Bulb capacity 7-51
Replacement 7-73
Link System 3-233
Loading information 4-8
Lubricants 9-11
Luggage floor box 3-279
Luggage hooks 3-286
M
Malfunction indicator light 3-207
Manual air conditioning 5-6
,5-16
MIVEC engine 3-33
,3-41
,3-91
BK0122500US.book 4 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

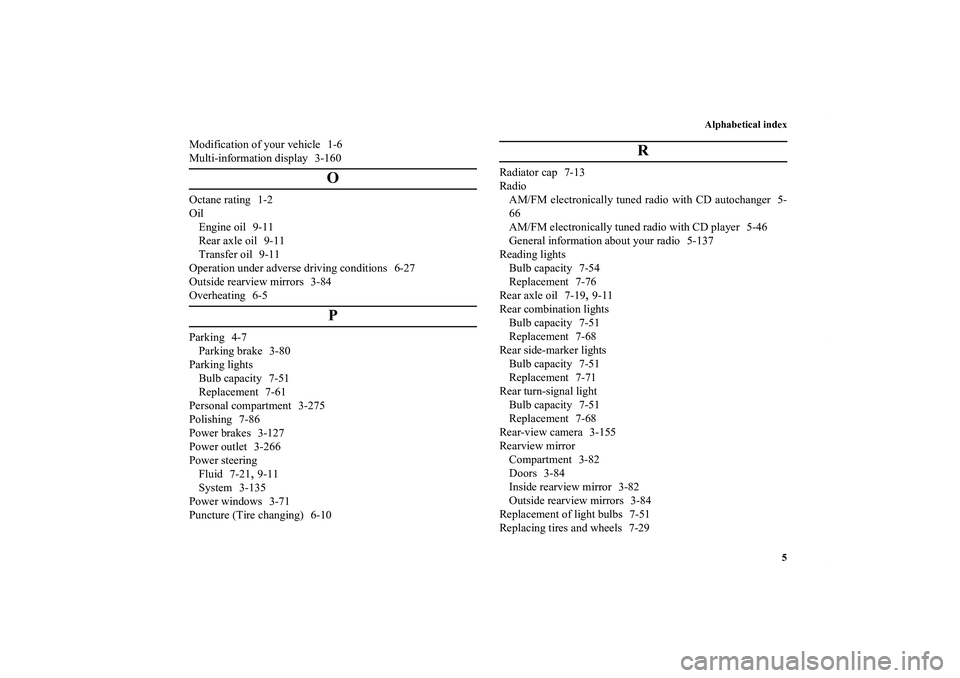

Alphabetical index
5
Modification of your vehicle 1-6
Multi-information display 3-160
O
Octane rating 1-2
Oil
Engine oil 9-11
Rear axle oil 9-11
Transfer oil 9-11
Operation under adverse driving conditions 6-27
Outside rearview mirrors 3-84
Overheating 6-5
P
Parking 4-7
Parking brake 3-80
Parking lights
Bulb capacity 7-51
Replacement 7-61
Personal compartment 3-275
Polishing 7-86
Power brakes 3-127
Power outlet 3-266
Power steering
Fluid 7-21
,9-11
System 3-135
Power windows 3-71
Puncture (Tire changing) 6-10
R
Radiator cap 7-13
Radio
AM/FM electronically tuned radio with CD autochanger 5-
66
AM/FM electronically tuned radio with CD player 5-46
General information about your radio 5-137
Reading lights
Bulb capacity 7-54
Replacement 7-76
Rear axle oil 7-19
,9-11
Rear combination lights
Bulb capacity 7-51
Replacement 7-68
Rear side-marker lights
Bulb capacity 7-51
Replacement 7-71
Rear turn-signal light
Bulb capacity 7-51
Replacement 7-68
Rear-view camera 3-155
Rearview mirror
Compartment 3-82
Doors 3-84
Inside rearview mirror 3-82
Outside rearview mirrors 3-84
Replacement of light bulbs 7-51
Replacing tires and wheels 7-29
BK0122500US.book 5 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

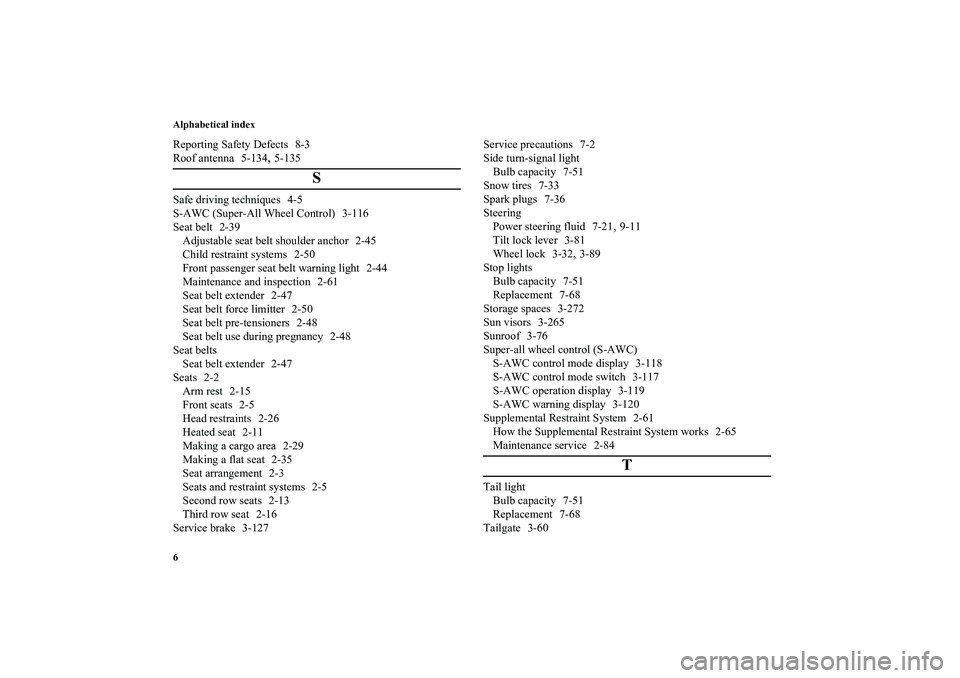

Alphabetical index
6Reporting Safety Defects 8-3
Roof antenna 5-134
,5-135
S
Safe driving techniques 4-5
S-AWC (Super-All Wheel Control) 3-116
Seat belt 2-39
Adjustable seat belt shoulder anchor 2-45
Child restraint systems 2-50
Front passenger seat belt warning light 2-44
Maintenance and inspection 2-61
Seat belt extender 2-47
Seat belt force limitter 2-50
Seat belt pre-tensioners 2-48
Seat belt use during pregnancy 2-48
Seat belts
Seat belt extender 2-47
Seats 2-2
Arm rest 2-15
Front seats 2-5
Head restraints 2-26
Heated seat 2-11
Making a cargo area 2-29
Making a flat seat 2-35
Seat arrangement 2-3
Seats and restraint systems 2-5
Second row seats 2-13
Third row seat 2-16
Service brake 3-127Service precautions 7-2
Side turn-signal light
Bulb capacity 7-51
Snow tires 7-33
Spark plugs 7-36
Steering
Power steering fluid 7-21
,9-11
Tilt lock lever 3-81
Wheel lock 3-32
,3-89
Stop lights
Bulb capacity 7-51
Replacement 7-68
Storage spaces 3-272
Sun visors 3-265
Sunroof 3-76
Super-all wheel control (S-AWC)
S-AWC control mode display 3-118
S-AWC control mode switch 3-117
S-AWC operation display 3-119
S-AWC warning display 3-120
Supplemental Restraint System 2-61
How the Supplemental Restraint System works 2-65
Maintenance service 2-84
T
Tail light
Bulb capacity 7-51
Replacement 7-68
Tailgate 3-60
BK0122500US.book 6 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

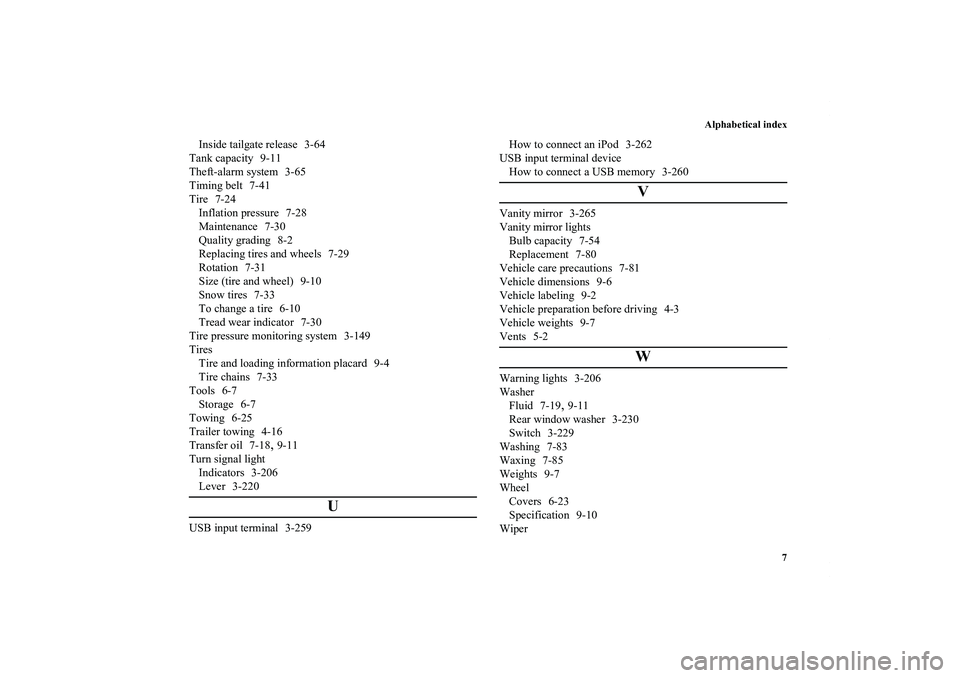

Alphabetical index
7
Inside tailgate release 3-64
Tank capacity 9-11
Theft-alarm system 3-65
Timing belt 7-41
Tire 7-24
Inflation pressure 7-28
Maintenance 7-30
Quality grading 8-2
Replacing tires and wheels 7-29
Rotation 7-31
Size (tire and wheel) 9-10
Snow tires 7-33
To change a tire 6-10
Tread wear indicator 7-30
Tire pressure monitoring system 3-149
Tires
Tire and loading information placard 9-4
Tire chains 7-33
Tools 6-7
Storage 6-7
Towing 6-25
Trailer towing 4-16
Transfer oil 7-18
,9-11
Turn signal light
Indicators 3-206
Lever 3-220
U
USB input terminal 3-259How to connect an iPod 3-262
USB input terminal device
How to connect a USB memory 3-260
V
Vanity mirror 3-265
Vanity mirror lights
Bulb capacity 7-54
Replacement 7-80
Vehicle care precautions 7-81
Vehicle dimensions 9-6
Vehicle labeling 9-2
Vehicle preparation before driving 4-3
Vehicle weights 9-7
Vents 5-2
W
Warning lights 3-206
Washer
Fluid 7-19
,9-11
Rear window washer 3-230
Switch 3-229
Washing 7-83
Waxing 7-85
Weights 9-7
Wheel
Covers 6-23
Specification 9-10
Wiper
BK0122500US.book 7 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
