BALANCE (Left/right balance control)
Press the Audio adjust button (4) either
or
to balance the volume of sound
from the left and the right speakers.
NOTE
The audio adjust mode will be canceled
when radio or CD operation is performed
or no adjustment is performed for more
than 7 seconds.
How to adjust the tuneManual tuning
The frequency changes every time the
TUNE/SEEK button (6 or 7) is pressed.
Press the button to select the desired sta-
tion.
Automatic tuning
After keeping the TUNE/SEEK button (6 or
7) depressed for more than about 1 sec-
ond, release the button, and the selected
station reception will start.
H11A248A
How to enter frequencies in the
memoryManual setting
You can assign to the Memory select but-
tons (8) a maximum of 12 stations in the
UKW band (6 U1 stations and 6 U2
stations), 6 stations in the MW band, and
6 stations in the LW band. (Stations already
assigned to the Memory select buttons are
replaced by any newly assigned stations.)
Follow the steps described below.
1. Press either the TUNE/SEEK button (6
or 7) to tune the frequency to be entered
in the memory.
2. Press one of the Memory select but-
tons (8) for about 2 seconds or longer.
The sound will be momentarily inter-
rupted while the frequency is being
entered into the memory.The number of the button correspond-
ing to the memory entry, and the fre-
quency are displayed.
3. The preset memory setting is retrieved
by pressing the button and then releas-
ing it within 2 seconds.
Automatic setting
With the method, all manually set sta-
tions in the band currently selected for
reception are replaced with stations in the
same band that are automatically selected
in order of signal strength. The radio auto-
matically selects 12 stations in the UKW
band and 6 stations each in the MW and
LW band.
Follow the steps described below.
1. With the radio mode selected, hold down
the U/M/L button (3) until a beep is emit-
ted. The 6 stations with the best signal
strength will automatically be assigned
to the Memory select buttons (8), with
the lowest-frequency station being
assigned to the lowest-number button.
2. When you subsequently press a
Memory select button to select a chan-
nel number, the radio will begin receiv-
ing the station assigned to that number.
For pleasant driving
6-5
Div:
Out put date:

H11A365D

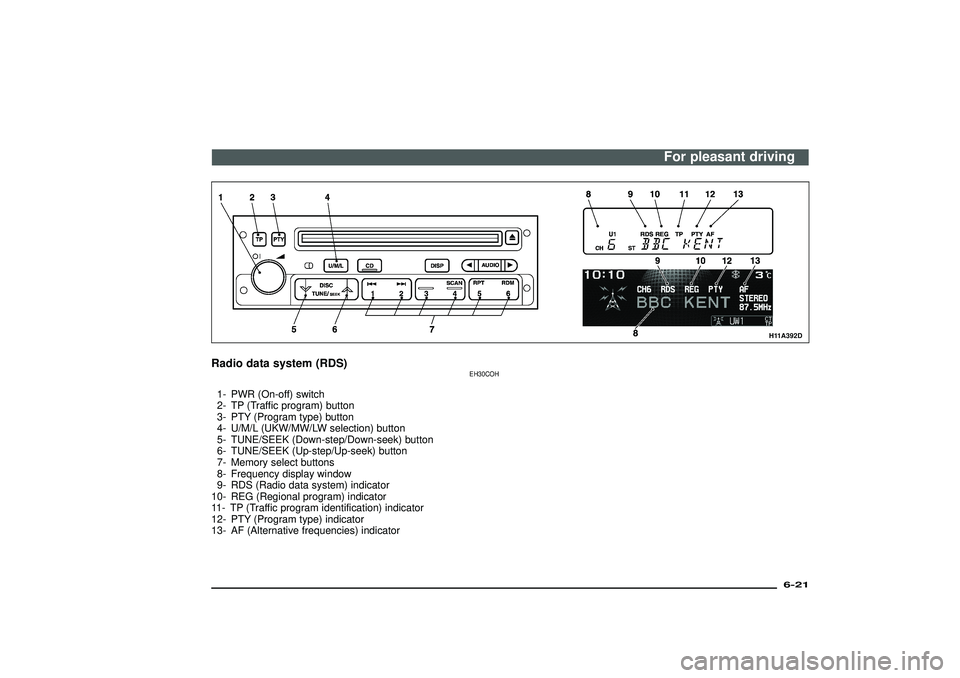

Radio data system (RDS)
EH30COH
1- PWR (On-off) switch
2- TP (Traffic program) button
3- PTY (Program type) button
4- U/M/L (UKW/MW/LW selection) button
5- TUNE/SEEK
(Down-step/Down-seek) button
6- TUNE/SEEK (Up-step/Up-seek) button
7- Memory select buttons
8- Frequency display window
9- RDS (Radio data system) indicator
10- REG (Regional program) indicator
11- Tp (Traffic program identification) indicator
12- PTY (Program type) indicator
13- AF (Alternative frequencies) indicatorFor pleasant driving
6-6Div:
Out put date:

RDS uses PI (program identification) sig-
nal and AF (alternative frequency) list trans-
mitted in addition to the normal UKW
broadcasting programs, and picks up the
UKW stations that are transmitting the
same program from the EON (enhanced
other network) and automatically tunes to
the station with the strongest signal inten-
sity.
Therefore, you can continue listening to
one program in, for example, a long dis-
tance driving without returning to other sta-
tion transmitting the same program when
you are leaving the service area of the cur-
rently receiving station.
The RDS radio also features the limited
reception of the program types, the break-in
reception of the traffic announcement and
emergency broadcast, and the limited
/unlimited reception of the regional pro-
grams.AF (Alternative Frequencies) function
The AF function finds a station broadcast-
ing the same program, and selects sta-
tion with the strongest signal of AF lists.
The AF function is tuned on (with the AF
indicator (13) shown on the display) at all
times unless you manually switch off.
To turn the function off, at first, switch off
the power from UKW mode, and while
pressing the No.5 of the memory select
buttons (7), press the PWR switch (1) until
it beeps. The AF indicator (13) on the dis-
play will turn off.
To turn the function on, use the same pro-
cedure.
REG (Regional) function
REG function limits to receive the sta-
tions broadcasting regional programs.
Regional programming and regional net-
works are organized differently depend-
ing on the country or area (they may be
changed according to the hour, state, or
broadcast area), so if you don’t want to
receive the regional programs automati-
cally, you can set up REG ON not to
receive regional programs.
To turn the function on, switch off the power
from UKW mode, and while pressing the
side of the TUNE/SEEK button (5),
press the PWR switch (1) until it beeps.
The“REG ON”will be shown on the dis-
play.To turn the function off, use the same pro-
cedure.
PI (Program Identification) search func-
tion
When traveling long distance and the
recalled preset station is weak, radio
searches another frequency broadcast-
ing the same programming with the same
PI code in AF list.
If there are no frequencies broadcasting the
same programming, the radio searches a
frequency broadcasting the regional pro-
gramming. The radio succeeds in search-
ing the regional programming, then the
display shows the REG indicator (10).
If the radio does not succeed in search-
ing the regional programming, the radio
returns to the recalled preset station.
For pleasant driving
6-7
Div:
Out put date:

H11A372A
(Vehicles equipped with the RV
meter)You can select your favourite language
between English, French, German, Swed-
ish, Spanish, Italian.
1. Press the“ADJ”button to display the
options for the function buttons.
H11A373A
2. Press the“RDS.LANG.”function but-
ton.
H11A374A
3. Press the“
”or“”function button to
select the desired language.
For pleasant driving
6-10Div:
Out put date:

H11A366D

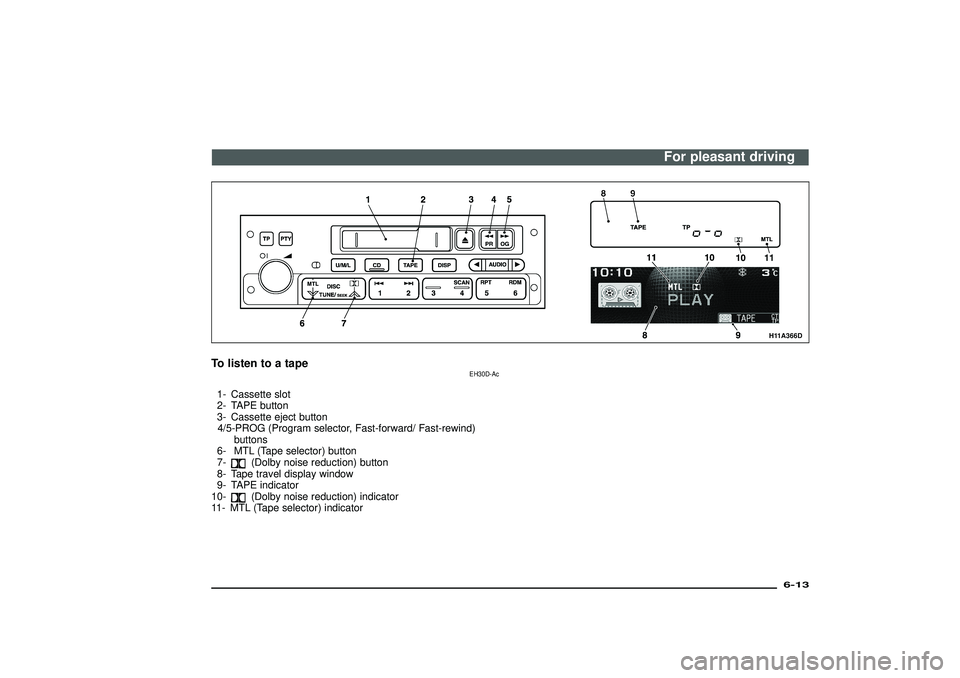

To listen to a tape
EH30D-Ac
1- Cassette slot
2- TAPE button
3- Cassette eject button
4/5-PROG (Program selector, Fast-forward/ Fast-rewind)
buttons
6- MTL (Tape selector) button
7-
(Dolby noise reduction) button
8- Tape travel display window
9- TAPE indicator
10-(Dolby noise reduction) indicator
11- MTL (Tape selector) indicator
For pleasant driving
6-13
Div:
Out put date:

1. After checking to be sure the tape in the
cassette is wound tightly, push a cas-
sette straight into the slot; the tape
player will automatically start playing.
When a cassette is inserted, the tape
player will begin playing even if the radio
is being used. The tape player will also
start playing when the TAPE button (2)
is pressed with a tape cassette in the
player even if the radio is being used.
2. Press the
(Dolby noise reduction)
button (7) when playing Dolby NR
encoded tapes. The Dolby noise reduc-
tion circuitry reduces tape hiss. The indi-
cator illuminates when the circuit is
activated. Pressing the
(Dolby noise
reduction) button a second time will
switch off the Dolby system.
NOTE
Dolby noise reduction is manufactured
under licence from Dolby Laboratories
Licensing Corporation.
“DOLBY”and the Double-D symbol
are
trademarks of Dolby Laboratories Licens-
ing Corporation.
3. When listening to a metal or chrome
tape, press the MTL button (6).
The indicator will illuminate when the
button is pressed.
NOTE
Use this button only when listening to a
metal or chrome tape.4. To adjust the volume and tone, refer to
the section“How to adjust the volume”
and“How to adjust the tone”on page
6-4.
5. Press two PROG buttons (4 or 5) simul-
taneously. The tape will then run oppo-
site to its current direction, as shown by
the display (8). If the button is not
pressed, the tape direction will change
automatically at the end of the tape.
6. Press the Cassette eject button (3); the
tape will automatically stop and the cas-
sette will be ejected.
7. For information concerning the han-
dling of tape cassettes, refer to the sec-
tion“Handling of cassette tapes”on
page 6-33.
H11A266A
How to fast forward/rewind the tapeFast forward
Press the PROG button (4 or 5) that is in
the same direction as shown by the dis-
play (8) to fast forward.
Fast rewind
Press the PROG button (4 or 5) that is in
the opposite direction as shown by the dis-
play (8) to rewind.
Lightly press one of the unpressed but-
tons (4 or 5) to stop the tape during fast for-
ward or rewind operation.
For pleasant driving
6-14Div:
Out put date:

H11A369D

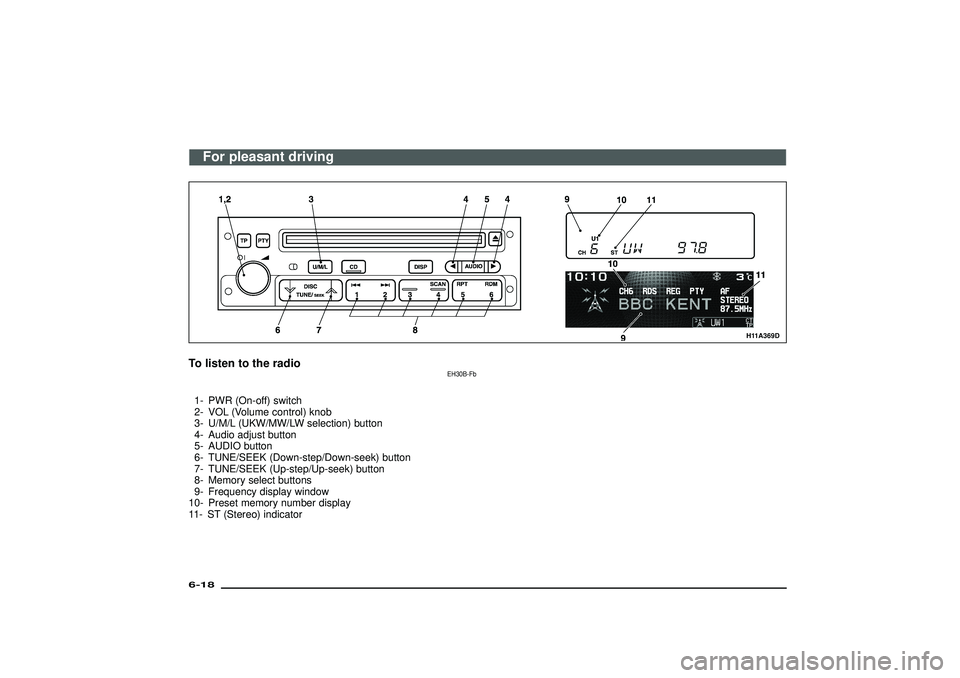

To listen to the radio
EH30B-Fb
1- PWR (On-off) switch
2- VOL (Volume control) knob
3- U/M/L (UKW/MW/LW selection) button
4- Audio adjust button
5- AUDIO button
6- TUNE/SEEK (Down-step/Down-seek) button
7- TUNE/SEEK (Up-step/Up-seek) button
8- Memory select buttons
9- Frequency display window
10- Preset memory number display
11- ST (Stereo) indicatorFor pleasant driving
6-18Div:
Out put date:

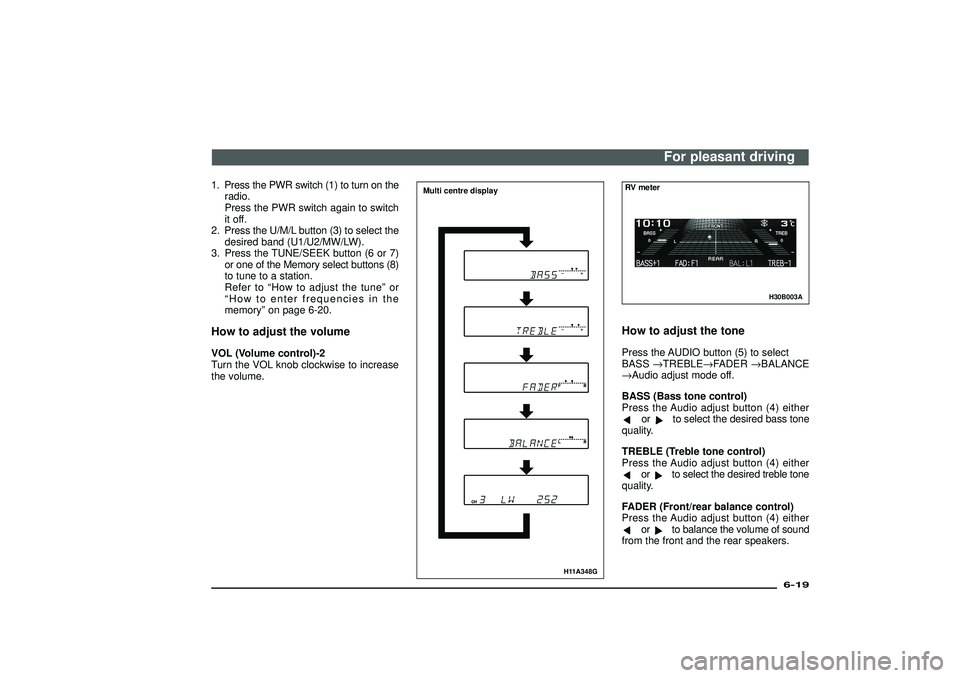

1. Press the PWR switch (1) to turn on the
radio.
Press the PWR switch again to switch
it off.
2. Press the U/M/L button (3) to select the
desired band (U1/U2/MW/LW).
3. Press the TUNE/SEEK button (6 or 7)
or one of the Memory select buttons (8)
to tune to a station.
Refer to“How to adjust the tune”or
“How to enter frequencies in the
memory”on page 6-20.How to adjust the volumeVOL (Volume control)-2
Turn the VOL knob clockwise to increase
the volume.
H11A348G
Multi centre display
H30B003A
RV meterHow to adjust the tonePress the AUDIO button (5) to select
BASS→TREBLE→FADER→BALANCE
→Audio adjust mode off.
BASS (Bass tone control)
Press the Audio adjust button (4) either
or
to select the desired bass tone
quality.
TREBLE (Treble tone control)
Press the Audio adjust button (4) either
or
to select the desired treble tone
quality.
FADER (Front/rear balance control)
Press the Audio adjust button (4) either
or
to balance the volume of sound
from the front and the rear speakers.For pleasant driving
6-19
Div:
Out put date:

BALANCE (Left/right balance control)
Press the Audio adjust button (4) either
or
to balance the volume of sound
from the left and the right speakers.
NOTE
Audio adjust mode will be canceled when
radio or CD operation is performed or no
adjustment is performed for more than 7
seconds.
How to adjust the tuneManual tuning
The frequency changes every time the
TUNE/SEEK button (6 or 7) is pressed.
Press the button to select the desired sta-
tion.
Automatic tuning
After keeping the TUNE/SEEK button (6 or
7) depressed for more than about 1 sec-
ond, release the button, and the selected
station reception will start.
H11A248A
How to enter frequencies in the
memoryManual setting
You can assign to the Memory select but-
tons (8) a maximum of 12 stations in the
UKW band (6 U1 stations and 6 U2
stations), 6 stations in the MW band, and
6 stations in the LW band. (Stations already
assigned to the Memory select buttons are
replaced by any newly assigned stations.)
Follow the steps described below.
1. Press either the TUNE/SEEK button (6
or 7) to tune the frequency to be entered
in the memory.
2. Press one of the Memory select but-
tons (8) for about 2 seconds or longer.
The sound will be momentarily inter-
rupted while the frequency is being
entered into the memory.The number of the button correspond-
ing to the memory entry, and the fre-
quency are displayed.
3. The preset memory setting is retrieved
by pressing the button and then releas-
ing it within 2 seconds.
Automatic setting
With the method, all manually set sta-
tions in the band currently selected for
reception are replaced with stations in the
same band that are automatically selected
in order of signal strength. The radio auto-
matically selects 12 stations in the UKW
band and 6 stations each in the MW and
LW band.
Follow the steps described below.
1. With the radio mode selected, hold down
the U/M/L button (3) until a beep is emit-
ted. The 6 stations with the best signal
strength will automatically be assigned
to the Memory select buttons (8), with
the lowest-frequency station being
assigned to the lowest-number button.
2. When you subsequently press a
Memory select button to select a chan-
nel number, the radio will begin receiv-
ing the station assigned to that number.
For pleasant driving
6-20Div:
Out put date:

H11A392D
Radio data system (RDS)
EH30COH
1- PWR (On-off) switch
2- TP (Traffic program) button
3- PTY (Program type) button
4- U/M/L (UKW/MW/LW selection) button
5- TUNE/SEEK (Down-step/Down-seek) button
6- TUNE/SEEK (Up-step/Up-seek) button
7- Memory select buttons
8- Frequency display window
9- RDS (Radio data system) indicator
10- REG (Regional program) indicator
11- TP (Traffic program identification) indicator
12- PTY (Program type) indicator
13- AF (Alternative frequencies) indicator
For pleasant driving
6-21
Div:
Out put date:
