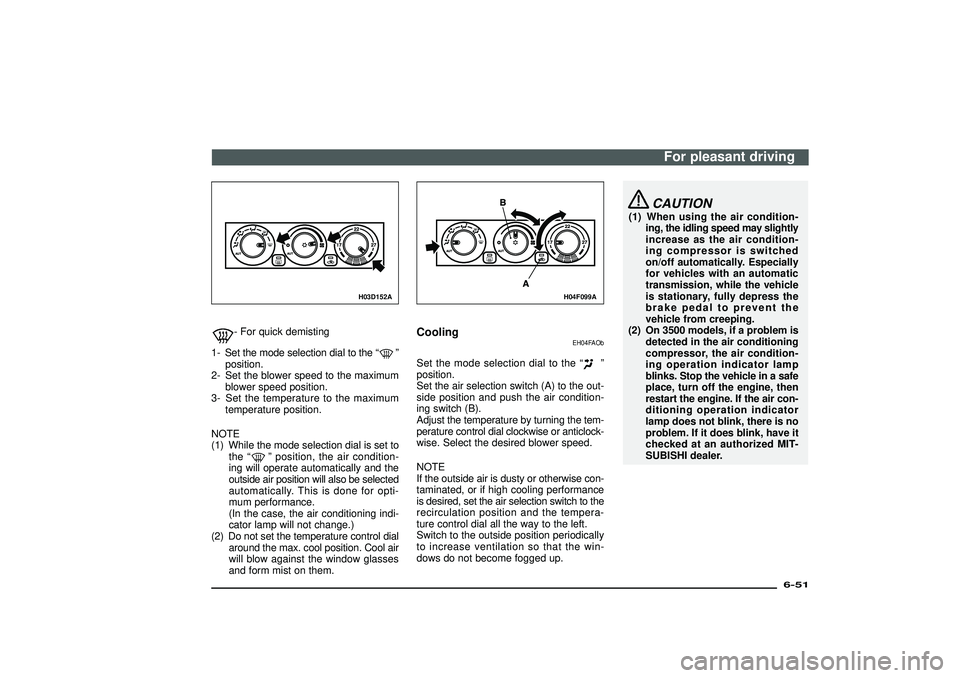

H03D152A
- For quick demisting
1- Set the mode selection dial to the“
”
position.
2- Set the blower speed to the maximum
blower speed position.
3- Set the temperature to the maximum
temperature position.
NOTE
(1) While the mode selection dial is set to
the“
”position, the air condition-
ing will operate automatically and the
outside air position will also be selected
automatically. This is done for opti-
mum performance.
(In the case, the air conditioning indi-
cator lamp will not change.)
(2) Do not set the temperature control dial
around the max. cool position. Cool air
will blow against the window glasses
and form mist on them.
H04F099A
Cooling
EH04FAOb
Set the mode selection dial to the“
”
position.
Set the air selection switch (A) to the out-
side position and push the air condition-
ing switch (B).
Adjust the temperature by turning the tem-
perature control dial clockwise or anticlock-
wise. Select the desired blower speed.
NOTE
If the outside air is dusty or otherwise con-
taminated, or if high cooling performance
is desired, set the air selection switch to the
recirculation position and the tempera-
ture control dial all the way to the left.
Switch to the outside position periodically
to increase ventilation so that the win-
dows do not become fogged up.
CAUTION
(1) When using the air condition-
ing, the idling speed may slightly
increase as the air condition-
ing compressor is switched
on/off automatically. Especially
for vehicles with an automatic
transmission, while the vehicle
is stationary, fully depress the
brake pedal to prevent the
vehicle from creeping.
(2) On 3500 models, if a problem is
detected in the air conditioning
compressor, the air condition-
ing operation indicator lamp
blinks. Stop the vehicle in a safe
place, turn off the engine, then
restart the engine. If the air con-
ditioning operation indicator
lamp does not blink, there is no
problem. If it does blink, have it
checked at an authorized MIT-
SUBISHI dealer.
For pleasant driving
6-51
