dimensions MITSUBISHI SHOGUN 2003 Owner's Manual (in English)

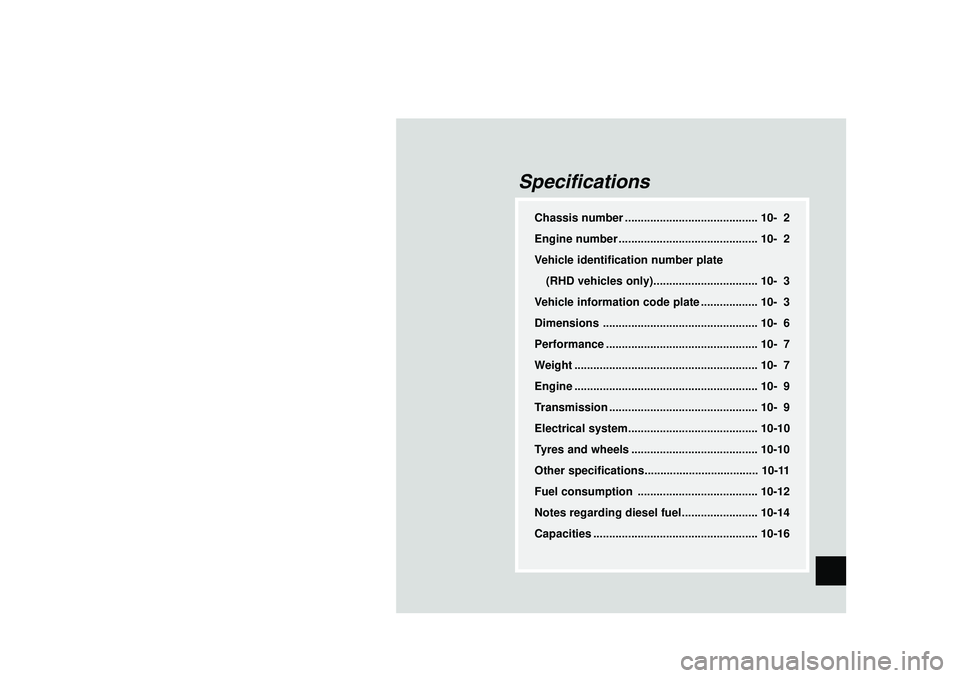

Specifications
Chassis number .......................................... 10- 2
Engine number ............................................ 10- 2
Vehicle identification number plate
(RHD vehicles only)................................. 10- 3
Vehicle information code plate .................. 10- 3
Dimensions ................................................. 10- 6
Performance ................................................ 10- 7
Weight .......................................................... 10- 7
Engine .......................................................... 10- 9
Transmission ............................................... 10- 9
Electrical system......................................... 10-10
Tyres and wheels ........................................ 10-10
Other specifications.................................... 10-11
Fuel consumption ...................................... 10-12
Notes regarding diesel fuel........................ 10-14
Capacities .................................................... 10-16
Div:
Out put date:

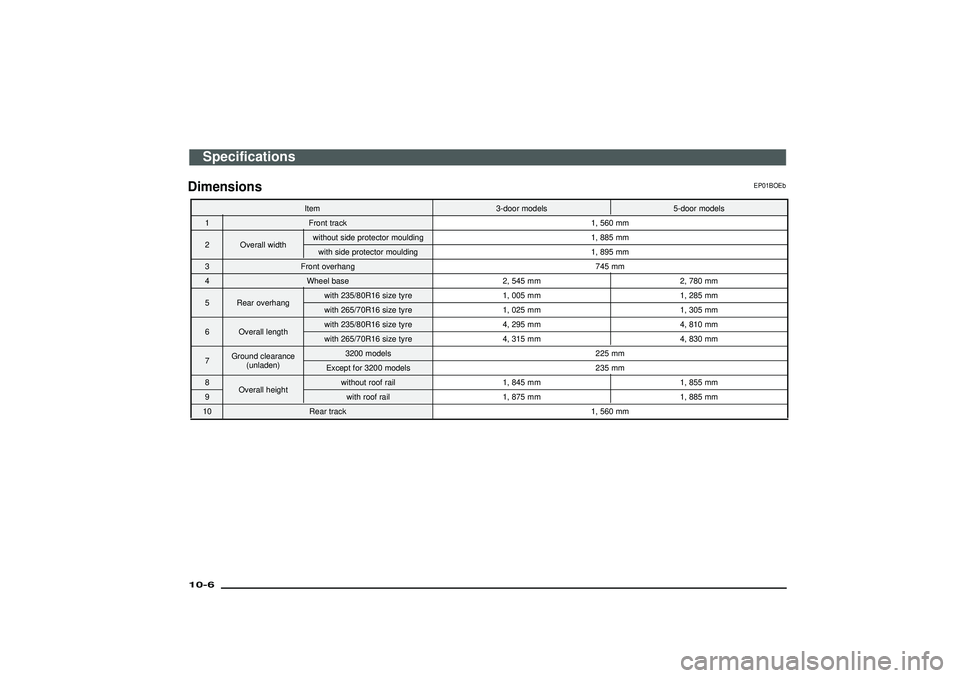

Dimensions
EP01BOEb
Item 3-door models 5-door models
1 Front track 1, 560 mm
2 Overall width without side protector moulding 1, 885 mm
with side protector moulding 1, 895 mm
3 Front overhang 745 mm
4 Wheel base 2, 545 mm 2, 780 mm
5 Rear overhang with 235/80R16 size tyre 1, 005 mm 1, 285 mm
with 265/70R16 size tyre 1, 025 mm 1, 305 mm
6 Overall length with 235/80R16 size tyre 4, 295 mm 4, 810 mm
with 265/70R16 size tyre 4, 315 mm 4, 830 mm
7 Ground clearance
(unladen) 3200 models 225 mm
Except for 3200 models 235 mm
8 Overall height without roof rail 1, 845 mm 1, 855 mm
9 with roof rail 1, 875 mm 1, 885 mm
10 Rear track 1, 560 mm
Specifications
10-6Div:
