Page 10 of 392

Installation of accessories
EB24A-Cb
Before fitting any accessories, please con-
sult your authorized MITSUBISHI dealer.
(1) The installation of accessories, optional
parts, etc., should only be carried out
within the limits prescribed by law in
your country, and in accordance with
the guidelines and warnings con-
tained within the documents accompa-
nying this vehicle.
Only MITSUBISHI approved accesso-
ries should be fitted to your vehicle.
(2) Improper installation of electrical parts
could cause fire, please refer to the
Modifications/Alterations to the electri-
cal or fuel systems section within this
manual.
(3) When using a communication system
such as a cellular phone or a radio set
inside the vehicle, a separate exter-
nal antenna must be fitted. When a cel-
lular phone or a radio set is used by
using an internal antenna alone, it may
interfere with the vehicle’s electrical
system and adversely affect safe
operation of the vehicle.
(4) Tyres and wheels which do not meet
specifications must not be used.
Refer to the“Specifications”section for
information regarding wheel and tyre
sizes.(5) Do not fail to read all relative instruc-
tions before first putting into service and
prior to the attachment or installation of
accessories, parts or other modifica-
tions to the vehicle!
Important points!
Due to the large number of accessory and
replacement parts of different manufactur-
ers in the market, it is not possible, not only
for MITSUBISHI, but also an authorized
MITSUBISHI dealer, to check whether the
attachment or installation of such parts
affects the driving safety of your
MITSUBISHI-vehicle.
Even when such parts are officially autho-
rized, for example by a“general opera-
tors permit”(an appraisal for the part) or
through the execution of the part in an offi-
cially approved manner of construction, or
when a single operation permit following
the attachment or installation of such parts,
it cannot be deduced from that alone, that
the driving safety of your vehicle has not
been affected.Consider also that there basically exists no
liability on the part of the appraiser or the
official. Only in the case of parts
(MITSUBISHI original replacement or
exchange parts as well as MITSUBISHI
accessories) that are recommended and
released by an authorized MITSUBISHI
dealer and that are attached or installed by
an authorized MITSUBISHI dealer can you
assume, that optimal safety has been pro-
vided. The same also pertains to modifi-
cations of MITSUBISHI vehicles with
respect to the production specifications. For
your own safety, in such cases as well, you
should only undertake modifications
according to the recommendations of an
authorized MITSUBISHI dealer.
General information
1-10Div:
Out put date:
Page 169 of 392

I21A005A
12
3
4
Ignition switch
EI21AAZc
1- The engine is stopped and the steer-
ing wheel locked. The key can be
inserted and removed only when the
switch is in this position.
2- The engine is stopped, but the radio,
cigarette lighter and other electrical
devices can be operated.
3- The engine is running, and all the vehi-
cle’s electrical devices can be oper-
ated.
4- The starter motor operates. After the
engine has started, release the key and
it will automatically return to the“ON”
position.
I21A058A
A/TNOTE
(1) For vehicles with a manual transmis-
sion, when removing the key, push the
key at the“ACC”position and keep it
depressed until it is turned to the
“LOCK”position, and remove it.
For vehicles with an automatic trans-
mission, when removing the key, first
set the selector lever to the“P”(PARK)
position, and then turn the key to
“LOCK”and remove it.
I21A057A
M/T(2) This vehicle is equipped with ignition
switch illumination.
The ignition switch illumination comes
on while the driver’s door is opened
and remains on for approximately 30
seconds after the driver door is closed.
However, it will go off even before a
lapse of 30 seconds if the ignition
switch is set to“ON”position.
[Vehicle with keyless entry system]
When you get out of the vehicle and
remove the ignition key, it will be illu-
minated for about 30 seconds.
Starting and driving
5-11
Div:
Out put date:
Page 221 of 392

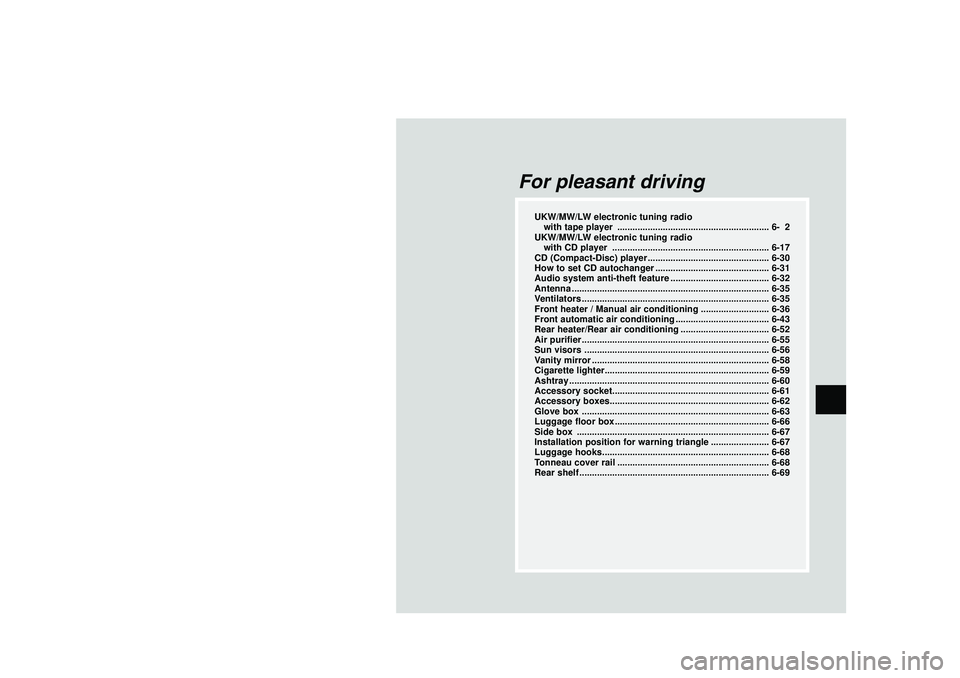

For pleasant driving
UKW/MW/LW electronic tuning radio
with tape player ............................................................ 6- 2
UKW/MW/LW electronic tuning radio
with CD player .............................................................. 6-17
CD (Compact-Disc) player ................................................ 6-30
How to set CD autochanger ............................................. 6-31
Audio system anti-theft feature ....................................... 6-32
Antenna .............................................................................. 6-35
Ventilators .......................................................................... 6-35
Front heater / Manual air conditioning ........................... 6-36
Front automatic air conditioning ..................................... 6-43
Rear heater/Rear air conditioning ................................... 6-52
Air purifier .......................................................................... 6-55
Sun visors ......................................................................... 6-56
Vanity mirror ...................................................................... 6-58
Cigarette lighter................................................................. 6-59
Ashtray ............................................................................... 6-60
Accessory socket.............................................................. 6-61
Accessory boxes............................................................... 6-62
Glove box .......................................................................... 6-63
Luggage floor box ............................................................. 6-66
Side box ............................................................................ 6-67
Installation position for warning triangle ....................... 6-67
Luggage hooks.................................................................. 6-68
Tonneau cover rail ............................................................ 6-68
Rear shelf ........................................................................... 6-69
Div:
Out put date:
Page 225 of 392

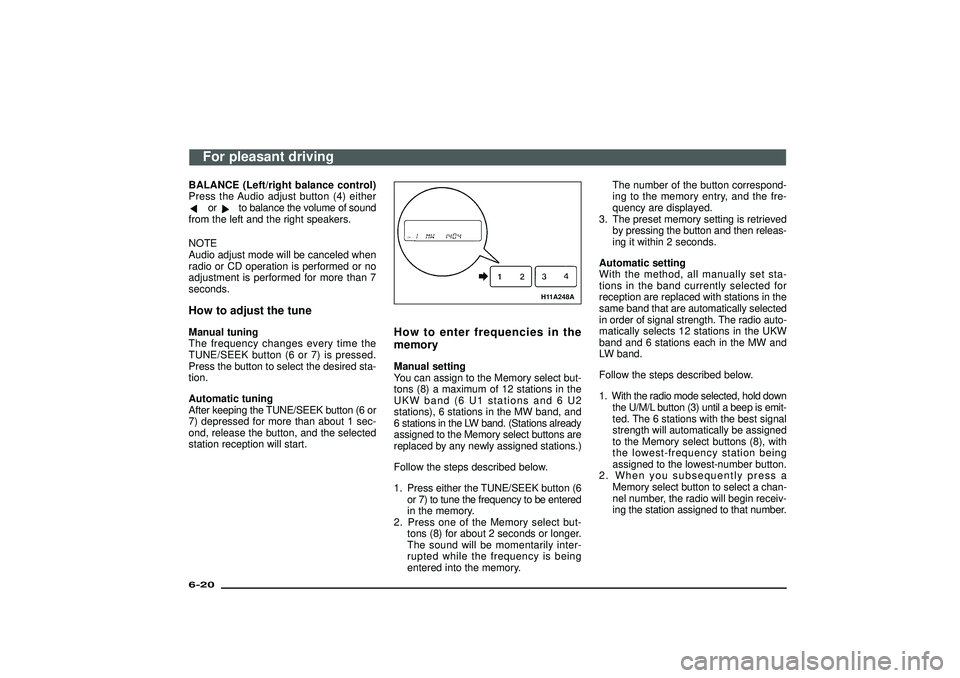

BALANCE (Left/right balance control)
Press the Audio adjust button (4) either
or
to balance the volume of sound
from the left and the right speakers.
NOTE
The audio adjust mode will be canceled
when radio or CD operation is performed
or no adjustment is performed for more
than 7 seconds.
How to adjust the tuneManual tuning
The frequency changes every time the
TUNE/SEEK button (6 or 7) is pressed.
Press the button to select the desired sta-
tion.
Automatic tuning
After keeping the TUNE/SEEK button (6 or
7) depressed for more than about 1 sec-
ond, release the button, and the selected
station reception will start.
H11A248A
How to enter frequencies in the
memoryManual setting
You can assign to the Memory select but-
tons (8) a maximum of 12 stations in the
UKW band (6 U1 stations and 6 U2
stations), 6 stations in the MW band, and
6 stations in the LW band. (Stations already
assigned to the Memory select buttons are
replaced by any newly assigned stations.)
Follow the steps described below.
1. Press either the TUNE/SEEK button (6
or 7) to tune the frequency to be entered
in the memory.
2. Press one of the Memory select but-
tons (8) for about 2 seconds or longer.
The sound will be momentarily inter-
rupted while the frequency is being
entered into the memory.The number of the button correspond-
ing to the memory entry, and the fre-
quency are displayed.
3. The preset memory setting is retrieved
by pressing the button and then releas-
ing it within 2 seconds.
Automatic setting
With the method, all manually set sta-
tions in the band currently selected for
reception are replaced with stations in the
same band that are automatically selected
in order of signal strength. The radio auto-
matically selects 12 stations in the UKW
band and 6 stations each in the MW and
LW band.
Follow the steps described below.
1. With the radio mode selected, hold down
the U/M/L button (3) until a beep is emit-
ted. The 6 stations with the best signal
strength will automatically be assigned
to the Memory select buttons (8), with
the lowest-frequency station being
assigned to the lowest-number button.
2. When you subsequently press a
Memory select button to select a chan-
nel number, the radio will begin receiv-
ing the station assigned to that number.
For pleasant driving
6-5
Div:
Out put date:
Page 227 of 392

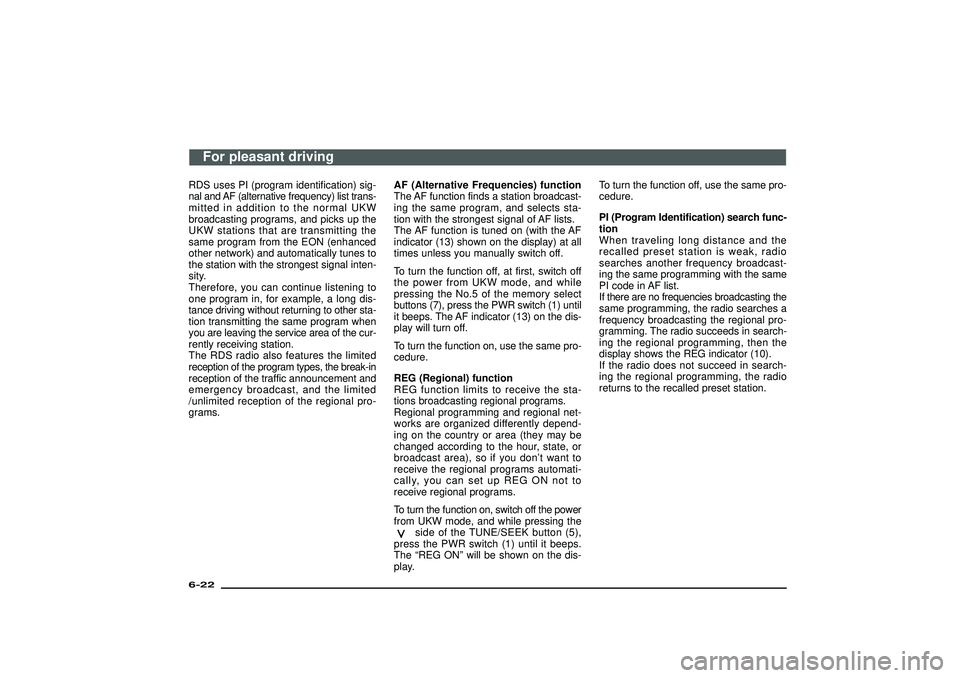

RDS uses PI (program identification) sig-
nal and AF (alternative frequency) list trans-
mitted in addition to the normal UKW
broadcasting programs, and picks up the
UKW stations that are transmitting the
same program from the EON (enhanced
other network) and automatically tunes to
the station with the strongest signal inten-
sity.
Therefore, you can continue listening to
one program in, for example, a long dis-
tance driving without returning to other sta-
tion transmitting the same program when
you are leaving the service area of the cur-
rently receiving station.
The RDS radio also features the limited
reception of the program types, the break-in
reception of the traffic announcement and
emergency broadcast, and the limited
/unlimited reception of the regional pro-
grams.AF (Alternative Frequencies) function
The AF function finds a station broadcast-
ing the same program, and selects sta-
tion with the strongest signal of AF lists.
The AF function is tuned on (with the AF
indicator (13) shown on the display) at all
times unless you manually switch off.
To turn the function off, at first, switch off
the power from UKW mode, and while
pressing the No.5 of the memory select
buttons (7), press the PWR switch (1) until
it beeps. The AF indicator (13) on the dis-
play will turn off.
To turn the function on, use the same pro-
cedure.
REG (Regional) function
REG function limits to receive the sta-
tions broadcasting regional programs.
Regional programming and regional net-
works are organized differently depend-
ing on the country or area (they may be
changed according to the hour, state, or
broadcast area), so if you don’t want to
receive the regional programs automati-
cally, you can set up REG ON not to
receive regional programs.
To turn the function on, switch off the power
from UKW mode, and while pressing the
side of the TUNE/SEEK button (5),
press the PWR switch (1) until it beeps.
The“REG ON”will be shown on the dis-
play.To turn the function off, use the same pro-
cedure.
PI (Program Identification) search func-
tion
When traveling long distance and the
recalled preset station is weak, radio
searches another frequency broadcast-
ing the same programming with the same
PI code in AF list.
If there are no frequencies broadcasting the
same programming, the radio searches a
frequency broadcasting the regional pro-
gramming. The radio succeeds in search-
ing the regional programming, then the
display shows the REG indicator (10).
If the radio does not succeed in search-
ing the regional programming, the radio
returns to the recalled preset station.
For pleasant driving
6-7
Div:
Out put date:
Page 240 of 392

BALANCE (Left/right balance control)
Press the Audio adjust button (4) either
or
to balance the volume of sound
from the left and the right speakers.
NOTE
Audio adjust mode will be canceled when
radio or CD operation is performed or no
adjustment is performed for more than 7
seconds.
How to adjust the tuneManual tuning
The frequency changes every time the
TUNE/SEEK button (6 or 7) is pressed.
Press the button to select the desired sta-
tion.
Automatic tuning
After keeping the TUNE/SEEK button (6 or
7) depressed for more than about 1 sec-
ond, release the button, and the selected
station reception will start.
H11A248A
How to enter frequencies in the
memoryManual setting
You can assign to the Memory select but-
tons (8) a maximum of 12 stations in the
UKW band (6 U1 stations and 6 U2
stations), 6 stations in the MW band, and
6 stations in the LW band. (Stations already
assigned to the Memory select buttons are
replaced by any newly assigned stations.)
Follow the steps described below.
1. Press either the TUNE/SEEK button (6
or 7) to tune the frequency to be entered
in the memory.
2. Press one of the Memory select but-
tons (8) for about 2 seconds or longer.
The sound will be momentarily inter-
rupted while the frequency is being
entered into the memory.The number of the button correspond-
ing to the memory entry, and the fre-
quency are displayed.
3. The preset memory setting is retrieved
by pressing the button and then releas-
ing it within 2 seconds.
Automatic setting
With the method, all manually set sta-
tions in the band currently selected for
reception are replaced with stations in the
same band that are automatically selected
in order of signal strength. The radio auto-
matically selects 12 stations in the UKW
band and 6 stations each in the MW and
LW band.
Follow the steps described below.
1. With the radio mode selected, hold down
the U/M/L button (3) until a beep is emit-
ted. The 6 stations with the best signal
strength will automatically be assigned
to the Memory select buttons (8), with
the lowest-frequency station being
assigned to the lowest-number button.
2. When you subsequently press a
Memory select button to select a chan-
nel number, the radio will begin receiv-
ing the station assigned to that number.
For pleasant driving
6-20Div:
Out put date:
Page 242 of 392

RDS uses PI (program identification) sig-
nal and AF (alternative frequency) list trans-
mitted in addition to the normal UKW
broadcasting programs, and picks up the
UKW stations that are transmitting the
same program from the EON (enhanced
other network) and automatically tunes to
the station with the strongest signal inten-
sity.
Therefore, you can continue listening to
one program in, for example, a long dis-
tance driving without returning to other sta-
tion transmitting the same program when
you are leaving the service area of the cur-
rently receiving station.
The RDS radio also features the limited
reception of the program types, the break-in
reception of the traffic announcement and
emergency broadcast, and the limited
/unlimited reception of the regional pro-
grams.AF (Alternative Frequencies) function
The AF function finds a station broadcast-
ing the same program, and selects sta-
tion with the strongest signal of AF lists.
The AF function is tuned on (with the AF
indicator (13) shown on the display) at all
times unless you manually switch off.
To turn the function off, at first, switch off
the power from UKW mode, and while
pressing the No.5 of the memory select
buttons (7), press the PWR switch (1) until
it beeps. The AF indicator (13) on the dis-
play will turn off.
To turn the function on, use the same pro-
cedure.
REG (Regional) function
REG function limits to receive the sta-
tions broadcasting regional programs.
Regional programming and regional net-
works are organized differently depend-
ing on the country or area (they may be
changed according to the hour, state, or
broadcast area), so if you don’t want to
receive the regional programs automati-
cally, you can set up REG ON not to
receive regional programs.
To turn the function on, switch off the power
from UKW mode, and while pressing the
side of the TUNE/SEEK button (5),
press the PWR switch (1) until it beeps.
The“REG ON”will be shown on the dis-
play.To turn the function off, use the same pro-
cedure.
PI (Program Identification) search func-
tion
When traveling long distance and the
recalled preset station is weak, radio
searches another frequency broadcast-
ing the same programming with the same
PI code in AF list.
If there are no frequencies broadcasting the
same programming, the radio searches a
frequency broadcasting the regional pro-
gramming. The radio succeeds in search-
ing the regional programming, then the
display shows the REG indicator (10).
If the radio does not succeed in search-
ing the regional programming, the radio
returns to the recalled preset station.
For pleasant driving
6-22Div:
Out put date:
