Instruments and Controls
EB21AOHc
B21A600T
LHD
1- Front fog lamp switch*→P.4-22
Rear fog lamp switch→P.4-22
2- Electric remote-controlled outside
rear-view mirror switch*→P.5-51
3- Combination headlamps,
dipper and turn signal switch→P.4-14
Headlamp washer switch*→P.4-19
4- Supplemental restraint system-air bag
(for driver’s seat)→P.3-42
Horn switch→P.4-24
5- Ignition switch→P.5-11
6- Auto-speed (cruise)
control lever*→P.5-53
7- Meter and gauges→P.4-2
8- Windscreen wiper and washer switch
→P.4-17
Rear window wiper and washer switch
→P.4-19
9- Headlamp levelling switch→P.4-16
10- Rheostat (meter illumination control)
→P.4-23
11- Fuse box lid→P.8-28
12- Bonnet release lever→P.2-9
13- Fuel tank filler door release lever→P.5-4Div:
Out put date:

Instruments and Controls
EB21AOIc
B21A602T
RHD
1- Combination headlamps,
dipper and turn signal switch→P.4-14
Headlamp washer switch*→P.4-19
2- Meter and gauges→P.4-2
3- Ignition switch→P.5-11
4- Supplemental restraint system-air bag
(for driver’s seat)→P.3-42
Horn switch→P.4-24
5- Windscreen wiper and washer switch
→P.4-17
Rear window wiper and washer switch
→P.4-19
6- Electric remote-controlled outside
rear-view mirror switch→P.5-51
7- Front fog lamp switch*→P.4-22
Rear fog lamp switch→P.4-22
8- Fuel tank filler door release lever→P.5-4
9- Bonnet release lever→P.2-9
10- Headlamp levelling switch→P.4-16
11- Rheostat (meter illumination control)
→P.4-23
12- Fuse box lid→P.8-28
13- Auto-speed (cruise)
control lever*→P.5-53Div:
Out put date:

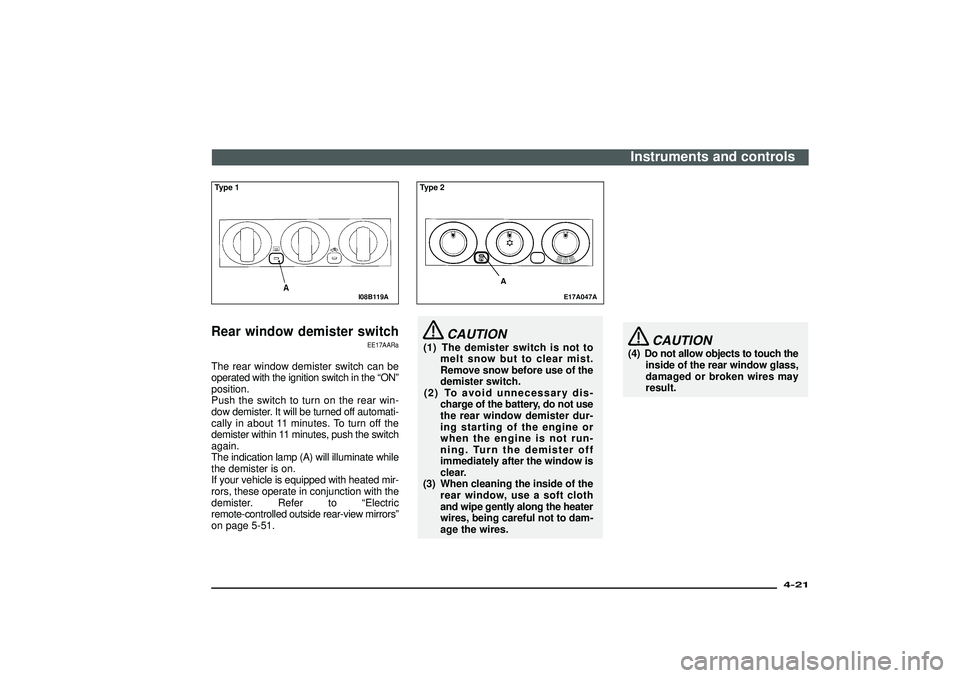

I08B119A
Type 1Rear window demister switch
EE17AARa
The rear window demister switch can be
operated with the ignition switch in the“ON”
position.
Push the switch to turn on the rear win-
dow demister. It will be turned off automati-
cally in about 11 minutes. To turn off the
demister within 11 minutes, push the switch
again.
The indication lamp (A) will illuminate while
the demister is on.
If your vehicle is equipped with heated mir-
rors, these operate in conjunction with the
demister. Refer to“Electric
remote-controlled outside rear-view mirrors”
on page 5-51.
E17A047A
Type 2
A
CAUTION
(1) The demister switch is not to
melt snow but to clear mist.
Remove snow before use of the
demister switch.
(2) To avoid unnecessary dis-
charge of the battery, do not use
the rear window demister dur-
ing starting of the engine or
when the engine is not run-
ning. Turn the demister off
immediately after the window is
clear.
(3) When cleaning the inside of the
rear window, use a soft cloth
and wipe gently along the heater
wires, being careful not to dam-
age the wires.
CAUTION
(4) Do not allow objects to touch the
inside of the rear window glass,
damaged or broken wires may
result.Instruments and controls
