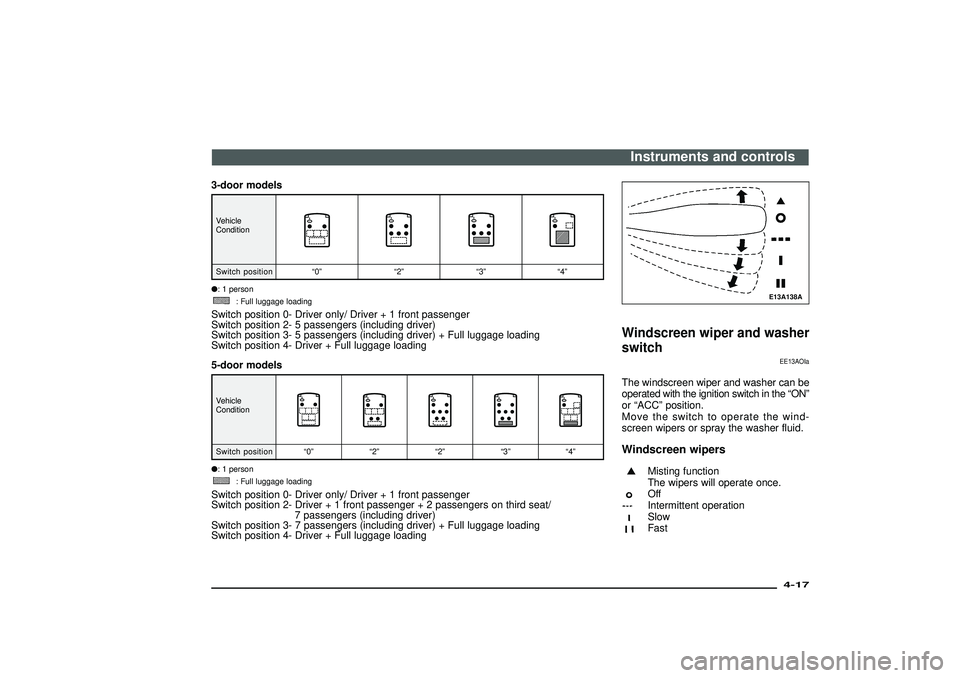

Windscreen wiper and washer
switch
EE13AOIa
The windscreen wiper and washer can be
operated with the ignition switch in the“ON”
or“ACC”position.
Move the switch to operate the wind-
screen wipers or spray the washer fluid.Windscreen wipersMisting function
The wipers will operate once.
OffIntermittent operationSlowFast
Instruments and controls
4-17
Div:
Out put date:
Page 110 of 392
E13A209A
The intermittent intervals are adjustable
from approximately 2 to 18 seconds by
turning the adjusting knob (A).
1- Fast
2- Slow
E13A139A
Misting functionMove the lever in the direction of the arrow
and release, and the wipers will operate
once.
Use this function when you are driving in
mist or drizzle.
If the lever is held in the upward position
(), the wipers continue operating until the
lever is released.
E13A140A
Windscreen washerThe washer fluid will be sprayed onto the
windscreen by pulling the lever towards
you.
The wipers operate automatically several
times while the washer fluid is being
sprayed.
CAUTION
If the washer is used in cold weather,
the washer fluid sprayed against the
glass may freeze resulting in poor
visibility. Heat the glass with the
defroster or demister before using
the washer.
Instruments and controls
4-18Div:
Out put date:
Page 111 of 392
E13B055A

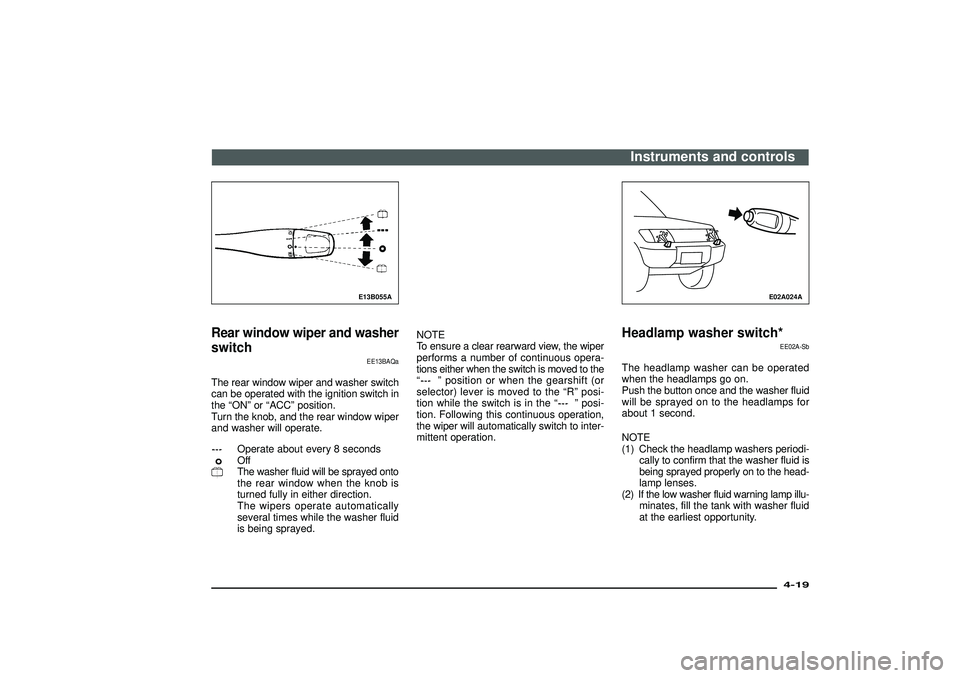

Rear window wiper and washer
switch
EE13BAQa
The rear window wiper and washer switch
can be operated with the ignition switch in
the“ON”or“ACC”position.
Turn the knob, and the rear window wiper
and washer will operate.
Operate about every 8 secondsOffThe washer fluid will be sprayed onto
the rear window when the knob is
turned fully in either direction.
The wipers operate automatically
several times while the washer fluid
is being sprayed.NOTE
To ensure a clear rearward view, the wiper
performs a number of continuous opera-
tions either when the switch is moved to the
“
”position or when the gearshift (or
selector) lever is moved to the“R”posi-
tion while the switch is in the“
”posi-
tion. Following this continuous operation,
the wiper will automatically switch to inter-
mittent operation.
E02A024A
Headlamp washer switch*
EE02A-Sb
The headlamp washer can be operated
when the headlamps go on.
Push the button once and the washer fluid
will be sprayed on to the headlamps for
about 1 second.
NOTE
(1) Check the headlamp washers periodi-
cally to confirm that the washer fluid is
being sprayed properly on to the head-
lamp lenses.
(2) If the low washer fluid warning lamp illu-
minates, fill the tank with washer fluid
at the earliest opportunity.Instruments and controls
4-19
Div:
Out put date:
Page 112 of 392

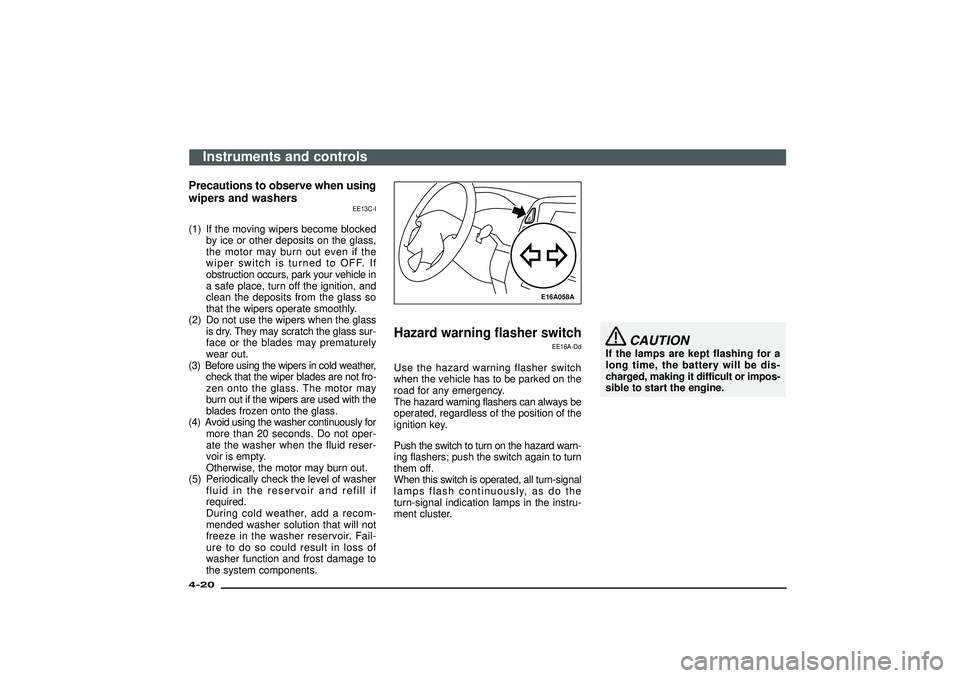

Precautions to observe when using
wipers and washers
EE13C-I
(1) If the moving wipers become blocked
by ice or other deposits on the glass,
the motor may burn out even if the
wiper switch is turned to OFF. If
obstruction occurs, park your vehicle in
a safe place, turn off the ignition, and
clean the deposits from the glass so
that the wipers operate smoothly.
(2) Do not use the wipers when the glass
is dry. They may scratch the glass sur-
face or the blades may prematurely
wear out.
(3) Before using the wipers in cold weather,
check that the wiper blades are not fro-
zen onto the glass. The motor may
burn out if the wipers are used with the
blades frozen onto the glass.
(4) Avoid using the washer continuously for
more than 20 seconds. Do not oper-
ate the washer when the fluid reser-
voir is empty.
Otherwise, the motor may burn out.
(5) Periodically check the level of washer
fluid in the reservoir and refill if
required.
During cold weather, add a recom-
mended washer solution that will not
freeze in the washer reservoir. Fail-
ure to do so could result in loss of
washer function and frost damage to
the system components.
E16A058A
Hazard warning flasher switch
EE16A-Dd
Use the hazard warning flasher switch
when the vehicle has to be parked on the
road for any emergency.
The hazard warning flashers can always be
operated, regardless of the position of the
ignition key.
Push the switch to turn on the hazard warn-
ing flashers; push the switch again to turn
them off.
When this switch is operated, all turn-signal
lamps flash continuously, as do the
turn-signal indication lamps in the instru-
ment cluster.
CAUTION
If the lamps are kept flashing for a
long time, the battery will be dis-
charged, making it difficult or impos-
sible to start the engine.
Instruments and controls
4-20Div:
Out put date:
