UKW/MW/LW electronic tuning radio with tape
player*
EH30A-Pa
The audio system can be used when the ignition switch is in the
“ON” or “ACC” position.
A-Display window
B-Audio system
C-Multi centre display
D-RV meter
NOTE
(1) A CD player or a CD autochanger can be connected to this
audio system. The CD player or the CD autochanger can be
operated by the switch on the audio body. Refer to
“Connection of a CD player or a CD autochanger” on page
6-15.
(2) To listen to the audio system while the engine is stopped, turn
the ignition switch to the “ACC” position.(3) When a cellular phone is used inside the vehicle, noise may
be produced from the audio equipment. This does not mean
that something is wrong with the audio equipment. In such a
case, use the cellular phone at a place as far as possible from
the audio equipment.
(4) In case of misuse (entry of a foreign object or water, smoke
or odour, etc.), immediately turn off the audio system and have
it checked at an authorized MITSUBISHI dealer. Never try to
repair it by yourself. Avoid continuous usage without inspec-
tion by a qualified person.
(5) The audio system’s control panel can be removed to deter
thieves. For details, refer to section entitled “Audio system
anti-theft feature” on page 6-32.
For pleasant driving
6-2Div:
Out put date:

H11A367D

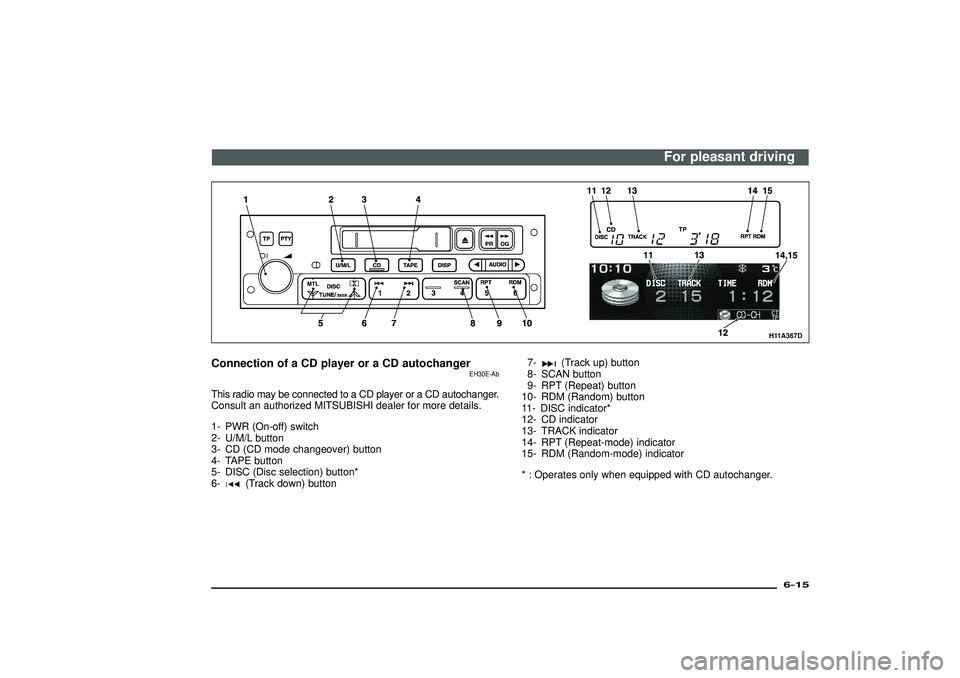

Connection of a CD player or a CD autochanger
EH30E-Ab
This radio may be connected to a CD player or a CD autochanger.
Consult an authorized MITSUBISHI dealer for more details.
1- PWR (On-off) switch
2- U/M/L button
3- CD (CD mode changeover) button
4- TAPE button
5- DISC (Disc selection) button*
6-
(Track down) button7-
(Track up) button
8- SCAN button
9- RPT (Repeat) button
10- RDM (Random) button
11- DISC indicator*
12- CD indicator
13- TRACK indicator
14- RPT (Repeat-mode) indicator
15- RDM (Random-mode) indicator
* : Operates only when equipped with CD autochanger.
For pleasant driving
6-15
Div:
Out put date:

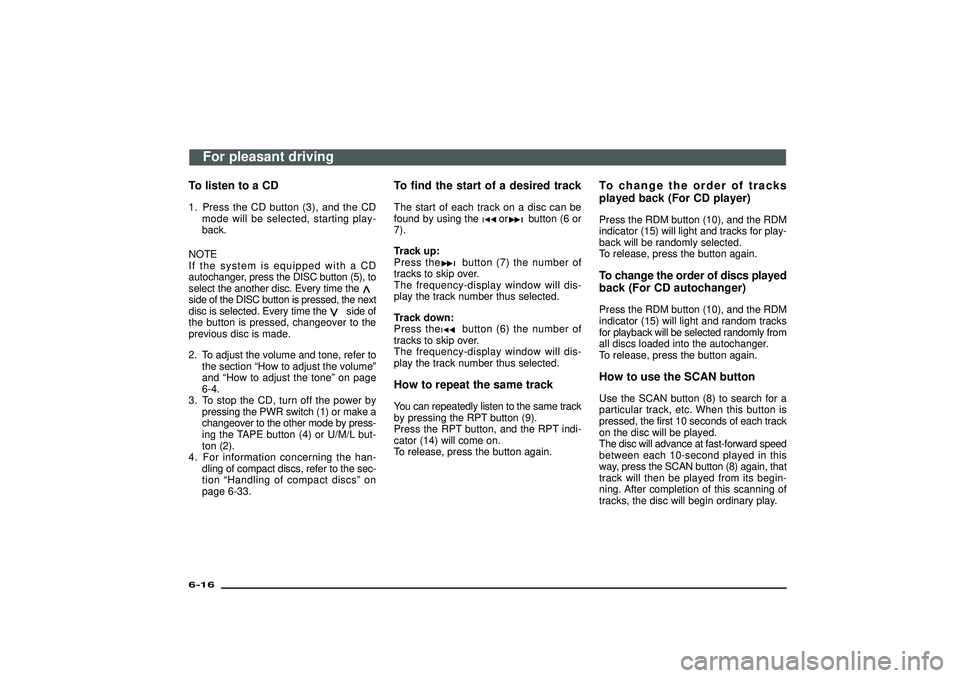

To listen to a CD1. Press the CD button (3), and the CD
mode will be selected, starting play-
back.
NOTE
If the system is equipped with a CD
autochanger, press the DISC button (5), to
select the another disc. Every time theside of the DISC button is pressed, the next
disc is selected. Every time the
side of
the button is pressed, changeover to the
previous disc is made.
2. To adjust the volume and tone, refer to
the section“How to adjust the volume”
and“How to adjust the tone”on page
6-4.
3. To stop the CD, turn off the power by
pressing the PWR switch (1) or make a
changeover to the other mode by press-
ing the TAPE button (4) or U/M/L but-
ton (2).
4. For information concerning the han-
dling of compact discs, refer to the sec-
tion“Handling of compact discs”on
page 6-33.
To find the start of a desired trackThe start of each track on a disc can be
found by using the
or
button (6 or
7).
Track up:
Press the
button (7) the number of
tracks to skip over.
The frequency-display window will dis-
play the track number thus selected.
Track down:
Press thebutton (6) the number of
tracks to skip over.
The frequency-display window will dis-
play the track number thus selected.
How to repeat the same trackYou can repeatedly listen to the same track
by pressing the RPT button (9).
Press the RPT button, and the RPT indi-
cator (14) will come on.
To release, press the button again.
To change the order of tracks
played back (For CD player)Press the RDM button (10), and the RDM
indicator (15) will light and tracks for play-
back will be randomly selected.
To release, press the button again.To change the order of discs played
back (For CD autochanger)Press the RDM button (10), and the RDM
indicator (15) will light and random tracks
for playback will be selected randomly from
all discs loaded into the autochanger.
To release, press the button again.How to use the SCAN buttonUse the SCAN button (8) to search for a
particular track, etc. When this button is
pressed, the first 10 seconds of each track
on the disc will be played.
The disc will advance at fast-forward speed
between each 10-second played in this
way, press the SCAN button (8) again, that
track will then be played from its begin-
ning. After completion of this scanning of
tracks, the disc will begin ordinary play.
For pleasant driving
6-16Div:
Out put date:

H11A363D
UKW/MW/LW electronic tuning radio with CD
player*
EH30A-Qa
The audio system can be used when the ignition switch is in the
“ON”or“ACC”position.
A-Display window
B-Audio system
C-Multi centre display
D-RV meter
NOTE
(1) A CD autochanger can be connected to this audio system. The
CD autochanger can be operated by the switch on the audio
body. Refer to“To listen to a CD”on page 6-28.
(2) To listen to the audio system while the engine is stopped, turn
the ignition switch to the“ACC”position.(3) When a cellular phone is used inside the vehicle, noise may
be produced from the audio equipment. This does not mean
that something is wrong with the audio equipment. In such a
case, use the cellular phone at a place as far as possible from
the audio equipment.
(4) In case of misuse (entry of a foreign object or water, smoke
or odour, etc.), immediately turn off the audio system and have
it checked at an authorized MITSUBISHI dealer. Never try to
repair it by yourself. Avoid continuous usage without inspec-
tion by a qualified person.
(5) The audio system’s control panel can be removed to deter
thieves. For details, refer to the section entitled“Audio sys-
tem anti-theft feature”on page 6-32.
For pleasant driving
6-17
Div:
Out put date:

H11A371D

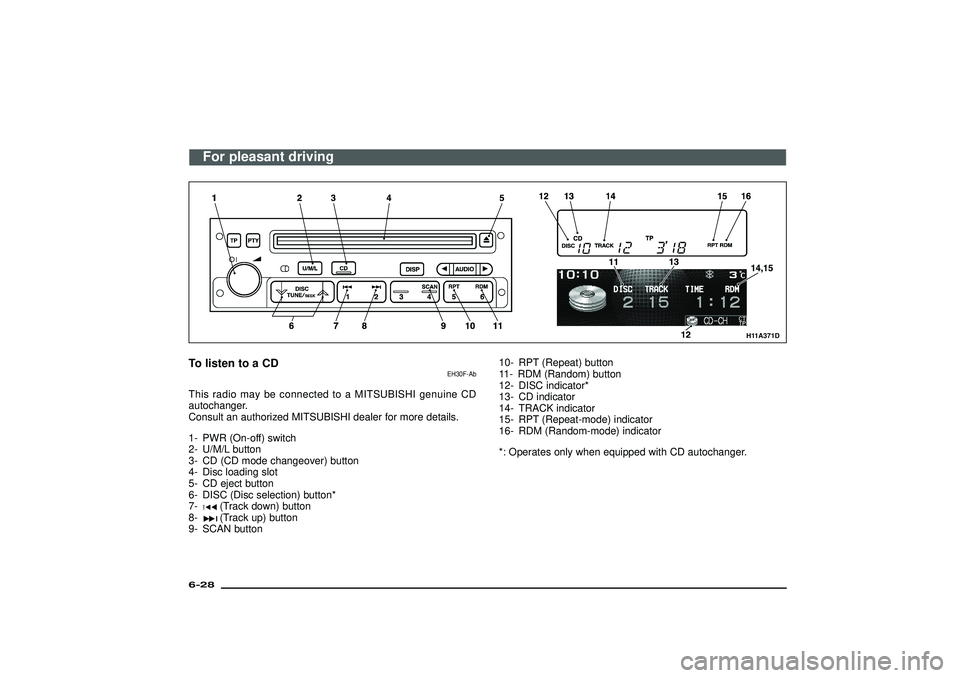

To listen to a CD
EH30F-Ab
This radio may be connected to a MITSUBISHI genuine CD
autochanger.
Consult an authorized MITSUBISHI dealer for more details.
1- PWR (On-off) switch
2- U/M/L button
3- CD (CD mode changeover) button
4- Disc loading slot
5- CD eject button
6- DISC (Disc selection) button*
7-
(Track down) button
8-(Track up) button
9- SCAN button10- RPT (Repeat) button
11- RDM (Random) button
12- DISC indicator*
13- CD indicator
14- TRACK indicator
15- RPT (Repeat-mode) indicator
16- RDM (Random-mode) indicator
*: Operates only when equipped with CD autochanger.
For pleasant driving
6-28Div:
Out put date:

To listen to a CD

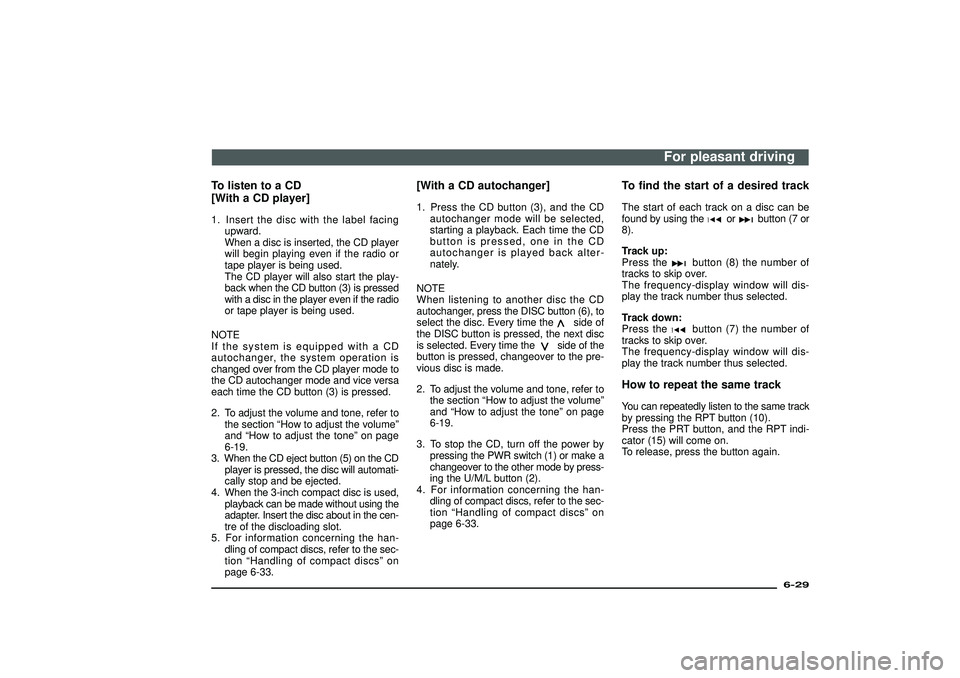

[With a CD player]1. Insert the disc with the label facing
upward.
When a disc is inserted, the CD player
will begin playing even if the radio or
tape player is being used.
The CD player will also start the play-
back when the CD button (3) is pressed
with a disc in the player even if the radio
or tape player is being used.
NOTE
If the system is equipped with a CD
autochanger, the system operation is
changed over from the CD player mode to
the CD autochanger mode and vice versa
each time the CD button (3) is pressed.
2. To adjust the volume and tone, refer to
the section“How to adjust the volume”
and“How to adjust the tone”on page
6-19.
3. When the CD eject button (5) on the CD
player is pressed, the disc will automati-
cally stop and be ejected.
4. When the 3-inch compact disc is used,
playback can be made without using the
adapter. Insert the disc about in the cen-
tre of the discloading slot.
5. For information concerning the han-
dling of compact discs, refer to the sec-
tion“Handling of compact discs”on
page 6-33.
[With a CD autochanger]1. Press the CD button (3), and the CD
autochanger mode will be selected,
starting a playback. Each time the CD
button is pressed, one in the CD
autochanger is played back alter-
nately.
NOTE
When listening to another disc the CD
autochanger, press the DISC button (6), to
select the disc. Every time the
side of
the DISC button is pressed, the next disc
is selected. Every time the
side of the
button is pressed, changeover to the pre-
vious disc is made.
2. To adjust the volume and tone, refer to
the section“How to adjust the volume”
and“How to adjust the tone”on page
6-19.
3. To stop the CD, turn off the power by
pressing the PWR switch (1) or make a
changeover to the other mode by press-
ing the U/M/L button (2).
4. For information concerning the han-
dling of compact discs, refer to the sec-
tion“Handling of compact discs”on
page 6-33.
To find the start of a desired trackThe start of each track on a disc can be
found by using the
or
button (7 or
8).
Track up:
Press the
button (8) the number of
tracks to skip over.
The frequency-display window will dis-
play the track number thus selected.
Track down:
Press thebutton (7) the number of
tracks to skip over.
The frequency-display window will dis-
play the track number thus selected.
How to repeat the same trackYou can repeatedly listen to the same track
by pressing the RPT button (10).
Press the PRT button, and the RPT indi-
cator (15) will come on.
To release, press the button again.
For pleasant driving
6-29
Div:
Out put date:

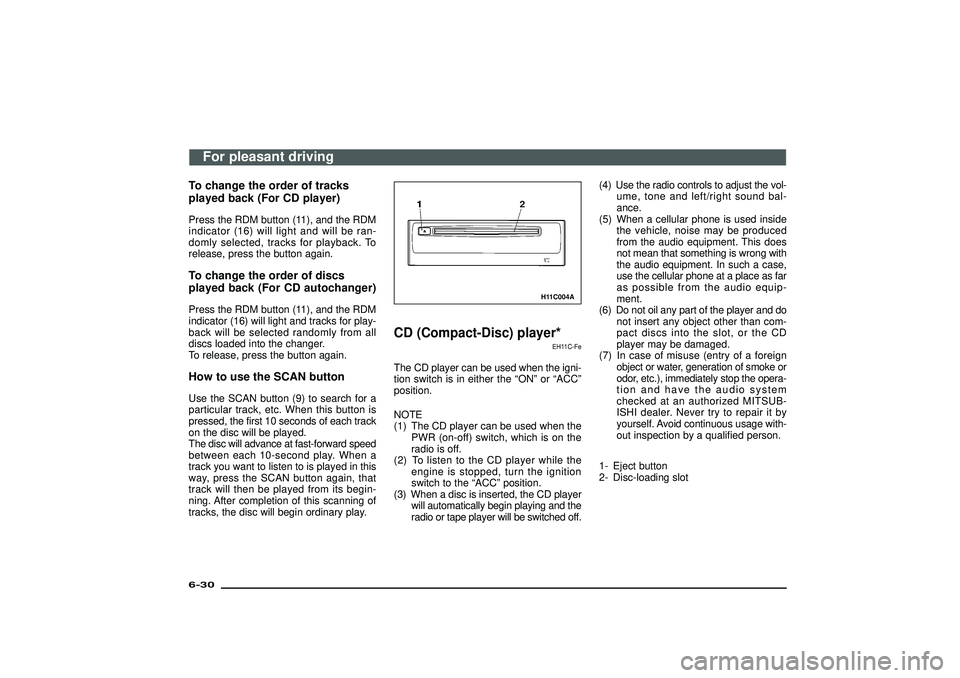

To change the order of tracks
played back (For CD player)Press the RDM button (11), and the RDM
indicator (16) will light and will be ran-
domly selected, tracks for playback. To
release, press the button again.To change the order of discs
played back (For CD autochanger)Press the RDM button (11), and the RDM
indicator (16) will light and tracks for play-
back will be selected randomly from all
discs loaded into the changer.
To release, press the button again.How to use the SCAN buttonUse the SCAN button (9) to search for a
particular track, etc. When this button is
pressed, the first 10 seconds of each track
on the disc will be played.
The disc will advance at fast-forward speed
between each 10-second play. When a
track you want to listen to is played in this
way, press the SCAN button again, that
track will then be played from its begin-
ning. After completion of this scanning of
tracks, the disc will begin ordinary play.
H11C004A
CD (Compact-Disc) player*
EH11C-Fe
The CD player can be used when the igni-
tion switch is in either the“ON”or“ACC”
position.
NOTE
(1) The CD player can be used when the
PWR (on-off) switch, which is on the
radio is off.
(2) To listen to the CD player while the
engine is stopped, turn the ignition
switch to the“ACC”position.
(3) When a disc is inserted, the CD player
will automatically begin playing and the
radio or tape player will be switched off.(4) Use the radio controls to adjust the vol-
ume, tone and left/right sound bal-
ance.
(5) When a cellular phone is used inside
the vehicle, noise may be produced
from the audio equipment. This does
not mean that something is wrong with
the audio equipment. In such a case,
use the cellular phone at a place as far
as possible from the audio equip-
ment.
(6) Do not oil any part of the player and do
not insert any object other than com-
pact discs into the slot, or the CD
player may be damaged.
(7) In case of misuse (entry of a foreign
object or water, generation of smoke or
odor, etc.), immediately stop the opera-
tion and have the audio system
checked at an authorized MITSUB-
ISHI dealer. Never try to repair it by
yourself. Avoid continuous usage with-
out inspection by a qualified person.
1- Eject button
2- Disc-loading slot
For pleasant driving
6-30Div:
Out put date:

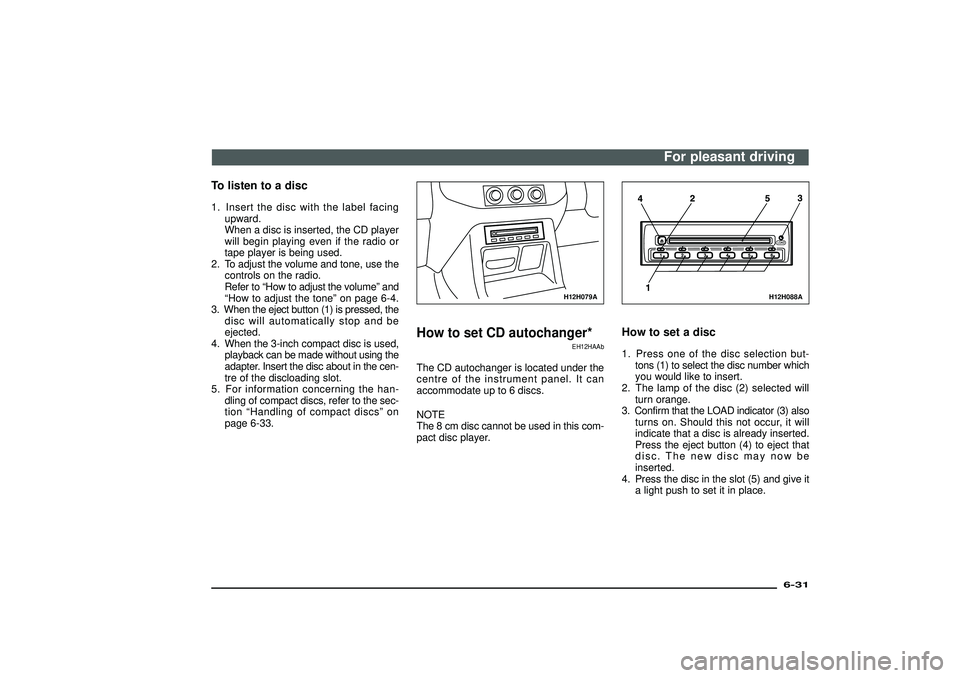

To listen to a disc1. Insert the disc with the label facingupward.
When a disc is inserted, the CD player
will begin playing even if the radio or
tape player is being used.
2. To adjust the volume and tone, use the controls on the radio.
Refer to “How to adjust the volume ”and
“ How to adjust the tone ”on page 6-4.
3. When the eject button (1) is pressed, the disc will automatically stop and be
ejected.
4 . Whe nthe 3-inc hcompac tdis cis used,
playback can be made without using the
adapter. Insert the disc about in the cen-
tre of the discloading slot.
5. For information concerning the han- dling of compact discs, refer to the sec-
tion “Handling of compact discs ”on
page 6-33.
H12H079A
How to set CD autochanger*
EH12HAAb
The CD autochanger is located under the
centre of the instrument panel. It can
accommodate up to 6 discs.
NOTE
The 8 cm disc cannot be used in this com-
pact disc player.
H12H088A
How to set a disc1. Press one of the disc selection but- tons (1) to select the disc number which
you would like to insert.
2. The lamp of the disc (2) selected will turn orange.
3. Confirm that the LOAD indicator (3) also turns on. Should this not occur, it will
indicate that a disc is already inserted.
Press the eject button (4) to eject that
disc. The new disc may now be
inserted.
4. Press the disc in the slot (5) and give it a light push to set it in place.
For pleasant driving
6-31
Div:
Out put date:

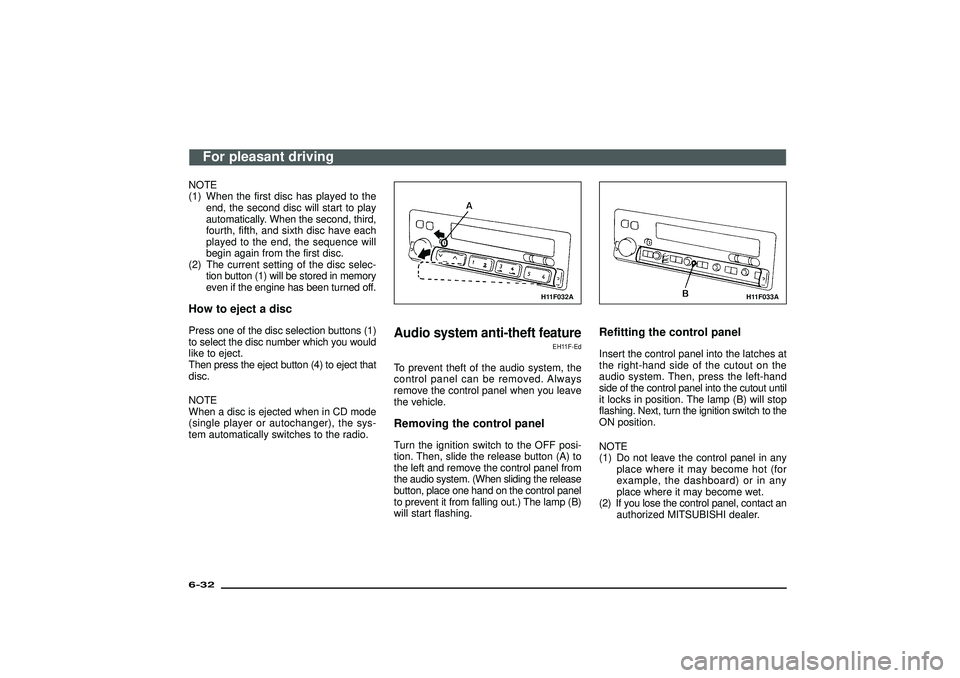

NOTE
(1) When the first disc has played to the
end, the second disc will start to play
automatically. When the second, third,
fourth, fifth, and sixth disc have each
played to the end, the sequence will
begin again from the first disc.
(2) The current setting of the disc selec-
tion button (1) will be stored in memory
even if the engine has been turned off.How to eject a discPress one of the disc selection buttons (1)
to select the disc number which you would
like to eject.
Then press the eject button (4) to eject that
disc.
NOTE
When a disc is ejected when in CD mode
(single player or autochanger), the sys-
tem automatically switches to the radio.
H11F032A
Audio system anti-theft feature
EH11F-Ed
To prevent theft of the audio system, the
control panel can be removed. Always
remove the control panel when you leave
the vehicle.Removing the control panelTurn the ignition switch to the OFF posi-
tion. Then, slide the release button (A) to
the left and remove the control panel from
the audio system. (When sliding the release
button, place one hand on the control panel
to prevent it from falling out.) The lamp (B)
will start flashing.
H11F033A
Refitting the control panelInsert the control panel into the latches at
the right-hand side of the cutout on the
audio system. Then, press the left-hand
side of the control panel into the cutout until
it locks in position. The lamp (B) will stop
flashing. Next, turn the ignition switch to the
ON position.
NOTE
(1) Do not leave the control panel in any
place where it may become hot (for
example, the dashboard) or in any
place where it may become wet.
(2) If you lose the control panel, contact an
authorized MITSUBISHI dealer.
For pleasant driving
6-32Div:
Out put date:
