MITSUBISHI SHOGUN 2008 Owner's Manual (in English)

Seat and seat belts
2-75
2
SRS warning lamp
E00407800129
There is a supplemental restra
int system (“SRS”) warning lamp
on the instrument panel. The sy
stem checks itself and the lamp
tells you if there is a problem.
When the ignition key is turned
to the “ON” or “START” position, the warning lamp shouldilluminate for several seconds and then should go out. This means the system is ready. If
an SRS airbag or pre-tensioner
seat belt is not operating properly, the warning lamp illumi-nates and stays on. The SRS warning lamp is shared by the Supplemental Restraint System (SRS) and the
seat belt pre-tensioner system.
WARNING
!●
Do not put a hanger or any heavy or pointed object on the coat hook.If the curtain airbag was
activated, any such item
could be propelled away with great force and could prevent the curtain airbag
from inflating correctly.
Hang clothes directly on
the coat hook (without
using a hanger). Make sure there are no heavy or sharp objects in thepockets of clothes that you
hang on the coat hook.
●
Do not allow the child to lean against or close to the front door even if the ch
ild is seated in a child
restraint system. The child’s head should also not be leaned against orbe close to the area where the side airbag and cur- tain airbag are located. It
is dangerous if the side
airbag and curtain airbag inflates.Failure to follow all these
instructions
could lead to
serious or fatal injury to the child.
●
We recommend work around and on the side air- bags and curtain airbags system to be done by a MITSUBISHI MOTORS Auth
orized Service Point.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
75 Wednesday, January 9, 2008 4:28 PM

2-76 Seat and seat belts
2

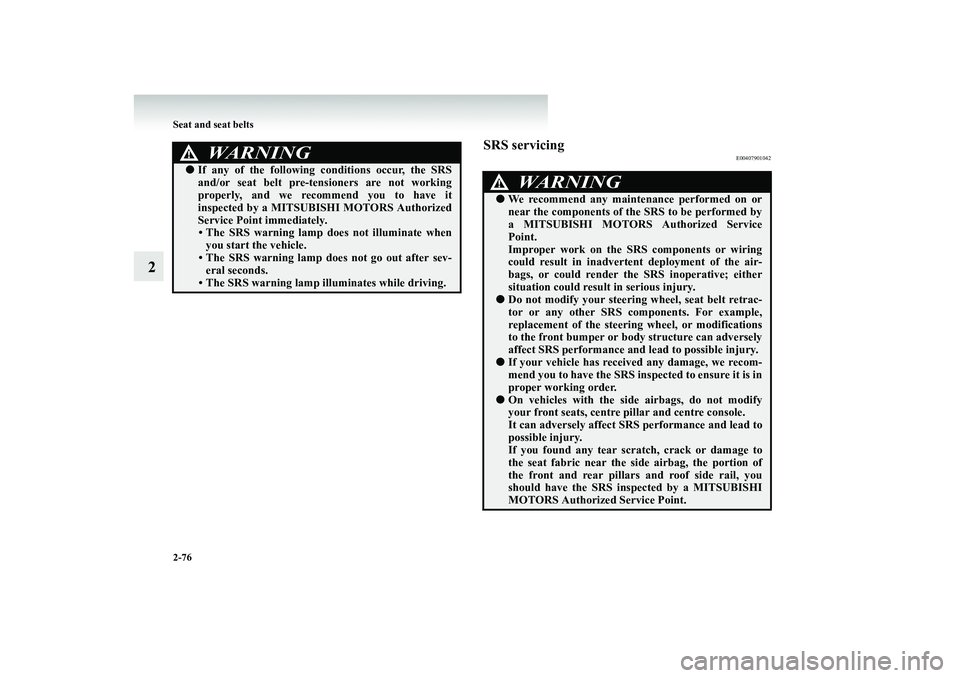

SRS servicing
E00407901042
WARNING
!●
If any of the following
conditions occur, the SRS
and/or seat belt pre-tensioners are not workingproperly, and we recommend you to have it inspected by a MITSUBISHI MOTORS Authorized Service Point immediately.• The SRS warning lamp do
es not illuminate when
you start the vehicle. • The SRS warning lamp does not go out after sev-eral seconds. • The SRS warning lamp illuminates while driving.
WARNING
!●
We recommend any maintenance performed on or near the components of the SRS to be performed bya MITSUBISHI MOTORS
Authorized Service
Point. Improper work on the SR
S components or wiring
could result in inadverten
t deployment of the air-
bags, or could render the SRS inoperative; either situation could result in serious injury.
●
Do not modify your steering wheel, seat belt retrac- tor or any other SRS co
mponents. For example,
replacement of the steering
wheel, or modifications
to the front bumper or body
structure can adversely
affect SRS performance and
lead to possible injury.
●
If your vehicle has received any damage, we recom- mend you to have the SRS in
spected to ensure it is in
proper working order.
●
On vehicles with the side
airbags, do not modify
your front seats, centre pillar and centre console. It can adversely affect SR
S performance and lead to
possible injury.If you found any tear scratch, crack or damage to the seat fabric near the side airbag, the portion of the front and rear pillars and roof side rail, youshould have the SRS in
spected by a MITSUBISHI
MOTORS Authorized Service Point.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
76 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-77
2

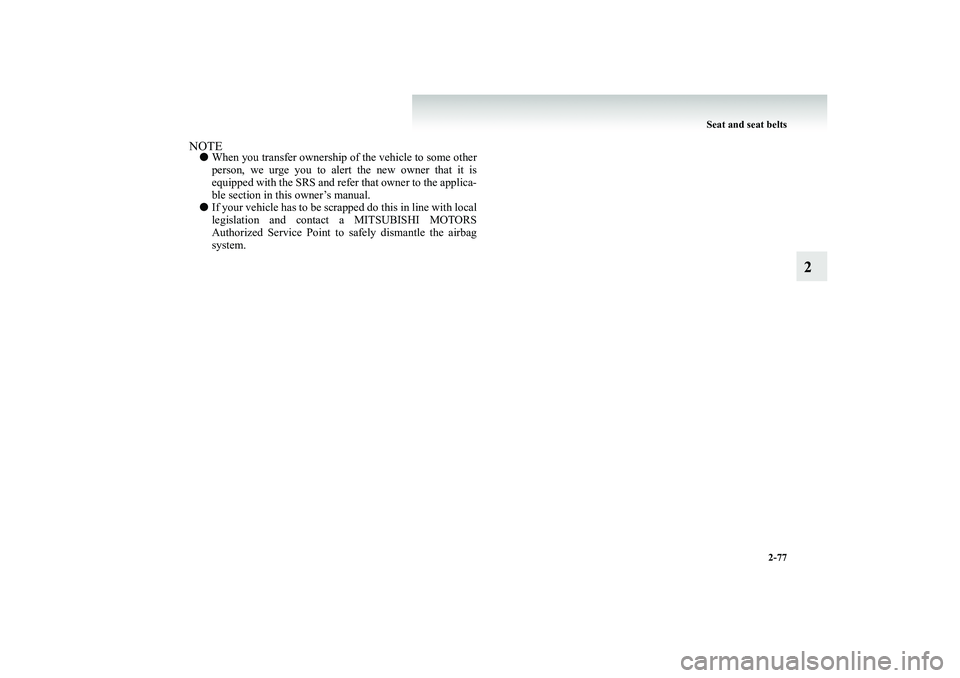

NOTE●
When you transfer ownership of the vehicle to some other person, we urge you to alert the new owner that it is equipped with the SRS and refer that owner to the applica- ble section in this owner’s manual.
●
If your vehicle has to be scrapped do this in line with local legislation and contact
a MITSUBISHI MOTORS
Authorized Service Point to
safely dismantle the airbag
system.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
77 Wednesday, January 9, 2008 4:28 PM

BK-BK2008E1ENUK.en-uk-Section5.fm Page
78 Wednesday, January 9, 2008 4:28 PM

3
Instruments and controls
Instruments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2 Indicator and warning lamps . . . . . . . . . . . . . . . . .3- 10Indicator lamps. . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 12Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13Centre information display* . . . . . . . . . . . . . . . . .3- 17Combination headlamps and dipper switch . . . . . .3- 58Headlamp levelling . . . . . . . . . . . . . . . . . . . . . . . .3- 62Turn-signal lever . . . . . . . . . . . . . . . . . . . . . . . . . .3- 65Hazard warning flasher switch. . . . . . . . . . . . . . . .3- 66Fog lamp switch . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 66Wiper and washer switch . . . . . . . . . . . . . . . . . . . .3- 68Wiper deicer switch* . . . . . . . . . . . . . . . . . . . . . . .3- 77Rear window demister switch . . . . . . . . . . . . . . . .3- 77Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 78
BK-BK2008E1ENUK.en-uk-Section6.fm Page 1 Wednesday, January 9, 2008 4:32 PM

3-2 Instruments and controls
3
Instruments
E00500100241
Tachometer
E00500300458
The tachometer indicates the
engine speed (r/min). The
tachometer helps you to obtain more economical driving and also warns you of excessive engine speeds (Red zone).
1- Speedometer (km/h or mph + km/h) 2- Tachometer 3- Tripmeter reset button/Daytime dipper button 4- Fuel gauge5- Odometer/Tripmeter/Service reminder 6- Water temperature gauge
CAUTION
!●
When driving, watch the
tachometer to make sure
that the engine speed indi
cation does not rise into
the red zone (excessive engine rpm).
BK-BK2008E1ENUK.en-uk-Section6.fm Page 2 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-3
3
Odometer/Tripmeter/Service reminder
E00500600998
With the ignition switch in the “ON” position, odometer, tripm- eter, and service reminder indications are given.
Odometer The odometer indicates the tota
l distance the vehicle has trav-
elled.TripmeterThe tripmeter indicates the dist
ance travelled during a particu-
lar trip or period. There are two tripmeter displays: TRIP and . TRIP can be used to measur
e the distance travelled since
the current trip began. At the same time, TRIP can be used to measure the dist
ance from an inte
rmediate location.
To switch the display between TRIP and TRIP , press the reset button (B) less than 1 second.
A- Odometer/Tripmeter/Service reminder B- Reset button
TRIP ODOService reminder TRIP ODO
BK-BK2008E1ENUK.en-uk-Section6.fm Page 3 Wednesday, January 9, 2008 4:32 PM

3-4 Instruments and controls
3
NOTE●
If you do not push the button for about 10 seconds while the service reminder is showing, the display will return to the odometer indication.
●
The odometer, tripmeter, an
d service reminder indications
are given for 30 seconds after the ignition switch has been turned to the “ACC” or “LOCK” position.
●
After the odometer, tripmeter, and service reminder indi- cations have gone off, they come back on for about 30 seconds if either of the fo
llowing actions takes place.
• The driver’s door is opened.• The reset button is pressed.
To reset the tripmeter To return the display to “0”, press the reset button (B) for morethan 2 second. Only the currently displayed value will be reset.NOTE●
When disconnecting the battery
terminal for a long time,
the memory of tripmeter display TRIP and are cleared, and the display returns to “0”.
Service reminder
E00517700092
The service reminder shows the number of months (1) anddriving distance (3) remaining until the next 12-monthly(15,000 km or 9,000 miles) inspection. When the next inspec- tion is nearly due, the display s
hows “-----”. At this time, a
spanner mark (2) is shown for a few seconds whenever theignition switch is turned from the “OFF” position to the “ON” position.
BK-BK2008E1ENUK.en-uk-Section6.fm Page 4 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-5
3
1. The display shows the number of months and driving dis-
tance remaining until the next inspection.
2. When the next inspection is nearly due, the display shows
“-----”. For further information, we recommend you to consult aMITSUBISHI MOTORS Authorized Service Point. At this time, a spanner mark is shown for a few seconds whenever the ignition switch
is turned from the “OFF”
position to the “ON” position.
3. When the vehicle is inspected at a MITSUBISHI
MOTORS Authorized Servi
ce Point, the number of
months and driving distance remaining until the next inspection will be shown.
NOTE●
The indicated distance decreases
in steps of 100 km (or
100 miles). The indicated num
ber of months decreases in
steps of one month.
●
It is possible to change the settings for the service reminder. For further information, we recommend you to consult a MITSUBISHI MOTORS Auth
orized Service Point.
BK-BK2008E1ENUK.en-uk-Section6.fm Page 5 Wednesday, January 9, 2008 4:32 PM

3-6 Instruments and controls
3

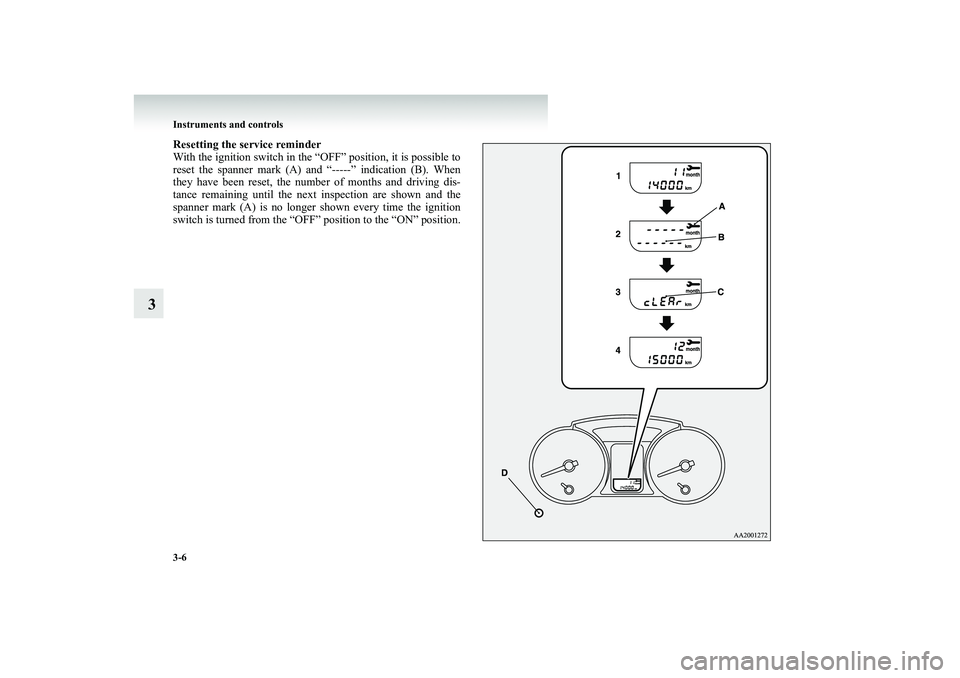

Resetting the service reminder With the ignition switch in the “OFF” position, it is possible to reset the spanner mark (A) and “-----” indication (B). When they have been reset, the number of months and driving dis-tance remaining until the next inspection are shown and the spanner mark (A) is no longer shown every time the ignition switch is turned from the “OFF
” position to the “ON” position.
BK-BK2008E1ENUK.en-uk-Section6.fm Page 6 Wednesday, January 9, 2008 4:32 PM
