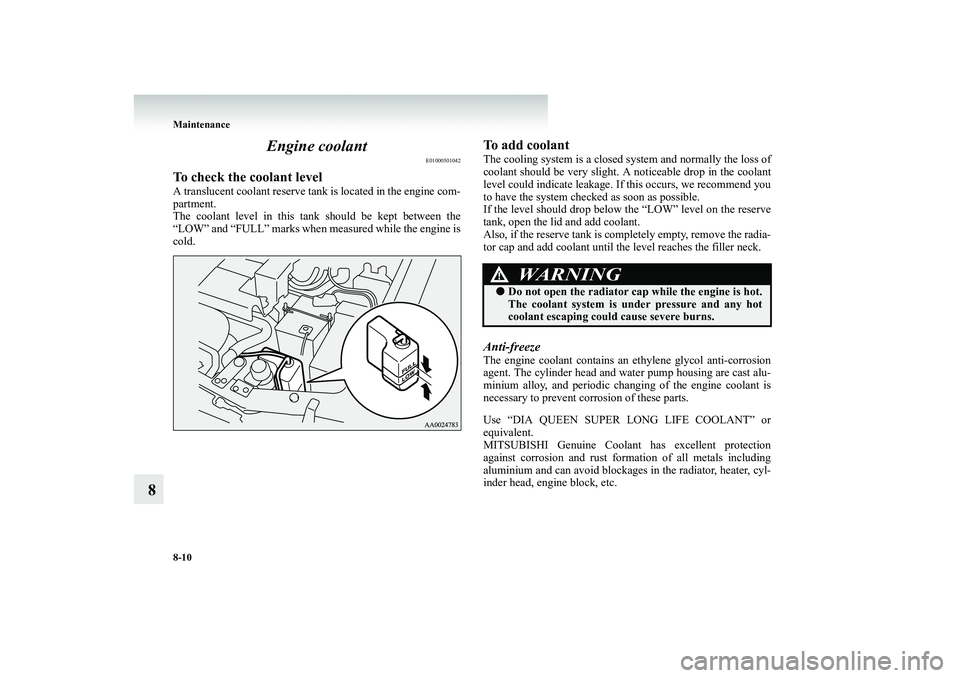

8-10 Maintenance
8
Engine coolant
E01000501042
To check the coolant levelA translucent coolant reserve tank
is located in the engine com-
partment. The coolant level in this tank should be kept between the“LOW” and “FULL” marks when measured while the engine is cold.
To add coolantThe cooling system is a closed
system and normally the loss of
coolant should be very slight.
A noticeable drop in the coolant
level could indicate leakage. If
this occurs, we recommend you
to have the system checked as soon as possible. If the level should drop below th
e “LOW” level on the reserve
tank, open the lid
and add coolant.
Also, if the reserve tank is completely empty, remove the radia- tor cap and add coolant until the
level reaches the filler neck.
Anti-freezeThe engine coolant contains an ethylene glycol anti-corrosion agent. The cylinder head and
water pump housing are cast alu-
minium alloy, and periodic changing of the engine coolant is necessary to prevent corrosion of these parts. Use “DIA QUEEN SUPER LONG LIFE COOLANT” or equivalent.MITSUBISHI Genuine Coolan
t has excellent protection
against corrosion and rust form
ation of all metals including
aluminium and can avoid blockages in the radiator, heater, cyl-inder head, engine block, etc.
WARNING
!●
Do not open the radiator ca
p while the engine is hot.
The coolant system is u
nder pressure and any hot
coolant escaping coul
d cause severe burns.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
10 Wednesday, January 9, 2008 4:50 PM

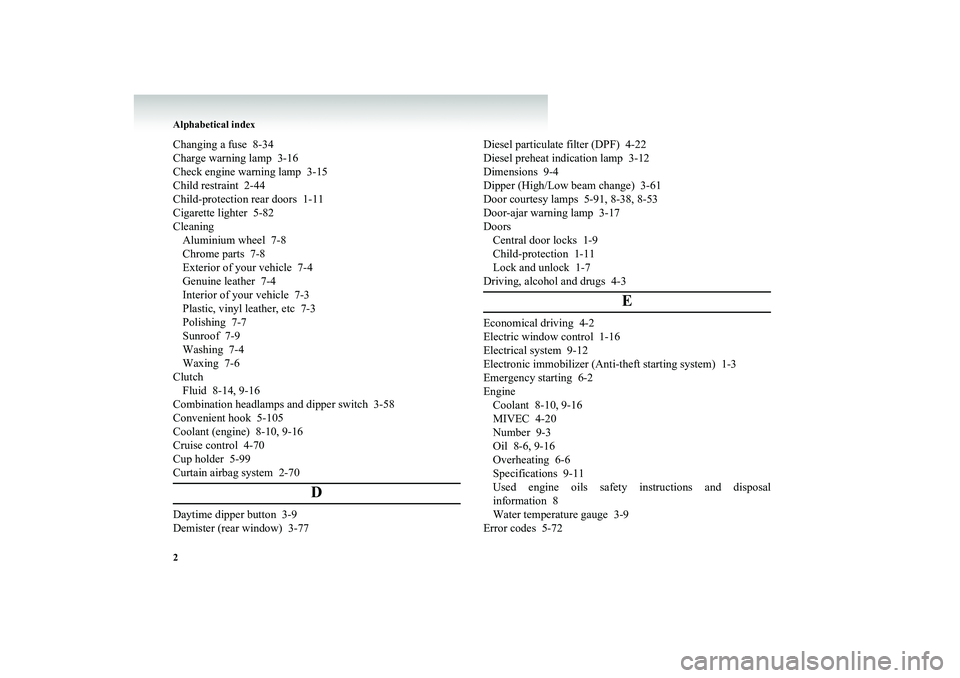

Alphabetical index 2Changing a fuse 8-34 Charge warning lamp 3-16Check engine warning lamp 3-15Child restraint 2-44Child-protection rear doors 1-11Cigarette lighter 5-82CleaningAluminium wheel 7-8Chrome parts 7-8Exterior of your vehicle 7-4Genuine leather 7-4Interior of your vehicle 7-3Plastic, vinyl leather, etc 7-3Polishing 7-7Sunroof 7-9Washing 7-4Waxing 7-6ClutchFluid 8-14, 9-16Combination headlamps and dipper switch 3-58Convenient hook 5-105Coolant (engine) 8-10, 9-16Cruise control 4-70Cup holder 5-99Curtain airbag system 2-70
D
Daytime dipper button 3-9Demister (rear window) 3-77
Diesel particulate filter (DPF) 4-22 Diesel preheat indication lamp 3-12Dimensions 9-4Dipper (High/Low beam change) 3-61Door courtesy lamps 5-91, 8-38, 8-53Door-ajar warning lamp 3-17DoorsCentral door locks 1-9Child-protection 1-11Lock and unlock 1-7Driving, alcohol and drugs 4-3
E
Economical driving 4-2Electric window control 1-16Electrical system 9-12Electronic immobilizer (Ant
i-theft starting system) 1-3
Emergency starting 6-2EngineCoolant 8-10, 9-16MIVEC 4-20Number 9-3Oil 8-6, 9-16Overheating 6-6Specifications 9-11Used engine oils safety instructions and disposalinformation 8Water temperature gauge 3-9Error codes 5-72
BK-BK2008E1ENUK.en-ukIX.fm Page 2 Thursday, January 10, 2008 7:53 AM
