ForewordE09200101932
Thank you for selecting a SHOGUN as your new vehicle.
This owner’s manual will add to your understanding and full
enjoyment of the many fine features of this vehicle.
It contains information prepared to acquaint you with the
proper way to operate and maintain your vehicle for the utmost
in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to
make changes in design and specifications and/or to make
additions to or improvements in this product without obligation
to install them on products previously manufactured.
It is an absolute requirement for the driver to strictly observe
all laws and regulations concerning vehicles.
This owner’s manual has been written in compliance with
such laws and regulations, but some of the contents may
become contradictory with later amendment of the laws and
regulations.
Please leave this owner’s manual in this vehicle at time of
resale. The next owner will appreciate having access to the
information contained in this owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI
MOTORS Authorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNINGand
CAUTIONappear.
These serve as reminders to be especially careful. Failure to follow
instructions could result in personal injury or damage to your vehicle.
indicates a strong possibility of severe personal injury or
death if instructions are not followed.
means hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE: gives helpful information.
*: indicates optional equipment.
It may differ according to the sales classification; refer to
the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic TransmissionInformation for station service
E09300100486
OBKX08E1
BL071501
8
WARNING
CAUTION
Fuel tank capacity3-door models 69 litres5-door models 88 litres
Petrol-powered vehicles
Unleaded petrol octane number (EN228)
95 RON or higher
FuelDiesel-powered vehicles
Fuel requirementsVehicles to comply with the Euro 4 regulation
Cetane number (EN590)
51 or higher
Vehicles to comply with the Euro 3 regulation
Cetane number
45 or higher
Refer to the “Fuel selection” for details.
Engine oil Refer to the “Maintenance” section of this owner’s manual for the SAE viscosity.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2007 Mitsubishi Motors Corporation
Mitsubishi Motors Europe B.V.
eng_CV_SHOGUN_Pajero08.qxd 26-12-2007 15:55 Page 2

Instruments and controls
3-15
3
Check engine warning lamp
E00502600093
This lamp is a part of an onboard diagnostic sys- tem which monitors the emissions, engine and automatic transmission control systems. If a problem is detected
in one of these systems,
this lamp illuminates. Although your vehicle will usually be drivable and not need towing, we recommend you to havethe system checked as soon as possible. This lamp will also illuminate for a few seconds when the ignition switch is turned to the “ON”position. If it does not go off after a few seconds, we recommend you to have the vehicle checked.
NOTE●
The engine electr
onic control module
accommodating the onboard diagnostic sys- tem has various fault data (especially about the exhaust emission) stored.This data will be erased
if a battery cable is
disconnected which will make a rapid diag- nosis difficult. Do not disconnect a batterycable when the check engine warning lamp is ON.
CAUTION
!●
Prolonged driving with this lamp on may cause further damage to the emis- sion control system.
It could also affect
fuel economy and drivability.
●
If the lamp does not illuminate when the ignition switch is turned to the“ON” position, we recommend you to have the system checked.
●
If the lamp illuminates while the engine is running, avoid driving at high speeds and we recommend you to have the system checked.Accelerator pedal and brake pedal response may be negatively influenced under these conditions.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
15 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-63
3

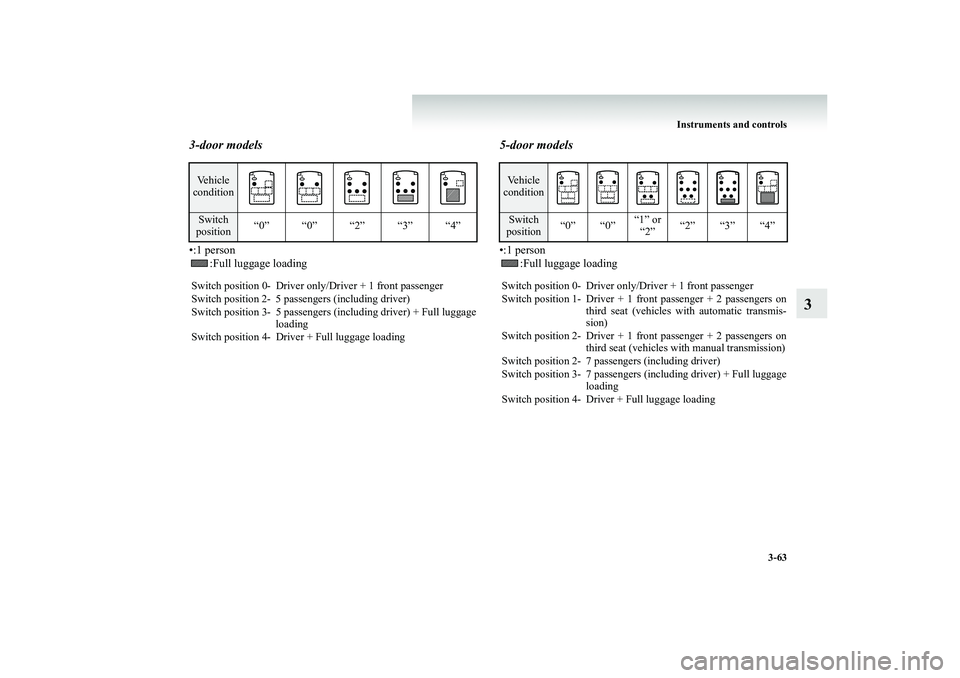

3-door models•:1 person
:Full luggage loading
5-door models•:1 person
:Full luggage loading
Vehicle conditionSwitch position
“0” “0” “2” “3” “4”
Switch position 0- Driver only/Driver + 1 front passenger Switch position 2- 5 passengers (including driver)Switch position 3- 5 passengers (including driver) + Full luggage
loading
Switch position 4- Driver + Full luggage loading
Ve h i c l e conditionSwitch position
“0” “0”
“1” or “2”
“2” “3” “4”
Switch position 0- Driver only/Driver + 1 front passenger Switch position 1- Driver + 1 front passenger + 2 passengers on
third seat (vehicles with automatic transmis-sion)
Switch position 2- Driver + 1 front passenger + 2 passengers on
third seat (vehicles with manual transmission)
Switch position 2- 7 passengers (including driver) Switch position 3- 7 passengers (including driver) + Full luggage
loading
Switch position 4- Driver + Full luggage loading
BK-BK2008E1ENUK.en-uk-Section6.fm Page
63 Wednesday, January 9, 2008 4:32 PM

4

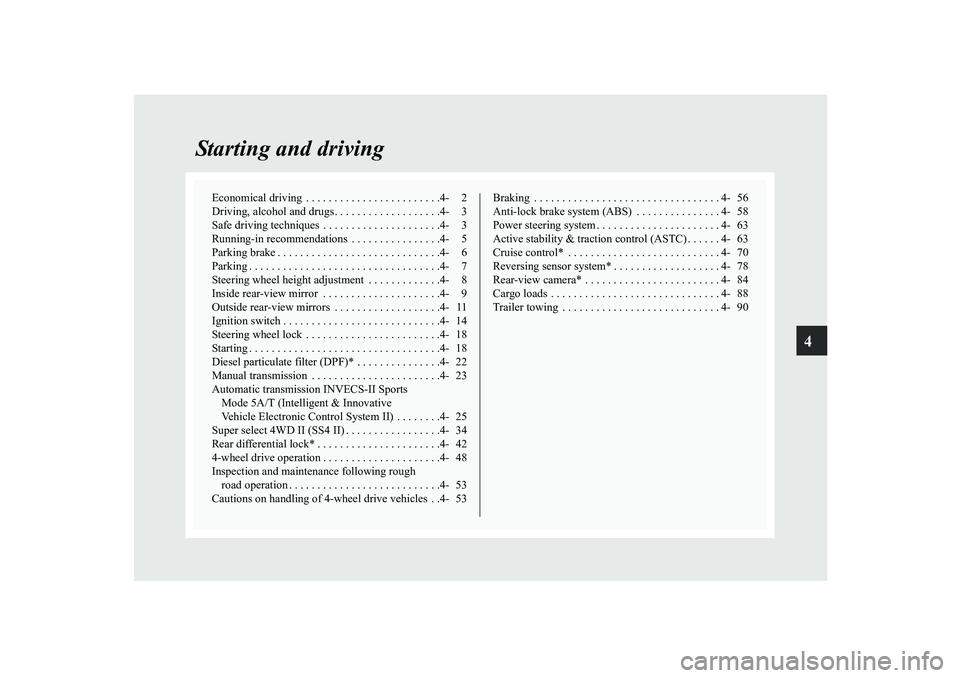

Starting and driving
Economical driving . . . . . . . . . . . . . . . . . . . . . . . .4- 2 Driving, alcohol and drugs. . . . . . . . . . . . . . . . . . .4- 3Safe driving techniques . . . . . . . . . . . . . . . . . . . . .4- 3Running-in recommendations . . . . . . . . . . . . . . . .4- 5Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 6Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 7Steering wheel height adjustment . . . . . . . . . . . . .4- 8Inside rear-view mirror . . . . .
. . . . . . . . . . . . . . . .4- 9
Outside rear-view mirrors . . . . . . . . . . . . . . . . . . .4- 11Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 14Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .4- 18Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 18Diesel particulate filter (DPF)* . . . . . . . . . . . . . . .4- 22Manual transmission . . . . . . . . . . . . . . . . . . . . . . .4- 23Automatic transmission INVECS-II Sports Mode 5A/T (Intelligent & Innovative Vehicle Electronic Control Syst
em II) . . . . . . . .4- 25
Super select 4WD II (SS4 II) . . . . . . . . . . . . . . . . .4- 34Rear differential lock* . . . . . . . . . . . . . . . . . . . . . .4- 424-wheel drive operation . . . . . . . . . . . . . . . . . . . . .4- 48Inspection and maintenance following rough road operation . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 53Cautions on handling of 4-wheel drive vehicles . .4- 53
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 56 Anti-lock brake system (ABS) . . . . . . . . . . . . . . . 4- 58Power steering system . . . . . . . . . . . . . . . . . . . . . . 4- 63Active stability & traction control (ASTC) . . . . . . 4- 63Cruise control* . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 70Reversing sensor system* . . . . . . . . . . . . . . . . . . . 4- 78Rear-view camera* . . . . . . . . . . . . . . . . . . . . . . . . 4- 84Cargo loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 88Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 90
BK-BK2008E1ENUK.en-uk-Section7.fm Page 1 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-25
4

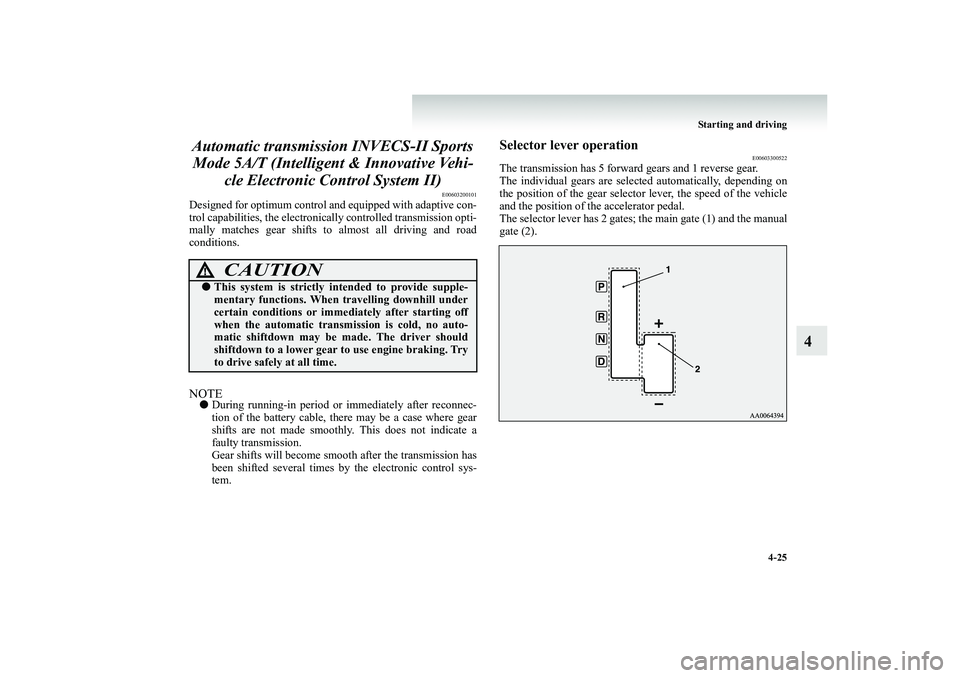

Automatic transmissi
on INVECS-II Sports
Mode 5A/T (Intellige
nt & Innovative Vehi-
cle Electronic Control System II)
E00603200101
Designed for optimum control and equipped with adaptive con- trol capabilities, the electronica
lly controlled transmission opti-
mally matches gear shifts to almost all driving and roadconditions.NOTE●
During running-in period or immediately after reconnec- tion of the battery cable, there may be a case where gear shifts are not made smoothly. This does not indicate afaulty transmission. Gear shifts will become smoot
h after the transmission has
been shifted several times by
the electronic control sys-
tem.
Selector lever operation
E00603300522
The transmission has 5 forwar
d gears and 1 reverse gear.
The individual gears are select
ed automatically, depending on
the position of the gear
selector lever, the speed of the vehicle
and the position of the accelerator pedal.The selector lever has 2 gates; the main gate (1) and the manual gate (2).
CAUTION
!●
This system is strictly in
tended to provide supple-
mentary functions. When travelling downhill under certain conditions or immedi
ately after st
arting off
when the automatic transmission is cold, no auto-matic shiftdown may be made. The driver should shiftdown to a lower gear to use engine braking. Try to drive safely at all time.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
25 Wednesday, January 9, 2008 4:36 PM

4-28 Starting and driving
4

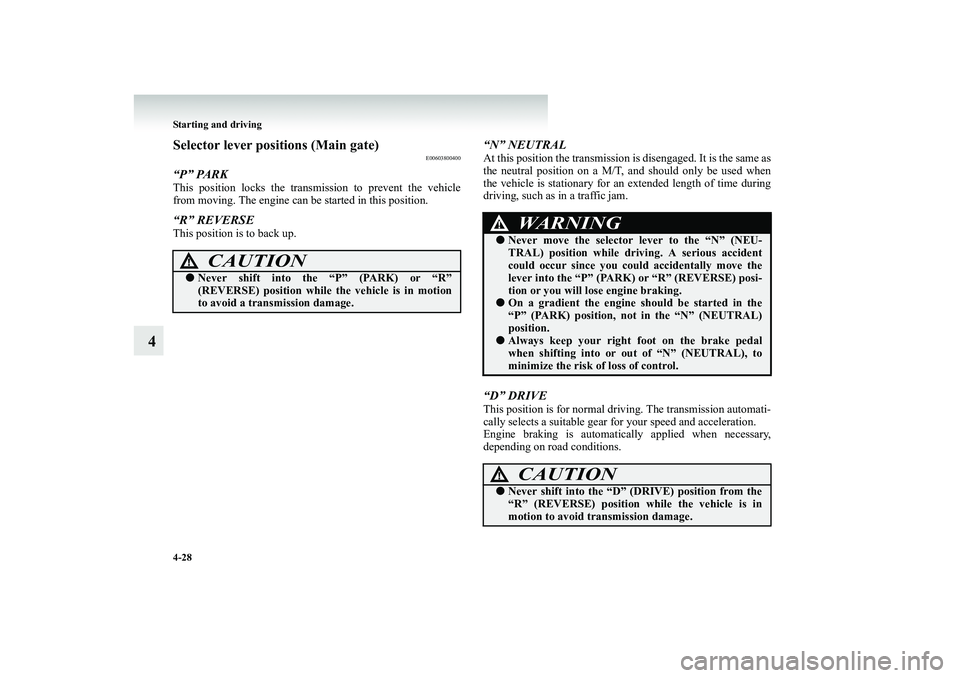

Selector lever po
sitions (Main gate)
E00603800400
“P” PARKThis position locks the transmis
sion to prevent the vehicle
from moving. The engine can be started in this position.“R” REVERSEThis position is to back up.
“N” NEUTRALAt this position the transmission is disengaged. It is the same as the neutral position on a M/T, and should only be used when the vehicle is stationary for an extended length of time during driving, such as in a traffic jam.“D” DRIVEThis position is for normal driving. The transmission automati- cally selects a suitable gear
for your speed and acceleration.
Engine braking is automatical
ly applied when necessary,
depending on road conditions.
CAUTION
!●
Never shift into the “P” (PARK) or “R” (REVERSE) position while
the vehicle is in motion
to avoid a transmission damage.
WARNING
!●
Never move the selector lever to the “N” (NEU- TRAL) position while driv
ing. A serious accident
could occur since you coul
d accidentally move the
lever into the “P” (PARK) or “R” (REVERSE) posi- tion or you will lose engine braking.
●
On a gradient the engine should be started in the “P” (PARK) position, not in the “N” (NEUTRAL) position.
●
Always keep your right
foot on the brake pedal
when shifting into or out of “N” (NEUTRAL), to minimize the risk of loss of control.CAUTION
!●
Never shift into the “D” (DRIVE) position from the “R” (REVERSE) position while the vehicle is in motion to avoid transmission damage.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
28 Wednesday, January 9, 2008 4:36 PM

4-30 Starting and driving
4

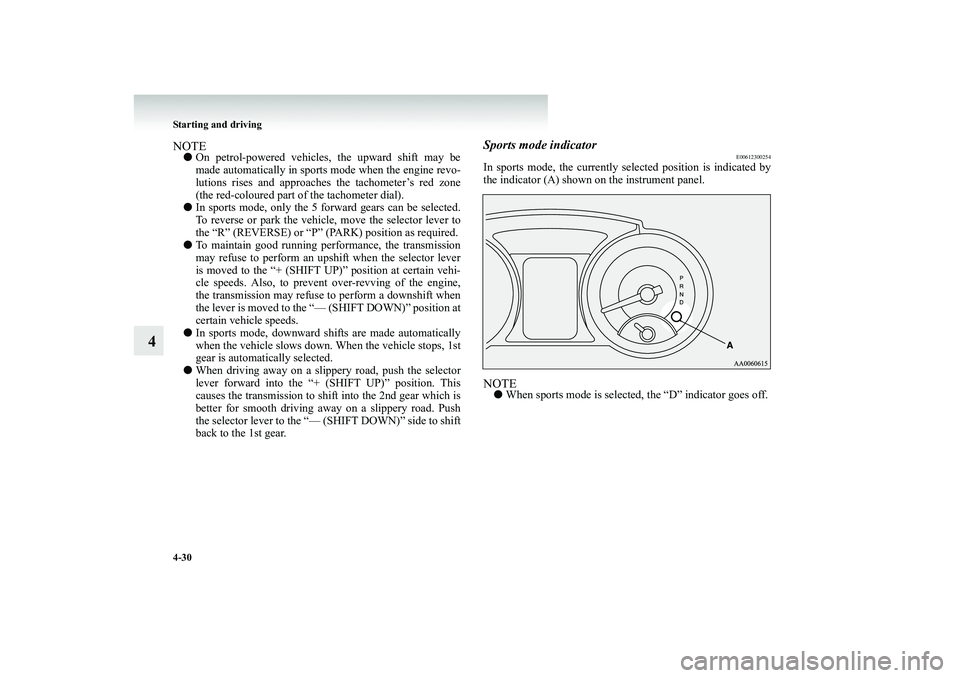

NOTE●
On petrol-powered vehicles, the upward shift may be made automatically in sports mode when the engine revo- lutions rises and approaches
the tachometer’s red zone
(the red-coloured part
of the tachometer dial).
●
In sports mode, only the 5 forward gears can be selected. To reverse or park the vehicle, move the selector lever to the “R” (REVERSE) or “P” (P
ARK) position as required.
●
To maintain good running performance, the transmission may refuse to perform an upshift when the selector lever is moved to the “+ (SHIFT UP)” position at certain vehi-cle speeds. Also, to prevent
over-revving of the engine,
the transmission may refuse to perform a downshift when the lever is moved to the “— (SHIFT DOWN)” position atcertain vehicle speeds.
●
In sports mode, downward shifts are made automatically when the vehicle slows down.
When the vehicle stops, 1st
gear is automatically selected.
●
When driving away on a slippe
ry road, push the selector
lever forward into the “+
(SHIFT UP)” position. This
causes the transmission to shift into the 2nd gear which is better for smooth driving away on a slippery road. Push the selector lever to the “— (SHIFT DOWN)” side to shiftback to the 1st gear.
Sports mode indicator
E00612300254
In sports mode, the currently selected position is indicated by the indicator (A) shown on the instrument panel.NOTE●
When sports mode is select
ed, the “D” indicator goes off.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
30 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-31
4

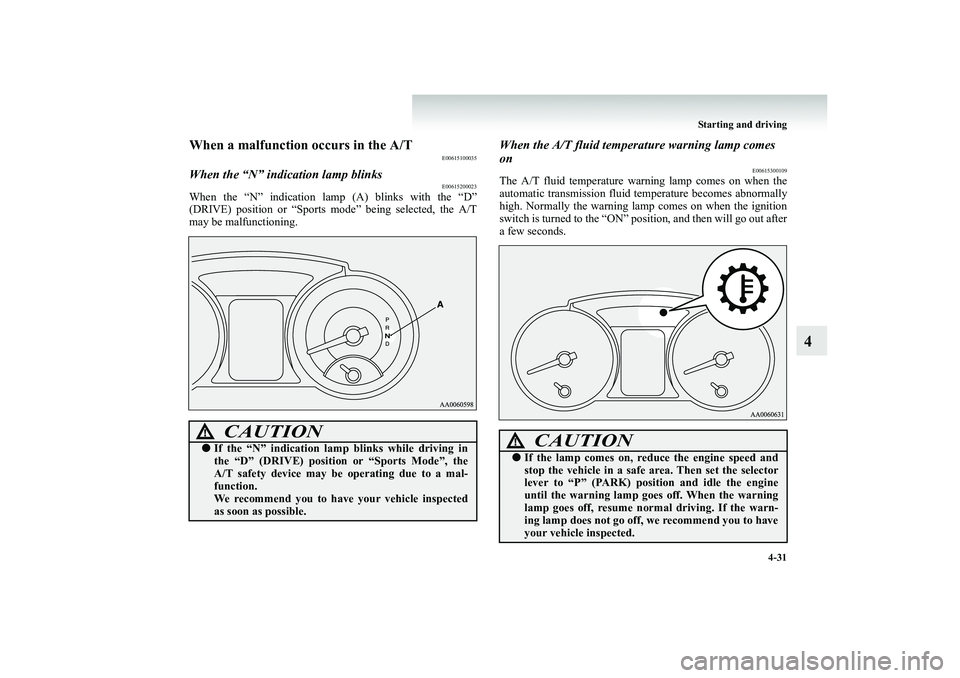

When a malfunction occurs in the A/T
E00615100035
When the “N” indication lamp blinks
E00615200023
When the “N” indication lamp
(A) blinks with the “D”
(DRIVE) position or “Sports m
ode” being selected, the A/T
may be malfunctioning.
When the A/T fluid temper
ature warning lamp comes
on
E00615300109
The A/T fluid temperature warn
ing lamp comes on when the
automatic transmission fluid
temperature becomes abnormally
high. Normally the warning lamp comes on when the ignitionswitch is turned to the “ON” pos
ition, and then will go out after
a few seconds.
CAUTION
!●
If the “N” indication lamp blinks while driving in the “D” (DRIVE) position or “Sports Mode”, the A/T safety device may be operating due to a mal-function. We recommend you to have your vehicle inspected as soon as possible.
CAUTION
!●
If the lamp comes on, re
duce the engine speed and
stop the vehicle in a safe
area. Then set the selector
lever to “P” (PARK) posi
tion and idle the engine
until the warning
lamp goes off.
When the warning
lamp goes off, resume norm
al driving. If the warn-
ing lamp does not go off, we recommend you to have your vehicle inspected.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
31 Wednesday, January 9, 2008 4:36 PM

6-16 For emergencies
6

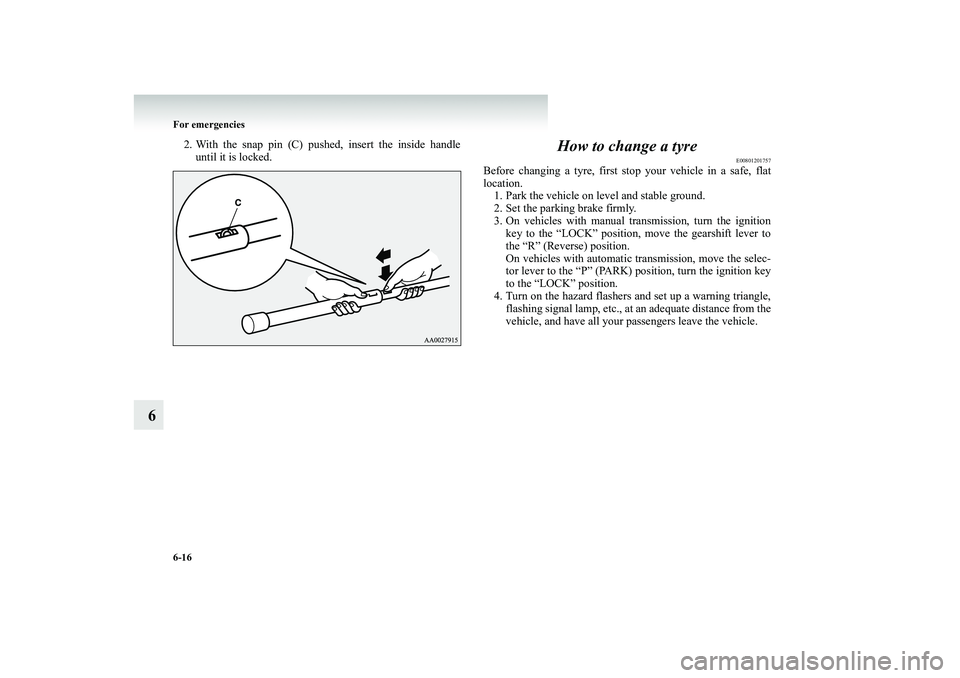

2. With the snap pin (C) pushed, insert the inside handle
until it is locked.
How to change a tyre
E00801201757
Before changing a tyre, first stop your vehicle in a safe, flat location. 1. Park the vehicle on level and stable ground.2. Set the parking brake firmly. 3. On vehicles with manual transmission, turn the ignition
key to the “LOCK” position, move the gearshift lever tothe “R” (Reverse) position. On vehicles with automatic transmission, move the selec- tor lever to the “P” (PARK) position, turn the ignition keyto the “LOCK” position.
4. Turn on the hazard flashers an
d set up a warning triangle,
flashing signal lamp, etc., at an
adequate distance from the
vehicle, and have all your
passengers leave the vehicle.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
16 Wednesday, January 9, 2008 4:46 PM

6-30 For emergencies
6

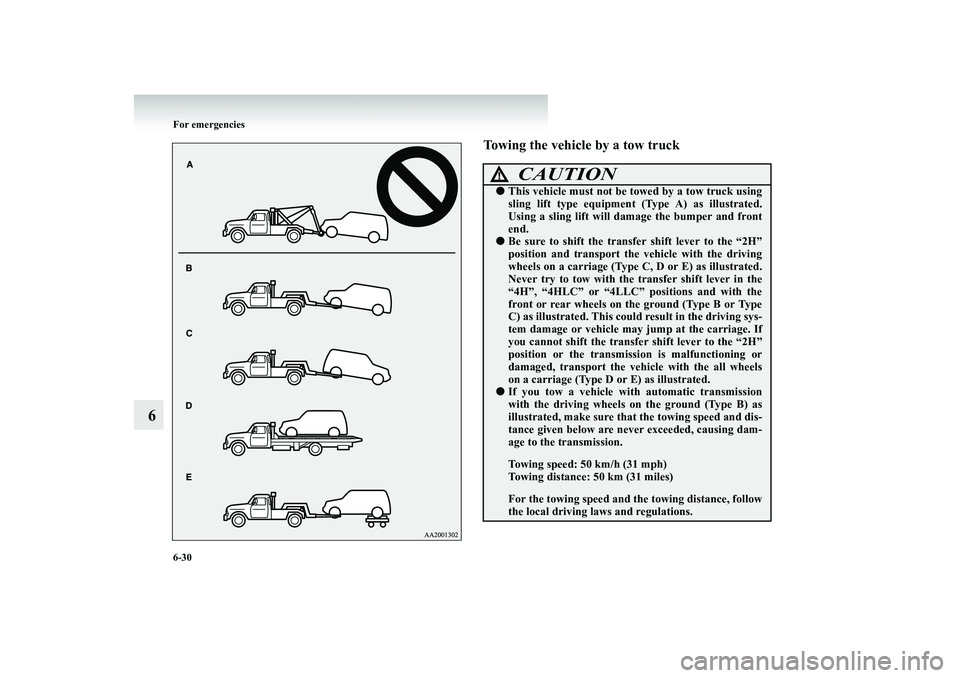

Towing the vehicle by a tow truck
CAUTION
!●
This vehicle must not be towed by a tow truck using sling lift type equipment
(Type A) as illustrated.
Using a sling lift will damage the bumper and front end.
●
Be sure to shift the tran
sfer shift lever to the “2H”
position and transport the vehicle with the driving wheels on a carriage (Type C, D or E) as illustrated.Never try to tow with the
transfer shift lever in the
“4H”, “4HLC” or “4LLC” positions and with the front or rear wheels on the ground (Type B or TypeC) as illustrated. This coul
d result in the driving sys-
tem damage or vehicle may
jump at the carriage. If
you cannot shift the transf
er shift lever to the “2H”
position or the transmission is malfunctioning or damaged, transport the ve
hicle with the all wheels
on a carriage (Type D or E) as illustrated.
●
If you tow a vehicle with
automatic transmission
with the driving wheels on
the ground (Type B) as
illustrated, make sure that
the towing speed and dis-
tance given below are ne
ver exceeded, causing dam-
age to the transmission. Towing speed: 50 km/h (31 mph) Towing distance: 50 km (31 miles) For the towing speed and th
e towing distance, follow
the local driving laws and regulations.
