3-18 Instruments and controls
3
Type 1 Type 21- Digital clock
→ p. 3-19
Indicates the time.
2- Electronic compass*
This display shows the direction of the vehicle.
3- Frozen road warning
→ p. 3-27
Gives an indication when the outside temperature is 3 °C orlower.
4- Outside temperature
→ p. 3-26
5- Centre information display indications
Indicates details of each display.
6- Disc number
Shows the disc number. When no disc is inserted, it does notshow a disc number.
7- “INFO” button
Used to select various kinds of information for display.
8- Function buttons
Press this button to select options shown in the display.
9- “ADJ” button
Used for adjusting the clock and for selecting settings dis-plays.
10- Display for function buttons
This display shows the options available for each functionbutton.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
18 Wednesday, January 9, 2008 4:32 PM

3-28 Instruments and controls
3

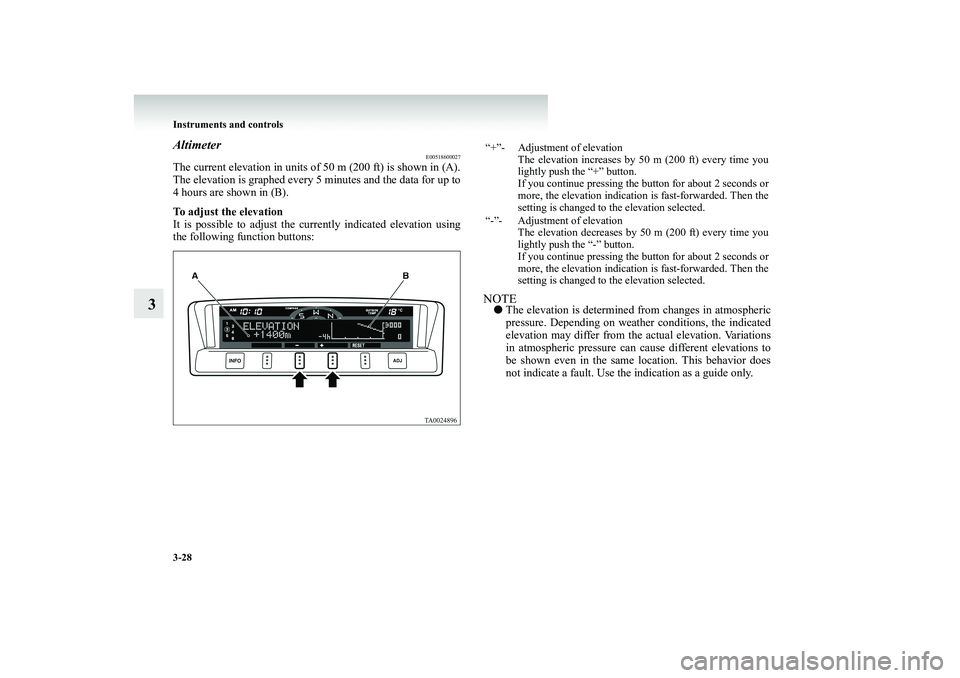

Altimeter
E00518600027
The current elevation in units of 50 m (200 ft) is shown in (A). The elevation is graphed every
5 minutes and the data for up to
4 hours are shown in (B). To adjust the elevation It is possible to adjust the cu
rrently indicated elevation using
the following function buttons:
NOTE●
The elevation is determined
from changes in atmospheric
pressure. Depending on weather conditions, the indicated elevation may differ from th
e actual elevation. Variations
in atmospheric pressure can
cause different elevations to
be shown even in the same location. This behavior does not indicate a fault. Use the
indication as a guide only.
“+”- Adjustment of elevation
The elevation increases by 50 m (200 ft) every time youlightly push the “+” button.If you continue pressing the button for about 2 seconds ormore, the elevation indication is fast-forwarded. Then thesetting is changed to the elevation selected.
“-”- Adjustment of elevation
The elevation decreases by 50 m (200 ft) every time youlightly push the “-” button.If you continue pressing the button for about 2 seconds ormore, the elevation indication is fast-forwarded. Then thesetting is changed to the elevation selected.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
28 Wednesday, January 9, 2008 4:32 PM

3-34 Instruments and controls
3

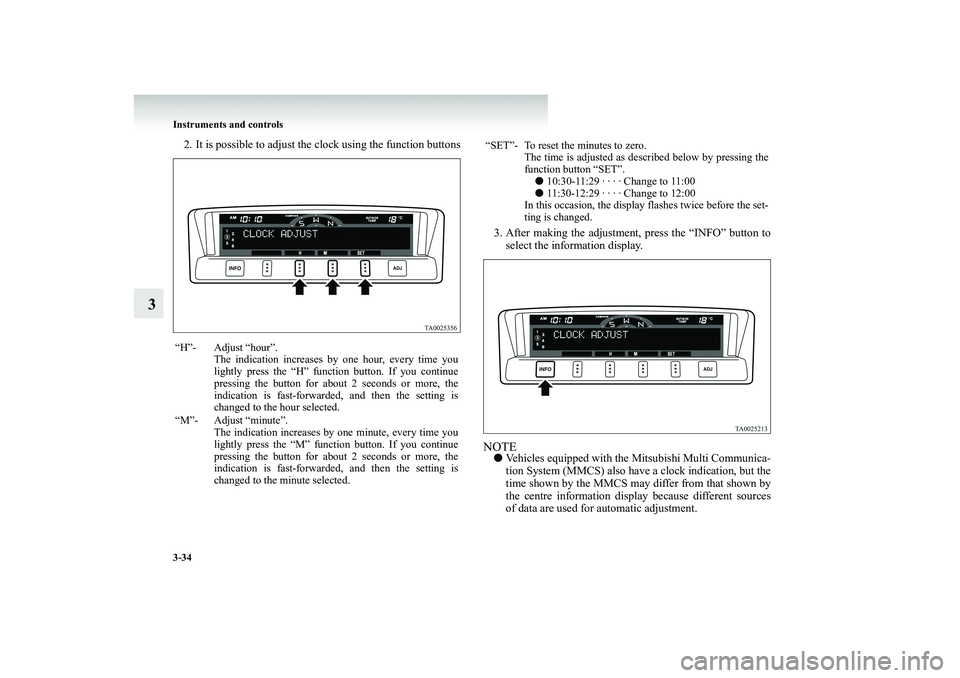

2. It is possible to adjust the clock using the function buttons
3. After making the adjustment, press the “INFO” button to
select the information display.
NOTE●
Vehicles equipped with the Mitsubishi Multi Communica- tion System (MMCS) also have a clock indication, but the time shown by the MMCS may differ from that shown by the centre information disp
lay because different sources
of data are used for automatic adjustment.
“H”- Adjust “hour”.
The indication increases by one hour, every time youlightly press the “H” function button. If you continuepressing the button for about 2 seconds or more, theindication is fast-forwarded, and then the setting ischanged to the hour selected.
“M”- Adjust “minute”.
The indication increases by one minute, every time youlightly press the “M” function button. If you continuepressing the button for about 2 seconds or more, theindication is fast-forwarded, and then the setting ischanged to the minute selected.
“SET”- To reset the minutes to zero.
The time is adjusted as described below by pressing thefunction button “SET”.●
10:30-11:29 · · · · Change to 11:00
●
11:30-12:29 · · · · Change to 12:00
In this occasion, the display flashes twice before the set-ting is changed.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
34 Wednesday, January 9, 2008 4:32 PM

3-36 Instruments and controls
3
3. Use the function buttons to adjust the brightness.
NOTE●
If you next wish to adjust the other adjustment setting (daytime or nighttime), press the “ADJ” button or “BACK” function button.
4. After adjustment, press the
“INFO” button to select the
information display.
NOTE●
As the display brightness can
be adjusted in the center
information display only, the brightness inside the meter cannot be changed.
“+”- To make the display brighter
The display becomes brighter by one step, every timeyou lightly press the “+” function button. If you con-tinue pressing the button for about 2 seconds or more,the indication is fast-forwarded.
“-”- To make the display darker
The display becomes darker by one step, every time youlightly press the “-” function button. If you continuepressing the button for about 2 seconds or more, theindication is fast-forwarded.
“SET”- To set the brightness
Press function button “SET” to set the new brightness.The display will flash twice.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
36 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-43
3

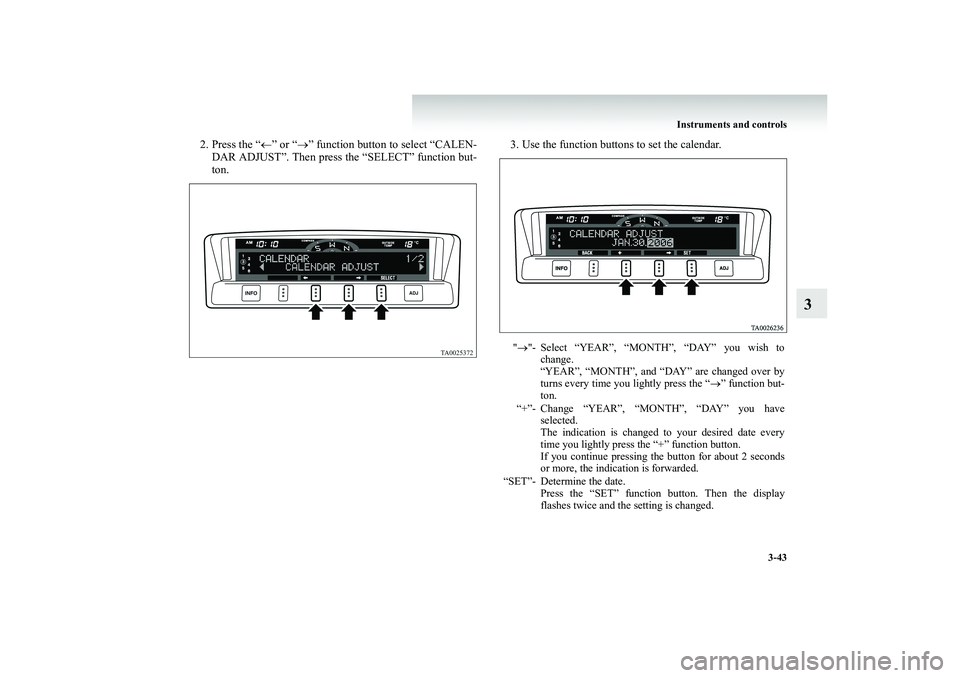

2. Press the “
←” or “
→” function button to select “CALEN-
DAR ADJUST”. Then press the “SELECT” function but- ton.
3. Use the function buttons to set the calendar." →"- Select “YEAR”, “MONTH”, “DAY” you wish to
change.“YEAR”, “MONTH”, and “DAY” are changed over byturns every time you lightly press the “
→” function but-
ton.
“+”- Change “YEAR”, “MONTH”, “DAY” you have
selected.The indication is changed to your desired date everytime you lightly press the “+” function button.If you continue pressing the button for about 2 secondsor more, the indication is forwarded.
“SET”- Determine the date.
Press the “SET” function button. Then the displayflashes twice and the setting is changed.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
43 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-55
3
2. Press the “
←” or “
→” function button to select the
“BAROMETER ADJUST” display. Then press the “SELECT” function button.
3. Adjust the barometer by pressing the function buttons.NOTE●
You can return to the previous display by pressing the “BACK” function button.“+”- To adjust the barometer
Each gentle press of the “+” function button willincrease the indicated barometer by 2 hPa. If you con-tinue pressing the button for about 2 seconds or longer,the indication is fast-forwarded
“-”- To adjust the barometer
Each gentle press of the “-” function button willdecrease the indicated barometer by 2 hPa. If you con-tinue pressing the button for about 2 seconds or longer,the indication is fast-forwarded.
“SET”- To set the barometer
Press the “SET” function button. The display will flashtwice, and the new setting will be established.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
55 Wednesday, January 9, 2008 4:32 PM

4-86 Starting and driving
4
How to use the rear-view cameraWhen you place the shift lever
in the “R” (Reverse) position
(on vehicles with M/T) or selector lever in the “R”(REVERSE) position (on vehicles with A/T) with the ignition switch in the “ON” position, th
e view behind the vehicle will
automatically appear on the sc
reen of the Mitsubishi Multi
Communication System (MMCS). When you move the shift lever or selector lever to any other position, the screen will return to its original indication.NOTE●
The buzzer that sounds while th
e vehicle is reversing indi-
cates that the selector lever is in the “R” (REVERSE) position. It does not warn of an obstacle behind the vehi-cle (on vehicles with A/T).
●
If you press any of the buttons on the MMCS control panel while the screen is showing the view from the rear-view camera, the screen indi
cation will change to the one
for that button.

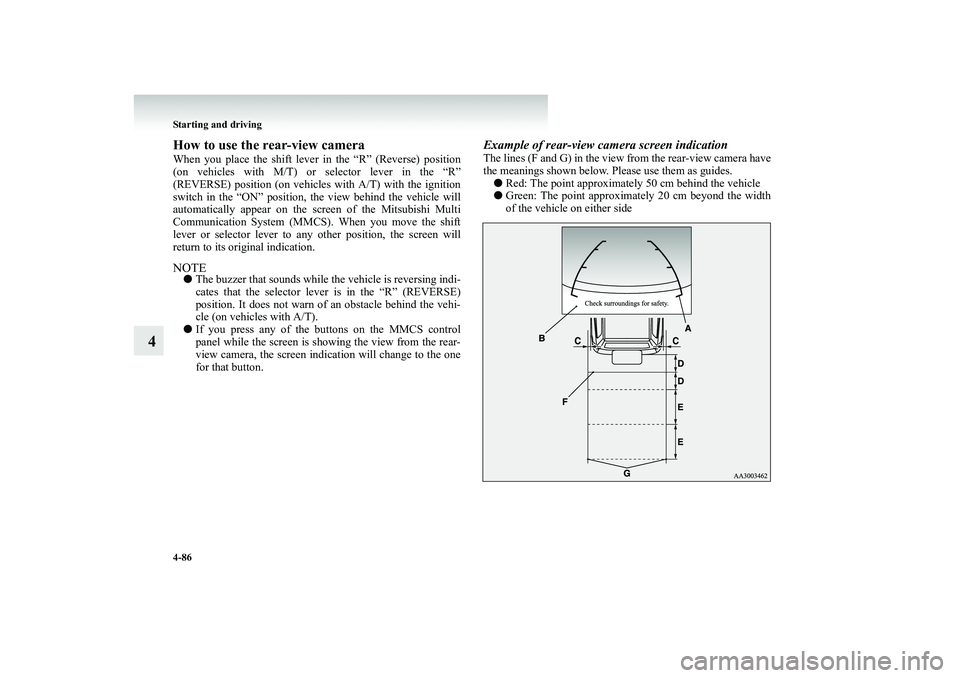

Example of rear-view ca
mera screen indication
The lines (F and G) in the view from the rear-view camera have the meanings shown below. Please use them as guides. ●
Red: The point approximately 50 cm behind the vehicle
●
Green: The point approximatel
y 20 cm beyond the width
of the vehicle on either side
BK-BK2008E1ENUK.en-uk-Section7.fm Page
86 Wednesday, January 9, 2008 4:36 PM

5-20 For pleasant driving
5
LW/MW/FM electronic tuning radio with
CD player
*
E00708500432
The audio system can be used when
the ignition switch is in the
“ON” or “ACC” position.NOTE●
To listen to the audio system while the engine is stopped, turn the ignition key to the “ACC” position.
●
If a cellular phone is used insi
de the vehicle, it may create
noise from the audio equipment. This does not mean thatanything is wrong with your audio equipment. In such a case, use the cellular phone at
a place as far as possible
from the audio equipment.
●
If foreign objects or water ge
t into the audio equipment, or
if smoke or a strange odour comes from it, immediately turn off the audio system. We recommend you to have itchecked. Never try to repair it by yourself. Avoid continu- ous usage without inspection by a qualified person.
Volume and tone control panel
E00708600114
1- PWR (On-Off) button 2- VOL (Volume control) button 3- Memory select buttons4- MENU button 5- Sound adjust button 6- Display
BK-BK2008E1ENUK.en-uk-Section8.fm Page
20 Wednesday, January 9, 2008 4:41 PM

5-24 For pleasant driving
5

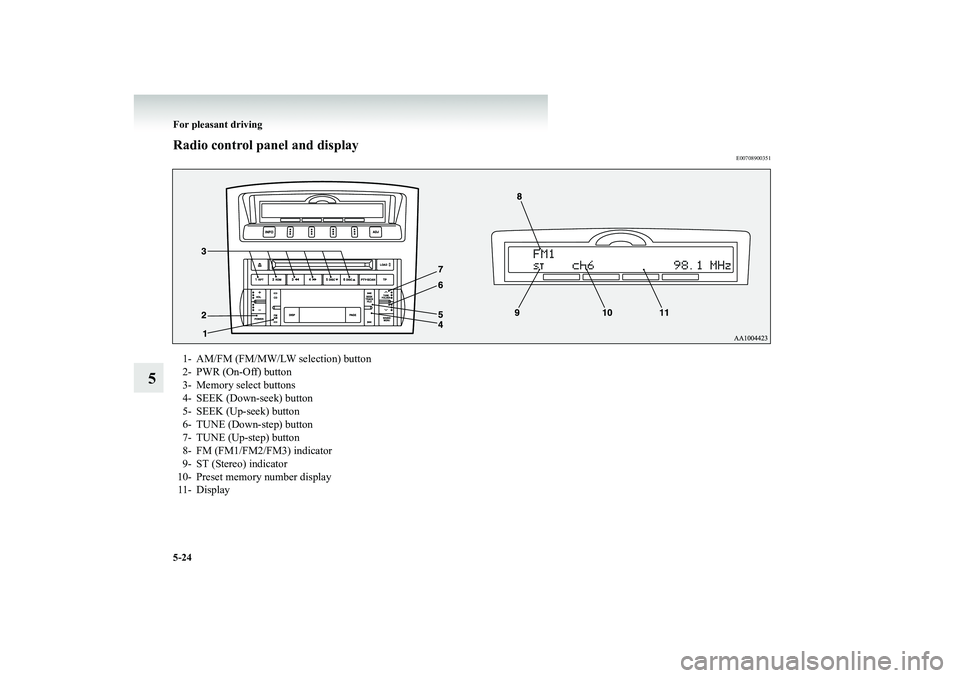

Radio control panel and display
E00708900351
1- AM/FM (FM/MW/LW selection) button 2- PWR (On-Off) button 3- Memory select buttons4- SEEK (Down-seek) button 5- SEEK (Up-seek) button 6- TUNE (Down-step) button7- TUNE (Up-step) button 8- FM (FM1/FM2/FM3) indicator 9- ST (Stereo) indicator10- Preset memory number display 11- DisplayBK-BK2008E1ENUK.en-uk-Section8.fm Page
24 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-25
5
To listen to the radio
E00709000388
1. Press the PWR button (2) to turn the audio system on and
off.
2. Press the AM/FM button (1) to select the desired band. 3. Press the TUNE button (6 or 7) or SEEK button (4 or 5) to
tune to a station, or press one of the memory select button (3) to recall a station memorised for that button.
To tune the radio
E00709100318
Automatic tuning After pressing the SEEK button (4 or 5), the selected stationreception will start. Manual tuning The frequency changes every time
the TUNE button (6 or 7) is
pressed. The frequency changes continuously if you keep push- ing the button. Press the button to select the desired station.

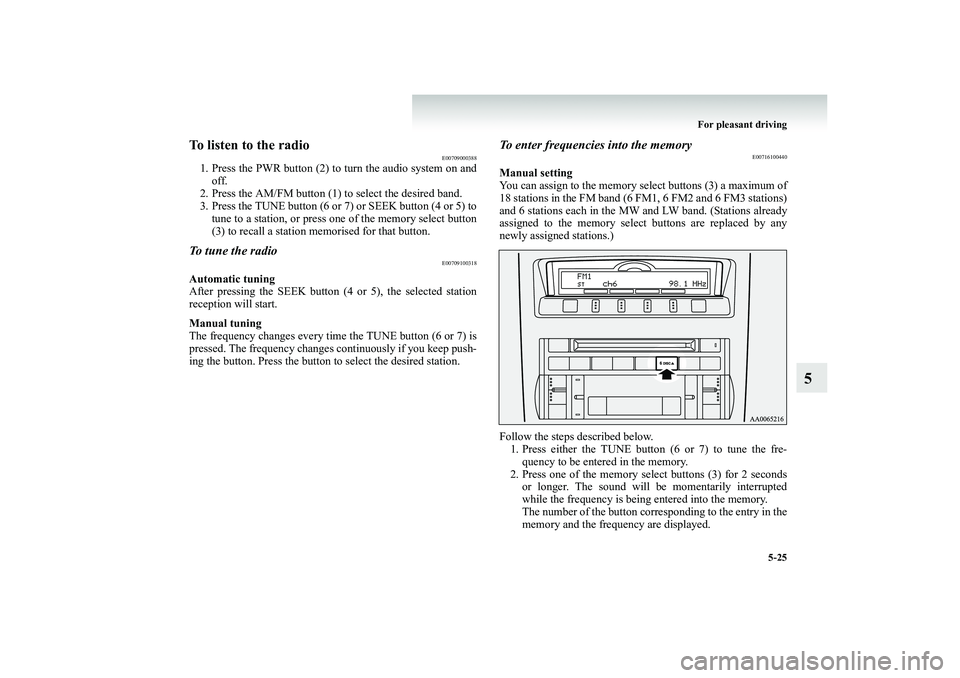

To enter frequencies into the memory
E00716100440
Manual setting You can assign to the memory select buttons (3) a maximum of18 stations in the FM band (6 FM1, 6 FM2 and 6 FM3 stations) and 6 stations each in the MW
and LW band. (Stations already
assigned to the memory select
buttons are replaced by any
newly assigned stations.) Follow the steps described below. 1. Press either the TUNE button
(6 or 7) to tune the fre-
quency to be entered in the memory.
2. Press one of the memory select buttons (3) for 2 seconds
or longer. The sound will be momentarily interruptedwhile the frequency is being entered into the memory. The number of the button corresponding to the entry in the memory and the frequency are displayed.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
