trailer MITSUBISHI SHOGUN 2008 Owner's Manual (in English)

4
Starting and driving
Economical driving . . . . . . . . . . . . . . . . . . . . . . . .4- 2 Driving, alcohol and drugs. . . . . . . . . . . . . . . . . . .4- 3Safe driving techniques . . . . . . . . . . . . . . . . . . . . .4- 3Running-in recommendations . . . . . . . . . . . . . . . .4- 5Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 6Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 7Steering wheel height adjustment . . . . . . . . . . . . .4- 8Inside rear-view mirror . . . . .
. . . . . . . . . . . . . . . .4- 9
Outside rear-view mirrors . . . . . . . . . . . . . . . . . . .4- 11Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 14Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .4- 18Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 18Diesel particulate filter (DPF)* . . . . . . . . . . . . . . .4- 22Manual transmission . . . . . . . . . . . . . . . . . . . . . . .4- 23Automatic transmission INVECS-II Sports Mode 5A/T (Intelligent & Innovative Vehicle Electronic Control Syst
em II) . . . . . . . .4- 25
Super select 4WD II (SS4 II) . . . . . . . . . . . . . . . . .4- 34Rear differential lock* . . . . . . . . . . . . . . . . . . . . . .4- 424-wheel drive operation . . . . . . . . . . . . . . . . . . . . .4- 48Inspection and maintenance following rough road operation . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 53Cautions on handling of 4-wheel drive vehicles . .4- 53
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 56 Anti-lock brake system (ABS) . . . . . . . . . . . . . . . 4- 58Power steering system . . . . . . . . . . . . . . . . . . . . . . 4- 63Active stability & traction control (ASTC) . . . . . . 4- 63Cruise control* . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 70Reversing sensor system* . . . . . . . . . . . . . . . . . . . 4- 78Rear-view camera* . . . . . . . . . . . . . . . . . . . . . . . . 4- 84Cargo loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 88Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 90
BK-BK2008E1ENUK.en-uk-Section7.fm Page 1 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-5
4

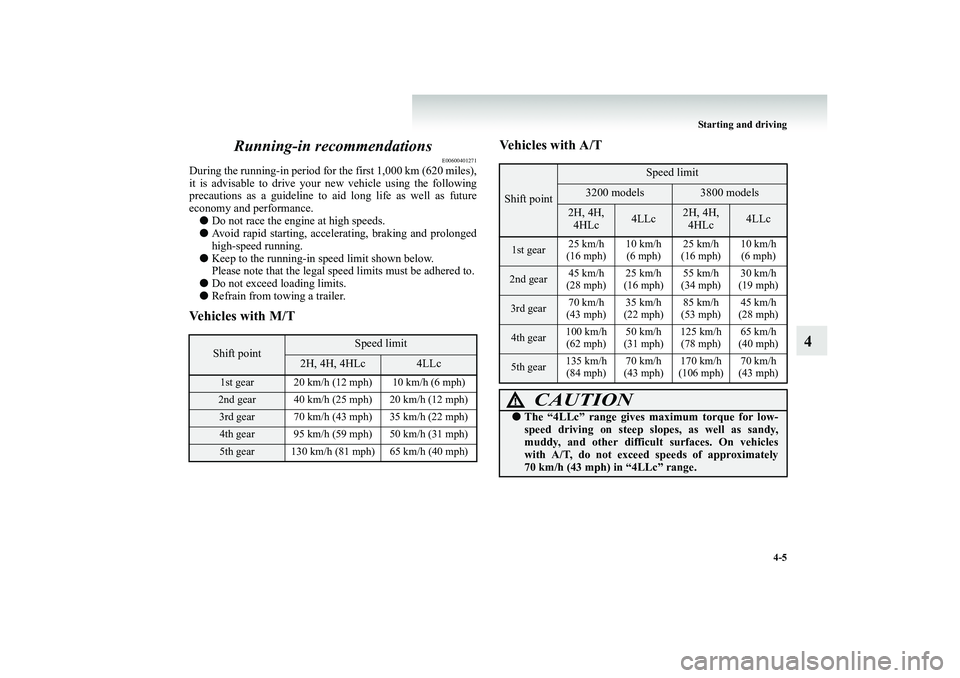

Running-in recommendations
E00600401271
During the running-in period for the first 1,000 km (620 miles), it is advisable to drive your new vehicle using the following precautions as a guideline to aid
long life as well as future
economy and performance. ●
Do not race the engine at high speeds.
●
Avoid rapid starting, accelerat
ing, braking and prolonged
high-speed running.
●
Keep to the running-in speed limit shown below. Please note that the legal speed limits must be adhered to.
●
Do not exceed loading limits.
●
Refrain from towing a trailer.
Vehicles with M/T
Vehicles with A/T
Shift point
Speed limit
2H, 4H, 4HLc
4LLc
1st gear 20 km/h (12 mph) 10 km/h (6 mph)2nd gear 40 km/h (25 mph) 20 km/h (12 mph)3rd gear 70 km/h (43 mph) 35 km/h (22 mph)4th gear 95 km/h (59 mph) 50 km/h (31 mph)5th gear 130 km/h (81 mph) 65 km/h (40 mph)
Shift point
Speed limit
3200 models
3800 models
2H, 4H, 4HLc
4LLc
2H, 4H, 4HLc
4LLc
1st gear
25 km/h (16 mph)
10 km/h (6 mph)
25 km/h (16 mph)
10 km/h (6 mph)
2nd gear
45 km/h (28 mph)
25 km/h (16 mph)
55 km/h (34 mph)
30 km/h (19 mph)
3rd gear
70 km/h (43 mph)
35 km/h (22 mph)
85 km/h (53 mph)
45 km/h (28 mph)
4th gear
100 km/h (62 mph)
50 km/h (31 mph)
125 km/h (78 mph)
65 km/h (40 mph)
5th gear
135 km/h (84 mph)
70 km/h (43 mph)
170 km/h (106 mph)
70 km/h (43 mph)
CAUTION
!●
The “4LLc” range gives maximum torque for low- speed driving on steep slopes, as well as sandy, muddy, and other difficul
t surfaces. On vehicles
with A/T, do not exceed
speeds of approximately
70 km/h (43 mph) in “4LLc” range.
BK-BK2008E1ENUK.en-uk-Section7.fm Page 5 Wednesday, January 9, 2008 4:36 PM

4-90 Starting and driving
4
NOTE●
To prevent wind noise or reduction in fuel economy, remove the roof carrier when not in use.
●
Before using an automatic car wash, remove the roof car- rier.
●
Be sure that adequate clearance is maintained for raising the sunroof (if so equipped) wh
en installing a roof carrier.
Trailer towing
E00610000039
In order to tow a trailer with your vehicle, when having a trailer towing device mounted that meets all relevant regulations in your area, consult a MITSUBISHI
MOTORS Authorized Serv-
ice Point. The regulations concerning the towing of a trailer may differ from country to country. You are advised to obey the regula-tions in each area.
CAUTION
!●
Danger of Accident! A towing bar should be
fitted according to MIT-
SUBISHI MOTORS guidelines. When you are going to tow a trailer, move the trans-fer shift lever to “4H” position. Selecting the “2H” drive ma
y increase the differen-
tial oil temperature, result
ing in possible damage to
the driving system. Further, the drive train will be subjected to excessive loading possibly leading to oil leakage, componentseizure, or other serious faults.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
90 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-91
4

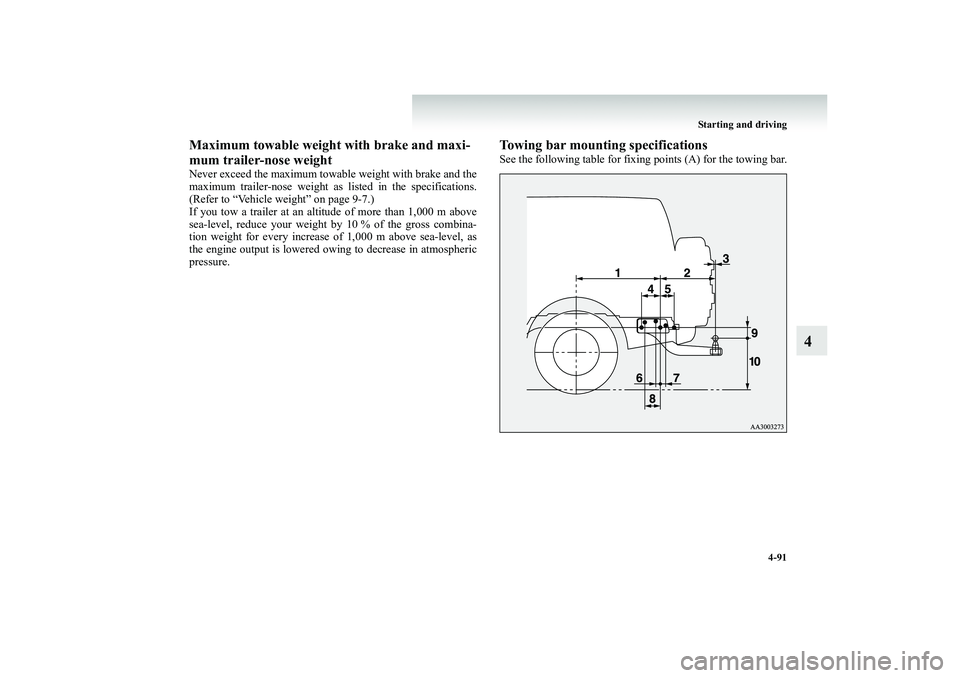

Maximum towable weight with brake and maxi- mum trailer-nose weightNever exceed the maximum towabl
e weight with brake and the
maximum trailer-nose weight as
listed in the specifications.
(Refer to “Vehicle weight” on page 9-7.)If you tow a trailer at an altitude of more than 1,000 m above sea-level, reduce your weight by 10 % of the gross combina- tion weight for every increase
of 1,000 m above sea-level, as
the engine output is lowered owing to decrease in atmospheric pressure.
Towing bar mounting specificationsSee the following table for fixing points (A) for the towing bar.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
91 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-93
4
Operating hints●
Do not let the clutch slip (vehicles with a M/T only) and do not increase the engine speed more than necessarywhen starting.
●
Be sure that the driving speed does not exceed the 100 km/h (62 mph) for trailer operation.It is also recommended that you
obey the local regulations
in case driving speed with a tr
ailer is limited to less than
100 km/h (62 mph).
●
To prevent shocks from the
overrun brake, depress the
brake pedal lightly at first and then more strongly.
●
To make full use of engine braking, change to a lower gear before descending a slope.
Additional precautions for vehicles equipped with an A/TThe 2nd gear (in “Sports mode”)
is recommended on slopes or
at low speed. Use the 1st gear (i
n “Sports mode”) in mountain-
ous areas in order to make better use of engine braking and to assist the brake system. However,
be sure that the speed does
not exceed the maximum speed
limit for the selected gear.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
93 Wednesday, January 9, 2008 4:36 PM

Maintenance
8-19
8

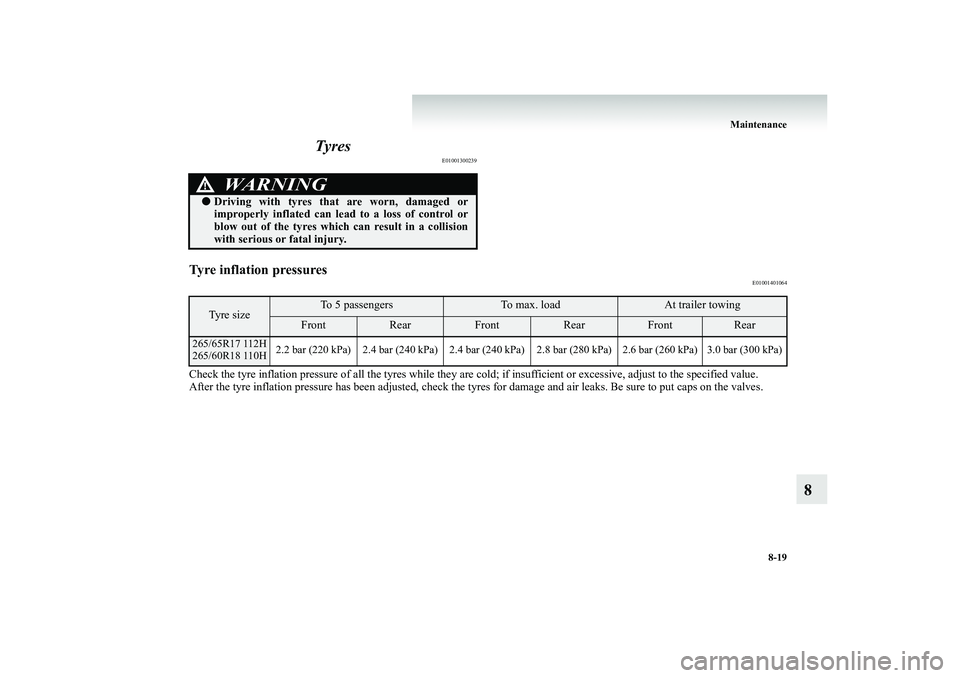

Tyres
E01001300239
Tyre inflation pressures
E01001401064
Check the tyre inflation pressure of all th
e tyres while they are cold; if insufficient
or excessive, adjust to the specified v
alue.
After the tyre inflation pressure has been
adjusted, check the tyres for damage and ai
r leaks. Be sure to put caps on the valve
s.
WARNING
!●
Driving with tyres that are worn, damaged or improperly inflated can lead
to a loss of control or
blow out of the tyres which can result in a collision with serious or fatal injury.Ty r e s i z e
To 5 passengers
To max. load
At trailer towing
Front
Rear
Front
Rear
Front
Rear
265/65R17 112H 265/60R18 110H
2.2 bar (220 kPa) 2.4 bar (240 kPa) 2.4 bar (240 kPa)
2.8 bar (280 kPa) 2.6 bar (260 kPa) 3.0 bar (300 kPa)
BK-BK2008E1ENUK.en-uk-Section11.fm Page
19 Wednesday, January 9, 2008 4:50 PM

Specifications
9-7
9

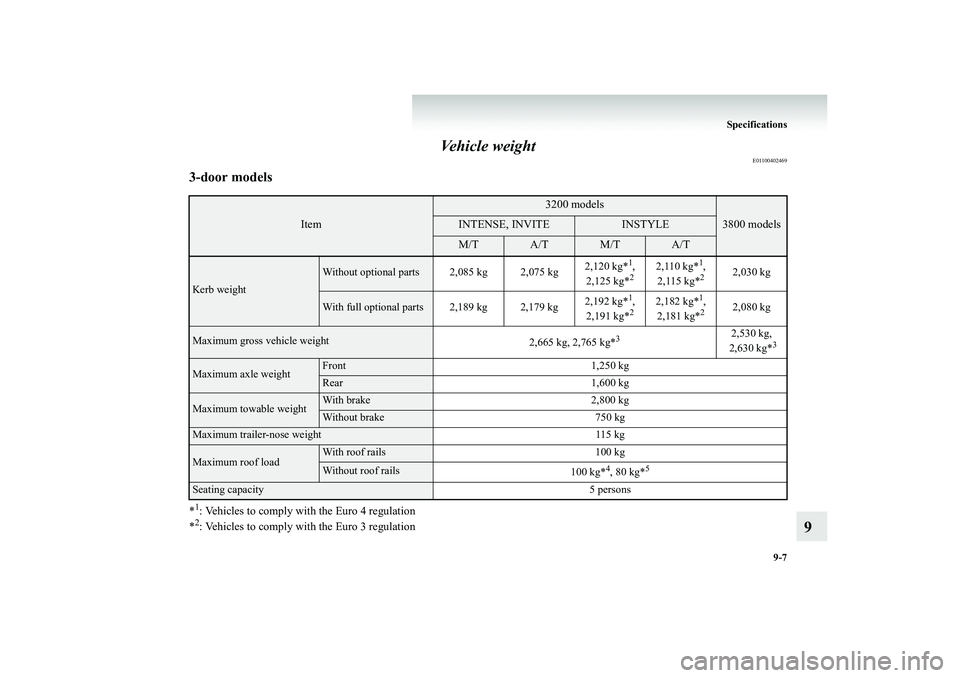

Vehicle weight
E01100402469
3-door models*1: Vehicles to comply with the Euro 4 regulation *2: Vehicles to comply with the Euro 3 regulation
Item
3200 models
3800 models
INTENSE, INVITE
INSTYLE
M/T
A/T
M/T
A/T
Kerb weight
Without optional parts 2,085 kg 2,075 kg
2,120 kg*
1,
2,125 kg*
2
2,110 kg*
1,
2,115 kg*
2
2,030 kg
With full optional parts 2,189 kg 2,179 kg
2,192 kg*
1,
2,191 kg*
2
2,182 kg*
1,
2,181 kg*
2
2,080 kg
Maximum gross vehicle weight
2,665 kg, 2,765 kg*
3
2,530 kg, 2,630 kg*
3
Maximum axle weight
Front 1,250 kgRear 1,600 kg
Maximum towable weight
With brake 2,800 kgWithout brake 750 kg
Maximum trailer-nose weight 115 kgMaximum roof load
With roof rails 100 kgWithout roof rails
100 kg*
4, 80 kg*
5
Seating capacity 5 persons
BK-BK2008E1ENUK.en-uk-Section12.fm Page
7 Thursday, January 10, 2008 7:49 AM

9-8 Specifications
9

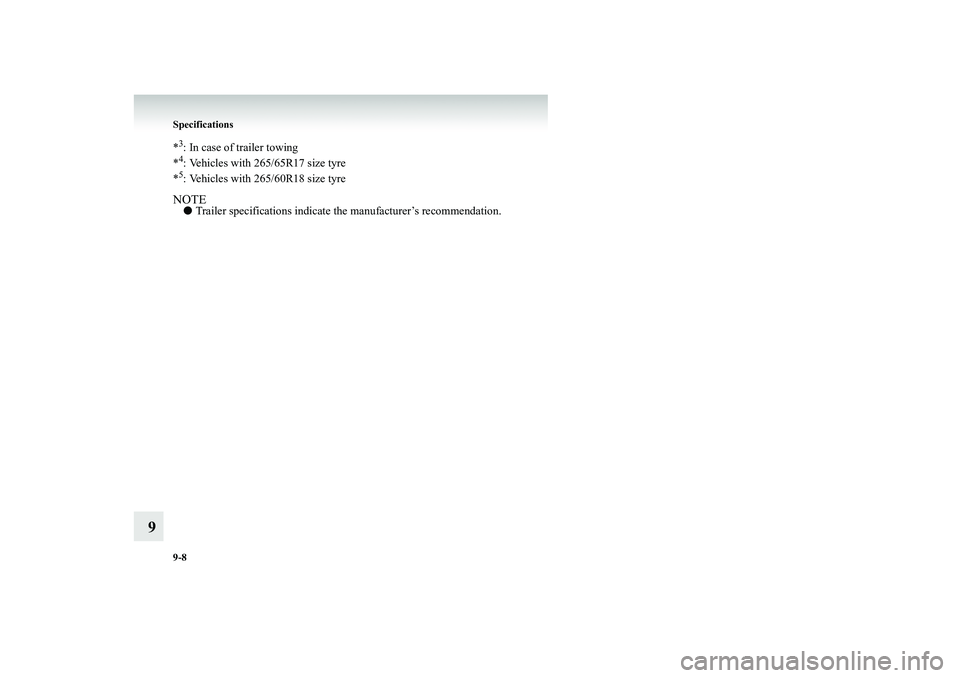

*3: In case of trailer towing *4: Vehicles with 265/65R17 size tyre*5: Vehicles with 265/60R18 size tyreNOTE●
Trailer specifications indicate th
e manufacturer’s recommendation.
BK-BK2008E1ENUK.en-uk-Section12.fm Page
8 Thursday, January 10, 2008 7:49 AM

Specifications
9-9
9

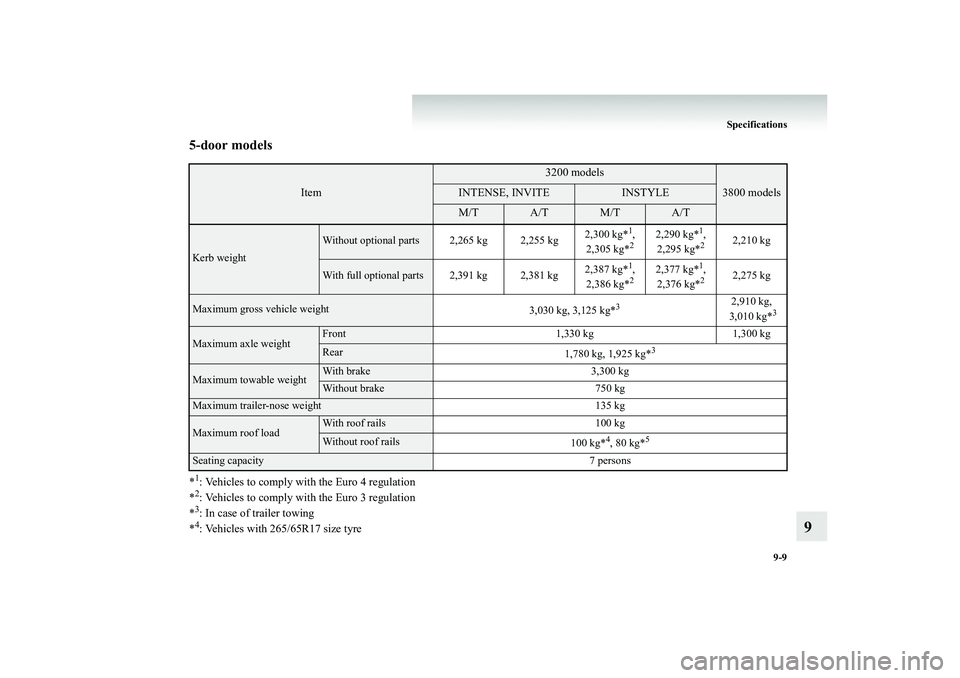

5-door models*1: Vehicles to comply with the Euro 4 regulation *2: Vehicles to comply with the Euro 3 regulation*3: In case of trailer towing*4: Vehicles with
265/65R17 size tyre
Item
3200 models
3800 models
INTENSE, INVITE
INSTYLE
M/T
A/T
M/T
A/T
Kerb weight
Without optional parts 2,265 kg 2,255 kg
2,300 kg*
1,
2,305 kg*
2
2,290 kg*
1,
2,295 kg*
2
2,210 kg
With full optional parts 2,391 kg 2,381 kg
2,387 kg*
1,
2,386 kg*
2
2,377 kg*
1,
2,376 kg*
2
2,275 kg
Maximum gross vehicle weight
3,030 kg, 3,125 kg*
3
2,910 kg, 3,010 kg*
3
Maximum axle weight
Front 1,330 kg 1,300 kgRear
1,780 kg, 1,925 kg*
3
Maximum towable weight
With brake 3,300 kgWithout brake 750 kg
Maximum trailer-nose weight 135 kgMaximum roof load
With roof rails 100 kgWithout roof rails
100 kg*
4, 80 kg*
5
Seating capacity 7 persons
BK-BK2008E1ENUK.en-uk-Section12.fm Page
9 Thursday, January 10, 2008 7:49 AM

9-10 Specifications
9

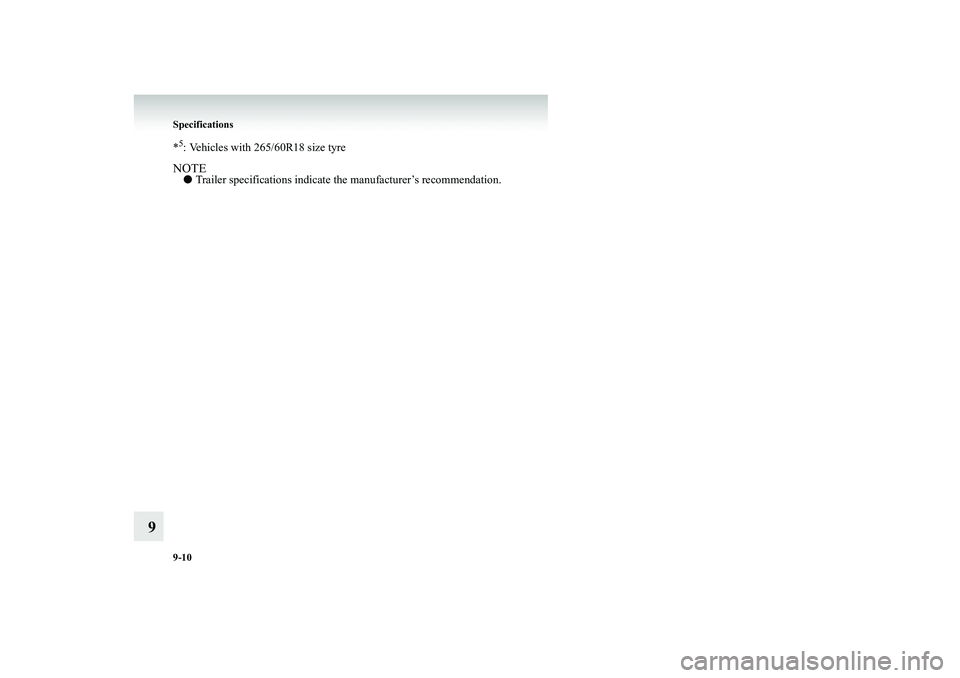

*5: Vehicles with 265/60R18 size tyreNOTE●
Trailer specifications indicate th
e manufacturer’s recommendation.
BK-BK2008E1ENUK.en-uk-Section12.fm Page 10 Thursday, January 10, 2008 7:49 AM
