NOTElIf a problem is detected in the air condition-
ing compressor, the air conditioning opera- tion indication lamp (A) blinks. Stop the ve- hicle in a safe place, turn off the engine, then
restart the engine. If the air conditioning op- eration indication lamp does not blink, thereis no problem. If it does blink, we recom-
mend you to have it checked.
l Sometimes, for example after using a high-
pressure car wash, the condenser can get
wet, and the operation indication lamp (A) blinks temporarily. In this case there is noth-ing wrong. Stop the vehicle in a safe place,
turn off the engine, then restart the engine. Once the water evaporates, the blinking will
stop.OFF switch
E00702700012
Push the switch to turn off the air condition-
ing system.
MODE switch
E00703300015
Each time the MODE switch is pressed, the
mode changes to the next one in the follow-
ing sequence: “
” → “” → “” →
“
” → “”. The selected mode is shown
by the mode selection display (A). (Refer to
“Changing the front mode selection” on page 7-07.)
Demister switch
E00703900037
When this switch is pressed, the mode
changes to the “
” mode. The indication
lamp (A) will come on. The selected mode is shown by the mode selection display (B).
(Refer to “Changing the front mode selec- tion” on page 7-07.)
NOTEl When the demister switch is pressed, the air
conditioning system automatically operates and outside air (as opposed to recirculated air) is selected.
(Refer to “Demisting of the windscreen and
door windows” on page 7-08.)
Front automatic air conditioning
7-06OVWE16E1For pleasant driving7

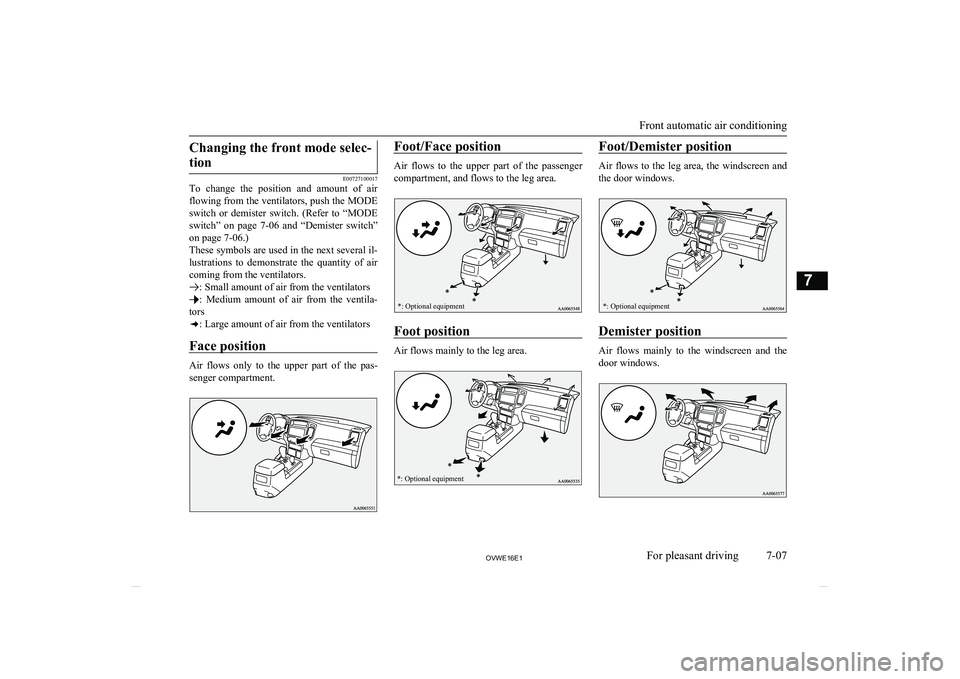

Changing the front mode selec-tion
E00727100017
To change the position and amount of air
flowing from the ventilators, push the MODE
switch or demister switch. (Refer to “MODE
switch” on page 7-06 and “Demister switch”
on page 7-06.)
These symbols are used in the next several il-
lustrations to demonstrate the quantity of air coming from the ventilators.
: Small amount of air from the ventilators
: Medium amount of air from the ventila-
tors
: Large amount of air from the ventilators
Face position
Air flows only to the upper part of the pas-
senger compartment.
Foot/Face position
Air flows to the upper part of the passenger
compartment, and flows to the leg area.
*: Optional equipment
Foot position
Air flows mainly to the leg area.
*: Optional equipmentFoot/Demister position
Air flows to the leg area, the windscreen and
the door windows.
*: Optional equipment
Demister position
Air flows mainly to the windscreen and the door windows.
Front automatic air conditioning
7-07OVWE16E1For pleasant driving7

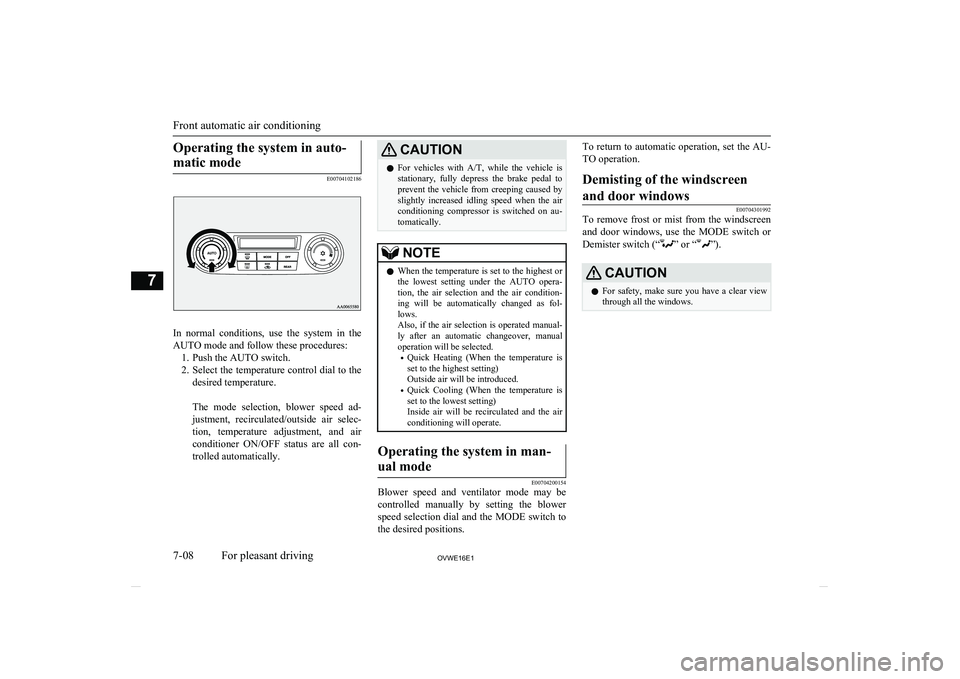

Operating the system in auto-matic mode
E00704102186
In normal conditions, use the system in the
AUTO mode and follow these procedures: 1. Push the AUTO switch.
2. Select the temperature control dial to the
desired temperature.

The mode selection, blower speed ad-
justment, recirculated/outside air selec- tion, temperature adjustment, and air
conditioner ON/OFF status are all con- trolled automatically.
CAUTIONl For vehicles with
A/T, while the vehicle is
stationary, fully depress the brake pedal to prevent the vehicle from creeping caused by
slightly increased idling speed when the air conditioning compressor is switched on au-
tomatically.NOTEl When the temperature is set to the highest or
the lowest setting under the AUTO opera-
tion, the air selection and the air condition- ing will be automatically changed as fol-
lows.
Also, if the air selection is operated manual- ly after an automatic changeover, manualoperation will be selected.
• Quick Heating (When the temperature is
set to the highest setting)
Outside air will be introduced.
• Quick Cooling (When the temperature is
set to the lowest setting)
Inside air will be recirculated and the air
conditioning will operate.Operating the system in man-
ual mode
E00704200154
Blower speed and ventilator mode may be
controlled manually by setting the blower speed selection dial and the MODE switch to the desired positions.
To return to automatic operation, set the AU-
TO operation.Demisting of the windscreen
and door windows
E00704301992
To remove frost or mist from the windscreen and door windows, use the MODE switch or
Demister switch (“
” or “”).
CAUTIONl For safety, make sure you have a clear view
through all the windows.
Front automatic air conditioning
7-08OVWE16E1For pleasant driving7

For ordinary demisting
Use this setting to keep the windscreen anddoor windows clear of mist, and to keep the
leg area heated.
1. Set the air selection switch (A) to the outside position.
2. Set the MODE switch (B) to the “
”
position.
3. Select your desired blower speed by turning the blower speed selection dial.
4. Select your desired temperature by turn- ing the temperature control dial.
5. Push the air conditioning switch (C).
For quick demisting
1. Push the demister switch (A) to change
to the “
” position.
2. Set the blower to the maximum speed.
3. Set the temperature to the highest posi- tion.
NOTEl When the demister switch is pressed, the air
conditioning will operate automatically and the outside air position will also be selected
automatically.
(In this case, the air conditioning indication
lamp will not change.)
l To demist effectively, direct the air flow
from the side ventilators towards the door
windows.
l Do not set the temperature control dial to the
max. cool position. Cool air will blow
against the window glasses and prevent de- misting.Rear air conditioning*
E00704600073
The rear air conditioning can only be used while the engine is running and the front air
conditioning is switched on.
When the front air conditioning is not switch-
ed on, only blower operation without cooling is possible.Control panel
E00704700058
1- Blower speed selection dial2- Main switch
3- Temperature control dial
Rear air conditioning*
7-09OVWE16E1For pleasant driving7

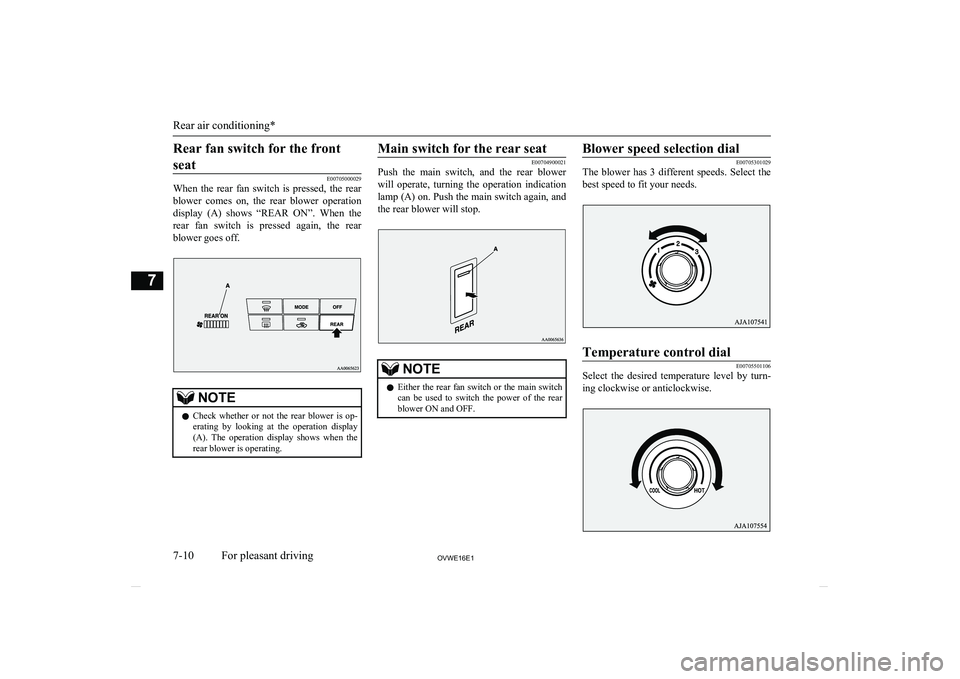

Rear fan switch for the frontseat
E00705000029
When the rear fan switch is pressed, the rear
blower comes on, the rear blower operation display (A) shows “REAR ON”. When the
rear fan switch is pressed again, the rear blower goes off.
NOTEl Check whether or not the rear blower is op-
erating by looking at the operation display
(A). The operation display shows when the rear blower is operating.Main switch for the rear seat
E00704900021
Push the main switch, and the rear blower
will operate, turning the operation indication
lamp (A) on. Push the main switch again, and the rear blower will stop.NOTEl Either the rear fan switch or the main switch
can be used to switch the power of the rear
blower ON and OFF.Blower speed selection dial
E00705301029
The blower has 3 different speeds. Select the
best speed to fit your needs.
Temperature control dial
E00705501106
Select the desired temperature level by turn-
ing clockwise or anticlockwise.
Rear air conditioning*
7-10OVWE16E1For pleasant driving7

NOTElThe rear air conditioning will not operate
unless the front air conditioning compressor
is operating.
Always switch the front air conditioning
compressor on before using the rear air con- ditioning. If the front air conditioning com-
pressor is not operating, the system will just operate as a blower.Important operation tips for
the air conditioning E00708300889
lPark the vehicle in the shade.
Parking in the hot sun will make the ve-
hicle inside extremely hot, and it will re-
quire more time to cool the interior.
If it is necessary to park in the sun, open the windows for the first few minutes of
air conditioning operation to expel the
hot air.
l Close the windows when the air condi-
tioning is in use. The entry of outside air
through open windows will reduce the cooling efficiency.
l Too much cooling is not good for the
health. The inside air temperature should
only be 5 to 6 °C below the outside air temperature.
l When operating the system, make sure
the air intake, which is located in front
of the windscreen, is free of obstructions such as leaves and snow. Leaves collec- ted in the air-intake plenum may reduce
air flow and plug the plenum water
drains.
Air conditioning system refrig- erant and lubricant recommen-dations
If the air conditioning seems less effective than usual, the cause might be a refrigerant
leak. We recommend you to have the system inspected.
The air conditioning system in your vehicle must be charged with the refrigerant
HFC-134a and the lubricant ND-OIL8.
Use of any other refrigerant or lubricant will
cause severe damage which will result in the need to replace your vehicle’s entire air con-
ditioning system. The release of refrigerant into the atmosphere should be prevented.
The new refrigerant HFC-134a in your vehi-
cle will not harm the ozone layer.
It is recommended that the refrigerant be re-
covered and recycled for further use.
During a long period of disuse
The air conditioning should be operated for at
least five minutes each week, even in cold weather. This is to prevent the compressor
from seizing and to maintain the air condi- tioning in the best operating condition.
Air purifier (with
deodorizing function) E00708400183
An air filter is incorporated into the air condi-tioning system to remove pollen, dust, tobac-
co smells and exhaust smells.
The air filter’s ability to collect pollen and
dirt is reduced as it becomes dirty, so replace it periodically. For the maintenance interval, refer to the “SERVICE BOOKLET”.
NOTEl Operation in certain conditions such as driv-
ing on a dusty road and frequent use of the air conditioning can lead to reduction of
service life of the filter. When the air flow rate suddenly drops or when the windscreenor windows start to fog up easily, the air fil-
ter requires replacement. We recommend
you to have it checked.
Important operation tips for the air conditioning
7-11OVWE16E1For pleasant driving7

LW/MW/FM radio/CDplayer* E00708503518
The audio system can only be used when the ignition switch is in the “ON” or “ACC” po-sition.NOTEl To listen to the audio system while the en-
gine is stopped, turn the ignition switch to
the “ACC” position.
l If a cellular phone is used inside the vehicle,
it may create noise from the audio equip-
ment. This does not mean that anything is wrong with your audio equipment. In such acase, use the cellular phone at a place as far
away as possible from the audio equipment.
l If foreign objects or water get into the audio
equipment, or if smoke or a strange odour
comes from it, immediately turn off the au-
dio system. We recommend you to have it checked. Never try to repair it by yourself.
Avoid continuous usage without inspection by a qualified person.Important Points on Usage
E00735500023

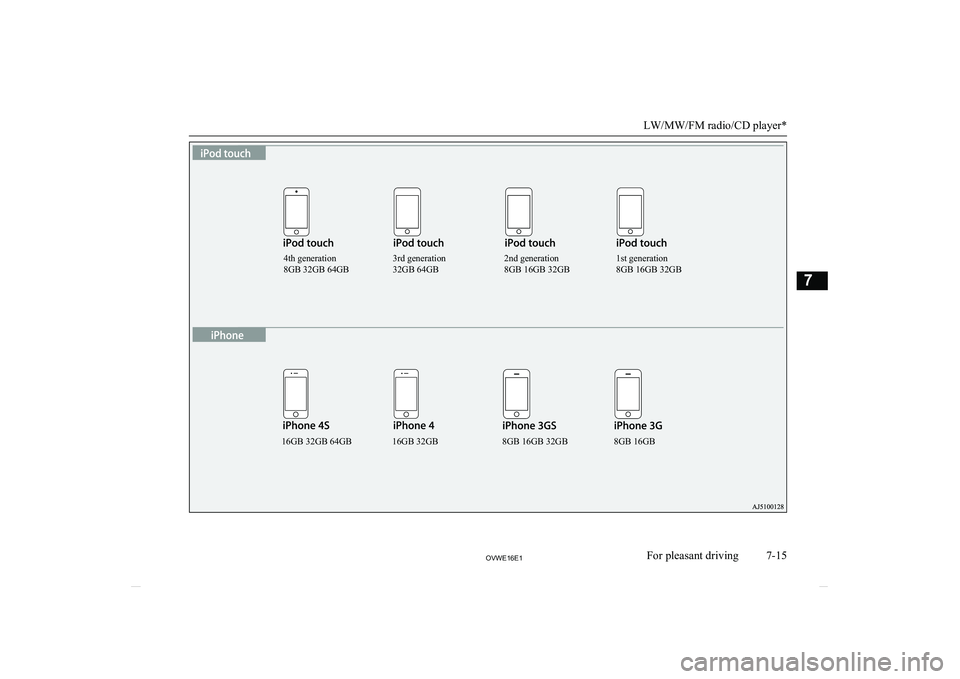

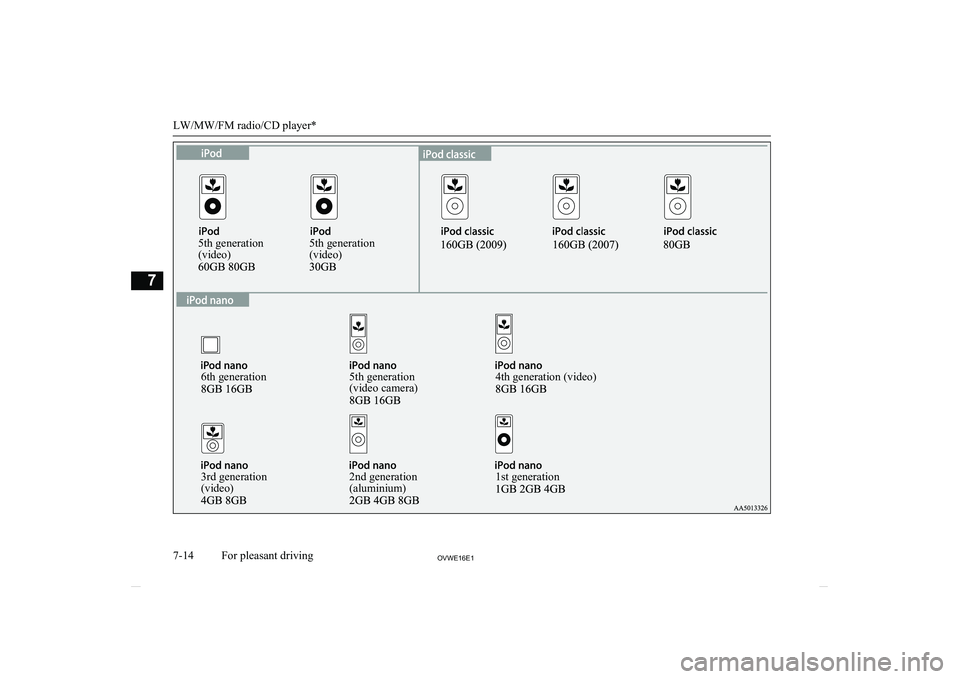

iPod/iPhone Playback Func- tion*
l This product supports audio playback
from iPod/iPhone devices, however dif-fering versions mean that playback can-
not be guaranteed.
l Please be aware that depending on the
iPod/iPhone model or version, operation
may differ.
How to Clean
E00735700025
l If the product becomes dirty, wipe with
a soft cloth.
l If very dirty, use a soft cloth dipped in
neutral detergent diluted in water, and then wrung out. Do not use benzene,
thinners, or other chemical wipes. This
may harm the surface.
Trademarks
E00735801225
l Product names and other proper names
are the trademarks or registered trade- marks of their respective owners.
l Furthermore, even if there is no specific
denotation of trademarks or registered
trademarks, these are to be observed in
their entirety.
“Made for iPod,” “Made for iPhone”
mean that an electronic accessory has
been designed to connect specifically to iPod or iPhone, respectively, and has
been certified by the developer to meet Apple performance standards.
iPhone, iPod, iPod classic, iPod nano,
and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.
Apple is not responsible for the opera- tion of this device or its compliance with
safety and regulatory standards.
NOTEl iPod and iTunes licensing allows individual
users to privately reproduce and play back
non- copyrighted material as well as material
that may be legally copied and reproduced.
Infringement of copyright is prohibited.
LW/MW/FM radio/CD player*
7-12OVWE16E1For pleasant driving7

NOTElFor vehicles with a Bluetooth ®
2.0 interface,
the types of devices that can be connected
may vary.
For details, access the MITSUBISHI MO- TORS website.
Please read and agree to the “Warning about Links to the Web Sites of Other Compa-
nies”.
The websites mentioned above may connect
you to websites other than the MITSUBISHI MOTORS website.
http://www.mitsubishi-motors.com/en/prod-
ucts/index.html
LW/MW/FM radio/CD player*
7-13OVWE16E1For pleasant driving7

5th generation
(video)5th generation
(video)6th generation5th generation
(video camera)4th generation (video)1st generation2nd generation
(aluminium)3rd generation
(video)
LW/MW/FM radio/CD player*
7-14OVWE16E1For pleasant driving7

LW/MW/FM radio/CD player*
7-15OVWE16E1For pleasant driving74th generation
8GB 32GB 64GB
16GB 32GB 64GB 16GB 32GB 8GB 16GB 32GB 8GB 16GB 3rd generation
32GB 64GB
2nd generation
8GB 16GB 32GB 1st generation
8GB 16GB 32GB
