The ABS helps prevent the wheels from lock-
ing during braking, thus maintaining direc-
tional stability, ensuring controllability and
providing optimum braking force.
Driving hints
l Always maintain the same distance from
the vehicle in front of you as you would
for a vehicle not equipped with ABS.
Compared with vehicles not fitted with ABS, your vehicle may require a longer
stopping distance in the following cases: • Driving on gravel or snow-covered
roads.
• Driving with tyre chains installed.
• Driving on roads where the road sur-
face is pitted or has other differencesin surface height.
• Driving on bumpy roads or other poor
driving surfaces.
l In order to ensure that the ABS will op-
erate correctly in situations where tyre chains have been fitted, drive in the“4H”, “4HLc”, or “4LLc” position.
l Operation of ABS is not restricted to sit-
uations where brakes are applied sud- denly. This system may also operate to
prevent wheel lock when you are driving
over manholes, steel road-work plates, or the vehicle is driven over steps or lev-
el differences in the road, road markings,
or other surfaces which are difficult for the wheels to grip.
l When the ABS is activated, you may
feel the brake pedal pulsation and the vi- brations of the vehicle body and steering
wheel. You may also hear a characteris-
tic noise. At this time, you may feel as if
the pedal attempts to resist being de- pressed.
This is a normal result of the ABS oper- ation, and does not indicate a problem.
In this situation, to let the ABS work for you, just hold the brake pedal
down more firmly. Do not pump the brake. This will result in reduced
braking performance.
l When the engine starts and after starting
to drive, you might hear operation noise from the engine compartment or feel a shock from the brake pedal. This is nor-
mal. The ABS is performing self-check.
l The ABS will operate after the vehicle
has accelerated to a speed in excess ofapproximately 10 km/h (6 mph). It stops
operating when the vehicle decelerates
to a speed below about 5 km/h (3 mph).CAUTIONl Even the ABS cannot prevent the natural
laws of physics from acting on the vehicle. Itcannot for instance avoid accidents that may
result from excessive speed on bends or fol- lowing another vehicle too closely or aqua- planing. It should remain the driver’s task to
observe safety precautions to judge speeds and brake applications correctly in such con-
ditions.
l Be sure to use tyres of the same type and
size on 4 wheels.
If tyre types or sizes are mixed, ABS may not function normally.
l Never install a limited-slip differential,
which is not a MITSUBISHI MOTORS gen-
uine part, as the ABS may not function nor-
mally.
We recommend you to consult a MITSUBISHI MOTORS Authorized Serv-
ice Point.
Anti-lock brake system (ABS)
6-42OVWE16E1Starting and driving6

ABS warning lamp
E00607200532
The ABS warning lamp should illuminate
when the ignition switch is turned “ON”, and should go off in a few seconds.
CAUTIONl If the warning lamp stays on or does not illu-
minate when you start the vehicle, it indi-
cates that the ABS is not functioning and
that only the standard brake system is in op-
eration. (In this condition the standard hy- draulic brake system will still function.) We
recommend you to have your vehicle inspec- ted as soon as possible.NOTEl Depressing the brake pedal repeatedly may
turn on the brake warning lamp, ABS warn-ing lamp and brake warning buzzer. (The
ASTC indication lamp and Active Stability
Control function OFF indication lamp also
turn on.) It is normal if the lamp goes out and the buzzer stops sounding after a few
seconds.
l On vehicles with the rear differential lock,
the active stability & traction control
(ASTC) and anti-lock brake system (ABS)
functions are suspended while the rear dif- ferential lock is activated. ASTC indication
lamp, Active Stability Control function OFF indication lamp, ABS warning lamp and
brake warning lamp are illuminated while these functions are suspended. It does not in-
dicate a problem. When the rear differential lock is disengaged, these lamps go out and
function again.
Refer to “Brake warning lamp” on page
5-10 , “ASTC indication lamp” on page
6-45 , “Active stability control function OFF
indication lamp” on page 6-47.If the warning lamp illuminates
while driving
E00607300416
If only the ABS warning lamp illuminates
l Avoid hard braking and high-speed driv-
ing. Stop the vehicle in a safe place.
Restart the engine and check to see whether the lamp goes out after a few
minutes driving; if it then remains off during driving, there is no problem.
However, if the lamp does not go out, or if it lights up again when the vehicle is
driven, we recommend you to have the
vehicle checked as soon as possible.
l The ABS warning lamp can illuminate if
the battery voltage is insufficient when the engine is started. In this case, it doesnot indicate an ABS fault.
Charge the battery by allowing the en- gine to idle for a while.
If the battery has been charged but the
ABS warning lamp continues to illumi-
nate or illuminates intermittently, we recommend you to have the vehicle in-
spected.
Anti-lock brake system (ABS)
6-43OVWE16E1Starting and driving6

If the ABS warning lamp and
brake warning lamp illuminate at the same time
l The ABS and brake force distribution
function will not work, so hard braking
could make the vehicle unstable.
Avoid hard braking and high-speed driv- ing. Stop the vehicle in a safe place and we recommend you to have it checked.
Inspection following snowy
road operation
E00618300012
After driving on snowy roads, remove any snow and ice which may have become ad-
hered to the wheel areas.
When doing this, be careful not to damage the wheel speed sensors (A) and cables loca-ted at each wheel on vehicles equipped with an ABS.
FrontRear
Power steering system
E00607400390
The power steering system operates while the
engine is running. It helps reduce the effort needed to turn the steering wheel.
The power steering system has mechanical
steering capability in case the power assist is lost. If the power assist is lost for some rea-
son, you will still be able to steer your vehi-
cle, but you will notice it takes much more effort to steer. If this happens, have your ve-
hicle inspected at an authorized MITSUBISHI MOTORS dealer.
WARNINGl Do not stop the engine while the vehicle is
moving. Stopping the engine would make the steering wheel extremely hard to turn,
possibly resulting in an accident.CAUTIONl Do not leave the steering wheel turned all
the way in one direction. This can causedamage to the power steering system.Active stability & traction
control (ASTC) E00613800230
The active stability & traction control(ASTC) takes overall control of the anti-lockbrake system, Active Stability Control func-
tion and active traction control function to
maintain the vehicle’s stability and traction. Please read this section in conjunction withthe pages on the anti-lock brake system, Ac-
tive Stability Control function and active
traction control function.

Anti-lock brake system (ABS) ® p. 6-41
Active stability control function ® p. 6-46
Active traction control function ® p. 6-47
CAUTIONl Do not over-rely on the ASTC. Even when
the ASTC is operating, there are limits to how far it can ensure vehicle stability; reck-
less driving may lead to accidents. Always
drive carefully, taking account of the road conditions.
Power steering system
6-44OVWE16E1Starting and driving6

CAUTIONlBe sure to use the same specified type and
size of tyre on all 4 wheels. Otherwise, there
is a possibility that the ASTC will not work properly.NOTEl An operation noise may be emitted from the
engine compartment in the following situa-
tions. The sound is associated with checking the operations of the ASTC. At this time,
you may feel a shock from the brake pedal if
you depress it. These do not indicate a mal- function.
• When the ignition switch is set to the
“ON” position.
• When the vehicle is driven for a while af-
ter the engine is turned on.
l When the ASTC is activated, you may feel a
vibration in the vehicle body or hear a whin-ing sound from the engine compartment.
This indicates that the system is operating
normally. It does not indicate a malfunction.
l When the anti-lock brake system warning
lamp is illuminated, the ASTC is not active.NOTEl On vehicles with the rear differential lock,
the ASTC and ABS functions are suspended
while the rear differential lock is activated. ASTC indication lamp, Active Stability
Control function OFF indication lamp, ABS warning lamp and brake warning lamp are
illuminated while these functions are sus- pended. It does not indicate a problem.
When the rear differential lock is disengag- ed, these lamps go out and function again.
Refer to “Brake warning lamp” on page
5-10 , “ABS warning lamp” on page 6-43,
“Active stability control function OFF indi- cation lamp” on page 6-47.ASTC indication lamp
E00618000035
The ASTC indication lamp shows the operat-
ing status of the Active Stability Controlfunction and active traction control function.
For details, see these sections of this owner’s
manual:

Active stability control function indication
lamp ® p. 6-47
Active traction control function indication
lamp ® p. 6-48ASC OFF switch
E00620500095
The Active Stability Control function is auto-
matically activated when the ignition switchis turned to the “ON” position. You can deac-
tivate the system by pressing the ASC OFF switch when the vehicle is stationary.
Active stability & traction control (ASTC)
6-45OVWE16E1Starting and driving6

To reactivate the Active Stability Controlfunction, press the ASC OFF switch again. It is strongly recommended that the Active Sta-
bility Control function normally be kept acti-
vated.CAUTIONl For safety, operate the ASC OFF switch
with the vehicle stationary.Driving hints
E00618100036
When extricating the vehicle from mud, sand
or fresh snow with the transfer shift lever in
the “2H”, “4H”, or “4HLc” position, you may find that operation of the ASTC preventsthe engine speed from increasing in response
to depression of the accelerator pedal. If this happens and the vehicle remains stuck as a
result, place the transfer shift lever in the “4LLc” position or turn the Active Stability
Control switch OFF. The vehicle will then be
easier to extricate. (Brake control of the ac- tive traction control function is still working
to prevent wheel spins when ASC OFF
switch “OFF” or “4LLc” position selected.)
NOTEl If the vehicle speed increases to about
120 km/h (75 mph) with the Active Stability Control function deactivated, the Active Sta-bility Control function automatically starts operating. To subsequently stop the Active
Stability Control function, stop the vehicle
and press the ASC OFF switch again.Active stability control func-
tion
E00613900097
The Active Stability Control function is de-
signed to help maintain the vehicle’s control
in slippery conditions, or during rapid steer- ing manoeuvres. It works by controlling theengine output and brake on each wheel.
NOTEl The Active Stability Control function does
not operate when the transfer shift lever is inthe “4LLc” position.
When the Active Stability Control function
is operating with the transfer shift lever in the “2H”, “4H” or “4HLc” position, moving
the shift lever to the “4LLc” position makes
the Active Stability Control function deacti- vate automatically.
l On vehicles with rear differential lock, the
Active Stability Control function does not operate when the rear differential lock is ac-
tivated.
Active stability & traction control (ASTC)
6-46OVWE16E1Starting and driving6

Active stability control functionindication lamp
E00614000183
Active stability control function in- dication lampActive stability control function
OFF indication lamp
The indication lamps should illuminate when
the ignition switch is turned to the “ON” po- sition and should go off after a few seconds.
If the indication lamps stay on or do not illu-
minate when the ignition switch is turned to the “ON” position, we recommend you to
have your vehicle inspected.

indication lamp blinks when the Active
Stability Control function is operating.
indication lamp illuminates when the Ac-
tive Stability Control function is deactivated by either of the following operations:
l The ASC OFF switch is pressed to deac-
tivate the system.
l The transfer shift lever is placed in the
“4LLc” position.CAUTIONl When indication lamp blinks, the Active
Stability Control function is operating,
which means that the road is slippery or that your vehicle’s wheels are spinning exces- sively. If this happens, drive slower with lessaccelerator input.
l If a fault occurs in the device, the ABS
warning lamp or
and indication lamps
illuminate as warning. Park your vehicle in a
safe place and stop the engine. Then, start the engine again and check whether the ABS
warning lamp or
and indication lamps
go out.
If the ABS warning lamp or
and indi-
cation lamps remains lit even after the en- gine has been started, we recommend you tohave your vehicle checked.
NOTEl Immediately after reconnection of the bat-
tery cable, the indication lamp will illu-
minate and the Active Stability Control
function will stop operating. If the vehicle is
driven and the
indication lamp goes off,
the Active Stability Control function will
again start operating.
If the indication lamp illuminates again or il-
luminates even though the battery has not been disconnected, an insufficient battery
voltage or other problems may be the reason.
We recommend you to have your vehicle in- spected.
Active traction control function
E00614100041
The active traction control function maintains
traction on slippery road surfaces by auto-
matically controlling the engine output and applying the brakes so the driving wheels are prevented from spinning.
The active traction control function automati-
cally turns ON when the ignition switch is
turned to the “ON” position.
Active stability & traction control (ASTC)
6-47OVWE16E1Starting and driving6

CAUTIONlIf the temperature in the braking system in-
creases excessively due to continuous brake
control on a slippery road surface, a warning
buzzer will sound intermittently to warn the driver. If driving continues in spite of the
buzzer and the temperature in the braking
system increases further, the
indication
lamp will illuminate, the warning buzzer will sound continuously for approximately
3 seconds, and active traction control func- tion operation will be suspended to protectthe braking system. (Normal operation of thevehicle will not be affected.) If the vehicle is
stopped and the
indication lamp goes off,
the active traction control function will start
operating again.
Active traction control function
indication lamp
E00614200127
The indication lamp (1) should illuminate
when the ignition switch is turned to the
“ON” position and should go off after a few seconds.
If the indication lamp stays on or does not il-
luminate when the ignition switch is turned to
the “ON” position, we recommend you to
have your vehicle inspected.
When the active Traction Control System op-
erates, the active traction control function in-dication lamp (1) blinks and the indication
lamp for the wheel (2) being subjected to an- tispin control also blinks.
Example indication: Active traction con- trol function controlling front-right wheel
NOTEl In the event of a fault in the Active Stability
Control function, the and indication
lamps illuminate. As a result, an indication
of the active traction control function is limi- ted to flashing of the indication lamp for the
wheel (2) being subjected to antispin con- trol.CAUTIONl If the vehicle is towed with the ignition
switch in the “ON” position and only the
front wheels or only the rear wheels raised off the ground, the active traction control
function may operate, resulting in an acci-
dent. When towing the vehicle with the front wheels raised, keep the ignition switch in the
“LOCK” or “ACC” position. When towing the vehicle with the rear wheels raised, keep the ignition switch in the “ACC” position.
Refer to “Towing” on page 8-16.Cruise control*
E00609100519
Cruise control is an automatic speed controlsystem that keeps a set speed. It can be acti-vated at about 40 km/h (25 mph) or more.
Cruise control*
6-48OVWE16E1Starting and driving6

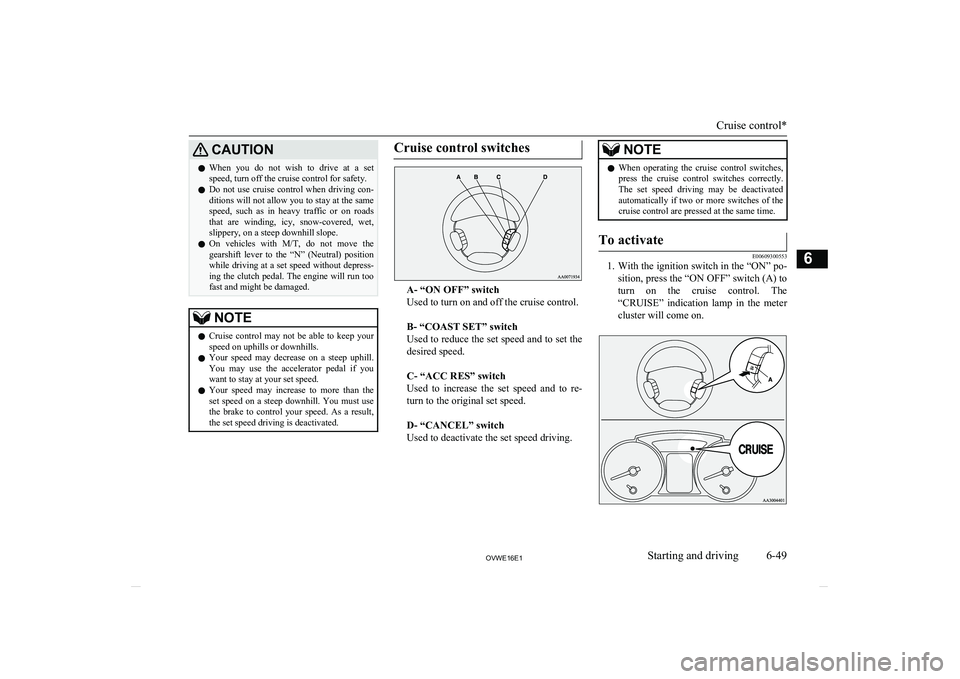

CAUTIONlWhen you do not wish to drive at a set
speed, turn off the cruise control for safety.
l Do not use cruise control when driving con-
ditions will not allow you to stay at the same
speed, such as in heavy traffic or on roads that are winding, icy, snow-covered, wet,
slippery, on a steep downhill slope.
l On vehicles with
M/T, do not move the
gearshift lever to the “N” (Neutral) position while driving at a set speed without depress-
ing the clutch pedal. The engine will run too
fast and might be damaged.NOTEl Cruise control may not be able to keep your
speed on uphills or downhills.
l Your speed may decrease on a steep uphill.
You may use the accelerator pedal if you
want to stay at your set speed.
l Your speed may increase to more than the
set speed on a steep downhill. You must use the brake to control your speed. As a result, the set speed driving is deactivated.Cruise control switches
A- “ON OFF” switch
Used to turn on and off the cruise control.

B- “COAST SET” switch
Used to reduce the set speed and to set the
desired speed.

C- “ACC RES” switch
Used to increase the set speed and to re- turn to the original set speed.

D- “CANCEL” switch
Used to deactivate the set speed driving.
NOTEl When operating the cruise control switches,
press the cruise control switches correctly.
The set speed driving may be deactivated automatically if two or more switches of the
cruise control are pressed at the same time.To activate
E00609300553
1. With the ignition switch in the “ON” po-
sition, press the “ON OFF” switch (A) to turn on the cruise control. The
“CRUISE” indication lamp in the meter cluster will come on.
Cruise control*
6-49OVWE16E1Starting and driving6

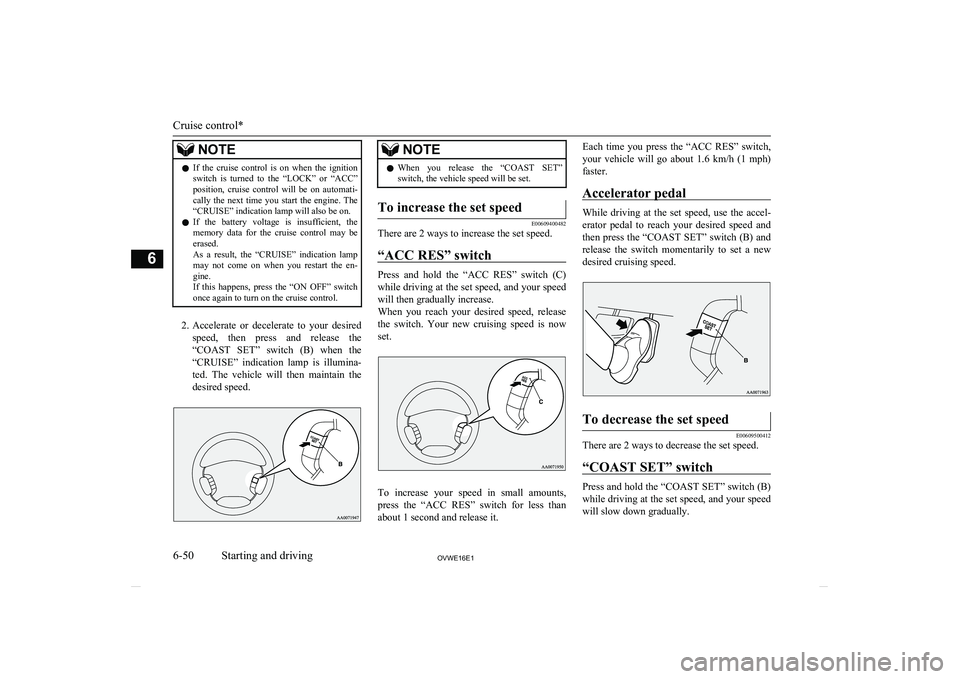

NOTElIf the cruise control is on when the ignition
switch is turned to the “LOCK” or “ACC” position, cruise control will be on automati- cally the next time you start the engine. The
“CRUISE” indication lamp will also be on.
l If the battery voltage is insufficient, the
memory data for the cruise control may be erased.
As a result, the “CRUISE” indication lamp may not come on when you restart the en-
gine.
If this happens, press the “ON OFF” switch once again to turn on the cruise control.
2. Accelerate or decelerate to your desired
speed, then press and release the “COAST SET” switch (B) when the
“CRUISE” indication lamp is illumina- ted. The vehicle will then maintain the
desired speed.
NOTEl When you release the “COAST SET”
switch, the vehicle speed will be set.To increase the set speed
E00609400482
There are 2 ways to increase the set speed.
“ACC RES” switch
Press and hold the “ACC RES” switch (C)while driving at the set speed, and your speed
will then gradually increase.
When you reach your desired speed, release
the switch. Your new cruising speed is now set.
To increase your speed in small amounts,
press the “ACC RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch,
your vehicle will go about 1.6 km/h (1 mph)
faster.
Accelerator pedal
While driving at the set speed, use the accel-
erator pedal to reach your desired speed and
then press the “COAST SET” switch (B) and
release the switch momentarily to set a new desired cruising speed.
To decrease the set speed
E00609500412
There are 2 ways to decrease the set speed.
“COAST SET” switch
Press and hold the “COAST SET” switch (B)
while driving at the set speed, and your speed will slow down gradually.
Cruise control*
6-50OVWE16E1Starting and driving6

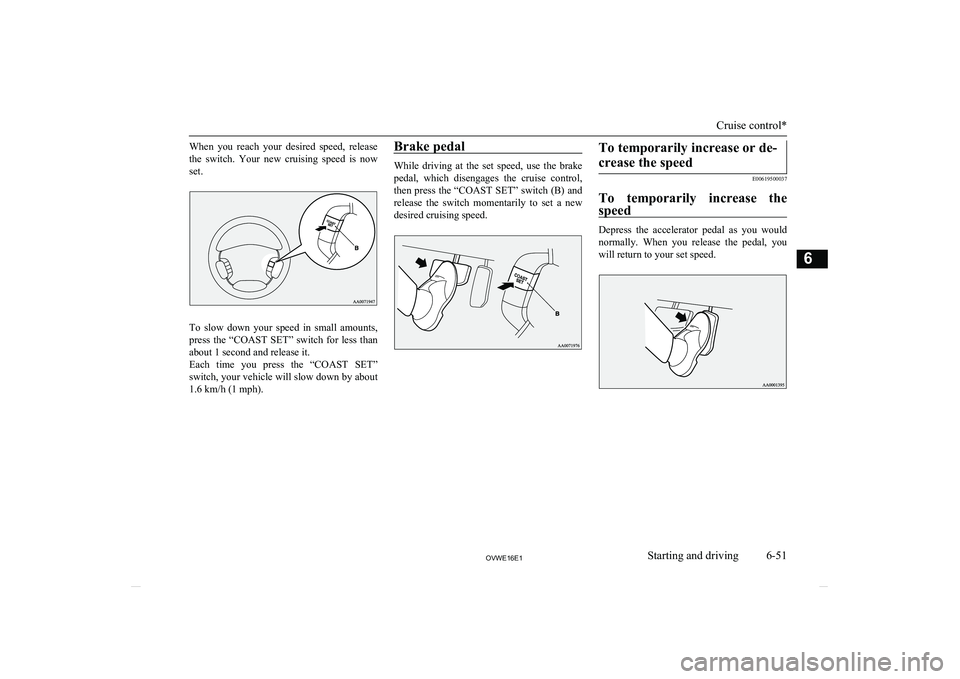

When you reach your desired speed, release
the switch. Your new cruising speed is now set.
To slow down your speed in small amounts,
press the “COAST SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle will slow down by about
1.6 km/h (1 mph).
Brake pedal
While driving at the set speed, use the brake
pedal, which disengages the cruise control,
then press the “COAST SET” switch (B) and
release the switch momentarily to set a new desired cruising speed.
To temporarily increase or de-
crease the speed
E00619500037
To temporarily increase the speed
Depress the accelerator pedal as you would
normally. When you release the pedal, you will return to your set speed.
Cruise control*
6-51OVWE16E1Starting and driving6
