odometer MITSUBISHI SHOGUN 2016 Owner's Manual (in English)

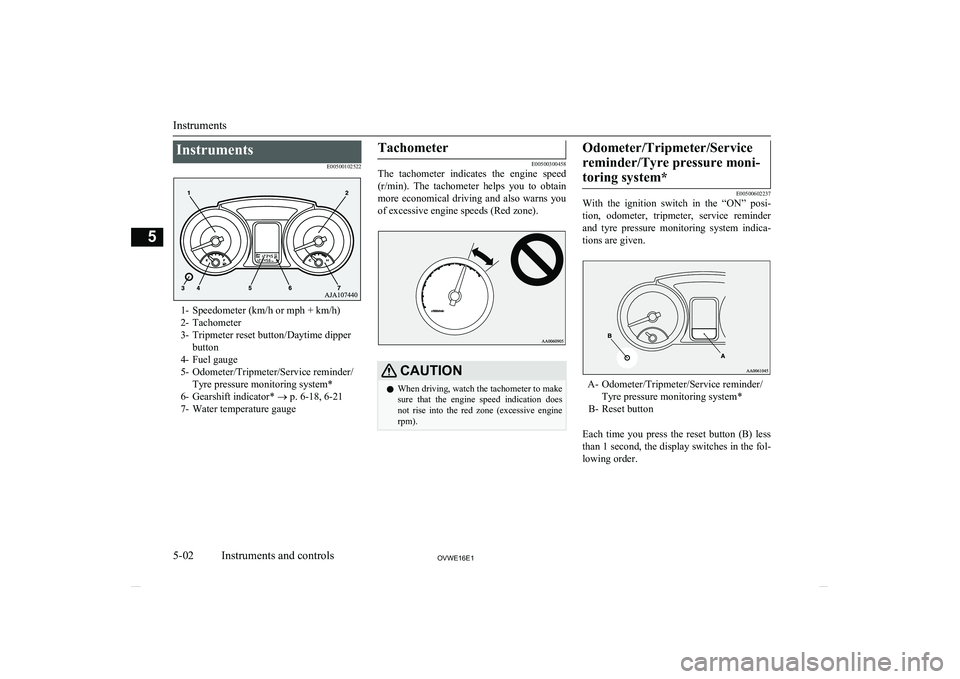

InstrumentsE00500102522
1- Speedometer (km/h or mph + km/h)
2- Tachometer
3- Tripmeter reset button/Daytime dipper button
4- Fuel gauge
5- Odometer/Tripmeter/Service reminder/ Tyre pressure monitoring system*
6- Gearshift indicator* ® p. 6-18, 6-21
7- Water temperature gauge
Tachometer
E00500300458
The tachometer indicates the engine speed
(r/min). The tachometer helps you to obtain
more economical driving and also warns you
of excessive engine speeds (Red zone).
CAUTIONl When driving, watch the tachometer to make
sure that the engine speed indication does not rise into the red zone (excessive enginerpm).Odometer/Tripmeter/Service
reminder/Tyre pressure moni-toring system*
E00500602237
With the ignition switch in the “ON” posi-
tion, odometer, tripmeter, service reminder
and tyre pressure monitoring system indica-
tions are given.
A- Odometer/Tripmeter/Service reminder/ Tyre pressure monitoring system*
B- Reset button
Each time you press the reset button (B) less
than 1 second, the display switches in the fol- lowing order.
Instruments
5-02OVWE16E1Instruments and controls5

1- Odometer/Tripmeter
2- Odometer/Tripmeter
3- Service reminder
4- Tyre pressure monitoring system*
® p. 6-53
NOTEl When the ignition switch is in the “ACC”
or“LOCK” position or while driving, the tyre pressure monitoring system is not dis-played even if you operate the reset button
(B).
Odometer
The odometer indicates the total distance the
vehicle has travelled.
Tripmeter
The tripmeter indicates the distance travelled during a particular trip or period.
There are two tripmeter displays: and .
Tripmeter
can be used to measure the dis-
tance travelled since the current trip began. At the same time, Tripmeter
can be used
to measure the distance from an intermediate location.
NOTEl If you do not push the button for about
10 seconds while the service reminder is
showing, the display will return to the odom-
eter indication.
l The odometer, tripmeter, and service re-
minder indications are given for 30 seconds
after the ignition switch has been turned to the “ACC” or “LOCK” position.
l After the odometer, tripmeter, and service
reminder indications have gone off, they come back on for about 30 seconds if either
of the following actions takes place.
• The driver’s door is opened.
• The reset button is pressed.
To reset the tripmeter
To return the display to “0”, press the reset
button (B) for more than 2 seconds. Only the
currently displayed value will be reset.
NOTEl When disconnecting the battery terminal for
a long time, the memory of tripmeter display
and are cleared, and the display re-
turns to “0”.
Service reminder
E00517701187
The service reminder shows the number of
months (1) and driving distance (3) remain-
ing until the next 12-monthly (15,000 km or
9,000 miles) inspection. When the next in-
spection is nearly due, the display shows
“-----”. At this time, a spanner mark (2) is
shown for a few seconds whenever the igni- tion switch is turned from the “OFF” positionto the “ON” position.

Instruments
5-03OVWE16E1Instruments and controls5

25- Rear differential lock indication lamp*® p. 6-31
26- Door ajar warning lamp ® p. 5-12
27- Odometer/Tripmeter/Service reminder/ Tyre pressure monitoring system*
® p. 5-0228- Gearshift indicator* ® p. 6-18, 6-21
29- “SONAR OFF” indication lamp* ® p. 6-61
30- Tyre pressure monitoring system warn- ing lamp* ® p. 6-5331- Sports mode indicator (vehicles with
A/T) ® p. 6-23
32- Selector lever position indication lamps (vehicles with A/T, “N” indication lamp
is used also as A/T warning lamp)
® p. 6-21

Indication lamps
E00501600012Turn-signal indication lamps/
Hazard warning indication lamps
E00501700068
These indication lamps blink
on and off when a turn-sig-
nal lamp is operating.
NOTEl If the blinking is too fast, the cause may be a
blown lamp bulb or a faulty turn-signal con-
nection.
When the hazard warning lamp switch is
pressed, all turn-signal lamps will flash on and off continuously.
High-beam indication lamp
E00501800072
This indication lamp illumi-
nates when the high-beam is used.
Front fog lamp indication
lamp*
E00501901533
This indication lamp illumi-
nates while the front fog lamps are on.
Rear fog lamp indication lamp
E00502001254
This indication lamp illumi-
nates while the rear fog lamp is on.
Position lamp indication lamp
E00508900102
This lamp illuminates with
the lamp switch at “
” or
“
” position
Diesel preheat indication lamp
(diesel-powered vehicles)
E00502300146
This indication lamp illumi-
nates when the ignition
switch is placed in the “ON”
position. As the glow plug becomes hot, the lamp goes
out and the engine can be
started.
Indication lamps
5-09OVWE16E1Instruments and controls5

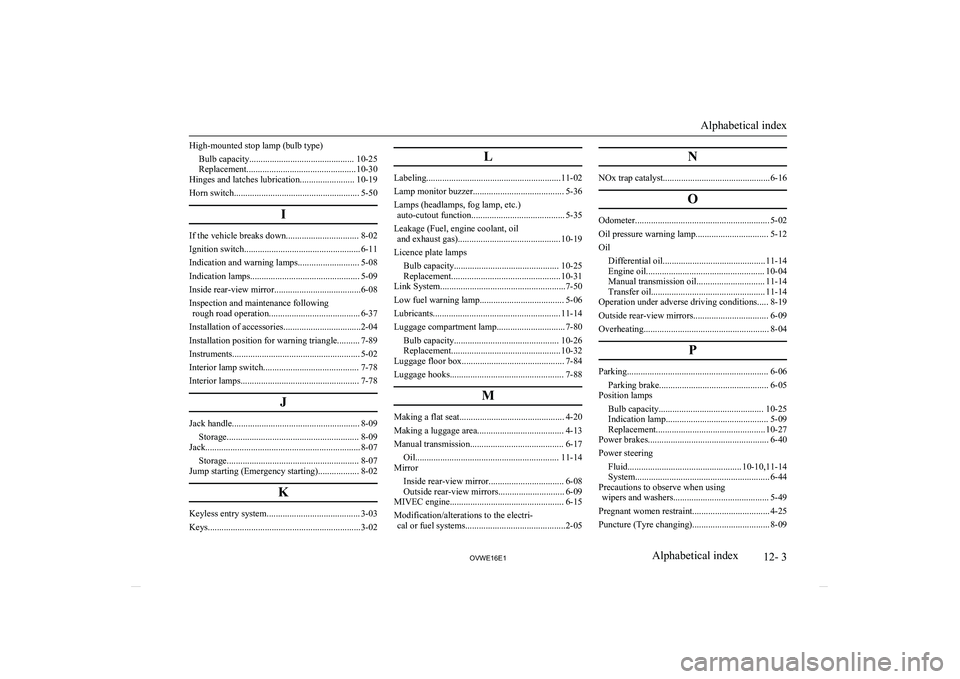

High-mounted stop lamp (bulb type)Bulb capacity.............................................. 10-25
Replacement................................................ 10-30
Hinges and latches lubrication........................ 10-19
Horn switch....................................................... 5-50
I
If the vehicle breaks down................................ 8-02
Ignition switch................................................... 6-11
Indication and warning lamps........................... 5-08
Indication lamps................................................ 5-09
Inside rear-view mirror......................................6-08
Inspection and maintenance following rough road operation........................................ 6-37
Installation of accessories..................................2-04
Installation position for warning triangle.......... 7-89
Instruments........................................................ 5-02
Interior lamp switch.......................................... 7-78
Interior lamps.................................................... 7-78
J
Jack handle........................................................ 8-09Storage.......................................................... 8-09
Jack.................................................................... 8-07
Storage.......................................................... 8-07
Jump starting (Emergency starting).................. 8-02
K
Keyless entry system......................................... 3-03
Keys...................................................................3-02
L
Labeling...........................................................11-02
Lamp monitor buzzer........................................ 5-36
Lamps (headlamps, fog lamp, etc.) auto-cutout function......................................... 5-35
Leakage (Fuel, engine coolant, oil and exhaust gas)............................................. 10-19
Licence plate lamps Bulb capacity.............................................. 10-25
Replacement................................................ 10-31
Link System.......................................................7-50
Low fuel warning lamp..................................... 5-06
Lubricants........................................................ 11-14
Luggage compartment lamp.............................. 7-80 Bulb capacity.............................................. 10-26
Replacement................................................ 10-32
Luggage floor box............................................. 7-84
Luggage hooks.................................................. 7-88
M
Making a flat seat.............................................. 4-20
Making a luggage area...................................... 4-13
Manual transmission......................................... 6-17 Oil............................................................... 11-14
Mirror
Inside rear-view mirror................................. 6-08
Outside rear-view mirrors............................. 6-09
MIVEC engine.................................................. 6-15
Modification/alterations to the electri- cal or fuel systems............................................2-05
N
NOx trap catalyst...............................................6-16
O
Odometer........................................................... 5-02
Oil pressure warning lamp................................ 5-12
Oil Differential oil............................................. 11-14
Engine oil.................................................... 10-04
Manual transmission oil.............................. 11-14
Transfer oil.................................................. 11-14
Operation under adverse driving conditions..... 8-19
Outside rear-view mirrors................................. 6-09
Overheating....................................................... 8-04
P
Parking.............................................................. 6-06Parking brake................................................ 6-05
Position lamps
Bulb capacity.............................................. 10-25
Indication lamp............................................. 5-09
Replacement................................................ 10-27
Power brakes..................................................... 6-40
Power steering Fluid.................................................. 10-10,11-14
System........................................................... 6-44
Precautions to observe when using wipers and washers.......................................... 5-49
Pregnant women restraint.................................. 4-25
Puncture (Tyre changing).................................. 8-09
Alphabetical index
12- 3
OVWE16E1Alphabetical index
