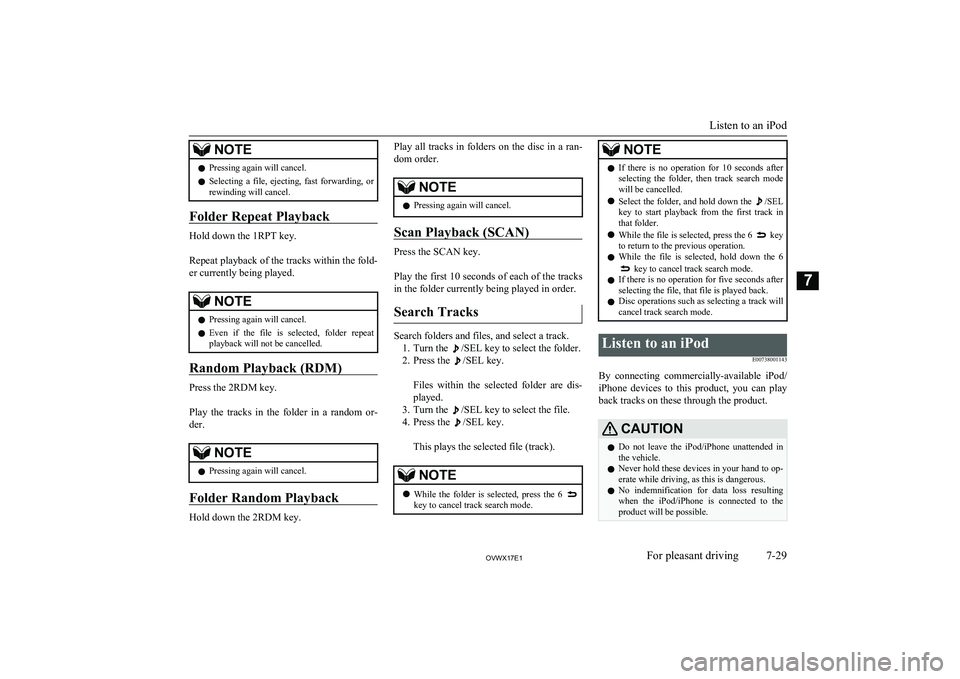

Page 231 of 394
NOTElPressing again will cancel.
l Selecting a file, ejecting, fast forwarding, or
rewinding will cancel.
Folder Repeat Playback
Hold down the 1RPT key.
Repeat playback of the tracks within the fold- er currently being played.
NOTEl Pressing again will cancel.
l Even if the file is selected, folder repeat
playback will not be cancelled.
Random Playback (RDM)
Press the 2RDM key.
Play the tracks in the folder in a random or-
der.
NOTEl Pressing again will cancel.
Folder Random Playback
Hold down the 2RDM key.
Play all tracks in folders on the disc in a ran-
dom order.NOTEl Pressing again will cancel.
Scan Playback (SCAN)
Press the SCAN key.
Play the first 10 seconds of each of the tracks in the folder currently being played in order.
Search Tracks
Search folders and files, and select a track. 1. Turn the
/SEL key to select the folder.
2. Press the
/SEL key.
Files within the selected folder are dis- played.
3. Turn the
/SEL key to select the file.
4. Press the
/SEL key.
This plays the selected file (track).
NOTEl While the folder is selected, press the 6 key to cancel track search mode.NOTElIf there is no operation for 10 seconds after
selecting the folder, then track search mode
will be cancelled.
l Select the folder, and hold down the
/SEL
key to start playback from the first track in
that folder.
l While the file is selected, press the 6
key
to return to the previous operation.
l While the file is selected, hold down the 6
key to cancel track search mode.
l If there is no operation for five seconds after
selecting the file, that file is played back.
l Disc operations such as selecting a track will
cancel track search mode.
Listen to an iPod
E00738001143
By connecting commercially-available iPod/iPhone devices to this product, you can play
back tracks on these through the product.
CAUTIONl Do not leave the iPod/iPhone unattended in
the vehicle.
l Never hold these devices in your hand to op-
erate while driving, as this is dangerous.
l No indemnification for data loss resulting
when the iPod/iPhone is connected to the
product will be possible.
Listen to an iPod
7-29OVWX17E1For pleasant driving7
Page 232 of 394
CAUTIONlDepending on how the devices are handled,
audio files being damaged or lost, therefore
it is recommended that data be backed up.NOTEl Depending on the generation, model, or soft-
ware version of the iPod/iPhone, playback
on this product may not be possible. (→7-12 ) Additionally, playback as ex-
plained in this document may not be possi- ble.
l For vehicles with a Bluetooth ®
2.0 interface,
the types of devices that can be connected
may vary.
For details, access the MITSUBISHI
MOTORS website.
Please read and agree to the “Warning about
Links to the Web Sites of Other Compa- nies”.
The websites mentioned above may connect
you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod-
ucts/index.html
l Usage of iPod/iPhone hardware with the lat-
est software version is recommended.
l Regarding how to connect the iPod/iPhone,
refer to “How to connect an iPod” on page
7-72.
l When connecting the iPod/iPhone, use a
commercially available iPod connection ca- ble.NOTEl Set up the device in order that no unsafe ac-
tions, such as plugging in the connection ca-ble are taken while driving.
l When inserting and removing the iPod/
iPhone, for safety’s sake first stop the vehi- cle.
l Depending on the status of the iPod/iPhone,
it may take some time until the device is rec- ognized, or playback starts.
l Buttons on the product may not operate
while the iPod/iPhone is connected.
l iPod/iPhone specifications and settings may
mean that connection is not possible, or re- sult in differences in operation or display.
l Depending on audio data in the iPod/iPhone,
track information may not be displayed cor- rectly.
l Depending on the status of the vehicle and
device, the iPod/iPhone may not play back after starting the engine.
l Data containing copyright information may
not play back.
l It is recommended that the iPod/iPhone
equaliser settings be set to flat.
l Operate the iPod/iPhone while connected to
this product.
l If the iPod/iPhone is connected via Blue-
tooth as a Bluetooth-capable audio device, then do not connect the iPod/iPhone using
an iPod connection cable. Connection using both methods will result in erroneous opera-
tion.NOTEl If an iPod/iPhone does not operate correctly,
then remove the iPod/iPhone from the prod- uct, reset, then reconnect.
Play iPod
Press the MEDIA key to set the iPod as the
source.
The selected source is indicated on the dis-
play.
Select the Track (File)
Press the key or key to select the
track.
This enables selection of the next or previous
track.
Fast Forward or Rewind
Hold down the 3 key or the 4 key.
Fast forward/rewind is possible.
Switch Playback Mode
Repeat playback and shuffle playback are
possible.
Listen to an iPod
7-30OVWX17E1For pleasant driving7
Page 233 of 394
Repeat Playback (RPT)
Press the 1RPT key.
Repeat playback of the track currently being
played.
NOTEl Pressing again will cancel.
Shuffle Playback (RDM)
Press the 2RDM key.
Play tracks in the category currently being played in a random order.
NOTEl Pressing again will cancel.
Album Shuffle Playback
Hold down the 2RDM key.
Play back the album in a random order
(tracks in any order on the album).
NOTEl Pressing again will cancel.Search Tracks
Search categories or track names, and select a
track. 1. Turn the
/SEL key to select the cate-
gory.
2. Press the
/SEL key. Categories or
tracks within the selected category are displayed.
3. Turn the
/SEL key to select the cate-
gory or track.
4. Press the
/SEL key.
Repeat steps 1 to 4, and search for tracks.
Select the track, and press the
/SEL
key to play.
NOTEl While the category (1 st
level) is selected,
press the 6 key to cancel track search
mode.
l If there is no operation for 10 seconds after
selecting the category, then track search
mode will be cancelled.
l Select the category, and hold down the
/SEL key to start playback from the first
track in that category.
l While the track is selected, press the 6
key to return to the previous operation.
l While the track is selected, hold down the 6
key to cancel track search mode.
NOTEl
If there is no operation for five seconds after
selecting the track, that file is played back.
l iPod operations such as selecting a track will
cancel track search mode.Listen to Audio Files on a
USB Device E00736501199
By connecting commercially-available USB
devices such as USB memory to this product, you can play back audio files on these
through the product.
CAUTIONl Do not leave the USB device unattended in
the vehicle.
l Never hold these devices in your hand to op-
erate while driving, as this is dangerous.
l Do not use hard discs, card readers, or mem-
ory readers, as damage may occur to these or
to the data contained therein. If these are er- roneously connected, turn the ignition switchto the “LOCK” position, then remove.
l Because of the risk of data loss, it is recom-
mended that files be backed up.
l No guarantee is made as regards damage to
the USB device, nor regarding loss or dam- age to data contained therein.
Listen to Audio Files on a USB Device
7-31OVWX17E1For pleasant driving7
Page 234 of 394
CAUTIONlDepending on how the devices are handled,
audio files being damaged or lost, therefore
it is recommended that data be backed up.NOTEl Digital audio players that support the mass
storage class specifications can be connec- ted.
l For details regarding the types of USB devi-
ces that can be connected and the types of files that can be played back in vehicles with
a Bluetooth ®
2.0 interface, refer to “Types
of connectable devices and supported file specifications” on page 7-72.
l Regarding how to connect USB devices, re-
fer to “How to connect a USB memory de-vice” on page 7-71.
l When connecting a USB device, use a con-
nection cable. Failure to use a connection ca-
ble when connecting may place undue load on, or damage the USB connector.
l Set up the device in order that no unsafe ac-
tions, such as plugging in the connection ca-ble are taken while driving.
l When inserting and removing the USB de-
vice, for safety’s sake first stop the vehicle.
l Do not insert other than audio devices into
the USB port. Damage to the device or equipment may result.
l Depending on the status of the USB device,
it may take some time until the device is rec-
ognized, or playback starts.NOTEl Depending on the USB device, the button
functions on the product may not operatewhile the USB device is connected.
l USB device specifications and settings may
mean that connection is not possible, or re-
sult in differences in operation or display.
l Depending on audio data in the USB device,
track information may not be displayed cor- rectly.
l Depending on the status of the vehicle and
device, the iPod/iPhone may not play back after starting the engine.
l Data containing copyright information may
not play back.
l This product can play back MP3, WMA, and
AAC format audio files.
l Depending on the type of USB device, usage
may not be possible, or functions that can beused may be restricted.
l The recommended file system for USB
memory is FAT32.
l The maximum supported capacity for USB
memory is 32GB.
l Operate the USB device containing recorded
audio files while connected to this product.
Play Back of Audio Files on a
USB Device
Press the MEDIA key to set
USB as the source. The selected source is in- dicated on the display.
Select the Track (File)
Press the key or key to select the
track.
This enables selection of the next or previous
track.
Fast Forward or Rewind
Hold down the 3 key or the 4 key.
Fast forward/rewind is possible.
Switch Playback Mode
Repeat playback, random playback, and scan
playback are possible.
Repeat Playback (RPT)
Press the 1RPT key.
Repeat playback of the track currently being
played.
NOTEl Pressing again will cancel.
l Selecting a file will cancel this.
Folder Repeat Playback
Hold down the 1RPT key.
Listen to Audio Files on a USB Device
7-32OVWX17E1For pleasant driving7
Page 235 of 394
Repeat playback of the tracks within the fold- er currently being played.NOTEl Pressing again will cancel.
l Even if the file is selected, folder repeat
playback will not be cancelled.
Folder Random Playback
(RDM)
Press the 2RDM key.
Play tracks in the folder currently being
played in a random order.
NOTEl Pressing again will cancel.
l Even if the file is selected, folder random
playback will not be cancelled.
All Folder Random Playback
Hold down the 2RDM key.
Play the tracks in all folders in a random or-
der.
NOTEl Pressing again will cancel.NOTElEven if the file is selected, all folder random
playback will not be cancelled.
Scan Playback (SCAN)
Press the PTY/SCAN key.
Play the first 10 seconds of each of the tracks on the whole USB device in order.
NOTEl Press this button again during playback if
you wish to hear that track, and that trackwill play normally.
Folder Scan Playback
Hold down the PTY/SCAN key.
Play the first 10 seconds of the first track in each folder on the USB device in order.
NOTEl Press this button again during playback if
you wish to hear that track, and that trackwill play normally.
Search Tracks
Search folders and files, and select a track.
1. Turn the
/SEL key to select the folder.
2. Press the /SEL key.
Files within the selected folder are dis- played.
3. Turn the
/SEL key to select the file.
4. Press the
/SEL key.
This plays the selected file (track).
NOTEl While the folder is selected, press the 6 key to cancel track search mode.
l If there is no operation for 10 seconds after
selecting the folder, then track search mode will be cancelled.
l Select the folder, and hold down the
/SEL
key to start playback from the first track in
that folder.
l While the file is selected, press the 6
key
to return to the previous operation.
l While the file is selected, hold down the 6
key to cancel track search mode.
l If there is no operation for five seconds after
selecting the file, that file is played back.
l Operations such as selecting a track will
cancel track search mode.
Listen to Audio Files on a USB Device
7-33OVWX17E1For pleasant driving7
Page 236 of 394
To play iPod/USB memorydevice tracks via voice
operation (vehicles with
Bluetooth ®
2.0 interface)
E00748700045
Desired tracks on the iPod/USB memory de-
vice which is connected to the USB port can
be selected and played via voice operation. For information concerning the voice recog- nition function or speaker registration func-
tion, refer to “Bluetooth®
2.0 interface” on
page 7-50.
The following explains how to prepare for
voice operation and play the tracks.Preparation for voice operation
E00748800046
To use the voice operation, press the SPEECH button (1) first.
To search by artist name
E00748900021
1. Say “Play” on the main menu.
NOTEl The Bluetooth ®
2.0 interface starts recogniz-
ing the connected device.
If the connected device cannot be recognized
or a connection error occurs, the Bluetooth ®
2.0 interface starts an appropriate voice
guide. Follow the voice guide.
2. After the voice guide says “Would you
like to play by Artist, Album, Playlist or Genre?,” say “Artist”.
NOTEl If you say “Artist ,” you can skip
step 3.
3. After the voice guide says “What Artist
would you like to play?,” say the artist
name.
4. If there is only one match, the system
proceeds to step 6.
5. If there are two or more matches, the
voice guide will say “More than one
match was found, would you like to play ?” If you say “Yes,” the
system proceeds to step 6.
If you say “No,” the next matching artist
is uttered by the system.NOTEl If you say “No” to three or all artist names
uttered by the system, the voice guide will say “Artist not found, please try again” and
the system returns to step 2.
l Search time is dependant on the number of
songs on your connected device. Devices containing a large number of songs may take
longer to return search results.
6. After the voice guide says “Playing
tist name>,” the system creates a playlist
index for the artist.
NOTEl If the confirmation function is active, the
voice guide confirms if the artist name is
correct. If the artist name is correct, say “Yes”. If not, say “No”. After the voice
guide says “Artist not found, please try again,” the system returns to step 2.
7. The system exits the voice recognition
mode and starts playback.
To search by album title
E00749000029
1. Say “Play” on the main menu.
To play iPod/USB memory device tracks via voice operation (vehicles with Bluetooth ®
2.0 interface)
7-34OVWX17E1For pleasant driving7
Page 237 of 394
NOTElThe Bluetooth ®
2.0 interface starts recogniz-
ing the connected device.
If the connected device cannot be recognized
or a connection error occurs, the Bluetooth ®
2.0 interface starts an appropriate voice
guide. Follow the voice guide.
2. After the voice guide says “Would you
like to play by Artist, Album, Playlist or Genre?,” say “Album”.
NOTEl If you say “Album
,” you can skip<br />
step 3.<br />
3. After the voice guide says “What Album<br />
would you like to play?” say the album title.<br />
4. If there is only one match, the system<br />
proceeds to step 6.<br />
5. If there are two or more matches, the<br />
voice guide will say “More than one<br />
match was found, would you like to play <album title>?” If you say “Yes,” thesystem proceeds to step 6.<br />
If you say “No,” the next matching al-<br />
bum is uttered by the system.<br />
NOTEl If you say “No” to three or all album titles<br />
uttered by the system, the voice guide will say “Album not found, please try again” and<br />
the system returns to step 2.<br />
6. After the voice guide says “Playing <al-<br />
bum title>,” the system creates a playlist index for the album title.<br />
NOTEl If the confirmation function is active, the<br />
voice guide confirms if the album title is<br />
correct. If the album title is correct, say<br />
“Yes”. If not, say “No”. After the voice guide says “Album not found, please try<br />
again,” the system returns to step 2.<br />
7. The system exits the voice recognition<br />
mode and starts playback.<br />
To search by playlist<br />
E00749100020<br />
1. Say “Play” on the main menu.<br />
NOTEl The Bluetooth ®<br />
2.0 interface starts recogniz-<br />
ing the connected device.<br />
If the connected device cannot be recognized<br />
or a connection error occurs, the Bluetooth ®<br />
2.0 interface starts an appropriate voice<br />
guide. Follow the voice guide.<br />
2. After the voice guide says “Would you<br />
like to play by Artist, Album, Playlist or Genre?,” say “Playlist”.<br />
NOTEl If you say “Playlist <playlist>,” you can skip<br />
step 3.<br />
If the device has no playlist, the voice guide<br />
will say “There are no playlists stored on de- vice” and the system returns to step 2.<br />
3. After the voice guide says “What Play-<br />
list would you like to play?,” say the<br />
playlist name.<br />
4. If there is only one match, the system<br />
proceeds to step 6.<br />
5. If there are two or more matches, the<br />
voice guide will say “More than one match was found, would you like to play<br />
<playlist>?” If you say “Yes,” the sys- tem proceeds to step 6.<br />
If you say “No,” the next matching play-<br />
list name is uttered by the system.<br />
To play iPod/USB memory device tracks via voice operation (vehicles with Bluetooth ®<br />
2.0 interface)<br />
7-35OVWX17E1For pleasant driving7 <p></div><script>$(document).on('click', '#a237', function(){
$(this).hide();
$('#b237').height($('#a237').height()-22);
$('#b237').show();
});
$(document).on('click', '#b237', function(){
$(this).hide();
$('#a237').show();
});
$(document).ready(function(){
$('#b237').height($('#a237').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>

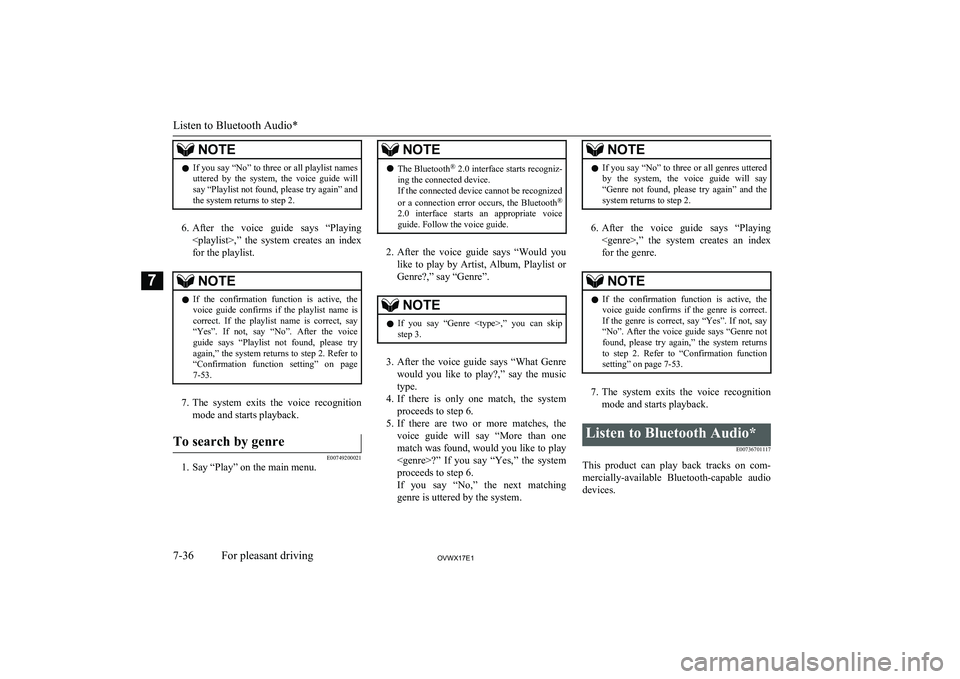

<a name='238'></a><h3>Page 238 of 394</h3><div id='a238'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI SHOGUN 2017 Owners Manual (in English) NOTElIf you say “No” to three or all playlist names
uttered by the system, the voice guide will say “Playlist not found, please try again” and
the system returns to step 2.
6. After th' title='MITSUBISHI SHOGUN 2017 Owners Manual (in English) NOTElIf you say “No” to three or all playlist names
uttered by the system, the voice guide will say “Playlist not found, please try again” and
the system returns to step 2.
6. After th' src='/img/19/34886/w960_34886-237.png' /></div><div id='b238' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>NOTElIf you say “No” to three or all playlist names<br />
uttered by the system, the voice guide will say “Playlist not found, please try again” and<br />
the system returns to step 2.<br />
6. After the voice guide says “Playing<br />
<playlist>,” the system creates an index for the playlist.<br />
NOTEl If the confirmation function is active, the<br />
voice guide confirms if the playlist name is<br />
correct. If the playlist name is correct, say<br />
“Yes”. If not, say “No”. After the voice guide says “Playlist not found, please try<br />
again,” the system returns to step 2. Refer to “Confirmation function setting” on page 7-53.<br />
7. The system exits the voice recognition<br />
mode and starts playback.<br />
To search by genre<br />
E00749200021<br />
1. Say “Play” on the main menu.<br />
NOTEl The Bluetooth ®<br />
2.0 interface starts recogniz-<br />
ing the connected device.<br />
If the connected device cannot be recognized<br />
or a connection error occurs, the Bluetooth ®<br />
2.0 interface starts an appropriate voice<br />
guide. Follow the voice guide.<br />
2. After the voice guide says “Would you<br />
like to play by Artist, Album, Playlist or Genre?,” say “Genre”.<br />
NOTEl If you say “Genre <type>,” you can skip<br />
step 3.<br />
3. After the voice guide says “What Genre<br />
would you like to play?,” say the music<br />
type.<br />
4. If there is only one match, the system<br />
proceeds to step 6.<br />
5. If there are two or more matches, the<br />
voice guide will say “More than one<br />
match was found, would you like to play<br />
<genre>?” If you say “Yes,” the system proceeds to step 6.<br />
If you say “No,” the next matching genre is uttered by the system.<br />
NOTEl If you say “No” to three or all genres uttered<br />
by the system, the voice guide will say<br />
“Genre not found, please try again” and the<br />
system returns to step 2.<br />
6. After the voice guide says “Playing<br />
<genre>,” the system creates an index for the genre.<br />
NOTEl If the confirmation function is active, the<br />
voice guide confirms if the genre is correct.<br />
If the genre is correct, say “Yes”. If not, say “No”. After the voice guide says “Genre not<br />
found, please try again,” the system returns<br />
to step 2. Refer to “Confirmation function setting” on page 7-53.<br />
7. The system exits the voice recognition<br />
mode and starts playback.<br />
Listen to Bluetooth Audio*<br />
E00736701117<br />
This product can play back tracks on com-<br />
mercially-available Bluetooth-capable audio devices.<br />
Listen to Bluetooth Audio*<br />
7-36OVWX17E1For pleasant driving7 <p></div><script>$(document).on('click', '#a238', function(){
$(this).hide();
$('#b238').height($('#a238').height()-22);
$('#b238').show();
});
$(document).on('click', '#b238', function(){
$(this).hide();
$('#a238').show();
});
$(document).ready(function(){
$('#b238').height($('#a238').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='239'></a><h3>Page 239 of 394</h3><div id='a239'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI SHOGUN 2017 Owners Manual (in English) CAUTIONlNever hold these devices in your hand to op-
erate while driving, as this is dangerous.
l Do not leave the Bluetooth audio device un-
attended in the vehicle.
l Depending on how the ' title='MITSUBISHI SHOGUN 2017 Owners Manual (in English) CAUTIONlNever hold these devices in your hand to op-
erate while driving, as this is dangerous.
l Do not leave the Bluetooth audio device un-
attended in the vehicle.
l Depending on how the ' src='/img/19/34886/w960_34886-238.png' /></div><div id='b239' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>CAUTIONlNever hold these devices in your hand to op-<br />
erate while driving, as this is dangerous.<br />
l Do not leave the Bluetooth audio device un-<br />
attended in the vehicle.<br />
l Depending on how the devices are handled,<br />
audio files being damaged or lost, therefore it is recommended that data be backed up.NOTEl Depending on the type of Bluetooth-capable<br />
audio devices, usage may not be possible, or<br />
functions that can be used may be restricted.<br />
l Confirm together with the user manuals for<br />
the commercially- available Bluetooth-capa-<br />
ble audio devices.<br />
l Depending on the type of Bluetooth-capable<br />
audio devices, volume levels may differ. There is the danger of loud volumes, so prior<br />
to use, it is recommended that you turn the volume down.<br />
→ “Adjust Volume” on page 7-22<br />
l Depending on the status of the Bluetooth au-<br />
dio device, it may take some time until the device is recognized, or playback starts.<br />
l Bluetooth audio device specifications and<br />
settings may mean that connection is not possible, or result in differences in operationor display.<br />
l Depending on audio data in the Bluetooth<br />
audio device, track information may not be<br />
displayed correctly.NOTEl Depending on the status of the vehicle and<br />
device, the iPod/iPhone may not play back after starting the engine.<br />
Connect a Bluetooth-capable<br />
Audio Device<br />
Regarding how to connect your Bluetooth de-<br />
vice, refer to “Connecting the Bluetooth® 2.0<br />
interface and Bluetooth® device” on page 7-56.<br />
Operation methods below describe situations<br />
once connection has been completed.<br />
NOTEl If the iPod/iPhone is connected via Blue-<br />
tooth as a Bluetooth- capable audio device, then do not connect the iPod/iPhone using<br />
an iPod cable. Connection using both meth- ods will result in erroneous operation.<br />
Play Bluetooth Audio<br />
1. Press the MEDIA key to set Bluetooth<br />
Audio as the source.<br />
<br />
The selected source is indicated on the display.<br />
<br />
2. Press the 5 <br />
key. Bluetooth Audio<br />
playback starts.<br />
NOTEl Hold down the 5 key to pause.<br />
l Press the 6 <br />
key to stop.<br />
Select the Track (File)<br />
Press the key or key to select the<br />
track.<br />
<br />
This enables selection of the next or previous<br />
track.<br />
Fast Forward or Rewind<br />
Hold down the 3 key or the 4 key.<br />
<br />
Fast forward/rewind is possible.<br />
Switch Playback Mode<br />
Repeat playback, random playback, and scan<br />
playback are possible.<br />
Repeat Playback (RPT)<br />
Press the 1RPT key.<br />
<br />
Repeat playback of the track currently being<br />
played.<br />
Listen to Bluetooth Audio*<br />
7-37OVWX17E1For pleasant driving7 <p></div><script>$(document).on('click', '#a239', function(){
$(this).hide();
$('#b239').height($('#a239').height()-22);
$('#b239').show();
});
$(document).on('click', '#b239', function(){
$(this).hide();
$('#a239').show();
});
$(document).ready(function(){
$('#b239').height($('#a239').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='240'></a><h3>Page 240 of 394</h3><div id='a240'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI SHOGUN 2017 Owners Manual (in English) NOTElEach time the 1RPT key is pressed, this
switches in the order Repeat OFF, 1 track re-
peat, All track repeat, and Repeat OFF.
Random Playback (RDM)
Press the 2RDM key.
Play the tracks in' title='MITSUBISHI SHOGUN 2017 Owners Manual (in English) NOTElEach time the 1RPT key is pressed, this
switches in the order Repeat OFF, 1 track re-
peat, All track repeat, and Repeat OFF.
Random Playback (RDM)
Press the 2RDM key.
Play the tracks in' src='/img/19/34886/w960_34886-239.png' /></div><div id='b240' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>NOTElEach time the 1RPT key is pressed, this<br />
switches in the order Repeat OFF, 1 track re-<br />
peat, All track repeat, and Repeat OFF.<br />
Random Playback (RDM)<br />
Press the 2RDM key.<br />
<br />
Play the tracks in the Bluetooth Audio device in a random order.<br />
NOTEl Pressing again will cancel.<br />
Scan Playback (SCAN)<br />
Press the PTY/SCAN key.<br />
<br />
Play the first 10 seconds of each of the tracks on the whole Bluetooth Audio device in or-<br />
der.<br />
NOTEl Press this button again during playback if<br />
you wish to hear that track, and that trackwill play normally.Use AUX*<br />
E00736901135<br />
By connecting external input cables and AUX devices to this product, you can play<br />
back tracks on these devices through the<br />
product.<br />
<br />
Hold down the MEDIA key.<br />
Switch to the AUX mode, and “AUX” is dis- played.<br />
Auxiliary Video connector (RCA) A- Left audio input connector (white)B- Right audio input connector (red)<br />
C- Video input connector (yellow)<br />
CAUTIONl Connect an audio device with external sound<br />
input mode cancelled, or with the soundturned down.<br />
l Even if not inserted, the product will switch<br />
to AUX, therefore take care with volume<br />
levels when not inserted.NOTEl For information on using the Auxiliary Vid-<br />
eo connector (RCA), refer to the separate<br />
owner’s manual for the Video Entertainment System.<br />
l Depending on the audio device to be con-<br />
nected, noise may be emitted.<br />
l For power, use the battery power source in-<br />
cluded in the audio device to be connected.<br />
Using the connected audio device while charging through the cigarette lighter socket<br />
in the vehicle may lead to noise being emit-<br />
ted through the speakers.<br />
l If no audio devices are connected, then do<br />
not select the external sound input mode. If external sound input mode is selected while no audio devices are connected, then sound<br />
may be emitted through the speakers.<br />
Use AUX*<br />
7-38OVWX17E1For pleasant driving7 Auxiliary Video connector <br />
(RCA) <p></div><script>$(document).on('click', '#a240', function(){
$(this).hide();
$('#b240').height($('#a240').height()-22);
$('#b240').show();
});
$(document).on('click', '#b240', function(){
$(this).hide();
$('#a240').show();
});
$(document).ready(function(){
$('#b240').height($('#a240').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<ul class="actions" style="text-align:center;">
<li><a href="/mitsubishi-shogun-2017-owner-s-manual-in-english/25" class="button">Load next 10 pages</a></li>
</ul>
<div style="text-align: center" class="text-center my-2">
<span class="article-section">
Page:
</span><a href="/mitsubishi-shogun-2017-owner-s-manual-in-english/23">< prev</a> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/">1-10</a> ... <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/20">191-200</a> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/21">201-210</a> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/22">211-220</a> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/23">221-230</a> <strong>231-240</strong> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/25">241-250</a> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/26">251-260</a> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/27">261-270</a> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/28">271-280</a> ... <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/40">400</a> <a class='text-dark' href="/mitsubishi-shogun-2017-owner-s-manual-in-english/25">next ></a></div><div class="clear"></div><form action="/mitsubishi-shogun-2017-owner-s-manual-in-english/" method="get"><span class="byline">Search: <input type="text" pattern=".{3,}" required title="3 characters minimum" name="srch" placeholder="search in this manual" /> <input type="submit" value="search" /> (<a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=ECO+mode'>ECO mode</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=alarm'>alarm</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=roof+rack'>roof rack</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=AUX'>AUX</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=interior+lights'>interior lights</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=parking+sensors'>parking sensors</a>)</span></form>
<span>Trending: <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=airbag'>airbag</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=wheel+alignment'>wheel alignment</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=gas+type'>gas type</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=heating'>heating</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=washer+fluid'>washer fluid</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=mirror'>mirror</a>, <a href='/mitsubishi-shogun-2017-owner-s-manual-in-english/?srch=lock'>lock</a></span>
<form action="/mitsubishi-shogun-2017-owner-s-manual-in-english" method="post"><span class="byline">Jump to page (1-394): <input type="text" value="231" size="4" name="jumpto" /> <input type="submit" value="go" /></span></form> <script>
ga('send', 'event', 'view', 'MITSUBISHI', 'mitsubishi-shogun-2017-owner-s-manual-in-english', {
nonInteraction: true
});</script>
<div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
</section>
</div>
</div>
</div>
</div>
<!-- Footer -->
<div id="footer">
<div class="container">
<br/>
<h2><a href='/b/mitsubishi'>MITSUBISHI Owners Manuals</a></h2>
<div class="row">
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-grandis-2010">2010 MITSUBISHI GRANDIS Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-sport-2013-3-g">2013 MITSUBISHI OUTLANDER SPORT 3.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-lancer-ix-2006">2006 MITSUBISHI LANCER IX Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-2017-3-g">2017 MITSUBISHI OUTLANDER 3.G Owners Manual</a></li>
</ul>
</section>
</div>
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-3000gt-1993-2-g">1993 MITSUBISHI 3000GT 2.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-lancer-2014">2014 MITSUBISHI LANCER Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-carisma-1997">1997 MITSUBISHI CARISMA Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-eclipse-1990">1990 MITSUBISHI ECLIPSE Owners Manual</a></li>
</ul>
</section>
</div>
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-lancer-2013-8-g">2013 MITSUBISHI LANCER 8.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-phev-2018">2018 MITSUBISHI OUTLANDER PHEV Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-mirage-2019">2019 MITSUBISHI MIRAGE Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-sport-2016-3-g">2016 MITSUBISHI OUTLANDER SPORT 3.G Owners Manual</a></li>
</ul>
</section>
</div>
</div>
</div>
</div>
<!-- Copyright -->
<div id="copyright">
<div class="container">
<p>View, print and download for free: MITSUBISHI SHOGUN 2017 Owner's Manual (in English), 394 Pages, PDF Size: 19 MB. Search in MITSUBISHI SHOGUN 2017 Owner's Manual (in English) online. CarManualsOnline.info is the largest online database of car user manuals. MITSUBISHI SHOGUN 2017 Owner's Manual (in English) PDF Download. NOTElPressing again will cancel.
l Selecting a file, ejecting, fast forwarding, or
rewinding will cancel.
Folder Repeat Playback
Hold down the 1RPT key.
</p>
<p>All product names, logos, and brands are property of their respective owners.</p>
<p><a href='/privacy-policy'>Privacy Policy</a> | <a href='/about-us-contact'>About Us & Contact</a></p>
</div>
</div>
<script type="text/javascript">
function chooserbrand() {
$('#brand').prop('disabled', true);
if($('#year')) {
$('#year').prop('disabled', true);
}
if($('#vehicle')) {
$('#vehicle').prop('disabled', true);
}
$.ajax({
url: 'https://www.carmanualsonline.info/chooser.php',
type: 'POST',
data: {
brand: $('#brand').val()
},
success: function(responseText) {
$('#chooser').html(responseText);
}
});
}
function chooser() {
$('#brand').prop('disabled', true);
if($('#year')) {
$('#year').prop('disabled', true);
}
if($('#vehicle')) {
$('#vehicle').prop('disabled', true);
}
$.ajax({
url: 'https://www.carmanualsonline.info/chooser.php',
type: 'POST',
data: {
brand: $('#brand').val(),
year: $('#year').val(),
vehicle: $('#vehicle').val()
},
success: function(responseText) {
$('#chooser').html(responseText);
}
});
}
</script>
<script>
// var style = document.createElement('style');
// style.innerHTML = '#content div,img{'
// +'max-width: 100%;'
// +'display:block;'
// +'height: auto;'
// +'}'
// +'.logotop {'
// +'font-size: 80%;'
// +'display:block;'
// +'height: auto;'
// +'}';
// var ref = document.querySelector('script');
// ref.parentNode.insertBefore(style,ref);
var meta = document.createElement('meta');
meta.name = "viewport";
meta.content = "width=device-width, maximum-scale=5.0, minimum-scale=.25, user-scalable=yes";
document.getElementsByTagName('head')[0].appendChild(meta);
</script>
</body>
</html>
