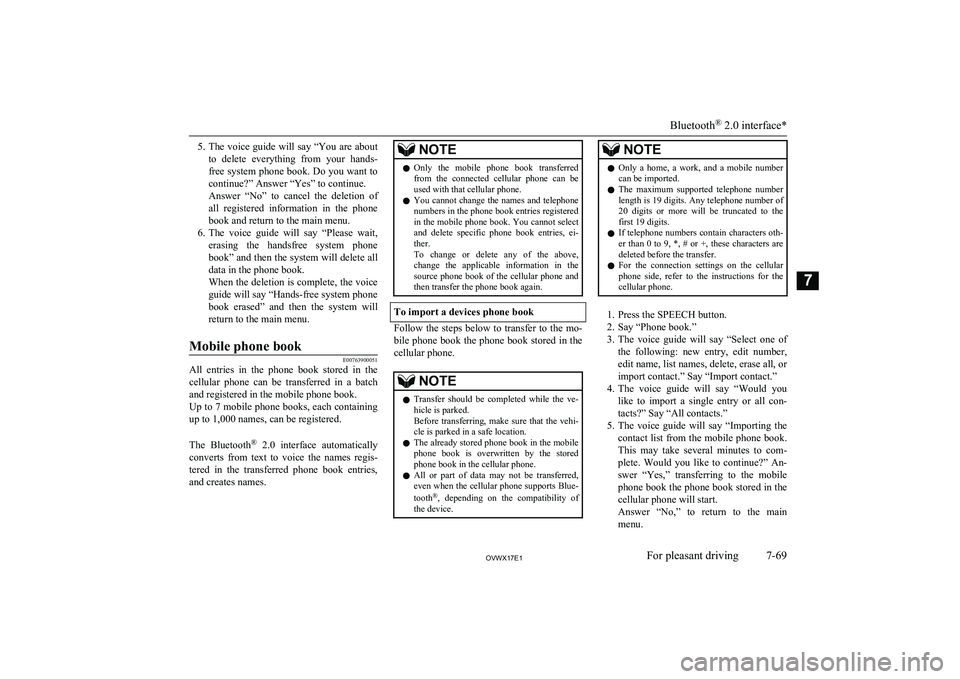

5.The voice guide will say “You are about
to delete everything from your hands-
free system phone book. Do you want to
continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of all registered information in the phone
book and return to the main menu.
6. The voice guide will say “Please wait,
erasing the handsfree system phone book” and then the system will delete all
data in the phone book.
When the deletion is complete, the voice guide will say “Hands-free system phone
book erased” and then the system will
return to the main menu.Mobile phone book
E00763900051
All entries in the phone book stored in the cellular phone can be transferred in a batch
and registered in the mobile phone book.
Up to 7 mobile phone books, each containing
up to 1,000 names, can be registered.

The Bluetooth ®
2.0 interface automatically
converts from text to voice the names regis- tered in the transferred phone book entries,
and creates names.
NOTEl Only the mobile phone book transferred
from the connected cellular phone can be
used with that cellular phone.
l You cannot change the names and telephone
numbers in the phone book entries registered
in the mobile phone book. You cannot select and delete specific phone book entries, ei- ther.
To change or delete any of the above, change the applicable information in the
source phone book of the cellular phone and then transfer the phone book again.
To import a devices phone book
Follow the steps below to transfer to the mo-
bile phone book the phone book stored in the
cellular phone.
NOTEl Transfer should be completed while the ve-
hicle is parked.
Before transferring, make sure that the vehi- cle is parked in a safe location.
l The already stored phone book in the mobile
phone book is overwritten by the storedphone book in the cellular phone.
l All or part of data may not be transferred,
even when the cellular phone supports Blue-
tooth ®
, depending on the compatibility of
the device.NOTEl Only a home, a work, and a mobile number
can be imported.
l The maximum supported telephone number
length is 19 digits. Any telephone number of
20 digits or more will be truncated to the first 19 digits.
l If telephone numbers contain characters oth-
er than 0 to 9, *, # or +, these characters aredeleted before the transfer.
l For the connection settings on the cellular
phone side, refer to the instructions for the
cellular phone.
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Import contact.”
4. The voice guide will say “Would you
like to import a single entry or all con-
tacts?” Say “All contacts.”
5. The voice guide will say “Importing the
contact list from the mobile phone book. This may take several minutes to com-
plete. Would you like to continue?” An- swer “Yes,” transferring to the mobile
phone book the phone book stored in the cellular phone will start.
Answer “No,” to return to the main menu.
Bluetooth ®
2.0 interface*
7-69OVWX17E1For pleasant driving7

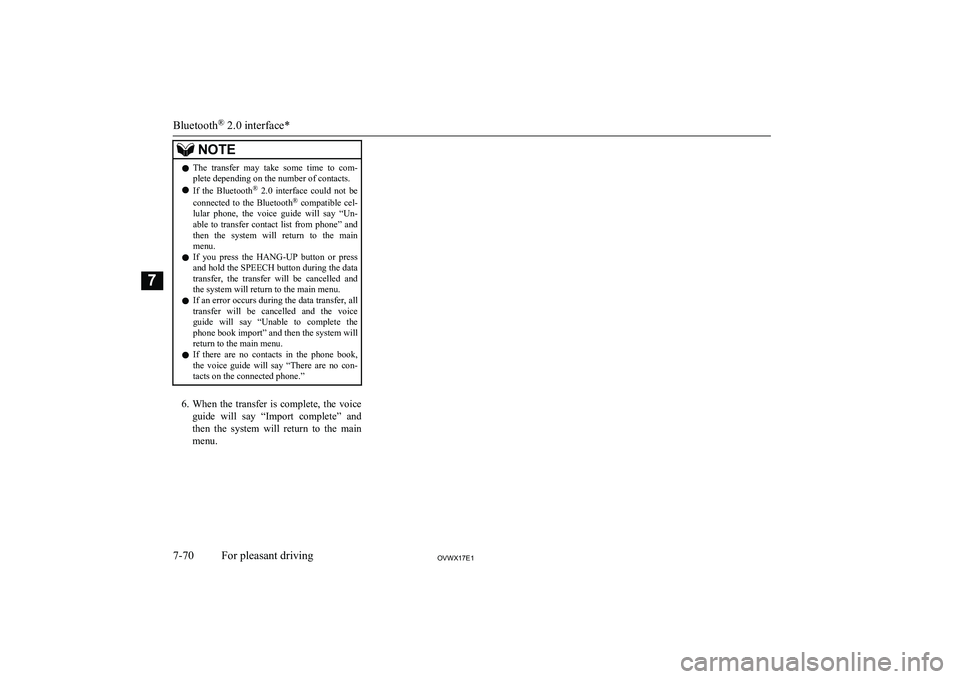

NOTElThe transfer may take some time to com-
plete depending on the number of contacts.
l If the Bluetooth ®
2.0 interface could not be
connected to the Bluetooth ®
compatible cel-
lular phone, the voice guide will say “Un- able to transfer contact list from phone” and
then the system will return to the main menu.
l If you press the
HANG-UP button or press
and hold the SPEECH button during the data
transfer, the transfer will be cancelled and
the system will return to the main menu.
l If an error occurs during the data transfer, all
transfer will be cancelled and the voice
guide will say “Unable to complete the phone book import” and then the system willreturn to the main menu.
l If there are no contacts in the phone book,
the voice guide will say “There are no con- tacts on the connected phone.”
6. When the transfer is complete, the voice
guide will say “Import complete” and then the system will return to the main
menu.
Bluetooth ®
2.0 interface*
7-70OVWX17E1For pleasant driving7

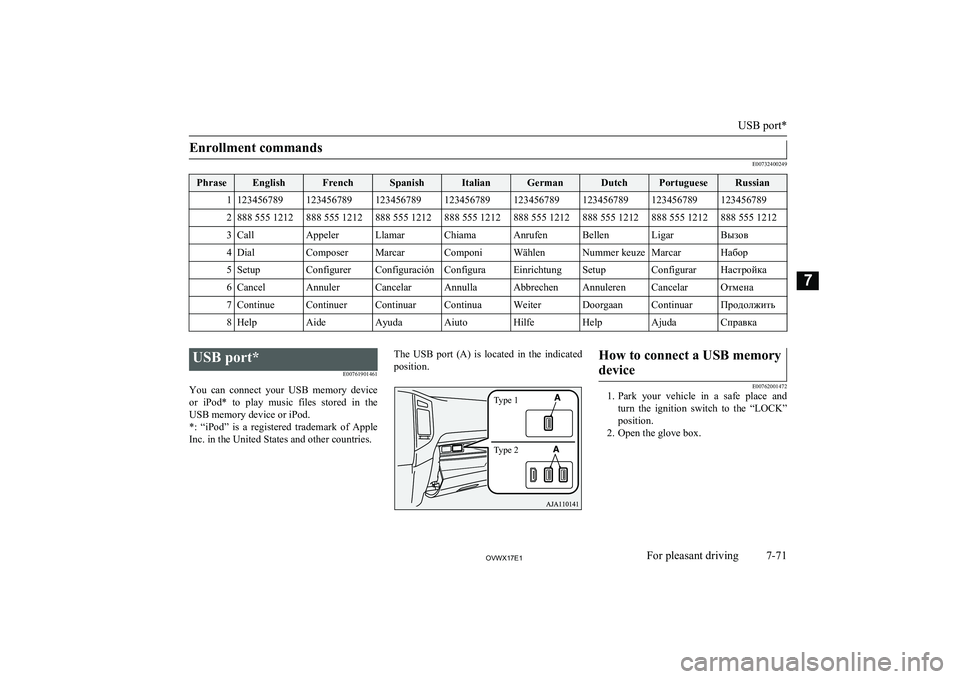

Enrollment commands
E00732400249
PhraseEnglishFrenchSpanishItalianGermanDutchPortugueseRussian11234567891234567891234567891234567891234567891234567891234567891234567892888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 12123CallAppelerLlamarChiamaAnrufenBellenLigarВызов4DialComposerMarcarComponiWählenNummer keuzeMarcarНабор5SetupConfigurerConfiguraciónConfiguraEinrichtungSetupConfigurarНастройка6CancelAnnulerCancelarAnnullaAbbrechenAnnulerenCancelarОтмена7ContinueContinuerContinuarContinuaWeiterDoorgaanContinuarПродолжить8HelpAideAyudaAiutoHilfeHelpAjudaСправка

USB port*E00761901461
You can connect your USB memory device or iPod* to play music files stored in the USB memory device or iPod.
*: “iPod” is a registered trademark of Apple
Inc. in the United States and other countries.The USB port (A) is located in the indicated
position.How to connect a USB memory
device
E00762001472
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position.
2. Open the glove box.USB port*
7-71OVWX17E1For pleasant driving7Type 1
Type 2

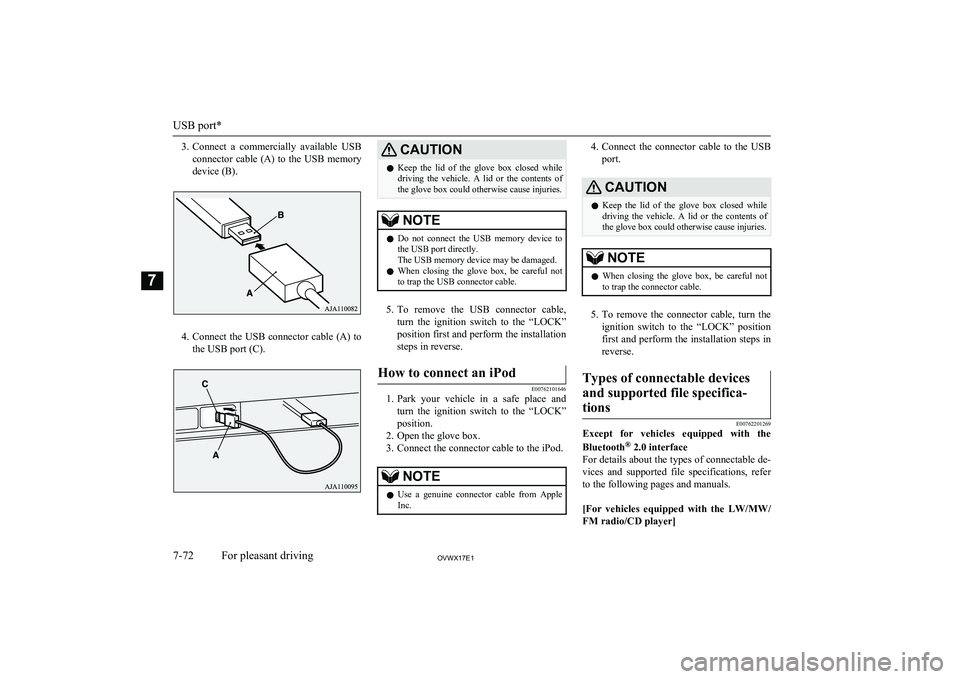

3.Connect a commercially available USB
connector cable (A) to the USB memory
device (B).
4. Connect the USB connector cable (A) to
the USB port (C).
CAUTIONl Keep the lid of the glove box closed while
driving the vehicle. A lid or the contents of the glove box could otherwise cause injuries.NOTEl Do not connect the USB memory device to
the USB port directly.
The USB memory device may be damaged.
l When closing the glove box, be careful not
to trap the USB connector cable.
5. To remove the USB connector cable,
turn the ignition switch to the “LOCK”
position first and perform the installation steps in reverse.
How to connect an iPod
E00762101646
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position.
2. Open the glove box.
3. Connect the connector cable to the iPod.
NOTEl Use a genuine connector cable from Apple
Inc.4. Connect the connector cable to the USB
port.CAUTIONl Keep the lid of the glove box closed while
driving the vehicle. A lid or the contents of
the glove box could otherwise cause injuries.NOTEl When closing the glove box, be careful not
to trap the connector cable.
5. To remove the connector cable, turn the
ignition switch to the “LOCK” position
first and perform the installation steps in reverse.
Types of connectable devices
and supported file specifica-tions
E00762201269
Except for vehicles equipped with the Bluetooth ®
2.0 interface
For details about the types of connectable de- vices and supported file specifications, referto the following pages and manuals.

[For vehicles equipped with the LW/MW/
FM radio/CD player]
USB port*
7-72OVWX17E1For pleasant driving7

Refer to “Listen to an iPod” on page 7-29,
“Listen to Audio Files on a USB Device” on page 7-31 and “Audio Files (MP3/WMA/
AAC)” on page 7-17.

[For vehicles equipped with the DISPLAY AUDIO/Smartphone Link Display Audio]Refer to the separate owner’s manual.
For vehicles equipped with the Bluetooth ®
2.0 interface
For details about the types of connectable de- vices and supported file specifications, referto the following section.Device types
E00762301563
Devices of the following types can be con-
nected.
Model nameConditionUSB memory deviceStorage capacity of
256 Mbytes or moreModels other than
USB memory devi- ces and iPodsDigital audio player
supporting mass stor-
age class
For connectable device type for “iPod*,”
“iPod classic*,” “iPod nano*,” “iPod touch*”
and “iPhone*,” access the MITSUBISHI
MOTORS website.
Please read and agree to the “Warning about
Links to the Web Sites of Other Companies”.
The websites mentioned above may connect you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod- ucts/index.html
*: “iPod,” “iPod classic,” “iPod nano,” “iPod
touch” and “iPhone” are registered trade- marks of Apple Inc. in the United States and
other countries.NOTEl Depending on the type of the USB memory
device or other device connected, the con-
nected device may not function properly or the available functions may be limited.
l It is recommended to use an iPod with firm-
ware updated to the latest version.
l You can charge your iPod by connecting it
to the USB port when the ignition switch is in the “ACC” or “ON” position.
l Do not keep your USB memory device or
iPod in your vehicle.
l It is recommended that you back up files in
case of data damage.NOTEl Do not connect to the USB port any device
(hard disk, card reader, memory reader, etc.)other than the connectable devices specified
in the previous section. The device and/or data may be damaged. If any of these devi-ces was connected by mistake, remove it af-
ter turning the ignition switch to the “LOCK” position.File specifications
E00762401056
You can play music files of the following
specifications that are saved in a USB memo-ry device or other device supporting mass
storage class. When you connect your iPod, playable file specifications depend on the connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVMaximum number of levels (including the root)
Level 8
Number of folders700Number of files65,535
USB port*
7-73OVWX17E1For pleasant driving7

HDMI port*E00771400039
You can connect a commercially available HDMI device such as a video camera and a
smart phone to the HDMI port (A).NOTEl For details, refer to the separate owner’s
manual for Smartphone Link Display Audio.
To connect
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position.
2. Open the glove box.
3. Connect a commercially available
HDMI cable to the HDMI device.
4. Connect the HDMI cable to the HDMI
port in the glove box.
CAUTIONl Keep the lid of the glove box closed while
driving the vehicle. A lid or the contents of the glove box could otherwise cause injuries.NOTEl When closing the glove box, be careful not
to trap the HDMI cable.
5. To remove the HDMI cable, turn the ig-
nition switch to the “LOCK” position first and perform the installation steps in
reverse.
Sun visors
E00711200811
1- To eliminate front glare2- To eliminate side glare
Vanity mirror
E00731900191
Type 1
A vanity mirror is fitted to the back of the sun visor.
Type 2
A vanity mirror is fitted to the back of the sun visor.
HDMI port*
7-74OVWX17E1For pleasant driving7

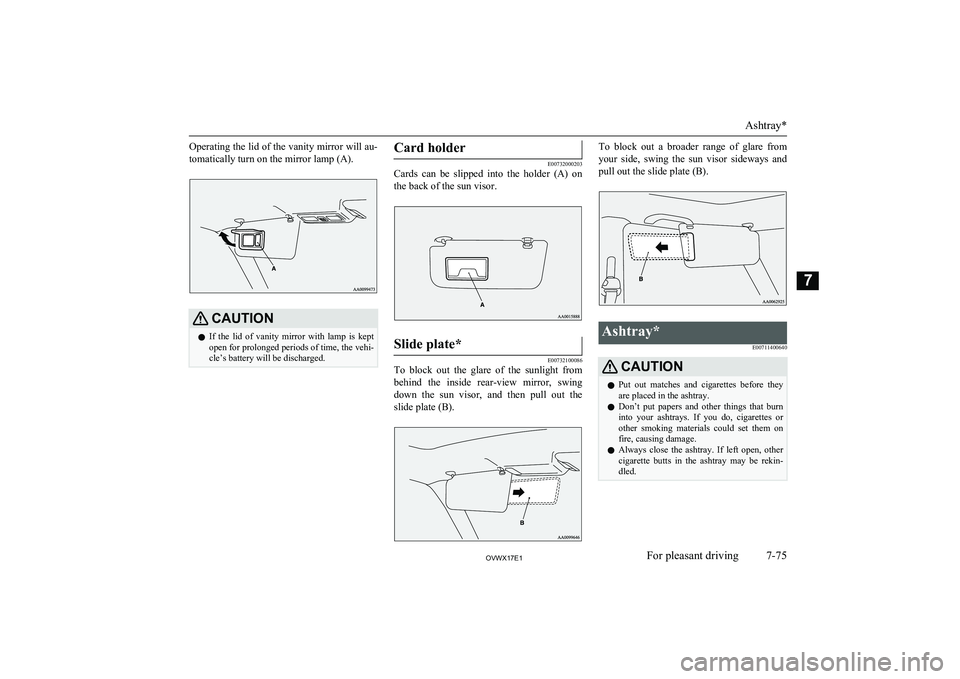

Operating the lid of the vanity mirror will au-tomatically turn on the mirror lamp (A).CAUTIONl If the lid of vanity mirror with lamp is kept
open for prolonged periods of time, the vehi-
cle’s battery will be discharged.Card holder
E00732000203
Cards can be slipped into the holder (A) on
the back of the sun visor.
Slide plate*
E00732100086
To block out the glare of the sunlight from
behind the inside rear-view mirror, swing down the sun visor, and then pull out the
slide plate (B).
To block out a broader range of glare from
your side, swing the sun visor sideways and
pull out the slide plate (B).Ashtray*
E00711400640CAUTIONlPut out matches and cigarettes before they
are placed in the ashtray.
l Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
l Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.
Ashtray*
7-75OVWX17E1For pleasant driving7

To use the ashtray, open the lid.
Mounting position for movea-ble ashtray
There is a mounting position on the front
console box.
NOTEl The moveable ashtray can also be fitted in
the cup holder for the rear seat (3-door mod-
els) and in the cup holder for the third seat (5-door models). Refer to “Cup holder” on
page 7-85.Cigarette lighter*
E00711501042
The cigarette lighter can be used while the ig-nition switch is in the “ON” or “ACC” posi-
tion.
1- Open the lid
2- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEl Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.CAUTIONl Do not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
l Do not allow children to operate or play with
the cigarette lighter as burns may occur.
l Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in. We recommend you to have it checked.
l Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used
the cigarette lighter after damaging the sock- et, the cigarette lighter might pop out or fail
to come out after being pushed in.
l When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance without running the engine may
run down the battery.
Cigarette lighter*
7-76OVWX17E1For pleasant driving7

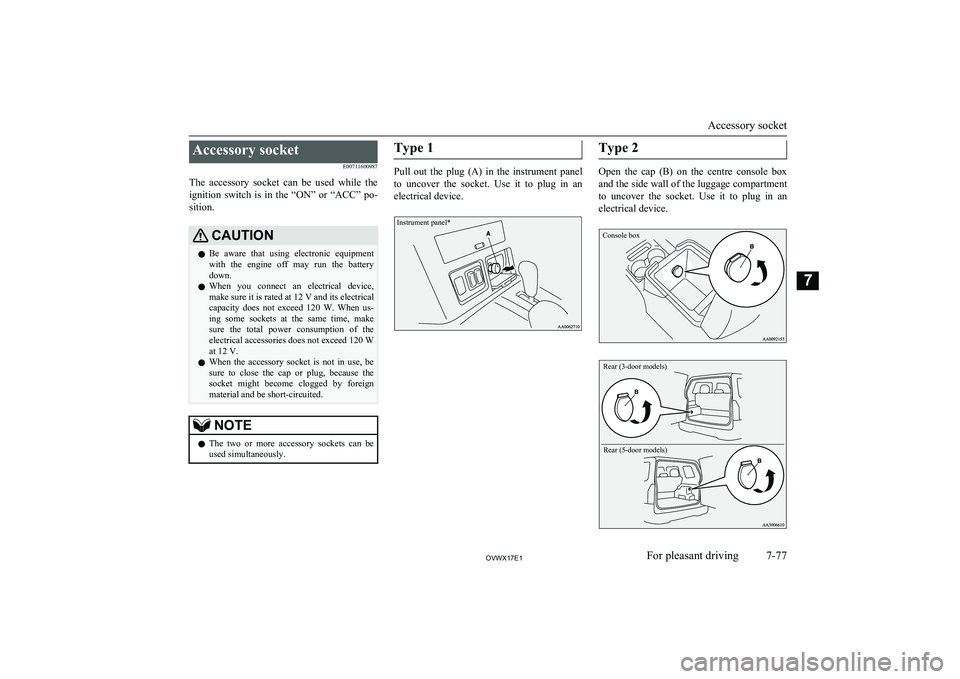

Accessory socketE00711600987
The accessory socket can be used while the ignition switch is in the “ON” or “ACC” po-
sition.CAUTIONl Be aware that using electronic equipment
with the engine off may run the battery down.
l When you connect an electrical device,
make sure it is rated at 12 V and its electrical
capacity does not exceed 120 W. When us-
ing some sockets at the same time, make
sure the total power consumption of the
electrical accessories does not exceed 120 W
at 12 V.
l When the accessory socket is not in use, be
sure to close the cap or plug, because the
socket might become clogged by foreign
material and be short-circuited.NOTEl The two or more accessory sockets can be
used simultaneously.Type 1
Pull out the plug (A) in the instrument panel
to uncover the socket. Use it to plug in an
electrical device.
Instrument panel*Type 2
Open the cap (B) on the centre console box
and the side wall of the luggage compartment to uncover the socket. Use it to plug in an
electrical device.
Console boxRear (3-door models)Rear (5-door models)
Accessory socket
7-77OVWX17E1For pleasant driving7

Interior lampsE00712001015
1- Luggage compartment lamp2- Rear personal lamps
3- Door courtesy lamps
4- Ceiling lamp (Type 1)*
5- Ceiling lamp (Type 2)*
6- Interior lamp switch Room & map lamps
7- Foot lamps*
NOTEl If you leave the interior lamps on without
running the engine, you will run down the battery. Before you leave the vehicle, makesure that all the interior lamps are off.Interior lamp switch
E00717301811
The interior lamp switch can be used to turn
the room & map lamps and rear personal
lamps on and off.
1 () -The room & map lamps and rear
personal lamps go on regardless of opening and closing of the
doors and backdoor.NOTEl The luggage compartment lamp goes on
with the luggage compartment lamp switch
in “
” position, using the interior lamp
switch.
2 (DOOR)
-The room & map lamps and rear
personal lamps go on when any of the doors or the backdoor is
opened. They go off about
15 seconds after all doors and backdoor are closed.
However, the lamps go off im-
mediately without being dim-
med in the following cases:
l The doors and backdoor are
closed and the ignition
switch is turned to the “ON” position.
l All doors and the backdoor
are locked using the central
door lock function or the keyless entry system (if so equipped).NOTEl On vehicles with the keyless entry system, if
the ignition key is removed with the doors
and backdoor closed, the room & map lamps and rear personal lamps are illuminated for
15 seconds and then go off.
The dimming period is also adjustable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Interior lamps
7-78OVWX17E1For pleasant driving7
