MITSUBISHI SHOGUN 2017 Owner's Manual (in English)

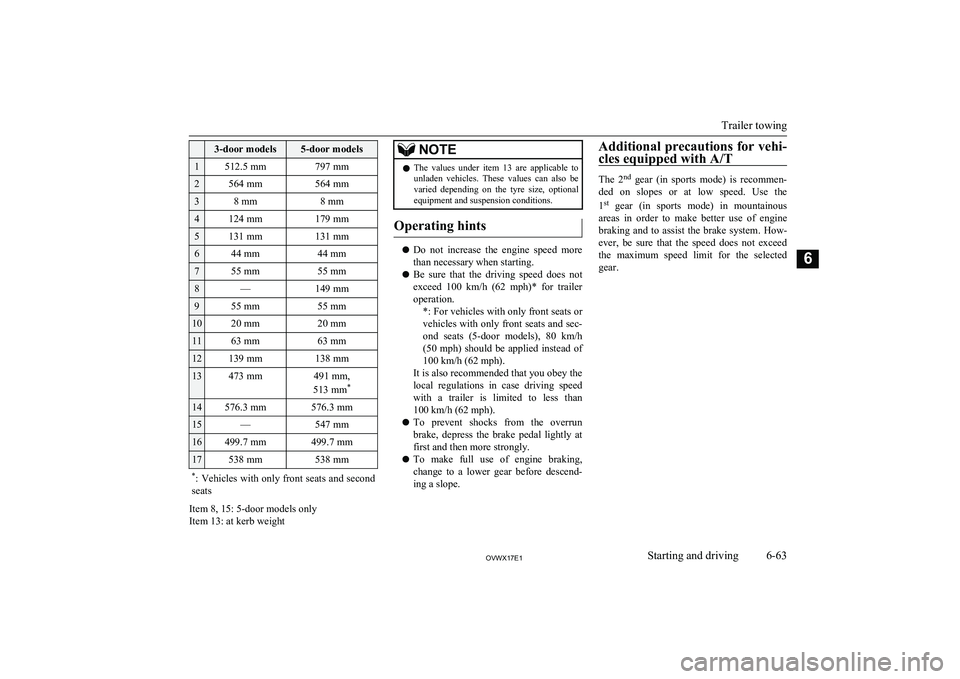

3-door models5-door models1512.5 mm797 mm2564 mm564 mm38 mm8 mm4124 mm179 mm5131 mm131 mm644 mm44 mm755 mm55 mm8—149 mm955 mm55 mm1020 mm20 mm1163 mm63 mm12139 mm138 mm13473 mm491 mm,
513 mm *14576.3 mm576.3 mm15—547 mm16499.7 mm499.7 mm17538 mm538 mm*
: Vehicles with only front seats and second
seats
Item 8, 15: 5-door models only
Item 13: at kerb weight
NOTEl The values under item 13 are applicable to
unladen vehicles. These values can also be
varied depending on the tyre size, optional equipment and suspension conditions.
Operating hints
l Do not increase the engine speed more
than necessary when starting.
l Be sure that the driving speed does not
exceed 100 km/h (62 mph)* for trailer
operation. *: For vehicles with only front seats orvehicles with only front seats and sec-
ond seats (5-door models), 80 km/h
(50 mph) should be applied instead of 100 km/h (62 mph).
It is also recommended that you obey the
local regulations in case driving speed with a trailer is limited to less than
100 km/h (62 mph).
l To prevent shocks from the overrun
brake, depress the brake pedal lightly at first and then more strongly.
l To make full use of engine braking,
change to a lower gear before descend-
ing a slope.
Additional precautions for vehi-
cles equipped with A/T
The 2nd
gear (in sports mode) is recommen-
ded on slopes or at low speed. Use the
1 st
gear (in sports mode) in mountainous
areas in order to make better use of engine braking and to assist the brake system. How-
ever, be sure that the speed does not exceed
the maximum speed limit for the selected
gear.Trailer towing
6-63OVWX17E1Starting and driving6

OVWX17E1

Ventilators........................................................................................... 7-02
Front automatic air conditioning......................................................... 7-03
Rear air conditioning*.........................................................................7-09
Important operation tips for the air conditioning................................ 7-11 Air purifier (with deodorizing function)............................................. 7-11
LW/MW/FM radio/CD player*.......................................................... 7-12
Handling of Discs................................................................................7-16
Audio Files (MP3/WMA/AAC)..........................................................7-17
Important Points on Safety for the Customer......................................7-21
Operation Keys................................................................................... 7-21 Listen to Radio.................................................................................... 7-24Listen to DAB*................................................................................... 7-25
Listen to Traffic Messages.................................................................. 7-27
Listen to CDs...................................................................................... 7-27
Listen to MP3s.................................................................................... 7-28
Listen to an iPod................................................................................. 7-29 Listen to Audio Files on a USB Device.............................................. 7-31To play iPod/USB memory device tracks via voice opera-
tion (vehicles with Bluetooth ®
2.0 interface)................................. 7-34
Listen to Bluetooth Audio*................................................................. 7-36
Use AUX*........................................................................................... 7-38
To listen to a disc in the Video Entertainment System (ve- hicles with Video Entertainment System)...................................... 7-39
Display Indicator................................................................................. 7-40
Audio Quality and Volume Balance Adjustment............................... 7-41
System Settings................................................................................... 7-42
Troubleshooting.................................................................................. 7-47
Antenna............................................................................................... 7-50
Link System*...................................................................................... 7-50Bluetooth ®
2.0 interface*....................................................................7-50
USB port*........................................................................................... 7-71
HDMI port*.........................................................................................7-74 Sun visors............................................................................................ 7-74
Ashtray*.............................................................................................. 7-75 Cigarette lighter*.................................................................................7-76
Accessory socket................................................................................. 7-77
Interior lamps...................................................................................... 7-78 Storage spaces..................................................................................... 7-82
Cup holder........................................................................................... 7-85 Rear shelf (3-door models)*............................................................... 7-86
Cargo area cover (5-door models)*.................................................... 7-86
Convenient hooks (5-door models)*................................................... 7-87
Luggage hooks.................................................................................... 7-88 Coat hooks...........................................................................................7-88
Installation position for warning triangle............................................ 7-88For pleasant driving
OVWX17E17

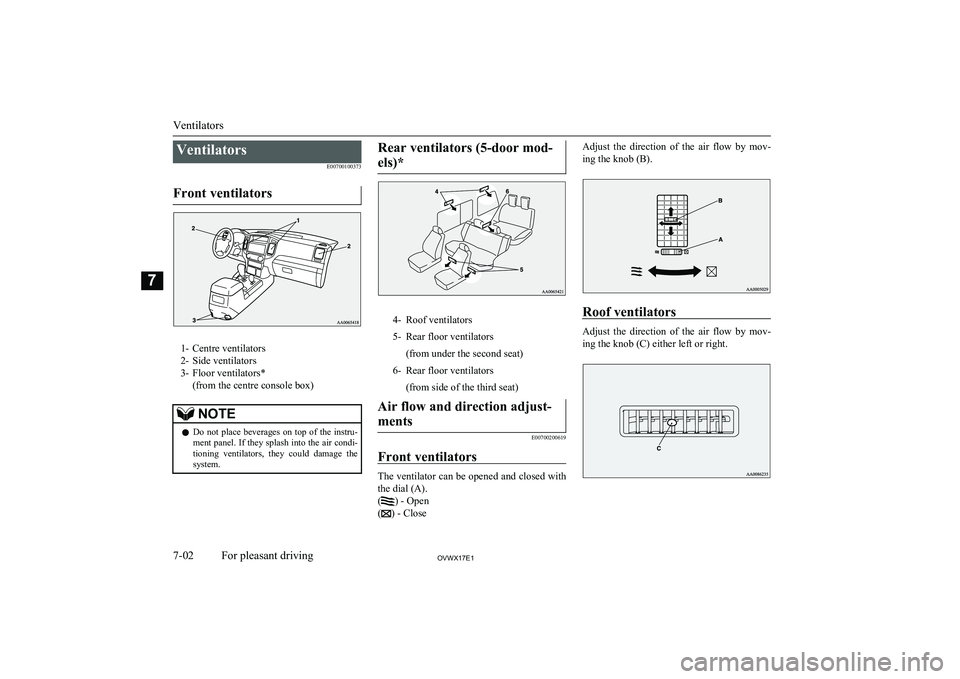

VentilatorsE00700100373
Front ventilators
1- Centre ventilators
2- Side ventilators
3- Floor ventilators* (from the centre console box)
NOTElDo not place beverages on top of the instru-
ment panel. If they splash into the air condi-
tioning ventilators, they could damage the
system.Rear ventilators (5-door mod-
els)*4-Roof ventilators5-Rear floor ventilators (from under the second seat)6-Rear floor ventilators (from side of the third seat)Air flow and direction adjust-ments
E00700200619
Front ventilators
The ventilator can be opened and closed with the dial (A).
(
) - Open
(
) - Close
Adjust the direction of the air flow by mov-
ing the knob (B).
Roof ventilators
Adjust the direction of the air flow by mov-
ing the knob (C) either left or right.
Ventilators
7-02OVWX17E1For pleasant driving7

NOTElThe cool air from the ventilators may appear
as a mist.
This is due to moist air being suddenly
cooled by the air conditioning. This will
clear after a few moments.Front automatic air
conditioning E00702400165
The front air conditioning can only be used
while the engine is running.Control panel
E00702502610
1- Temperature control dial
2- Demister switch
3- MODE switch
4- OFF switch
5- Blower speed selection dial
6- AUTO switch
7- Rear window demister switch ® p. 5-50
8- Air selection switch
9- Rear fan switch* ® p. 7-10
10- Air conditioning switch11- Temperature display
12- Mode selection display
13- Rear blower operation display
14- Front blower speed displayNOTEl There is an interior air temperature sensor
(A) in the illustrated position.
Never place anything on top of the sensor,
since doing so will prevent it from function- ing properly.
Front automatic air conditioning
7-03OVWX17E1For pleasant driving7

NOTEBlower speed selection dial
E00702801384
Select the blower speed by turning the blowerspeed selection dial clockwise or anticlock- wise. The blower speed will gradually in-
crease as the dial is turned to the right.
The selected blower speed will be shown by
the front blower speed display (A).
1- Increase
2- Decrease
Temperature control dial
E00703001729
Turn the temperature control dial clockwise or anticlockwise.
The selected temperature will be shown by
the temperature display (A).NOTEl While the engine coolant temperature is low,
the temperature of the air from the heaterwill be cool/cold until the engine warms up, even if you have selected warm air with the
dial.Air selection switch
E00703400436
To change the air selection, simply press the
air selection switch.
l Outside air: Indication lamp (A) is OFF
Outside air is introduced into the passen- ger compartment.
Front automatic air conditioning
7-04OVWX17E1For pleasant driving7

lRecirculated air: Indication lamp (A) is
ON
Air is recirculated inside the passenger
compartment.CAUTIONl Normally, use the outside position to keep
the windscreen and side windows clear and quickly remove fog or frost from the wind- screen.
If high cooling performance is desired, or if
the outside air is dusty or otherwise contami- nated use the recirculation position.Switch to the outside position periodically to
increase ventilation so that the windows do not become fogged up.
l Use of the recirculation position for exten-
ded time may cause the windows to fog up.NOTEl If you press the AUTO switch to select auto-
matic control after manually switching be-tween outside air and recirculated air, the air selection will also be automatically control- led.AUTO switch
E00702601050
When the AUTO switch is pressed, the oper-
ation indication lamp (A) comes on and the
mode selection, blower speed adjustment, re- circulated/outside air selection, temperature adjustment, and air conditioner ON/OFF sta-
tus are all controlled automatically.
Air conditioning switch
E00703502587
Push the switch to turn the air conditioning
on, indication lamp (A) will come on.
Push the switch again to switch it off.
CAUTIONl When using the air conditioning, the idling
speed may slightly increase as the air condi-
tioning compressor is switched on/off auto- matically. While the vehicle is stationary,
fully depress the brake pedal to prevent the vehicle from creeping.
Front automatic air conditioning
7-05OVWX17E1For pleasant driving7

NOTElIf a problem is detected in the air condition-
ing compressor, the air conditioning opera- tion indication lamp (A) blinks. Stop the ve- hicle in a safe place, turn off the engine, then
restart the engine. If the air conditioning op- eration indication lamp does not blink, thereis no problem. If it does blink, we recom-
mend you to have it checked.
l Sometimes, for example after using a high-
pressure car wash, the condenser can get
wet, and the operation indication lamp (A) blinks temporarily. In this case there is noth-ing wrong. Stop the vehicle in a safe place,
stop the engine, then restart the engine. Once the water evaporates, the blinking will stop.OFF switch
E00702700012
Push the switch to turn off the air condition-
ing system.
MODE switch
E00703300015
Each time the MODE switch is pressed, the
mode changes to the next one in the follow-
ing sequence: “
” → “” → “” →
“
” → “”. The selected mode is shown
by the mode selection display (A). (Refer to
“Changing the front mode selection” on page 7-07.)
Demister switch
E00703900037
When this switch is pressed, the mode
changes to the “
” mode. The indication
lamp (A) will come on. The selected mode is shown by the mode selection display (B).
(Refer to “Changing the front mode selec- tion” on page 7-07.)
NOTEl When the demister switch is pressed, the air
conditioning system automatically operates and outside air (as opposed to recirculated air) is selected.
(Refer to “Demisting of the windscreen and
door windows” on page 7-08.)
Front automatic air conditioning
7-06OVWX17E1For pleasant driving7

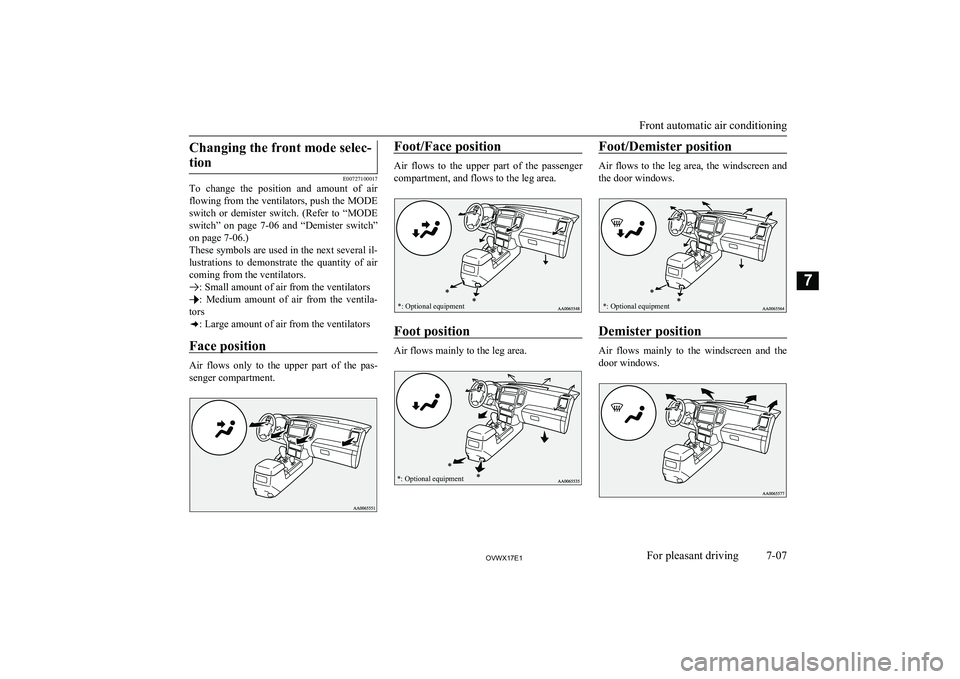

Changing the front mode selec-tion
E00727100017
To change the position and amount of air
flowing from the ventilators, push the MODE
switch or demister switch. (Refer to “MODE
switch” on page 7-06 and “Demister switch”
on page 7-06.)
These symbols are used in the next several il-
lustrations to demonstrate the quantity of air coming from the ventilators.
: Small amount of air from the ventilators
: Medium amount of air from the ventila-
tors
: Large amount of air from the ventilators
Face position
Air flows only to the upper part of the pas-
senger compartment.
Foot/Face position
Air flows to the upper part of the passenger
compartment, and flows to the leg area.
*: Optional equipment
Foot position
Air flows mainly to the leg area.
*: Optional equipmentFoot/Demister position
Air flows to the leg area, the windscreen and
the door windows.
*: Optional equipment
Demister position
Air flows mainly to the windscreen and the door windows.
Front automatic air conditioning
7-07OVWX17E1For pleasant driving7

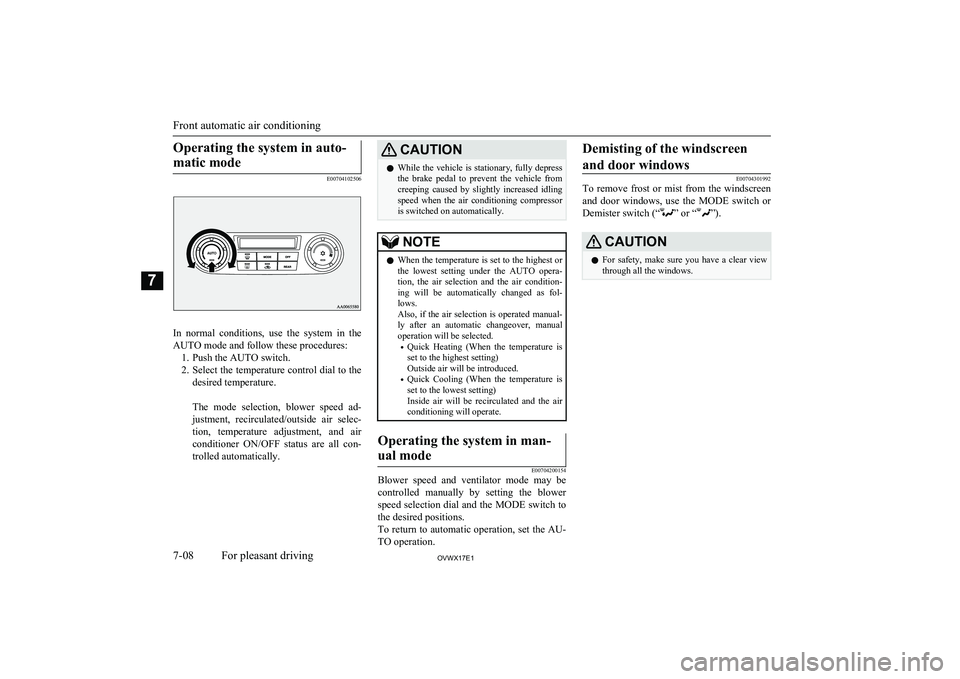

Operating the system in auto-matic mode
E00704102506
In normal conditions, use the system in the
AUTO mode and follow these procedures: 1. Push the AUTO switch.
2. Select the temperature control dial to the
desired temperature.

The mode selection, blower speed ad-
justment, recirculated/outside air selec- tion, temperature adjustment, and air
conditioner ON/OFF status are all con- trolled automatically.
CAUTIONl While the vehicle is stationary, fully depress
the brake pedal to prevent the vehicle from
creeping caused by slightly increased idling
speed when the air conditioning compressor
is switched on automatically.NOTEl When the temperature is set to the highest or
the lowest setting under the AUTO opera-
tion, the air selection and the air condition- ing will be automatically changed as fol-
lows.
Also, if the air selection is operated manual- ly after an automatic changeover, manualoperation will be selected.
• Quick Heating (When the temperature is
set to the highest setting)
Outside air will be introduced.
• Quick Cooling (When the temperature is
set to the lowest setting)
Inside air will be recirculated and the air
conditioning will operate.Operating the system in man-
ual mode
E00704200154
Blower speed and ventilator mode may be
controlled manually by setting the blower speed selection dial and the MODE switch to the desired positions.
To return to automatic operation, set the AU-
TO operation.
Demisting of the windscreen
and door windows
E00704301992
To remove frost or mist from the windscreen
and door windows, use the MODE switch or
Demister switch (“
” or “”).
CAUTIONl For safety, make sure you have a clear view
through all the windows.
Front automatic air conditioning
7-08OVWX17E1For pleasant driving7
