ForewordE09200106777
Thank you for selecting a SHOGUN as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.

MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu- factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.

This owner’s manual has been written in compliance with such laws and reg- ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.

Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.

Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.

Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.WARNING
indicates a strong possibility of severe personal injury or death if in- structions are not followed.
CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE:gives helpful information.*:indicates optional equipment.
It may differ according to the sales classification; refer to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual transmission
A/T: Automatic Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300104338
Fuel
Capacity3-door models69 litres5-door models88 litres
Fuel requirements
Petrol-powered vehiclesUnleaded petrol octane number (EN228)90 RON or higher
If the “PREMIUM FUEL ONLY” label is attached to the fuel tank filler door,
fill it up with premium fuel.
Diesel-powered vehicles Cetane number (EN590)51 or higher
Refer to “General information” section for the fuel selection.Engine oilRefer to the “Maintenance”section for the selection of engine oil.Tyre inflation pressureRefer to the “Maintenance” section for the tyre inflation pressure.
© 2016 Mitsubishi Motors Corporation
17
OVWX17E1
BLO-16-000629

NOTElFrequent crossing of streams can adversely
affect the life span of the vehicle; we recom-mend you to take the necessary measures toprepare, inspect, and repair the vehicle.Inspection and maintenance
following rough roadoperation E00606700048
After operating the vehicle in rough road
conditions, be sure to perform the following inspection and maintenance procedures:
l Check that the vehicle has not been dam-
aged by rocks, gravel, etc.
l Carefully wash the vehicle with water.
After washing, drive the vehicle slowly
while lightly depressing the brake pedal in order to dry out the brakes. If the brakes still do not function properly, we
recommend you to have the brakes
checked as soon as possible
l Remove the insects, dried grass, etc.
clogging the radiator core.
l After crossing a stream, be sure to have
the following items inspected at a
MITSUBISHI MOTORS Authorized
Service Point and take the necessary
measures.
• Check the brake system and, if neces-
sary, have it serviced.
• Check the engine, transmission, trans-
fer, and differential oil or grease level
and turbidity. If the oil or grease is
milky, it indicates water contamina-
tion. Replace it with new oil or grease.
• Grease the propeller shaft.
• Check the inside of the vehicle. If in-
gress of water is found, dry the carpetetc.
• Inspect the headlamps. If the head-
lamp bulb is flooded with water, we
recommend you to have it drained.Cautions on handling of 4-
wheel drive vehicles E00606802144
Tyres and wheels
Since the driving torque can be applied to the
4 wheels, the performance of the vehicle when operating in 4-wheel drive is greatly af- fected by the condition of the tyres.

Pay close attention to the tyres.
l Install specified tyres on all wheels. Re-
fer to “Tyres and wheels” on page
11-11.
l Be sure to fit all 4 tyres and wheels of
the same size and type.
When replacement of any of the tyres or
wheels is necessary, replace all of them.
l All tyres should be rotated whenever the
wear difference between the front and
rear tyres is recognizable.

Good vehicle performance cannot be expec- ted if there is a difference in wear between
tyres. Refer to “Tyre rotation” on page 10-13.
l Check the tyre inflation pressure regular-
ly.
l If the tyre inflation pressure is inappro-
priate, the transfer gear may make some
noise and shock while changing the drive mode.CAUTIONl Always use tyres of the same size, same
type, and same brand, and which have no wear differences. Using tyres which differ in
size, type, brand or the degree of wear will
cause excessive loading, resulting in possi- ble damage to the drive system.
Inspection and maintenance following rough road operation
6-33OVWX17E1Starting and driving6

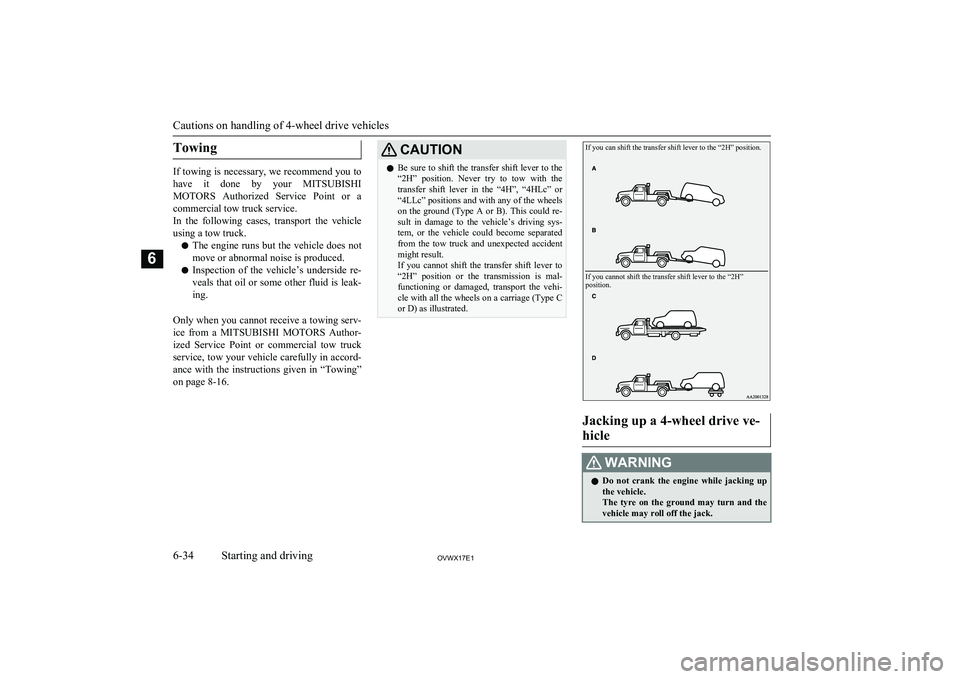

Towing
If towing is necessary, we recommend you tohave it done by your MITSUBISHI
MOTORS Authorized Service Point or a
commercial tow truck service.
In the following cases, transport the vehicle
using a tow truck.
l The engine runs but the vehicle does not
move or abnormal noise is produced.
l Inspection of the vehicle’s underside re-
veals that oil or some other fluid is leak- ing.
Only when you cannot receive a towing serv- ice from a MITSUBISHI MOTORS Author-
ized Service Point or commercial tow truck service, tow your vehicle carefully in accord-
ance with the instructions given in “Towing”
on page 8-16.
CAUTIONl Be sure to shift the transfer shift lever to the
“2H” position. Never try to tow with the transfer shift lever in the “4H”, “4HLc” or
“4LLc” positions and with any of the wheels
on the ground (Type A or B). This could re- sult in damage to the vehicle’s driving sys- tem, or the vehicle could become separated from the tow truck and unexpected accident
might result.
If you cannot shift the transfer shift lever to “2H” position or the transmission is mal-
functioning or damaged, transport the vehi- cle with all the wheels on a carriage (Type C
or D) as illustrated.If you can shift the transfer shift lever to the “2H” position.If you cannot shift the transfer shift lever to the “2H”
position.
Jacking up a 4-wheel drive ve-
hicle
WARNINGl Do not crank the engine while jacking up
the vehicle.
The tyre on the ground may turn and the
vehicle may roll off the jack.
Cautions on handling of 4-wheel drive vehicles
6-34OVWX17E1Starting and driving6

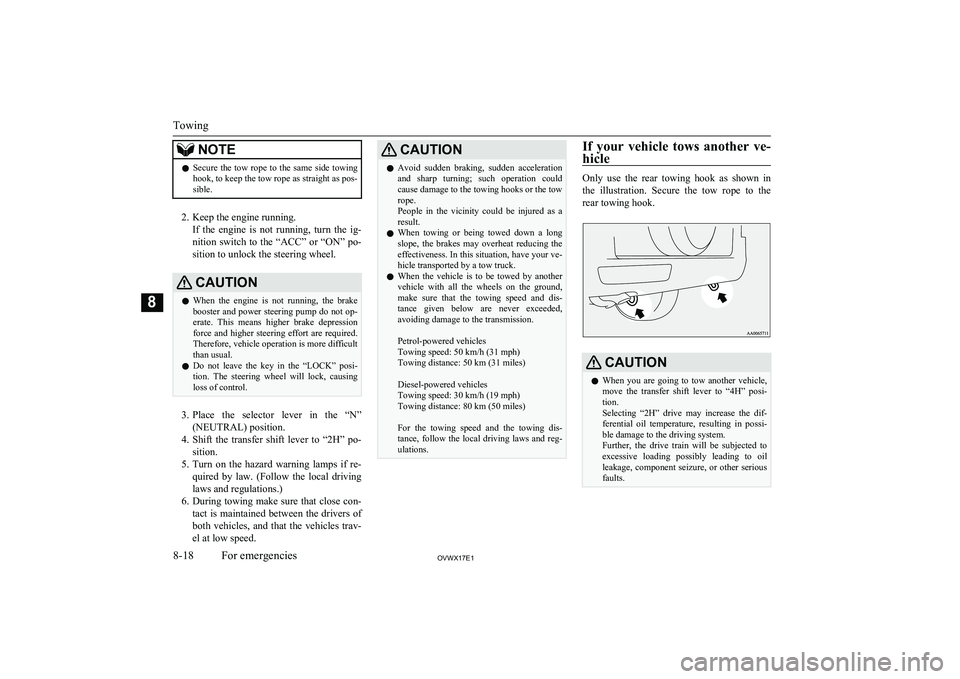

NOTElSecure the tow rope to the same side towing
hook, to keep the tow rope as straight as pos-
sible.
2. Keep the engine running.
If the engine is not running, turn the ig-
nition switch to the “ACC” or “ON” po- sition to unlock the steering wheel.
CAUTIONl When the engine is not running, the brake
booster and power steering pump do not op- erate. This means higher brake depression
force and higher steering effort are required. Therefore, vehicle operation is more difficult
than usual.
l Do not leave the key in the “LOCK” posi-
tion. The steering wheel will lock, causing
loss of control.
3. Place the selector lever in the “N”
(NEUTRAL) position.
4. Shift the transfer shift lever to “2H” po-
sition.
5. Turn on the hazard warning lamps if re-
quired by law. (Follow the local driving
laws and regulations.)
6. During towing make sure that close con-
tact is maintained between the drivers of
both vehicles, and that the vehicles trav- el at low speed.
CAUTIONl Avoid sudden braking, sudden acceleration
and sharp turning; such operation could
cause damage to the towing hooks or the tow
rope.
People in the vicinity could be injured as a
result.
l When towing or being towed down a long
slope, the brakes may overheat reducing the effectiveness. In this situation, have your ve-hicle transported by a tow truck.
l When the vehicle is to be towed by another
vehicle with all the wheels on the ground,make sure that the towing speed and dis-
tance given below are never exceeded,
avoiding damage to the transmission.

Petrol-powered vehicles
Towing speed: 50 km/h (31 mph)
Towing distance: 50 km (31 miles)

Diesel-powered vehicles
Towing speed: 30 km/h (19 mph)
Towing distance: 80 km (50 miles)

For the towing speed and the towing dis- tance, follow the local driving laws and reg- ulations.If your vehicle tows another ve-
hicle
Only use the rear towing hook as shown in
the illustration. Secure the tow rope to the rear towing hook.
CAUTIONl When you are going to tow another vehicle,
move the transfer shift lever to “4H” posi-
tion.
Selecting “2H” drive may increase the dif- ferential oil temperature, resulting in possi-
ble damage to the driving system.
Further, the drive train will be subjected to
excessive loading possibly leading to oil leakage, component seizure, or other serious faults.
Towing
8-18OVWX17E1For emergencies8

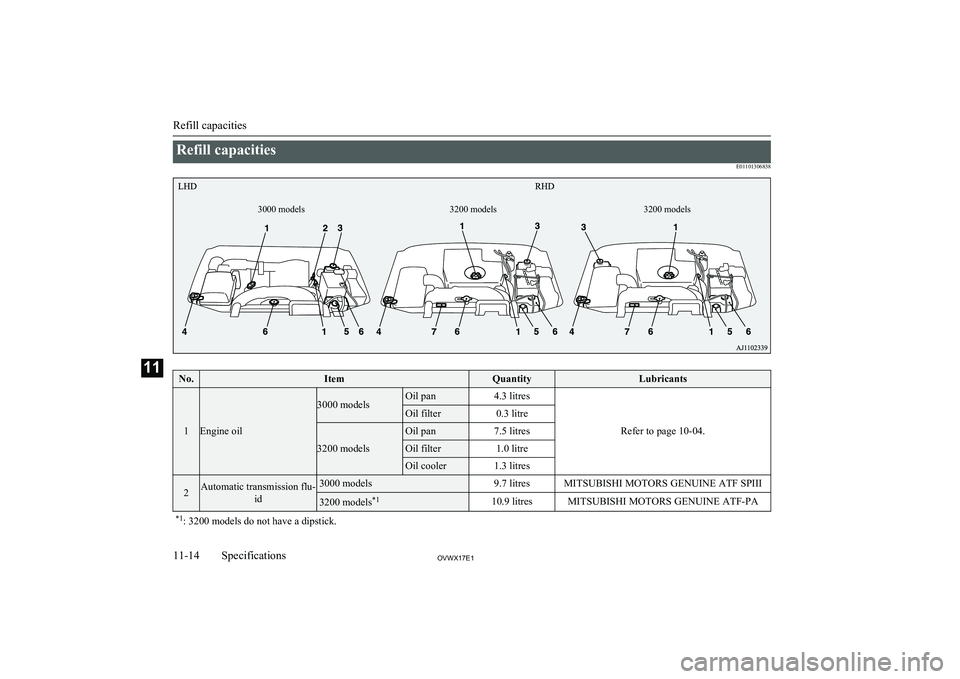

Refill capacitiesE01101306838No.ItemQuantityLubricants
1Engine oil
3000 modelsOil pan4.3 litres
Refer to page 10-04.
Oil filter0.3 litre
3200 models
Oil pan7.5 litresOil filter1.0 litreOil cooler1.3 litres
2Automatic transmission flu-id3000 models9.7 litresMITSUBISHI MOTORS GENUINE ATF SPIII3200 models*110.9 litresMITSUBISHI MOTORS GENUINE ATF-PA*1
: 3200 models do not have a dipstick.
Refill capacities
11-14OVWX17E1Specifications113000 models 3200 models 3200 models

CAUTIONlFor the automatic transmission fluid, use only the MITSUBISHI MOTORS GENUINE ATF.
Use of a different fluid could damage the transmission.No.ItemQuantityLubricants3Brake fluidAs requiredBrake fluid DOT3 or DOT4
4Washer fluid
Front5.1 litres
—Rear *11.4 litres5Power steering fluidAs requiredMITSUBISHI MOTORS GENUINE PSF (Power
Steering Fluid)
6
Engine coolant
(Includes 0.65 litre in the
reserve tank)Without rear air conditioning9.0 litresMITSUBISHI MOTORS GENUINE SUPER LONG LIFE COOLANT or equivalentWith rear air conditioning10.5 litres7Refrigerant
(air conditioning)Without rear air conditioning530 - 570 g
HFC-134a, HFO-1234yf *2
With rear air conditioning850 - 890 g
8Transfer oil2.8 litres
MITSUBISHI MOTORS GENUINE MTF API
classification GL-3 SAE 75W-85 or MITSUBISHI MOTORS GENUINE Multi Gear Oil API classifi- cation GL-4 SAE 75W-859Differential oilFront1.15 litresMITSUBISHI MOTORS GENUINE Super HypoidGear Oil API classification GL-5 SAE 80Rear1.6 litres*1: Rear washer fluid container is located on the backdoor. (Refer to “Rear window washer fluid” on page 10-08.)
*2 : Vehicles equipped with air conditioning refrigerant (HFO-1234yf) label.

Refill capacities
11-15OVWX17E1Specifications11

Diesel preheat indication lamp.......................... 5-09
Digital clock Time Setting.................................................. 7-44
Dimensions...................................................... 11-04
Dipper (High/Low beam change)......................5-36
Door ajar warning lamp.....................................5-12
Door courtesy lamps............................... 7-81,10-25
Bulb capacity.............................................. 10-25
Replacement................................................ 10-31
Doors
Central door locks......................................... 3-07
Child-protection............................................ 3-08
Lock and unlock............................................ 3-06
Driving, alcohol and drugs................................ 6-02
E
Economical driving........................................... 6-02
Electric window control.................................... 3-16 Switch........................................................... 3-16
Timer function.............................................. 3-18
Electrical system............................................. 11-11
Electronic immobilizer (Anti-theft starting system)................................................ 3-03
Emergency starting............................................8-02
Engine Coolant..............................................10-06,11-14MIVEC.......................................................... 6-13
Number....................................................... 11-03
Oil..................................................... 10-04,11-14
Overheating................................................... 8-04
Specifications.............................................. 11-10
Used engine oils safety instructions and disposal information............................. 2-06
Water temperature gauge.............................. 5-06
Exterior and interior lamp operation............... 10-17
F
FluidAutomatic transmission fluid...................... 11-14
Brake fluid........................................ 10-08,11-14
Engine coolant.................................. 10-06,11-14
Power steering fluid.......................... 10-09,11-14
Washer fluid..................................... 10-07,11-14
Fog lamp switch................................................ 5-43
Foot lamps and ceiling lamp............................. 7-80
For cold and snowy weather............................10-17
Front automatic air conditioning....................... 7-03
Front fog lamps Bulb capacity.............................................. 10-23
Indication lamp............................................. 5-09
Replacement................................................ 10-27
Switch........................................................... 5-43
Front passenger’s airbag OFF indication lamp. 4-40
Front seats......................................................... 4-05
Front turn-signal lamps Bulb capacity.............................................. 10-23
Replacement................................................ 10-26
Fuel consumption............................................ 11-12
Fuel
Filling the fuel tank....................................... 2-03Fuel filter indication lamp............................. 5-10
Fuel gauge..................................................... 5-05 Fuel selection................................................ 2-02
Low fuel warning lamp................................. 5-06
Modification/alterations to the electrical or fuel systems............................. 2-05
Tank capacity................................................ 2-03
Fuses................................................................ 10-18
Fusible links.................................................... 10-18
G
Gauges.......................................................5-02,5-08
General maintenance....................................... 10-17
General vehicle data........................................ 11-04
Genuine parts.....................................................2-05
Glove box.......................................................... 7-82
Glove box lamp Bulb capacity.............................................. 10-25
Replacement................................................ 10-32
H
Hazard warning flasher switch.......................... 5-42
Hazard warning indication lamps......................5-09
HDMI port......................................................... 7-74
Head restraints................................................... 4-12
Headlamp levelling........................................... 5-40
Headlamp washer switch...................................5-48
Headlamps Bulb capacity.............................................. 10-23
Headlamp flasher.......................................... 5-39 Replacement................................................ 10-25
Switch........................................................... 5-34
Heated mirror.................................................... 6-10
Heated seats....................................................... 4-09
High-beam indication lamp............................... 5-09
High-mounted stop lamp (bulb type) Bulb capacity.............................................. 10-23
Replacement................................................ 10-29
Hinges and latches lubrication........................ 10-17
Alphabetical index
12- 2 OVWX17E1Alphabetical index

Transfer oil...................................................... 11-14
Transmission Automatic transmission................................ 6-15
Tripmeter........................................................... 5-02
Turn-signal indication lamps.............................5-09
Turn-signal lever............................................... 5-42
Tyre pressure monitoring system...................... 6-48
Tyres................................................................ 10-11 How to change a tyre.................................... 8-09
Inflation pressures....................................... 10-11
Rotation....................................................... 10-13
Size (tyre and wheel).................................. 11-11
Snow tyres................................................... 10-14
Spare wheel information............................... 8-10
Tyre chains.................................................. 10-14
U
USB port............................................................7-71
Used engine oils safety instructions and disposal information..................................2-06
V
Vanity mirror..................................................... 7-74
Vanity mirror lamps
Bulb capacity.............................................. 10-25
Replacement................................................ 10-32
Vehicle care precautions................................... 9-02
Vehicle dimensions......................................... 11-04
Vehicle identification number......................... 11-02
Vehicle identification number plate................ 11-02
Vehicle information code plate....................... 11-02
Vehicle labeling...............................................11-02
Vehicle performance....................................... 11-06
Vehicle weight.................................................11-06
Ventilators......................................................... 7-02
W
Warning lamps.................................................. 5-10
Washer Fluid.................................................. 10-07,11-14
Switch........................................... 5-41,5-44,5-48
Washing.............................................................9-03
Water temperature gauge.................................. 5-06
Waxing.............................................................. 9-04
Weatherstripping............................................. 10-17
Weight............................................................. 11-06
Wheel condition.............................................. 10-12
Wheel Specification............................................... 11-11
Wiper de-icer switch......................................... 5-49
Wiper Rear window................................................. 5-48Switch........................................................... 5-44 Wiper blades............................................... 10-15
Alphabetical index
12- 5
OVWX17E1Alphabetical index
