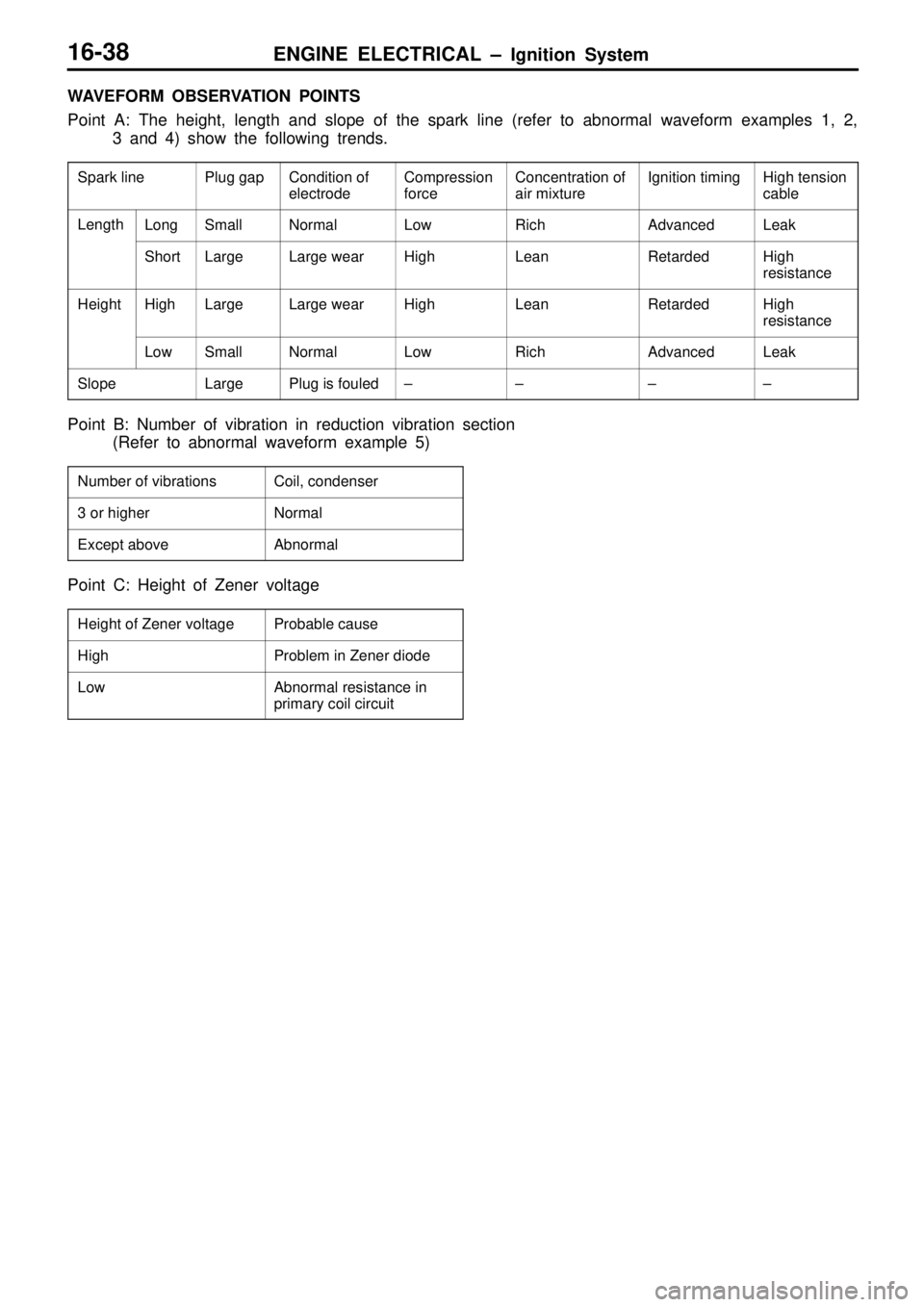

ENGINE ELECTRICAL ± Ignition System16-38
WAVEFORM OBSERVATION POINTS
Point A: The height, length and slope of the spark line (refer to abnormal waveform examples 1, 2,
3 and 4) show the following trends.
Spark linePlug gapCondition of
electrodeCompression
forceConcentration of
air mixtureIgnition timingHigh tension
cable
LengthLongSmallNormalLowRichAdvancedLeak
ShortLargeLarge wearHighLeanRetardedHigh
resistance
HeightHighLargeLarge wearHighLeanRetardedHigh
resistance
LowSmallNormalLowRichAdvancedLeak
SlopeLargePlug is fouled±±±±
Point B: Number of vibration in reduction vibration section
(Refer to abnormal waveform example 5)
Number of vibrationsCoil, condenser
3 or higherNormal
Except aboveAbnormal
Point C: Height of Zener voltage
Height of Zener voltageProbable cause
HighProblem in Zener diode
LowAbnormal resistance in
primary coil circuit

BASIC BRAKE SYSTEM ± General Information35A-3
GENERAL INFORMATION35100010120
The brake system has high reliability and durability
which maintains excellent braking performance and
braking feeling. The main features are as follows.

A dual type master cylinder is equipped in all
models.

Both a single type and a tandem type brake
booster have been adopted.
The following type of brake have been adopted.
Front: Floating caliper, 2-piston, ventilated disc
brakes (V4-W43, V5-W43) or floating caliper,
1-piston, ventilated disc brakes (V4-S60,
V5-S60)
Rear: Leading-trailing type drum brake.
Items2WD
vehicles>2WD
vehicles>4WD
vehicles>4WD
vehicles>
Master cylinder I.D. mm23.823.823.823.8
Brake booster effective dia.
of power cylinder mm230
205 + 230*230
180 + 205*205 + 230180 + 205
Brake booster boosting ratio5.05.07.07.0
Load sensing proportioning
valve decompression ratio0.150.150.150.15
Front brake disc effective
dia. mm200200222
228*222
228*
Front brake wheel cylinder
I.D. mm60.3
42.9*60.3
42.9*60.3
42.9*60.3
42.9*
Rear drum brake drum I.D.
mm254254270270
Rear drum brake wheel
cylinder I.D. mm23.823.823.823.8
Rear drum brake lining
thickness mm4.74.74.74.7
NOTE
*: Vehicles with ABS.
