GENERAL ± Precautions Before Service00-28

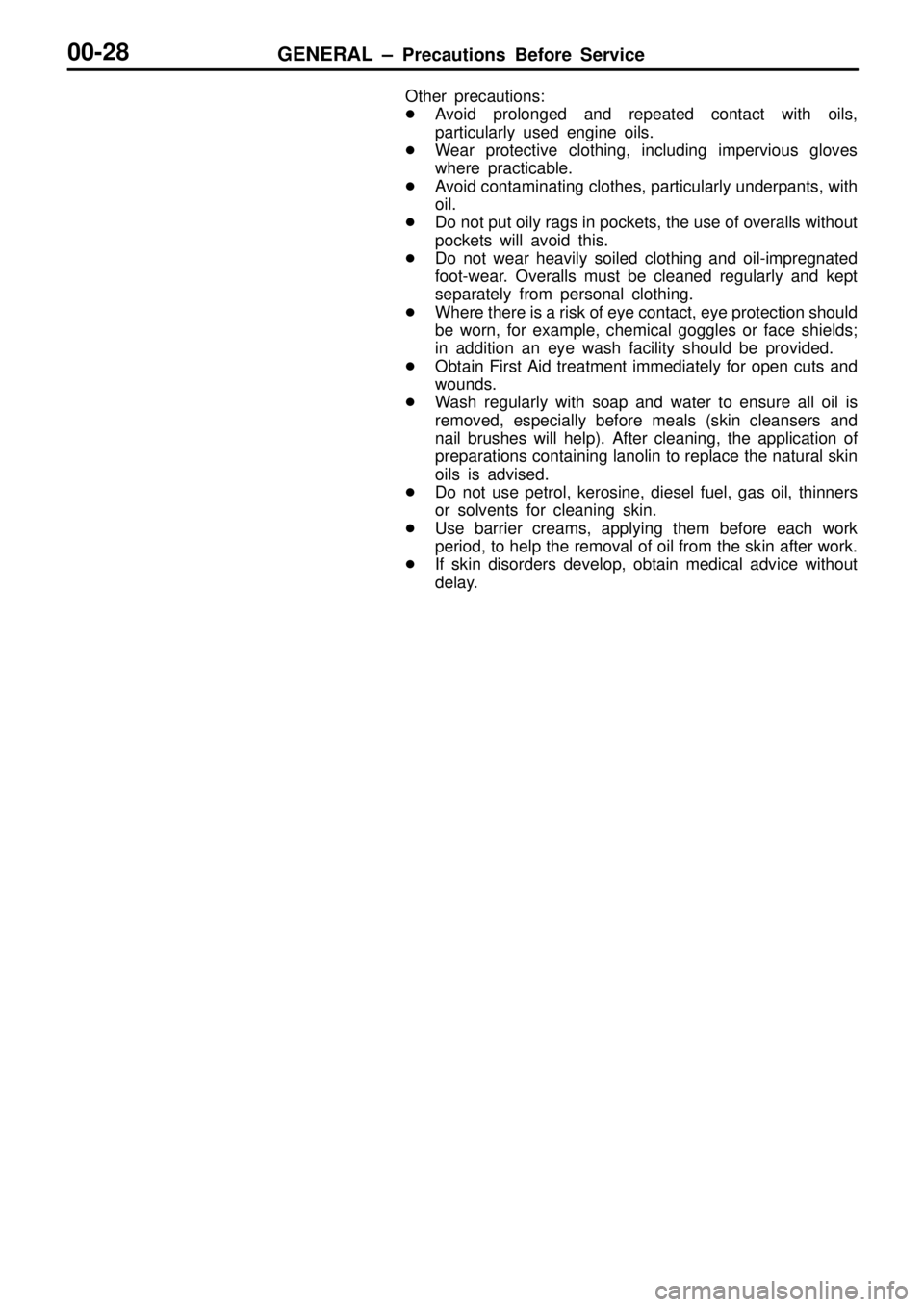

Other precautions:

Avoid prolonged and repeated contact with oils,
particularly used engine oils.

Wear protective clothing, including impervious gloves
where practicable.

Avoid contaminating clothes, particularly underpants, with
oil.

Do not put oily rags in pockets, the use of overalls without
pockets will avoid this.

Do not wear heavily soiled clothing and oil-impregnated
foot-wear. Overalls must be cleaned regularly and kept
separately from personal clothing.

Where there is a risk of eye contact, eye protection should
be worn, for example, chemical goggles or face shields;
in addition an eye wash facility should be provided.

Obtain First Aid treatment immediately for open cuts and
wounds.

Wash regularly with soap and water to ensure all oil is
removed, especially before meals (skin cleansers and
nail brushes will help). After cleaning, the application of
preparations containing lanolin to replace the natural skin
oils is advised.

Do not use petrol, kerosine, diesel fuel, gas oil, thinners
or solvents for cleaning skin.

Use barrier creams, applying them before each work
period, to help the removal of oil from the skin after work.

If skin disorders develop, obtain medical advice without
delay.

S

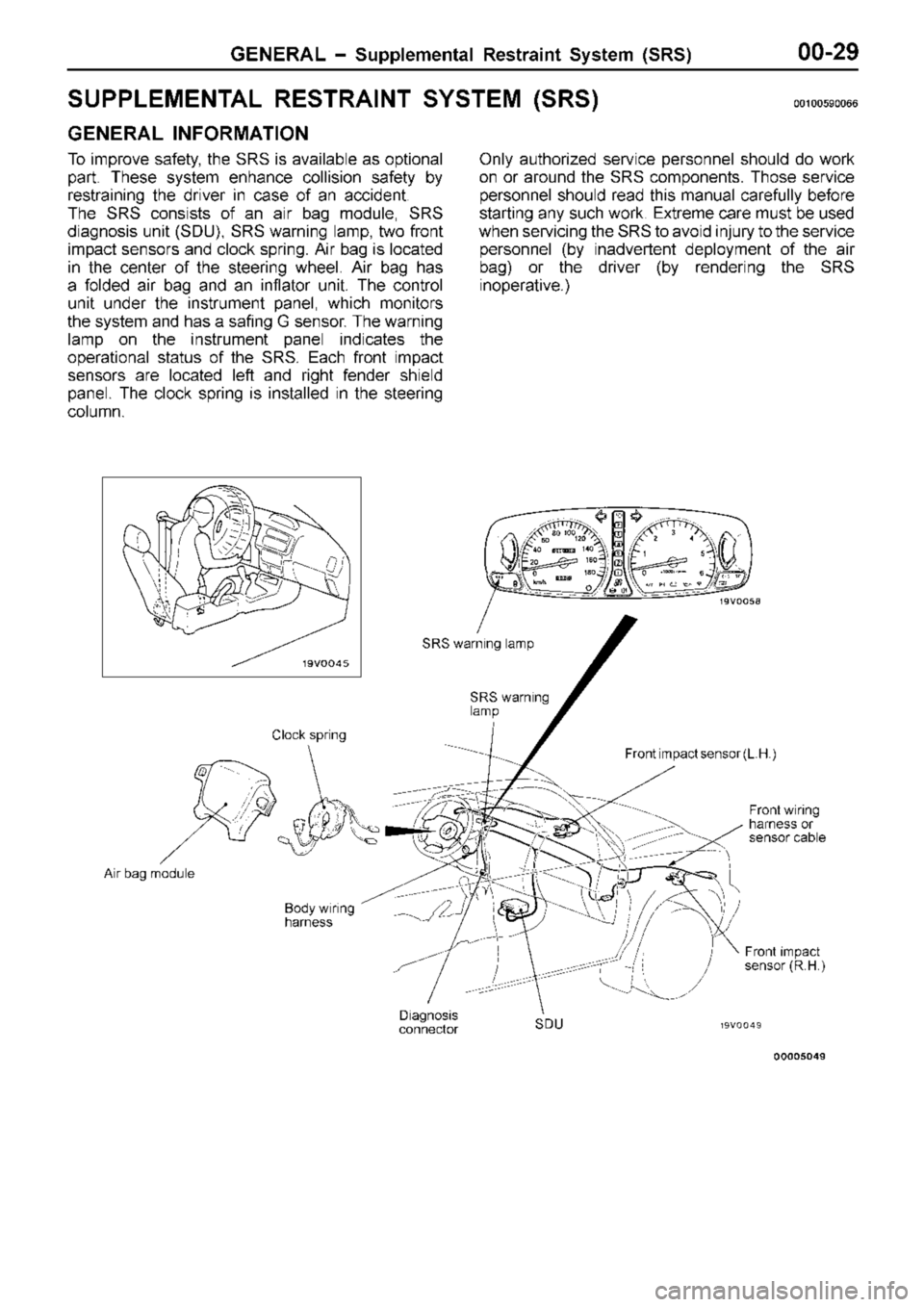

U PPLE M EN TA L R ESTR AIN T S YSTE M ( S R S) 00100590066
G EN ER AL IN FO RM ATIO N
T o im pro ve s a fe ty , th e S R S is a va ila ble a s o ptio nal
p art. T hese s yste m e nhance c o llis io n s a fe ty b y
r e str a in in g th e d riv e r in c a se o f a n a ccid ent.
T he S R S c o nsis ts o f a n a ir b ag m odule , S R S
d ia gnosis u nit ( S D U), S R S w arn in g la m p, tw o fr o nt
i m pact s e nso rs a nd c lo ck s p rin g. A ir b ag is lo ca te d
i n th e c e nte r o f th e s te erin g w heel. A ir b ag h as
a fo ld ed a ir b ag a nd a n in fla to r u nit . T he c o ntr o l
u nit u nder th e in str u m ent p anel, w hic h m onit o rs
t h e s yste m a nd h as a s a fin g G s e nso r. T he w arn in g
l a m p o n th e in str u m ent p anel in dic a te s th e
o pera tio nal s ta tu s o f th e S R S. E ach fr o nt im pact
s e nso rs a re lo ca te d le ft a nd r ig ht fe nder s h ie ld
p anel. T he c lo ck s p rin g is in sta lle d in th e s te erin g
c o lu m n. O
nly a uth oriz e d s e rv ic e p ers o nnel s h ould d o w ork
o n o r a ro und th e S R S c o m ponents . T hose s e rv ic e
p ers o nnel s h ould r e ad th is m anual c a re fu lly b efo re
s ta rtin g a ny s u ch w ork . E xtr e m e c a re m ust b e u se d
w hen s e rv ic in g th e S R S to a vo id in ju ry to th e s e rv ic e
p ers o nnel ( b y in adve rte nt d eplo ym ent o f th e a ir
b ag) o r th e d riv e r ( b y r e nderin g th e S R S
i n opera tiv e .) S
R S w arn in g la m p A
ir b ag m odule C
lo ck s p rin g B
ody w ir in g
h arn ess F
ro nt w ir in g
h arn ess o r
s e nso r c a ble F
ro nt im pact s e nso r ( L .H .) D
ia gnosis
c o nnecto r S
D U F
ro nt im pact
s e nso r ( R .H .)

L
ock le ve r L
ock s p rin g T
o c lo ck s p rin g T
o b ody w ir in g
h arn ess

GENERAL ± Supplemental Restraint System (SRS)00-31
Harness connector
(No. of terminals,
colour)SDU
terminal
No.Destination of harnessCorrective action
2 pins, red1, 2Body wiring harness
Clock springReplace clock spring
±3, 4±±
±5, 6±±
14 pins, red7, 8±±
9Body wiring harness
Diagnosis connectorCorrect or replace each
wiring harness
10Body wiring harness
Front wiring harness

Ignition switch (ST)
wiring harness
11Body wiring harness
Junction block (fuse No. 11)
12Body wiring harness
Junction block (fuse No. 10)
13Body wiring harness
Combination meter (SRS
warning lamp)
14±±
15Body wiring harness
Front wiring harness

Front impact sensor (+) (R.H.)Sensor cable* installa-
tion procedures
(Refer to GROUP 52B )16Body wiring harness
Front wiring harness

Front impact sensor (+) (L.H.)(Refer to GROUP 52B.)
17Body wiring harness
Front wiring harness

Front impact sensor (±) (L.H.)
18Body wiring harness
Front wiring harness

Front impact sensor (±) (R.H.)
19, 20Body wiring harness
EarthCorrect or replace each
wiring harness
NOTE
The sensor cable marked with * is available as service part.
7. SRS components should not be subjected to heat over 93
C, so remove the SRS-diagnosis unit,
air bag module, clock spring and front impact sensors before drying or braking the vehicle after painting.
8. Whenever you finish servicing the SRS, check warning lamp operation to make sure that the system
functions properly. (Refer to GROUP 52B ± SRS Maintenance.)
9. Make certain that the ignition switch is OFF when the MUT-II is connected or disconnected.
10. If you have any questions about the SRS, please contact your local distributor.
NOTE
SERIOUS INJURY CAN RESULT FROM UNINTENDED AIR BAG DEPLOYMENT, SO USE ONLY
THE PROCEDURES AND EQUIPMENT SPECIFIED IN THIS MANUAL.

S

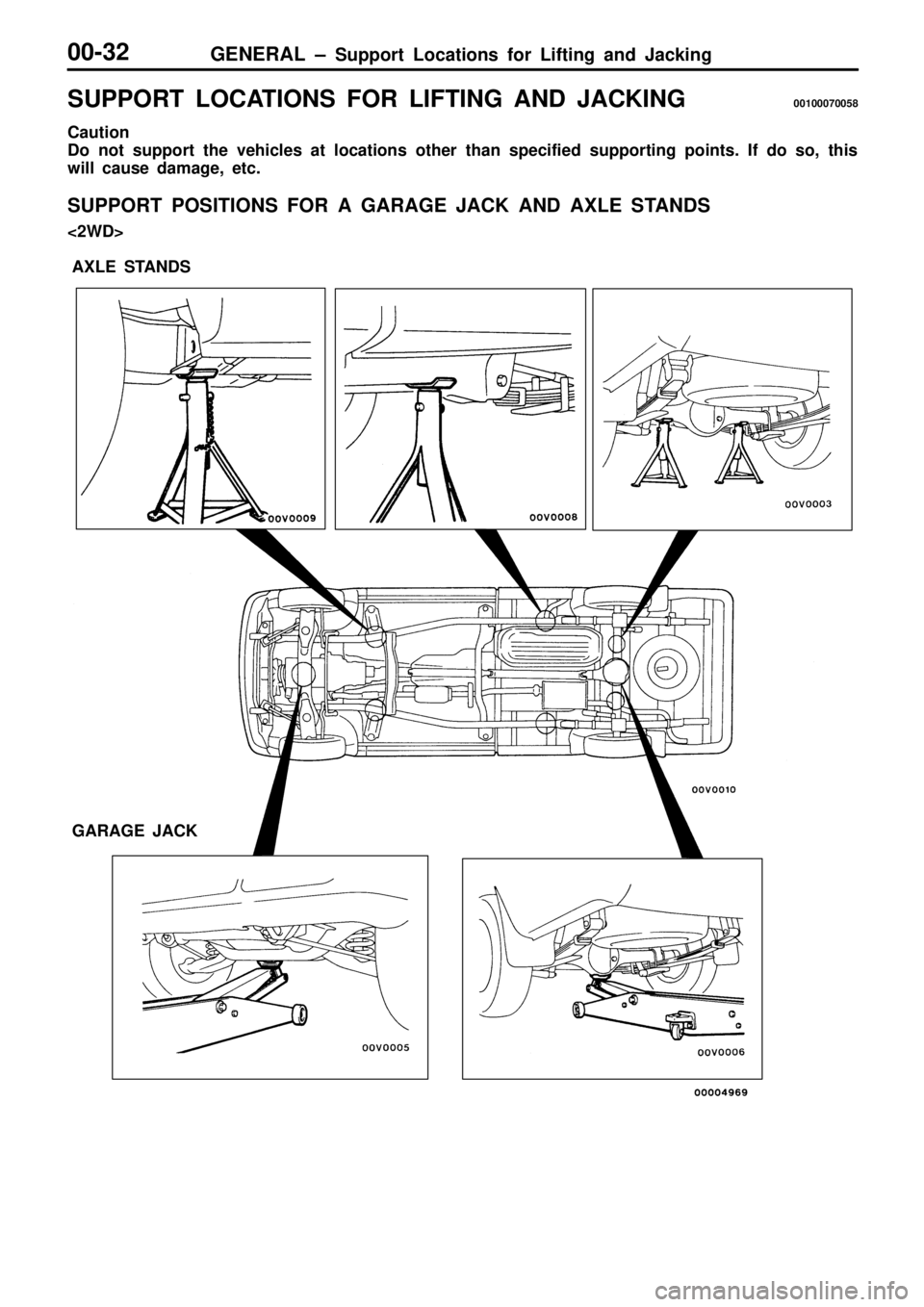

U PPO RT L O CATIO NS F O R L IF TIN G A ND J A CKIN G 00100070058
C au tio n
D o n ot s u pport t h e v eh ic le s a t lo catio ns o th er t h an s p ecif ie d s u pportin g p oin ts . If d o s o , t h is
w ill c au se d am ag e, e tc .
S U PPO RT P O SIT IO NS F O R A G ARAG E J A CK A ND A XLE S TA NDS
< 2W D> A
XLE S TA NDS
G ARAG E J A CK

A
XLE S TA NDS
G ARAG E J A CK

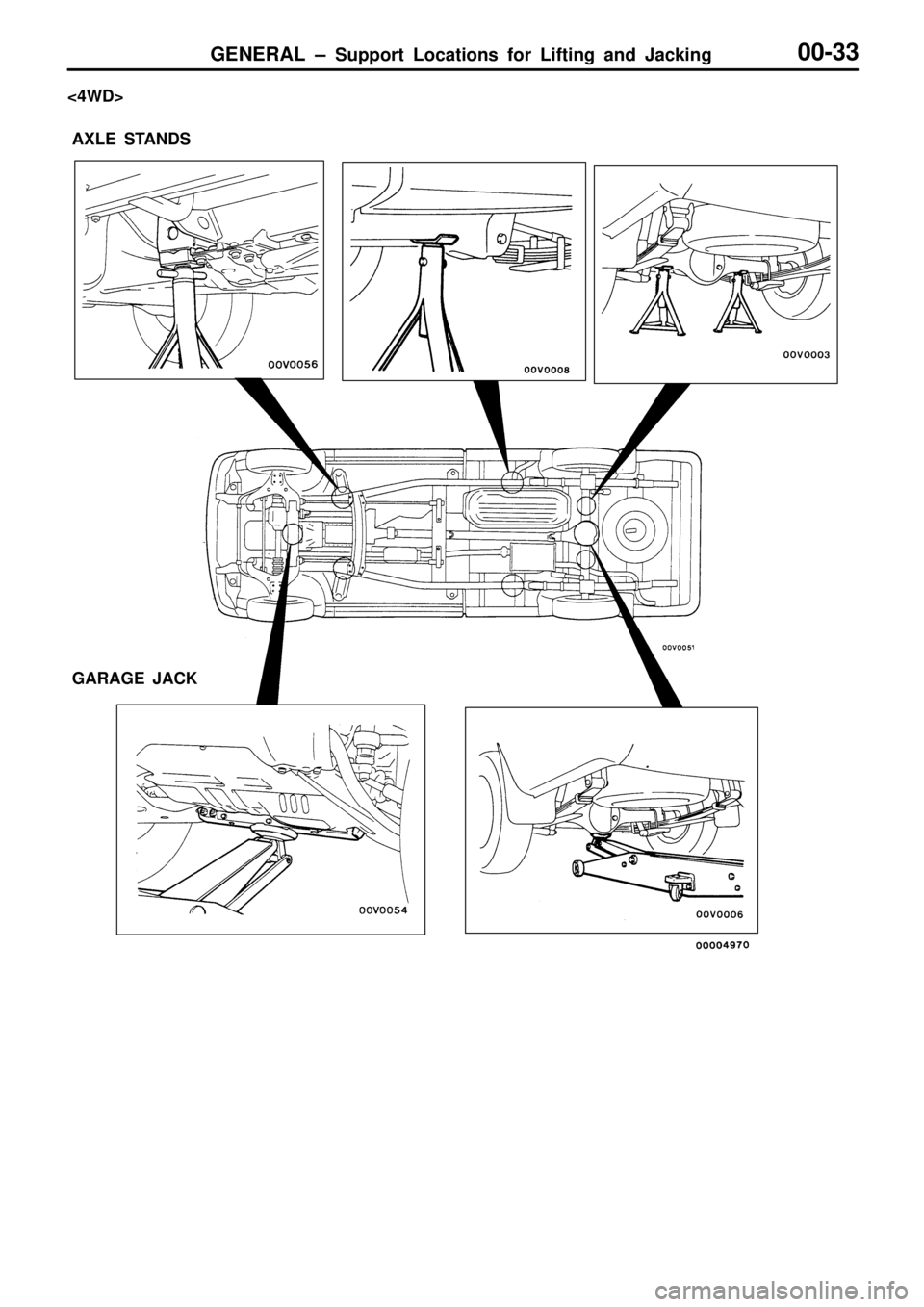

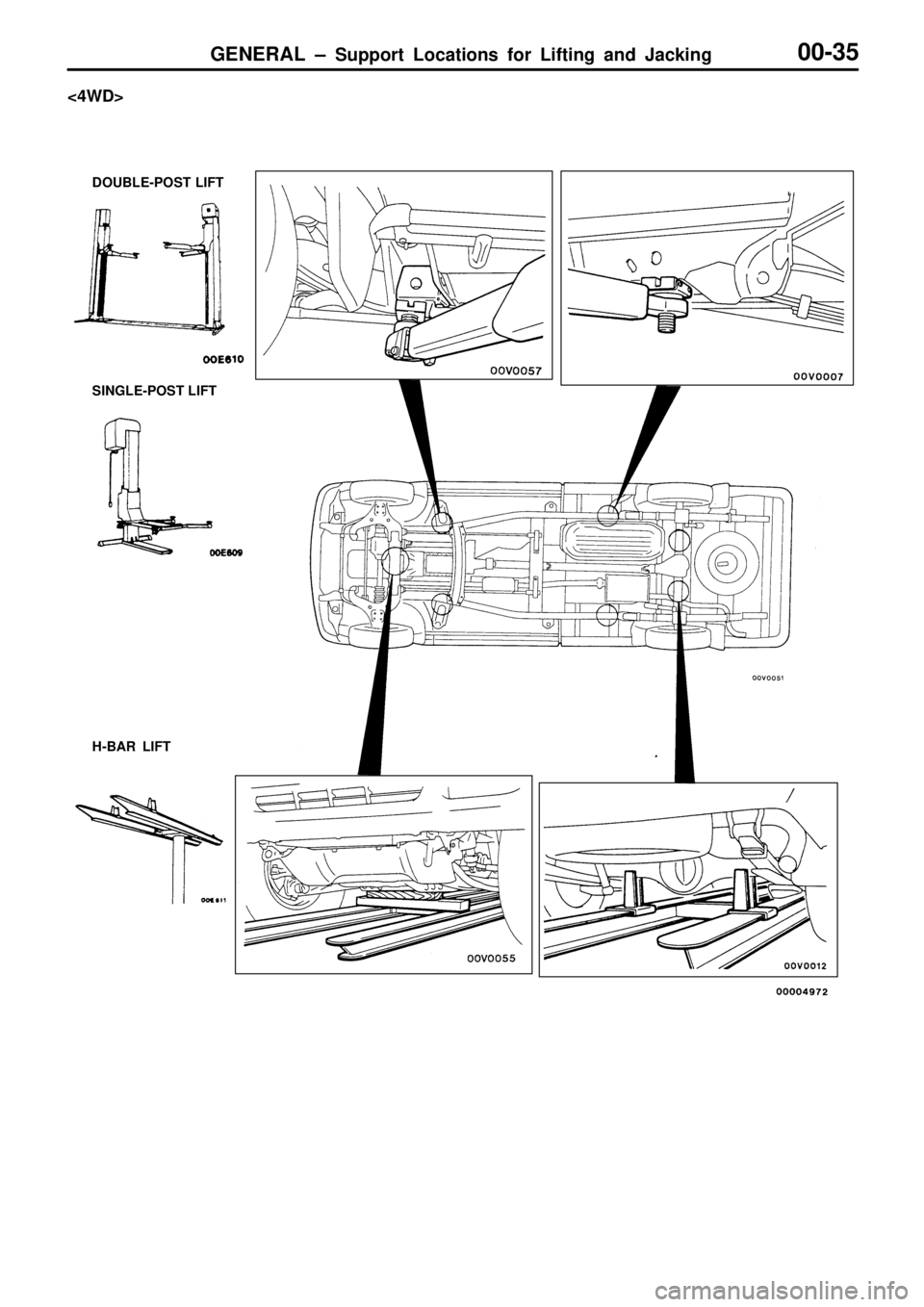

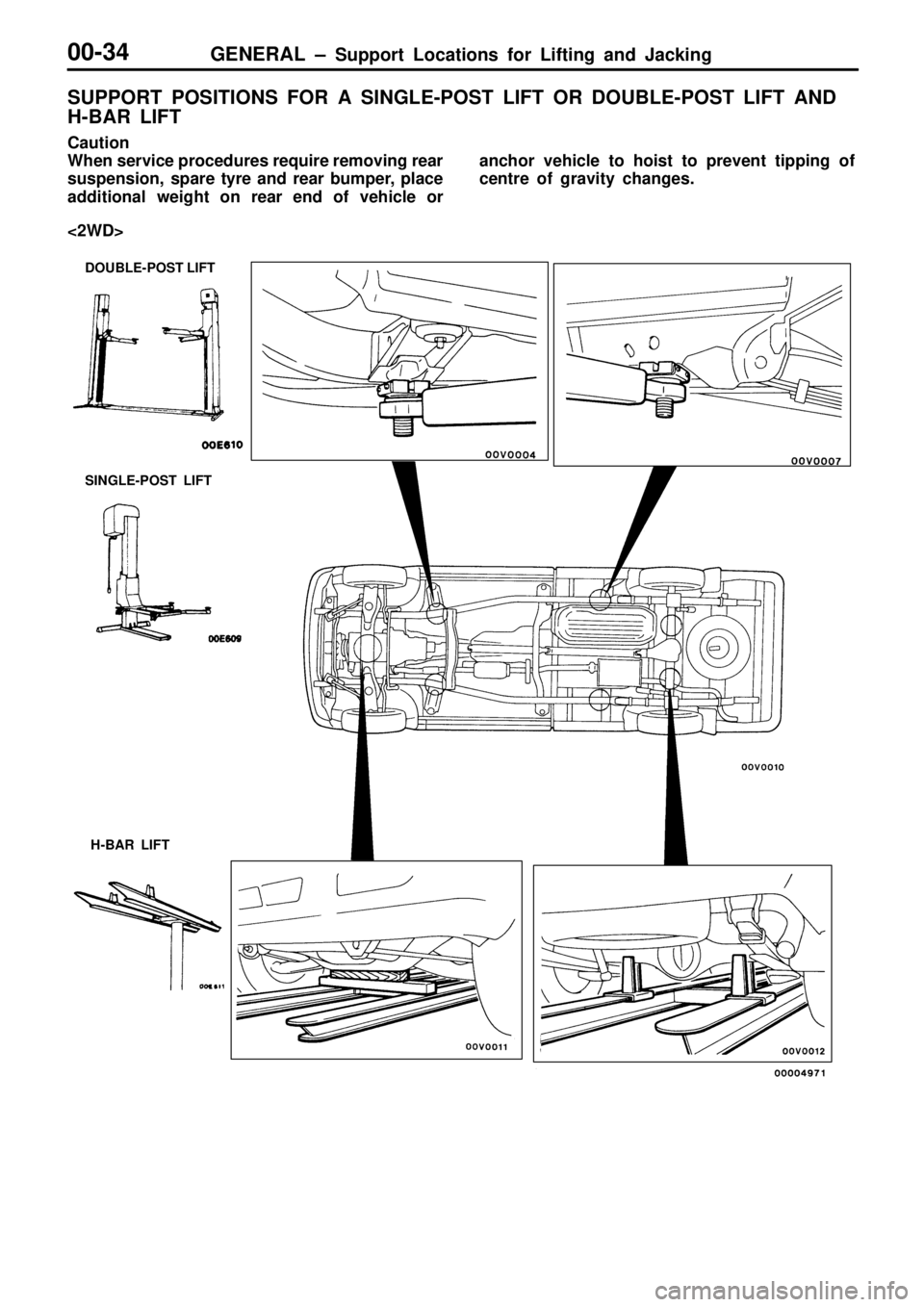

GENERAL ± Standard Parts-tightening-torque Table00-36
STANDARD PARTS-TIGHTENING-TORQUE TABLE00100110033
Each torque value in the table is a standard value
for tightening under the following conditions.
(1) Bolts, nuts and washers are all made of steel
and plated with zinc.
(2) The threads and bearing surface of bolts and
nuts are all in dry condition.The values in the table are not applicable:
(1) If toothed washers are inserted.
(2) If plastic parts are fastened.
(3) If bolts are tightened to plastic or die-cast
inserted nuts.
(4) If self-tapping screws or self-locking nuts are
used.
Standard bolt and nut tightening torque
Thread sizeTorque Nm
Bolt nominal
diameter (mm)Pitch (mm)Head mark ª4ºHead mark ª7ºHead mark ª8º
M50.82.54.95.9
M61.04.98.89.8
M81.25122225
M101.25244452
M121.25418196
M141.572137157
M161.5111206235
M181.5167304343
M201.5226412481
M221.5304559647
M241.5392735853
Flange bolt and nut tightening torque
Thread sizeTorque Nm
Bolt nominal
diameter (mm)Pitch (mm)Head mark ª4ºHead mark ª7ºHead mark ª8º
M61.04.99.812
M81.25132428
M101.25264957
M101.5244454
M121.254693103
M121.75428196
