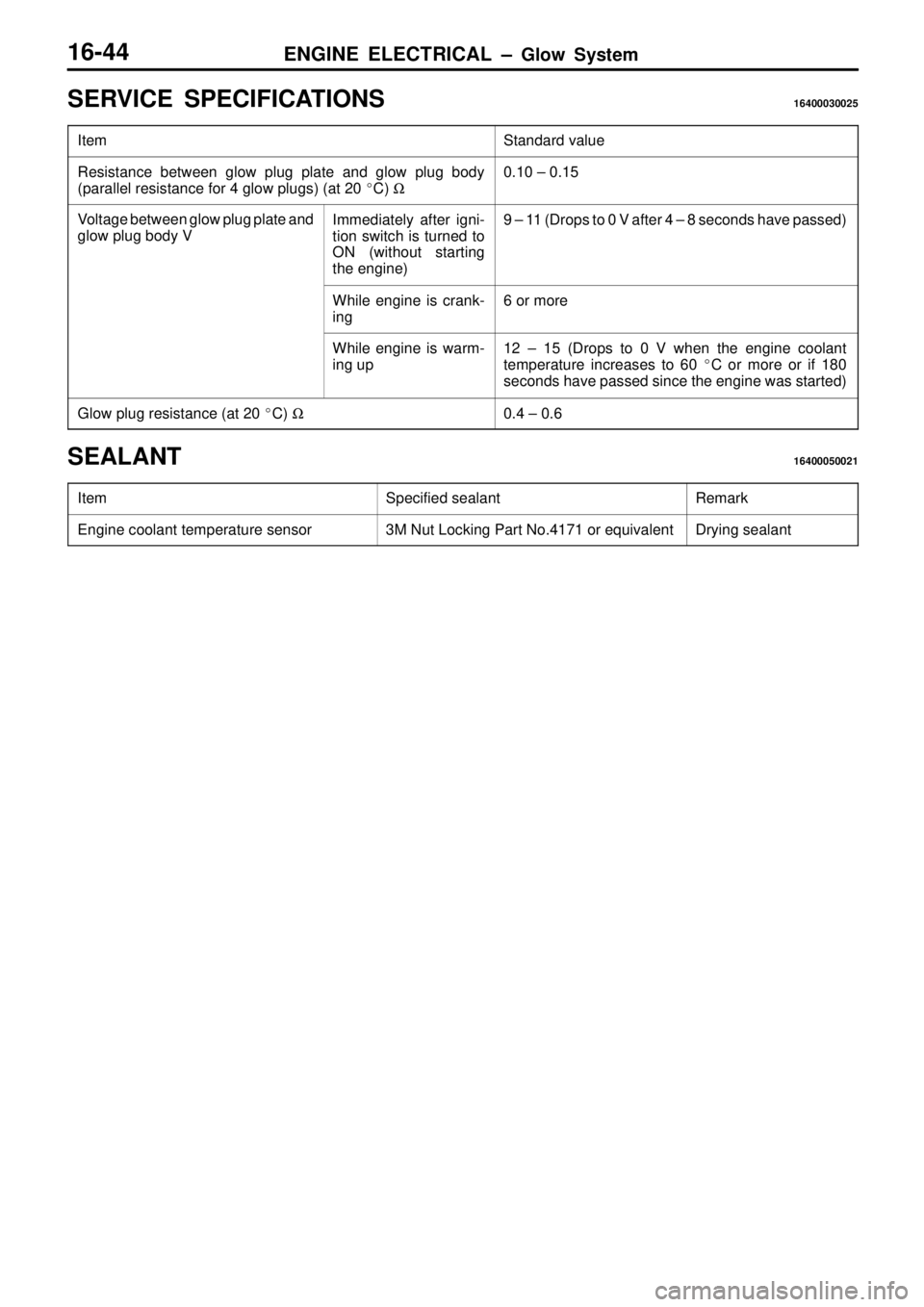

ENGINE ELECTRICAL ± Glow System16-44
SERVICE SPECIFICATIONS16400030025
ItemStandard value
Resistance between glow plug plate and glow plug body
(parallel resistance for 4 glow plugs) (at 20
C) W0.10 ± 0.15
Voltage between glow plug plate and
glow plug body VImmediately after igni-
tion switch is turned to
ON (without starting
the engine)9 ± 11 (Drops to 0 V after 4 ± 8 seconds have passed)
While engine is crank-
ing6 or more
While engine is warm-
ing up12 ± 15 (Drops to 0 V when the engine coolant
temperature increases to 60
C or more or if 180
seconds have passed since the engine was started)
Glow plug resistance (at 20
C) W0.4 ± 0.6
SEALANT16400050021
ItemSpecified sealantRemark
Engine coolant temperature sensor3M Nut Locking Part No.4171 or equivalentDrying sealant

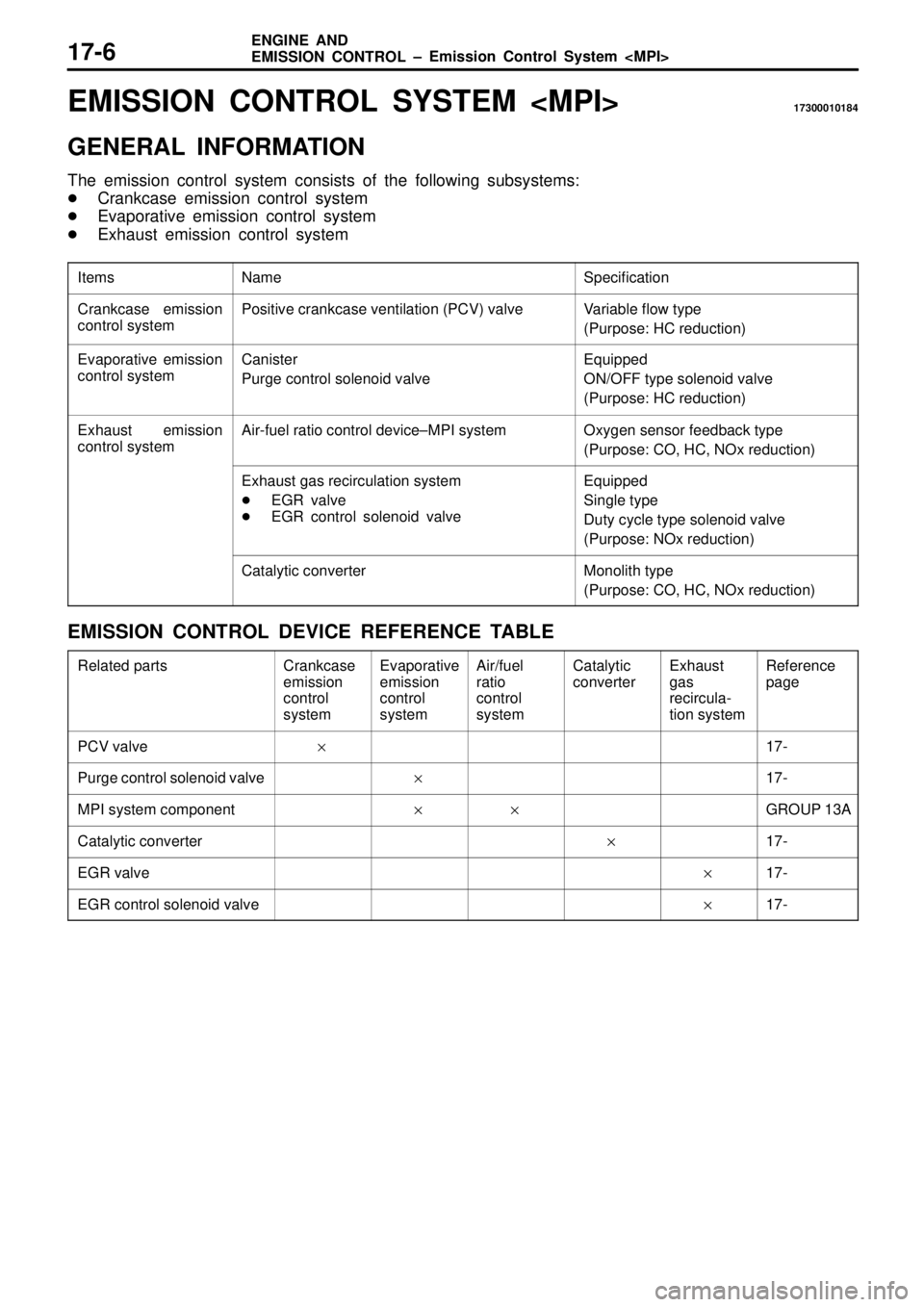

± Emission Control System ENGINE AND
EMISSION CONTROL17-6
EMISSION CONTROL SYSTEM 17300010184
GENERAL INFORMATION
The emission control system consists of the following subsystems:

Crankcase emission control system

Evaporative emission control system

Exhaust emission control system
ItemsNameSpecification
Crankcase emission
control systemPositive crankcase ventilation (PCV) valveVariable flow type
(Purpose: HC reduction)
Evaporative emission
control systemCanister
Purge control solenoid valveEquipped
ON/OFF type solenoid valve
(Purpose: HC reduction)
Exhaust emission
control systemAir-fuel ratio control device±MPI systemOxygen sensor feedback type
(Purpose: CO, HC, NOx reduction)
Exhaust gas recirculation system

EGR valve

EGR control solenoid valveEquipped
Single type
Duty cycle type solenoid valve
(Purpose: NOx reduction)
Catalytic converterMonolith type
(Purpose: CO, HC, NOx reduction)
EMISSION CONTROL DEVICE REFERENCE TABLE
Related partsCrankcase
emission
control
systemEvaporative
emission
control
systemAir/fuel
ratio
control
systemCatalytic
converterExhaust
gas
recircula-
tion systemReference
page
PCV valvey17-
Purge control solenoid valvey17-
MPI system componentyyGROUP 13A
Catalytic convertery17-
EGR valvey17-
EGR control solenoid valvey17-

AUTOMATIC TRANSMISSION ± Troubleshooting23-4
TROUBLESHOOTING23100760152
STANDARD FLOW OF DIAGNOSIS TROUBLESHOOTING
Automatic transmission malfunctions may be caused by the following conditions.
(1) Improper maintenance and adjustment
(2) Shift control system malfunction
(3) Mechanical malfunctions
(4) Hydraulic malfunctions
(5) Poor engine performance
Troubleshooting in the event of any such malfunctions should begin by checking fluid level, ATF condition,
manual linkage adjustment, throttle control cable adjustment and other conditions whose deviation from
standards can be readily known. Then, road test shall be performed to determine whether or not the
problem has been corrected or more diagnosis is necessary. If the problem still persists after these tests
and corrections, hydraulic tests should be performed for further troubleshooting.
Road test (guess what causes malfunc-
tion.)
Check how A/T works in each drive
range to find a defective system.
A/T control component inspection
Check the throttle cable, inhibitor switch,
overdrive switch, overdrive solenoid
valve, overdrive control relay, defective
switch, engine coolant temperature
switch and vehicle speed sensor.
Torque converter stall test (Inspection
of engine performance and mechanical
function)
Check the engine performance, torque
converter operation and clutch and
brake sliding performance.
Hydraulic pressure test (Inspection of
hydraulic control mechanism)
Measure the fluid line pressure and
check for malfunctions of the oil pump
or regulator valve and for oil leaks.
Oil leak inspection
Visually check gaskets and oil seals for
leaks.
Adjustment of basic inspection items
ROAD TEST 23100780158
Prior to performing road test, be sure to make basic checks including check and adjustment of fluid
level and condition and adjustment of the throttle cable. For road test, the transfer must be placed in
the 2H (2WD-high) position. In road test, various changes such as slips in transmission and shifting
conditions are checked and the transmission operation at each shift position must have been checked.

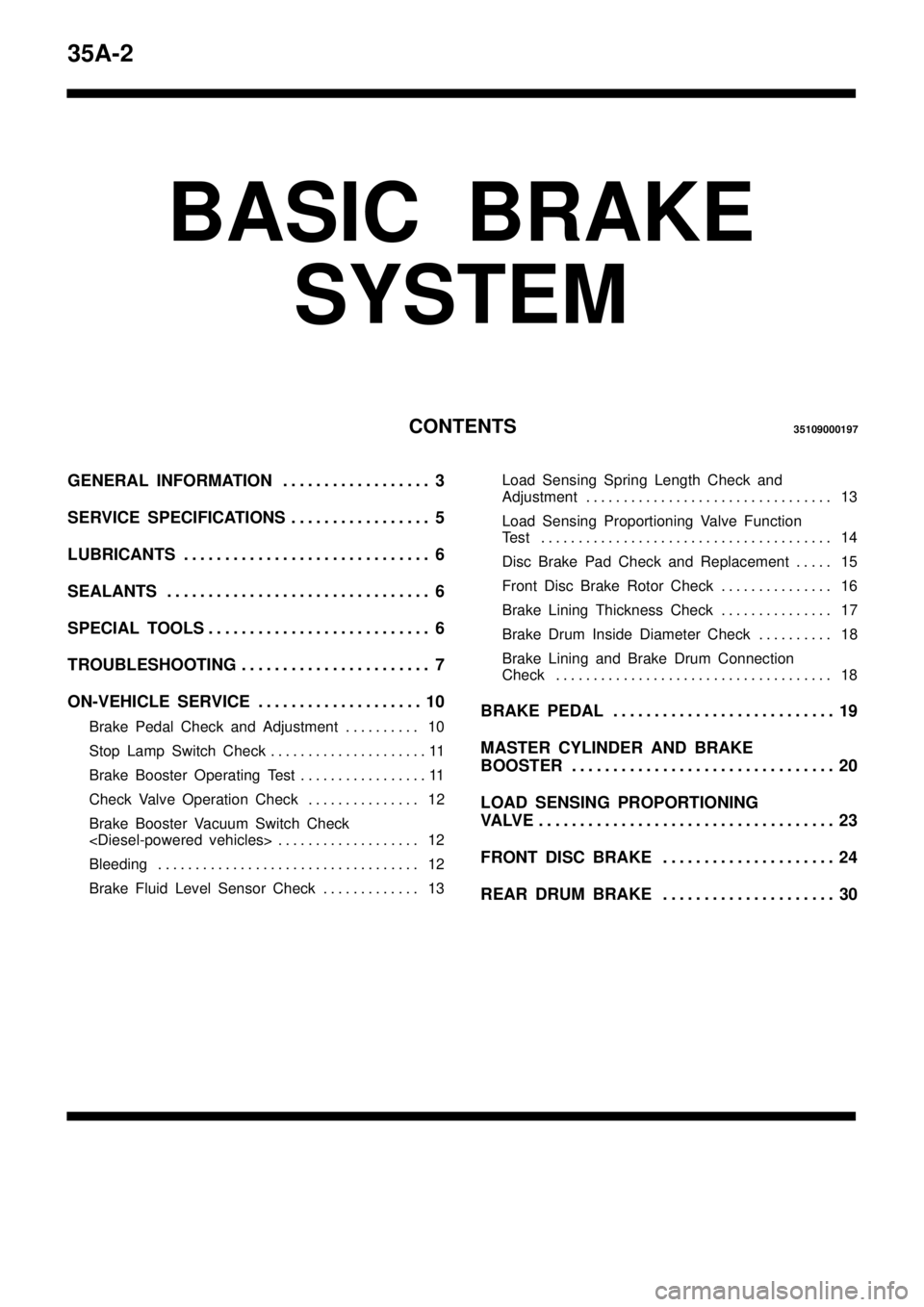

35A-2
BASIC BRAKE
SYSTEM
CONTENTS35109000197
GENERAL INFORMATION 3. . . . . . . . . . . . . . . . . .
SERVICE SPECIFICATIONS 5. . . . . . . . . . . . . . . . .
LUBRICANTS 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SEALANTS 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOLS 6. . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 7. . . . . . . . . . . . . . . . . . . . . . .
ON-VEHICLE SERVICE 10. . . . . . . . . . . . . . . . . . . .
Brake Pedal Check and Adjustment 10. . . . . . . . . .
Stop Lamp Switch Check 11. . . . . . . . . . . . . . . . . . . . .
Brake Booster Operating Test 11. . . . . . . . . . . . . . . . .
Check Valve Operation Check 12. . . . . . . . . . . . . . .
Brake Booster Vacuum Switch Check
12. . . . . . . . . . . . . . . . . . .
Bleeding 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Fluid Level Sensor Check 13. . . . . . . . . . . . . Load Sensing Spring Length Check and
Adjustment 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Sensing Proportioning Valve Function
Test 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disc Brake Pad Check and Replacement 15. . . . .
Front Disc Brake Rotor Check 16. . . . . . . . . . . . . . .
Brake Lining Thickness Check 17. . . . . . . . . . . . . . .
Brake Drum Inside Diameter Check 18. . . . . . . . . .
Brake Lining and Brake Drum Connection
Check 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BRAKE PEDAL 19. . . . . . . . . . . . . . . . . . . . . . . . . . .
MASTER CYLINDER AND BRAKE
BOOSTER 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LOAD SENSING PROPORTIONING
VA LV E 2 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT DISC BRAKE 24. . . . . . . . . . . . . . . . . . . . .
REAR DRUM BRAKE 30. . . . . . . . . . . . . . . . . . . . .

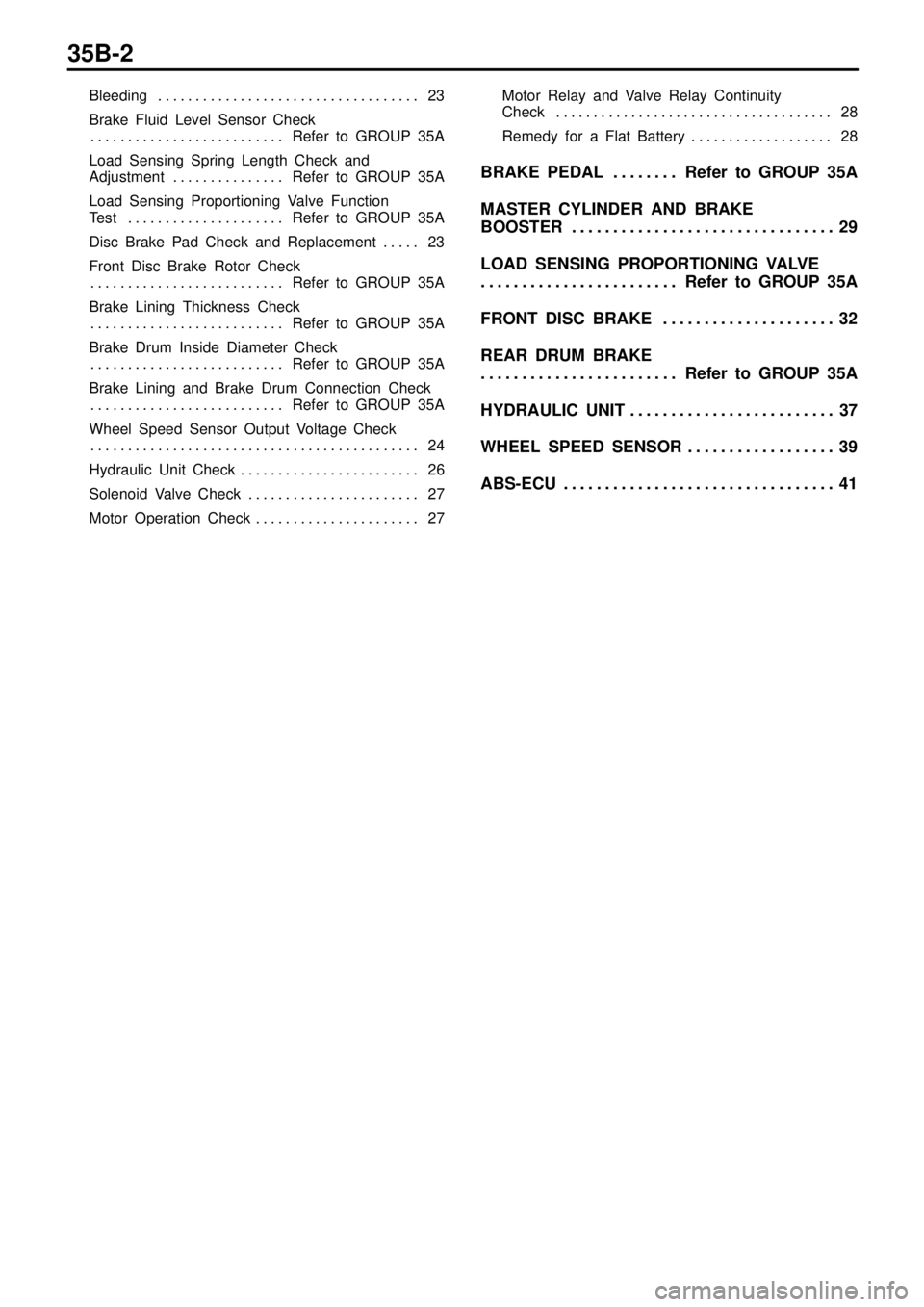

35B-2
Bleeding 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Fluid Level Sensor Check
Refer to GROUP 35A . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Sensing Spring Length Check and
Adjustment Refer to GROUP 35A. . . . . . . . . . . . . . .
Load Sensing Proportioning Valve Function
Test Refer to GROUP 35A. . . . . . . . . . . . . . . . . . . . .
Disc Brake Pad Check and Replacement 23. . . . .
Front Disc Brake Rotor Check
Refer to GROUP 35A . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Lining Thickness Check
Refer to GROUP 35A . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Drum Inside Diameter Check
Refer to GROUP 35A . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Lining and Brake Drum Connection Check
Refer to GROUP 35A . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel Speed Sensor Output Voltage Check
24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic Unit Check 26. . . . . . . . . . . . . . . . . . . . . . . .
Solenoid Valve Check 27. . . . . . . . . . . . . . . . . . . . . . .
Motor Operation Check 27. . . . . . . . . . . . . . . . . . . . . . Motor Relay and Valve Relay Continuity
Check 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remedy for a Flat Battery 28. . . . . . . . . . . . . . . . . . .
BRAKE PEDAL Refer to GROUP 35A. . . . . . . .
MASTER CYLINDER AND BRAKE
BOOSTER 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LOAD SENSING PROPORTIONING VALVE
Refer to GROUP 35A . . . . . . . . . . . . . . . . . . . . . . . .
FRONT DISC BRAKE 32. . . . . . . . . . . . . . . . . . . . .
REAR DRUM BRAKE
Refer to GROUP 35A . . . . . . . . . . . . . . . . . . . . . . . .
HYDRAULIC UNIT 37. . . . . . . . . . . . . . . . . . . . . . . . .
WHEEL SPEED SENSOR 39. . . . . . . . . . . . . . . . . .
ABS-ECU 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

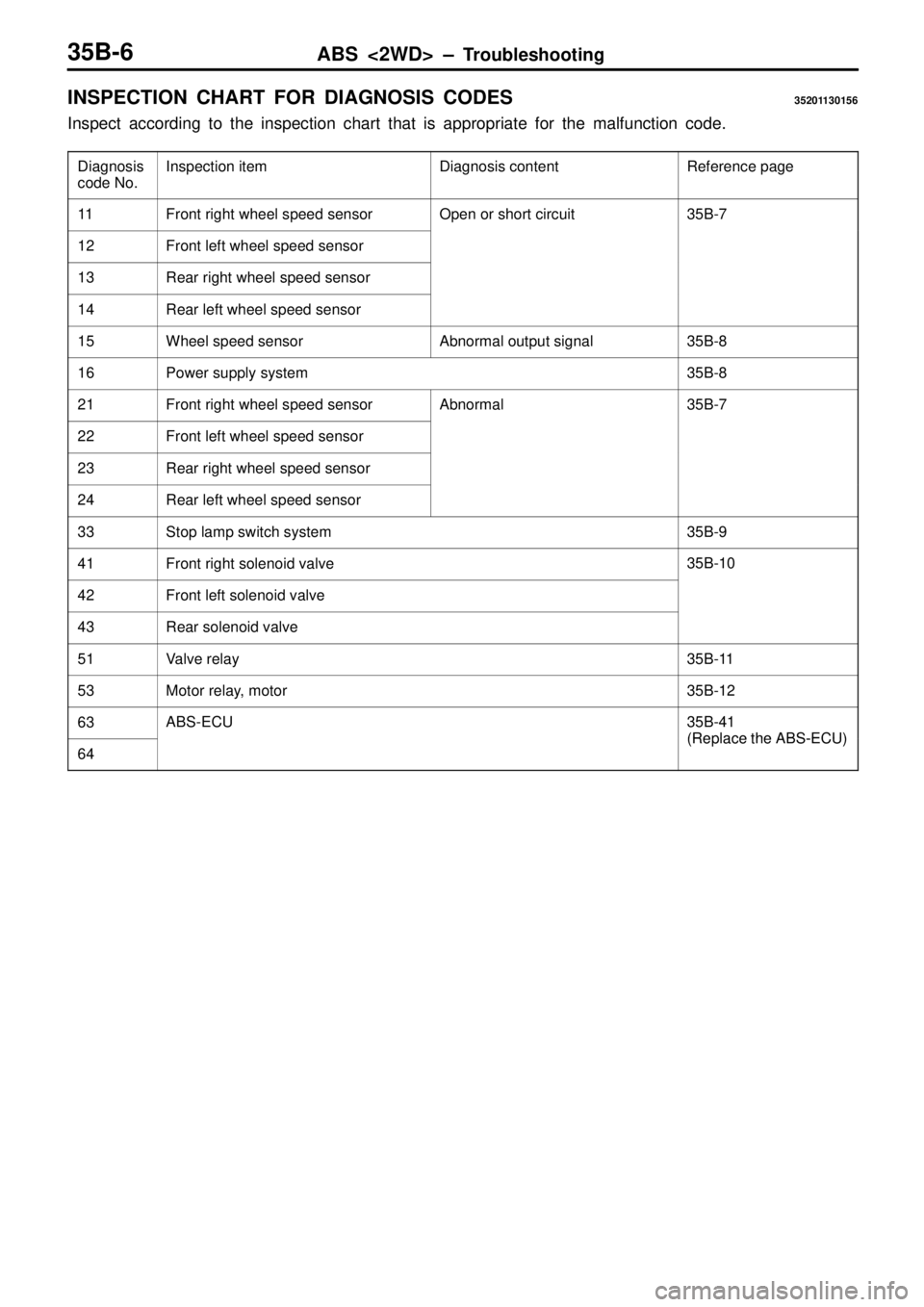

ABS <2WD> ± Troubleshooting35B-6
INSPECTION CHART FOR DIAGNOSIS CODES35201130156
Inspect according to the inspection chart that is appropriate for the malfunction code.
Diagnosis
code No.Inspection itemDiagnosis contentReference page
11Front right wheel speed sensorOpen or short circuit35B-7
12Front left wheel speed sensor
13Rear right wheel speed sensor
14Rear left wheel speed sensor
15Wheel speed sensorAbnormal output signal35B-8
16Power supply system35B-8
21Front right wheel speed sensorAbnormal35B-7
22Front left wheel speed sensor
23Rear right wheel speed sensor
24Rear left wheel speed sensor
33Stop lamp switch system35B-9
41Front right solenoid valve35B-10
42Front left solenoid valve
43Rear solenoid valve
51Valve relay35B-11
53Motor relay, motor35B-12
63ABS-ECU35B-41
(Replace the ABS-ECU)
64
(Re lace the ABS-ECU)

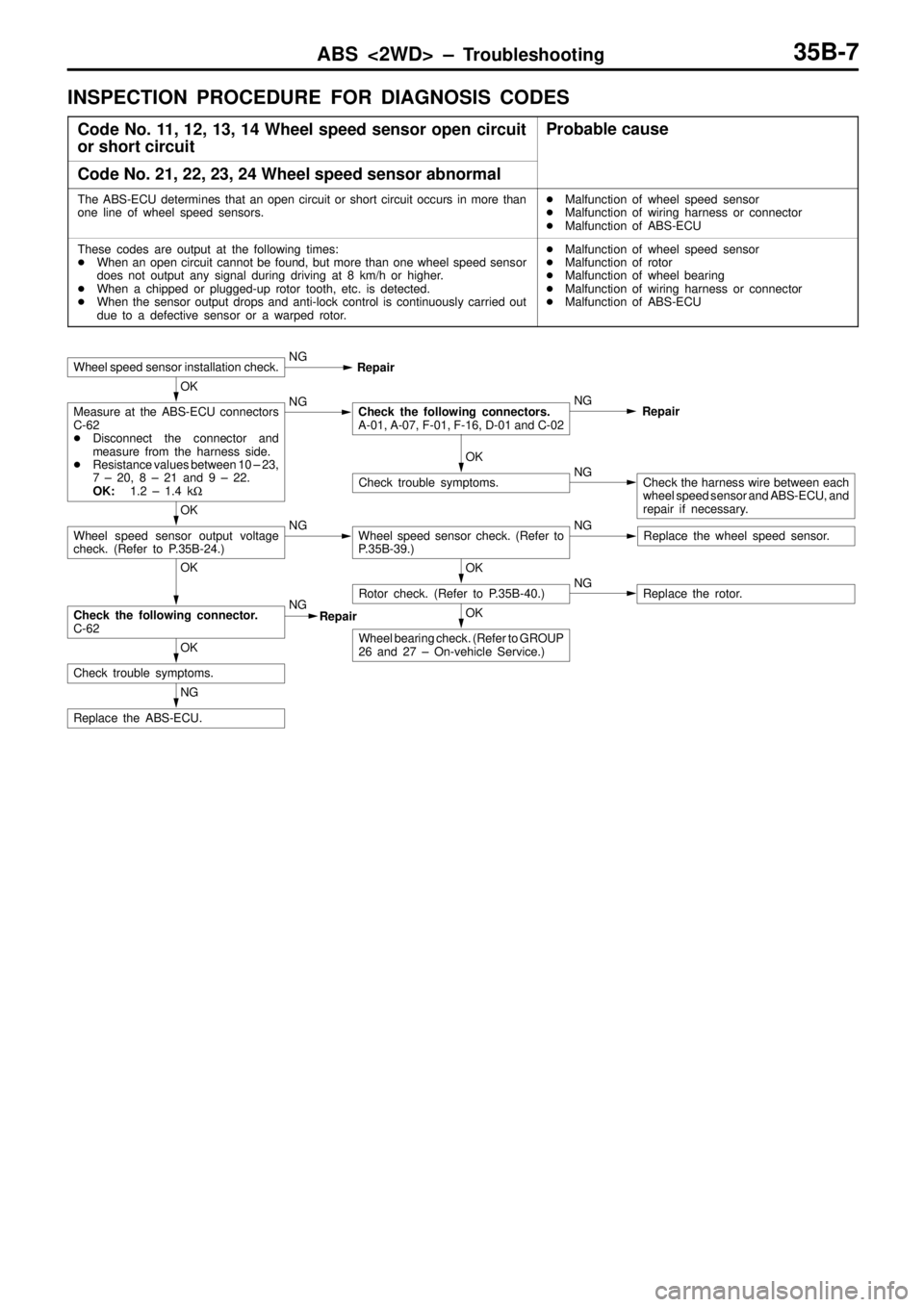

ABS <2WD> ± Troubleshooting35B-7
INSPECTION PROCEDURE FOR DIAGNOSIS CODES
Code No. 11, 12, 13, 14 Wheel speed sensor open circuit
or short circuitProbable cause
Code No. 21, 22, 23, 24 Wheel speed sensor abnormal
The ABS-ECU determines that an open circuit or short circuit occurs in more than
one line of wheel speed sensors.
Malfunction of wheel speed sensor

Malfunction of wiring harness or connector

Malfunction of ABS-ECU
These codes are output at the following times:

When an open circuit cannot be found, but more than one wheel speed sensor
does not output any signal during driving at 8 km/h or higher.

When a chipped or plugged-up rotor tooth, etc. is detected.

When the sensor output drops and anti-lock control is continuously carried out
due to a defective sensor or a warped rotor.
Malfunction of wheel speed sensor

Malfunction of rotor

Malfunction of wheel bearing

Malfunction of wiring harness or connector

Malfunction of ABS-ECU
NG
Replace the ABS-ECU.
OK
Check trouble symptoms.
OK
Check the following connector.
C-62NG
RepairOK
Wheel bearing check. (Refer to GROUP
26 and 27 ± On-vehicle Service.)
OK
Rotor check. (Refer to P.35B-40.)NGReplace the rotor.
OK
Wheel speed sensor output voltage
check. (Refer to P.35B-24.)NGWheel speed sensor check. (Refer to
P.35B-39.)NGReplace the wheel speed sensor.
OK
Measure at the ABS-ECU connectors
C-62

Disconnect the connector and
measure from the harness side.

Resistance values between 10 ± 23,
7 ± 20, 8 ± 21 and 9 ± 22.
OK: 1.2 ± 1.4 kWNGCheck the following connectors.
A-01, A-07, F-01, F-16, D-01 and C-02NG
Repair
Wheel speed sensor installation check.NG
Repair
OK
Check trouble symptoms.NGCheck the harness wire between each
wheel speed sensor and ABS-ECU, and
repair if necessary.

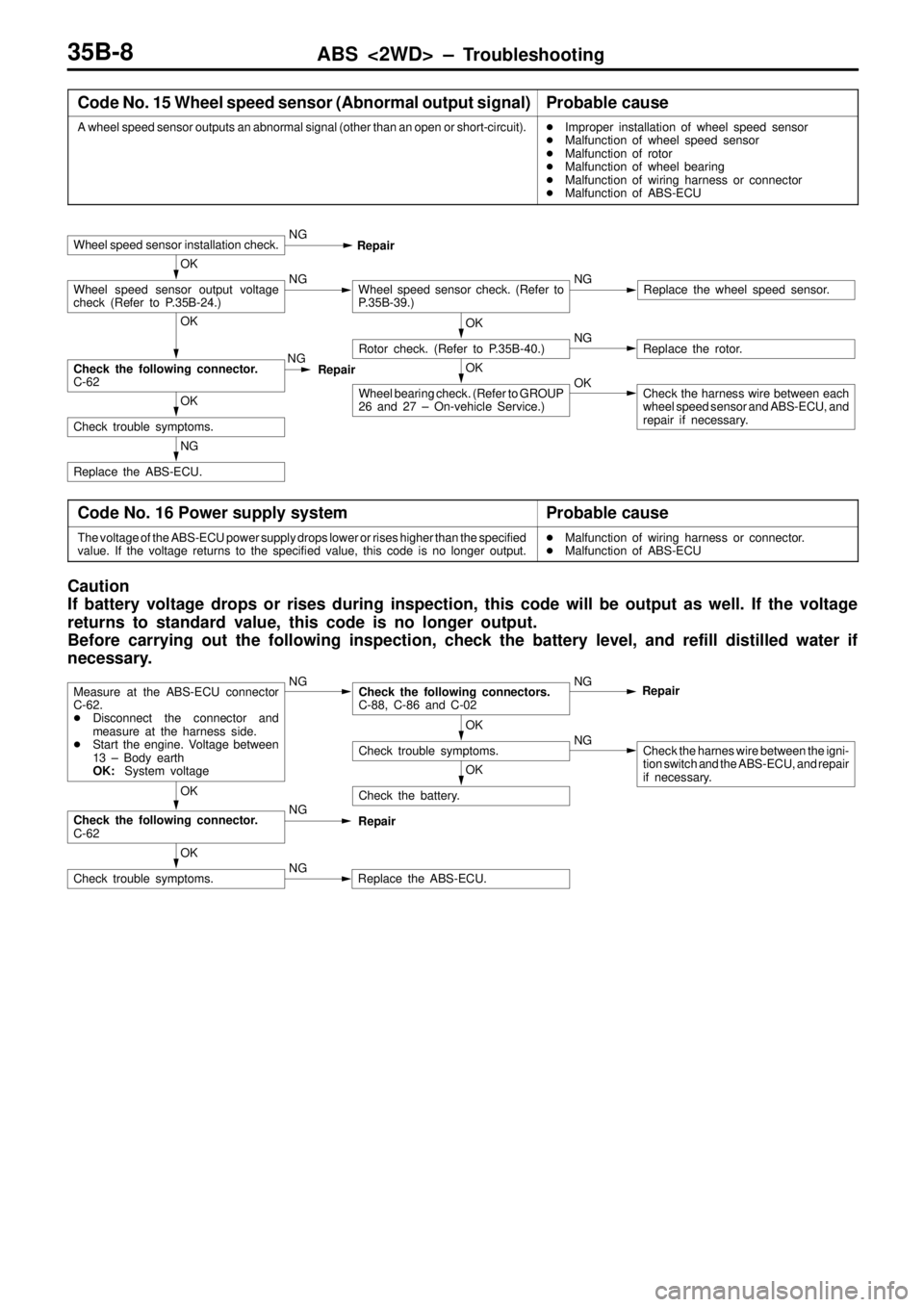

ABS <2WD> ± Troubleshooting35B-8
Code No. 15 Wheel speed sensor (Abnormal output signal)Probable cause
A wheel speed sensor outputs an abnormal signal (other than an open or short-circuit).
Improper installation of wheel speed sensor

Malfunction of wheel speed sensor

Malfunction of rotor

Malfunction of wheel bearing

Malfunction of wiring harness or connector

Malfunction of ABS-ECU
NG
Replace the ABS-ECU.
OK
Check trouble symptoms.
OK
Wheel bearing check. (Refer to GROUP
26 and 27 ± On-vehicle Service.)OKCheck the harness wire between each
wheel speed sensor and ABS-ECU, and
repair if necessary.
OK
Rotor check. (Refer to P.35B-40.)NGReplace the rotor.
OK
Check the following connector.
C-62NG
Repair
OK
Wheel speed sensor output voltage
check (Refer to P.35B-24.)NGWheel speed sensor check. (Refer to
P.35B-39.)NGReplace the wheel speed sensor.
Wheel speed sensor installation check.NG
Repair
Code No. 16 Power supply systemProbable cause
The voltage of the ABS-ECU power supply drops lower or rises higher than the specified
value. If the voltage returns to the specified value, this code is no longer output.
Malfunction of wiring harness or connector.

Malfunction of ABS-ECU
Caution
If battery voltage drops or rises during inspection, this code will be output as well. If the voltage
returns to standard value, this code is no longer output.
Before carrying out the following inspection, check the battery level, and refill distilled water if
necessary.
OK
Check the battery.
OK
Check trouble symptoms.NGCheck the harnes wire between the igni-
tion switch and the ABS-ECU, and repair
if necessary.
OK
Check trouble symptoms.NGReplace the ABS-ECU.
OK
Check the following connector.
C-62NG
Repair
Measure at the ABS-ECU connector
C-62.

Disconnect the connector and
measure at the harness side.

Start the engine. Voltage between
13 ± Body earth
OK:System voltageNGCheck the following connectors.
C-88, C-86 and C-02NG
Repair

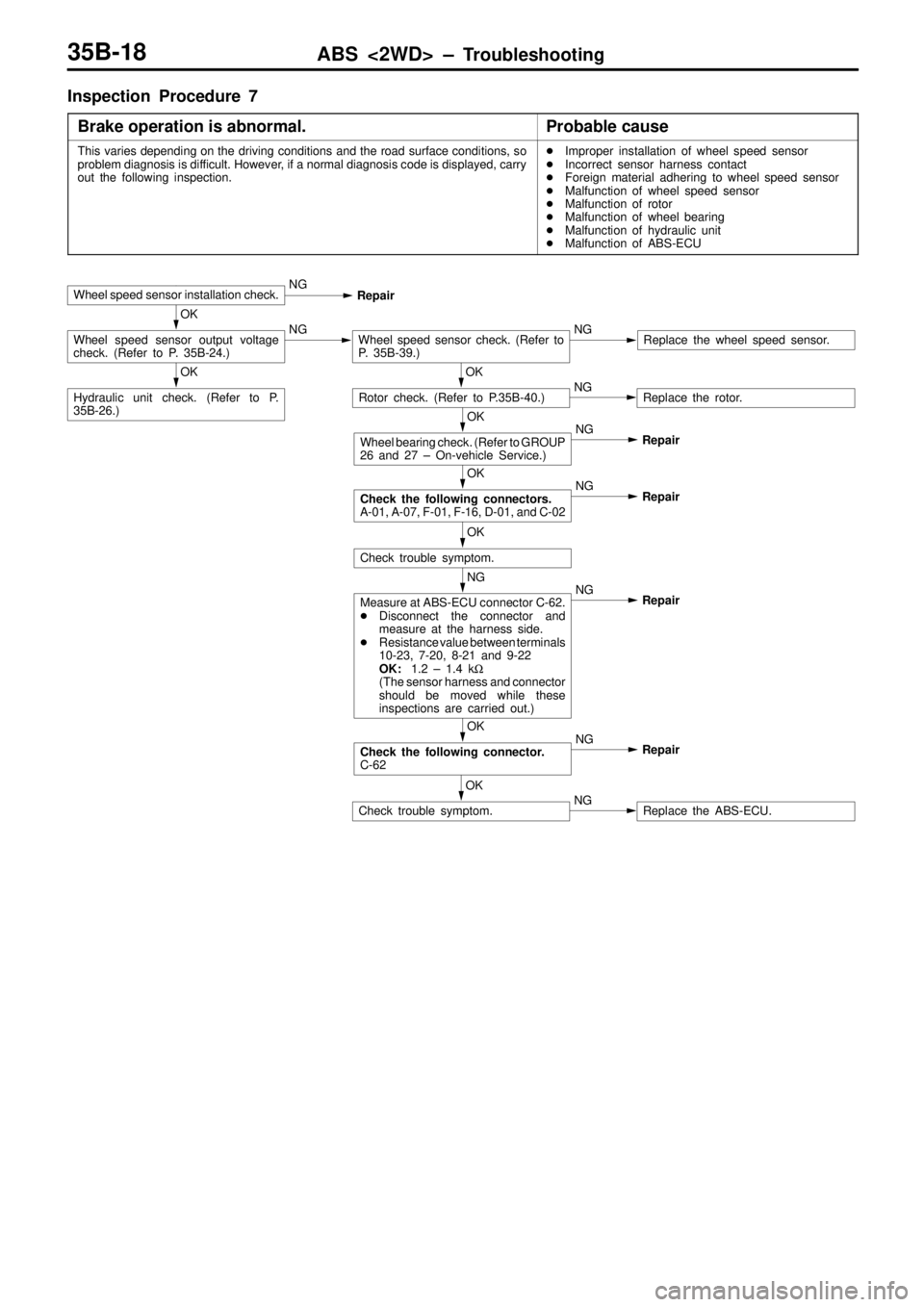

ABS <2WD> ± Troubleshooting35B-18
Inspection Procedure 7
Brake operation is abnormal.
Probable cause
This varies depending on the driving conditions and the road surface conditions, so
problem diagnosis is difficult. However, if a normal diagnosis code is displayed, carry
out the following inspection.
Improper installation of wheel speed sensor

Incorrect sensor harness contact

Foreign material adhering to wheel speed sensor

Malfunction of wheel speed sensor

Malfunction of rotor

Malfunction of wheel bearing

Malfunction of hydraulic unit

Malfunction of ABS-ECU
OK
Check trouble symptom.NGReplace the ABS-ECU.
OK
Check the following connector.
C-62NG
Repair
NG
Measure at ABS-ECU connector C-62.

Disconnect the connector and
measure at the harness side.

Resistance value between terminals
10-23, 7-20, 8-21 and 9-22
OK:1.2 ± 1.4 kW
(The sensor harness and connector
should be moved while these
inspections are carried out.)NG
Repair
OK
Check trouble symptom.
OK
Check the following connectors.
A-01, A-07, F-01, F-16, D-01, and C-02NG
Repair
OK
Wheel bearing check. (Refer to GROUP
26 and 27 ± On-vehicle Service.)NG
Repair
OK
Rotor check. (Refer to P.35B-40.)NGReplace the rotor.
OK
Hydraulic unit check. (Refer to P.
35B-26.)
OK
Wheel speed sensor output voltage
check. (Refer to P. 35B-24.)NGWheel speed sensor check. (Refer to
P. 35B-39.)NGReplace the wheel speed sensor.
Wheel speed sensor installation check.NG
Repair

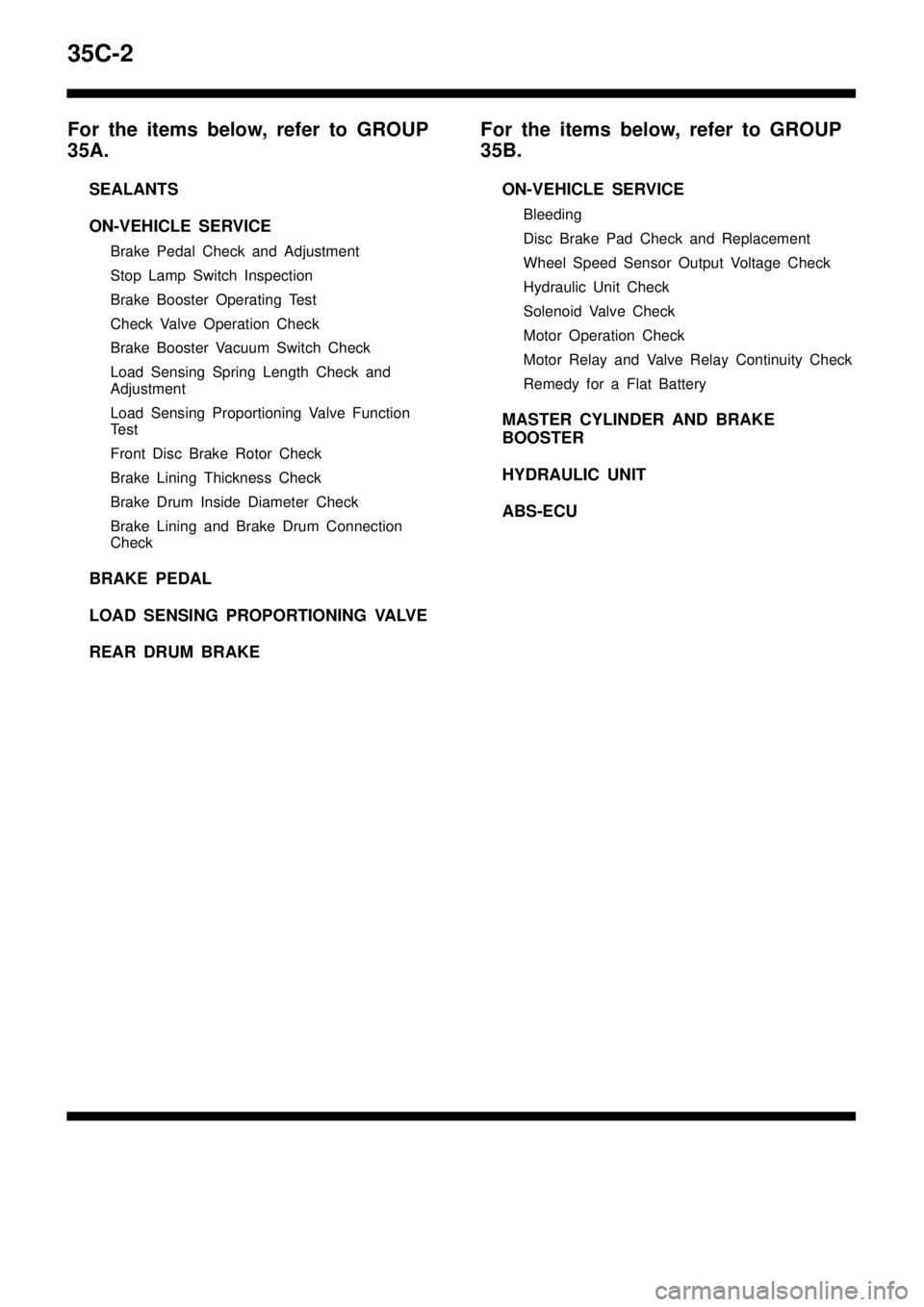

35C-2
For the items below, refer to GROUP
35A.
SEALANTS
ON-VEHICLE SERVICE
Brake Pedal Check and Adjustment
Stop Lamp Switch Inspection
Brake Booster Operating Test
Check Valve Operation Check
Brake Booster Vacuum Switch Check
Load Sensing Spring Length Check and
Adjustment
Load Sensing Proportioning Valve Function
Test
Front Disc Brake Rotor Check
Brake Lining Thickness Check
Brake Drum Inside Diameter Check
Brake Lining and Brake Drum Connection
Check
BRAKE PEDAL
LOAD SENSING PROPORTIONING VALVE
REAR DRUM BRAKE
For the items below, refer to GROUP
35B.
ON-VEHICLE SERVICE
Bleeding
Disc Brake Pad Check and Replacement
Wheel Speed Sensor Output Voltage Check
Hydraulic Unit Check
Solenoid Valve Check
Motor Operation Check
Motor Relay and Valve Relay Continuity Check
Remedy for a Flat Battery
MASTER CYLINDER AND BRAKE
BOOSTER
HYDRAULIC UNIT
ABS-ECU
