ABS <4WD> ± Troubleshooting35C-6
INSPECTION CHART FOR DIAGNOSIS CODES35201130163
Inspect according to the inspection chart that is appropriate for the malfunction code.
Diagnosis
code No.Inspection itemDiagnosis contentReference page
11Front right wheel speed sensorOpen or short circuitRefer to GROUP 35B ± Troubleshooting.
12Front left wheel speed sensor
13Rear right wheel speed sensor
14Rear left wheel speed sensor
15Wheel speed sensorAbnormal output signalRefer to GROUP 35B ± Troubleshooting.
16Power supply systemRefer to GROUP 35B ± Troubleshooting.
21Front right wheel speed sensorAbnormalRefer to GROUP 35B ± Troubleshooting.
22Front left wheel speed sensor
23Rear right wheel speed sensor
24Rear left wheel speed sensor
25Free wheel engage switch35C-7
264WD position detection switch35C-8
27Rear differential lock detection switch35C-9
32G-sensor system35C-10
33Stop lamp switch systemRefer to GROUP 35B ± Troubleshooting.
41Front right solenoid valveRefer to GROUP 35B ± Troubleshooting.
42Front left solenoid valve
43Rear solenoid valve
51Valve relayRefer to GROUP 35B ± Troubleshooting.
53Motor relay, motorRefer to GROUP 35B ± Troubleshooting.
63ABS-ECURefer to GROUP 35B ± ABS-ECU.
(Replace the ABS-ECU )
64
(Re lace the ABS-ECU.)

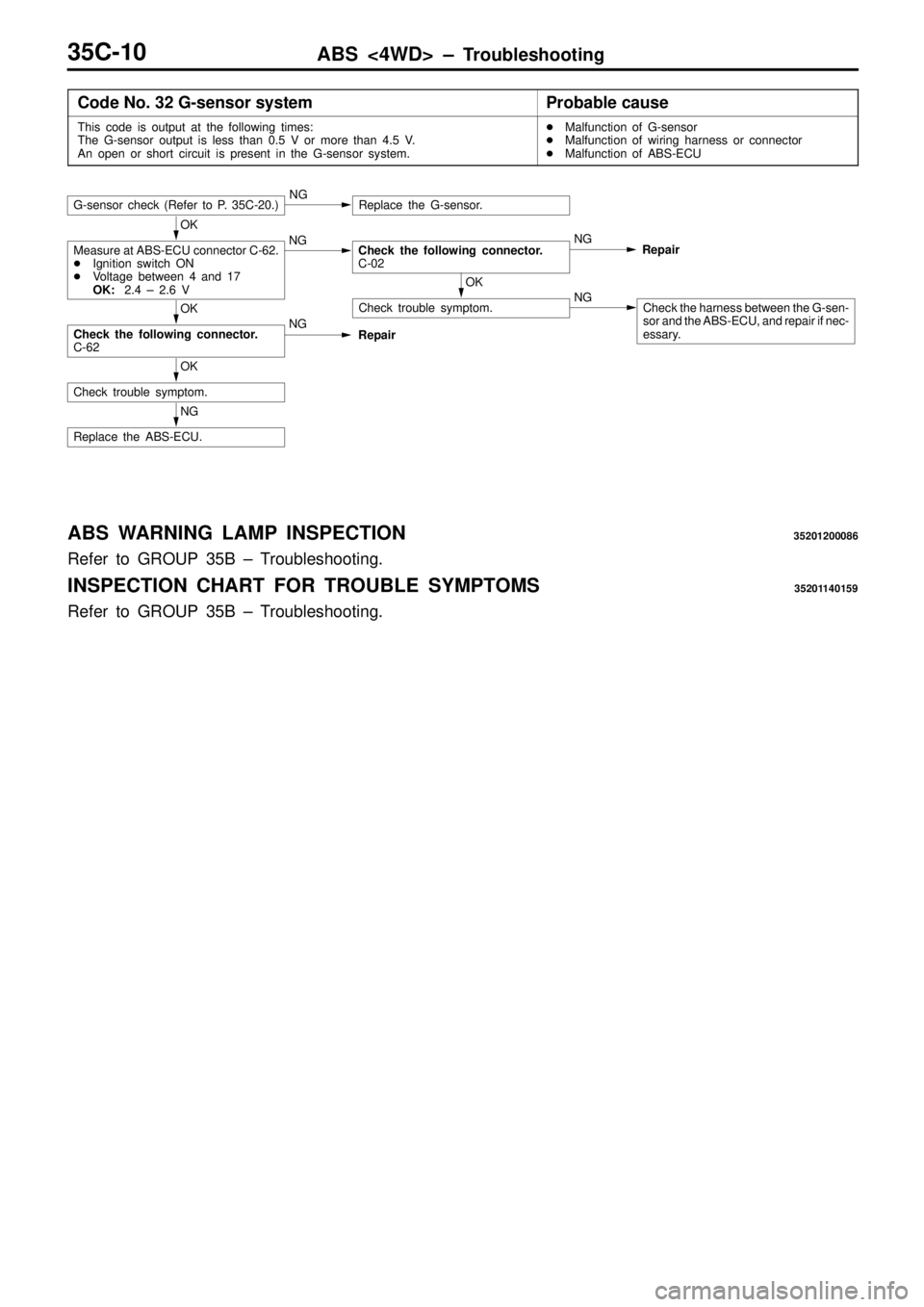

ABS <4WD> ± Troubleshooting35C-10
Code No. 32 G-sensor systemProbable cause
This code is output at the following times:
The G-sensor output is less than 0.5 V or more than 4.5 V.
An open or short circuit is present in the G-sensor system.
Malfunction of G-sensor

Malfunction of wiring harness or connector

Malfunction of ABS-ECU
G-sensor check (Refer to P. 35C-20.)NGReplace the G-sensor.
OK
Measure at ABS-ECU connector C-62.

Ignition switch ON

Voltage between 4 and 17
OK:2.4 ± 2.6 VNGCheck the following connector.
C-02NG
Repair
OK
Check trouble symptom.NGCheck the harness between the G-sen-
sor and the ABS-ECU, and repair if nec-
essary.OK
Check the following connector.
C-62NG
Repair
OK
Check trouble symptom.
NG
Replace the ABS-ECU.
ABS WARNING LAMP INSPECTION35201200086
Refer to GROUP 35B ± Troubleshooting.
INSPECTION CHART FOR TROUBLE SYMPTOMS35201140159
Refer to GROUP 35B ± Troubleshooting.

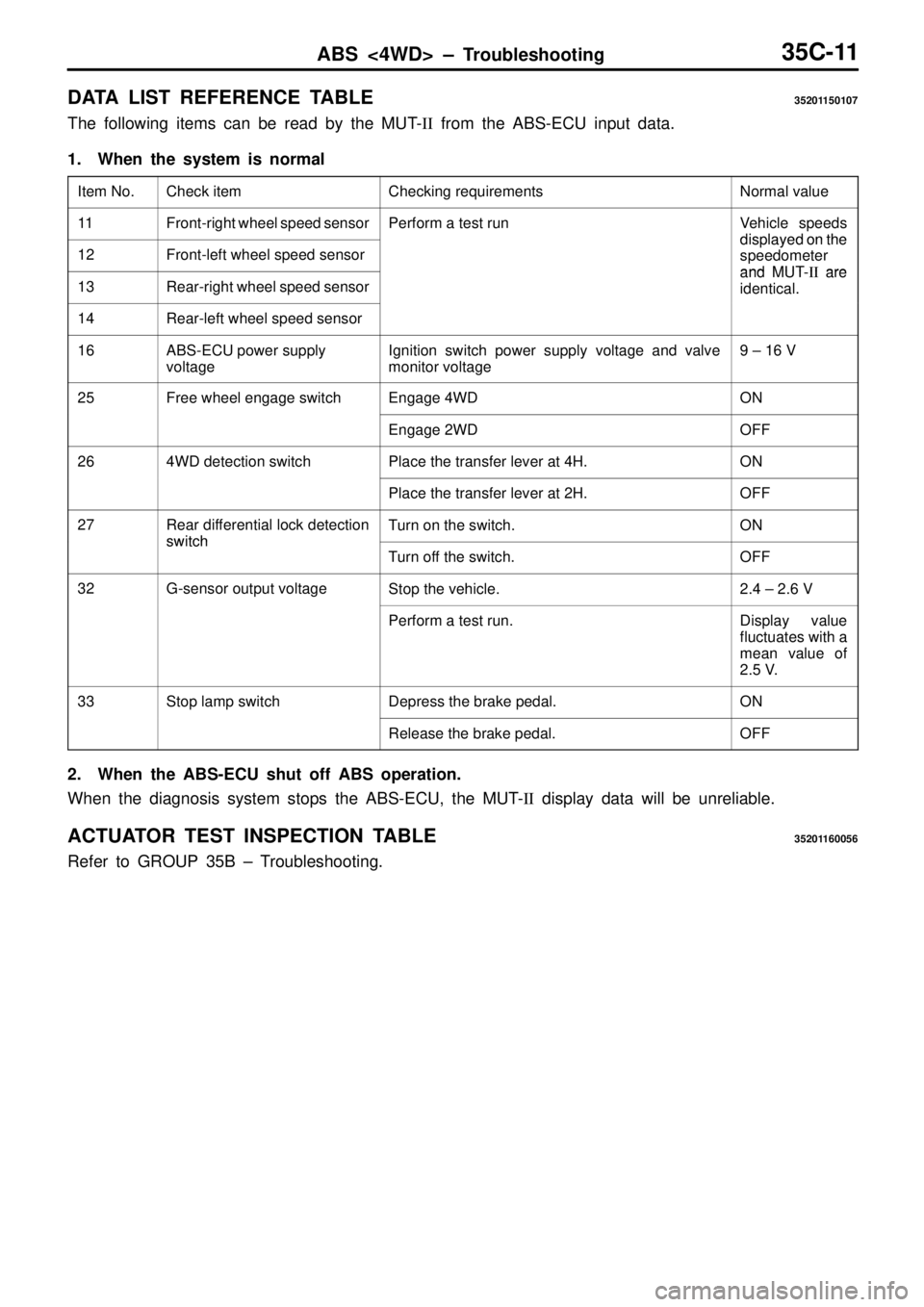

ABS <4WD> ± Troubleshooting35C-11
DATA LIST REFERENCE TABLE35201150107
The following items can be read by the MUT-II from the ABS-ECU input data.
1. When the system is normal
Item No.Check itemChecking requirementsNormal value
11Front-right wheel speed sensorPerform a test runVehicle speeds
displayed on the12Front-left wheel speed sensor
dis layed on the
speedometer
and MUTIIare13Rear-right wheel speed sensorand MUT-II are
identical.
14Rear-left wheel speed sensor
16ABS-ECU power supply
voltageIgnition switch power supply voltage and valve
monitor voltage9 ± 16 V
25Free wheel engage switchEngage 4WDON
Engage 2WDOFF
264WD detection switchPlace the transfer lever at 4H.ON
Place the transfer lever at 2H.OFF
27Rear differential lock detection
switch
Turn on the switch.ON
switch
Turn off the switch.OFF
32G-sensor output voltageStop the vehicle.2.4 ± 2.6 V
Perform a test run.Display value
fluctuates with a
mean value of
2.5 V.
33Stop lamp switchDepress the brake pedal.ON
Release the brake pedal.OFF
2. When the ABS-ECU shut off ABS operation.
When the diagnosis system stops the ABS-ECU, the MUT-II display data will be unreliable.
ACTUATOR TEST INSPECTION TABLE35201160056
Refer to GROUP 35B ± Troubleshooting.

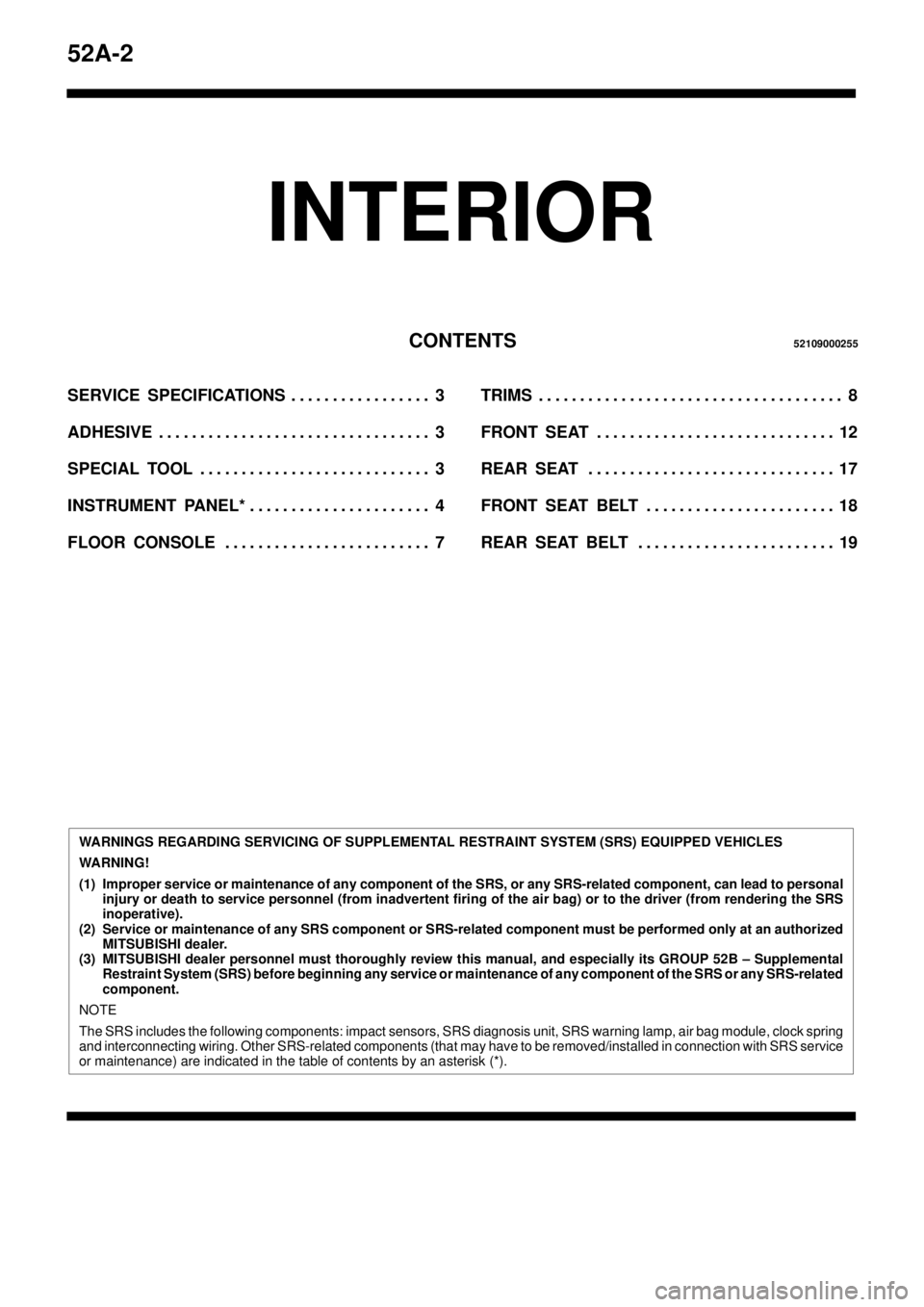

52A-2
INTERIOR
CONTENTS52109000255
SERVICE SPECIFICATIONS 3. . . . . . . . . . . . . . . . .
ADHESIVE 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOL 3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUMENT PANEL* 4. . . . . . . . . . . . . . . . . . . . . .
FLOOR CONSOLE 7. . . . . . . . . . . . . . . . . . . . . . . . . TRIMS 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT SEAT 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR SEAT 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT SEAT BELT 18. . . . . . . . . . . . . . . . . . . . . . .
REAR SEAT BELT 19. . . . . . . . . . . . . . . . . . . . . . . .
WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES
WARNING!
(1) Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to personal
injury or death to service personnel (from inadvertent firing of the air bag) or to the driver (from rendering the SRS
inoperative).
(2) Service or maintenance of any SRS component or SRS-related component must be performed only at an authorized
MITSUBISHI dealer.
(3) MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B ± Supplemental
Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any SRS-related
component.
NOTE
The SRS includes the following components: impact sensors, SRS diagnosis unit, SRS warning lamp, air bag module, clock spring
and interconnecting wiring. Other SRS-related components (that may have to be removed/installed in connection with SRS service
or maintenance) are indicated in the table of contents by an asterisk (*).

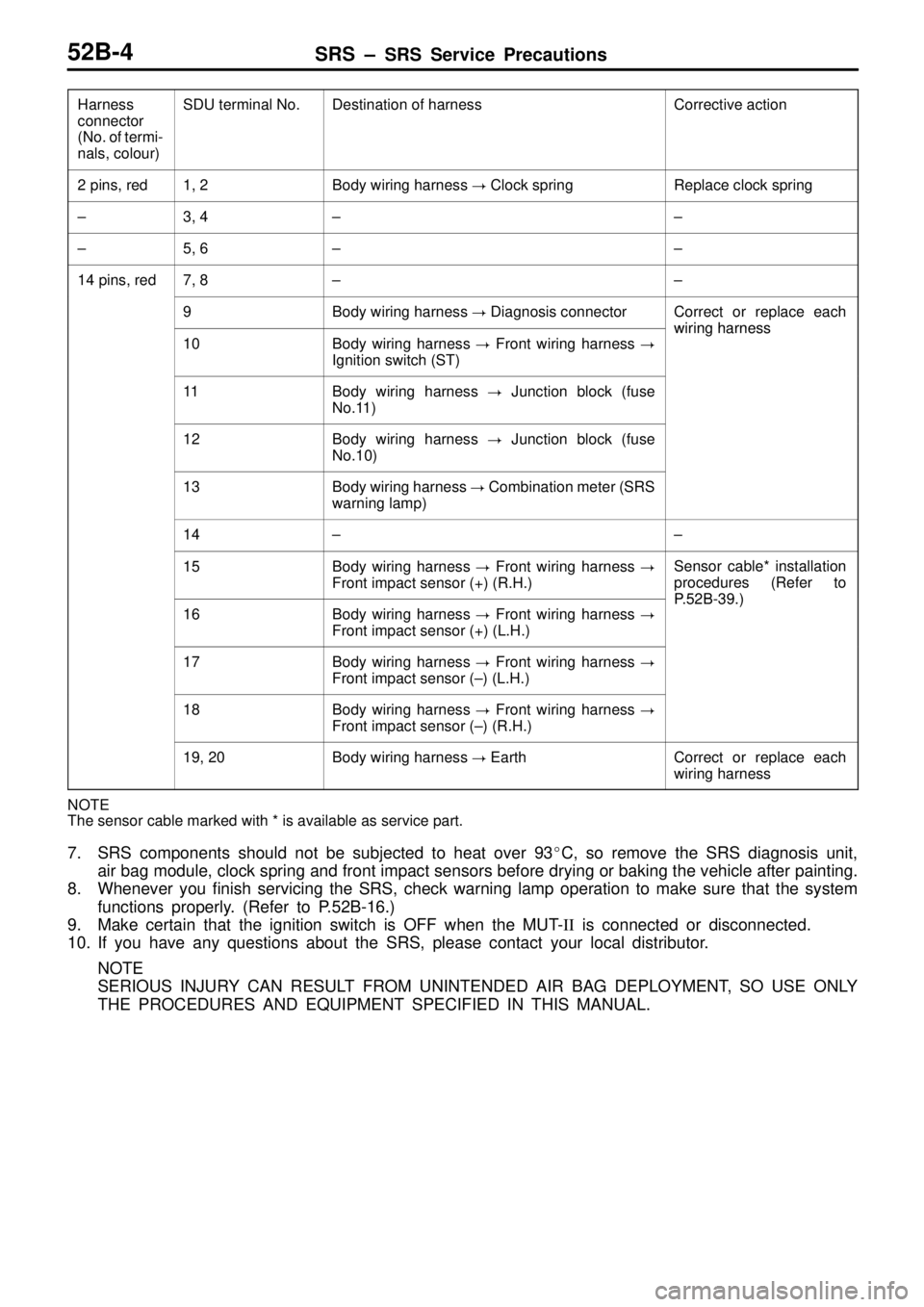

SRS ± SRS Service Precautions52B-4
Harness
connector
(No. of termi-
nals, colour)SDU terminal No.Destination of harnessCorrective action
2 pins, red1, 2Body wiring harness
Clock springReplace clock spring
±3, 4±±
±5, 6±±
14 pins, red7, 8±±
9Body wiring harness
Diagnosis connectorCorrect or replace each
wiring harness10Body wiring harness
Front wiring harness

Ignition switch (ST)
wiring harness
11Body wiring harness
Junction block (fuse
No.11)
12Body wiring harness
Junction block (fuse
No.10)
13Body wiring harness
Combination meter (SRS
warning lamp)
14±±
15Body wiring harness
Front wiring harness

Front impact sensor (+) (R.H.)Sensor cable* installation
procedures (Refer to
P 52B 39 )16Body wiring harness
Front wiring harness

Front impact sensor (+) (L.H.)P.52B-39.)
17Body wiring harness
Front wiring harness

Front impact sensor (±) (L.H.)
18Body wiring harness
Front wiring harness

Front impact sensor (±) (R.H.)
19, 20Body wiring harness
EarthCorrect or replace each
wiring harness
NOTE
The sensor cable marked with * is available as service part.
7. SRS components should not be subjected to heat over 93
C, so remove the SRS diagnosis unit,
air bag module, clock spring and front impact sensors before drying or baking the vehicle after painting.
8. Whenever you finish servicing the SRS, check warning lamp operation to make sure that the system
functions properly. (Refer to P.52B-16.)
9. Make certain that the ignition switch is OFF when the MUT-II is connected or disconnected.
10. If you have any questions about the SRS, please contact your local distributor.
NOTE
SERIOUS INJURY CAN RESULT FROM UNINTENDED AIR BAG DEPLOYMENT, SO USE ONLY
THE PROCEDURES AND EQUIPMENT SPECIFIED IN THIS MANUAL.

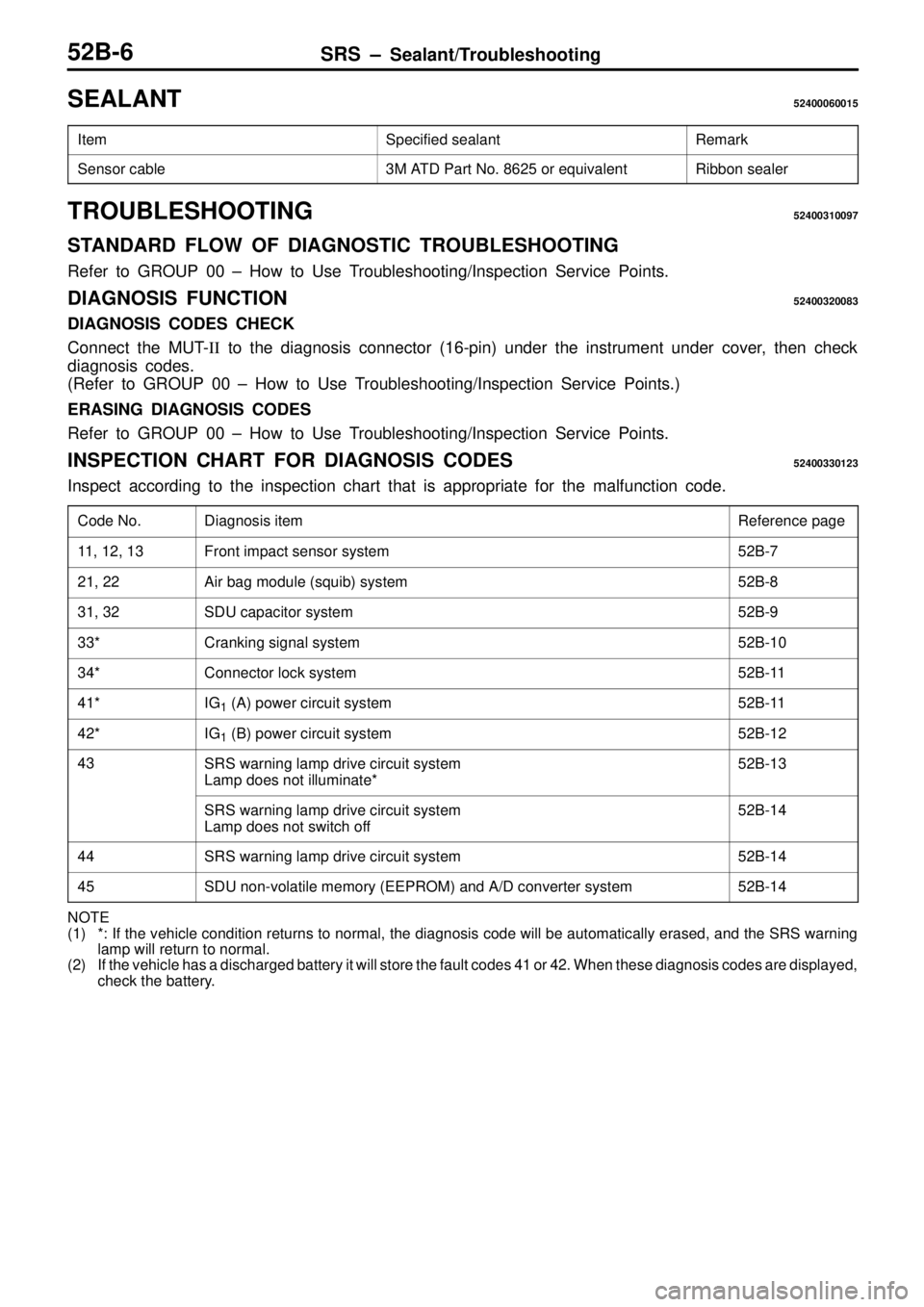

SRS ± Sealant/Troubleshooting52B-6
SEALANT52400060015
ItemSpecified sealantRemark
Sensor cable3M ATD Part No. 8625 or equivalentRibbon sealer
TROUBLESHOOTING52400310097
STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING
Refer to GROUP 00 ± How to Use Troubleshooting/Inspection Service Points.
DIAGNOSIS FUNCTION52400320083
DIAGNOSIS CODES CHECK
Connect the MUT-II to the diagnosis connector (16-pin) under the instrument under cover, then check
diagnosis codes.
(Refer to GROUP 00 ± How to Use Troubleshooting/Inspection Service Points.)
ERASING DIAGNOSIS CODES
Refer to GROUP 00 ± How to Use Troubleshooting/Inspection Service Points.
INSPECTION CHART FOR DIAGNOSIS CODES52400330123
Inspect according to the inspection chart that is appropriate for the malfunction code.
Code No.Diagnosis itemReference page
11, 12, 13Front impact sensor system52B-7
21, 22Air bag module (squib) system52B-8
31, 32SDU capacitor system52B-9
33*Cranking signal system52B-10
34*Connector lock system52B-11
41*IG1 (A) power circuit system52B-11
42*IG1 (B) power circuit system52B-12
43SRS warning lamp drive circuit system
Lamp does not illuminate*52B-13
SRS warning lamp drive circuit system
Lamp does not switch off52B-14
44SRS warning lamp drive circuit system52B-14
45SDU non-volatile memory (EEPROM) and A/D converter system52B-14
NOTE
(1) *: If the vehicle condition returns to normal, the diagnosis code will be automatically erased, and the SRS warning
lamp will return to normal.
(2) If the vehicle has a discharged battery it will store the fault codes 41 or 42. When these diagnosis codes are displayed,
check the battery.

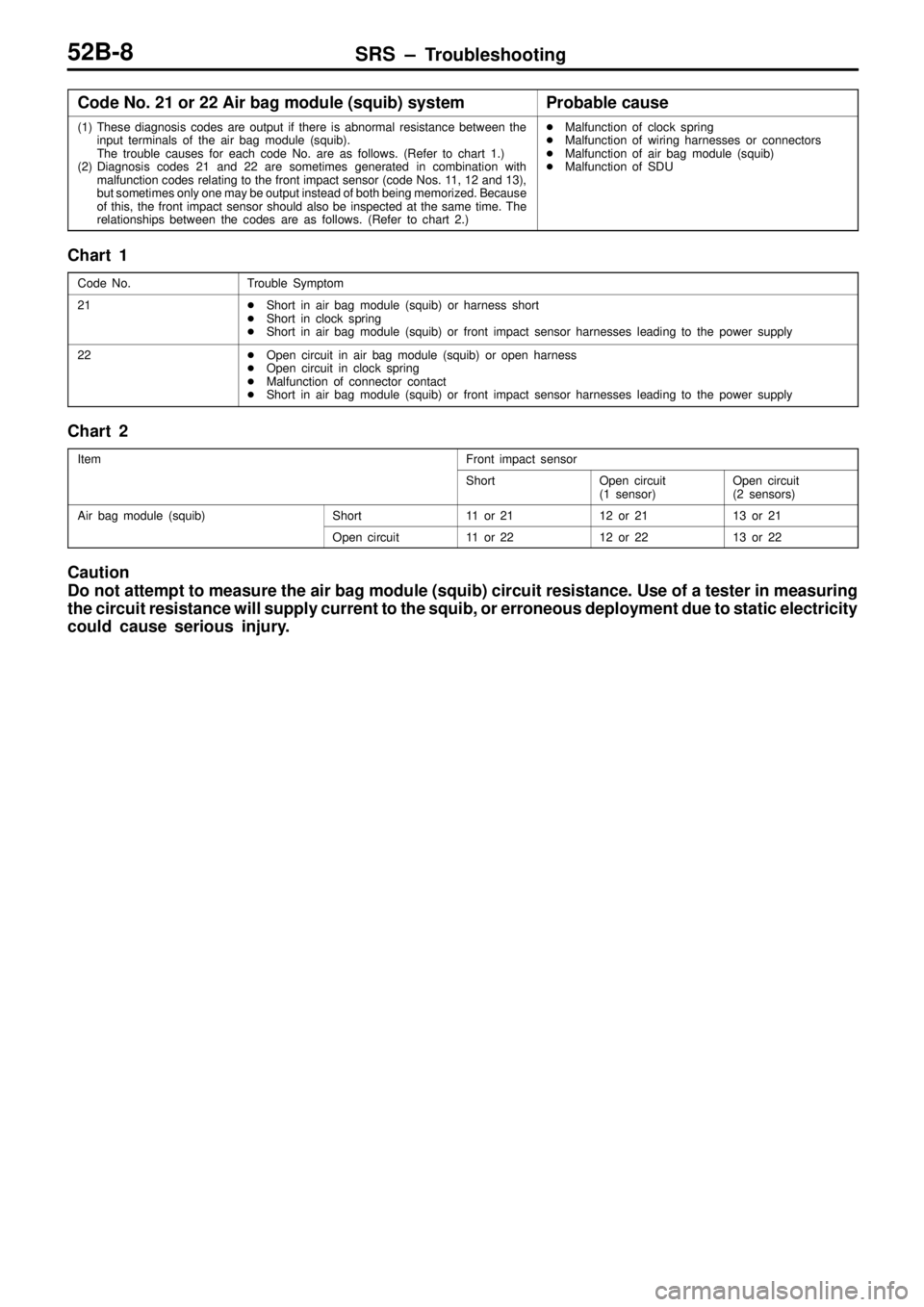

SRS ± Troubleshooting52B-8
Code No. 21 or 22 Air bag module (squib) systemProbable cause
(1) These diagnosis codes are output if there is abnormal resistance between the
input terminals of the air bag module (squib).
The trouble causes for each code No. are as follows. (Refer to chart 1.)
(2) Diagnosis codes 21 and 22 are sometimes generated in combination with
malfunction codes relating to the front impact sensor (code Nos. 11, 12 and 13),
but sometimes only one may be output instead of both being memorized. Because
of this, the front impact sensor should also be inspected at the same time. The
relationships between the codes are as follows. (Refer to chart 2.)
Malfunction of clock spring

Malfunction of wiring harnesses or connectors

Malfunction of air bag module (squib)

Malfunction of SDU
Chart 1
Code No.Trouble Symptom
21
Short in air bag module (squib) or harness short

Short in clock spring

Short in air bag module (squib) or front impact sensor harnesses leading to the power supply
22
Open circuit in air bag module (squib) or open harness

Open circuit in clock spring

Malfunction of connector contact

Short in air bag module (squib) or front impact sensor harnesses leading to the power supply
Chart 2
ItemFront impact sensor
ShortOpen circuit
(1 sensor)Open circuit
(2 sensors)
Air bag module (squib)Short11 or 2112 or 2113 or 21
Open circuit11 or 2212 or 2213 or 22
Caution
Do not attempt to measure the air bag module (squib) circuit resistance. Use of a tester in measuring
the circuit resistance will supply current to the squib, or erroneous deployment due to static electricity
could cause serious injury.

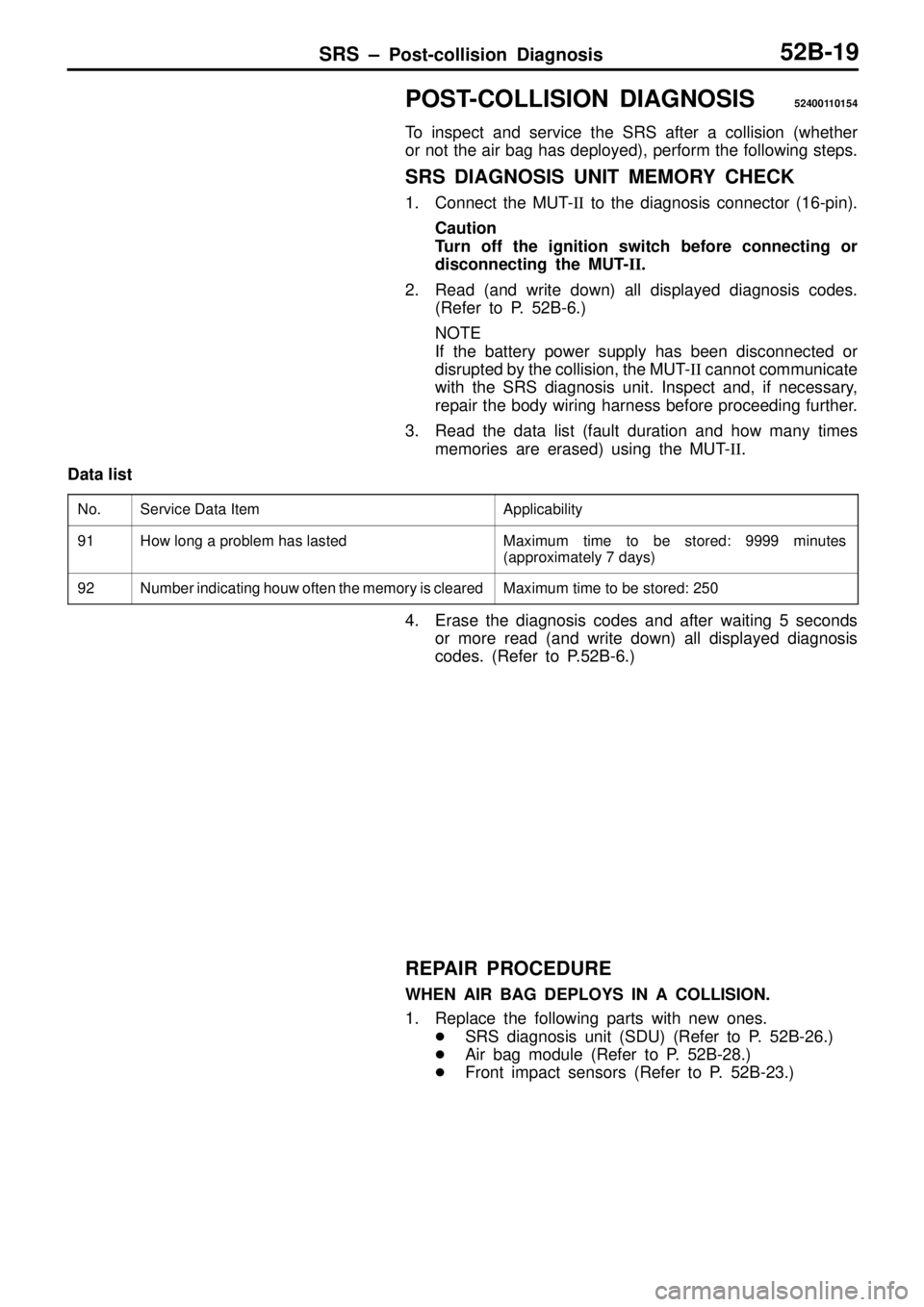

SRS ± Post-collision Diagnosis52B-19
POST-COLLISION DIAGNOSIS52400110154
To inspect and service the SRS after a collision (whether
or not the air bag has deployed), perform the following steps.
SRS DIAGNOSIS UNIT MEMORY CHECK
1. Connect the MUT-II to the diagnosis connector (16-pin).
Caution
Turn off the ignition switch before connecting or
disconnecting the MUT-II.
2. Read (and write down) all displayed diagnosis codes.
(Refer to P. 52B-6.)
NOTE
If the battery power supply has been disconnected or
disrupted by the collision, the MUT-II cannot communicate
with the SRS diagnosis unit. Inspect and, if necessary,
repair the body wiring harness before proceeding further.
3. Read the data list (fault duration and how many times
memories are erased) using the MUT-II.
Data list
No.Service Data ItemApplicability
91How long a problem has lastedMaximum time to be stored: 9999 minutes
(approximately 7 days)
92Number indicating houw often the memory is clearedMaximum time to be stored: 250
4. Erase the diagnosis codes and after waiting 5 seconds
or more read (and write down) all displayed diagnosis
codes. (Refer to P.52B-6.)
REPAIR PROCEDURE
WHEN AIR BAG DEPLOYS IN A COLLISION.
1. Replace the following parts with new ones.

SRS diagnosis unit (SDU) (Refer to P. 52B-26.)

Air bag module (Refer to P. 52B-28.)

Front impact sensors (Refer to P. 52B-23.)

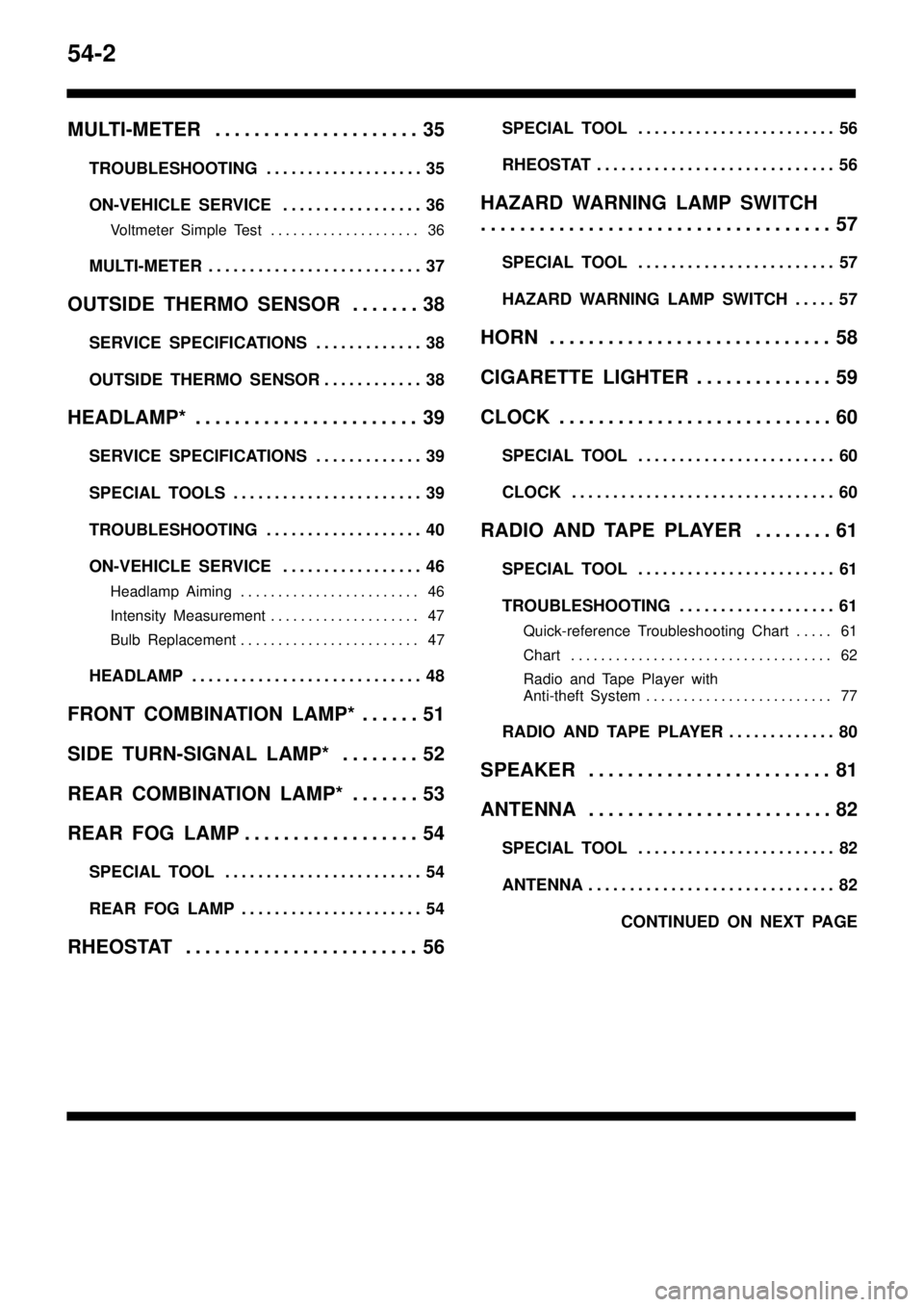

54-2
MULTI-METER 35. . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 35. . . . . . . . . . . . . . . . . . .
ON-VEHICLE SERVICE 36. . . . . . . . . . . . . . . . .
Voltmeter Simple Test 36. . . . . . . . . . . . . . . . . . . .
MULTI-METER 37. . . . . . . . . . . . . . . . . . . . . . . . . .
OUTSIDE THERMO SENSOR 38. . . . . . .
SERVICE SPECIFICATIONS 38. . . . . . . . . . . . .
OUTSIDE THERMO SENSOR 38. . . . . . . . . . . .
HEADLAMP* 39. . . . . . . . . . . . . . . . . . . . . . .
SERVICE SPECIFICATIONS 39. . . . . . . . . . . . .
SPECIAL TOOLS 39. . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 40. . . . . . . . . . . . . . . . . . .
ON-VEHICLE SERVICE 46. . . . . . . . . . . . . . . . .
Headlamp Aiming 46. . . . . . . . . . . . . . . . . . . . . . . .
Intensity Measurement 47. . . . . . . . . . . . . . . . . . . .
Bulb Replacement 47. . . . . . . . . . . . . . . . . . . . . . . .
HEADLAMP 48. . . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT COMBINATION LAMP* 51. . . . . .
SIDE TURN-SIGNAL LAMP* 52. . . . . . . .
REAR COMBINATION LAMP* 53. . . . . . .
REAR FOG LAMP 54. . . . . . . . . . . . . . . . . .
SPECIAL TOOL 54. . . . . . . . . . . . . . . . . . . . . . . .
REAR FOG LAMP 54. . . . . . . . . . . . . . . . . . . . . .
RHEOSTAT 56. . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOL 56. . . . . . . . . . . . . . . . . . . . . . . .
RHEOSTAT 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HAZARD WARNING LAMP SWITCH
57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOL 57. . . . . . . . . . . . . . . . . . . . . . . .
HAZARD WARNING LAMP SWITCH 57. . . . .
HORN 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIGARETTE LIGHTER 59. . . . . . . . . . . . . .
CLOCK 60. . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOL 60. . . . . . . . . . . . . . . . . . . . . . . .
CLOCK 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RADIO AND TAPE PLAYER 61. . . . . . . .
SPECIAL TOOL 61. . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 61. . . . . . . . . . . . . . . . . . .
Quick-reference Troubleshooting Chart 61. . . . .
Chart 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio and Tape Player with
Anti-theft System 77. . . . . . . . . . . . . . . . . . . . . . . . .
RADIO AND TAPE PLAYER 80. . . . . . . . . . . . .
SPEAKER 81. . . . . . . . . . . . . . . . . . . . . . . . .
ANTENNA 82. . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOL 82. . . . . . . . . . . . . . . . . . . . . . . .
ANTENNA 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTINUED ON NEXT PAGE

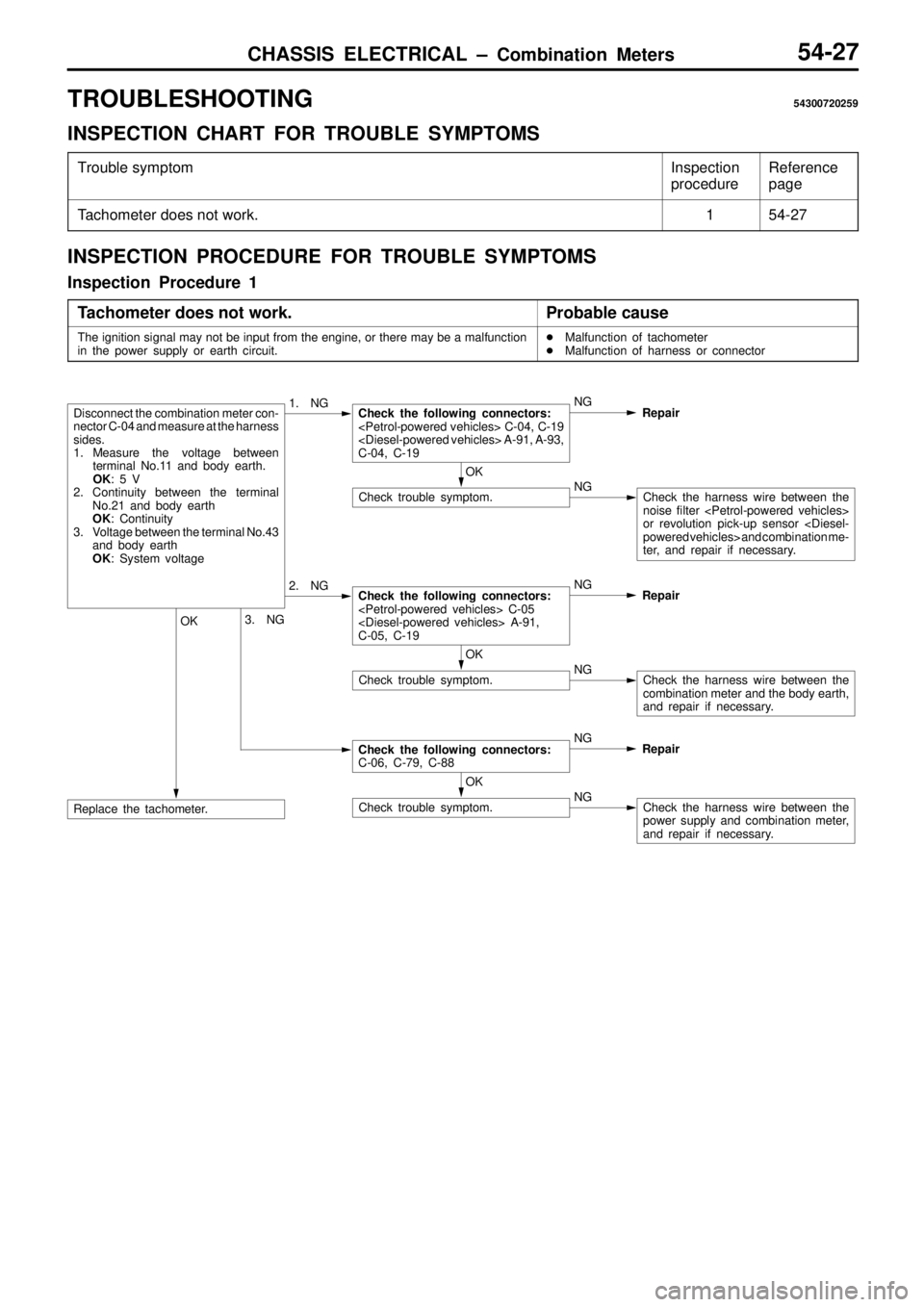

CHASSIS ELECTRICAL ± Combination Meters54-27
TROUBLESHOOTING54300720259
INSPECTION CHART FOR TROUBLE SYMPTOMS
Trouble symptomInspection
procedureReference
page
Tachometer does not work.154-27
INSPECTION PROCEDURE FOR TROUBLE SYMPTOMS
Inspection Procedure 1
Tachometer does not work.
Probable cause
The ignition signal may not be input from the engine, or there may be a malfunction
in the power supply or earth circuit.
Malfunction of tachometer

Malfunction of harness or connector
Disconnect the combination meter con-
nector C-04 and measure at the harness
sides.
1. Measure the voltage between
terminal No.11 and body earth.
OK: 5 V
2. Continuity between the terminal
No.21 and body earth
OK: Continuity
3. Voltage between the terminal No.43
and body earth
OK: System voltage1. NGCheck the following connectors:
C-04, C-19
A-91, A-93,
C-04, C-19NG
Repair
OK
Check trouble symptom.NGCheck the harness wire between the
noise filter
or revolution pick-up sensor powered vehicles> and combination me-
ter, and repair if necessary.
2. NGCheck the following connectors:
C-05
A-91,
C-05, C-19NG
Repair
OK
Check trouble symptom.NGCheck the harness wire between the
combination meter and the body earth,
and repair if necessary. OK
Replace the tachometer.
3. NG
Check the following connectors:
C-06, C-79, C-88NG
Repair
OK
Check trouble symptom.NGCheck the harness wire between the
power supply and combination meter,
and repair if necessary.
