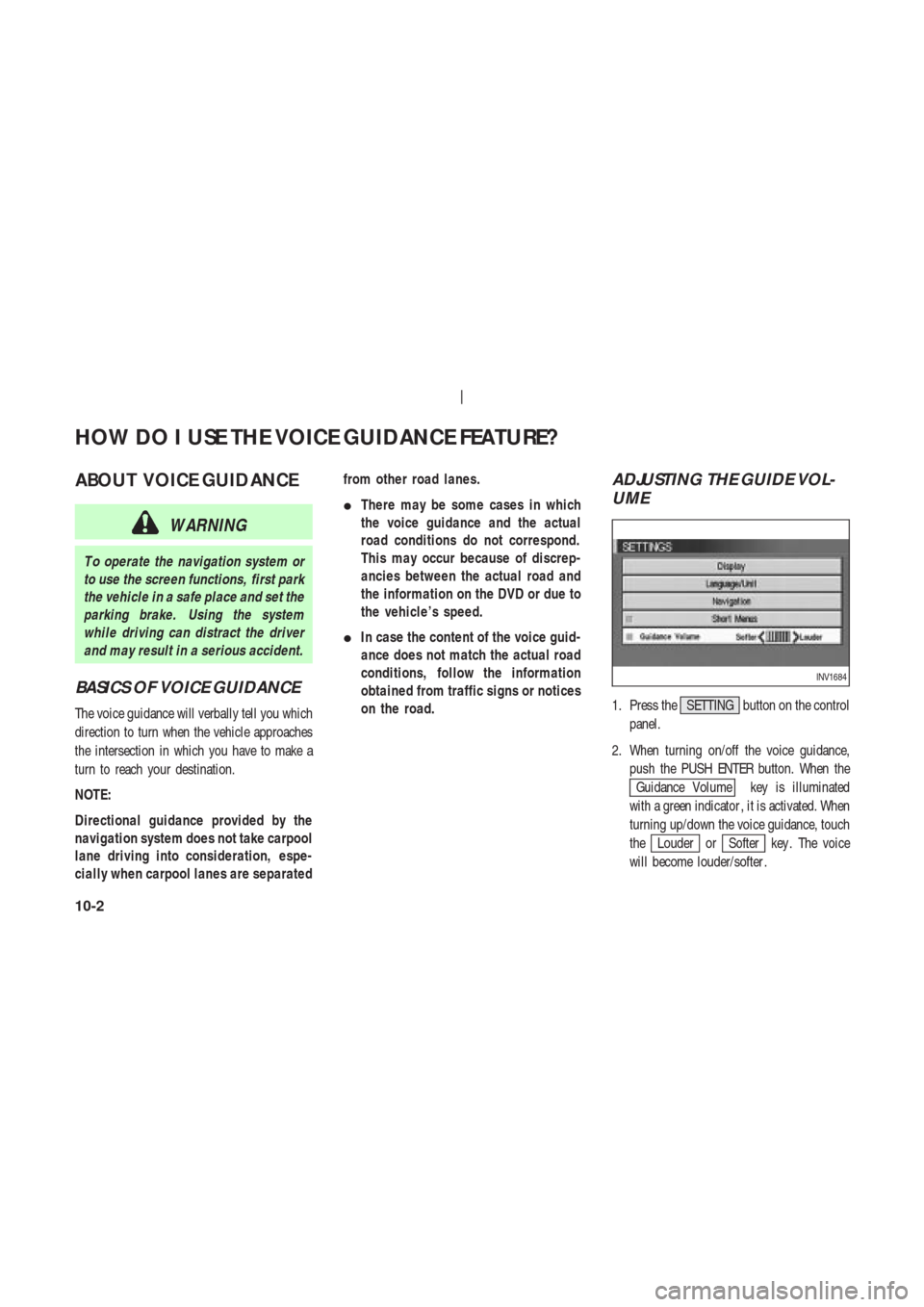

ABOUT VOICE GUIDANCE
WARNING
T o operate the navigation system or
to use the screen functions, first park
the vehicle in a safe place and set the
parking brake. Using the system
while driving can distract the driver
and may result in a serious accident.
BASICS OF VOICE GUIDANCE
The voice guidance will verbally tell you which
direction to turn when the vehicle approaches
the intersection in which you have to make a
turn to reach your destination.
NOTE:
Directional guidance provided by the
navigation system does not take carpool
lane driving into consideration, espe-
cially when carpool lanes are separatedfrom other road lanes.

There may be some cases in which
the voice guidance and the actual
road conditions do not correspond.
This may occur because of discrep-
ancies between the actual road and
the information on the DVD or due to
the vehicle’s speed.

In case the content of the voice guid-
ance does not match the actual road
conditions, follow the information
obtained from traffic signs or notices
on the road.
ADJUSTING THE GUIDE VOL-
UME
1. Press the SETTING button on the control
panel.
2. When turning on/off the voice guidance,
push the PUSH ENTER button. When the
Guidance Volume key is illuminated
with a green indicator , it is activated. When
turning up/down the voice guidance, touch
the
Louder orSofter key . The voice
will become louder/softer .
INV1684
HOW DO I USE THE VOICE GUIDANCE FEATURE?
10-2

T o change between the BirdviewTMand
Planview, proceed as follows:
1. Press the SETTING button.2. Select the
Navigation key .
INV1691
INI0036
INV1466
HOW DO I ADJUST THE DISPLAY?
11-4

CHANGING THE DISPLA Y
DIRECTION (IN PLANVIEW
DISPLA Y)
1. Press the SETTING button.
2. Select the
Navigation key on the [SET -
TINGS] screen.3. Select the
Heading key on the [NAVIGA-
TION SETTINGS] screen.
The [HEADING] screen will be displayed.4. Select theHeading up key or the
North up key .
The map is displayed as follows:
Heading up : The map shows the current for-
ward direction up.
North up : The map shows North up.
INV1466
INV1698INV1699
HOW DO I ADJUST THE DISPLAY?
11-7

voice guidance on the suggested route to the
destination.
4. When the CANCEL or DEST button is
pressed, or the vehicle starts to run, the
route simulation will be canceled.
CANCEL SIMULATION
1. Press the ROUTE button during simula-
tion.
Select the
Route Info key .2. The [ROUTE INFO.] screen will be dis-
played.
Select the
Cancel Simulation key .
INFO:
When the CANCEL or DEST button is
pressed, or the vehicle starts to run, the route
simulation will be canceled.
INFO:
If you select the
Pause key , simulation ispaused. If you select the key again, the simu-
lation will restart.
DISPLA YING THE TRACK
Y ou can have the system track the road you
have taken, and display it with indication marks
().
1. Press the SETTING button.
2. Select the
Navigation key on the [SET -
TINGS] screen.
INV1713
INV1714
INV1466
HOW DO I ADJUST THE DISPLAY?
11-12

3. Select theT racking On/Off key .
4. Select the
On key .5. Press the MAP button.
The location of the vehicle will be displayed.
INFO:

Y ou can select the
On key to display the
indication marks (), and the
Off key to
stop displaying them.

The indication marks () may be spaced
differently , according to the scale of the
map.

If you reset the current vehicle location, theindication marks () will be cleared.
GPS INFORMA TION DIS-
PLA Y
The following GPS information will be dis-
played on the screen: latitude, longitude, alti-
tude, signal reception, and satellite locations.
1. Press the SETTING button.
2. Select the
Navigation key on the [SET -
TINGS] screen.
INV1716
INV1717
INV1718
INV1466
HOW DO I ADJUST THE DISPLAY?
11-13

2. Select theNavigation key on the
[SETTINGS] screen.
3. Select the
Adjust Current Location key
on the [NAVIGA TION SETTINGS] screen.4. Align the correct location to the cross point
on the map using the joystick, and select
theSet key . The current location will be
corrected, and the direction adjustment
screen will appear .5. Adjust the direction using the
and
keys.
The arrow on the display shows the direction
of the vehicle icon.
6. Select the
Set key .
INV1723
INV1724INV1725
HOW DO I ADJUST THE DISPLAY?
11-15

INFO:

It is not possible to update the vehicle lo-
cation when the vehicle is moving.

Depending on the driving conditions, the
vehicle icon may not exactly correspond to
the actual location of the vehicle. T o verify
position, refer to map books or check actual
landmarks.

If you notice that the system is displaying
a different road from the one the vehicle is
actually traveling, and the vehicle icon doesnot go back to the right road after traveling
approximately 6-1/4 miles (10 km), update
the vehicle location.
SETTING AUTOMA TIC BEEP
SOUND
Y ou can set the automatic beep sound. (Acti-
vated during automatic rerouting, etc.)
1. Press the SETTING button.
The [SETTINGS] screen will be displayed.
Select the
Navigation key .2. The [NAVIGA TION SETTINGS] screen will
be displayed.
Select the
Button T one/Beep Responsekey .
INV1726
INV1466
INV1728
HOW DO I ADJUST THE DISPLAY?
11-16

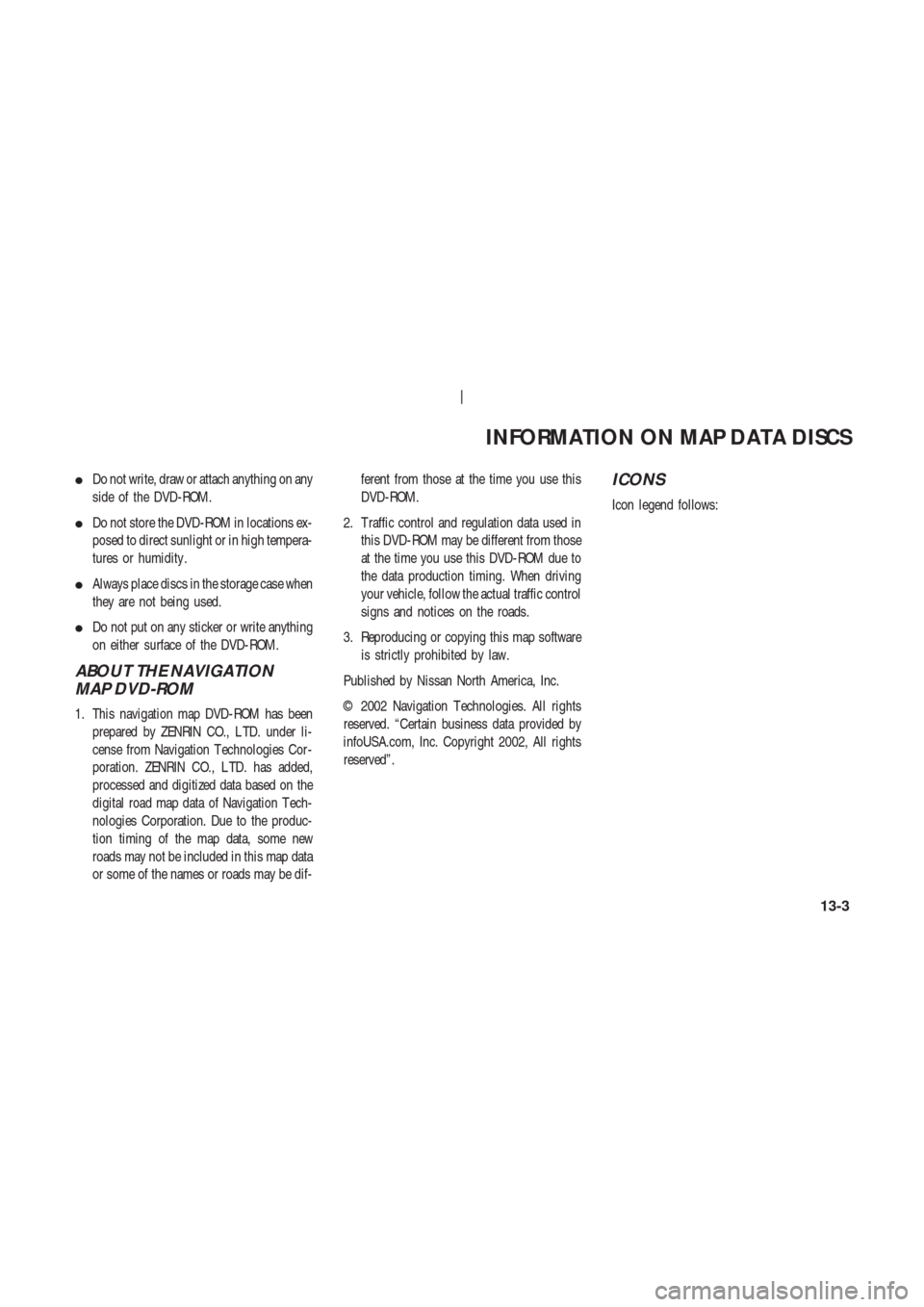

Do not write, draw or attach anything on any
side of the DVD-ROM.

Do not store the DVD-ROM in locations ex-
posed to direct sunlight or in high tempera-
tures or humidity .

Always place discs in the storage case when
they are not being used.

Do not put on any sticker or write anything
on either surface of the DVD-ROM.
ABOUT THE NAVIGATION
MAP DVD-ROM
1. This navigation map DVD-ROM has been
prepared by ZENRIN CO., L TD. under li-
cense from Navigation T echnologies Cor-
poration. ZENRIN CO., L TD. has added,
processed and digitized data based on the
digital road map data of Navigation T ech-
nologies Corporation. Due to the produc-
tion timing of the map data, some new
roads may not be included in this map data
or some of the names or roads may be dif-ferent from those at the time you use this
DVD-ROM.
2. T raffic control and regulation data used in
this DVD-ROM may be different from those
at the time you use this DVD-ROM due to
the data production timing. When driving
your vehicle, follow the actual traffic control
signs and notices on the roads.
3. Reproducing or copying this map software
is strictly prohibited by law.
Published by Nissan North America, Inc.
© 2002 Navigation T echnologies. All rights
reserved. “Certain business data provided by
infoUSA.com, Inc. Copyright 2002, All rights
reserved”.
ICONS
Icon legend follows:
INFORMATION ON MAP DATA DISCS
13-3

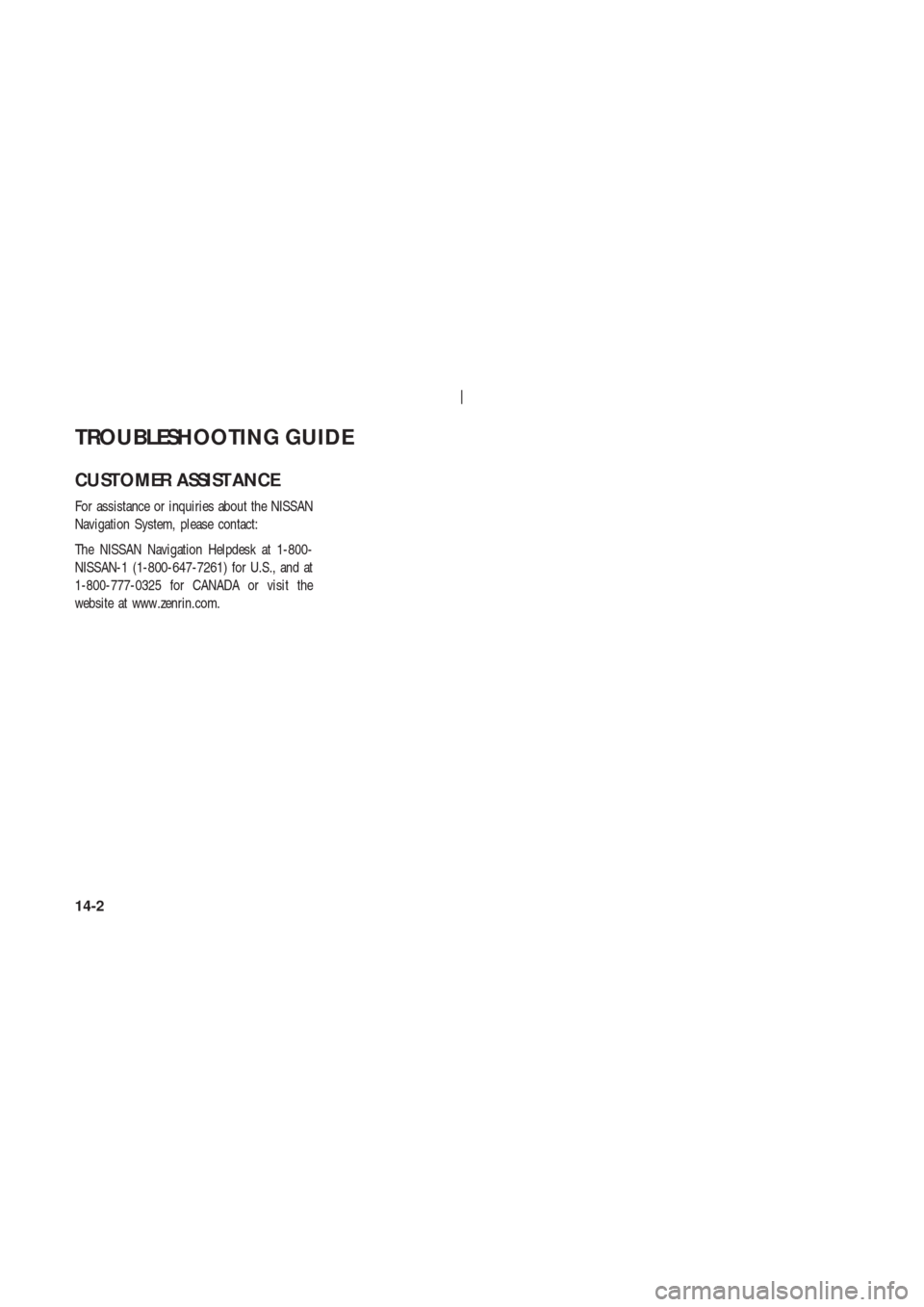

CUSTOMER ASSIST ANCE
For assistance or inquiries about the NISSAN
Navigation System, please contact:
The NISSAN Navigation Helpdesk at 1-800-
NISSAN-1 (1-800-647-7261) for U.S., and at
1-800-777-0325 for CANADA or visit the
website at www.zenrin.com.
TROUBLESHOOTING GUIDE
14-2

KEY
Address Book key ................................. 5-3
Address/Street key ................................ 5-6
Adjust Current Location key ............. 11-14
All Clear key ....................................... 5-35
Area key ........................................ 8-4, 8-8
Auto Re-route On/Off key ..................... 9-2
Avoid Area Settings key........................ 8-2
Avoid the Current Street key ................ 9-3
Avoid Freeway key ........................ 8-4, 8-8
Birdview key ........................................ 11-5
Brightness/Contrast/Map Backgroundkey ... 11-17
Button T one/Beep Response ........... 11-16
Category key ......................................... 6-4
Cancel Simulation key ...................... 11-12
City key (DEST . SETTINGS) ............... 5-18
Clear Memory key............................... 4-18
Complete route key ............................. 11-9
Country key ......................................... 5-25
Destination key.................................... 5-27
Display key........................................ 11-17
Display Off key.................................. 11-20
key ..................................... 5-28
Detour key ............................................. 9-3
Edit Address Book key.......................... 7-2
Edit Route key ....................................... 9-3
GPS information key ......................... 11-13
Guidance Volume key ......................... 10-2
Heading key ........................................ 11-7
Heading up key ................................... 11-7
Home key ............................................ 5-26
I AGREE key ........................................ 4-16
Intersection key ................................... 5-12
Landmark Icon key................................ 7-8
Language/Unit key ................................ 4-9
Louder key .......................................... 10-2
Map key .............................................. 5-24
Minimize FWY key .............................. 5-30
Minimize T oll Road key...................... 5-30
Navigation key....................................... 4-9
Nearby key .......................................... 6-11
Nearby Display Icons key ................... 6-13
North up key ....................................... 11-7
Pause key .......................................... 11-12
Phone Number key ............................. 5-22
Plan View key ..................................... 11-5
Point of Interest (POI) key .................... 6-2
Previous Dest. key ................................ 5-5
