and falls simultaneously. Support the
top by hand so it does not strike the
body.
b. Lower the rear part of the top and push it
onto the top storage lid. The top is locked to
the storage lid, but the bottom of the rear part
is not closed tightly.

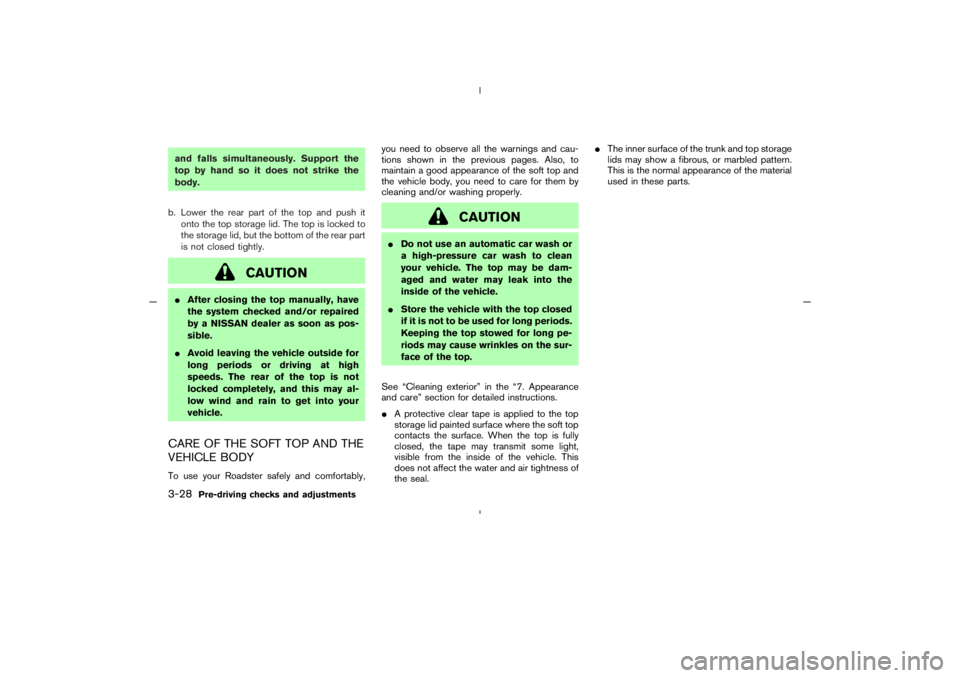

CAUTION
After closing the top manually, have
the system checked and/or repaired
by a NISSAN dealer as soon as pos-
sible.
Avoid leaving the vehicle outside for
long periods or driving at high
speeds. The rear of the top is not
locked completely, and this may al-
low wind and rain to get into your
vehicle.CARE OF THE SOFT TOP AND THE
VEHICLE BODYTo use your Roadster safely and comfortably,you need to observe all the warnings and cau-
tions shown in the previous pages. Also, to
maintain a good appearance of the soft top and
the vehicle body, you need to care for them by
cleaning and/or washing properly.
CAUTION
Do not use an automatic car wash or
a high-pressure car wash to clean
your vehicle. The top may be dam-
aged and water may leak into the
inside of the vehicle.
Store the vehicle with the top closed
if it is not to be used for long periods.
Keeping the top stowed for long pe-
riods may cause wrinkles on the sur-
face of the top.
See “Cleaning exterior” in the “7. Appearance
and care” section for detailed instructions.
A protective clear tape is applied to the top
storage lid painted surface where the soft top
contacts the surface. When the top is fully
closed, the tape may transmit some light,
visible from the inside of the vehicle. This
does not affect the water and air tightness of
the seal.The inner surface of the trunk and top storage
lids may show a fibrous, or marbled pattern.
This is the normal appearance of the material
used in these parts.
3-28
Pre-driving checks and adjustments
04.8.23/Z33-D/V5.0
Page 132 of 279
4 Heater, air conditioner and audio systemsSafety note .............................................................................. 4-2
Control panel buttons — with navigation system .......... 4-2
Names of the components ............................................ 4-2
How to use joystick and “ENTER” button ................. 4-3
How to use “PREVIOUS” button................................. 4-3
Setting up the start-up screen ..................................... 4-3
How to use the “INFO” button ..................................... 4-3
How to use the “SETTING” button ............................. 4-5
How to use the “
” button.................................... 4-7
Ventilators ............................................................................... 4-7
Center ................................................................................ 4-7
Side .................................................................................... 4-7
Heater and air conditioner (Automatic) ............................ 4-8
Automatic operation ....................................................... 4-9
Manual operation ............................................................ 4-9Operating tips ............................................................... 4-10
Servicing air conditioner .................................................. 4-11
Audio system ....................................................................... 4-11
Radio ............................................................................... 4-11
FM radio reception ...................................................... 4-12
AM radio reception ...................................................... 4-12
Satellite (SAT) radio reception
(if so equipped) ............................................................ 4-12
Audio operation precautions ..................................... 4-12
FM-AM radio with compact disc (CD) player ........ 4-15
FM-AM-SAT radio with cassette player and
compact disc (CD) changer ...................................... 4-19
CD care and cleaning ................................................. 4-26
Antenna ........................................................................... 4-26
Car phone or CB radio .................................................... 4-26
04.8.23/Z33-D/V5.0
Page 133 of 279

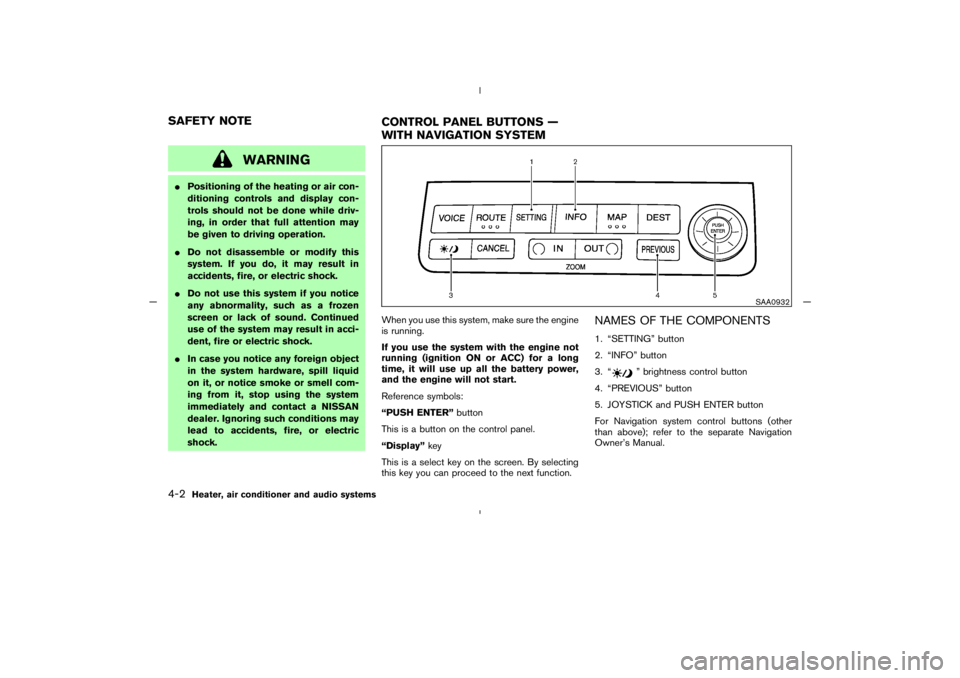

WARNING
Positioning of the heating or air con-
ditioning controls and display con-
trols should not be done while driv-
ing, in order that full attention may
be given to driving operation.
Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.
In case you notice any foreign object
in the system hardware, spill liquid
on it, or notice smoke or smell com-
ing from it, stop using the system
immediately and contact a NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire, or electric
shock.When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ONor ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
Reference symbols:
“PUSH ENTER”button
This is a button on the control panel.
“Display”key
This is a select key on the screen. By selecting
this key you can proceed to the next function.
NAMES OF THE COMPONENTS1. “SETTING” button
2. “INFO” button
3. “
” brightness control button
4. “PREVIOUS” button
5. JOYSTICK and PUSH ENTER button
For Navigation system control buttons (other
than above); refer to the separate Navigation
Owner’s Manual.
SAA0932

SAFETY NOTE
CONTROL PANEL BUTTONS —
WITH NAVIGATION SYSTEM4-2
Heater, air conditioner and audio systems
04.8.23/Z33-D/V5.0
Page 134 of 279
HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick
and push the PUSH ENTER button for opera-
tion.HOW TO USE “PREVIOUS”
BUTTONThis button has two functions.
To return to the previous screen:
When this button is pressed during setup, setup
will be canceled, and the screen will return to the
previous screen.
To finish the set-up:
When this button is pressed after setup is
completed, the settings will be renewed as
directed, and the screen will return to the map.
INFO:
When the “PREVIOUS” button must be
pressed, (for example, after the setup is finished)
instructions are given in the operation procedure
of each section in this manual. If the “PREVI-
OUS” button is pressed when not finished with
the setup, the setting will be canceled, and the
screen will return to the previous screen.
SETTING UP THE START-UP
SCREENWhen you turn the ignition key to ACC, the
SYSTEM START-UP warning is displayed on
the screen. Read the warning and select the
“I AGREE” (English) or “ENTER” (Franc¸ ais) key
then push the PUSH ENTER button.
If you do not push the PUSH ENTER button, this
system will not proceed to the next step display.
To proceed to the next step, refer to the separate
Navigation system Owner’s Manual.
HOW TO USE THE “INFO” BUTTONWhen the “INFO” button is pushed, the “MAIN-
TENANCE INFO.” screen will be displayed.Maintenance informationTo set the maintenance interval for the Engine
Oil or Oil Filter, choose an item using the joystick
and push the PUSH ENTER button.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil change interval. Use the same steps
to set the other maintenance information.
SAA0933
Heater, air conditioner and audio systems
4-3
04.8.23/Z33-D/V5.0
Page 135 of 279
1. Reset the driving distance to the new main-
tenance schedule.
2. Set the interval (mileage) of the maintenance
schedule. To determine the recommended
maintenance interval, refer to your “NISSAN
Service and Maintenance Guide”.
3. To display the MAINTENANCE INFORMA-
TION automatically when the set trip distance
is reached, highlight the “Display Mainte-
nance Notification” key with the joystick
and push the PUSH ENTER button.
4. To return the display to MAINTENANCE
INFO., push the “PREVIOUS” button.Maintenance information display cannot be op-
erated when the vehicle is moving. Stop the
vehicle in a safe place to see the information.
Maintenance notificationThe “MAINTENANCE NOTIFICATION” screen
(“ENGINE OIL” or “OIL FILTER”) will be auto-
matically displayed as shown when both of the
following conditions are met:
the vehicle is driven the set distance and the
ignition switch is turned OFF.
the ignition switch is turned ON the next time
the vehicle will be driven.
To return to the previous display after the
“MAINTENANCE NOTIFICATION” screen is
displayed, push the PREVIOUS button.
SAA0802
SAA0968
4-4
Heater, air conditioner and audio systems
04.8.23/Z33-D/V5.0
Page 136 of 279
The “MAINTENANCE NOTIFICATION” screen
displays each time the ignition switch is turned
ON until one of the following conditions are met:
“Reset” is selected.
“Display Maintenance Notification” is set
OFF.
the maintenance interval is set again.
*: Please refer to the separate Navigation system
Owner’s Manual.
HOW TO USE THE “SETTING”
BUTTONThe SETTINGS screen will appear when the
“SETTING” button is pushed.
“Display” settingsThe DISPLAY SETTINGS screen will appear
when pushing the “SETTING” button, selecting
“Display” key and pushing the PUSH ENTER
button.
Brightness/Contrast/Map Background:
To adjust the brightness and contrast of the
screen, select the “Brightness/Contrast Map
Background” key and push the PUSH ENTER
button. Then you can adjust the brightness to
Darker or Brighter, the contrast to Lower or
Higher using the joystick.
For information on Map Background, refer to the
SAA0934
SAA0935
Heater, air conditioner and audio systems
4-5
04.8.23/Z33-D/V5.0
Page 137 of 279
separate navigation system Owner’s Manual.
Display Off:
To turn off the screen, push the “SETTING”
button and select the “Display” key and “Display
Off” key. The indicator of the “Display Off” will
turn to amber. When any mode button is pushed
with the screen off, the screen turns on for
further operation. The screen will turn off auto-
matically 5 seconds after the operation is fin-
ished on the map display.
To turn on the screen, push the “SETTING”
button and select the “Display” key and “Display
Off” key, then set the screen to on by pushing
the PUSH ENTER button.
Display Duration Settings:
When the “DISPLAY SETTINGS” adjustments
are completed, the display automatically returns
to the map display. You can set the length of
time that the “DISPLAY SETTINGS” screen will
be shown after no additional adjustments are
made.
To set the display duration, select the “Display
Duration Settings” key and move the joystick to
the left (shorter duration) or right (longer dura-
tion).
To set the display duration, select the currenttime setting with the joystick and push the PUSH
ENTER button.
Language/Unit settingsThe LANGUAGE/UNIT screen will appear when
selecting the “Language/Unit” key and pushing
the PUSH ENTER button.
Language: “English” or “French”
Unit: “US” — Mile, °F, MPG
“Metric” — km, °C, L/100 km
You can select the language and unit using the
joystick and PUSH ENTER button.
SAA0506
4-6
Heater, air conditioner and audio systems
04.8.23/Z33-D/V5.0
Page 138 of 279
HOW TO USE THE “
”
BUTTON
To change the display brightness, push the
“
” (DAY/NIGHT) button. Pushing the but-
ton again will change the display to DAY or
NIGHT display. Then, adjust the brightness mov-
ing the joystick right or left.
If no operation is done within 10 seconds, or if
the “PREVIOUS” button is pushed, the display
will return to the previous display.
CENTERAdjust the air flow direction of ventilators.
Moving the lever up or down will open
A
or
close
B
the vents.
To change the air flow direction, turn the dial
C.
SIDEAdjust the air flow direction of ventilators by
A
opening,
Bclosing or
Crotating as illustrated.
SAA0600
SAA0601
VENTILATORS
Heater, air conditioner and audio systems
4-7
04.8.23/Z33-D/V5.0
Page 139 of 279
1. Air flow control dial
2. Temperature control dial*
* The display of degrees:
“60-75-90” is used for °F (US).
“18-25-32” is used for °C (Canada).
3. Fan control dial
4. Rear window defroster button
(Refer to the “2. Instruments and controls”
section.)
5. Air intake button
(Air recirculation and Fresh air)
6. A/C (air conditioner) button
WARNING
The air conditioner cooling function
operates only when the engine is
running.
On hot, sunny days, temperatures in
a closed vehicle could quickly be-
come high enough to cause severe or
possibly fatal injuries to people or
animals. Do not leave children or
adults who would normally requirethe assistance of others in your ve-
hicle. Unattended pets should also
not be left alone.
Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.
Positioning of the heater or air con-
ditioner controls should not be done
while driving, so full attention may be
given to vehicle operation.
Start the engine and operate the controls to
activate the air conditioner.
NOTE:
In your vehicle, the air conditioner system is
designed to automatically activate the cooling
function when operating the air flow control dial,
the fan control dial or the air intake button. (The
indicator light on the A/C button will illuminate.)
Push the A/C button off when the cooling
function is not necessary.
SAA0602
HEATER AND AIR CONDITIONER
(Automatic)4-8
Heater, air conditioner and audio systems
04.8.23/Z33-D/V5.0
Page 140 of 279
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)This mode may be normally used all year round
as the system automatically works to keep a
constant temperature. Air flow distribution and
fan speed are also controlled automatically.
1. Turn the fan control dial and air flow control
dial to the AUTO position. The air conditioner
will automatically turn on. (The A/C button
indicator light illuminates.)
2. Turn the temperature control dial to set the
desired temperature.
Adjust the temperature to about 75°F (24°C)
for normal operation.
The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.Heating (AUTO; A/C off)The air conditioner does not activate. When you
need to heat only, use this mode.
1. Turn the fan control dial and air flow control
dial to the AUTO position. (The air condi-
tioner will turn on.)2. Push the A/C button to turn off the air
conditioner. (The A/C button indicator light
will turn off.)
3. Turn the temperature control dial to set the
desired temperature.
The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.
Not recommended if windows fog up.
Dehumidified defrosting or defogging1. Turn the fan control dial to the desired posi-
tion.
2. Turn the air flow control dial to the DEF
position.
3. Turn the temperature control dial to set the
desired temperature.
To quickly remove ice from the outside of the
windows, turn the fan control dial to the
maximum position.
As soon as possible after the windshield is
clean, turn the air flow control dial to the
AUTO position to return to the auto mode.When the air flow control dial is turned to the
or
position, the air conditioner
will automatically be turned on at outside
temperatures above 23°F (−5°C) to defog
the windshield, and the air recirculation mode
will automatically be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
MANUAL OPERATION
Fan speed controlTurn the fan control dial
to manually con-
trol the fan speed.
Turn the dial to the AUTO position to return to
automatic control of the fan speed.
Air recirculation/Fresh airEach time the air intake button is pushed, the
indicator light on the button will alternate
(Air recirculation) and
(Fresh air).
When the
indicator light is on, the interior
air is recirculated. (When the air recirculation
mode is selected with the A/C indicator off while
the fan control dial is in the AUTO position, the
air conditioner will turn on.)
When theindicator light is on, the outside
air is drawn into the passenger compartment.
Heater, air conditioner and audio systems
4-9
04.8.23/Z33-D/V5.0
