receiver and antenna are installed (retrofit
unavailable without factory satellite radio pre-
wiring), and an XM
®
or SIRIUS
TM
satellite
radio service subscription is active.
Audio main operationHead unit:
The tape deck employs a permalloy head which
allows for improved reproduction of high fre-
quency ranges. Noise is also greatly reduced by
the use of the Dolby NR (Noise Reduction)
system. The auto loudness circuit enhances the
low frequency range automatically in both radio
reception and tape and CD playback.
This audio system has an active noise compen-
sation feature called “Audio Pilot”. The Audio
Pilot uses a microphone to detect external road
noise and automatically adjusts the amplifier to
compensate for any competing high, midrange,
or low frequency noise.
ON⋅OFF/Volume control:
Turn the ignition key to ACC or ON, and then
push the ON⋅OFF/VOL (Volume) control knob
while the system is off to call up the mode (radio,
tape or CD) which was playing immediately
before the system was turned off. When no CD
or tape is loaded, the radio will come on. While
the system is on, pushing the ON⋅OFF/VOL
control knobturns the system off.Turn the ON⋅OFF/VOL control knobto adjust
the volume.
AUDIO button:
Press the AUDIO button to change the selecting
mode as follows.
BASS→TREBLE→FADER→BALANCE→
NR (Dolby; when cassette is playing)→AU-
DIOP (Audio Pilot)
To adjust Bass, Treble, Fader and Balance,
press the AUDIO button until the desired mode
(BASS, TREBLE, FADER or BALANCE) ap-
pears in the display. Press the TUNE
(
,
) or SEEK (
,
) button
to adjust Bass and Treble to the desired level.
Use the TUNE or SEEK button also to adjust
Fader or Balance modes. Fader adjusts the
sound level between the front and rear speakers
and Balance adjusts the sound between the
right and left speakers.
To change the NR (Dolby) mode to OFF or ON,
press the TUNE or SEEK button while cassette
tape is playing. When Dolby is ON, the display
indicates the
mark.
To change the AUDIOP (Audio Pilot) mode to
OFF or ON, press the TUNE or SEEK button.
Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeat-edly until the radio, cassette tape or CD display
reappears. Otherwise, the radio, cassette tape
or CD display will automatically reappear after
about 10 seconds.
Dolby NR (Noise reduction):
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing Cor-
poration. Dolby NR and the double-D symbol
are trademarks of Dolby Laboratories Li-
censing Corporation.
Metal or chrome tape usage:
The cassette player will be automatically set to
high performance play when playing a metal or
chrome cassette tape.CLOCK adjusting:
Push the RPT button for more than 1.5 seconds
to adjust the digital clock display.
When the clock adjusting display is selected, the
time (hour or minute) will start flashing. See
“Clock” in the “2. Instruments and controls”
section for the detailed clock adjustment opera-
tion.
DISP DISPLAY CHANGE:
This button will work during satellite radio (if so
equipped) and CD operation. Find the detailed
function in the description of each item.
4-20
Heater, air conditioner and audio systems


04.8.23/Z33-D/V5.0


FM-AM-SAT radio operation
RADIO (FM/AM/SAT) band select:
Pushing the RADIO (FM/AM/SAT) band select
button will change the band as follows:
(Without satellite radio)
AM→FM1→FM2→AM
(With satellite radio)
AM→FM1→FM2→SAT1→SAT2→AM
Satellite radio reception capability is not func-
tional, and “NO SAT” will be displayed during
scrolling of modes, unless optional satellite re-
ceiver and antenna were factory installed or
dealer installed prior to purchase, and an XM
or
SIRIUS
TM
satellite radio service subscription is
active.
When RADIO band select button is pushed
while the ignition switch is in the ACC or ON, the
radio will come on at the station last played.
The last station/channel played will also come on
when the ON⋅OFF/VOL control knobis pushed
to ON.
If a compact disc or tape is playing when the
RADIO band select button is turned to ON, the
compact disc or tape will automatically be
turned off and the last radio station/channel
played will come on.The FM stereo indicator ST will glow during FM
stereo reception. When the stereo broadcast
signal is weak, the radio will automatically
change from stereo to monaural reception.
TUNE (Tuning):WARNING
The radio should not be tuned while
driving so full attention may be given to
vehicle operation.
Use the TUNE button
or
for manual
tuning. To move quickly through the channels,
hold either side of the TUNE button down for
more than 0.5 seconds.
SEEK tuning:
(For FM and AM radio)
Push the SEEK button
or
to tune
from high to low or low to high frequencies and
stops at the next broadcasting station.
(For satellite radio)
Push the SEEK button
or
to seek
channels of the next or previous category.
SCANtuning:
Push the SCAN tuning button to tune from low
to high frequencies and stops at each broad-
casting station for 5 seconds. Pushing the but-
ton again during this 5 second period will stop
SCAN tuning and the radio will remain tuned to
that station.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next sta-
tion.
DISP SAT radio display change:

Pushing the DISP button will display addi-
tional information (for example: Title, Artist
name) about the satellite radio broadcast.

Pushing the DISP button for more than 1.5
seconds will change the display mode as
follows:
Channel number→Channel name→Artist
name→Song title→Channel number
Station memory operations:
Twelve stations/channels can be set for the FM
band (six for FM1, six for FM2) and the SAT radio
(six for SAT1, six for SAT2), and six stations can
be set for the AM band.
1. Tune to the desired station/channel using the
SEEK, SCAN or TUNE button.
Heater, air conditioner and audio systems
4-21


04.8.23/Z33-D/V5.0


2. Select the desired station/channel and keep
pushing any of the desired station/channel
and preset buttons (1 to 6) until a beep
sound is heard. (The radio mutes when the
station and preset button is pushed.)
3. The channel indicator will then come on and
the sound will resume. Memorizing is now
complete.
4. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if
the fuse blows, the radio memory will be
erased. In that case, reset the desired sta-
tions.Radio data system (RDS)RDS stands for Radio Data System, and is a
data information service transmitted by some
radio stations on the FM band (not AM band)
and/or SAT encoded within a regular radio
broadcast. Currently, most RDS stations are in
large cities, but many stations are now consid-
ering broadcasting RDS data.
RDS can display:

Station call sign, such as “WHFR 98.3”.

Station name, such as “The Groove”.

Music or programming type such as “Classi-
cal”, “Country”, or “Rock”.
Traffic reports about delays or construction.
If the station broadcasts RDS information, the
RDS icon is displayed.
Program type (PTY)/Category
(CAT) select:
When PTY button is pressed during FM mode,
the PTY (CAT) name of the current tuned station
is displayed. When the PTY (CAT) button is
pressed during satellite radio mode (if so
equipped), the category name of the current
channel is displayed. During this time if the PTY
data code is zero, or the data is unreadable, the
display will show NONE.
1. PTY (CAT) selection mode
PTY (CAT) name selection can be done by
the up/down TUNE button
or
in
the PTY (CAT) selection mode.
It is possible to shift the PTY (CAT) name by
one step, with one push of the up/down
TUNE button
or
.
After selecting a PTY (CAT) name, push the
SEEK button or SCAN button within 10
seconds. Tuning to the PTY (CAT) station will
start. If you do not push the TUNE button
within the 10 second period, the PTY (CAT)
mode will be cancelled.
PTY (CAT) name selection can also beachieved by pressing the preset buttons.
Initial PTY (CAT) names are stored in the
preset buttons, but these can be changed by
pressing the preset buttons for more than 1.5
seconds when the desired PTY (CAT) name
is in the display.
2. PTY (CAT) SEEK tuning mode
After selecting a PTY (CAT) name, push the
SEEK button
or
within 10 sec-
onds. Tuning to the PTY (CAT) station will
start. If you do not push the SEEK button
within the 10 second period, the PTY (CAT)
4-22
Heater, air conditioner and audio systems


04.8.23/Z33-D/V5.0


mode will be cancelled.
3. PTY (CAT) SCANtuning mode
Push the SCAN tuning button to tune the
PTY (CAT) name station, and stop at each
broadcasting station for 5 seconds. Pushing
the button again during this 5 second period
will stop SCAN tuning and the radio will
remain tuned to that station. If the SCAN
tuning button is not pushed within 5 seconds,
SCAN tuning moves to the next station.
Cassette tape player operationTurn the ignition key to ACC or ON, and then
gently insert the cassette tape into the tape
door. The cassette tape will be automatically
pulled into the player.
The radio or CD will turn off (if it is on) and the
cassette tape will begin to play.
CAUTION
Do not force the cassette tape into the
tape door. This could damage the
player.
If the system is turned off by pushing the
ON⋅OFF/VOL control knobwith the cassettetape still in the player, the tape will resume
playing when the system is turned back on.
PLAY:

When the TAPE button is pushed with the
system turned off and a tape loaded, the
system will come on and the tape will play.

When the TAPE button is pushed with either
the radio or compact disc turned on and the
tape loaded, the compact disc or the radio
will automatically be turned off and the tape
will play.

When the TAPE button is pushed with the
TAPE playing, the tape will play the program
recorded on the reverse side.
FF (Fast Forward), REW
(Rewind):
Push the(fast forward) button to fast
forward the tape. To rewind the tape, push the
(rewind) button. Either the FF or REW
symbol illuminates on the display window. To
stop the FF or REW function, press the(fast forward) or
(rewind) again, or
the TAPE button.
APS (Automatic
Program Search) FF,
APS REW:
When the(APS FF) button is pushedwhile the tape is being played, the next program
will start to play from the beginning. Push the
(APS FF) button several times to skip
through programs. The tape will advance the
number of times the button is pushed (up to nine
programs).
When the
(APS REW) button is pushed
once, the program being played starts over from
the beginning. Push the
(APS REW) but-
ton several times to skip back several selections.
The tape will go back the number of times the
button is pushed. Either the FF or REW symbol
flashes on the display window while searching
for the selection.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval be-
tween programs, the system may not stop in the
desired or expected location.
SCANtuning:
Push the SCAN tuning button while playing
tape, and it stops at the next tape program for 5
seconds. Pushing the button again during this 5
second period will stop SCAN tuning and the
tape program is continued. If the SCAN tuning
button is not pushed within 5 seconds, SCAN
tuning moves to the next tape program.
Heater, air conditioner and audio systems
4-23


04.8.23/Z33-D/V5.0

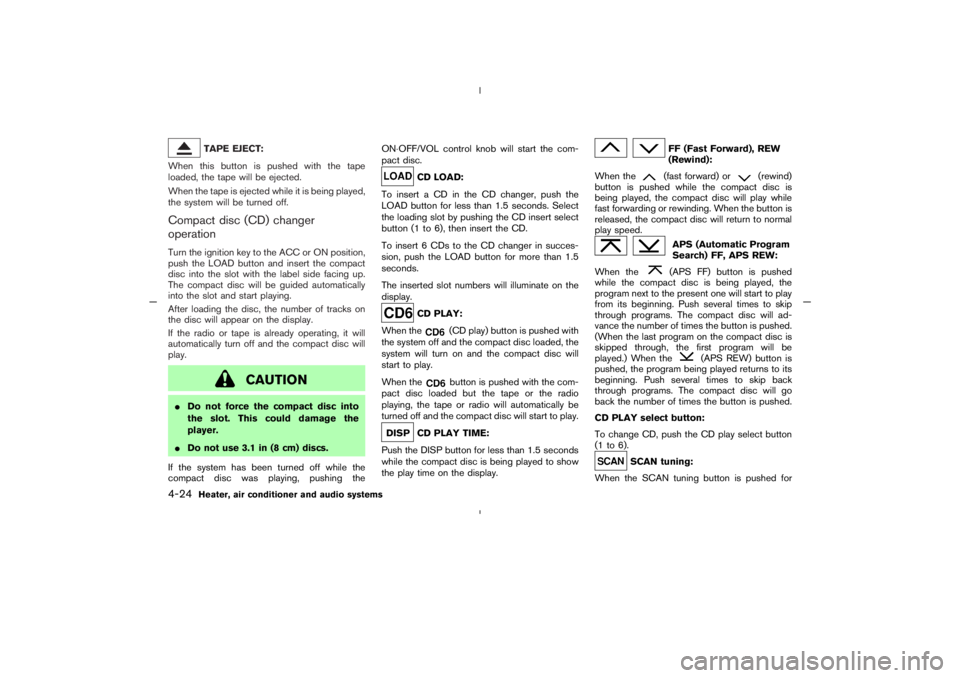

TAPE EJECT:
When this button is pushed with the tape
loaded, the tape will be ejected.
When the tape is ejected while it is being played,
the system will be turned off.
Compact disc (CD) changer
operationTurn the ignition key to the ACC or ON position,
push the LOAD button and insert the compact
disc into the slot with the label side facing up.
The compact disc will be guided automatically
into the slot and start playing.
After loading the disc, the number of tracks on
the disc will appear on the display.
If the radio or tape is already operating, it will
automatically turn off and the compact disc will
play.
CAUTION

Do not force the compact disc into
the slot. This could damage the
player.

Do not use 3.1 in (8 cm) discs.
If the system has been turned off while the
compact disc was playing, pushing theON⋅OFF/VOL control knobwill start the com-
pact disc.
CD LOAD:
To insert a CD in the CD changer, push the
LOAD button for less than 1.5 seconds. Select
the loading slot by pushing the CD insert select
button (1 to 6), then insert the CD.
To insert 6 CDs to the CD changer in succes-
sion, push the LOAD button for more than 1.5
seconds.
The inserted slot numbers will illuminate on the
display.CD PLAY:
When the
(CD play) button is pushed with
the system off and the compact disc loaded, the
system will turn on and the compact disc will
start to play.
When thebutton is pushed with the com-
pact disc loaded but the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.
DISP CD PLAY TIME:
Push the DISP button for less than 1.5 seconds
while the compact disc is being played to show
the play time on the display.
FF (Fast Forward), REW
(Rewind):
When the(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button is
released, the compact disc will return to normal
play speed.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed
while the compact disc is being played, the
program next to the present one will start to play
from its beginning. Push several times to skip
through programs. The compact disc will ad-
vance the number of times the button is pushed.
(When the last program on the compact disc is
skipped through, the first program will be
played.) When the
(APS REW) button is
pushed, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
back the number of times the button is pushed.
CD PLAY select button:
To change CD, push the CD play select button
(1 to 6).
SCANtuning:
When the SCAN tuning button is pushed for
4-24
Heater, air conditioner and audio systems


04.8.23/Z33-D/V5.0

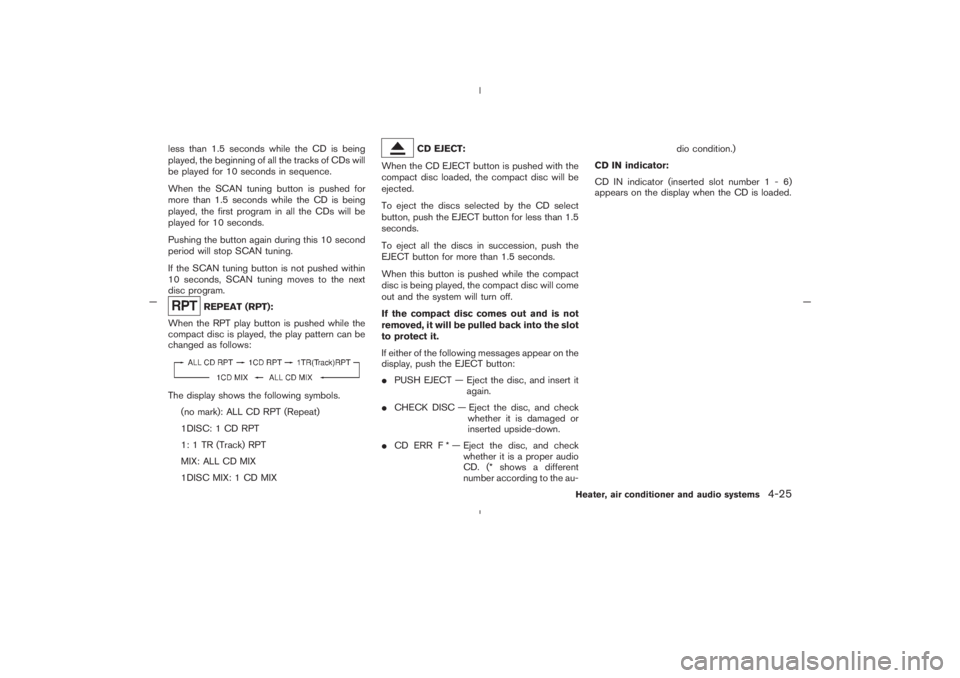

less than 1.5 seconds while the CD is being
played, the beginning of all the tracks of CDs will
be played for 10 seconds in sequence.
When the SCAN tuning button is pushed for
more than 1.5 seconds while the CD is being
played, the first program in all the CDs will be
played for 10 seconds.
Pushing the button again during this 10 second
period will stop SCAN tuning.
If the SCAN tuning button is not pushed within
10 seconds, SCAN tuning moves to the next
disc program.
REPEAT (RPT):
When the RPT play button is pushed while the
compact disc is played, the play pattern can be
changed as follows:
The display shows the following symbols.
(no mark): ALL CD RPT (Repeat)
1DISC: 1 CD RPT
1: 1 TR (Track) RPT
MIX: ALL CD MIX
1DISC MIX: 1 CD MIX
CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the discs selected by the CD select
button, push the EJECT button for less than 1.5
seconds.
To eject all the discs in succession, push the
EJECT button for more than 1.5 seconds.
When this button is pushed while the compact
disc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it.
If either of the following messages appear on the
display, push the EJECT button:

PUSH EJECT — Eject the disc, and insert it
again.

CHECK DISC — Eject the disc, and check
whether it is damaged or
inserted upside-down.

CD ERR F * — Eject the disc, and check
whether it is a proper audio
CD. (* shows a different
number according to the au-dio condition.)
CD INindicator:
CD IN indicator (inserted slot number1-6)
appears on the display when the CD is loaded.
Heater, air conditioner and audio systems
4-25


04.8.23/Z33-D/V5.0

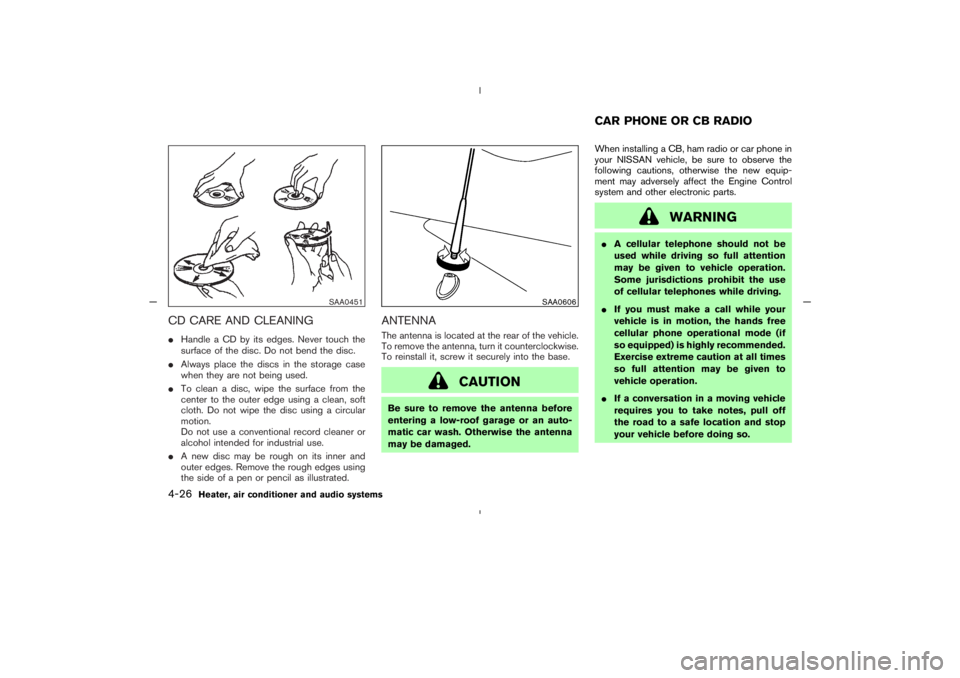

CD CARE AND CLEANING
Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.
ANTENNAThe antenna is located at the rear of the vehicle.
To remove the antenna, turn it counterclockwise.
To reinstall it, screw it securely into the base.
CAUTION
Be sure to remove the antenna before
entering a low-roof garage or an auto-
matic car wash. Otherwise the antenna
may be damaged.When installing a CB, ham radio or car phone in
your NISSAN vehicle, be sure to observe the
following cautions, otherwise the new equip-
ment may adversely affect the Engine Control
system and other electronic parts.
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
SAA0451
SAA0606
CAR PHONE OR CB RADIO
4-26
Heater, air conditioner and audio systems


04.8.23/Z33-D/V5.0

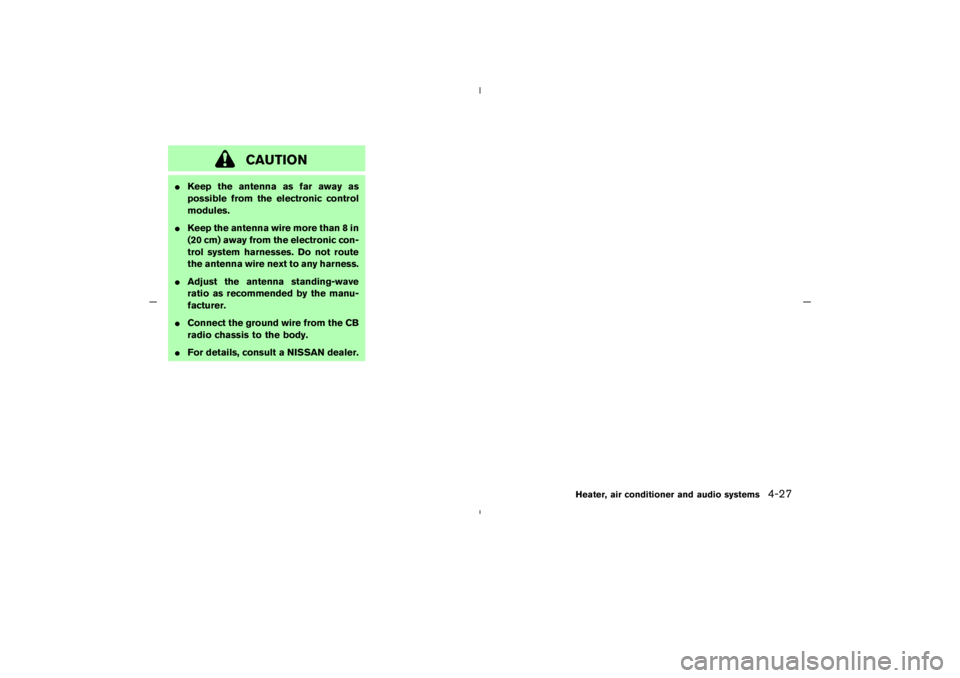

CAUTION

Keep the antenna as far away as
possible from the electronic control
modules.

Keep the antenna wire more than 8 in
(20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

Connect the ground wire from the CB
radio chassis to the body.

For details, consult a NISSAN dealer.
Heater, air conditioner and audio systems
4-27


04.8.23/Z33-D/V5.0

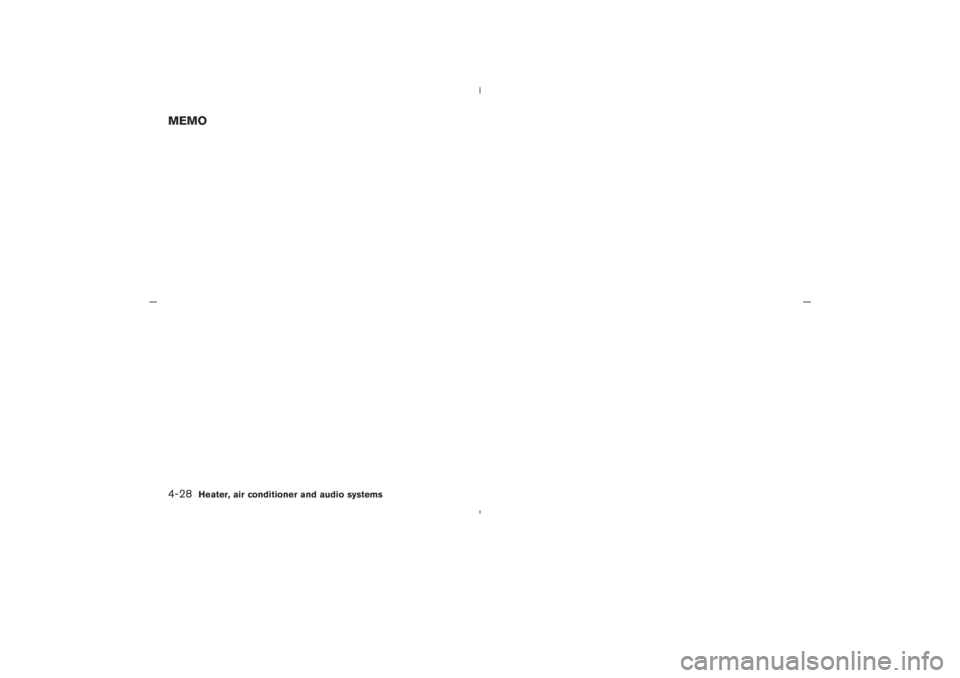

MEMO4-28
Heater, air conditioner and audio systems


04.8.23/Z33-D/V5.0

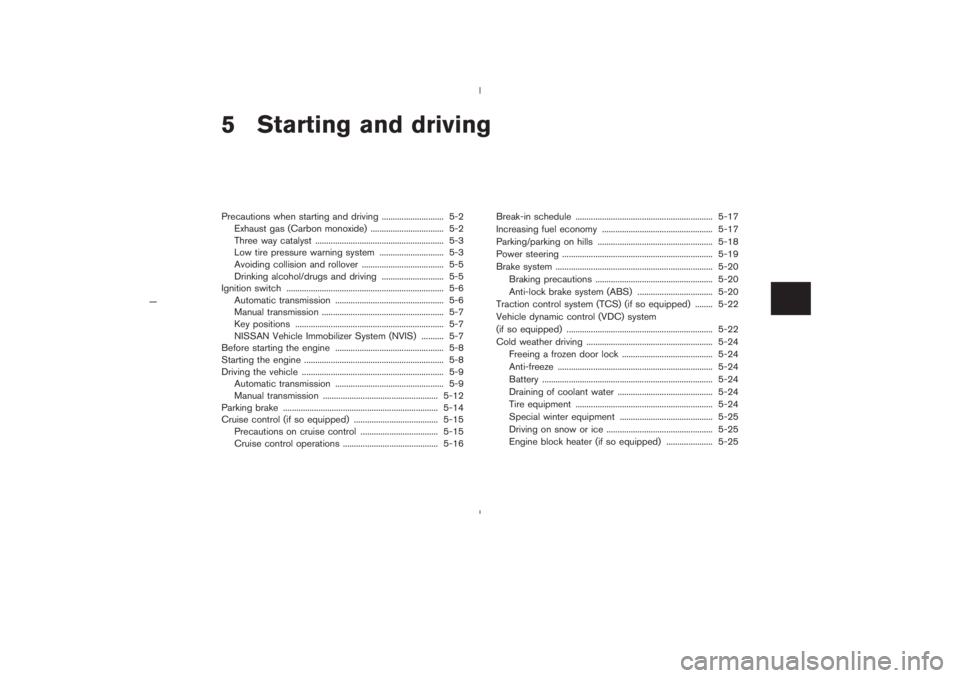

5 Starting and drivingPrecautions when starting and driving ............................ 5-2
Exhaust gas (Carbon monoxide) ................................. 5-2
Three way catalyst .......................................................... 5-3
Low tire pressure warning system ............................. 5-3
Avoiding collision and rollover ..................................... 5-5
Drinking alcohol/drugs and driving ............................ 5-5
Ignition switch ....................................................................... 5-6
Automatic transmission ................................................. 5-6
Manual transmission ....................................................... 5-7
Key positions ................................................................... 5-7
NISSAN Vehicle Immobilizer System (NVIS) .......... 5-7
Before starting the engine ................................................. 5-8
Starting the engine ............................................................... 5-8
Driving the vehicle ................................................................ 5-9
Automatic transmission ................................................. 5-9
Manual transmission .................................................... 5-12
Parking brake ...................................................................... 5-14
Cruise control (if so equipped) ...................................... 5-15
Precautions on cruise control ................................... 5-15
Cruise control operations ........................................... 5-16Break-in schedule .............................................................. 5-17
Increasing fuel economy .................................................. 5-17
Parking/parking on hills .................................................... 5-18
Power steering .................................................................... 5-19
Brake system ....................................................................... 5-20
Braking precautions ..................................................... 5-20
Anti-lock brake system (ABS) .................................. 5-20
Traction control system (TCS) (if so equipped) ........ 5-22
Vehicle dynamic control (VDC) system
(if so equipped) .................................................................. 5-22
Cold weather driving ......................................................... 5-24
Freeing a frozen door lock ......................................... 5-24
Anti-freeze ...................................................................... 5-24
Battery ............................................................................. 5-24
Draining of coolant water ........................................... 5-24
Tire equipment .............................................................. 5-24
Special winter equipment .......................................... 5-25
Driving on snow or ice ................................................ 5-25
Engine block heater (if so equipped) ..................... 5-25


04.8.23/Z33-D/V5.0
