On slippery surfaces such as wet asphalt roads,
vehicle wheels may spin when the vehicle is
accelerated. This wheel spin reduces accelera-
tion, or causes the vehicle to swerve, thus
decreasing vehicle stability.
When the vehicle drive wheels begin to spin, the
traction control system (TCS) controls the en-
gine torque using an electronic control system,
and it also controls automatic control shifting if
necessary (for automatic transmission models).
This reduces spinning of the drive wheels, and
result in improved vehicle acceleration perfor-
mance. It also improves the vehicle stability by
swerving motion.

When the traction control system is operat-
ing, the slip indicator light in the meter panel
blinks.

If the slip indicator light blinks, the vehicle is
under slippery conditions. Be sure to drive
carefully. See “Slip indicator light” and “Trac-
tion control system (TCS) off indicator light”
in the “2. Instruments and controls” section.

Indicator light
If a malfunction occurs in the traction control
system, the SLIP and
indicator lights
come on in the meter panel.
As long as these indicator lights are on, the
traction control function (except the ABS) is
canceled. The vehicle will behaves like amodel without the traction control system.
WARNING
The traction control system is designed
to prevent the wheels from spinning.
However, it does not prevent vehicle
slipping or spinning due to abrupt steer-
ing operation at high speeds or by care-
less or dangerous driving techniques.
Be especially careful when driving on
slippery surfaces and always drive
safely.When accelerating or driving on a slippery sur-
faces, the tires may spin or slide. With the
Vehicle Dynamic Control (VDC) system, sensors
detect these movements and control the braking
and engine output to help improve vehicle sta-
bility.

When the VDC system is operating, the
“SLIP” indicator in the instrument panel
blinks.

When only the Traction Control System
(TCS) portion of the VDC system is operat-
ing, the “SLIP” indicator in the instrument
panel blinks.

If the “SLIP” indicator blinks, the road condi-
tions are slippery. Be sure to adjust your
speed and driving to these conditions. Be
sure to drive carefully. See “Slip indicator
light”, and “Vehicle Dynamic Control (VDC)
OFF indicator light” in the “2. Instruments and
controls” section.

Indicator light
If a malfunction occurs in the system, the
“SLIP” and “VDC OFF” indicator lights illumi-
nate in the instrument panel. As long as these
indicators are illuminated, the VDC system
function is canceled.
The VDC system uses an Active Brake Limited
Slip (ABLS) system to improve vehicle traction.
TRACTIONCONTROL SYSTEM
(TCS) (if so equipped)VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM (if so equipped)5-22
Starting and driving


04.8.23/Z33-D/V5.0


The ABLS system works when one of the driving
wheels is spinning on a slippery surface. The
ABLS system brakes the spinning wheel, which
distributes the driving power to the other driving
wheel. If the vehicle is operated with the VDC
system turned off, all VDC system functions and
TCS functions will be turned off. The ABLS
system and ABS will still operate with the VDC
system off. When the ABLS system is activated,
the “SLIP” indicator light will blink and you may
hear a clunk noise and/or feel a pulsation in the
brake pedal. This is normal and is not an indica-
tion of a malfunction.
While the VDC system is operating, you may feel
a pulsation in the brake pedal and hear a noise or
feel a vibration from under the hood. This is
normal and indicates that the VDC system is
working properly.
The VDC system computer has a built-in diag-
nostic feature that tests the system each time
you start the engine and move the vehicle for-
ward or backward. When the self-test occurs,
you may hear a clunk noise and/or feel a pulsa-
tion in the brake pedal. This is normal and is not
an indication of a malfunction.
WARNING

The VDC system is designed to help
improve driving stability but does not
prevent accidents due to abrupt
steering operation at high speeds or
due to careless or dangerous driving
techniques. Reduce vehicle speed
and be especially careful when driv-
ing and cornering on slippery sur-
faces and always drive carefully.

If engine related parts such as a muf-
fler are not standard equipment or
are extremely deteriorated, the “VDC
OFF” indicator or “SLIP” indicator or
both indicator lights may illuminate.

Do not modify the vehicle’s suspen-
sion. If suspension parts such as
shock absorbers, struts, springs, sta-
bilizer bars and bushings are not
NISSAN-approved or are extremely
deteriorated the VDC system may not
operate properly. This could ad-
versely affect vehicle handling per-
formance, and the “VDC OFF” indica-tor or “SLIP” indicator or both indica-
tor lights may illuminate.

If brake related parts such as brake
pads, rotors and calipers are not
standard equipment or are extremely
deteriorated, the “VDC OFF” indica-
tor or “SLIP” indicator or both indica-
tor lights may illuminate.

When driving on extremely inclined
surfaces such as higher banked cor-
ners, the VDC system may not oper-
ate properly and the “VDC OFF” indi-
cator or “SLIP” indicator or both
indicator lights may illuminate. Do
not drive on these types of roads.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the “VDC OFF” indicator or
“SLIP” indicator or both indicator
lights may illuminate. This is not a
malfunction. Restart the engine after
driving onto a stable surface.

If wheels or tires other than those
recommended are used, the VDC sys-
Starting and driving
5-23


04.8.23/Z33-D/V5.0


tem may not operate properly and the
“VDC OFF” indicator or “SLIP” indi-
cator or both indicator lights may
illuminate.

The VDC system is not a substitute
for winter tires or tire chains on a
snow-covered road.
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
de-icer or glycerin to it through the key hole. If
the lock becomes frozen, heat the key before
inserting it into the key hole.ANTI-FREEZEIn the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check
anti-freeze to assure proper winter protection.
For additional information, see “Engine Cooling
System” in the “8. Maintenance and do-it-
yourself” section.BATTERYIf the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain
maximum efficiency, the battery should be
checked regularly. For additional information,
see “Battery” in the “8. Maintenance and do-it-
yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system by opening the
drain plug located under the radiator. Refill
before operating the vehicle. See “Engine cool-
ing system” in the “8. Maintenance and do-it-
yourself” section for changing engine coolant.
TIRE EQUIPMENT1. SUMMER tires are of a tread design to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your vehicle
on snowy or icy roads, NISSAN recommends
the use of MUD & SNOW or ALL SEASON
tires on all four wheels. Consult a NISSAN
dealer for the tire type, size, speed rating and
availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some provinces
and states prohibit their use. Check local,
state and provincial laws before installing
studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
3. Tire chains may be used if desired. Make sure
they are of proper size for the tires on your
vehicle and are installed according to the
chain manufacturer’s suggestions. Use of tire
chains may be prohibited according to loca-
tion. Check the local laws before installing
tire chains. When installing tire chains, make
sure they are of proper size for the tires on
your vehicle and are installed according to
COLD WEATHER DRIVING
5-24
Starting and driving


04.8.23/Z33-D/V5.0


the chain manufacturer’s suggestions.Use
only SAE Class S chains.Class “S” chains
are used on vehicles with restricted tire to
vehicle clearance. Vehicles that can use
Class “S” chains are designed to meet the
SAE standard minimum clearances between
the tire and the closest vehicle suspension or
body component required to accommodate
the use of a winter traction device (tire chains
or cables). The minimum clearances are de-
termined using the factory equipped tire size.
Other types may damage your vehicle. Use
chain tensioners when recommended by the
tire chain manufacturer to ensure a tight fit.
Loose end links of the tire chain must be
secured or removed to prevent the possibility
of whipping action damage to the fenders or
underbody. If possible, avoid fully loading
your vehicle when using tire chains. In addi-
tion, drive at a reduced speed. Otherwise,
your vehicle may be damaged and/or vehicle
handling and performance may be adversely
affected.
Never install tire chains on a T-type spare tire.
Do not use tire chains on dry roads.
SPECIAL WINTER EQUIPMENTIt is recommended that the following items be
carried in the vehicle during winter:

a scraper and stiff-bristled brush to removeice and snow from the windows and wiper
blades.

a sturdy, flat board to be placed under the
jack to give it firm support.

a shovel to dig the vehicle out of snow-drifts.

extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING

Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” un-
der these conditions. Try to avoid
driving on wet ice until the road is
salted or sanded.

Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels will
lose even more traction.

Allow more stopping distance underthese conditions. Braking should be
started sooner than on dry pavement.

Allow greater following distances on
slippery roads.

Watch for slippery spots (glare ice).
These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake before
reaching it. Try not to brake while on
the ice, and avoid any sudden steer-
ing maneuvers.

Do not use cruise control on slippery
roads.

Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)An engine block heater to assist extreme cold
temperature starting is available through a
NISSAN dealer.
Starting and driving
5-25


04.8.23/Z33-D/V5.0


WARNING
Do not use your heater with an un-
grounded electrical system or two-
pronged (cheater) adapters. You can be
injured by an electrical shock if you use
an ungrounded connection.5-26
Starting and driving


04.8.23/Z33-D/V5.0


6 In case of emergencyFlat tire .................................................................................... 6-2
Low tire pressure warning system ............................. 6-2
Changing a flat tire ......................................................... 6-2
Jump starting ......................................................................... 6-7
Push starting .......................................................................... 6-9If your vehicle overheats ..................................................... 6-9
Towing your vehicle ........................................................... 6-10
Towing recommended by NISSAN........................... 6-11
Vehicle recovery (Freeing a stuck vehicle) ............ 6-12


04.8.23/Z33-D/V5.0

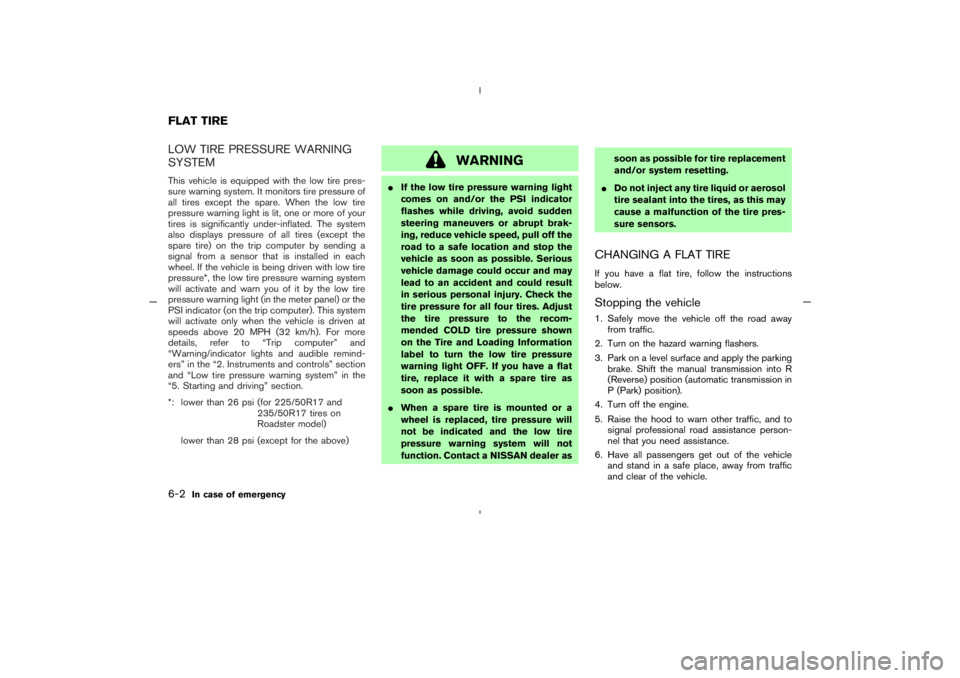

LOW TIRE PRESSURE WARNING
SYSTEMThis vehicle is equipped with the low tire pres-
sure warning system. It monitors tire pressure of
all tires except the spare. When the low tire
pressure warning light is lit, one or more of your
tires is significantly under-inflated. The system
also displays pressure of all tires (except the
spare tire) on the trip computer by sending a
signal from a sensor that is installed in each
wheel. If the vehicle is being driven with low tire
pressure*, the low tire pressure warning system
will activate and warn you of it by the low tire
pressure warning light (in the meter panel) or the
PSI indicator (on the trip computer). This system
will activate only when the vehicle is driven at
speeds above 20 MPH (32 km/h). For more
details, refer to “Trip computer” and
“Warning/indicator lights and audible remind-
ers” in the “2. Instruments and controls” section
and “Low tire pressure warning system” in the
“5. Starting and driving” section.
*: lower than 26 psi (for 225/50R17 and
235/50R17 tires on
Roadster model)
lower than 28 psi (except for the above)
WARNING

If the low tire pressure warning light
comes on and/or the PSI indicator
flashes while driving, avoid sudden
steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the
road to a safe location and stop the
vehicle as soon as possible. Serious
vehicle damage could occur and may
lead to an accident and could result
in serious personal injury. Check the
tire pressure for all four tires. Adjust
the tire pressure to the recom-
mended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If you have a flat
tire, replace it with a spare tire as
soon as possible.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated and the low tire
pressure warning system will not
function. Contact a NISSAN dealer assoon as possible for tire replacement
and/or system resetting.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking
brake. Shift the manual transmission into R
(Reverse) position (automatic transmission in
P (Park) position).
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to
signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle
and stand in a safe place, away from traffic
and clear of the vehicle.
FLAT TIRE6-2
In case of emergency


04.8.23/Z33-D/V5.0

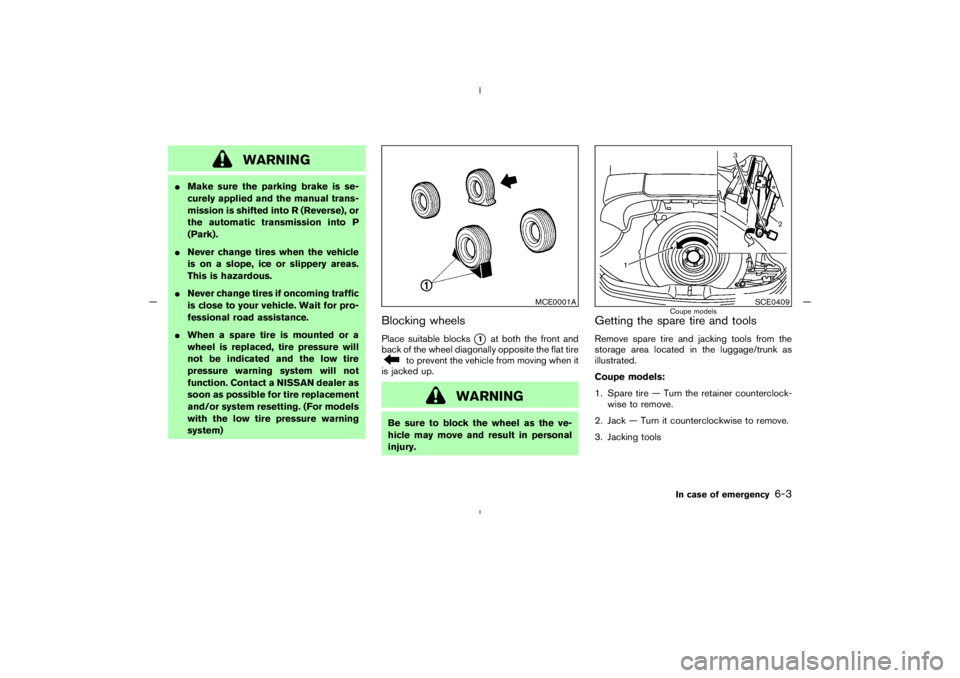

WARNING

Make sure the parking brake is se-
curely applied and the manual trans-
mission is shifted into R (Reverse), or
the automatic transmission into P
(Park).

Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.

Never change tires if oncoming traffic
is close to your vehicle. Wait for pro-
fessional road assistance.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated and the low tire
pressure warning system will not
function. Contact a NISSAN dealer as
soon as possible for tire replacement
and/or system resetting. (For models
with the low tire pressure warning
system)
Blocking wheelsPlace suitable blocks
1
at both the front and
back of the wheel diagonally opposite the flat tire
to prevent the vehicle from moving when it
is jacked up.
WARNING
Be sure to block the wheel as the ve-
hicle may move and result in personal
injury.
Getting the spare tire and toolsRemove spare tire and jacking tools from the
storage area located in the luggage/trunk as
illustrated.
Coupe models:
1. Spare tire — Turn the retainer counterclock-
wise to remove.
2. Jack — Turn it counterclockwise to remove.
3. Jacking tools
MCE0001A
SCE0409
Coupe modelsIn case of emergency
6-3


04.8.23/Z33-D/V5.0

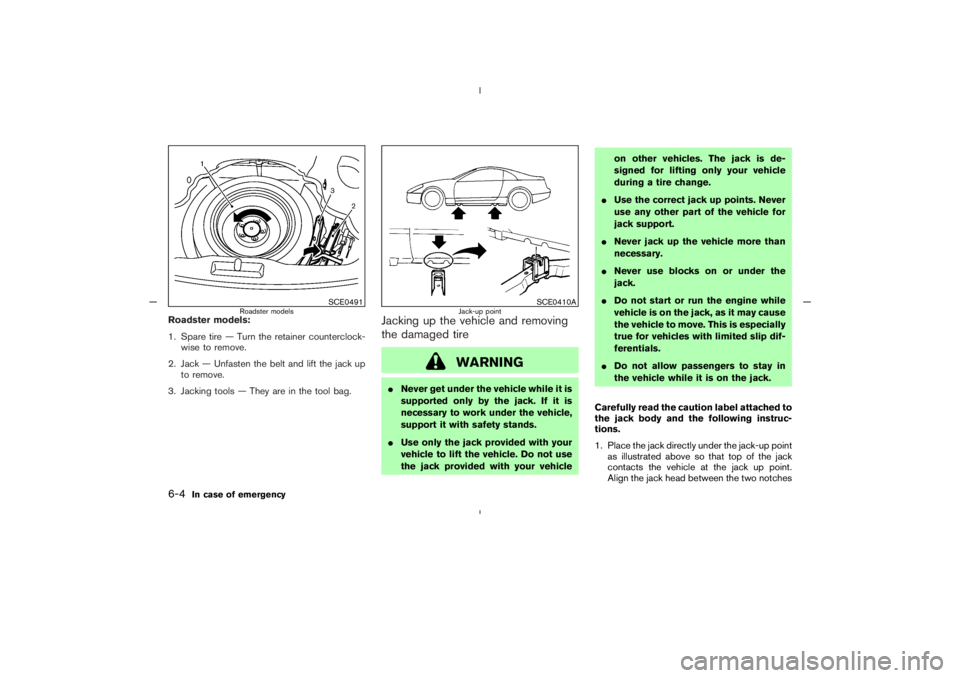

Roadster models:
1. Spare tire — Turn the retainer counterclock-
wise to remove.
2. Jack — Unfasten the belt and lift the jack up
to remove.
3. Jacking tools — They are in the tool bag.
Jacking up the vehicle and removing
the damaged tire
WARNING

Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.

Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicleon other vehicles. The jack is de-
signed for lifting only your vehicle
during a tire change.

Use the correct jack up points. Never
use any other part of the vehicle for
jack support.

Never jack up the vehicle more than
necessary.

Never use blocks on or under the
jack.

Do not start or run the engine while
vehicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip dif-
ferentials.

Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the caution label attached to
the jack body and the following instruc-
tions.
1. Place the jack directly under the jack-up point
as illustrated above so that top of the jack
contacts the vehicle at the jack up point.
Align the jack head between the two notches
SCE0491
Roadster models
SCE0410A
Jack-up point
6-4
In case of emergency


04.8.23/Z33-D/V5.0


in the front or the rear as shown. Also fit the
groove of the jack head between the notches
as shown.
The jack should be used on level firm
ground.
2. Loosen each wheel nut one or two turns by
turning counterclockwise with the wheel nut
wrench.Do not remove the wheel nuts
until the tire is off the ground.
3. Carefully raise the vehicle until the tire clears
the ground. To lift the vehicle, securely hold
the jack lever and rod with both hands as
shown above. Remove the wheel nuts, and
then remove the tire.
CE1092-A
In case of emergency
6-5


04.8.23/Z33-D/V5.0
