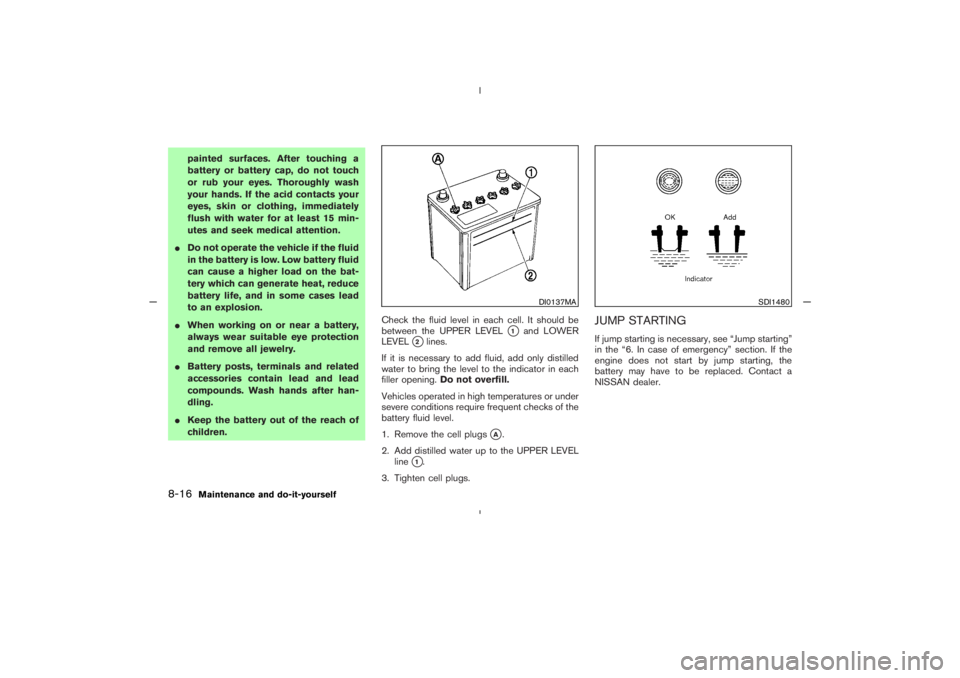

painted surfaces. After touching a
battery or battery cap, do not touch
or rub your eyes. Thoroughly wash
your hands. If the acid contacts your
eyes, skin or clothing, immediately
flush with water for at least 15 min-
utes and seek medical attention.

Do not operate the vehicle if the fluid
in the battery is low. Low battery fluid
can cause a higher load on the bat-
tery which can generate heat, reduce
battery life, and in some cases lead
to an explosion.

When working on or near a battery,
always wear suitable eye protection
and remove all jewelry.

Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after han-
dling.

Keep the battery out of the reach of
children.Check the fluid level in each cell. It should be
between the UPPER LEVEL
1
and LOWER
LEVEL
2lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening.Do not overfill.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
1. Remove the cell plugs
A.
2. Add distilled water up to the UPPER LEVEL
line
1.
3. Tighten cell plugs.
JUMP STARTINGIf jump starting is necessary, see “Jump starting”
in the “6. In case of emergency” section. If the
engine does not start by jump starting, the
battery may have to be replaced. Contact a
NISSAN dealer.
DI0137MA
SDI1480
8-16
Maintenance and do-it-yourself


04.8.23/Z33-D/V5.0


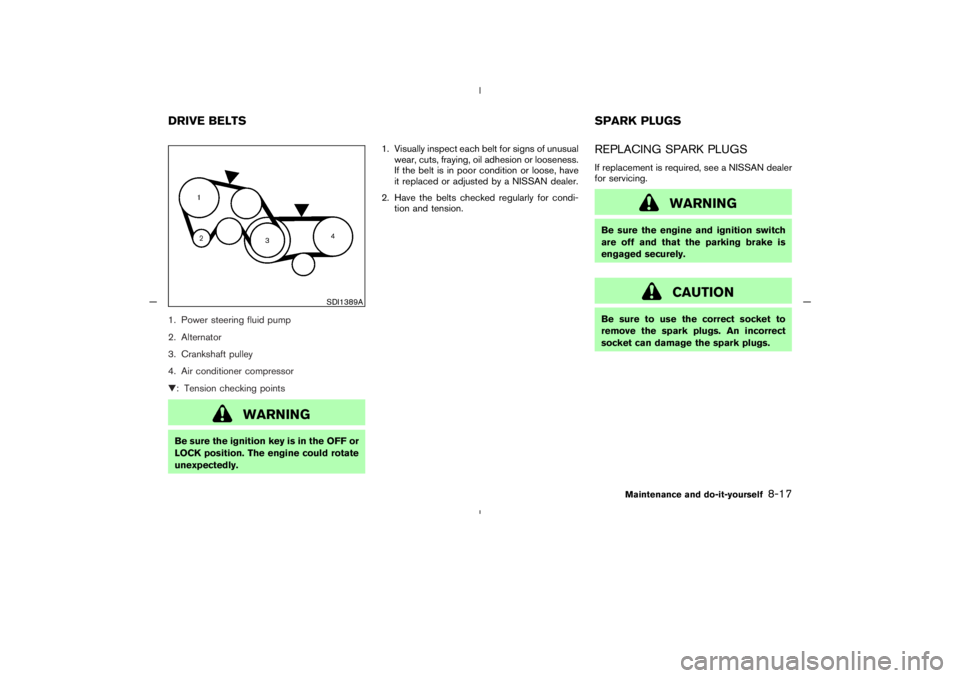

1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
: Tension checking points
WARNING
Be sure the ignition key is in the OFF or
LOCK position. The engine could rotate
unexpectedly.1. Visually inspect each belt for signs of unusual
wear, cuts, fraying, oil adhesion or looseness.
If the belt is in poor condition or loose, have
it replaced or adjusted by a NISSAN dealer.
2. Have the belts checked regularly for condi-
tion and tension.
REPLACING SPARK PLUGSIf replacement is required, see a NISSAN dealer
for servicing.
WARNING
Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
SDI1389A
DRIVE BELTS SPARK PLUGS
Maintenance and do-it-yourself
8-17


04.8.23/Z33-D/V5.0

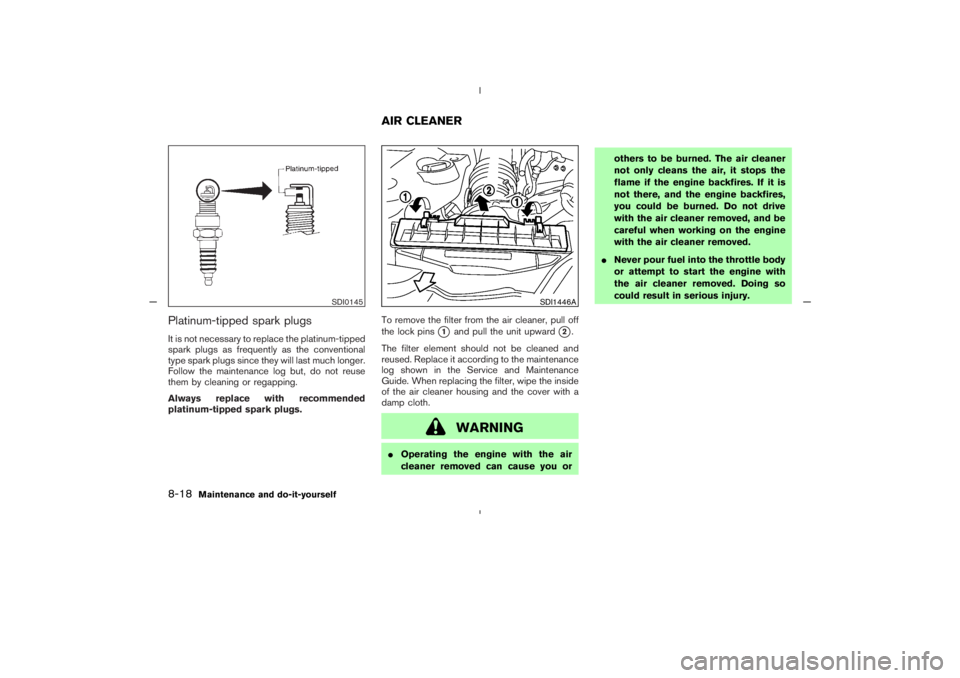

Platinum-tipped spark plugsIt is not necessary to replace the platinum-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much longer.
Follow the maintenance log but, do not reuse
them by cleaning or regapping.
Always replace with recommended
platinum-tipped spark plugs.To remove the filter from the air cleaner, pull off
the lock pins
1
and pull the unit upward
2.
The filter element should not be cleaned and
reused. Replace it according to the maintenance
log shown in the Service and Maintenance
Guide. When replacing the filter, wipe the inside
of the air cleaner housing and the cover with a
damp cloth.
WARNING

Operating the engine with the air
cleaner removed can cause you orothers to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it is
not there, and the engine backfires,
you could be burned. Do not drive
with the air cleaner removed, and be
careful when working on the engine
with the air cleaner removed.

Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.
SDI0145
SDI1446A
AIR CLEANER
8-18
Maintenance and do-it-yourself


04.8.23/Z33-D/V5.0


CAUTION

After wiper blade replacement, return
the wiper arm to its original position.
Otherwise it may be damaged when
the engine hood is opened.

Make sure the wiper blades contact
the glass; otherwise the arms may be
damaged from wind pressure.

Worn windshield wiper blades can
damage the windshield and impair
driver vision.CLEANINGIf your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when rinsing
with clear water.
Clean the blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Thenrinse the blade with clear water. If your wind-
shield is still not clear after cleaning the blades
and using the wiper, replace the blades.WINDSHIELD WIPER BLADES
Maintenance and do-it-yourself
8-19


04.8.23/Z33-D/V5.0


REPLACINGReplace the wiper blades if they are worn.
1. Pull the wiper arm.
2. Push the release tab
A, then move the wiper
blade down the wiper arm to remove
B.
3. Insert the new wiper blade onto the wiper arm
until a click sounds.
If necessary, clean the windshield washer
nozzle with a needle or small pin.
SDI1649A
SDI1589
8-20
Maintenance and do-it-yourself


04.8.23/Z33-D/V5.0


CHECKING PARKING BRAKEFrom the released position, pull the parking
brake lever up slowly and firmly. If the number of
clicks is out of the range listed below, see a
NISSAN dealer.

6 - 7 clicks under pulling force of 45 lb(200
N)
CHECKING BRAKE PEDALWith the engine running, check the distance
A
between the upper surface of the pedal and the
metal floor. If it is out of the range shown below,
see a NISSAN dealer.
Distance
A: Under depressing force of 110 lb
(490 N)
Automatic
Transmission modelManual
Transmission model
3.74 in (95 mm) or more 3.54 in (90 mm) or more
Self-adjusting brakesYour vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer for a brake system
check if the brake pedal height does not
return to normal.Brake pad wear indicatorsThe disc brake pads on your vehicle have au-
dible wear indicators. When a brake pad re-
quires replacement, it will make a high pitched
scraping or screeching sound when the vehicle
is in motion whether or not the brake pedal is
depressed. Have the brakes checked as soon as
possible if the wear indicator sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake system.
Proper brake inspection intervals should
SDI1447A
DI1020MO
PARKING BRAKE AND BRAKE
PEDAL
Maintenance and do-it-yourself
8-21


04.8.23/Z33-D/V5.0


be followed.For additional information, see the
appropriate maintenance log shown in the
NISSAN Service and Maintenance Guide.BRAKE BOOSTERCheck the brake booster function as follows:
1. With the engine off, press and release the
brake pedal several times. When brake pedal
movement (distance of travel) remains the
same from one pedal application to the next,
continue on to the next step.
2. While depressing the brake pedal, start the
engine. The pedal height should drop a little.
3. With the brake pedal depressed, stop the
engine. Keeping the pedal depressed for
about 30 seconds, the pedal height should
not change.
4. Run the engine for one minute without de-
pressing the brake pedal, then turn it off.
Depress the brake pedal several times. The
pedal travel distance will decrease gradually
with each depression as the vacuum is re-
leased from the booster.
If the brakes do not operate properly, see a
NISSAN dealer.Some vehicles are equipped with engine com-
partment and passenger compartment fuse
boxes that use only type
A
fuses. Other ve-
hicles are equipped with typeA
fuses in the
engine compartment fuse box and type
Bfuses
in the passenger compartment fuse box.
Type
Afuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type
A
fuses can be installed in the engine
compartment and passenger compartment fuse
boxes.If a type
A
fuse is used to replace a type
B
fuse, the type
A
fuse will not be level with the
fuse pocket as shown in the illustration. This will
not affect the performance of the fuse. Make
sure the fuse is installed in the fuse box securely.
Type
B
fuses cannot be installed in the under-
hood fuse boxes. Only use type
A
fuses in the
underhood fuse boxes.
SDI1751
SDI1752
FUSES
8-22
Maintenance and do-it-yourself


04.8.23/Z33-D/V5.0


ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and headlight
switch are OFF.2. Open the engine hood and remove the cover
on the battery and the fuse/fusible link holder.
3. Remove the fuse/fusible link holder cover by
pushing the tabs
1
and lifting the cover
2.
4. Remove the fuse with the fuse puller.
5. If the fuse is open
A, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.
Fusible linksIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
SDI1479B
SDI1753
Type A
SDI1754
Type B
Maintenance and do-it-yourself
8-23


04.8.23/Z33-D/V5.0


PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight
switch are OFF.2. Open the fuse box lid.
3. Pinch the fuse perpendicularly with the fuse
puller and pull it out.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.
Replace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.
Recommended battery: CR2025 or equiva-
lent
SDI1393
SDI1608
KEYFOB BATTERY
REPLACEMENT
8-24
Maintenance and do-it-yourself


04.8.23/Z33-D/V5.0


Make sure that the⊕side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.

Be careful not to touch the circuit board
and the battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it gets wet, immediately wipe it com-
pletely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliance
could void the user’s authority to operate
the equipment. This device complies with
Part 15 of the FCC Rules and RSS-210 ofIndustry Canada. Operation is subject to
the following two conditions: (1) This de-
vice may not cause harmful interference,
and (2) this device must accept any inter-
ference received, including interference
that may cause undesired operation of the
device.
Maintenance and do-it-yourself
8-25


04.8.23/Z33-D/V5.0
