NISSAN 350Z 2005 Z33 Navigation Manual

Easy Mode — when the
Short Menus
key is selectedHelpkey:
You can see the explanation of the navigational
functions.Homekey:
When you set your home in the address book, a
route home will be calculated by selecting this
key.
If the home is not set beforehand, the setting
mode will appear to input the home address.Please refer to “Setting with the
Home key” on
page 5-30.
Street Addresskey:
Same as in Expert Mode.Point of Interest (POI)key:
Same as in Expert Mode.Countrykey:
Same as in Expert Mode.
HOW TO USE THE
ROUTE
BUTTONWhen the ROUTE button is pressed while the
current location is displayed on the screen, the
display shows the following keys.
INFO:
When no operations are executed for a few
seconds, the keys will disappear automatically.Quick Stopkey:
Selects the destination (waypoints) from a list of
5 commonly used POI (Points of Interest).
Please refer to “Quick stop” on page 5-43.
INV2316
INV1455
How do I operate the NISSAN Navigation System?
4-13


04.7.6/Z33-N


Where am I ?key:
Displays the street where the vehicle is currently
located, the previous street, and the upcoming
street.
Please refer to “Where am I ?” on page 5-46.Route Infokey:
Displays the route to the destination. There are
three types of display methods.


Complete Routekey:
Displays the entire route from the current
location to the destination.
Please refer to “Displaying the complete
route to the destination” on page 11-10.

Turn Listkey:
Displays a list of the guidance points for the
entire route to the destination on a simple
map.
Please refer to “Displaying turn list” on page
11-11.

Route Simulationkey:
Performs a simulation drive on the map
screen by moving a vehicle icon on all the
routes from the current location to the desti-
nation.Please refer to “Requesting the simulation
drive to the destination” on page 11-13.
Edit Routekey:
Resets the set destination (waypoint).
Please refer to “Making the system guide the
route with detailed options” on page 5-32.
Easy Mode — when the
Short Menus
key is selectedHelpkey:
You can see the explanation of the navigation
functions.Quick Stopkey:
Same as in Expert Mode.Where am I ?key:
Same as in Expert Mode.
INV1456
4-14
How do I operate the NISSAN Navigation System?


04.7.6/Z33-N

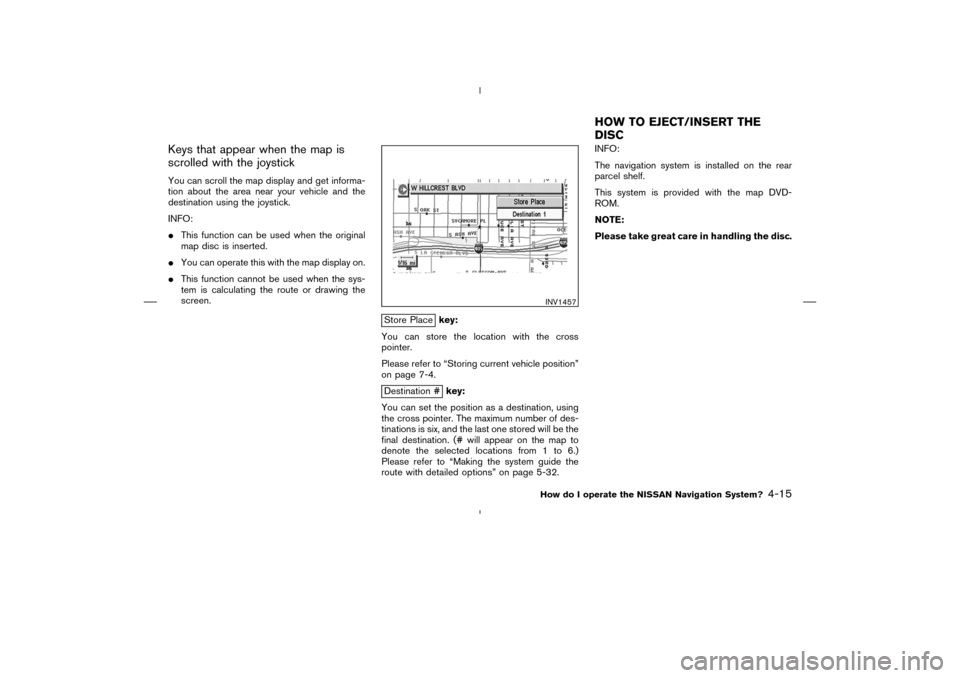

Keys that appear when the map is
scrolled with the joystickYou can scroll the map display and get informa-
tion about the area near your vehicle and the
destination using the joystick.
INFO:

This function can be used when the original
map disc is inserted.

You can operate this with the map display on.

This function cannot be used when the sys-
tem is calculating the route or drawing the
screen.
Store Placekey:
You can store the location with the cross
pointer.
Please refer to “Storing current vehicle position”
on page 7-4.Destination #key:
You can set the position as a destination, using
the cross pointer. The maximum number of des-
tinations is six, and the last one stored will be the
final destination. (# will appear on the map to
denote the selected locations from 1 to 6.)
Please refer to “Making the system guide the
route with detailed options” on page 5-32.INFO:
The navigation system is installed on the rear
parcel shelf.
This system is provided with the map DVD-
ROM.
NOTE:
Please take great care in handling the disc.
INV1457

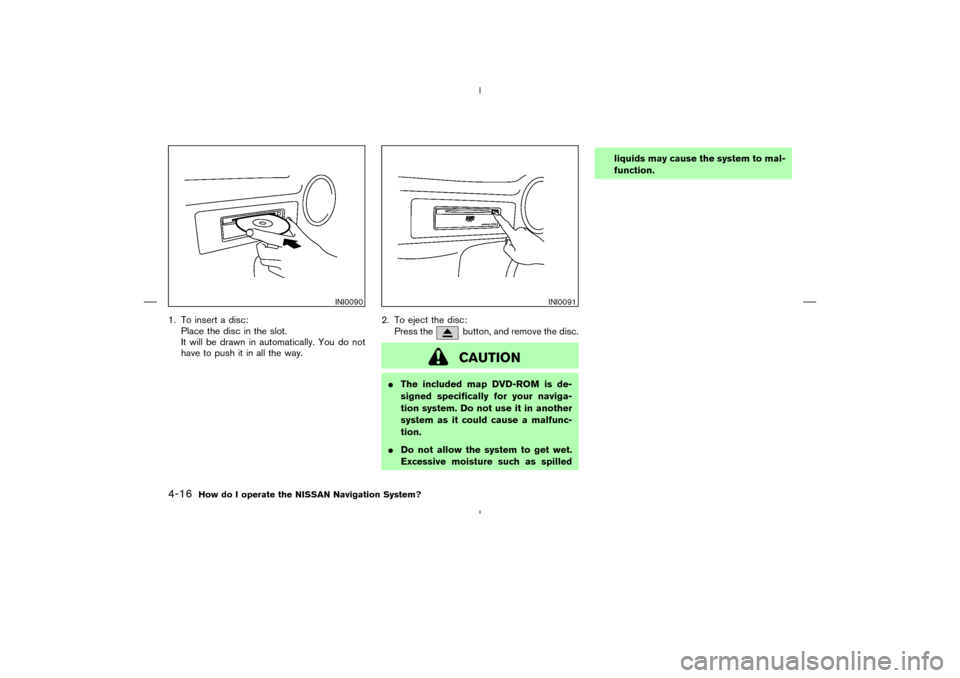

HOW TO EJECT/INSERT THE
DISC
How do I operate the NISSAN Navigation System?
4-15


04.7.6/Z33-N


1. To insert a disc:
Place the disc in the slot.
It will be drawn in automatically. You do not
have to push it in all the way.2. To eject the disc:
Press the
button, and remove the disc.CAUTION

The included map DVD-ROM is de-
signed specifically for your naviga-
tion system. Do not use it in another
system as it could cause a malfunc-
tion.

Do not allow the system to get wet.
Excessive moisture such as spilledliquids may cause the system to mal-
function.
INI0090
INI0091
4-16
How do I operate the NISSAN Navigation System?


04.7.6/Z33-N

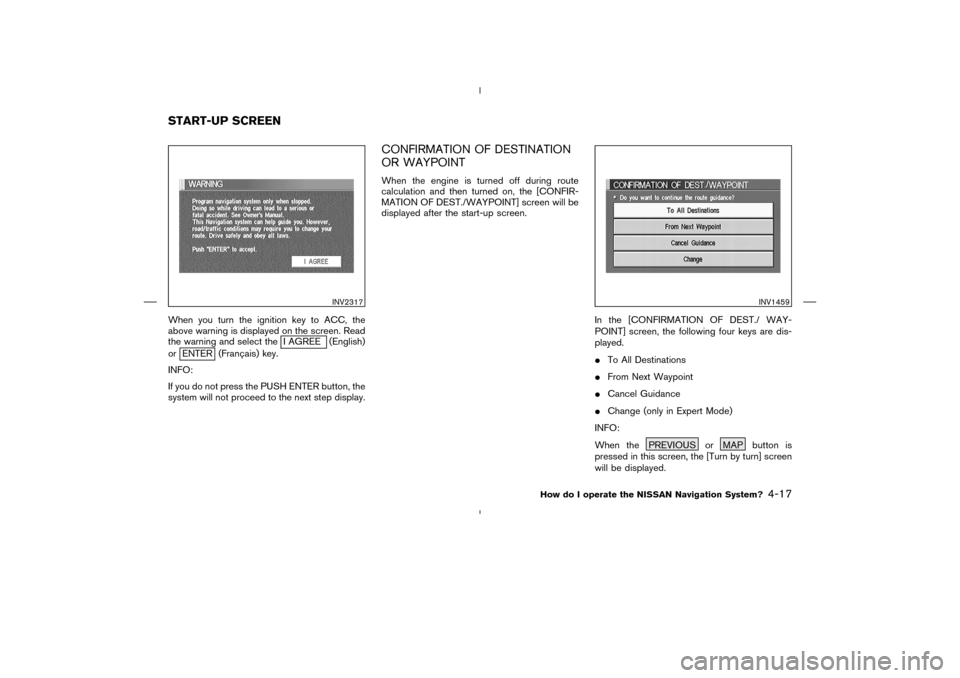

When you turn the ignition key to ACC, the
above warning is displayed on the screen. Read
the warning and select the
I AGREE (English)
or
ENTER (Franc¸ ais) key.
INFO:
If you do not press the PUSH ENTER button, the
system will not proceed to the next step display.
CONFIRMATION OF DESTINATION
OR WAYPOINTWhen the engine is turned off during route
calculation and then turned on, the [CONFIR-
MATION OF DEST./WAYPOINT] screen will be
displayed after the start-up screen.
In the [CONFIRMATION OF DEST./ WAY-
POINT] screen, the following four keys are dis-
played.

To All Destinations

From Next Waypoint

Cancel Guidance

Change (only in Expert Mode)
INFO:
When the PREVIOUS or MAP button is
pressed in this screen, the [Turn by turn] screen
will be displayed.
INV2317
INV1459
START-UP SCREEN
How do I operate the NISSAN Navigation System?
4-17


04.7.6/Z33-N


When the
To All Destinations
key is
selected
Route guidance will start to all destinations/
waypoints from the current location.

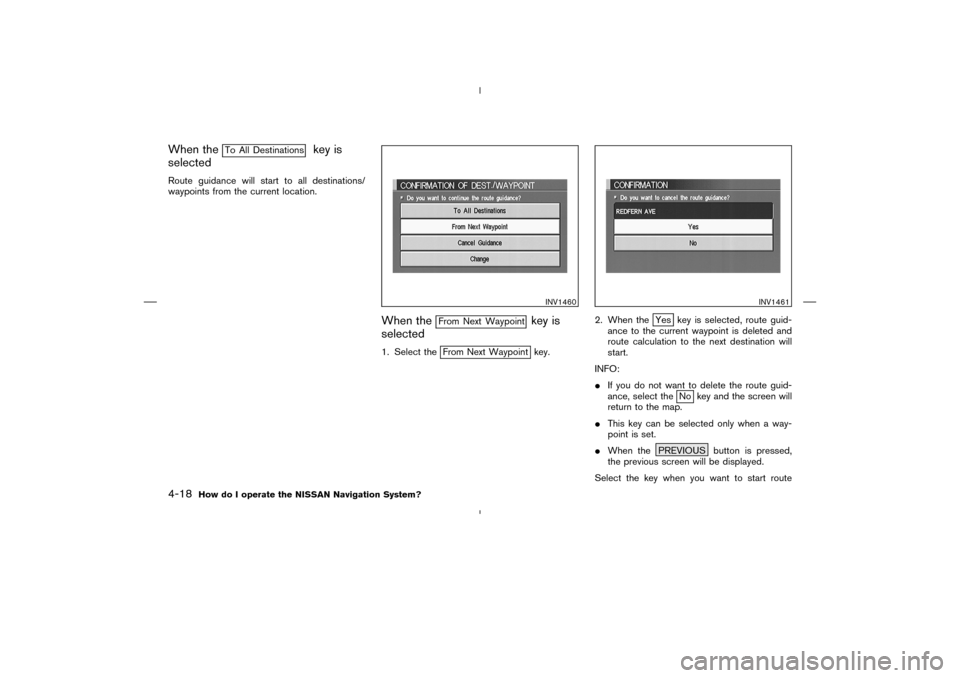

When the
From Next Waypoint
key is
selected
1. Select the
From Next Waypoint key.2. When the
Yes key is selected, route guid-
ance to the current waypoint is deleted and
route calculation to the next destination will
start.
INFO:

If you do not want to delete the route guid-
ance, select the
No key and the screen will
return to the map.

This key can be selected only when a way-
point is set.

When the PREVIOUS button is pressed,
the previous screen will be displayed.
Select the key when you want to start route
INV1460
INV1461
4-18
How do I operate the NISSAN Navigation System?


04.7.6/Z33-N


guidance to the next waypoint/destination.
When the
Cancel Guidance
key is
selected
The route guidance is canceled.
1. Select the
Cancel Guidance key.2. When the
Yes key is selected, route guid-
ance is canceled.
INFO:

If you do not want to delete the route guid-
ance, select the
No key and the screen will
return to the map.

Press the VOICE button to activate the
route guidance again.

When the PREVIOUS button is pressed,
the previous screen will be displayed.
INV1462
INV1463
How do I operate the NISSAN Navigation System?
4-19


04.7.6/Z33-N


When the
Change
key is selected
It is possible to edit the route guidance to the
destination.
INFO:
This key is displayed only in [Expert Mode].
1. Select the
Change key. 2. The [EDIT ROUTE] screen will be displayed.
Please refer to “Setting the waypoints” on page
5-32.
INV1464
INV1465
4-20
How do I operate the NISSAN Navigation System?


04.7.6/Z33-N


All the stored data (Address Book, Avoid Area,
Previous Dest) can be cleared.

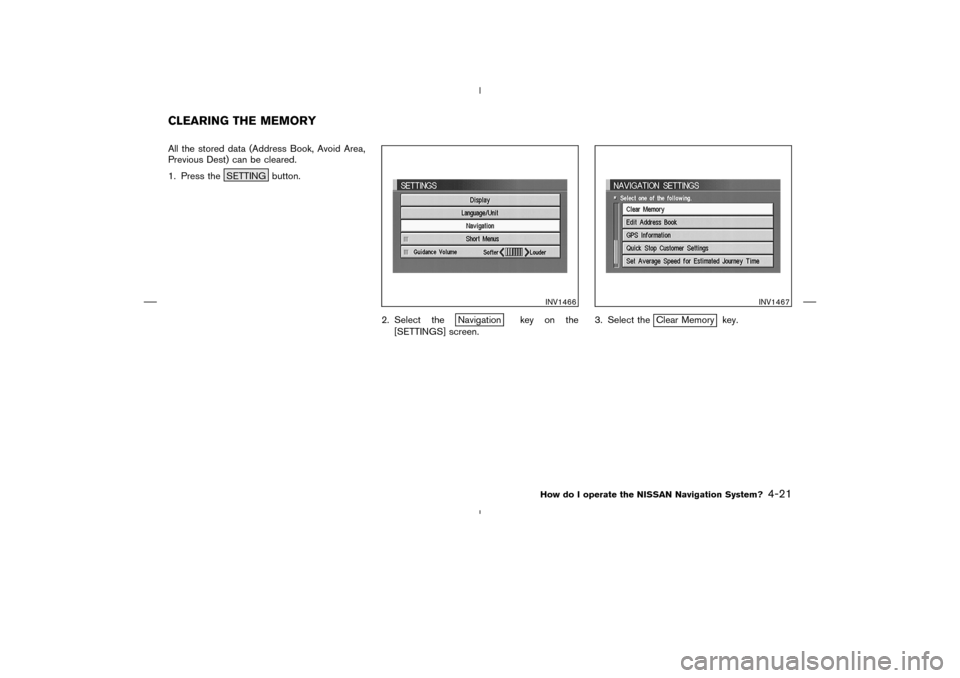

1. Press the SETTING button.
2. Select the
Navigation key on the
[SETTINGS] screen.3. Select the
Clear Memory key.
INV1466
INV1467

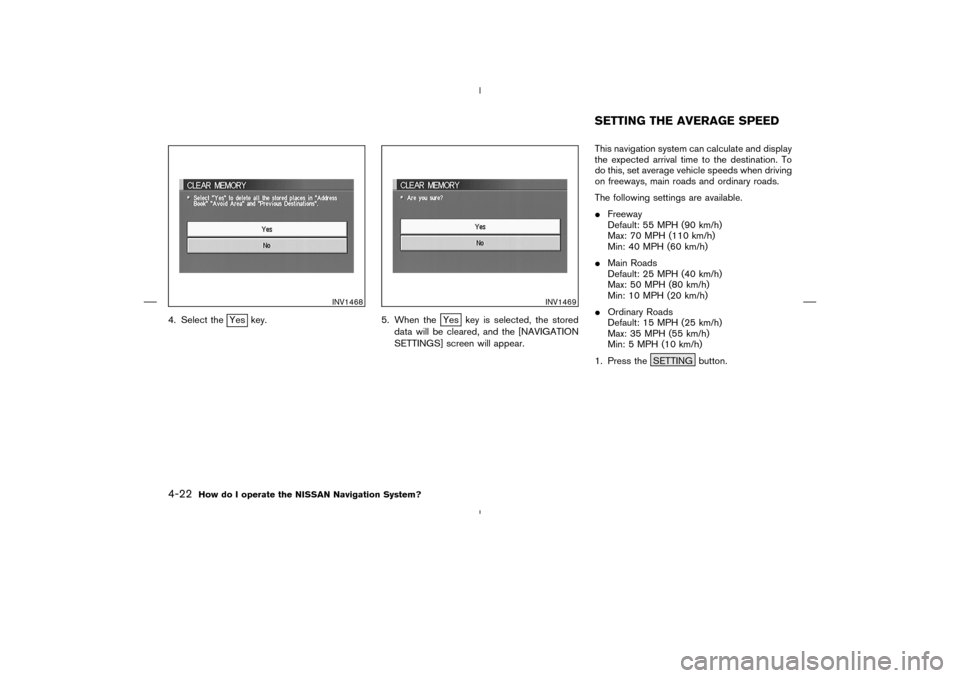

CLEARINGTHE MEMORY
How do I operate the NISSAN Navigation System?
4-21


04.7.6/Z33-N


4. Select the
Yes key. 5. When the
Yes key is selected, the stored
data will be cleared, and the [NAVIGATION
SETTINGS] screen will appear.This navigation system can calculate and display
the expected arrival time to the destination. To
do this, set average vehicle speeds when driving
on freeways, main roads and ordinary roads.
The following settings are available.

Freeway
Default: 55 MPH (90km/h)
Max: 70MPH (110km/h)
Min: 40MPH (60km/h)

Main Roads
Default: 25 MPH (40km/h)
Max: 50MPH (80km/h)
Min: 10MPH (20km/h)

Ordinary Roads
Default: 15 MPH (25 km/h)
Max: 35 MPH (55 km/h)
Min: 5 MPH (10km/h)
1. Press the SETTING button.
INV1468
INV1469
SETTINGTHE AVERAGE SPEED
4-22
How do I operate the NISSAN Navigation System?


04.7.6/Z33-N
