POWER DOOR LOCK SYSTEM
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

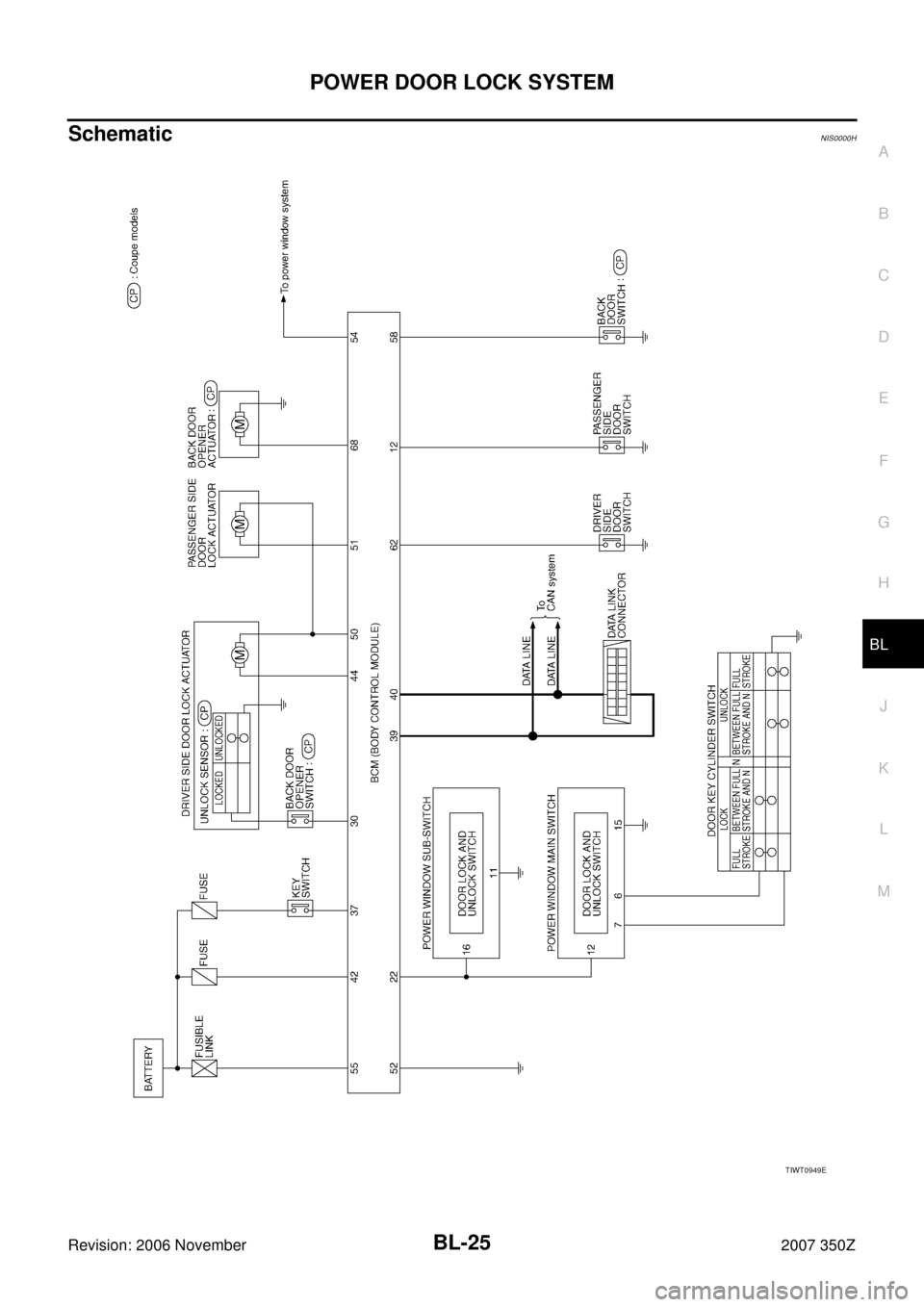

SchematicNIS0000H
TIWT0949E

BL-26
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z

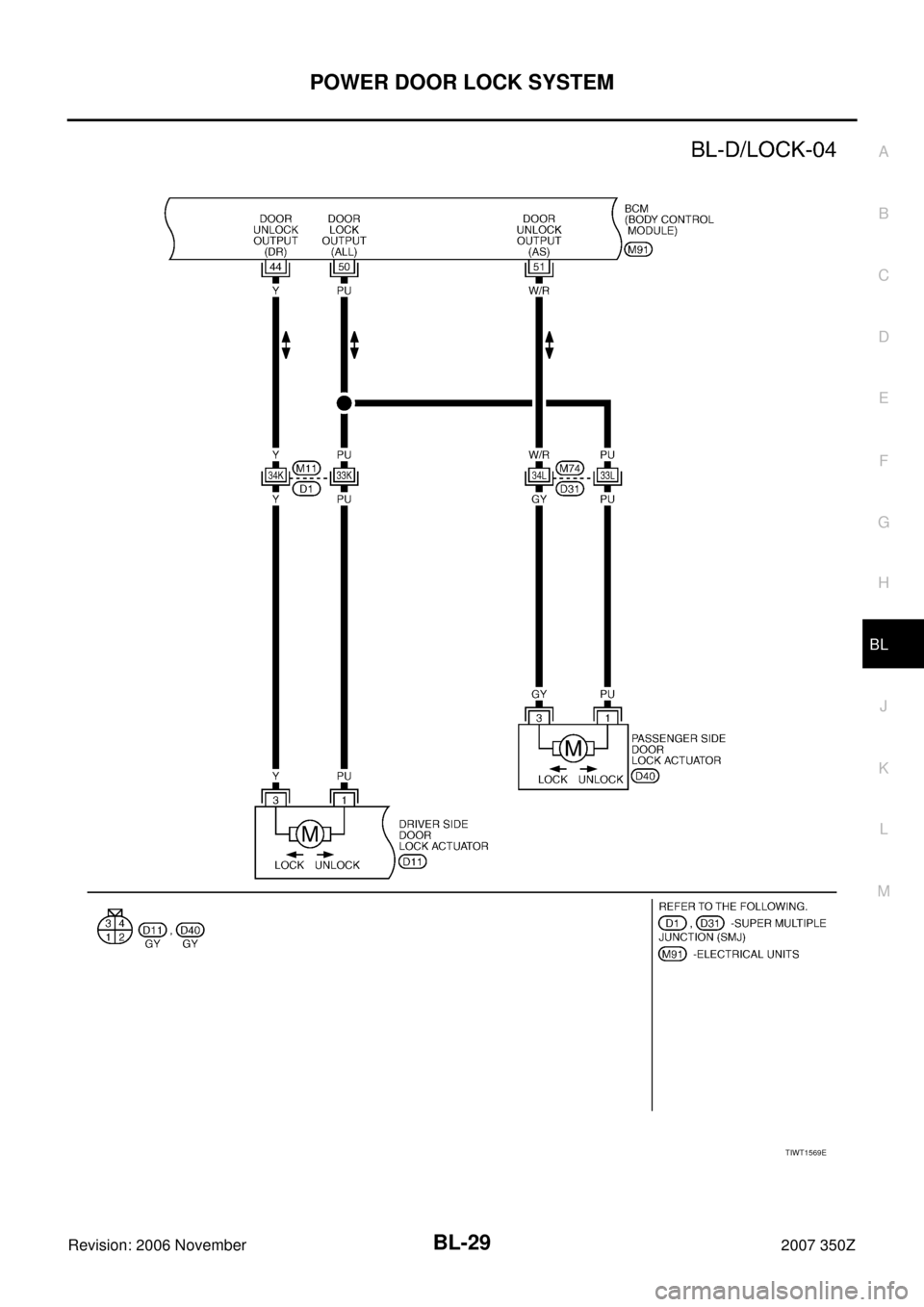

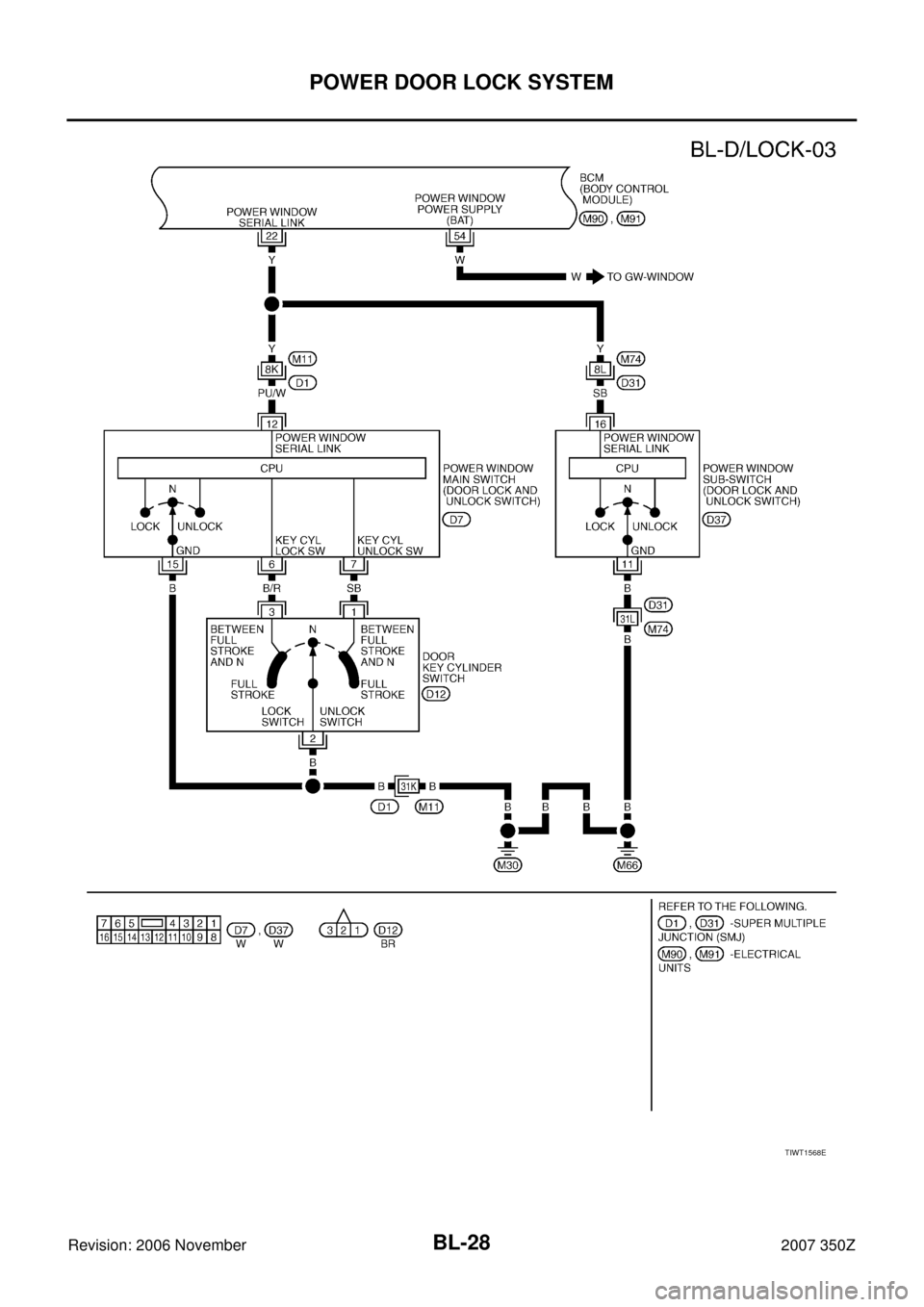

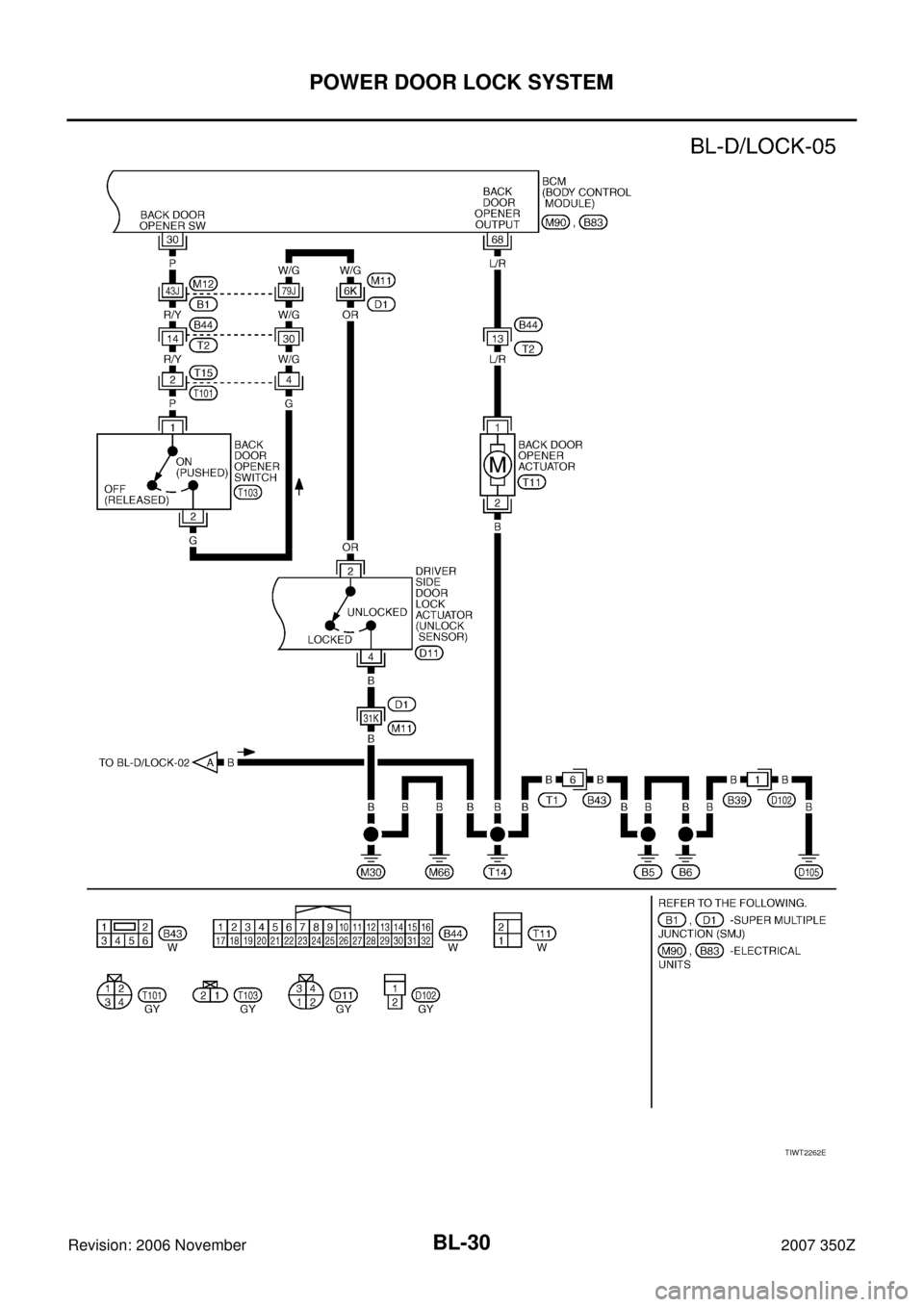

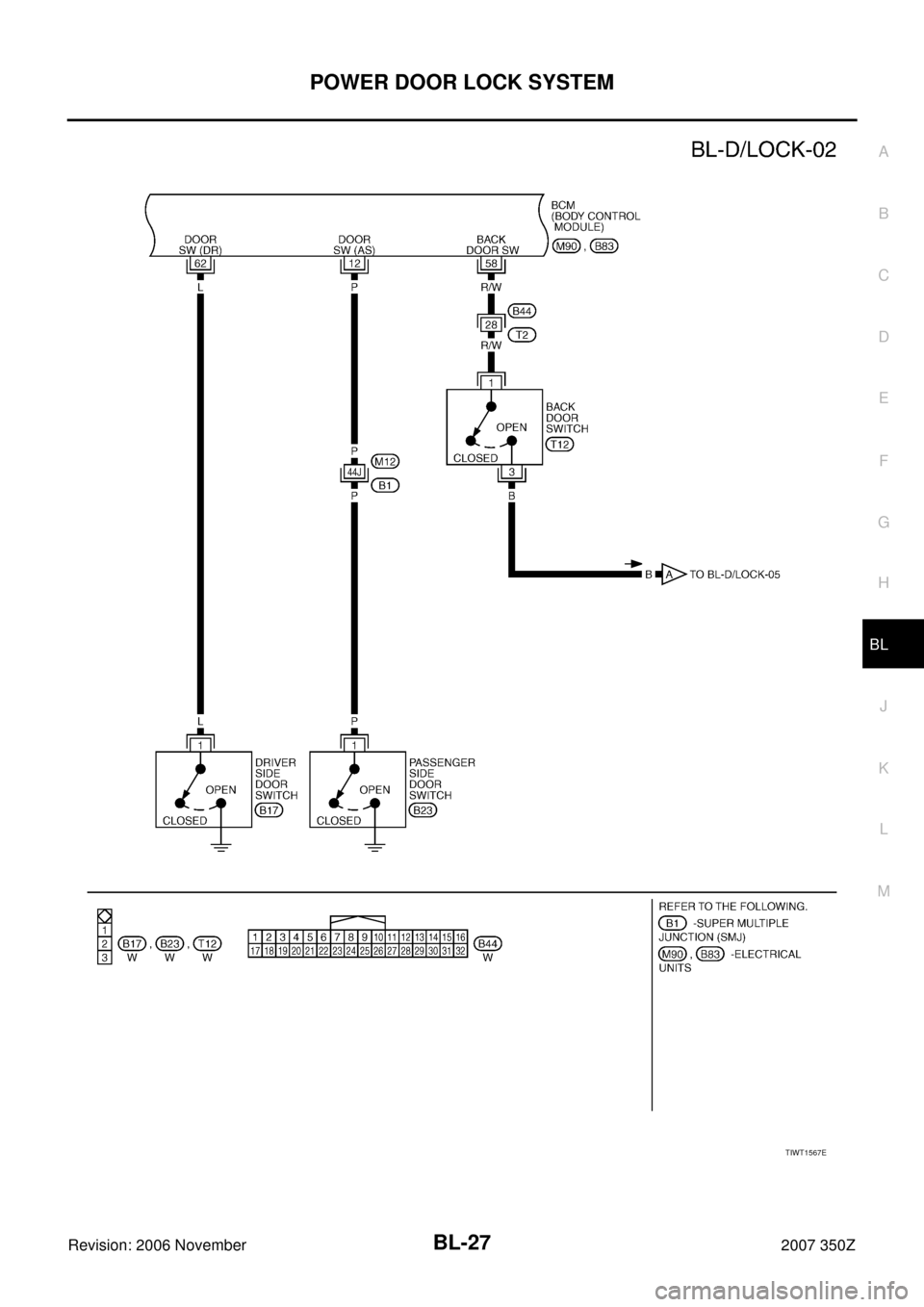

Wiring Diagram — D/LOCK — /For CoupeNIS0000I
TIWT1566E

POWER DOOR LOCK SYSTEM
BL-27
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
TIWT1567E

BL-28
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
TIWT1568E

POWER DOOR LOCK SYSTEM
BL-29
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
TIWT1569E

BL-30
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
TIWT2262E

POWER DOOR LOCK SYSTEM
BL-31
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Wiring Diagram — D/LOCK — /For RoadsterNIS0000J
TIWT1571E

BL-32
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
TIWT1572E

POWER DOOR LOCK SYSTEM
BL-33
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
TIWT1573E

BL-34
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
Terminals and Reference Value for BCMNIS0000K
*When interior lamp battery saver control is in OFF: Approx. 5V
Terminal and Reference Value for Power Window Main SwitchNIS0000L
Te r m i -
nalWire
colorItemSignal
Input/
OutputConditionVoltage (V)
(Approx.)
12 P Passenger side door switch Input ON (Open) → OFF (Closed) 0 → 5
22 Y Power window switch serial linkInput/
Output—
30 P Back door opener switch InputPress the back door opener
switch when driver side door is
unlocked5 → 0
37 B/R Ignition key switch (insert) InputON (Key inserted) → OFF (Key
removed from IGN key cylinder)Battery voltage → 0
39 L CAN-HInput/
Output——
40 P CAN-LInput/
Output——
42 GY Power source (Fuse) Input — Battery voltage
44 YDriver side door lock actuator
(unlock)OutputDoor lock / unlock switch
(Free → Unlock)0 → Battery voltage → 0
50 PU All door lock actuator (lock) OutputDoor lock / unlock switch
(Free → Lock)0 → Battery voltage → 0
51 W/RPassenger side door lock actua-
tor (unlock)OutputDoor lock / unlock switch
(Free → Unlock)0 → Battery voltage → 0
52 B Ground — — 0
55 R Power source (Fusible link) Input — Battery voltage
58 R/W Back door switch Input ON (Open) → OFF (Closed) 0 → Battery voltage *
62 L Driver side door switch Input ON (Open) → OFF (Closed) 0 → 5
68 L/R Back door opener output OutputPress the back door opener
switch when driver side door is
unlocked0 → Battery voltage
PIIA2344J
TerminalWire
colorItem ConditionVoltage (V)
(Approx.)
6 B/R Key cylinder switch lock signalKey position
(Neutral → Locked)5 → 0
7 SB Key cylinder switch unlock signalKey position
(Neutral → Unlocked)5 → 0
12 PU/W Power window switch serial link —
15 B Ground — 0
PIIA2344J
