BRAKE FLUID
BR-11
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
Bleeding Brake SystemNFS0000A
CAUTION:
While bleeding, pay attention to master cylinder fluid level.
1. Before working, turn the ignition switch OFF and disconnect the connectors of ABS actuator and control
unit or battery negative terminal.
2. Connect a vinyl tube to the rear right bleed valve.
3. Fully depress brake pedal 4 to 5 times.
4. With the brake pedal depressed, loosen the bleed valve to let the air out, and then tighten it immediately.
5. Repeat steps 3, 4 until no more air comes out.
6. Tighten the bleed valve to the specified torque. Refer to BR-27, "
Components" (Front) and BR-40, "Com-
ponents" (Rear).
7. In steps 2 to 6 below, with the master cylinder reservoir tank filled at least half way, bleed air from the front
left, rear left, and front right tires, in that order.
Page 12 of 54
BR-12
BRAKE TUBE AND HOSE
Revision: 2006 November2007 350Z
BRAKE TUBE AND HOSEPFP:46300
Hydraulic CircuitNFS0000B
CAUTION:
Make sure it does not twist or break when being attached.
Make sure there is no interference with other parts when turning steering both clockwise and
counterclockwise.
The brake tube is an important safety part. If a brake fluid leak is detected, always disassemble the
parts. Replace applicable part with a new one, if necessary.
Do not let brake fluid come in contact with painted surfaces on the body. This might damage the
paint, so if it does come in contact, immediately wipe area and wash off with water.
Do not bend or twist brake hose sharply, or strongly pull it.
When removing components, cover connections so that no dirt, dust, or other foreign matter gets
in.
Refill with new brake fluid “ DOT 3 ”.
Do not reuse drained brake fluid.
Removal and Installation of the Front Brake Tube and Brake Hose (Other than
Brembo Calipers)
NFS0000C
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove brake tube from brake hose.
3. Remove union bolt and remove the brake hose from the caliper assembly.
4. Remove the lock plate and nut, and remove the brake hose from the vehicle.
INSTALLATION
1. Attach the brake hose to the vehicle and tighten the nut to the
specified torque.
NOTE:
When removed bracket attaching the bolt is tightened with provi-
sions torque.
2. Install brake hose by aligning with the protrusion on caliper
assembly, and tighten union bolts to the specified torque.
SFIA1869E
: 19.6 – 23.5 N·m (2.0 – 2.3 kg-m, 15 – 17 ft-lb)
: 10.8 – 15.6 N·m (1.1 – 1.5 kg-m, 8 – 11 ft-lb)
PFIA0230E
Page 13 of 54
BRAKE TUBE AND HOSE
BR-13
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
CAUTION:
Do not reuse the copper washer.
3. Attach the brake hose to the brake tube, partially tighten the flare nut as far as possible by hand, then
secure it to the bracket with the lock plate.
4. Using a flare nut crowfoot and torque wrench, tighten the flare nut to the specified torque.
5. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Removal and Installation of the Front Brake Tube and Brake Hose (With Brembo
Calipers)
NFS0000D
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove the brake tube from the brake hose.
3. Using a flare nut wrench, remove the caliper-side brake tube from the brake hose.
4. Remove the lock plate and nut, and remove the brake hose from the vehicle.
INSTALLATION
1. Attach the brake hose to the vehicle and tighten the nut to the
specified torque.
2. Attach the caliper-side brake tube to the brake hose, partially
tighten the flare nut as far as possible by hand, then tighten it to
the specified torque with flare nut crowfoot and torque wrench.
3. Attach the brake hose to the brake tube, partially tighten the flare nut as far as possible by hand, then
secure to the bracket with the lock plate.
4. Using a flare nut crowfoot and torque wrench, tighten the flare nut to the specified torque with flare nut
torque.
5. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Removal and Installation of the Rear Brake Tube and Brake Hose (Other than
Brembo Calipers)
NFS0000E
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove brake tube from brake hose.
3. Remove union bolts, and then remove brake hose from the caliper assembly.
4. Remove the lock plate and then remove the brake hose from the vehicle.: 16.7 – 19.6 N·m (1.7 – 1.9 kg-m, 13 – 14 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
Nut: 19.6 – 23.5 N·m (2.0 – 2.3 kg-m, 15 – 17 ft-lb)
Bolt: 10.8 – 15.6 N·m (1.1 – 1.5 kg-m, 8 – 11 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
PFIA0229E
Page 14 of 54
BR-14
BRAKE TUBE AND HOSE
Revision: 2006 November2007 350Z
INSTALLATION
1. Attach the brake hose L-pin to the caliper assembly positioning
hole and tighten the union bolt to the specified torque.
CAUTION:
Do not reuse the copper washer.
2. After securing the brake hose to the vehicle with the lock plate,
partially tighten the brake tube flare nut as far as possible by
hand and then tighten to the specified torque with flare nut crow-
foot and torque wrench.
3. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Removal and Installation of the Rear Brake Tube and Brake Hose (With Brembo
Calipers)
NFS0000F
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove the brake tube from the brake hose.
3. Using a flare nut wrench, remove the caliper-side brake tube from the brake hose.
4. Remove the lock plate and bolt, and remove the brake hose from the vehicle.
INSTALLATION
1. Attach the brake hose to the vehicle and tighten the bolt to the
specified torque.
2. Attach the caliper-side brake tube to brake hose, partially tighten
the flare nut as far as possible by hand, then tighten it to the
specified torque with flare nut crowfoot and torque wrench.
3. Attach the brake hose to the brake tube, partially tighten the
flare nut as far as possible by hand, then secure to the bracket
with the lock plate.
4. Using a flare nut crowfoot and torque wrench, tighten the flare nut to the specified torque.
5. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Inspection after InstallationNFS0000G
CAUTION:
If a leak is detected at the connections, retighten it or, if necessary, replace the damaged part.
1. Check hose, tube, and connections for fluid leaks, damage, twist, deformation, contact with other parts,
and loose connections.
2. While depressing pedal under a force of 785 N (80 kg, 177 lb) with engine running for approximately 5
seconds, check for fluid leakage from each part.: 16.7 – 19.6 N·m (1.7 – 1.9 kg-m, 13 – 14 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
PFIA0293J
: 19.6 – 22.5 N·m (2.0 – 2.2 kg-m, 15 – 16 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7kg-m, 11 – 12 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
PFIA0234E
Page 15 of 54
BRAKE MASTER CYLINDER
BR-15
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
BRAKE MASTER CYLINDERPFP:46010
On-Vehicle InspectionNFS0000H
LEAK INSPECTION
Check for leaking in the master cylinder installation surface, the reservoir tank installation surface, and the
brake tube connections.
Removal and InstallationNFS0000I
CAUTION:
Do not let brake fluid come in contact with painted surfaces on the body. This might damage the paint,
so if it does come in contact, immediately wipe area and wash off with water.
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Remove the fluid surface sensor harness connector.
3. Using a flare nut wrench, disconnect master cylinder assembly and brake tube.
4. Remove the master cylinder assembly nut and remove the master cylinder assembly from the vehicle.
Refer to BR-24, "
Removal and Installation" .
INSTALLATION
CAUTION:
Refill with new brake fluid “DOT3”.
Do not reuse drained brake fluid.
1. Attach the master cylinder assembly to the brake booster
assembly and tighten the nut to the specified torque. BR-23,
"Components" .
CAUTION:
Vehicles equipped with VDC require particular attention
when conducting the following installation.
Make sure the sliding surface of the primary piston rod is
not damaged, and that no foreign matter become
attached.
Do not reuse the O-ring on the rear end of the master cyl-
inder as it is a non-reusable part.
Apply the silicon grease in the inner kit to and around the O-ring at the rear end of the master
cylinder and to the inside of the booster.
2. Install brake tube to master cylinder assembly and temporarily tighten flare nuts by hand.
3. Tighten the brake tube flare nut to the specified torque with flare nut crowfoot and torque wrench. Refer to
BR-12, "
Hydraulic Circuit" .
4. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
PFIA0296E
Page 16 of 54
BR-16
BRAKE MASTER CYLINDER
Revision: 2006 November2007 350Z
ComponentsNFS0000J
Disassembly and AssemblyNFS0000K
MODELS WITHOUT VDC
Disassembly
CAUTION:
Only remove the reservoir tank when absolutely necessary.
1. Using a flat-bladed screwdriver as shown in the figure, lift up the
tabs on the stopper cap and remove it from the master cylinder.
The piston inside the master cylinder might pop out when this is
done, so hold the stopper cap down at the same time.
1. Reservoir tank 2. Reservoir cap 3. Oil strainer
4. Pin 5. Cylinder body 6. Piston stopper
7. Grommet 8. Secondary piston assembly 9. Primary piston assembly
10. O-ring 11. Snap ring 12. Guide assembly
13. Plate 14. Stopper cap 15. Primary piston assembly
16. Secondary piston assembly
SFIA1728E
BRA0031D
Page 17 of 54
BRAKE MASTER CYLINDER
BR-17
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z

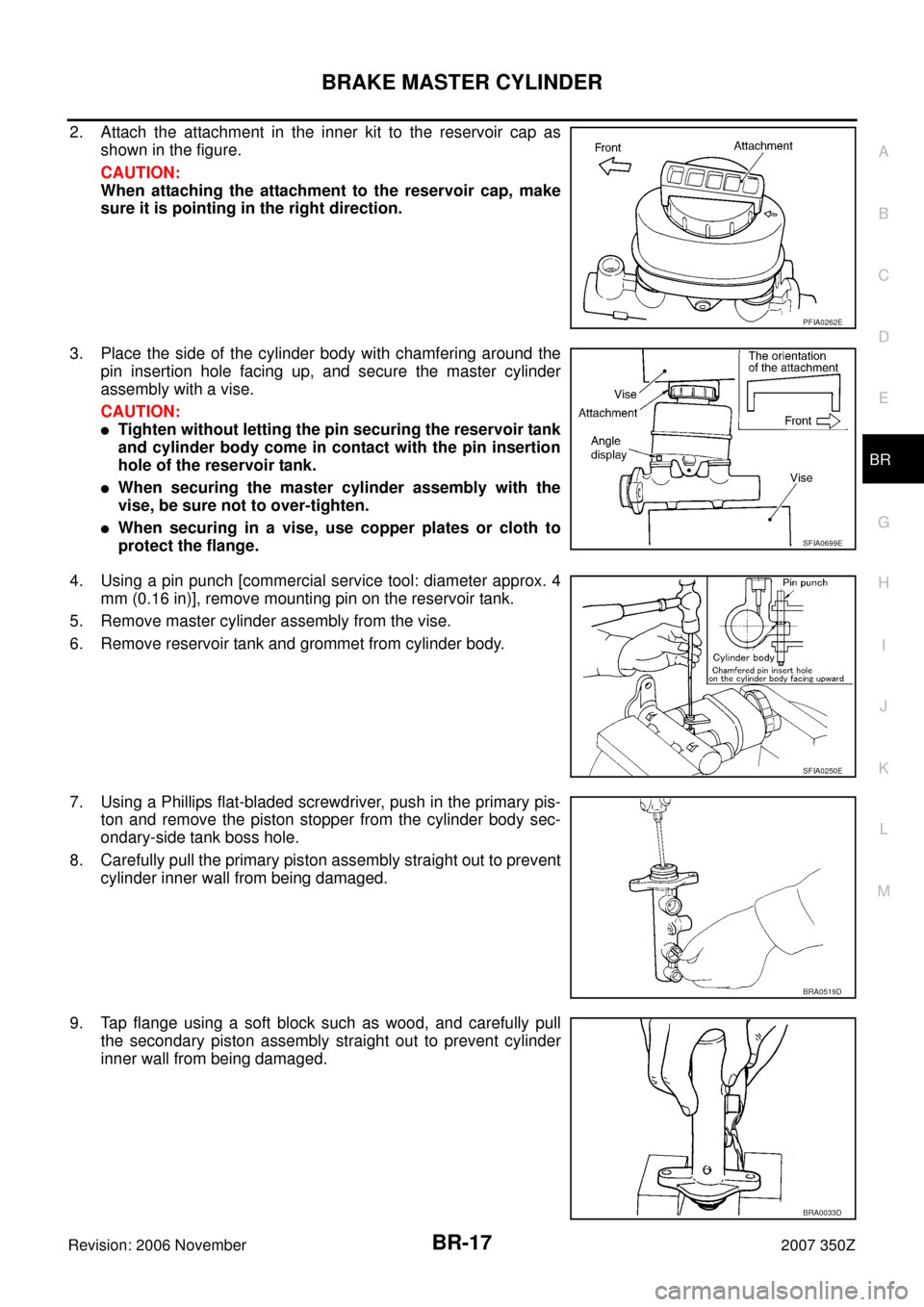

2. Attach the attachment in the inner kit to the reservoir cap as
shown in the figure.
CAUTION:
When attaching the attachment to the reservoir cap, make
sure it is pointing in the right direction.
3. Place the side of the cylinder body with chamfering around the
pin insertion hole facing up, and secure the master cylinder
assembly with a vise.
CAUTION:
Tighten without letting the pin securing the reservoir tank
and cylinder body come in contact with the pin insertion
hole of the reservoir tank.
When securing the master cylinder assembly with the
vise, be sure not to over-tighten.
When securing in a vise, use copper plates or cloth to
protect the flange.
4. Using a pin punch [commercial service tool: diameter approx. 4
mm (0.16 in)], remove mounting pin on the reservoir tank.
5. Remove master cylinder assembly from the vise.
6. Remove reservoir tank and grommet from cylinder body.
7. Using a Phillips flat-bladed screwdriver, push in the primary pis-
ton and remove the piston stopper from the cylinder body sec-
ondary-side tank boss hole.
8. Carefully pull the primary piston assembly straight out to prevent
cylinder inner wall from being damaged.
9. Tap flange using a soft block such as wood, and carefully pull
the secondary piston assembly straight out to prevent cylinder
inner wall from being damaged.
PFIA0262E
SFIA0699E
SFIA0250E
BRA0519D
BRA0033D
Page 18 of 54
BR-18
BRAKE MASTER CYLINDER
Revision: 2006 November2007 350Z
Inspection after Disassembly
Master cylinder
Check that there is no damage, friction, rusting, or pinholes on the cylinder inner wall, and replace if there
are any non-standard conditions.
Assembly
CAUTION:
Do not use mineral oils such as kerosene, gasoline during the cleaning and assembly process.
Make sure there is no foreign matter such as dirt or dust attached to the inner cylinder walls, the
piston, or the cap seal, and use care to avoid damaging parts with the assembly tools.
Do not drop parts. If a part is dropped, do not use it.
1. Apply brake fluid to cylinder inner wall body and contact surface
of the piston assembly.
2. Insert the secondary piston assembly and primary piston
assembly into cylinder body in this order.
CAUTION:
Do not reuse the primary and secondary piston assem-
blies.
Be sure to replace the assembly without disassembling
the new inner kit.
Pay attention to the orientation of the piston cup, and
insert straight to prevent the cup from being caught by
cylinder inner wall.
3. Perform a visual inspection of the secondary piston slit through
the tank boss hole on the secondary-side of the cylinder body,
and install the piston stopper.
4. Holding down the piston with the stopper cap, push the stopper
cap tabs so they are firmly into the cylinder grooves, then attach
the stopper cap.
CAUTION:
Do not reuse the stopper cap.
5. Apply brake fluid the grommet and attach to the cylinder body.
CAUTION:
Do not reuse the grommet.
6. Attach the attachment in the inner kit to the reservoir cap as
described in disassembly step 2.
7. Master cylinder assembly is fixed in the vise as described in
disassembly step 3.SBR089C
BRA0519D
BRA0035D
Page 19 of 54
BRAKE MASTER CYLINDER
BR-19
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
NOTE:
Attach the reservoir tank in the orientation shown in the figure.
8. Using a pin punch [commercial service tool: diameter Approx. 4
mm (0.16 in)], attach the reservoir tank mounting pin so that the
attachment side and the opposite side are identical.
CAUTION:
Do not reuse reservoir tank and mounting pin.
MODELS WITH VDC
Disassembly
CAUTION:
While working, cover the primary piston rod with cloth to prevent it from being damaged.
Only remove the reservoir tank when absolutely necessary.
1. Place the side of the cylinder body with chamfering around the
pin insertion hole up, and secure the cylinder body flange sec-
tion with a vise as shown in the figure.
CAUTION:
When securing in a vise, use copper plates or cloth to pro-
tect the flange.
2. Using a pin punch [commercial service tool: diameter Approx 4
mm (0.16 in)], remove the reservoir tank mounting pin.
3. Remove master cylinder assembly from the vise.
4. Remove reservoir tank and grommet from cylinder body.
BRA0568D
SFIA0250E
BRA0558D
BRA0559D
Page 20 of 54
BR-20
BRAKE MASTER CYLINDER
Revision: 2006 November2007 350Z
5. Push in the primary piston and remove the piston stopper from
the cylinder body secondary-side tank boss hole.
6. Remove the snap ring while pushing the primary piston in to pre-
vent the piston from popping out.
7. Holding the primary piston rod, pull the primary piston assembly,
the plate, and the guide straight out.
8. Remove the plate and guide from the primary piston.
CAUTION:
When removing the plate from the primary piston rod, make
sure the inside of the plate does not damage the rod.
9. Tap flange using a soft block such as wood, and carefully pull
the secondary piston assembly straight out to prevent cylinder
inner wall from being damaged.
Inspection after Disassembly
Master cylinder
Check that there is no damage, friction, rusting, or pinholes on the cylinder inner wall, and replace if there
are any non-standard conditions.
Assembly
CAUTION:
Do not use mineral oils such as kerosene, gasoline during the cleaning and assembly process.
Make sure there is no foreign matter such as dirt or dust attached to the inner cylinder walls, the
piston, or the cap seal, and use care to avoid damaging parts with the assembly tools.
Do not drop parts. If a part is dropped, do not use it.
1. Apply brake fluid to cylinder inner wall body and contact surface
of the piston assembly, and apply the silicon grease in the inner
kit to the primary piston rod.
2. Insert the secondary piston and primary piston into cylinder
body in this order.
CAUTION:
Do not reuse the primary and secondary piston assem-
blies.
Be sure to replace the assembly without disassembling
the new inner kit.
BRA0560D
BRA0561D
BRA0033D
PFIA0263E
