CSC (CONCENTRIC SLAVE CYLINDER)
CL-11
D
E
F
G
H
I
J
K
L
MA
B
CL
Revision: 2006 November2007 350Z
CSC (CONCENTRIC SLAVE CYLINDER)PFP:30500
Removal and InstallationNCS0029M
CAUTION:
If transmission assembly is removed from the vehicle, always replace CSC (Concentric Slave Cyl-
inder) body and CSC tube. Return CSC body insert to original position to remove transmission
assembly. Dust on clutch disc sliding parts may damage seal of CSC body and may cause clutch
fluid leakage.
Do not disassemble CSC body.
Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

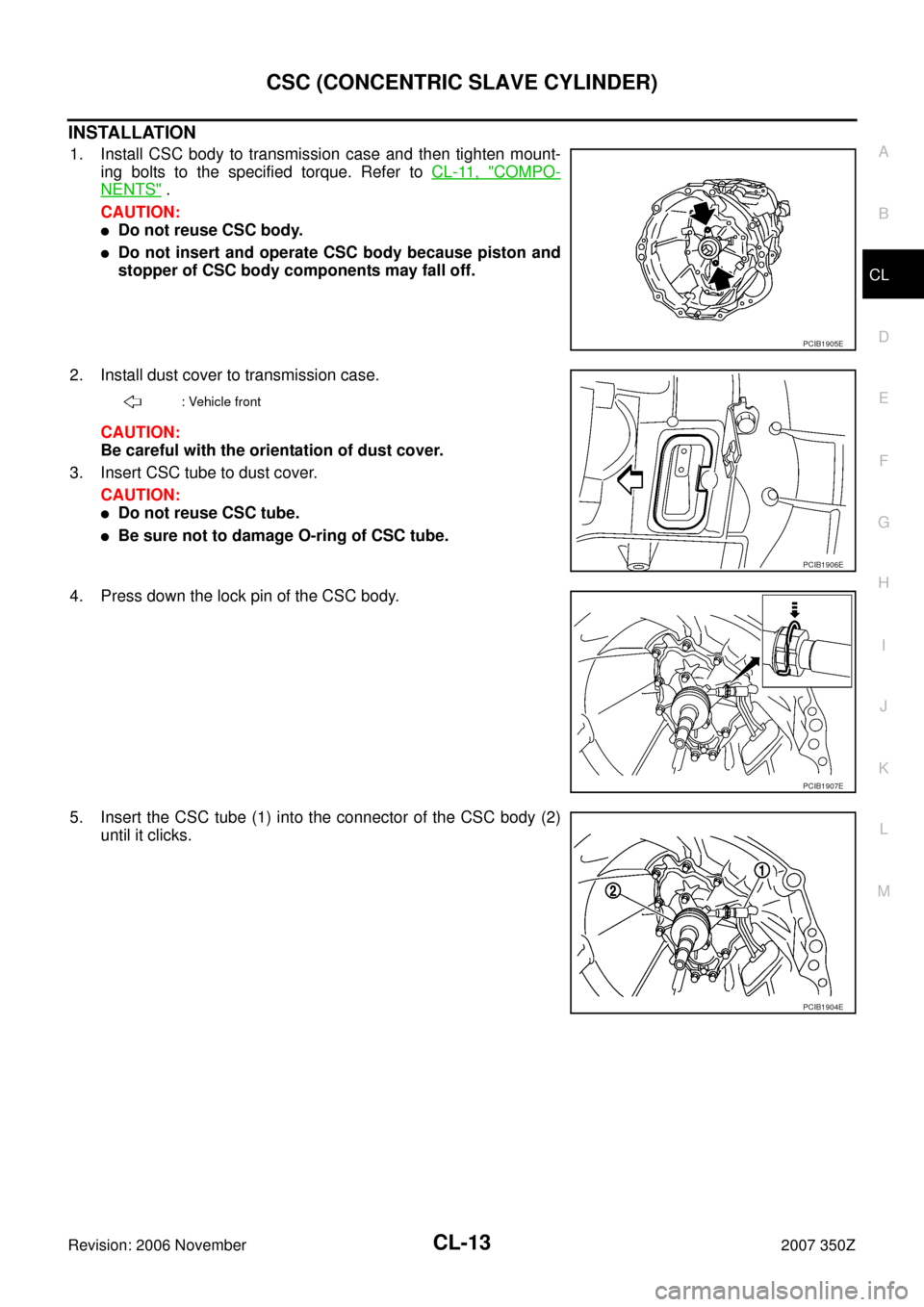

COMPONENTS
REMOVAL
1. Remove transmission assembly from the vehicle. Refer to MT-18, "Removal and Installation" .
1. Transmission assembly 2. CSC (Concentric Slave Cylinder)
body3. Dust cover
4. CSC (Concentric Slave Cylinder)
tube5. Air bleeder valve
Refer to GI-11, "
Components" for the symbols in the figure.
PCIB1940E
Page 12 of 20
CL-12
CSC (CONCENTRIC SLAVE CYLINDER)
Revision: 2006 November2007 350Z
2. Remove CSC tube mounting bolt.
3. Pull up the lock pin of CSC body.
4. Pull out the CSC tube (1) from the CSC body (2).
5. Remove CSC tube and dust cover from transmission case.
6. Remove air bleeder valve from CSC tube.
7. Remove CSC body from transmission case.
PCIB1902E
PCIB1903E
PCIB1904E
PCIB1905E
Page 13 of 20
CSC (CONCENTRIC SLAVE CYLINDER)
CL-13
D
E
F
G
H
I
J
K
L
MA
B
CL
Revision: 2006 November2007 350Z
INSTALLATION
1. Install CSC body to transmission case and then tighten mount-
ing bolts to the specified torque. Refer to CL-11, "
COMPO-
NENTS" .
CAUTION:
Do not reuse CSC body.
Do not insert and operate CSC body because piston and
stopper of CSC body components may fall off.
2. Install dust cover to transmission case.
CAUTION:
Be careful with the orientation of dust cover.
3. Insert CSC tube to dust cover.
CAUTION:
Do not reuse CSC tube.
Be sure not to damage O-ring of CSC tube.
4. Press down the lock pin of the CSC body.
5. Insert the CSC tube (1) into the connector of the CSC body (2)
until it clicks.
PCIB1905E
: Vehicle front
PCIB1906E
PCIB1907E
PCIB1904E
Page 14 of 20
CL-14
CSC (CONCENTRIC SLAVE CYLINDER)
Revision: 2006 November2007 350Z
6. Install CSC tube mounting bolt and then tighten mounting bolt to
the specified torque. Refer to CL-11, "
COMPONENTS" .
CAUTION:
Assemble the components checking that the bracket (A) on
the CSC body and the nozzle (B) closely contact each other
before tightening the bolt. When assembled correctly, the
components should not move beyond the allowable loose-
ness of the connector on the CSC body.
7. Install transmission assembly to the vehicle. Refer to MT-20,
"INSTALLATION" .
8. Bleed the air from the clutch hydraulic system, Refer to CL-7,
"Bleeding" .
PCIB1902E
PCIB1908E
Page 15 of 20
CLUTCH PIPING
CL-15
D
E
F
G
H
I
J
K
L
MA
B
CL
Revision: 2006 November2007 350Z
CLUTCH PIPINGPFP:30650
Removal and InstallationNCS0000D
Carefully observe the following steps during clutch tube removal and installation.
Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected area
with water.
When fixing clutch hose to bracket, align clutch hose metal fit-
tings with bracket positioning emboss and lock plate to secure.
At this time, prevent twisting or damage of clutch hose. In addi-
tion, be careful not to damage clutch hose.
Tighten clutch tube flare nut to the specified torque.
CAUTION:
Be careful not to damage flare nut and clutch tube.
After installation, bleed the clutch hydraulic system. Refer to CL-
7, "Bleeding" .
1. CSC (Concentric Slave Cylinder)
assembly2. Clutch tube 3. Clutch hose
4. Connector 5. Master cylinder assembly 6. Lock plate
Refer to GI-11, "
Components" , for the symbol in the figure.
PCIB1922E
PCIB0681E
Page 16 of 20
CL-16
CLUTCH DISC, CLUTCH COVER
Revision: 2006 November2007 350Z
CLUTCH DISC, CLUTCH COVERPFP:30100
Removal and InstallationNCS0000G
COMPONENTS
CAUTION:
If transmission assembly is removed from the vehicle, always replace CSC (Concentric Slave Cyl-
inder) body and CSC tube. Return CSC body insert to original position to remove transmission
assembly. Dust on clutch disc sliding parts may damage seal of CSC body and may cause clutch
fluid leakage.
Be careful not to bring any grease into contact with the clutch disc facing, pressure plate surface
and flywheel surface.
If flywheel is removed, align dowel pin with the smallest hole of flywheel. Refer to EM-111,
"ASSEMBLY" .
When installing, be careful that grease applied to main drive gear does not adhere to clutch disc.
Do not clean in solvent on clutch disk.
REMOVAL
1. Remove transmission assembly from the vehicle. Refer to MT-18, "Removal and Installation" .
2. Loosen clutch cover mounting bolts with power tool. Remove clutch cover and clutch disc.
CAUTION:
Do not drop clutch disc.
1. Flywheel 2. Clutch disc 3. Clutch cover
4. Main drive gear
A. First step
B. Final step
Refer to GI-11, "
Components" , and the followings for the symbols in the figure.
: Replace the parts as a set.
: Apply lithium-based grease including molybdenum disulphide
PCIB1939E
Page 17 of 20
CLUTCH DISC, CLUTCH COVER
CL-17
D
E
F
G
H
I
J
K
L
MA
B
CL
Revision: 2006 November2007 350Z
INSPECTION AND ADJUSTMENT AFTER REMOVAL
Clutch Disc
Measure circumference runout relative to the clutch disc center
spline. If it is outside the specification, replace clutch disc and
clutch cover as a set.
Measure backlash for clutch disc spline and main drive shaft
spline at the circumference of the clutch disc. If it is outside the
specified range, replace clutch disc and clutch cover as a set.
Using calipers, measure the depth to the clutch disc facing rivet
heads. If it exceeds the allowable wear limit, replace clutch disc
and clutch cover as a set.
Clutch Cover
Check diaphragm spring lever claws for unevenness with the lever
still on the vehicle. If they exceed the tolerance, adjust lever height
using the diaphragm adjusting wrench.
Check clutch cover thrust ring for wear or breakage. If wear or
breakage is found, replace clutch disc and clutch cover as a set.
NOTE:
Worn thrust ring will generate a beating noise when tapped at
the rivet with a hammer.
Broken thrust ring will make a clinking sound when cover is shaken up and down.
If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface,
repair the surface with sandpaper. If surface is damaged or distorted, replace clutch disc and clutch cover
as a set.
INSTALLATION
1. Apply recommended grease to clutch disc and main drive gear spline.
CAUTION:
Be sure to apply grease to the points specified. Otherwise, noise, poor disengagement, or damage
to the clutch may result. Excessive grease may cause slip or judder. And if it adheres to seal of
CSC body, it cause clutch fluid leakage. Wipe off excess grease. Wipe off any grease oozing from
the parts.Runout limit/diameter of the area to be measured
: 1.0 mm (0.039 in)/230 mm (9.06 in) dia.
Maximum backlash of spline
: 1.0 mm (0.039 in)
SCL221
Facing wear limit (depth to the rivet head)
: 0.3 mm (0.012 in)
SCL229
Tolerance for diaphragm spring lever unevenness
: 0.8 mm (0.031 in)
Tool number : ST20050240 ( — )
SCIA6796E
Page 18 of 20
CL-18
CLUTCH DISC, CLUTCH COVER
Revision: 2006 November2007 350Z
2. Install clutch disc and clutch cover. Pre-tighten mounting bolts
and install clutch aligning bar.
CAUTION:
If either clutch disk or clutch cover is needed to be
replaced, replace them as a set.
3. Tighten clutch cover mounting bolts evenly in two steps in the
order shown in the figure. Refer to CL-16, "
Removal and Instal-
lation" .
4. Install transmission assembly. Refer to MT-18, "
Removal and
Installation" . Tool number : ST20670000 ( — )
SCIA6797E
Page 19 of 20
SERVICE DATA AND SPECIFICATIONS (SDS)
CL-19
D
E
F
G
H
I
J
K
L
MA
B
CL
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Clutch Control SystemNCS0000H
Clutch Master CylinderNCS0000I
Unit: mm (in)
Clutch DiscNCS0000K
Unit: mm (in)
Clutch CoverNCS0000L
Clutch PedalNCS0000M
Unit: mm (in) Type of clutch controlHydraulic
Inner diameter17.46 (11/16)
Standard length “L” between clevis and push rod
111 . 0 ± 0.5 (4.37 ± 0.02)
PCIB1944E
Facing size (Outer dia. × inner dia. × thickness) 240 × 160 × 3.8 (9.45 × 6.30 × 0.150)
Wear limit (depth to the rivet head) 0.3 (0.012)
Runout limit/diameter of the area to be measured 1.0 (0.039)/230 (9.06) dia.
Maximum backlash of spline (at outer edge disc) 1.0 (0.039)
Set-load10,300 N (1,050.6 kg, 2,315.4 lb)
Diaphragm spring lever height 44.6 - 46.8 mm (1.756 - 1.843 in)
Uneven limit of diaphragm spring toe height 0.8 mm (0.031 in) or less
Clearance ″C″ between pedal stopper rubber and clutch interlock
switch threaded while clutch pedal is fully depressed.0.1 - 1.0 (0.004 - 0.039)
