NISSAN 350Z 2007 Z33 Driver Information Manual

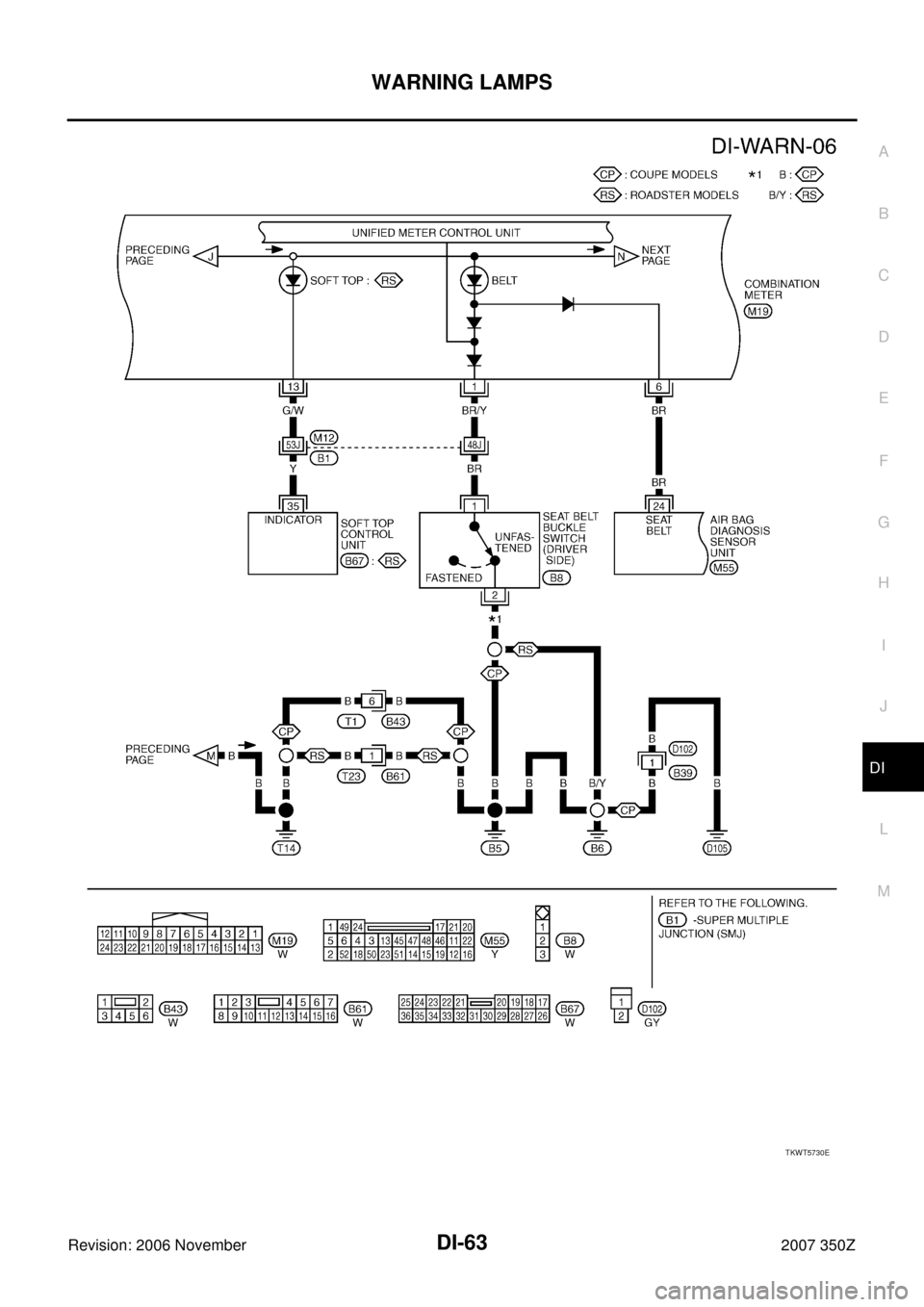

WARNING LAMPS
DI-61
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
TKWT5729E

DI-62
WARNING LAMPS
Revision: 2006 November2007 350Z
TKWT3995E

WARNING LAMPS
DI-63
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
TKWT5730E

DI-64
WARNING LAMPS
Revision: 2006 November2007 350Z
TKWT5731E

WARNING LAMPS
DI-65
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
TKWT5612E

DI-66
WARNING LAMPS
Revision: 2006 November2007 350Z
CONSULT-III Function (METER A/C AMP)NKS00079
Refer to DI-15, "CONSULT-III Function (METER A/C AMP)" in “UNIFIED METER AND A/C AMP”.
Oil Pressure Warning Lamp Stays Off (Ignition Switch ON) or Stays On (Oil
Pressure Is Normal)
NKS0007A
NOTE:
For oil pressure inspection, refer to LU-7, "
OIL PRESSURE CHECK" .
1. CHECK OIL PRESSURE GAUGE
Start the engine.
Does oil pressure gauge operate?
YES >> GO TO 2.
NO >> Check oil pressure sensor signal.
2. CHECK COMMUNICATION LINE
Perform self-diagnosis of unified meter and A/C amp. Refer to DI-15, "
CONSULT-III Function (METER A/C
AMP)" .
Self-diagnostic results
No malfunction detected>>GO TO 3.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
3. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
Select “METER A/C AMP” on CONSULT-III. Operate ignition switch with “OIL W/L” of “DATA MONITOR” and
check operation status.
OK or NG
OK >> Replace combination meter.
NG >> Replace triple meter.“OIL W/L”
When ignition switch is in ON
position (Engine stopped.): ON
When engine running : OFF

A/T INDICATOR
DI-67
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
A/T INDICATORPFP:24814

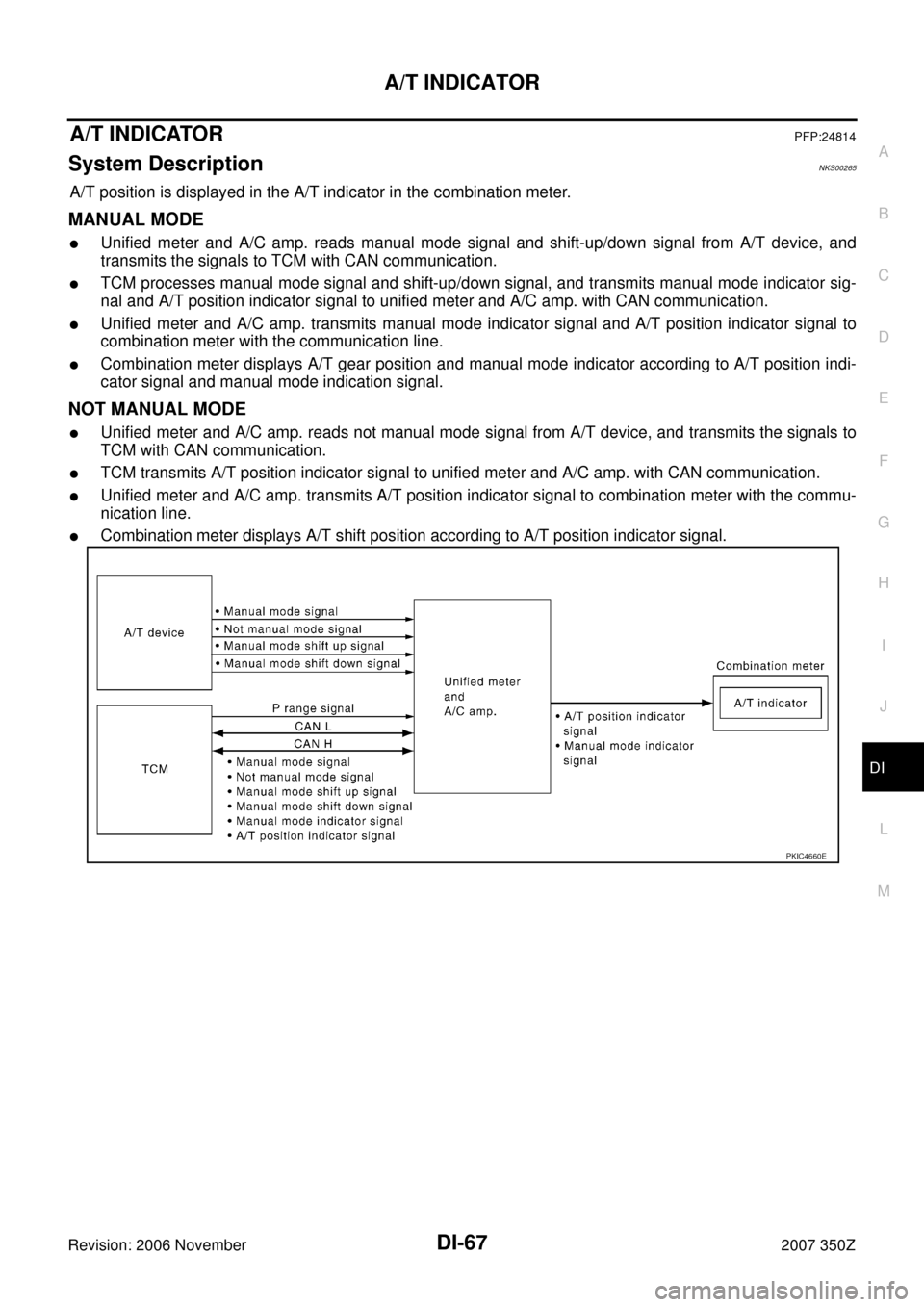

System DescriptionNKS00265
A/T position is displayed in the A/T indicator in the combination meter.
MANUAL MODE

Unified meter and A/C amp. reads manual mode signal and shift-up/down signal from A/T device, and
transmits the signals to TCM with CAN communication.

TCM processes manual mode signal and shift-up/down signal, and transmits manual mode indicator sig-
nal and A/T position indicator signal to unified meter and A/C amp. with CAN communication.

Unified meter and A/C amp. transmits manual mode indicator signal and A/T position indicator signal to
combination meter with the communication line.

Combination meter displays A/T gear position and manual mode indicator according to A/T position indi-
cator signal and manual mode indication signal.
NOT MANUAL MODE

Unified meter and A/C amp. reads not manual mode signal from A/T device, and transmits the signals to
TCM with CAN communication.

TCM transmits A/T position indicator signal to unified meter and A/C amp. with CAN communication.

Unified meter and A/C amp. transmits A/T position indicator signal to combination meter with the commu-
nication line.

Combination meter displays A/T shift position according to A/T position indicator signal.
PKIC4660E

DI-68
A/T INDICATOR
Revision: 2006 November2007 350Z

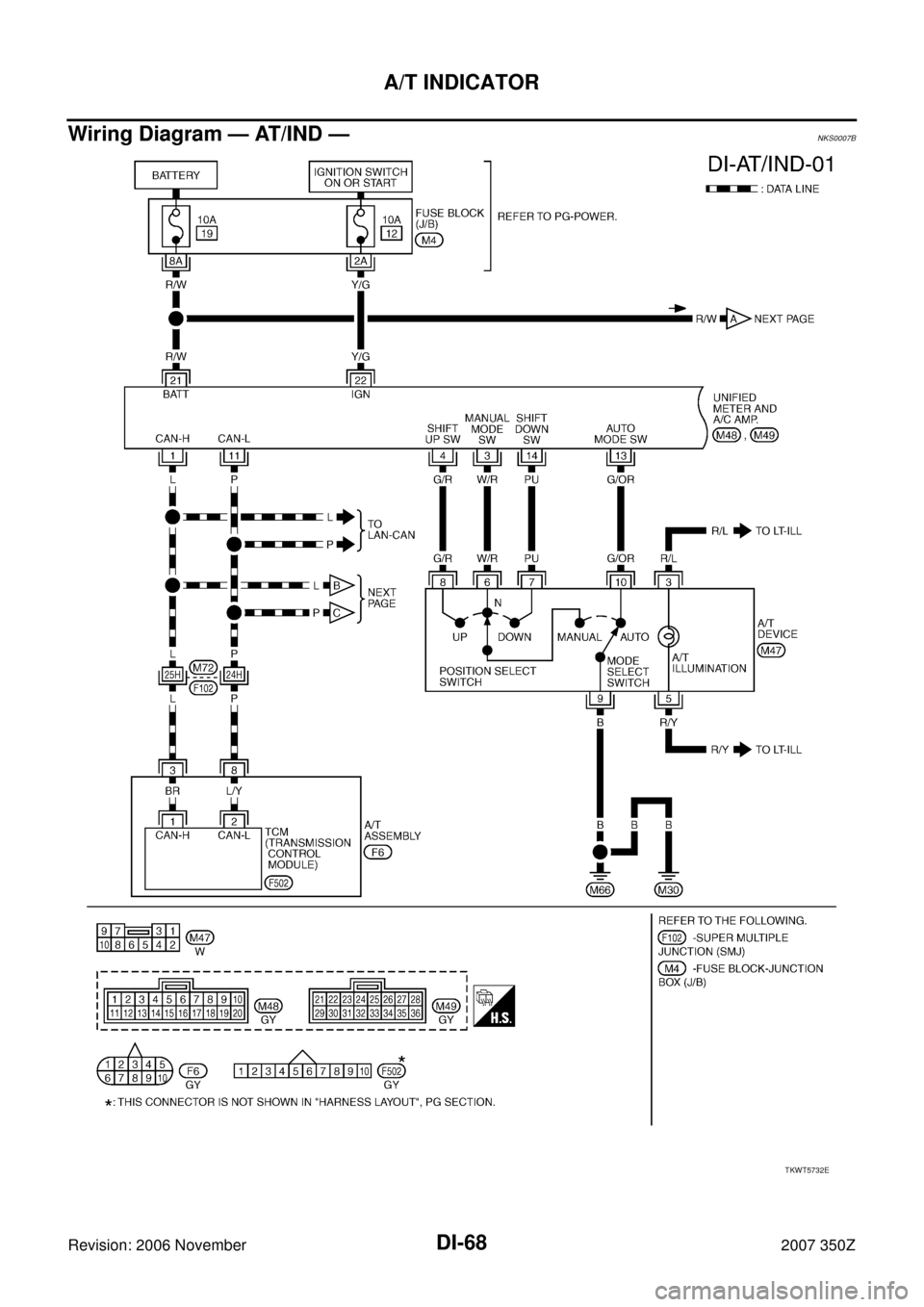

Wiring Diagram — AT/IND —NKS0007B
TKWT5732E

A/T INDICATOR
DI-69
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
TKWT2309E

DI-70
A/T INDICATOR
Revision: 2006 November2007 350Z
CONSULT-III Function (METER A/C AMP)NKS0007C
Refer to DI-47, "CONSULT-III Function (METER A/C AMP)" in “UNIFIED METER AND A/C AMP”.
A/T Indicator Is MalfunctionNKS0007D
1. CHECK A/T INDICATOR SEGMENTS
Perform self-diagnosis mode of combination meter. Refer to DI-15,
"OPERATION PROCEDURE" .
Are all segments displayed?
YES >> GO TO 2.
NO >> Replace combination meter.
2. CHECK UNIFIED METER AND A/C AMP. (CONSULT-III)
Perform self-diagnosis of unified meter and A/C amp. Refer to DI-47, "
CONSULT-III Function (METER A/C
AMP)" .
Self-diagnostic results
No malfunction detected>>GO TO 3.
Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.
3. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Use “DATA MONITOR” of “METER A/C AMP” on CONSULT-III. Confirm each indication on the monitor
when shifting the selector lever.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 4.
4. CHECK TCM (CONSULT-III)
Perform TCM self-diagnosis. Refer to AT- 8 4 , "
CONSULT-III Function (TRANSMISSION)" .
Self
-diagnostic results
No malfunction detected>>Replace unified meter and A/C amp.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
PKIA1856E
CONSULT-II display Selector lever position Status
AT - M I N DManual mode range ON
Except for manual mode range OFF
AT - M G E A RManual mode range (shift up or down) 5–1
Except for manual mode range 1
P RANGE INDP range ON
Except for P range OFF
R RANGE INDR range ON
Except for R range OFF
N RANGE INDN range position ON
Except for N range OFF
D RANGE INDD range position ON
Except for D range OFF
