FRONT OIL SEAL
RFD-11
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2006 November2007 350Z
REMOVAL
1. Drain gear oil. Refer to RFD-9, "DRAINING" .
2. Make a judgment if a collapsible spacer replacement is required. Refer to RFD-10, "
IDENTIFICATION
STAMP OF REPLACEMENT FREQUENCY OF FRONT OIL SEAL" .
3. Remove rear wheel sensor. Refer to BRC-34, "
WHEEL SENSORS" (ABS),BRC-73, "WHEEL SEN-
SORS" (TCS/ABS) or BRC-128, "WHEEL SENSORS" (VDC/TCS/ABS).
4. Remove drive shaft from final drive. Then suspend it by wire etc. Refer to RAX-10, "
Removal and Installa-
tion" .
5. Install attachment to side flange, and then pull out the side
flange with the sliding hammer.
NOTE:
6. Remove propeller shaft. Refer to PR-6, "
Removal and Installation" .
7. Measure the total preload with the preload gauge.
NOTE:
Record the preload measurement.
8. Remove drive pinion lock nut using the flange wrench.
9. Put matching mark on the end of the drive pinion. The matching
mark should be in line with the matching mark A on companion
flange.
CAUTION:
For matching mark, use paint. Do not damage drive pinion.
NOTE:
The matching mark A on the final drive companion flange indi-
cates the maximum vertical runout position.Tool number A: KV40104100 ( — )
B: ST36230000 (J-25840-A)
ModelCircular clip installation position
Right side Left side
R200 (2-pinion) Final drive side
R200V (LSD) Final drive side Side flange side
Tool number A: ST3127S000 (J-25765-A)
SDIA1005E
PDIA1006E
Tool number : KV40104000 ( — )
SDIA1142E
PDIA0629E
Page 12 of 60
RFD-12
FRONT OIL SEAL
Revision: 2006 November2007 350Z
10. Remove companion flange using a puller.
11. Remove front oil seal using the puller.
INSTALLATION
1. Apply multi-purpose grease to front oil seal lips.
2. Install front oil seal using the drift as shown in the figure.
CAUTION:
Do not reuse oil seal.
Do not incline oil seal when installing.
3. Align the matching mark of drive pinion with the matching mark
of companion flange, and then install the companion flange.
PDIA0630E
Tool number A: KV381054S0 (J-34286)
PDIA0980E
Tool number A: ST30720000 (J-25405)
PDIA0752J
PDIA0629E
Page 13 of 60
FRONT OIL SEAL
RFD-13
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2006 November2007 350Z
4. Apply anti-corrosion oil to the thread and seat of new drive pin-
ion lock nut, and temporarily tighten drive pinion lock nut to drive
pinion.
CAUTION:
Do not reuse drive pinion lock nut.
5. Tighten to drive pinion lock nut, while adjust total preload torque.
CAUTION:
Adjust to the lower limit of the drive pinion lock nut tight-
ening torque first.
If the preload torque exceeds the specified value, replace
collapsible spacer and tighten it again to adjust. Do not
loosen drive pinion lock nut to adjust the preload torque.
6. Make a stamping for identification of front oil seal replacement
frequency. Refer to RFD-10, "
IDENTIFICATION STAMP OF REPLACEMENT FREQUENCY OF FRONT
OIL SEAL" .
CAUTION:
Be sure to make a stamping after replacing front oil seal.
7. Install propeller shaft. Refer to PR-6, "
Removal and Installation" .
8. Install side flange with the following procedure.
NOTE:
Install the RH side flange, then install the LH side flange. If LH side flange is installed first, the RH side
flange comes out sometimes from the shock of installing the RH side flange. [For R200V (with LSD)]
a. Attach the protector to side oil seal.
b. After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.Tool number A: ST3127S000 (J-25765-A)
Drive pinion lock nut tightening torque:
147 – 323 N·m (15 – 32 kg-m, 109 – 238 ft-lb)
Total preload torque:
Total preload torque should equal the measurement
taken during removal plus an additional 0.1 – 0.4 N·m
(0.01 – 0.04 kg-m, 1 – 3 in-lb).
Tool number : KV38107900 (J-39352)
PDIA1007E
SDIA0822E
Page 14 of 60
RFD-14
FRONT OIL SEAL
Revision: 2006 November2007 350Z
c. Put a suitable drift on the center of side flange, then drive it until
sound changes.
NOTE:
When installation is completed, driving sound of the side flange
turns into a sound which seems to affect the whole final drive.
d. Confirm that the dimension of the side flange installation (Mea-
surement A) in the figure comes into the following.
9. Install drive shaft. Refer to RAX-10, "
Removal and Installation" .
10. Install rear wheel sensor. Refer to BRC-34, "
WHEEL SEN-
SORS" (ABS), BRC-73, "WHEEL SENSORS" (TCS/ABS) or
BRC-128, "
WHEEL SENSORS" (VDC/TCS/ABS).
11. Refill gear oil to the final drive and check oil level. Refer to RFD-
9, "FILLING" .
12. Check the final drive for oil leakage. Refer to RFD-9, "
OIL LEAK-
AGE AND OIL LEVEL" . Measurement A: 326 – 328 mm (12.83 – 12.91 in)
PDIA0631E
Page 15 of 60
SIDE OIL SEAL
RFD-15
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2006 November2007 350Z
SIDE OIL SEALPFP:33142
Removal and InstallationNDS0000H
REMOVAL
1. Remove rear wheel sensor. Refer to BRC-34, "WHEEL SENSORS" (ABS),BRC-73, "WHEEL SEN-
SORS" (TCS/ABS) or BRC-128, "WHEEL SENSORS" (VDC/TCS/ABS).
2. Remove drive shaft from final drive. Then suspend it by wire etc. Refer to RAX-10, "
Removal and Installa-
tion" .
3. Install attachment to side flange, and then pull out the side
flange with the sliding hammer.
NOTE:
4. Remove side oil seal, using a flat-bladed screwdriver.
CAUTION:
Be careful not to damage gear carrier.
INSTALLATION
1. Apply multi-purpose grease to side oil seal lips.
2. Install side oil seal until it becomes flush with the case end,
using the drift.
CAUTION:
Do not reuse oil seal.
When installing, do not incline oil seal.
3. Install side flange with the following procedure.
NOTE:
Install the RH side flange, then install the LH side flange. If LH
side flange is installed first, the RH side flange comes out some-
times from the shock of installing the RH side flange. [For
R200V (with LSD)]Tool number A: KV40104100 ( — )
B: ST36230000 (J-25840-A)
ModelCircular clip installation position
Right side Left side
R200 (2-pinion) Final drive side
R200V (LSD) Final drive side Side flange side
SDIA1005E
SDIA1036E
Tool number : KV38100200 (J-26233)
SDIA1037E
Page 16 of 60
RFD-16
SIDE OIL SEAL
Revision: 2006 November2007 350Z
a. Attach the protector to side oil seal.
b. After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.
c. Put a suitable drift on the center of side flange, then drive it until
sound changes.
NOTE:
When installation is completed, driving sound of the side flange
turns into a sound which seems to affect the whole final drive.
d. Confirm that the dimension of the side flange installation (Mea-
surement A) in the figure comes into the following.
4. Install drive shaft. Refer to RAX-10, "
Removal and Installation" .
5. Install rear wheel sensor. Refer to BRC-34, "
WHEEL SEN-
SORS" (ABS),BRC-73, "WHEEL SENSORS" (TCS/ABS) or
BRC-128, "
WHEEL SENSORS" (VDC/TCS/ABS). Tool number : KV38107900 (J-39352)
SDIA0822E
Measurement A: 326 - 328 mm (12.83 - 12.91 in)
PDIA0631E
Page 17 of 60
REAR FINAL DRIVE ASSEMBLY
RFD-17
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2006 November2007 350Z
REAR FINAL DRIVE ASSEMBLYPFP:38300
Removal and InstallationNDS0000I
COMPONENTS
REMOVAL
1. Remove propeller shaft from the final drive. Refer to PR-6, "Removal and Installation" .
CAUTION:
Do not impact or damage propeller shaft tube.
2. Remove rear stabilizer bar with a power tool. Refer to FSU-18, "
STABILIZER BAR" .
3. Remove drive shaft from final drive. Then suspend it by wire etc.
Refer to RAX-10, "
REAR DRIVE SHAFT" .
4. Remove breather hose from the final drive.
5. Remove rear wheel sensor. Refer to BRC-34, "
WHEEL SEN-
SORS" (ABS), BRC-73, "WHEEL SENSORS" (TCS/ABS) or
BRC-128, "
WHEEL SENSORS" (VDC/TCS/ABS).
1. Rear final drive assembly 2. Upper stopper 3. Propeller shaft
4. Washer 5. Lower stopper 6. Drive shaft
PDIA0632E
SDIA1094E
Page 18 of 60
RFD-18
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 November2007 350Z
6. Set a suitable jack to rear final drive assembly.
CAUTION:
Do not place a suitable jack on the rear cover (aluminum
case).
7. Remove the mounting bolts and nuts connecting to the suspen-
sion member, and remove rear final drive assembly.
CAUTION:
Secure rear final drive assembly to a suitable jack while
removing it.
INSTALLATION
Note the following, and installation is in the reverse order of removal.
Refer to RFD-19, "COMPONENTS" (R200 2-pinion) or RFD-39, "COMPONENTS" (R200V LSD) about
each tightening torque.
When installing breather hoses, refer to the figure.
CAUTION:
Make sure there are no pinched or restricted areas on the
breather hose caused by bending or winding when install-
ing it.
–For installation, the vehicle side end shall be inserted to suspen-
sion member. Install metal connector side of this hose to rear
cover by inserting it with aiming painted marking to the front of
vehicle.
When oil leaks while removing final drive assembly, check oil
level after the installation. Refer to RFD-9, "
Checking Differential
Gear Oil" .
PDIA0690E
SDIA1970J
PDIA0633E
Page 19 of 60
REAR FINAL DRIVE ASSEMBLY
RFD-19
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2006 November2007 350Z

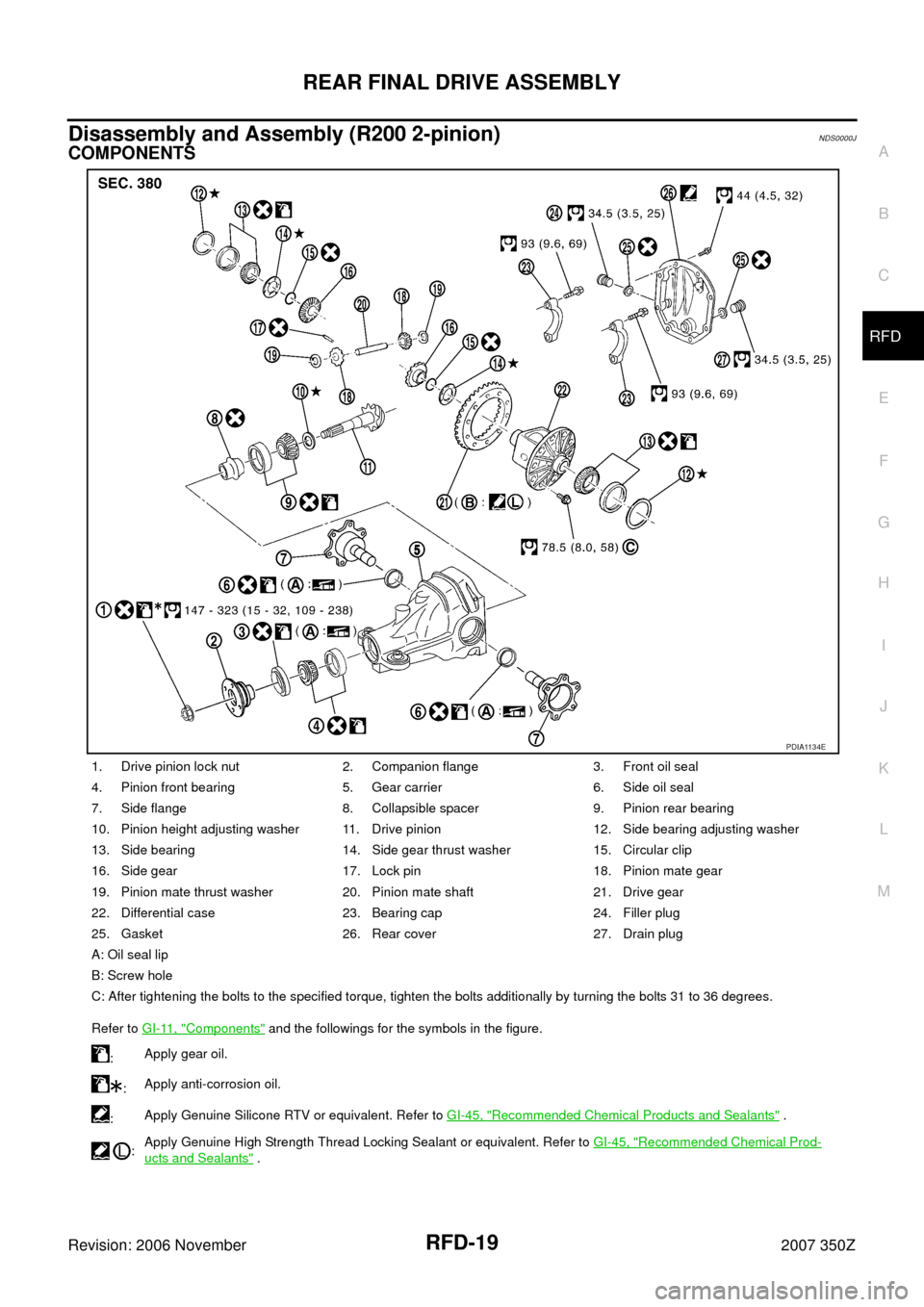

Disassembly and Assembly (R200 2-pinion)NDS0000J
COMPONENTS
1. Drive pinion lock nut 2. Companion flange 3. Front oil seal
4. Pinion front bearing 5. Gear carrier 6. Side oil seal
7. Side flange 8. Collapsible spacer 9. Pinion rear bearing
10. Pinion height adjusting washer 11. Drive pinion 12. Side bearing adjusting washer
13. Side bearing 14. Side gear thrust washer 15. Circular clip
16. Side gear 17. Lock pin 18. Pinion mate gear
19. Pinion mate thrust washer 20. Pinion mate shaft 21. Drive gear
22. Differential case 23. Bearing cap 24. Filler plug
25. Gasket 26. Rear cover 27. Drain plug
A: Oil seal lip
B: Screw hole
C: After tightening the bolts to the specified torque, tighten the bolts additionally by turning the bolts 31 to 36 degrees.
Refer to GI-11, "
Components" and the followings for the symbols in the figure.
:Apply gear oil.
:Apply anti-corrosion oil.
:Apply Genuine Silicone RTV or equivalent. Refer to GI-45, "
Recommended Chemical Products and Sealants" .
:Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to GI-45, "
Recommended Chemical Prod-
ucts and Sealants" .
PDIA1134E
Page 20 of 60
RFD-20
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 November2007 350Z
ASSEMBLY INSPECTION AND ADJUSTMENT
Before inspection and adjustment, drain gear oil.
Total Preload Torque
1. Secure final drive assembly onto an attachment.
2. Remove side flanges.
3. Rotate drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.
4. Rotate drive pinion at least 20 times to check for smooth opera-
tion of the bearing.
5. Measure total preload with the preload gauge.
NOTE:
Total preload torque = Pinion bearing preload torque + Side
bearing preload torque
If measured value is out of the specification, disassemble it to
check and adjust each part. Adjust the pinion bearing preload and side bearing preload.
Adjust the pinion bearing preload first, then adjust the side bearing preload.
Drive Gear Runout
1. Remove rear cover. Refer to RFD-24, "Differential Assembly" .
2. Fit a dial indicator to the drive gear back face.
3. Rotate the drive gear to measure runout.
If the runout is outside of the repair limit, check drive gear
assembly condition; foreign material may be caught between
drive gear and differential case, or differential case or drive gear
may be deformed, etc.
CAUTION:
Replace drive gear and drive pinion gear as a set.Tool number : KV38100800 (J-25604-01)
Tool number : ST3127S000 (J-25765-A)
Total preload torque:
2.85 – 3.75 N·m (0.29 – 0.38 kg-m, 26 – 33 in-lb)
PDIA0635E
When the preload torque is large
On pinion bearings: Replace the collapsible spacer.
On side bearings: Use thinner side bearing adjusting washers by the same amount to
each side. Refer to RFD-60, "
Side Bearing Adjusting Washer" .
When the preload is small
On pinion bearings: Tighten the drive pinion lock nut.
On side bearings: Use thicker side bearing adjusting washers by the same amount to
each side. Refer to RFD-60, "
Side Bearing Adjusting Washer" .
Runout limit: 0.05 mm (0.0020 in) or less
SPD886
