TROUBLE DIAGNOSIS
WT-21
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z

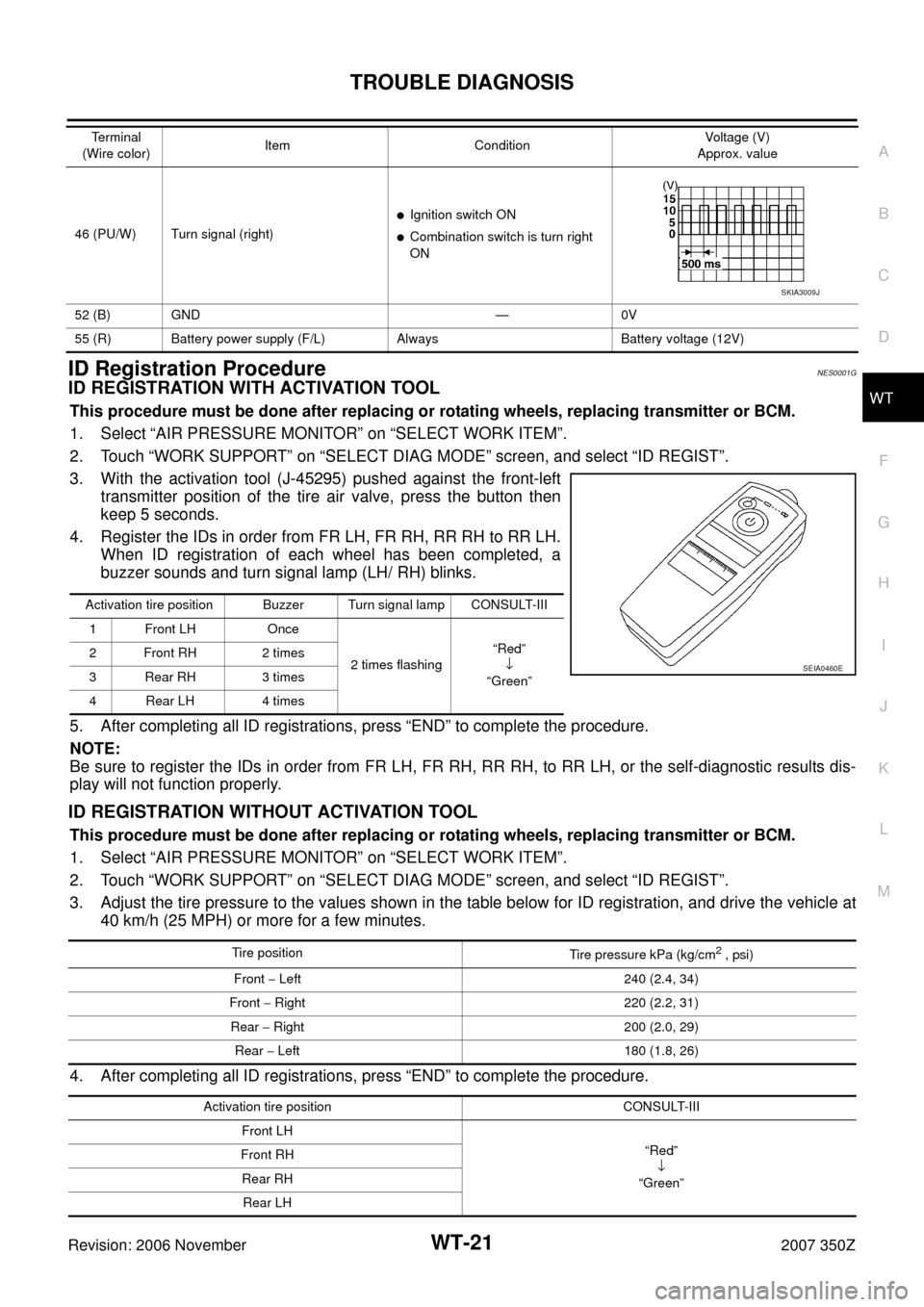

ID Registration ProcedureNES0001G
ID REGISTRATION WITH ACTIVATION TOOL
This procedure must be done after replacing or rotating wheels, replacing transmitter or BCM.
1. Select “AIR PRESSURE MONITOR” on “SELECT WORK ITEM”.
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.
3. With the activation tool (J-45295) pushed against the front-left
transmitter position of the tire air valve, press the button then
keep 5 seconds.
4. Register the IDs in order from FR LH, FR RH, RR RH to RR LH.
When ID registration of each wheel has been completed, a
buzzer sounds and turn signal lamp (LH/ RH) blinks.
5. After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results dis-
play will not function properly.
ID REGISTRATION WITHOUT ACTIVATION TOOL
This procedure must be done after replacing or rotating wheels, replacing transmitter or BCM.
1. Select “AIR PRESSURE MONITOR” on “SELECT WORK ITEM”.
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.
3. Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at
40 km/h (25 MPH) or more for a few minutes.
4. After completing all ID registrations, press “END” to complete the procedure.
46 (PU/W) Turn signal (right)
Ignition switch ON
Combination switch is turn right
ON
52 (B) GND — 0V
55 (R) Battery power supply (F/L) Always Battery voltage (12V)Terminal
(Wire color)Item ConditionVoltage (V)
Approx. value
SKIA3009J
Activation tire position Buzzer Turn signal lamp CONSULT-III
1 Front LH Once
2 times flashing“Red”
↓
“Green” 2 Front RH 2 times
3 Rear RH 3 times
4 Rear LH 4 times
SEIA0460E
Tire position
Tire pressure kPa (kg/cm2 , psi)
Front − Left 240 (2.4, 34)
Front − Right 220 (2.2, 31)
Rear − Right 200 (2.0, 29)
Rear − Left 180 (1.8, 26)
Activation tire position CONSULT-III
Front LH
“Red”
↓
“Green” Front RH
Rear RH
Rear LH
Page 22 of 40
WT-22
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
5. Inflate all tires to proper pressure. Refer to WT-39, "SERVICE DATA AND SPECIFICATIONS (SDS)" .

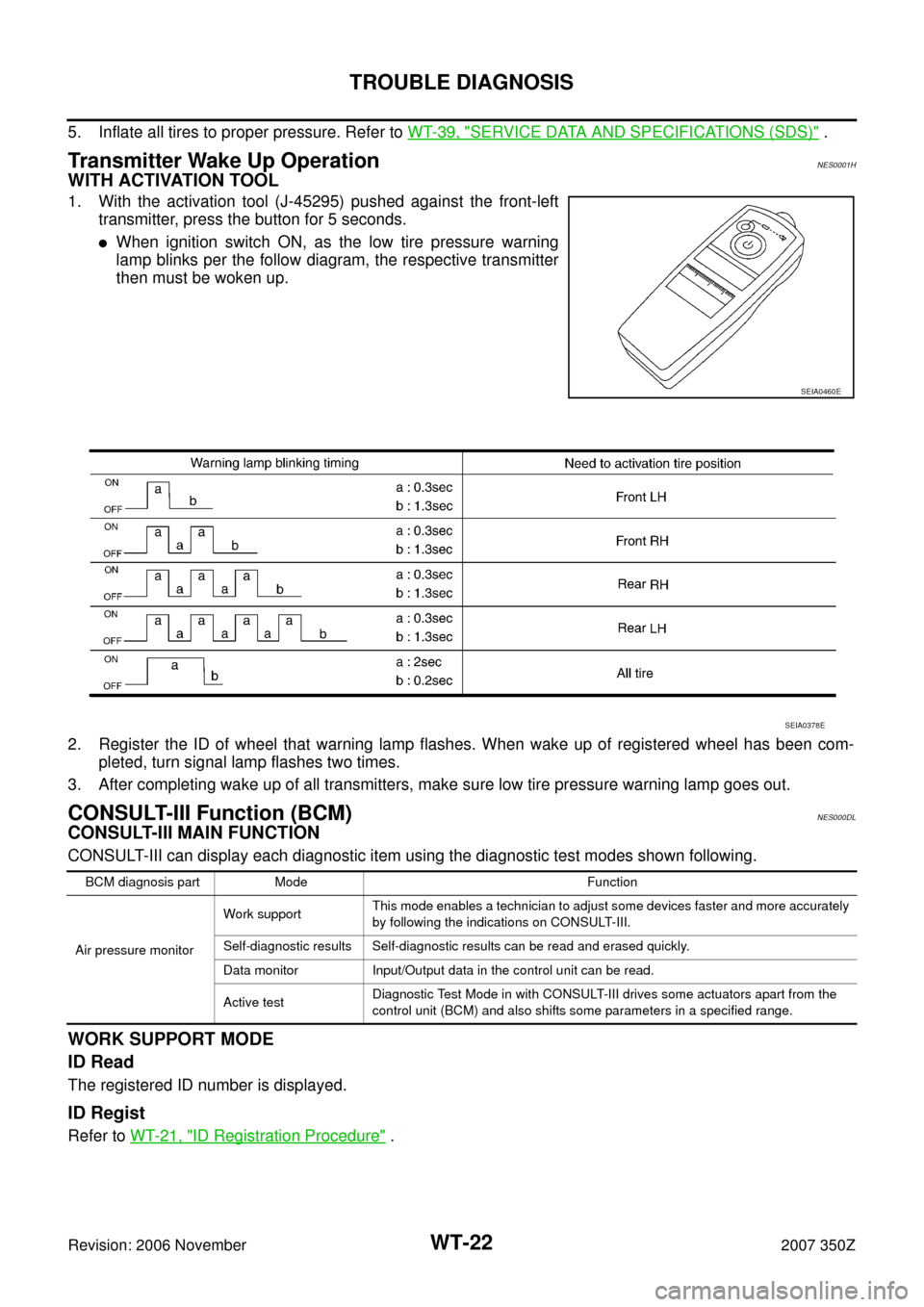

Transmitter Wake Up OperationNES0001H
WITH ACTIVATION TOOL
1. With the activation tool (J-45295) pushed against the front-left
transmitter, press the button for 5 seconds.
When ignition switch ON, as the low tire pressure warning
lamp blinks per the follow diagram, the respective transmitter
then must be woken up.
2. Register the ID of wheel that warning lamp flashes. When wake up of registered wheel has been com-
pleted, turn signal lamp flashes two times.
3. After completing wake up of all transmitters, make sure low tire pressure warning lamp goes out.
CONSULT-III Function (BCM)NES000DL
CONSULT-III MAIN FUNCTION
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
WORK SUPPORT MODE
ID Read
The registered ID number is displayed.
ID Regist
Refer to WT-21, "ID Registration Procedure" .
SEIA0460E
SEIA0378E
BCM diagnosis part Mode Function
Air pressure monitorWork supportThis mode enables a technician to adjust some devices faster and more accurately
by following the indications on CONSULT-III.
Self-diagnostic results Self-diagnostic results can be read and erased quickly.
Data monitor Input/Output data in the control unit can be read.
Active testDiagnostic Test Mode in with CONSULT-III drives some actuators apart from the
control unit (BCM) and also shifts some parameters in a specified range.
Page 23 of 40
TROUBLE DIAGNOSIS
WT-23
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z
SELF-DIAG RESULTS MODE
Display Item List
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that dis-
played on CONSULT-III.DTC Diagnostic item Diagnostic item is detected when ··· Check items
C1704 FLAT_TIRE_FL
Front-left tire pressure drops to 190 kPa (1.90 kg/cm
2 , 28 psi) or less.
— C1705 FLAT_TIRE_FR
Front-right tire pressure drops to 190 kPa (1.90 kg/cm
2 , 28 psi) or less.
C1706 FLAT_TIRE_RR
Rear-right tire pressure drops to 190 kPa (1.90 kg/cm
2 , 28 psi) or less.
C1707 FLAT_TIRE_RL
Rear-left tire pressure drops to 190 kPa (1.90 kg/cm
2 , 28 psi) or less.
C1708 [NO_DATA]_FL Data from front-left transmitter cannot be received.
WT-30
C1709 [NO_DATA]_FR Data from front-right transmitter cannot be received.
C1710 [NO_DATA]_RR Data from rear-right transmitter cannot be received.
C1711 [NO_DATA]_RL Data from rear-left transmitter cannot be received.
C1712 [CHECKSUM_ERR]_FL Checksum data from front-left transmitter is malfunctioning.
WT-30
C1713 [CHECKSUM_ERR]_FR Checksum data from front-right transmitter is malfunctioning.
C1714 [CHECKSUM_ERR]_RR Checksum data from rear-right transmitter is malfunctioning.
C1715 [CHECKSUM_ERR]_RL Checksum data from rear-left transmitter is malfunctioning.
C1716 [PRESSDATA_ERR]_FL Air pressure data from front-left transmitter is malfunctioning.
WT-31
C1717 [PRESSDATA_ERR]_FR Air pressure data from front-right transmitter is malfunctioning.
C1718 [PRESSDATA_ERR]_RR Air pressure data from rear-right transmitter is malfunctioning.
C1719 [PRESSDATA_ERR]_RL Air pressure data from rear-left transmitter is malfunctioning.
C1720 [CODE_ERROR]_FL Function code data from front-left transmitter is malfunctioning.
WT-30
C1721 [CODE_ERROR]_FR Function code data from front-right transmitter is malfunctioning.
C1722 [CODE_ERROR]_RR Function code data from rear-right transmitter is malfunctioning.
C1723 [CODE_ERROR]_RL Function code data from rear-left transmitter is malfunctioning.
C1724 [BATT_VOLT_LOW]_FL Battery voltage of front-left transmitter drops.
WT-30
C1725 [BATT_VOLT_LOW]_FR Battery voltage of front-right transmitter drops.
C1726 [BATT_VOLT_LOW]_RR Battery voltage of rear-right transmitter drops.
C1727 [BATT_VOLT_LOW]_RL Battery voltage of rear-left transmitter drops.
C1729 VHCL_SPEED_SIG_ERR Vehicle speed signal is error.WT-32
Page 24 of 40
WT-24
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
DATA MONITOR MODE
Display Item List
Monitor item (Unit) Remarks
VEHICLE SPEED [km/h] or [mph] Vehicle speed is displayed.
AIR PRESS FL [kpa] or [psi] Tire pressure is displayed.
AIR PRESS FR [kPa] or [psi] Tire pressure is displayed.
AIR PRESS RR [kpa] or [psi] Tire pressure is displayed.
AIR PRESS RL [kpa] or [psi] Tire pressure is displayed.
ID REGST FL 1 [DONE/YET] Registration ID is displayed.
ID REGST FR 1 [DONE/YET] Registration ID is displayed.
ID REGST RR 1 [DONE/YET] Registration ID is displayed.
ID REGST RL 1 [DONE/YET] Registration ID is displayed.
WARNING LAMP [ON/OFF] Control status of low tire pressure warning lamp is displayed.
BUZZER [ON/OFF] Buzzer in combination meter is displayed.
Page 25 of 40
TROUBLE DIAGNOSIS
WT-25
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z
ACTIVE TEST MODE
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be
different from that displayed on CONSULT-III.
TEST ITEM LIST
Test item Content
FLASHER This test is able to check to make sure that each turn signal lamp turns on.
HORN This test is able to check to make sure that the horn sounds.
WARNING LAMP This test is able to check to make sure that the warning lamp turns on.
ID REGIST WARNING This test is able to check to make sure that the buzzer sounds or the warning lamp turns on.
FLAT TIRE WARNING This test is able to check to make sure that the buzzer sounds or the warning lamp turns on.
Page 26 of 40
WT-26
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
Diagnosis Procedure with Warning Lamp Function (Without CONSULT-III)NES000A4
DESCRIPTION
During driving, the low tire pressure warning system receives the signal transmitted from the transmitter
installed in each wheel. The control unit (BCM) of this system has pressure judgement and trouble diagnosis
functions.
FUNCTION
When the low tire pressure warning system detects low inflation pressure or another unusual symptom, the
warning lamps in the combination meter comes on. To start the self-diagnostic results mode, ground terminal
of the tire pressure warning check connector. The malfunction location is indicated by the warning lamp flash-
ing. Refer to PG-41, "
HARNESS" .
MALFUNCTION CODE CHART
Code (warning lamp blinks) Diagnosis item Reference
15
Front-left tire pressure drops to 190 kPa (1.90 kg/cm
2 , 28 psi) or less.
— 16
Front-right tire pressure drops to 190 kPa (1.90 kg/cm
2 , 28 psi) or less.
17
Rear-right tire pressure drops to 190 kPa (1.90 kg/cm
2 , 28 psi) or less.
18
Rear-left tire pressure drops to 190 kPa (1.90 kg/cm
2 , 28 psi) or less.
21 Transmitter no data (front - left)
WT-30
22 Transmitter no data (front - right)
23 Transmitter no data (rear - right)
24 Transmitter no data (rear - left)
31 Transmitter checksum error (front - left)
WT-30
32 Transmitter checksum error (front - right)
33 Transmitter checksum error (rear - right)
34 Transmitter checksum error (rear - left)
35 Transmitter pressure data error (front - left)
WT-31
36 Transmitter pressure data error (front - right)
37 Transmitter pressure data error (rear - right)
38 Transmitter pressure data error (rear - left)
41 Transmitter function code error (front - left)
WT-30
42 Transmitter function code error (front - right)
43 Transmitter function code error (rear - right)
44 Transmitter function code error (rear - left)
45 Transmitter battery voltage low (front - left)
WT-30
46 Transmitter battery voltage low (front - right)
47 Transmitter battery voltage low (rear - right)
48 Transmitter battery voltage low (rear - left)
52 Vehicle speed signalWT-32
Page 27 of 40
TROUBLE DIAGNOSIS
WT-27
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z

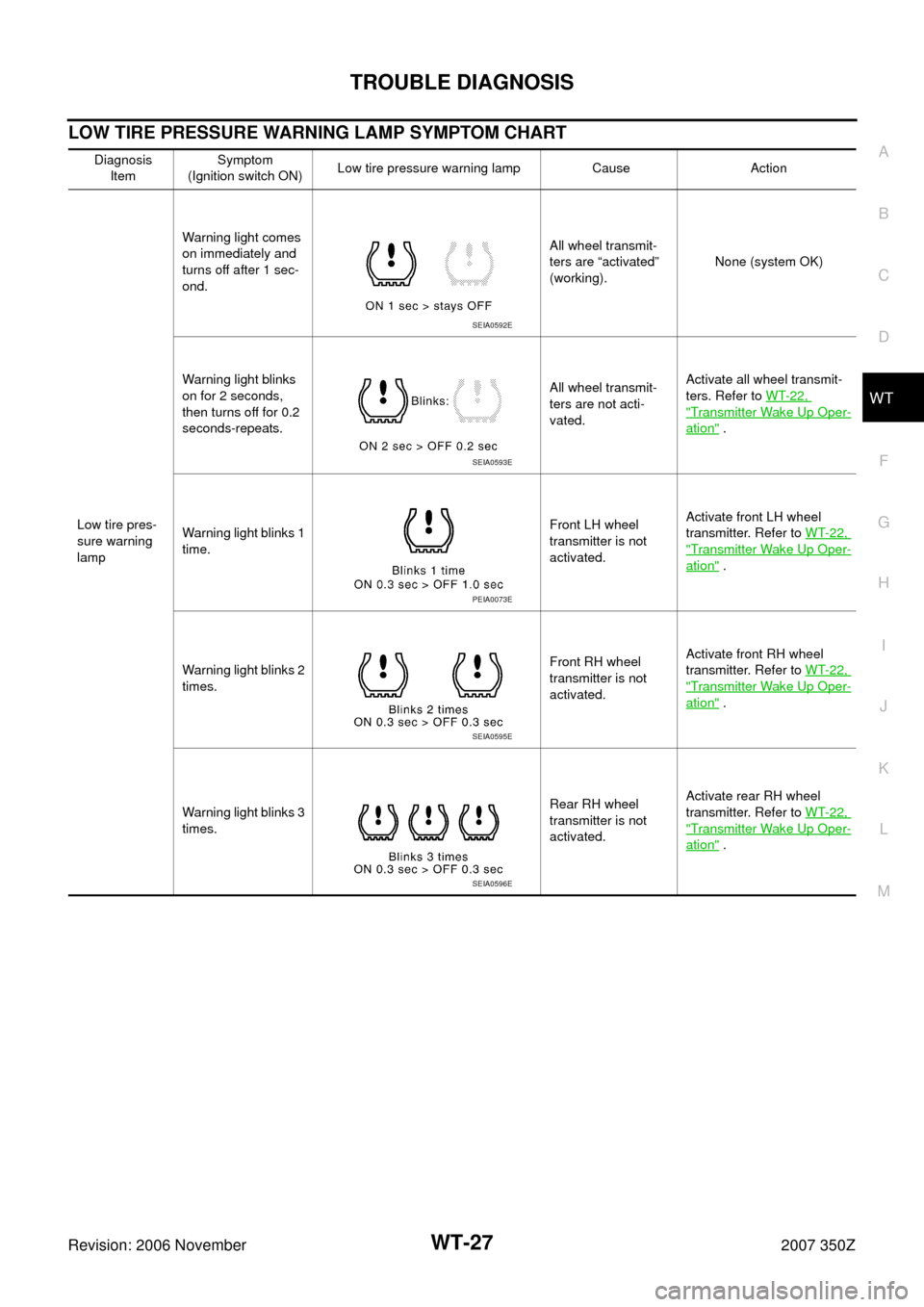

LOW TIRE PRESSURE WARNING LAMP SYMPTOM CHART
Diagnosis
ItemSymptom
(Ignition switch ON)Low tire pressure warning lamp Cause Action
Low tire pres-
sure warning
lampWarning light comes
on immediately and
turns off after 1 sec-
ond.All wheel transmit-
ters are “activated”
(working).None (system OK)
Warning light blinks
on for 2 seconds,
then turns off for 0.2
seconds-repeats.All wheel transmit-
ters are not acti-
vated.Activate all wheel transmit-
ters. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
Warning light blinks 1
time.Front LH wheel
transmitter is not
activated.Activate front LH wheel
transmitter. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
Warning light blinks 2
times.Front RH wheel
transmitter is not
activated.Activate front RH wheel
transmitter. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
Warning light blinks 3
times.Rear RH wheel
transmitter is not
activated.Activate rear RH wheel
transmitter. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
SEIA0592E
SEIA0593E
PEIA0073E
SEIA0595E
SEIA0596E
Page 28 of 40
WT-28
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
NOTE:
If more than one wheel transmitter is NOT activated, the warning light blinking patterns for those wheels will combine. (Example: one
blink/OFF/three blinks = Rear LH and Rear RH transmitters are not activated.)Low tire pres-
sure warning

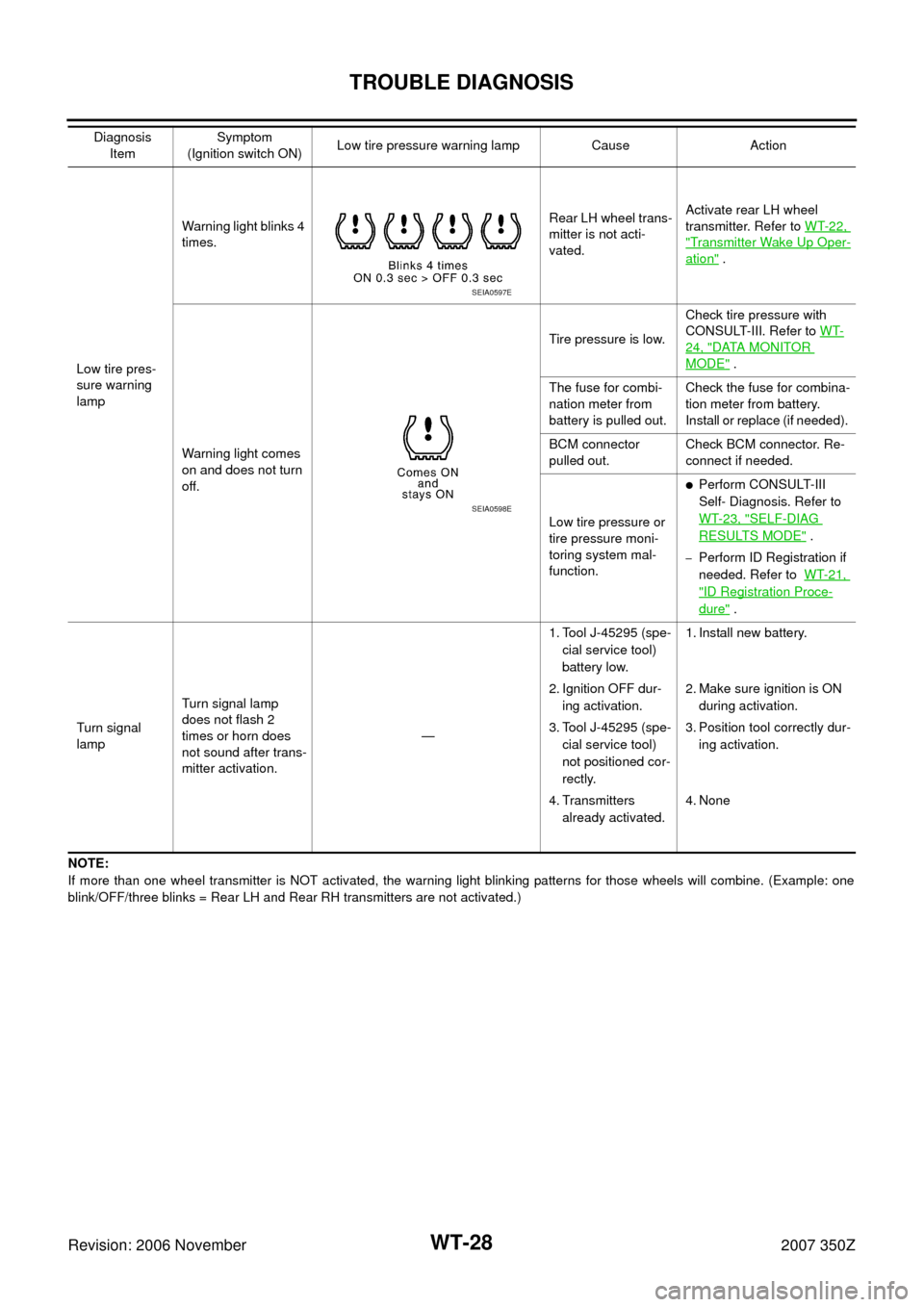

lampWarning light blinks 4
times.Rear LH wheel trans-
mitter is not acti-
vated.Activate rear LH wheel
transmitter. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
Warning light comes
on and does not turn
off.Tire pressure is low.Check tire pressure with
CONSULT-III. Refer to WT-
24, "DATA MONITOR
MODE" .
The fuse for combi-
nation meter from
battery is pulled out.Check the fuse for combina-
tion meter from battery.
Install or replace (if needed).
BCM connector
pulled out.Check BCM connector. Re-
connect if needed.
Low tire pressure or
tire pressure moni-
toring system mal-
function.
Perform CONSULT-III
Self- Diagnosis. Refer to
WT-23, "
SELF-DIAG
RESULTS MODE" .
–Perform ID Registration if
needed. Refer to WT-21,
"ID Registration Proce-
dure" .
Turn signal
lampTurn signal lamp
does not flash 2
times or horn does
not sound after trans-
mitter activation.—1. Tool J-45295 (spe-
cial service tool)
battery low.
2. Ignition OFF dur-
ing activation.
3. Tool J-45295 (spe-
cial service tool)
not positioned cor-
rectly.
4. Transmitters
already activated.1. Install new battery.
2. Make sure ignition is ON
during activation.
3. Position tool correctly dur-
ing activation.
4. None Diagnosis
ItemSymptom
(Ignition switch ON)Low tire pressure warning lamp Cause Action
SEIA0597E
SEIA0598E
Page 29 of 40
TROUBLE DIAGNOSIS
WT-29
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z
Preliminary CheckNES0001K
BASIC INSPECTION
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-39, "SERVICE DATA AND SPECIFICATIONS (SDS)" .
OK or NG
OK >> GO TO 2.
NG >> Adjust tire pressure to specified value.
2. CHECK LOW TIRE PRESSURE WARNING LAMP ACTIVATION
Check low tire pressure warning lamp activation.
Dose low tire pressure warning lamp activate for 1 second when ignition switch is turned
“ON”?
YES >> GO TO 3.
NO >> Check fuse and combination meter.
3. CHECK CONNECTOR
1. Disconnect BCM harness connectors M90 and M91.
2. Check terminals for damage or loose connection.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK ACTIVATION TOOL
Check activation tool battery.
OK or NG
OK >> Perform self-diagnosis.
NG >> Replace activation tool battery.
Page 30 of 40
WT-30
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Transmitter or Control Unit (BCM)NES0001M
MALFUNCTION CODE NO. 21, 22, 23 OR 24
1. CHECK CONTROL UNIT
Drive for several minutes. Check all tire pressures with CONSULT-III “DATA MONITOR”.
Are all tire pressures displayed 0 kPa?
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK REMOTE KEYLESS ENTRY RECEIVER CONNECTOR
1. Disconnect remote keyless entry receiver harness connector M78.
2. Check terminals for damage or loose connection.
3. Reconnect harness connector.
OK or NG
OK >> Replace BCM refer to BCS-17, "Removal and Installation of BCM" , then GO TO 3.
NG >> Repair or replace remote keyless entry receiver harness connector.
3. ID REGISTRATION
Perform ID registration of all transmitters.
Is there any tire that ID cannot be registered to?
YES >> Replace transmitter of the tire, then GO TO 5.
NO >> GO TO 4.
4. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-III “DATA MONITOR” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO 5.
5. ID REGISTRATION AND VEHICLE DRIVING
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-III “DATA MONITOR” within 5 minutes.
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO the inspection applicable to DTC.
Transmitter - 1NES0001N
MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48
1. ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes.
>> GO TO 2.
