POWER SOCKETPFP:253A2

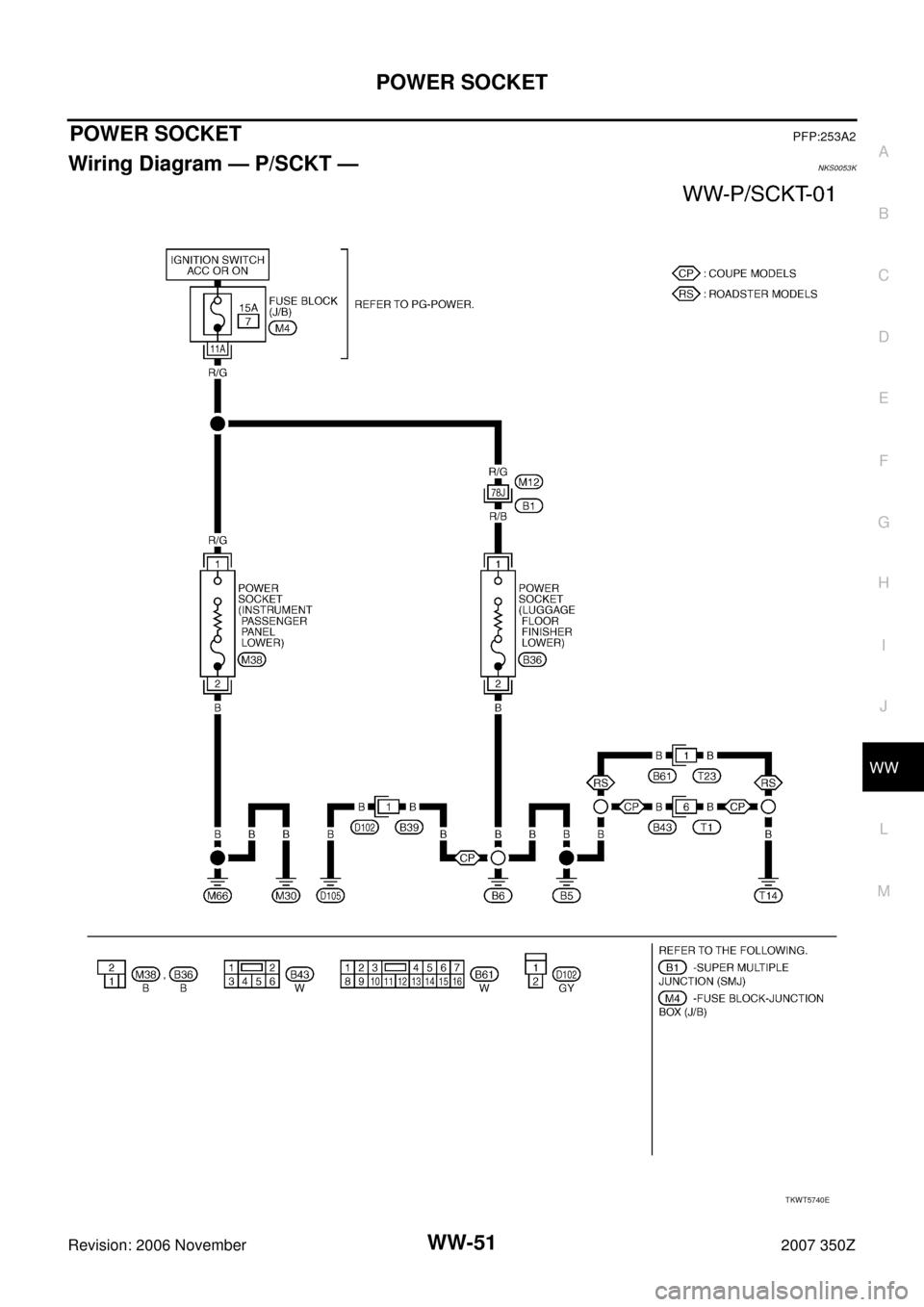

Wiring Diagram — P/SCKT —NKS0053K
TKWT5740E

WW-52
POWER SOCKET
Revision: 2006 November2007 350Z
Removal and Installation (Luggage Floor Finisher Lower)NKS0053L
REMOVAL
1. Remove power socket finisher assembly using a clip driver or a
suitable tool.
2. Disconnect power socket connector.
3. Remove inner socket from ring. While pressing hook on ring out
from square hole.
4. Remove ring from power socket finisher while pressing pawls.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation (Instrument Passenger Panel Lower)NKS0053M
REMOVAL
1. Remove socket using a clip driver or a suitable tool that pressing
pawls in socket hole.
2. Disconnect power socket connector.
3. Remove ring from instrument passenger panel lower.
INSTALLATION
Installation is the reverse order of removal.
PKIA1915E
PKIB1789E

HORN
WW-53
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 November2007 350Z
HORNPFP:25610
Wiring Diagram — HORN —NKS0053N
TKWT5741E

WW-54
HORN
Revision: 2006 November2007 350Z
Removal and InstallationNKS0053O
REMOVAL
1. Disconnect all horn connectors.
2. Remove horn mounting bolt and remove horn from vehicle.
INSTALLATION
Tighten horn bolt to specified torque.
PKIA1917E
Horn mounting bolt : 5.7 N·m (0.58 kg-m, 50 in-lb)
