NISSAN 370Z ROADSTER 2015 Z34 Owners Manual


> (GLW    0RGHO =' @
tire chains in such conditions can cause damage
to the various mechanisms of the vehicle due to
some overstress.
CHANGING WHEELS AND TIRESGUID-D688EC9A-7F90-479F-B2A3-59815BB40903
Tire rotationGUID-D88F9670-BC90-479B-B242-B9C4549066EBTires cannot be rotated on this vehicle
because the front tires are a different size
than the rear tires.
A pin is on the front brake rotor to prevent
the rear wheels from being installed in
place of the front wheels. The spare tire
can be installed in place of the front and
rear wheels. When installing the spare tire
in the front wheel, the hole in the spare tire
wheel must be aligned with the pin on the
brake rotor.
WARNING
.Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.) .
. For additional information re-
garding tires, refer to ªImportant
Tire Safety Informationº (US) or ªTire Safety Informationº (Cana-
da) in the Warranty Information
Booklet.
SDI1663
Tire wear and damageGUID-EE83A7B8-D916-409D-886C-D31F592732AA1.Wear indicator
2.Wear indicator location mark
WARNING
.
Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.
Maintenance and do-it-yourself8-37
&RQGLWLRQ


> (GLW    0RGHO =' @

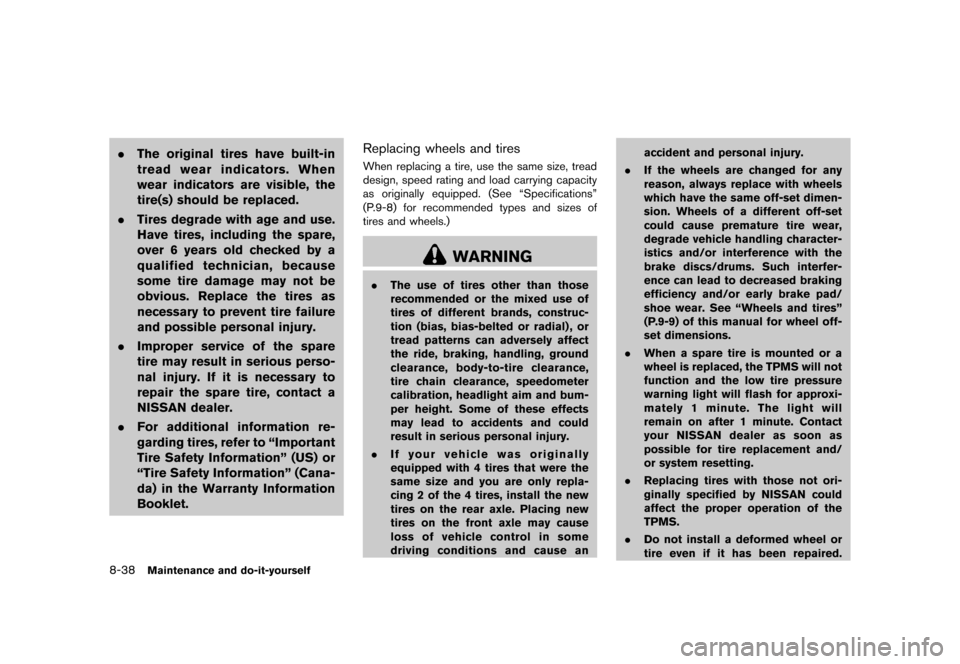

8-38Maintenance and do-it-yourself
.The original tires have built-in
tread wear indicators. When
wear indicators are visible, the
tire(s) should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.
. For additional information re-
garding tires, refer to ªImportant
Tire Safety Informationº (US) or
ªTire Safety Informationº (Cana-
da) in the Warranty Information
Booklet.Replacing wheels and tiresGUID-AF03AAD1-31E4-4485-9EC5-14A6E8DD3259When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See ªSpecificationsº
(P.9-8) for recommended types and sizes of
tires and wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. If your vehicle was originally
equipped with 4 tires that were the
same size and you are only repla-
cing 2 of the 4 tires, install the new
tires on the rear axle. Placing new
tires on the front axle may cause
loss of vehicle control in some
driving conditions and cause an accident and personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interfer-
ence can lead to decreased braking
efficiency and/or early brake pad/
shoe wear. See ªWheels and tiresº
(P.9-9) of this manual for wheel off-
set dimensions.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not install a deformed wheel or
tire even if it has been repaired.
&RQGLWLRQ


> (GLW    0RGHO =' @

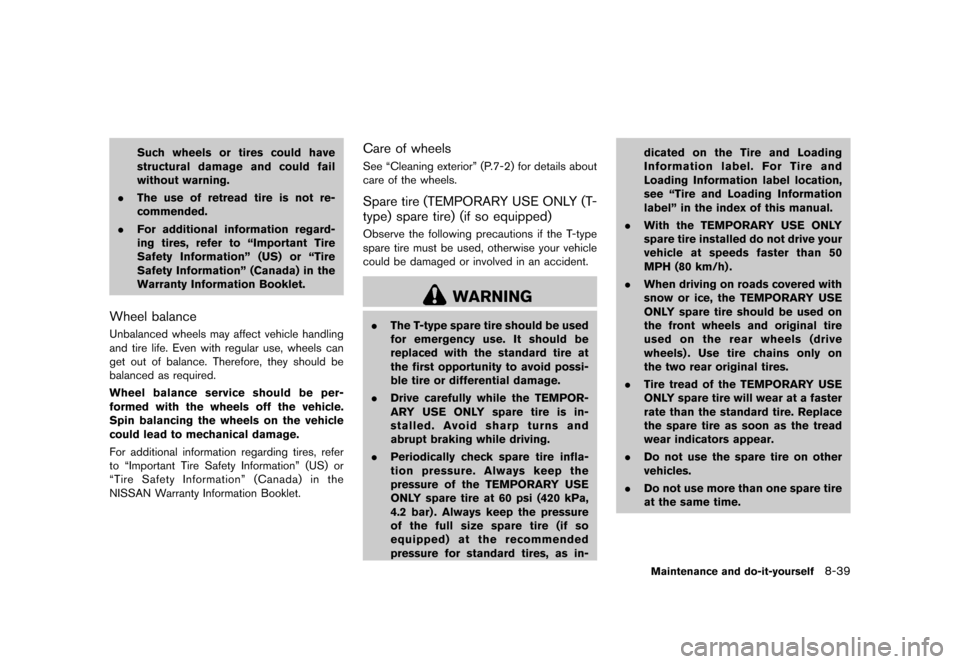

Such wheels or tires could have
structural damage and could fail
without warning.
. The use of retread tire is not re-
commended.
. For additional information regard-
ing tires, refer to ªImportant Tire
Safety Informationº (US) or ªTire
Safety Informationº (Canada) in the
Warranty Information Booklet.
Wheel balanceGUID-473AE29D-90D3-4BFC-A1BC-2ECEFFDDB2A5Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the
NISSAN Warranty Information Booklet.
Care of wheelsGUID-AE17AEB8-FABA-4861-929E-542E27F4C349See ªCleaning exteriorº (P.7-2) for details about
care of the wheels.
Spare tire (TEMPORARY USE ONLY (T-
type) spare tire) (if so equipped)
GUID-03C54C91-D948-4596-A82A-832287E21DAFObserve the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
WARNING
.The T-type spare tire should be used
for emergency use. It should be
replaced with the standard tire at
the first opportunity to avoid possi-
ble tire or differential damage.
. Drive carefully while the TEMPOR-
ARY USE ONLY spare tire is in-
stalled. Avoid sharp turns and
abrupt braking while driving.
. Periodically check spare tire infla-
tion pressure. Always keep the
pressure of the TEMPORARY USE
ONLY spare tire at 60 psi (420 kPa,
4.2 bar) . Always keep the pressure
of the full size spare tire (if so
equipped) at the recommended
pressure for standard tires, as in- dicated on the Tire and Loading
Information label. For Tire and
Loading Information label location,
see ªTire and Loading Information
labelº in the index of this manual.
. With the TEMPORARY USE ONLY
spare tire installed do not drive your
vehicle at speeds faster than 50
MPH (80 km/h) .
. When driving on roads covered with
snow or ice, the TEMPORARY USE
ONLY spare tire should be used on
the front wheels and original tire
used on the rear wheels (drive
wheels) . Use tire chains only on
the two rear original tires.
. Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.
. Do not use the spare tire on other
vehicles.
. Do not use more than one spare tire
at the same time.
Maintenance and do-it-yourself8-39
&RQGLWLRQ


> (GLW    0RGHO =' @

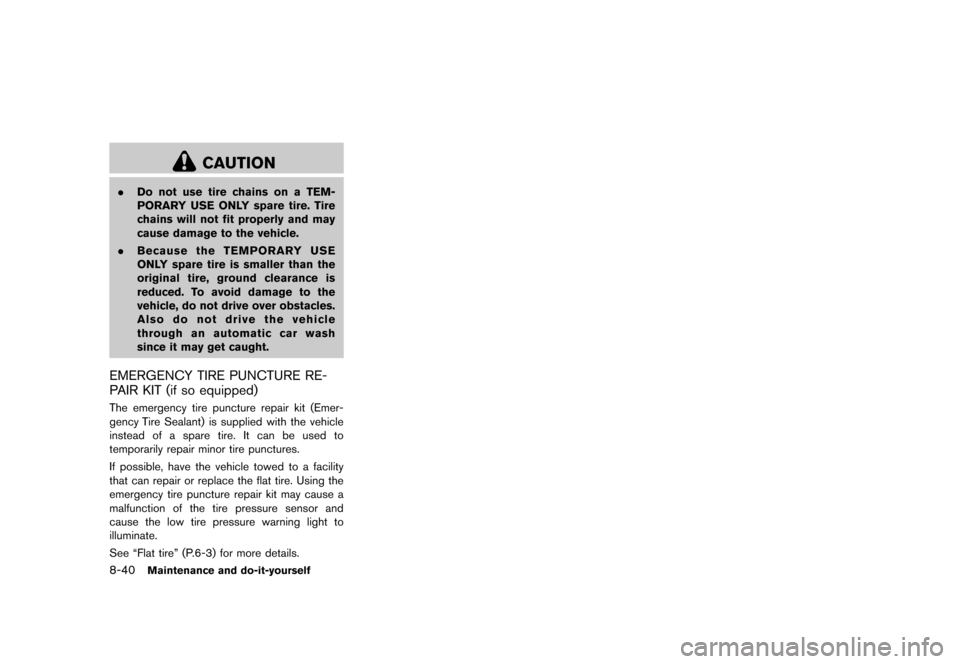

8-40Maintenance and do-it-yourself
CAUTION
.Do not use tire chains on a TEM-
PORARY USE ONLY spare tire. Tire
chains will not fit properly and may
cause damage to the vehicle.
. Because the TEMPORARY USE
ONLY spare tire is smaller than the
original tire, ground clearance is
reduced. To avoid damage to the
vehicle, do not drive over obstacles.
Also do not drive the vehicle
through an automatic car wash
since it may get caught.
EMERGENCY TIRE PUNCTURE RE-
PAIR KIT (if so equipped)
GUID-52A7B916-69B1-4E8E-8F26-94B6742F0F8AThe emergency tire puncture repair kit (Emer-
gency Tire Sealant) is supplied with the vehicle
instead of a spare tire. It can be used to
temporarily repair minor tire punctures.
If possible, have the vehicle towed to a facility
that can repair or replace the flat tire. Using the
emergency tire puncture repair kit may cause a
malfunction of the tire pressure sensor and
cause the low tire pressure warning light to
illuminate.
See ªFlat tireº (P.6-3) for more details.
&RQGLWLRQ


> (GLW    0RGHO =' @

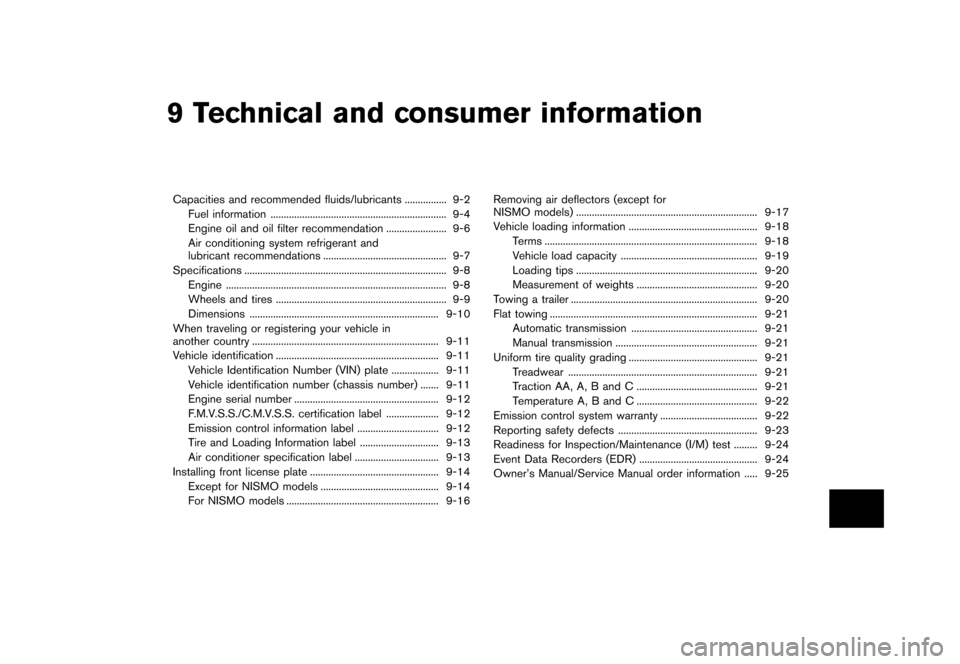

9 Technical and consumer information
Capacities and recommended fluids/lubricants...
................ 9-2
Fuel information ...
................................................................... 9-4
Engine oil and oil filter recommendation ...
....................... 9-6
Air conditioning system refrigerant and
lubricant recommendations ...
............................................... 9-7
Specifications ...
........................................................................\
..... 9-8
Engine ...
........................................................................\
............ 9-8
Wheels and tires ...
................................................................. 9-9
Dimensions ...
........................................................................\
9-10
When traveling or registering your vehicle in
another country ...
....................................................................... 9-11
Vehicle identification ...
.............................................................. 9-11
Vehicle Identification Number (VIN) plate ...
.................. 9-11
Vehicle identification number (chassis number) ...
....... 9-11
Engine serial number ...
....................................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
.................... 9-12
Emission control information label ...
............................... 9-12
Tire and Loading Information label ...
.............................. 9-13
Air conditioner specification label ...
................................ 9-13
Installing front license plate ...
................................................. 9-14
Except for NISMO models ...
............................................. 9-14
For NISMO models ...
.......................................................... 9-16 Removing air deflectors (except for
NISMO models)
...
..................................................................... 9-17
Vehicle loading information ...
................................................. 9-18
Terms ...
........................................................................\
......... 9-18
Vehicle load capacity ...
.................................................... 9-19
Loading tips ...
..................................................................... 9-20
Measurement of weights ...
.............................................. 9-20
Towing a trailer ...
....................................................................... 9-20
Flat towing ...
........................................................................\
....... 9-21
Automatic transmission ...
................................................ 9-21
Manual transmission ...
...................................................... 9-21
Uniform tire quality grading ...
................................................. 9-21
Treadwear ...
........................................................................\
9-21
Traction AA, A, B and C ...
.............................................. 9-21
Temperature A, B and C ...
.............................................. 9-22
Emission control system warranty ...
..................................... 9-22
Reporting safety defects ...
..................................................... 9-23
Readiness for Inspection/Maintenance (I/M) test ...
......... 9-24
Event Data Recorders (EDR) ...
............................................. 9-24
Owner's Manual/Service Manual order information ...
..... 9-25
&RQGLWLRQ


> (GLW    0RGHO =' @

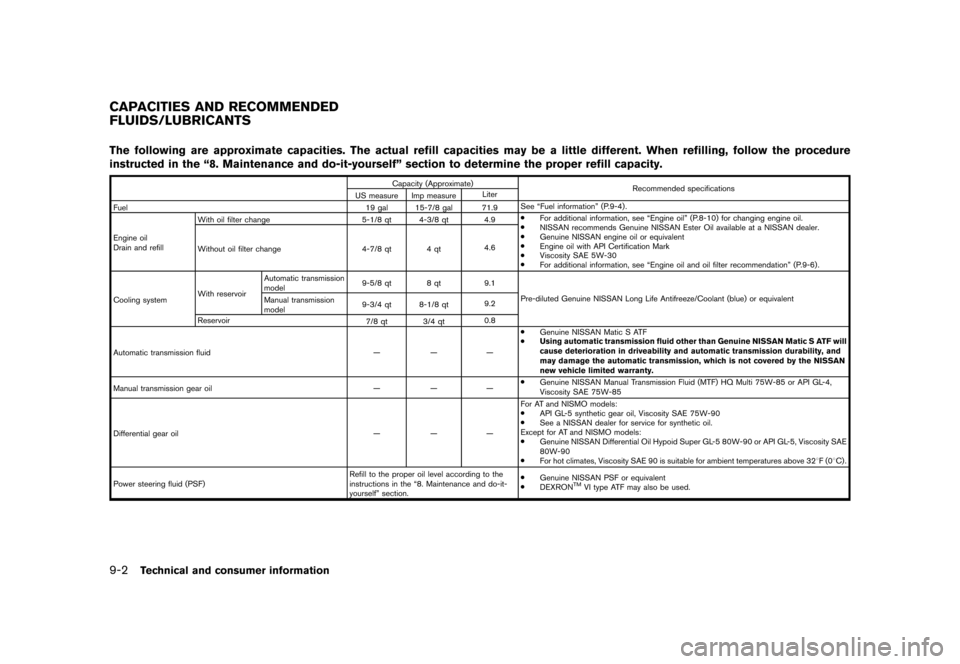

9-2Technical and consumer information
GUID-80082F43-58D6-4C2E-8F86-1E99B1A7B004The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the ª8. Maintenance and do-it-yourselfº section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 19 gal 15-7/8 gal 71.9See ªFuel informationº (P.9-4) .
Engine oil
Drain and refill With oil filter change
5-1/8 qt 4-3/8 qt 4.9.
For additional information, see ªEngine oilº (P.8-10) for changing engine oil.
. NISSAN recommends Genuine NISSAN Ester Oil available at a NISSAN dealer.
. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark
. Viscosity SAE 5W-30
. For additional information, see ªEngine oil and oil filter recommendationº (P.9-6).
Without oil filter change
4-7/8 qt 4 qt4.6
Cooling system With reservoirAutomatic transmission
model
9-5/8 qt 8 qt
9.1
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Manual transmission
model 9-3/4 qt 8-1/8 qt
9.2
Reservoir 7/8 qt 3/4 qt0.8
Automatic transmission fluid ÐÐÐ.
Genuine NISSAN Matic S ATF
. Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will
cause deterioration in driveability and automatic transmission durability, and
may damage the automatic transmission, which is not covered by the NISSAN
new vehicle limited warranty.
Manual transmission gear oil ÐÐÐ.
Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or API GL-4,
Viscosity SAE 75W-85
Differential gear oil ÐÐÐFor AT and NISMO models:
.
API GL-5 synthetic gear oil, Viscosity SAE 75W-90
. See a NISSAN dealer for service for synthetic oil.
Except for AT and NISMO models:
. Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5, Viscosity SAE
80W-90
. For hot climates, Viscosity SAE 90 is suitable for ambient temperatures above 328F (08C).
Power steering fluid (PSF) Refill to the proper oil level according to the
instructions in the ª8. Maintenance and do-it-
yourselfº section..
Genuine NISSAN PSF or equivalent
. DEXRON
TMVI type ATF may also be used.

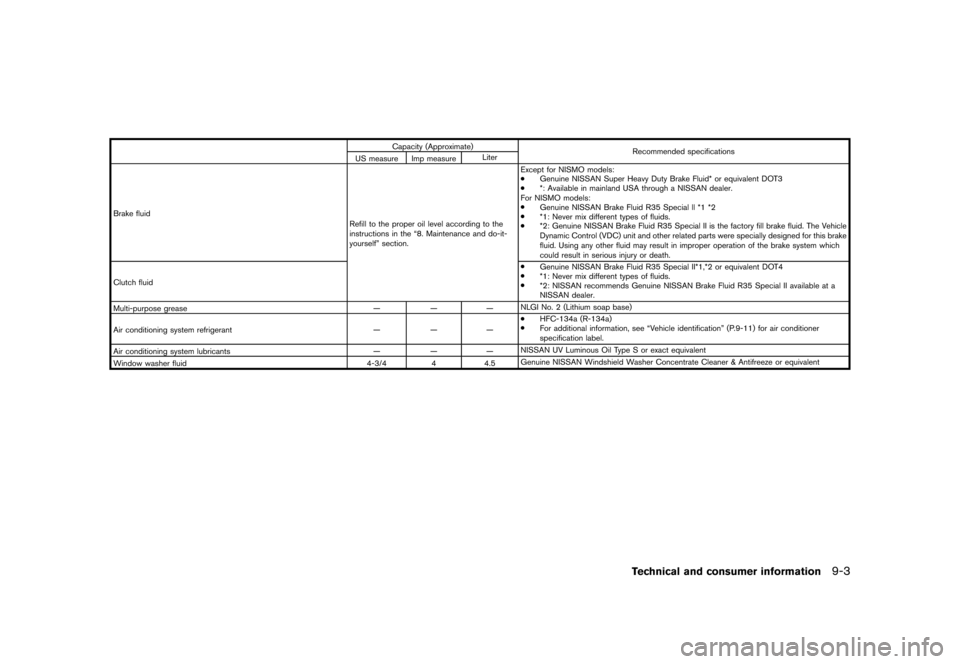

CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS
&RQGLWLRQ


> (GLW    0RGHO =' @
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Brake fluid Refill to the proper oil level according to the
instructions in the ª8. Maintenance and do-it-
yourselfº section.Except for NISMO models:
.
Genuine NISSAN Super Heavy Duty Brake Fluid* or equivalent DOT3
. *: Available in mainland USA through a NISSAN dealer.
For NISMO models:
. Genuine NISSAN Brake Fluid R35 Special ll *1 *2
. *1: Never mix different types of fluids.
. *2: Genuine NISSAN Brake Fluid R35 Special II is the factory fill brake fluid. The Vehicle
Dynamic Control (VDC) unit and other related parts were specially designed for this brake
fluid. Using any other fluid may result in improper operation of the brake system which
could result in serious injury or death.
Clutch fluid .
Genuine NISSAN Brake Fluid R35 Special II*1,*2 or equivalent DOT4
. *1: Never mix different types of fluids.
. *2: NISSAN recommends Genuine NISSAN Brake Fluid R35 Special II available at a
NISSAN dealer.
Multi-purpose grease ÐÐÐNLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant ÐÐÐ.
HFC-134a (R-134a)
. For additional information, see ªVehicle identificationº (P.9-11) for air conditioner
specification label.
Air conditioning system lubricants ÐÐÐNISSAN UV Luminous Oil Type S or exact equivalent
Window washer fluid 4-3/444.5Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
Technical and consumer information9-3
&RQGLWLRQ


> (GLW    0RGHO =' @
9-4Technical and consumer information

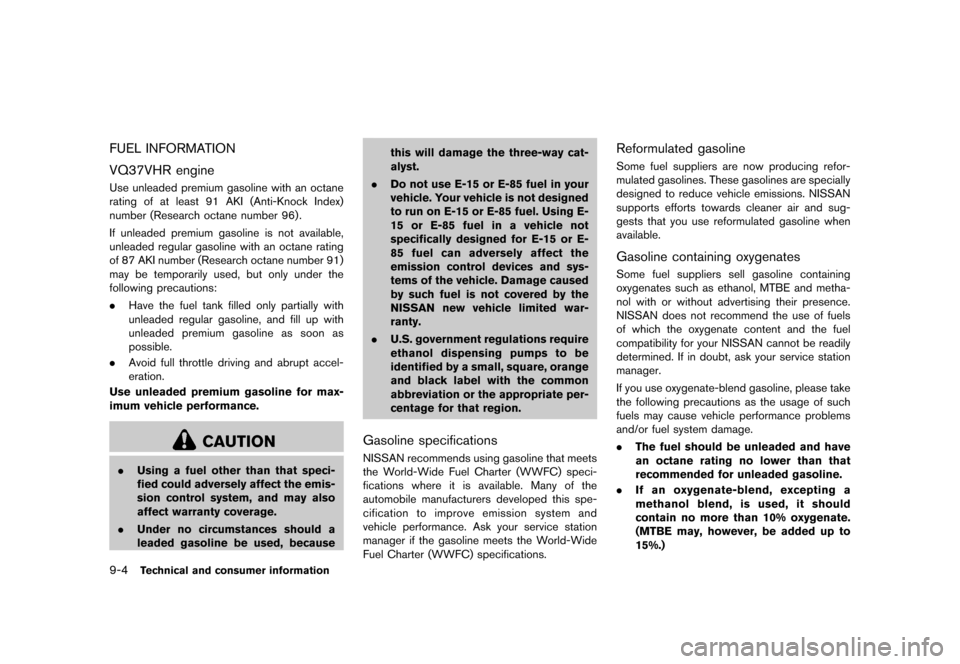

FUEL INFORMATIONGUID-BA85EEE0-9A81-4211-8927-2E98DFC15FE1
VQ37VHR engineGUID-1D69ED9E-74E3-4CD3-9D5C-1C6B04232E0DUse unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96) .
If unleaded premium gasoline is not available,
unleaded regular gasoline with an octane rating
of 87 AKI number (Research octane number 91)
may be temporarily used, but only under the
following precautions:
.Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as
possible.
. Avoid full throttle driving and abrupt accel-
eration.
Use unleaded premium gasoline for max-
imum vehicle performance.
CAUTION
. Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because this will damage the three-way cat-
alyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.
Gasoline specificationsGUID-6509BE20-CA4B-49F4-8B47-14F6CFFAAB8FNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission system and
vehicle performance. Ask your service station
manager if the gasoline meets the World-Wide
Fuel Charter (WWFC) specifications.
Reformulated gasolineGUID-6E710A98-6E80-458D-AAAE-619C788A9415Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.
Gasoline containing oxygenatesGUID-ED701BDF-9E71-405C-BC2D-FF17B0BCAF54Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your NISSAN cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
.The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
. If an oxygenate-blend, excepting a
methanol blend, is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)
&RQGLWLRQ


> (GLW    0RGHO =' @

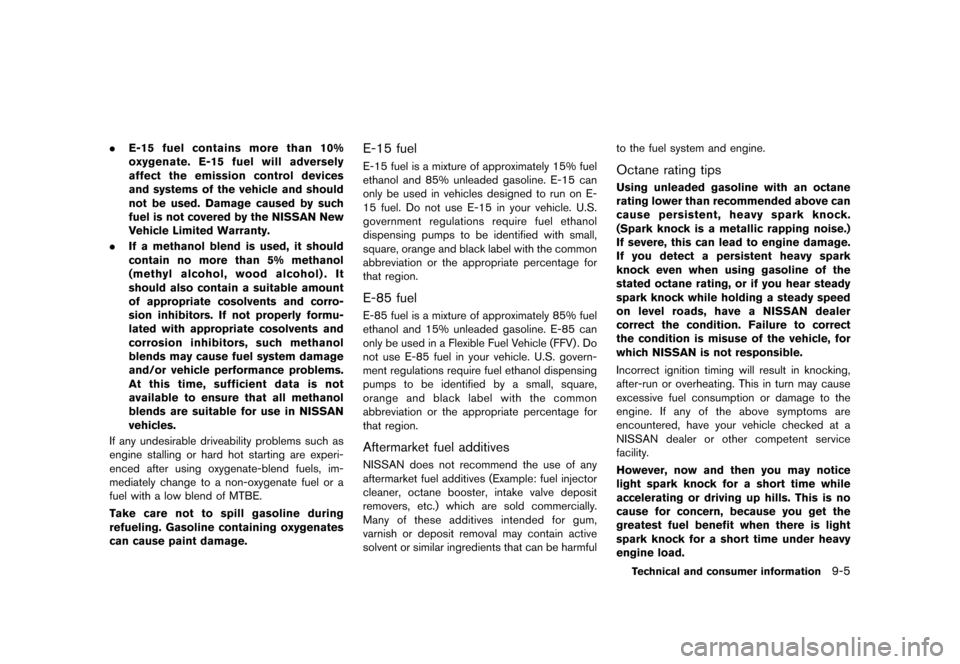

.E-15 fuel contains more than 10%
oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the NISSAN New
Vehicle Limited Warranty.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in NISSAN
vehicles.
If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
enced after using oxygenate-blend fuels, im-
mediately change to a non-oxygenate fuel or a
fuel with a low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.E-15 fuelGUID-7B3640EC-E445-4D85-8129-2A0AFD3A8BB8E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-
15 fuel. Do not use E-15 in your vehicle. U.S.
government regulations require fuel ethanol
dispensing pumps to be identified with small,
square, orange and black label with the common
abbreviation or the appropriate percentage for
that region.
E-85 fuelGUID-E7B10EF3-39A7-453E-88D9-EEE052384533E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage for
that region.
Aftermarket fuel additivesGUID-1BF1290E-684C-4F12-91AB-B03775F5F8BBNISSAN does not recommend the use of any
aftermarket fuel additives (Example: fuel injector
cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful to the fuel system and engine.
Octane rating tipsGUID-7FA66B9E-C735-4D5A-B9A7-0D150B6F3118Using unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock.
(Spark knock is a metallic rapping noise.)
If severe, this can lead to engine damage.
If you detect a persistent heavy spark
knock even when using gasoline of the
stated octane rating, or if you hear steady
spark knock while holding a steady speed
on level roads, have a NISSAN dealer
correct the condition. Failure to correct
the condition is misuse of the vehicle, for
which NISSAN is not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at a
NISSAN dealer or other competent service
facility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
Technical and consumer information9-5
&RQGLWLRQ


> (GLW    0RGHO =' @
9-6Technical and consumer information

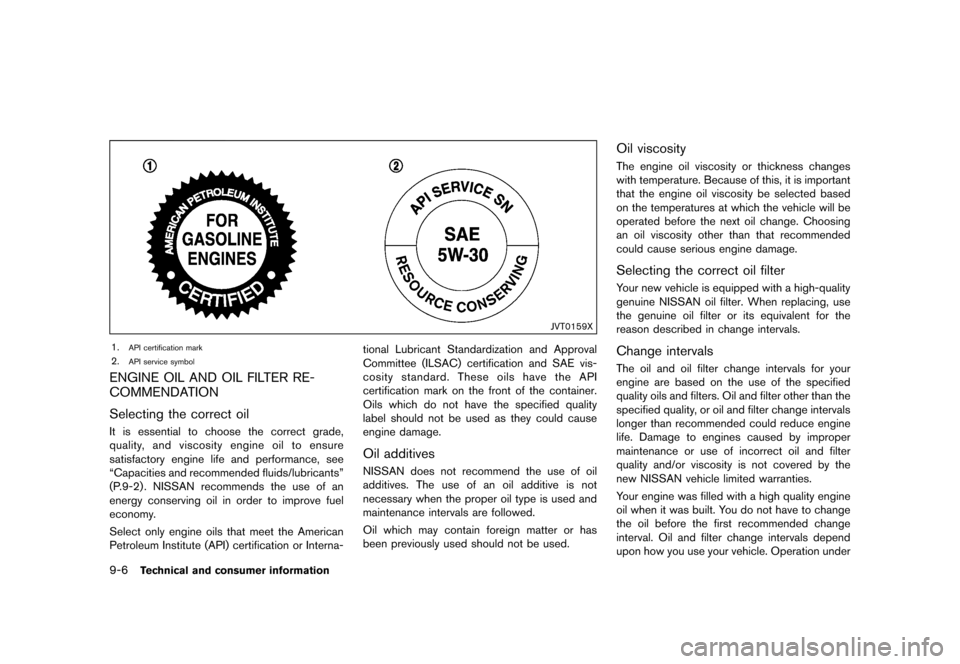

JVT0159X
1.API certification mark
2.API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-8B253F86-4B0D-434E-AB7C-4BEC4E42CCB0
Selecting the correct oilGUID-4254FD84-FD03-4EC3-AFA5-F88A5B17916BIt is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance, see
ªCapacities and recommended fluids/lubricantsº
(P.9-2) . NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API
certification mark on the front of the container.
Oils which do not have the specified quality
label should not be used as they could cause
engine damage.
Oil additivesGUID-536E873C-CFAD-4AB7-832C-C91DAAD5AF57NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosityGUID-0153E86E-8F0C-44F4-806C-94B56D0A6C39The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filterGUID-1C8F8F82-C208-4261-A534-59250D87D84DYour new vehicle is equipped with a high-quality
genuine NISSAN oil filter. When replacing, use
the genuine oil filter or its equivalent for the
reason described in change intervals.
Change intervalsGUID-93CA8494-A11B-4ABD-AF02-810BC57FD686The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new NISSAN vehicle limited warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle. Operation under
&RQGLWLRQ
