NISSAN 370Z ROADSTER 2017 Z34 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: 370Z ROADSTER, Model: NISSAN 370Z ROADSTER 2017 Z34Pages: 443, PDF Size: 3.84 MB
Page 231 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

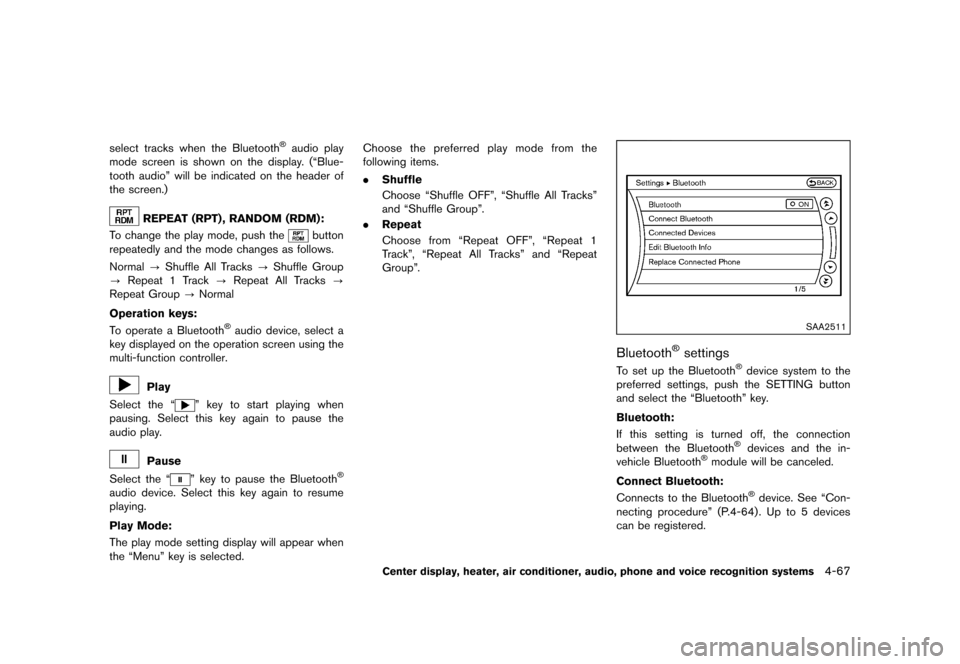

select tracks when the Bluetooth
Page 232 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

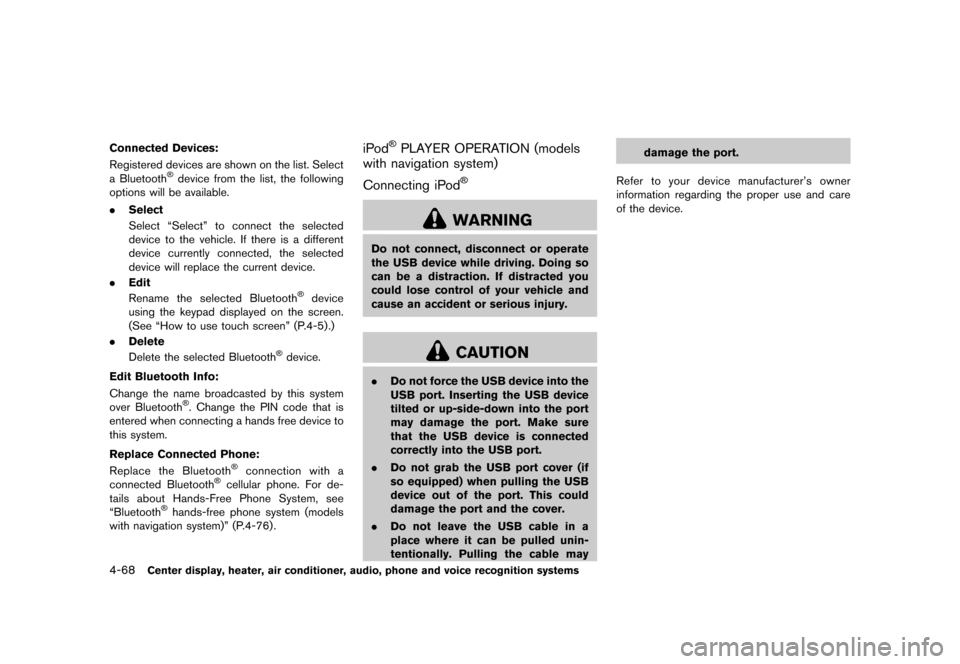

4-68Center display, heater, air conditioner, audio, phone and voice recognition systems
Connected Devices:GUID-3A524575-724B-48AE-A69B-F8C0345D1E96Registered devices are shown on the list. Select
a Bluetooth
Page 233 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

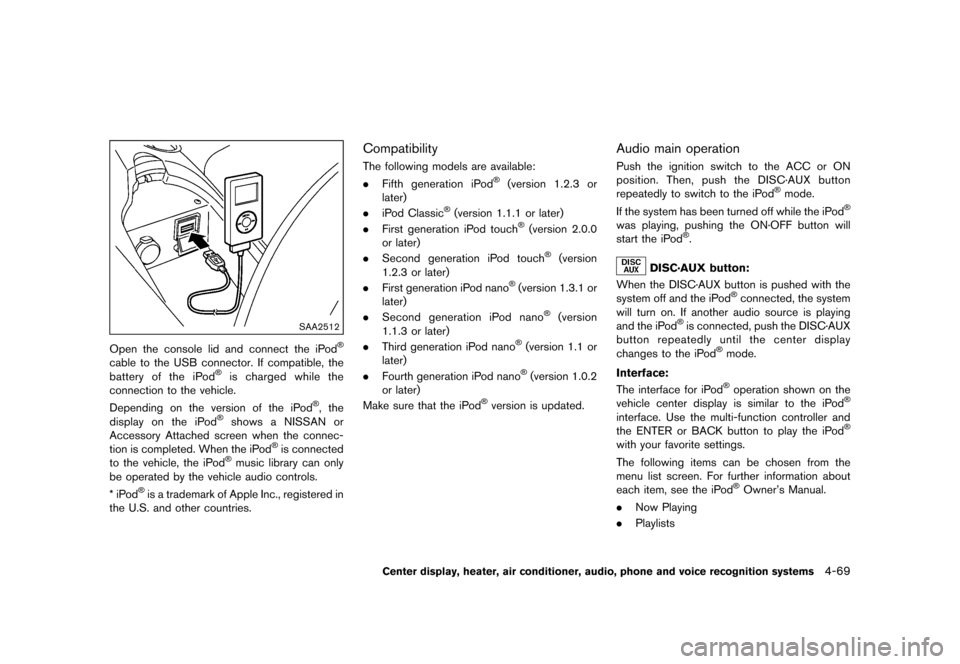

SAA2512
Open the console lid and connect the iPod
Page 234 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

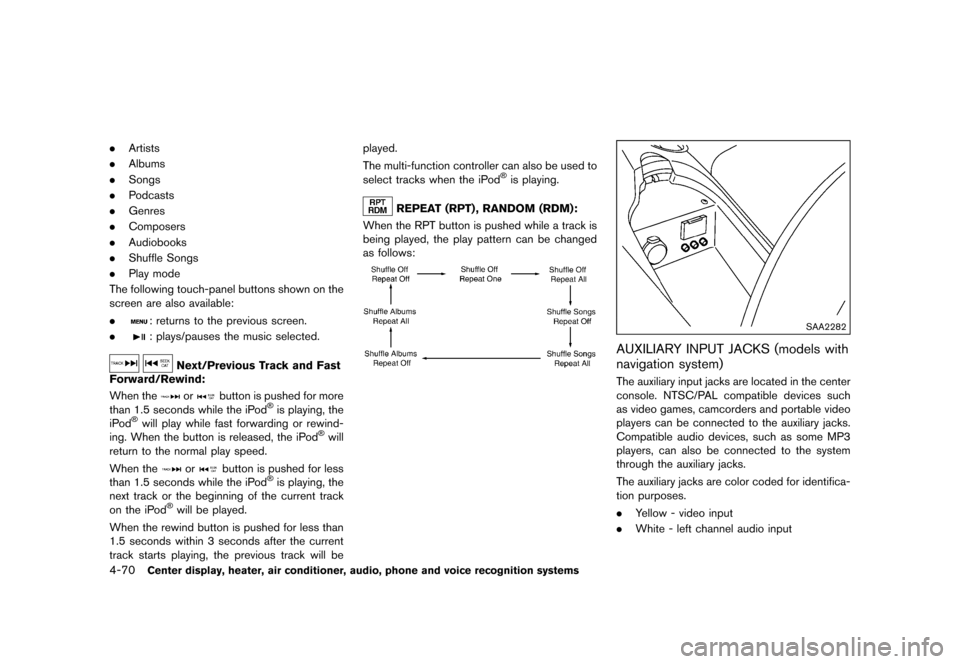

4-70Center display, heater, air conditioner, audio, phone and voice recognition systems
.Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle Songs
. Play mode
The following touch-panel buttons shown on the
screen are also available:
.
: returns to the previous screen.
.
: plays/pauses the music selected.
Next/Previous Track and Fast
Forward/Rewind:
GUID-04644B59-3850-4D12-BE6B-2F49C9D9707CWhen theorbutton is pushed for more
than 1.5 seconds while the iPod
Page 235 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

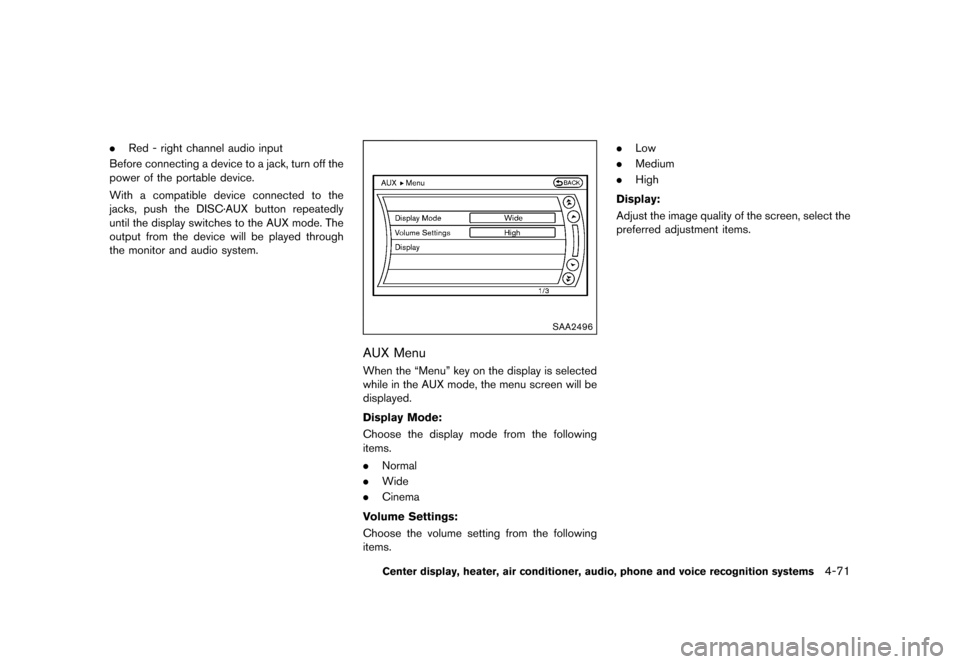

.Red - right channel audio input
Before connecting a device to a jack, turn off the
power of the portable device.
With a compatible device connected to the
jacks, push the DISC´AUX button repeatedly
until the display switches to the AUX mode. The
output from the device will be played through
the monitor and audio system.
SAA2496
AUX MenuGUID-4E84320F-E496-40BA-9551-CB09B00E528BWhen the ªMenuº key on the display is selected
while in the AUX mode, the menu screen will be
displayed.
Display Mode:
GUID-8207338D-F5CD-4452-99A9-121F59B18CCDChoose the display mode from the following
items.
. Normal
. Wide
. Cinema
Volume Settings:
GUID-BD1A5D11-BEBF-495D-A773-124557089544Choose the volume setting from the following
items. .
Low
. Medium
. High
Display:
GUID-0F8CBD90-F0BC-494F-84D7-550F8721C2E2Adjust the image quality of the screen, select the
preferred adjustment items.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-71
& R Q G L W L R Q
Page 236 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-72Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA0451

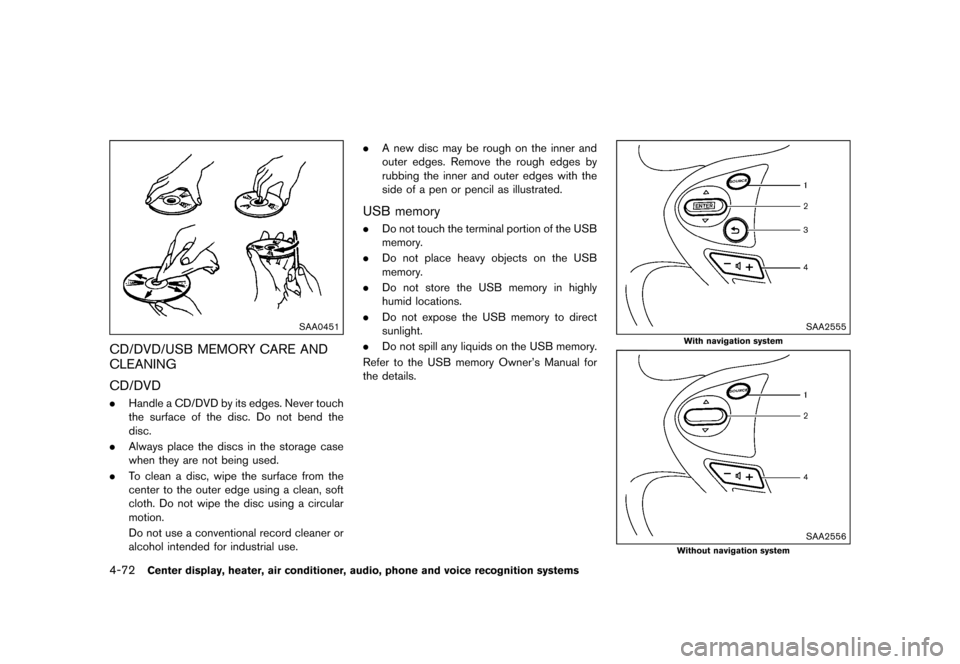

CD/DVD/USB MEMORY CARE AND
CLEANING
GUID-301A506A-CF09-4772-9BDC-3DAF9AD425ED
CD/DVDGUID-2F28CE77-1B83-437E-81AA-C0A9092A1FF9.Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use. .
A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memoryGUID-04BA806F-04A8-4791-A04B-9F98FE9D76BF.Do not touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner's Manual for
the details.
SAA2555
With navigation system
SAA2556
Without navigation system
& R Q G L W L R Q
Page 237 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

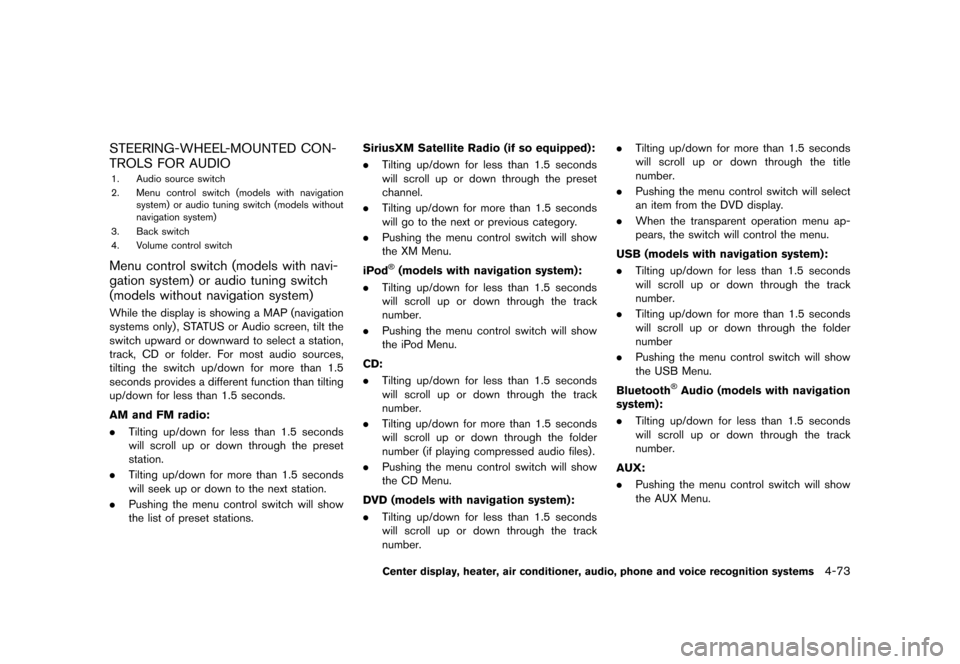

STEERING-WHEEL-MOUNTED CON-
TROLS FOR AUDIO
GUID-054A78E5-E14A-4987-81FA-331B044D7C401. Audio source switch
2. Menu control switch (models with navigationsystem) or audio tuning switch (models without
navigation system)
3. Back switch
4. Volume control switch
Menu control switch (models with navi-
gation system) or audio tuning switch
(models without navigation system)
GUID-E28AA5F2-C253-4F89-B307-538A7968C617While the display is showing a MAP (navigation
systems only) , STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilting
up/down for less than 1.5 seconds.
AM and FM radio:
GUID-97B8E57A-3B09-4CDC-A7C1-214AFBDC7490. Tilting up/down for less than 1.5 seconds
will scroll up or down through the preset
station.
. Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
. Pushing the menu control switch will show
the list of preset stations. SiriusXM Satellite Radio (if so equipped):
GUID-56A8B400-3AF1-450D-AF2F-4A054F0E2911.
Tilting up/down for less than 1.5 seconds
will scroll up or down through the preset
channel.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
. Pushing the menu control switch will show
the XM Menu.
iPod
Page 238 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-74Center display, heater, air conditioner, audio, phone and voice recognition systems

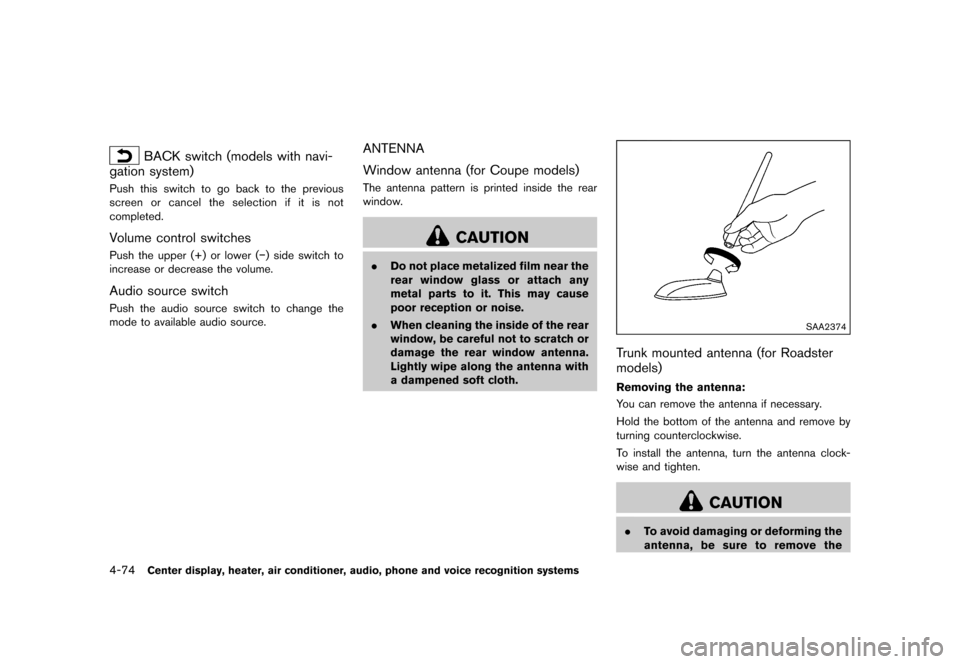

BACK switch (models with navi-
gation system)
GUID-2929884E-BDE9-4D71-AB9A-26C2DC842FC7Push this switch to go back to the previous
screen or cancel the selection if it is not
completed.
Volume control switchesGUID-9BF28CF2-9AA1-4735-A94A-BB46E5D4E3E9Push the upper (+) or lower (
Page 239 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

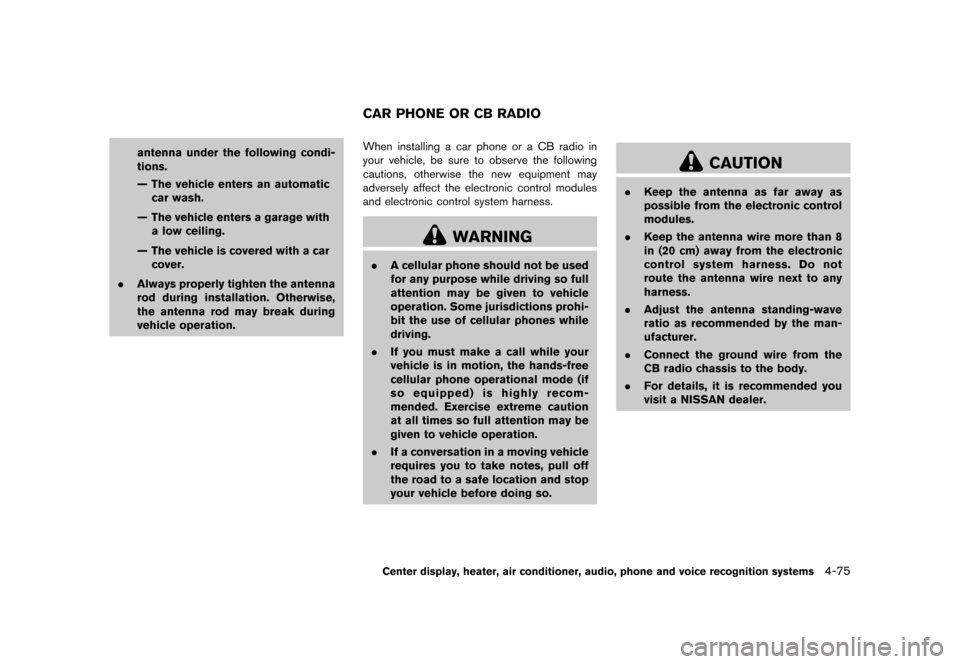

antenna under the following condi-
tions.
Ð The vehicle enters an automaticcar wash.
Ð The vehicle enters a garage with a low ceiling.
Ð The vehicle is covered with a car cover.
. Always properly tighten the antenna
rod during installation. Otherwise,
the antenna rod may break during
vehicle operation.
GUID-9D975CE2-D725-41E1-B5A4-B94CB459F82AWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, it is recommended you
visit a NISSAN dealer.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-75
CAR PHONE OR CB RADIO
& R Q G L W L R Q
Page 240 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-76Center display, heater, air conditioner, audio, phone and voice recognition systems

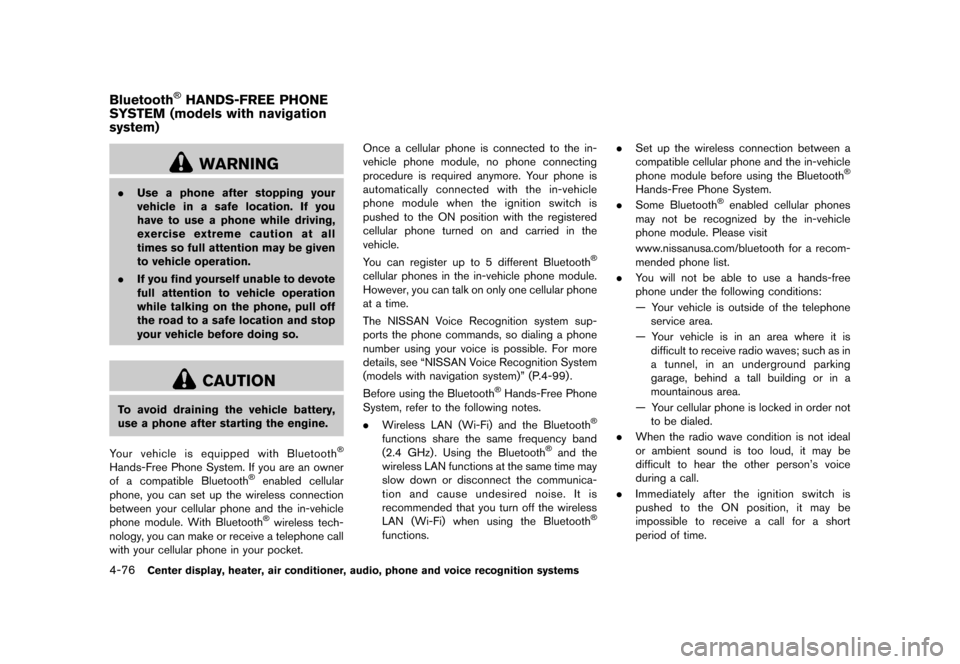

GUID-ACB03DAD-8D94-4546-8D41-7769E7C1CA42
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your vehicle is equipped with Bluetooth
