Page 271 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

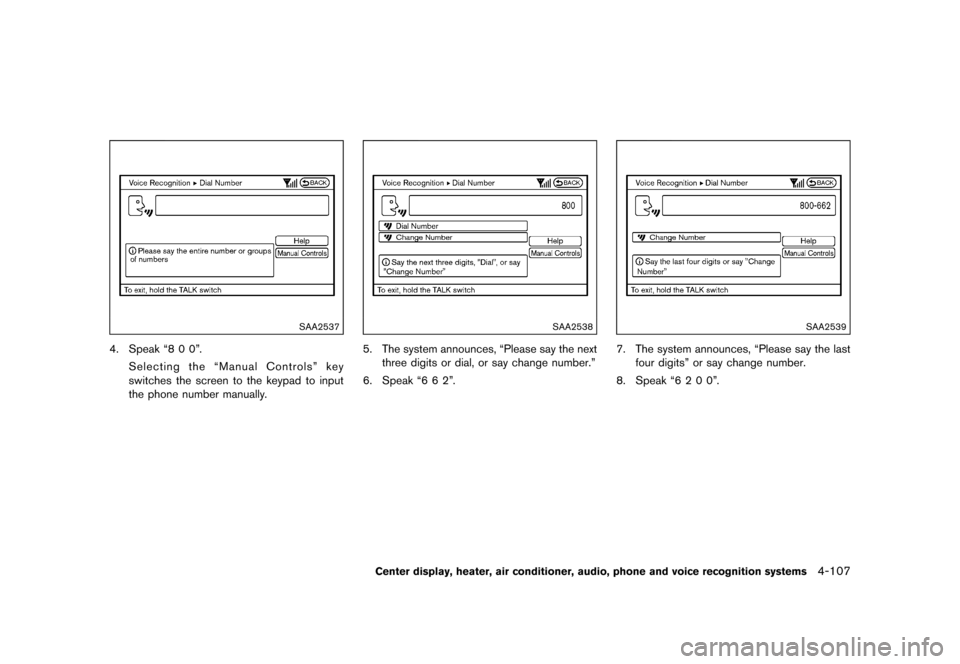

SAA2537
4. Speak ª8 0 0º.Selecting the ªManual Controlsº key
switches the screen to the keypad to input
the phone number manually.
SAA2538
5. The system announces, ªPlease say the nextthree digits or dial, or say change number.º
6. Speak ª6 6 2º.
SAA2539
7. The system announces, ªPlease say the last four digitsº or say change number.
8. Speak ª6 2 0 0º.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-107
& R Q G L W L R Q
Page 272 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

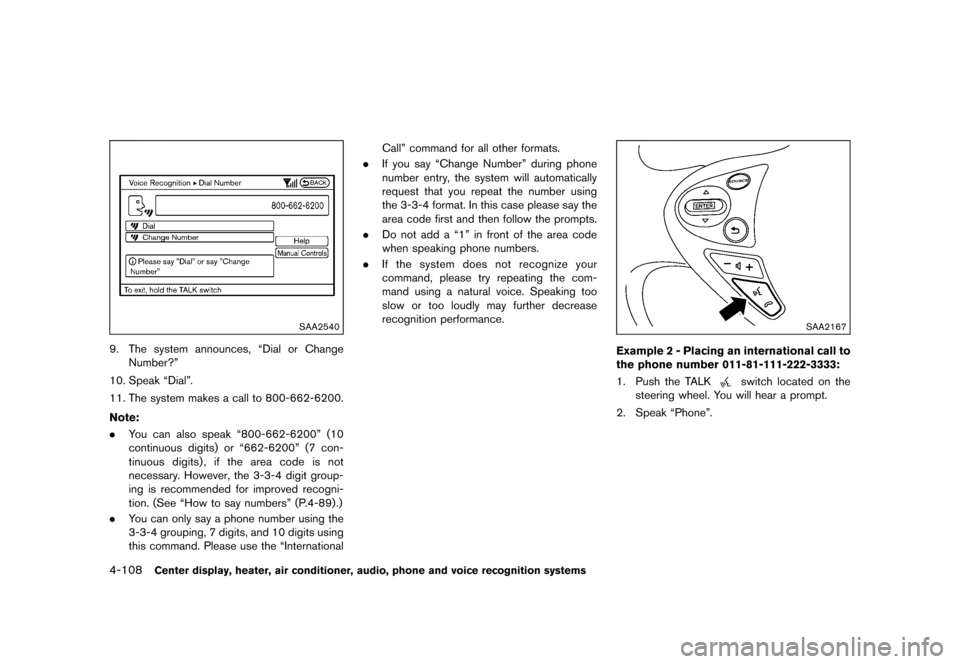

4-108Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2540
9. The system announces, ªDial or ChangeNumber?º
10. Speak ªDialº.
11. The system makes a call to 800-662-6200.
Note:
GUID-6BEF9EA1-BC17-4C42-B0C5-4F997FAC8192. You can also speak ª800-662-6200º (10
continuous digits) or ª662-6200º (7 con-
tinuous digits) , if the area code is not
necessary. However, the 3-3-4 digit group-
ing is recommended for improved recogni-
tion. (See ªHow to say numbersº (P.4-89) .)
. You can only say a phone number using the
3-3-4 grouping, 7 digits, and 10 digits using
this command. Please use the ªInternational Callº command for all other formats.
. If you say ªChange Numberº during phone
number entry, the system will automatically
request that you repeat the number using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts.
. Do not add a ª1º in front of the area code
when speaking phone numbers.
. If the system does not recognize your
command, please try repeating the com-
mand using a natural voice. Speaking too
slow or too loudly may further decrease
recognition performance.
SAA2167
Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
GUID-A603CCD4-FC43-439B-9A7B-551B0710B9BF1. Push the TALKswitch located on the
steering wheel. You will hear a prompt.
2. Speak ªPhoneº.
& R Q G L W L R Q
Page 273 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

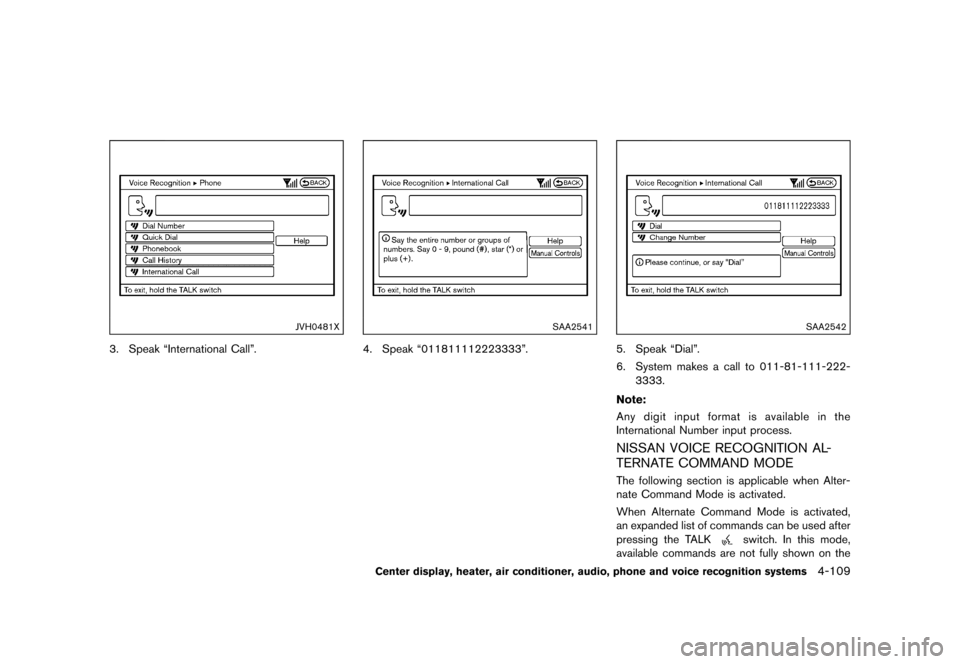

JVH0481X
3. Speak ªInternational Callº.
SAA2541
4. Speak ª011811112223333º.
SAA2542
5. Speak ªDialº.
6. System makes a call to 011-81-111-222-3333.
Note:
GUID-C75F71A4-5815-49D8-9763-4C35E787BDD2Any digit input format is available in the
International Number input process.
NISSAN VOICE RECOGNITION AL-
TERNATE COMMAND MODE
GUID-15614E01-7329-4468-BC10-F97EEFE29BA3The following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated,
an expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
Center display, heater, air conditioner, audio, phone and voice recognition systems4-109
& R Q G L W L R Q
Page 274 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-110Center display, heater, air conditioner, audio, phone and voice recognition systems
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker
Adaptation Function available in that mode.
(See ªSpeaker adaptation function (for Alternate
Command Mode)º (P.4-120) .) Otherwise it is
recommended that Alternate Command Mode
be turned OFF and Standard Mode be used for
the best recognition performance.
SAA2529
Activating Alternate Command ModeGUID-540D2F4D-821A-4252-95E3-C07F89CB49EAWhen the Standard Mode is active, perform the
following steps to switch to the Alternate
Command Mode.
1. Push the SETTING button on the instrumentpanel.
2. Highlight the ªOthersº key.
3. Highlight the ªVoice Recognitionº key.
SAA2543
4. Highlight the ªAlternate Command Modeº key.
5. The confirmation message is displayed on the screen. Push the ªOKº key to activate
the Alternate Command Mode.
Displaying command listGUID-07326739-C98B-4963-8D2C-BF3D6A92A026If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode) .
& R Q G L W L R Q
Page 275 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

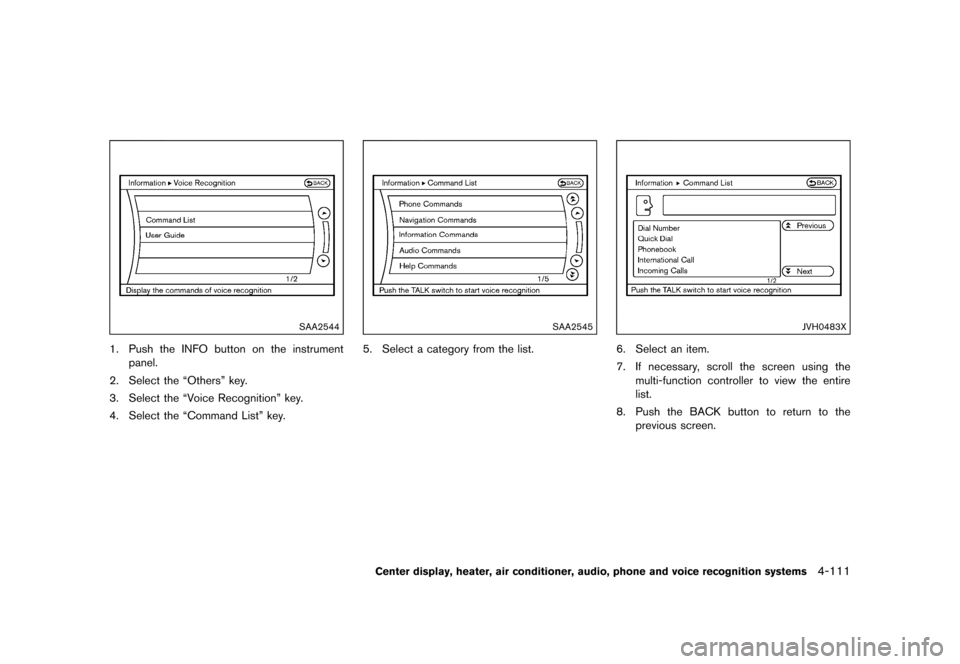

SAA2544
1. Push the INFO button on the instrumentpanel.
2. Select the ªOthersº key.
3. Select the ªVoice Recognitionº key.
4. Select the ªCommand Listº key.
SAA2545
5. Select a category from the list.
JVH0483X
6. Select an item.
7. If necessary, scroll the screen using the multi-function controller to view the entire
list.
8. Push the BACK button to return to the previous screen.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-111
& R Q G L W L R Q
Page 276 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

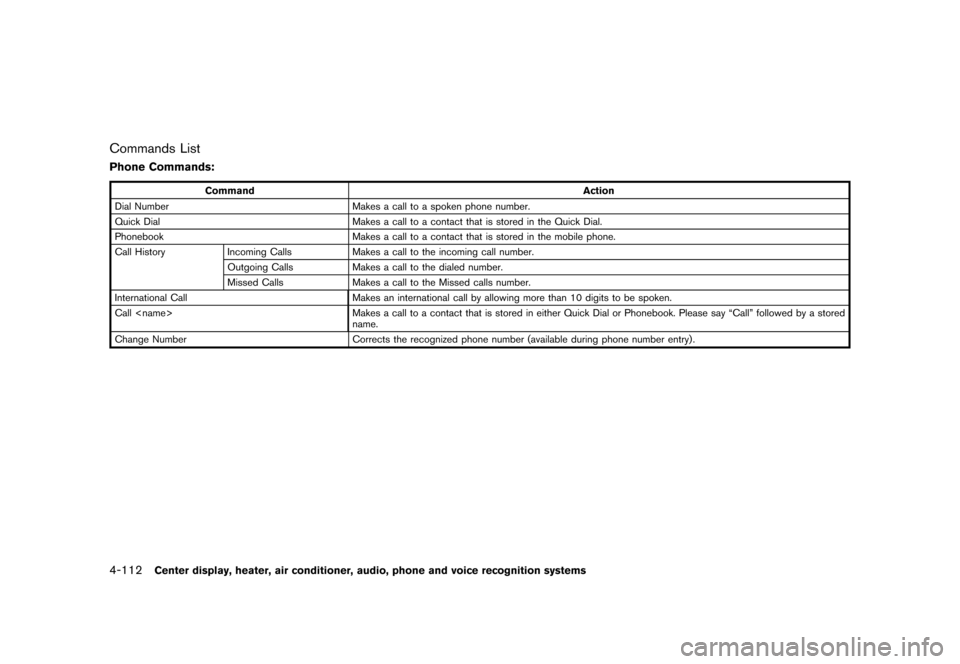

4-112Center display, heater, air conditioner, audio, phone and voice recognition systems
Commands ListGUID-B6B80DB4-AB40-43B0-9372-1488DF0C8C4F
Phone Commands:GUID-D0402326-7BEC-490B-A7F7-410D38D7A5B7
CommandAction
Dial Number Makes a call to a spoken phone number.
Quick Dial Makes a call to a contact that is stored in the Quick Dial.
Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Call
name.
Change Number Corrects the recognized phone number (available during phone number entry) .
& R Q G L W L R Q
Page 277 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

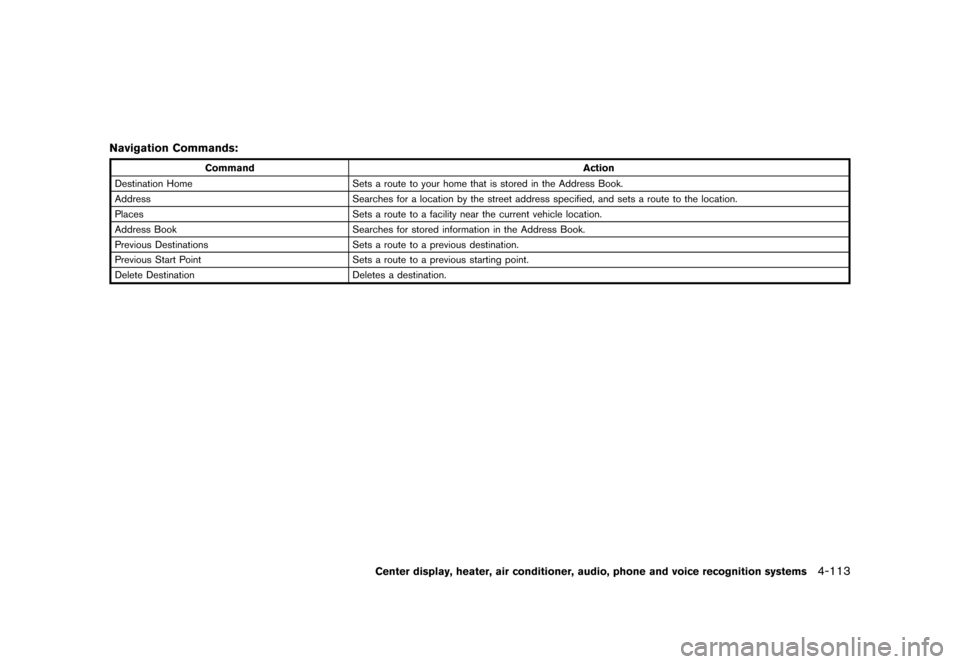

Navigation Commands:GUID-D8F2C5C9-C0F2-490C-8947-DBA3C83D8D9A
CommandAction
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
Previous Start Point Sets a route to a previous starting point.
Delete Destination Deletes a destination.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-113
& R Q G L W L R Q
Page 278 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-114Center display, heater, air conditioner, audio, phone and voice recognition systems

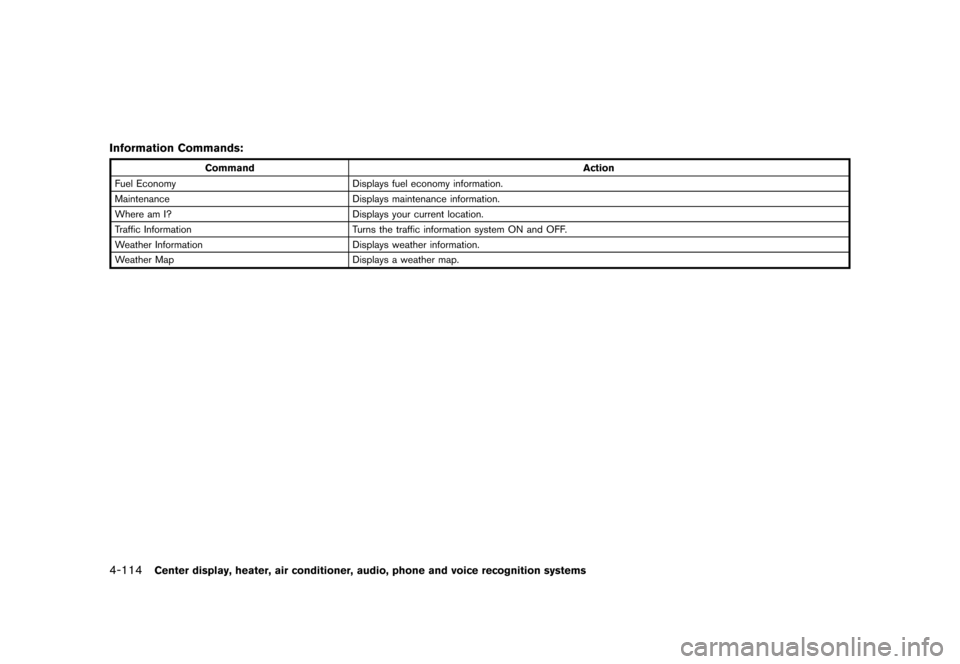

Information Commands:GUID-E4A107AF-E654-4634-B596-75E2F0396D13
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
& R Q G L W L R Q
Page 279 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

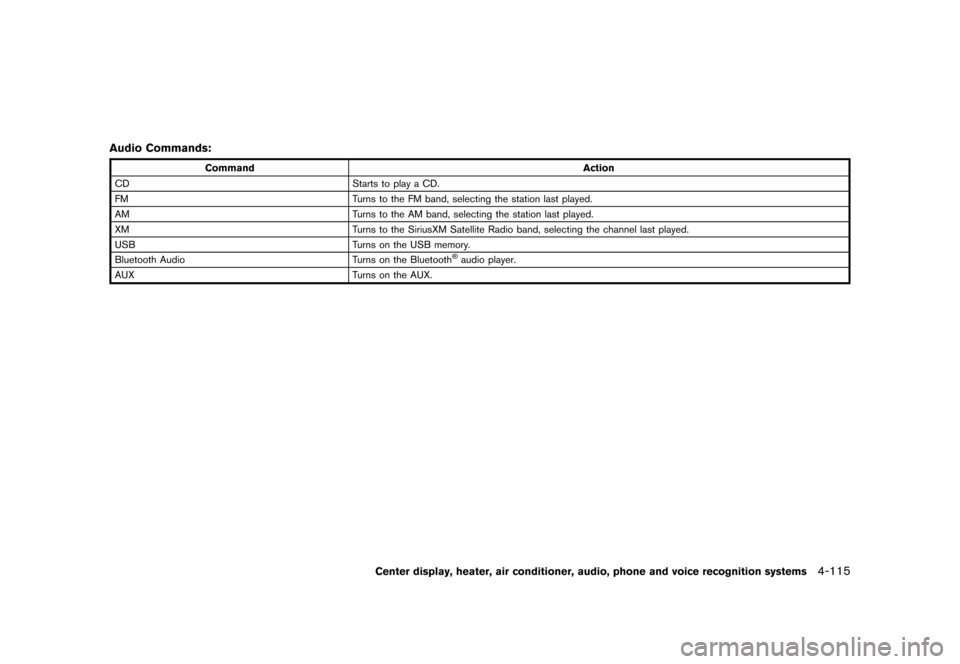

Audio Commands:GUID-498037FF-3F50-4AFF-98D2-E87E4CFA2D2F
CommandAction
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth
Page 280 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

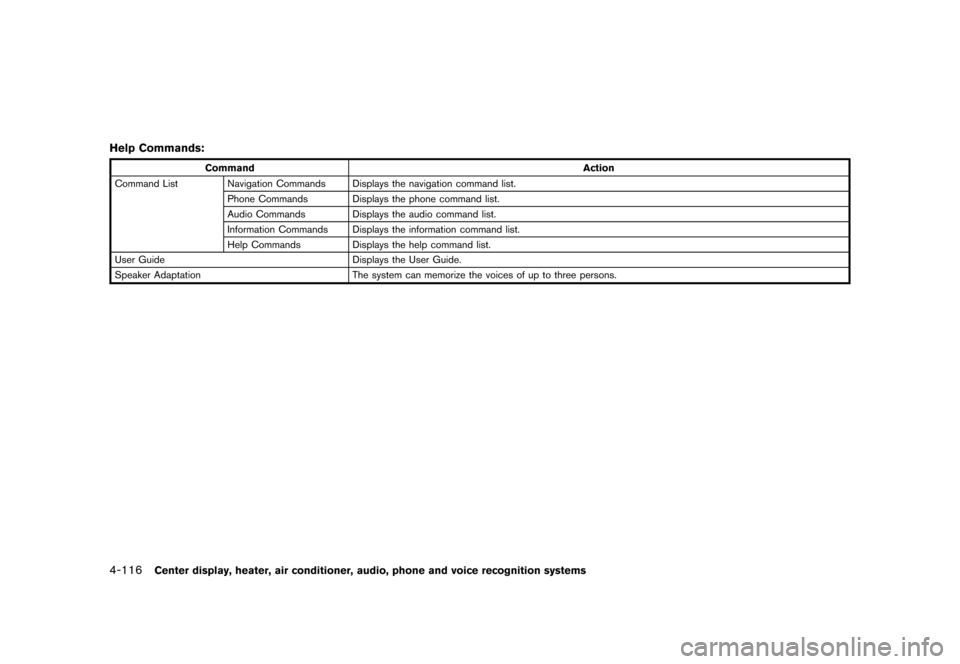

4-116Center display, heater, air conditioner, audio, phone and voice recognition systems
Help Commands:GUID-E89394C1-B6C9-4089-8640-118076751E79
CommandAction
Command List Navigation Commands Displays the navigation command list. Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide.
Speaker Adaptation The system can memorize the voices of up to three persons.
