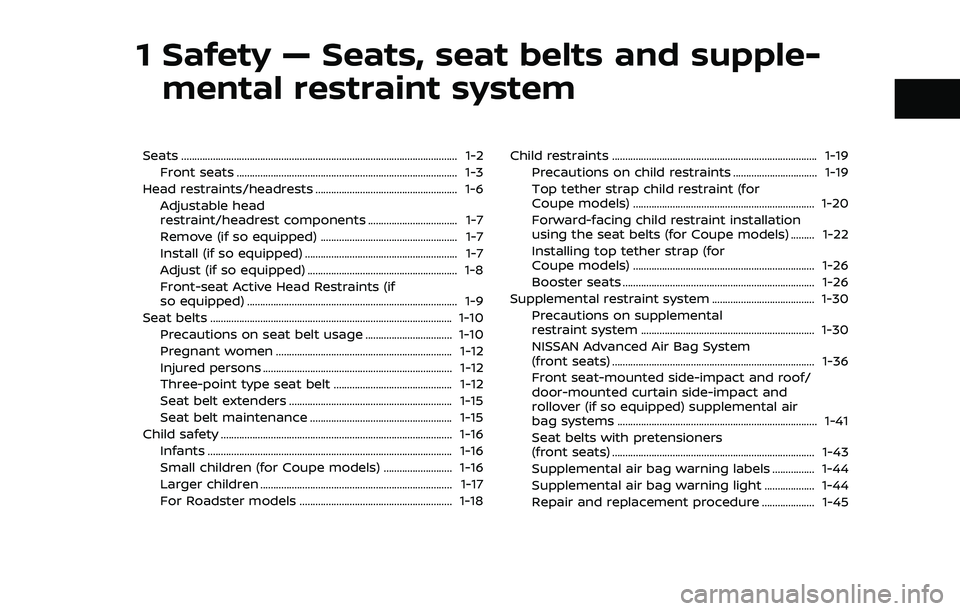

1 Safety — Seats, seat belts and supple-mental restraint system
Seats ........................................................................\
................................. 1-2
Front seats ........................................................................\
............ 1-3
Head restraints/headrests ...................................................... 1-6
Adjustable head
restraint/headrest components .................................. 1-7
Remove (if so equipped) .................................................... 1-7
Install (if so equipped) .......................................................... 1-7
Adjust (if so equipped) ......................................................... 1-8
Front-seat Active Head Restraints (if
so equipped) ........................................................................\
........ 1-9
Seat belts ........................................................................\
.................... 1-10 Precautions on seat belt usage ................................. 1-10
Pregnant women ................................................................... 1-12
Injured persons ........................................................................\
1-12
Three-point type seat belt ............................................. 1-12
Seat belt extenders .............................................................. 1-15
Seat belt maintenance ...................................................... 1-15
Child safety ........................................................................\
................ 1-16 Infants ........................................................................\
..................... 1-16
Small children (for Coupe models) .......................... 1-16
Larger children ........................................................................\
. 1-17
For Roadster models .......................................................... 1-18 Child restraints ........................................................................\
...... 1-19
Precautions on child restraints ................................ 1-19
Top tether strap child restraint (for
Coupe models) ..................................................................... 1-20
Forward-facing child restraint installation
using the seat belts (for Coupe models) ......... 1-22
Installing top tether strap (for
Coupe models) ..................................................................... 1-26
Booster seats ........................................................................\
. 1-26
Supplemental restraint system ....................................... 1-30
Precautions on supplemental
restraint system .................................................................. 1-30
NISSAN Advanced Air Bag System
(front seats) ........................................................................\
..... 1-36
Front seat-mounted side-impact and roof/
door-mounted curtain side-impact and
rollover (if so equipped) supplemental air
bag systems ........................................................................\
.... 1-41
Seat belts with pretensioners
(front seats) ........................................................................\
..... 1-43
Supplemental air bag warning labels ................ 1-44
Supplemental air bag warning light ................... 1-44
Repair and replacement procedure .................... 1-45

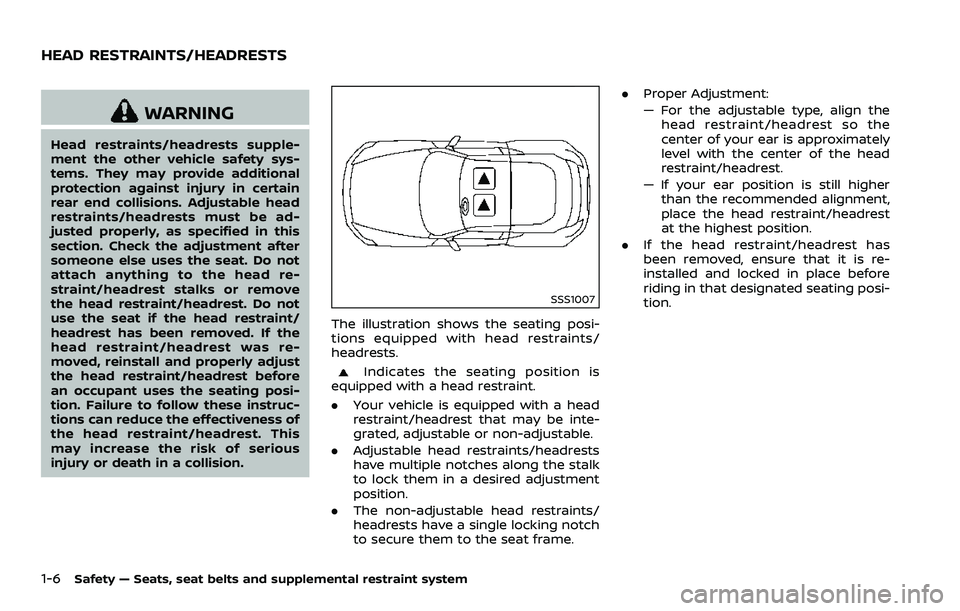

1-6Safety — Seats, seat belts and supplemental restraint system
WARNING
Head restraints/headrests supple-
ment the other vehicle safety sys-
tems. They may provide additional
protection against injury in certain
rear end collisions. Adjustable head
restraints/headrests must be ad-
justed properly, as specified in this
section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head re-
straint/headrest stalks or remove
the head restraint/headrest. Do not
use the seat if the head restraint/
headrest has been removed. If the
head restraint/headrest was re-
moved, reinstall and properly adjust
the head restraint/headrest before
an occupant uses the seating posi-
tion. Failure to follow these instruc-
tions can reduce the effectiveness of
the head restraint/headrest. This
may increase the risk of serious
injury or death in a collision.
SSS1007
The illustration shows the seating posi-
tions equipped with head restraints/
headrests.
Indicates the seating position is
equipped with a head restraint.
. Your vehicle is equipped with a head
restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
. Adjustable head restraints/headrests
have multiple notches along the stalk
to lock them in a desired adjustment
position.
. The non-adjustable head restraints/
headrests have a single locking notch
to secure them to the seat frame. .
Proper Adjustment:
— For the adjustable type, align the
head restraint/headrest so the
center of your ear is approximately
level with the center of the head
restraint/headrest.
— If your ear position is still higher than the recommended alignment,
place the head restraint/headrest
at the highest position.
. If the head restraint/headrest has
been removed, ensure that it is re-
installed and locked in place before
riding in that designated seating posi-
tion.
HEAD RESTRAINTS/HEADRESTS

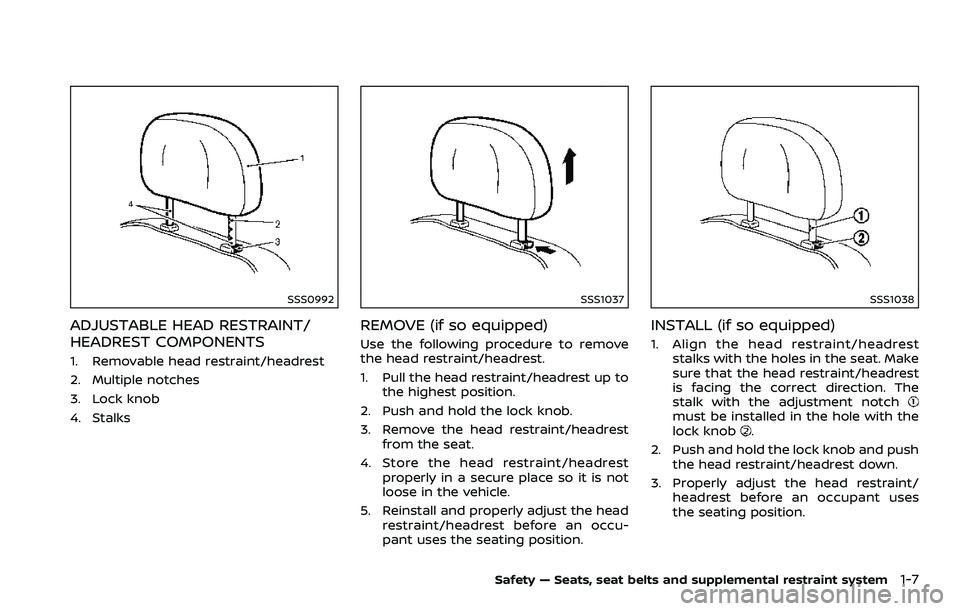

SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
SSS1037
REMOVE (if so equipped)
Use the following procedure to remove
the head restraint/headrest.
1. Pull the head restraint/headrest up tothe highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not
loose in the vehicle.
5. Reinstall and properly adjust the head restraint/headrest before an occu-
pant uses the seating position.
SSS1038
INSTALL (if so equipped)
1. Align the head restraint/headreststalks with the holes in the seat. Make
sure that the head restraint/headrest
is facing the correct direction. The
stalk with the adjustment notch
must be installed in the hole with the
lock knob.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses
the seating position.
Safety — Seats, seat belts and supplemental restraint system1-7

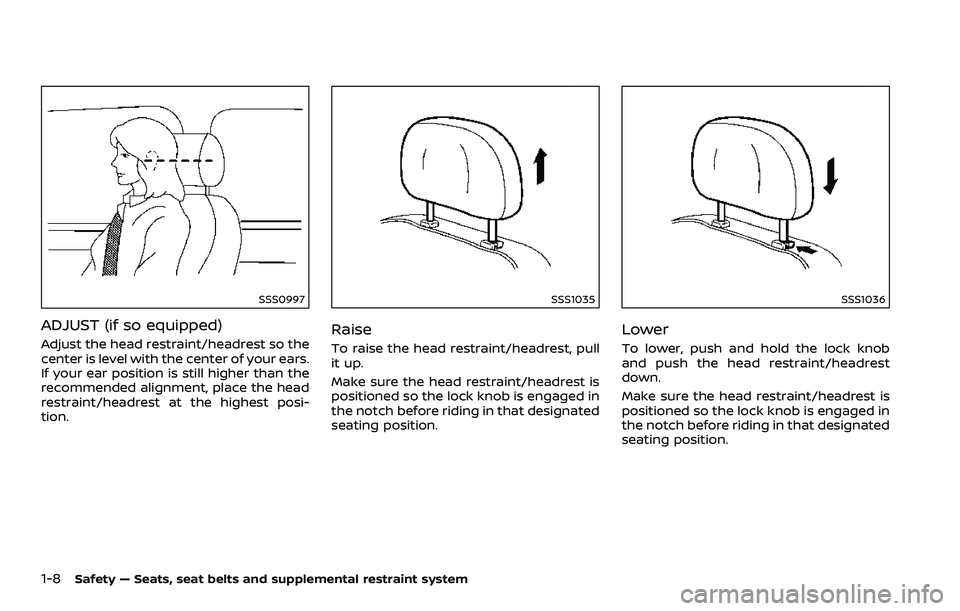

1-8Safety — Seats, seat belts and supplemental restraint system
SSS0997
ADJUST (if so equipped)
Adjust the head restraint/headrest so the
center is level with the center of your ears.
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest posi-
tion.
SSS1035
Raise
To raise the head restraint/headrest, pull
it up.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
SSS1036
Lower
To lower, push and hold the lock knob
and push the head restraint/headrest
down.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.

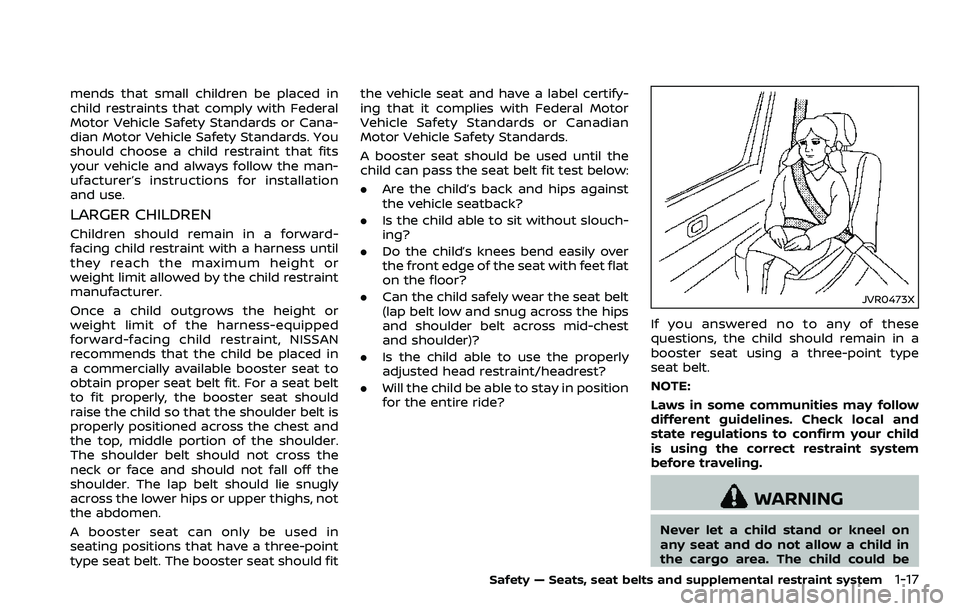

mends that small children be placed in
child restraints that comply with Federal
Motor Vehicle Safety Standards or Cana-
dian Motor Vehicle Safety Standards. You
should choose a child restraint that fits
your vehicle and always follow the man-
ufacturer’s instructions for installation
and use.
LARGER CHILDREN
Children should remain in a forward-
facing child restraint with a harness until
they reach the maximum height or
weight limit allowed by the child restraint
manufacturer.
Once a child outgrows the height or
weight limit of the harness-equipped
forward-facing child restraint, NISSAN
recommends that the child be placed in
a commercially available booster seat to
obtain proper seat belt fit. For a seat belt
to fit properly, the booster seat should
raise the child so that the shoulder belt is
properly positioned across the chest and
the top, middle portion of the shoulder.
The shoulder belt should not cross the
neck or face and should not fall off the
shoulder. The lap belt should lie snugly
across the lower hips or upper thighs, not
the abdomen.
A booster seat can only be used in
seating positions that have a three-point
type seat belt. The booster seat should fitthe vehicle seat and have a label certify-
ing that it complies with Federal Motor
Vehicle Safety Standards or Canadian
Motor Vehicle Safety Standards.
A booster seat should be used until the
child can pass the seat belt fit test below:
.
Are the child’s back and hips against
the vehicle seatback?
. Is the child able to sit without slouch-
ing?
. Do the child’s knees bend easily over
the front edge of the seat with feet flat
on the floor?
. Can the child safely wear the seat belt
(lap belt low and snug across the hips
and shoulder belt across mid-chest
and shoulder)?
. Is the child able to use the properly
adjusted head restraint/headrest?
. Will the child be able to stay in position
for the entire ride?
JVR0473X
If you answered no to any of these
questions, the child should remain in a
booster seat using a three-point type
seat belt.
NOTE:
Laws in some communities may follow
different guidelines. Check local and
state regulations to confirm your child
is using the correct restraint system
before traveling.
WARNING
Never let a child stand or kneel on
any seat and do not allow a child in
the cargo area. The child could be
Safety — Seats, seat belts and supplemental restraint system1-17

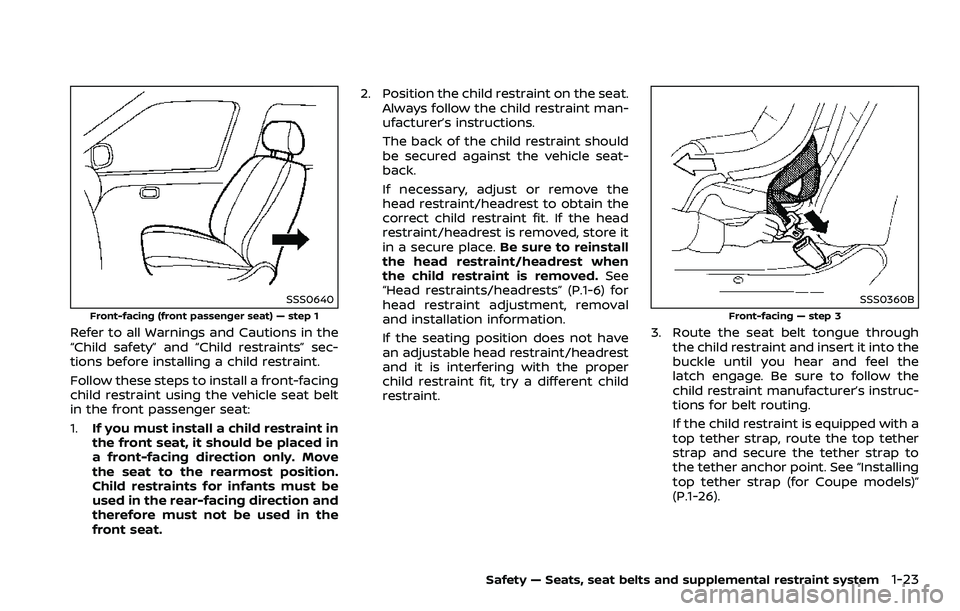

SSS0640
Front-facing (front passenger seat) — step 1
Refer to all Warnings and Cautions in the
“Child safety” and “Child restraints” sec-
tions before installing a child restraint.
Follow these steps to install a front-facing
child restraint using the vehicle seat belt
in the front passenger seat:
1.If you must install a child restraint in
the front seat, it should be placed in
a front-facing direction only. Move
the seat to the rearmost position.
Child restraints for infants must be
used in the rear-facing direction and
therefore must not be used in the
front seat. 2. Position the child restraint on the seat.
Always follow the child restraint man-
ufacturer’s instructions.
The back of the child restraint should
be secured against the vehicle seat-
back.
If necessary, adjust or remove the
head restraint/headrest to obtain the
correct child restraint fit. If the head
restraint/headrest is removed, store it
in a secure place. Be sure to reinstall
the head restraint/headrest when
the child restraint is removed. See
“Head restraints/headrests” (P.1-6) for
head restraint adjustment, removal
and installation information.
If the seating position does not have
an adjustable head restraint/headrest
and it is interfering with the proper
child restraint fit, try a different child
restraint.
SSS0360B
Front-facing — step 3
3. Route the seat belt tongue through
the child restraint and insert it into the
buckle until you hear and feel the
latch engage. Be sure to follow the
child restraint manufacturer’s instruc-
tions for belt routing.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to
the tether anchor point. See “Installing
top tether strap (for Coupe models)”
(P.1-26).
Safety — Seats, seat belts and supplemental restraint system1-23

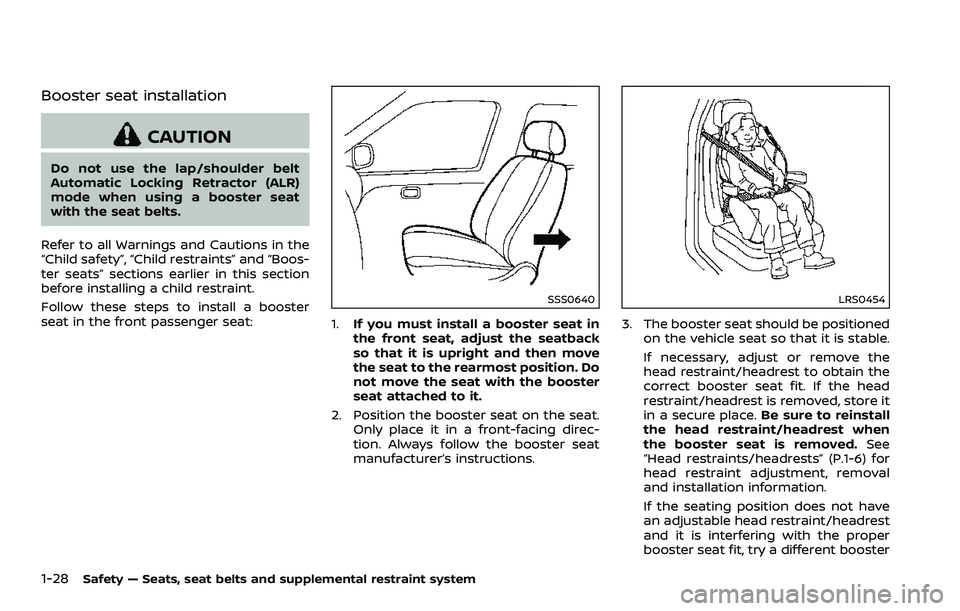

1-28Safety — Seats, seat belts and supplemental restraint system
Booster seat installation
CAUTION
Do not use the lap/shoulder belt
Automatic Locking Retractor (ALR)
mode when using a booster seat
with the seat belts.
Refer to all Warnings and Cautions in the
“Child safety”, “Child restraints” and “Boos-
ter seats” sections earlier in this section
before installing a child restraint.
Follow these steps to install a booster
seat in the front passenger seat:
SSS0640
1. If you must install a booster seat in
the front seat, adjust the seatback
so that it is upright and then move
the seat to the rearmost position. Do
not move the seat with the booster
seat attached to it.
2. Position the booster seat on the seat. Only place it in a front-facing direc-
tion. Always follow the booster seat
manufacturer’s instructions.
LRS0454
3. The booster seat should be positioned
on the vehicle seat so that it is stable.
If necessary, adjust or remove the
head restraint/headrest to obtain the
correct booster seat fit. If the head
restraint/headrest is removed, store it
in a secure place. Be sure to reinstall
the head restraint/headrest when
the booster seat is removed. See
“Head restraints/headrests” (P.1-6) for
head restraint adjustment, removal
and installation information.
If the seating position does not have
an adjustable head restraint/headrest
and it is interfering with the proper
booster seat fit, try a different booster

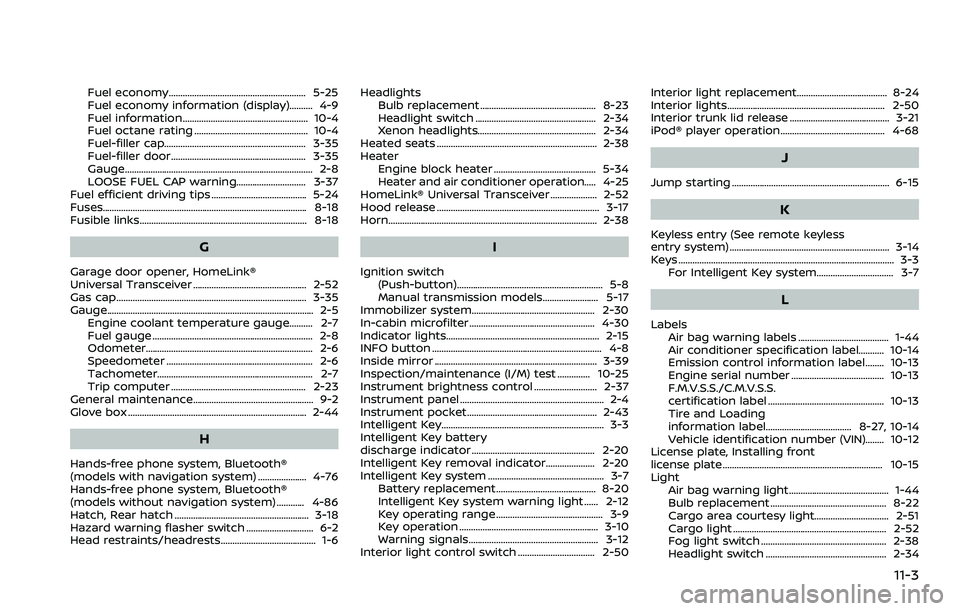

Fuel economy........................................................... 5-25
Fuel economy information (display).......... 4-9
Fuel information...................................................... 10-4
Fuel octane rating ................................................. 10-4
Fuel-filler cap............................................................. 3-35
Fuel-filler door.......................................................... 3-35
Gauge........................................................................\
......... 2-8
LOOSE FUEL CAP warning.............................. 3-37
Fuel efficient driving tips ......................................... 5-24
Fuses........................................................................\
................ 8-18
Fusible links........................................................................\
8-18
G
Garage door opener, HomeLink®
Universal Transceiver ................................................. 2-52
Gas cap........................................................................\
.......... 3-35
Gauge........................................................................\
................. 2-5 Engine coolant temperature gauge.......... 2-7
Fuel gauge ..................................................................... 2-8
Odometer........................................................................\
2-6
Speedometer ............................................................... 2-6
Tachometer................................................................... 2-7
Trip computer .......................................................... 2-23
General maintenance.................................................... 9-2
Glove box ........................................................................\
..... 2-44
H
Hands-free phone system, Bluetooth®
(models with navigation system) ..................... 4-76
Hands-free phone system, Bluetooth®
(models without navigation system) ............ 4-86
Hatch, Rear hatch .......................................................... 3-18
Hazard warning flasher switch ............................. 6-2
Head restraints/headrests......................................... 1-6 Headlights
Bulb replacement .................................................. 8-23
Headlight switch .................................................... 2-34
Xenon headlights................................................... 2-34
Heated seats ..................................................................... 2-38
Heater Engine block heater ............................................ 5-34
Heater and air conditioner operation..... 4-25
HomeLink® Universal Transceiver .................... 2-52
Hood release ...................................................................... 3-17
Horn........................................................................\
.................. 2-38
I
Ignition switch (Push-button)............................................................... 5-8
Manual transmission models........................ 5-17
Immobilizer system..................................................... 2-30
In-cabin microfilter ...................................................... 4-30
Indicator lights.................................................................. 2-15
INFO button ........................................................................\
. 4-8
Inside mirror ...................................................................... 3-39
Inspection/maintenance (I/M) test .............. 10-25
Instrument brightness control ........................... 2-37
Instrument panel .............................................................. 2-4
Instrument pocket........................................................ 2-43
Intelligent Key...................................................................... 3-3
Intelligent Key battery
discharge indicator ..................................................... 2-20
Intelligent Key removal indicator..................... 2-20
Intelligent Key system .................................................. 3-7 Battery replacement........................................... 8-20
Intelligent Key system warning light ...... 2-12
Key operating range .............................................. 3-9
Key operation ............................................................ 3-10
Warning signals........................................................ 3-12
Interior light control switch ................................. 2-50 Interior light replacement....................................... 8-24
Interior lights.................................................................... 2-50
Interior trunk lid release ........................................... 3-21
iPod® player operation............................................. 4-68
J
Jump starting .................................................................... 6-15
K
Keyless entry (See remote keyless
entry system) ..................................................................... 3-14
Keys ........................................................................\
..................... 3-3
For Intelligent Key system................................. 3-7
L
LabelsAir bag warning labels ....................................... 1-44
Air conditioner specification label........... 10-14
Emission control information label........ 10-13
Engine serial number ........................................ 10-13
F.M.V.S.S./C.M.V.S.S.
certification label .................................................. 10-13
Tire and Loading
information label..................................... 8-27, 10-14
Vehicle identification number (VIN)........ 10-12
License plate, Installing front
license plate..................................................................... 10-15
Light
Air bag warning light........................................... 1-44
Bulb replacement .................................................. 8-22
Cargo area courtesy light................................ 2-51
Cargo light .................................................................. 2-52
Fog light switch ...................................................... 2-38
Headlight switch .................................................... 2-34
11-3
